SPECIFICATIONS

Brand Name: YUHSIU

Built-in Battery: No

Certification: NONE

Communication: WireLess

Diaphragm: S-Mall

High-concerned chemical: none

Origin: Mainland China

Package: Yes

Polar Patterns: Cardioid

Set Type: Multi-Microphone Kits

Style: Handheld Microphone

Transducer: Dynamic Microphone

Use: Stage Performance Wireless Microphone

Product Name:

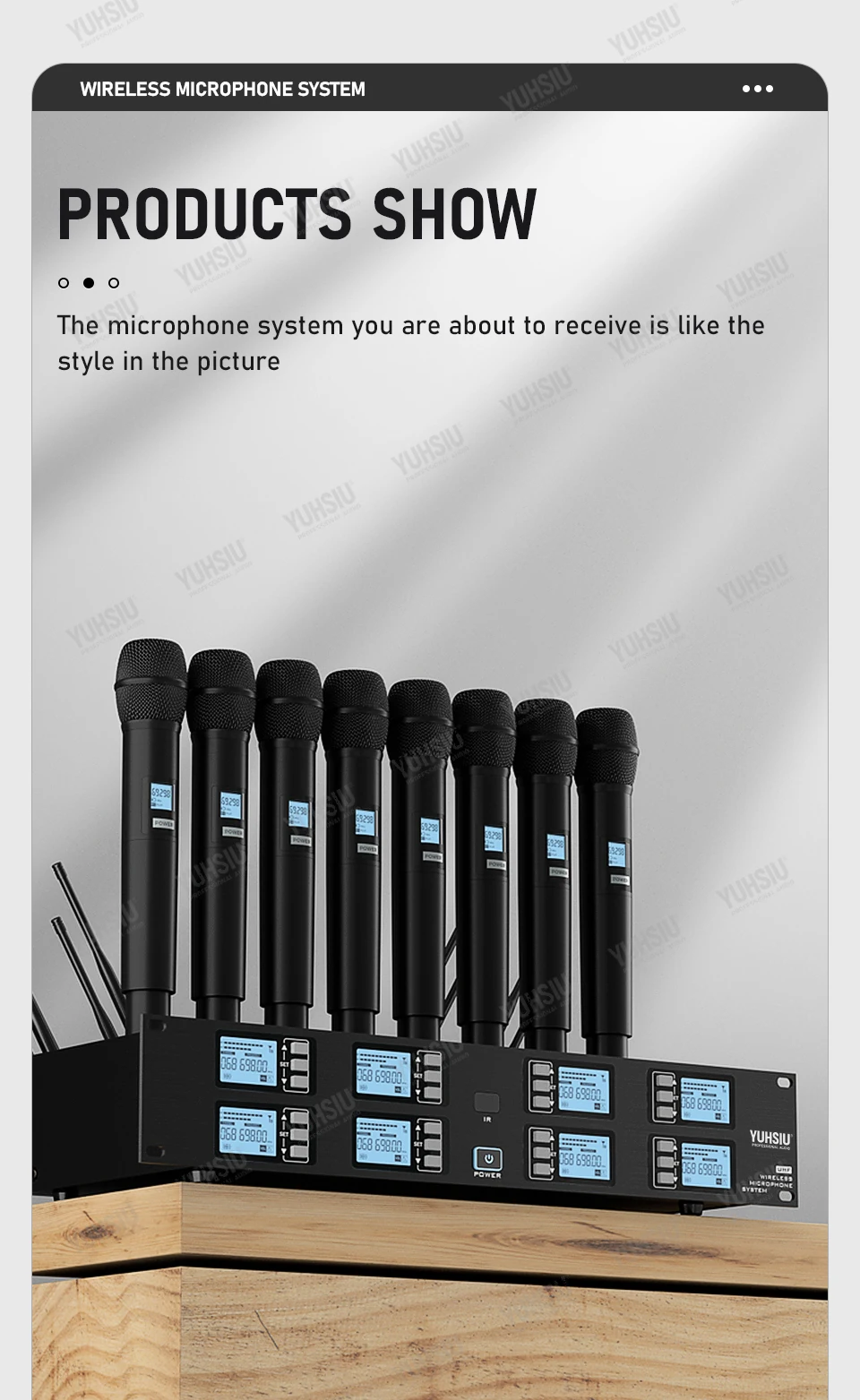

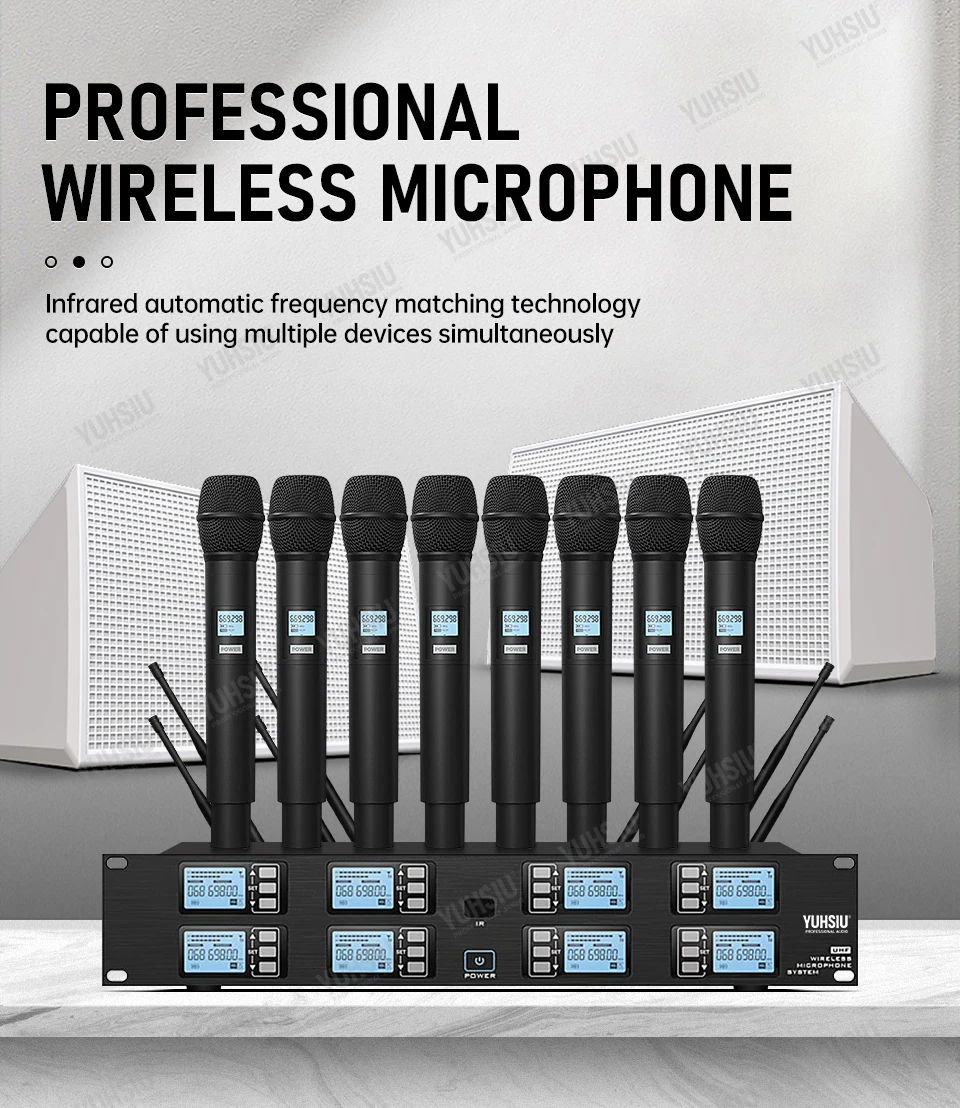

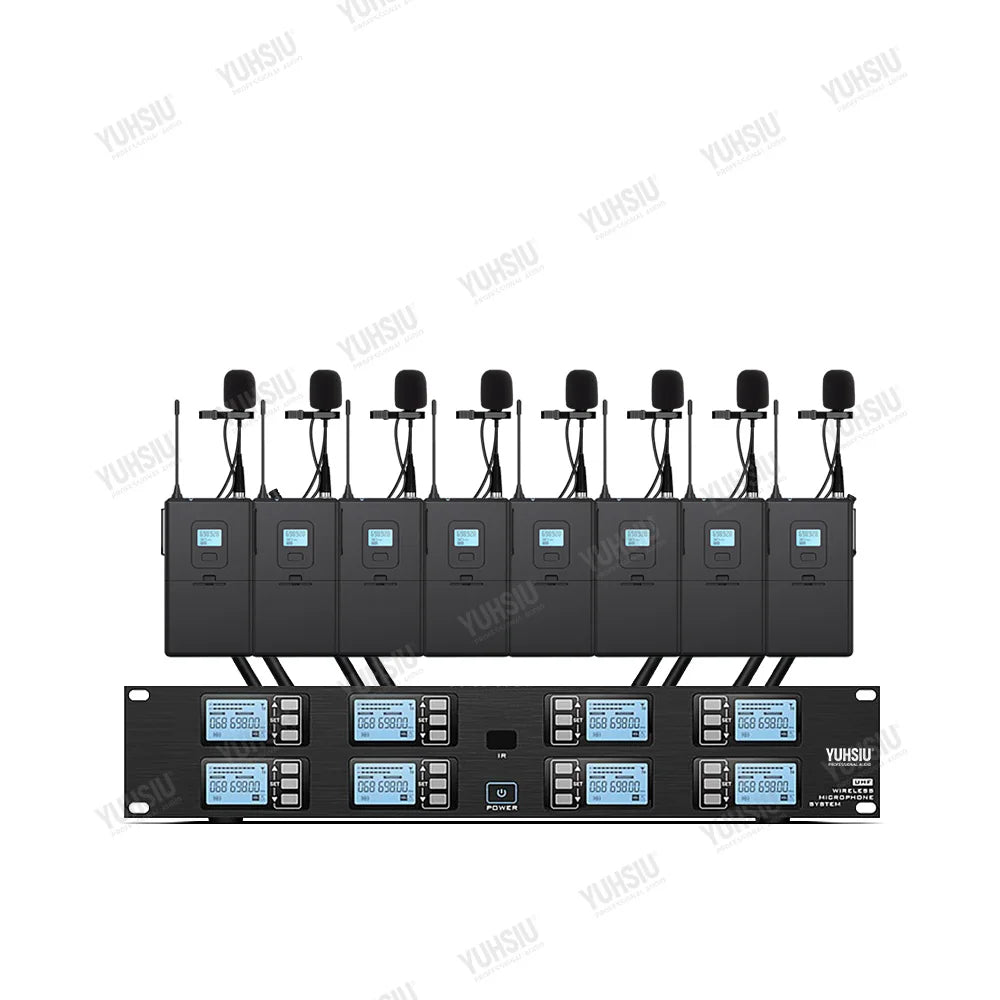

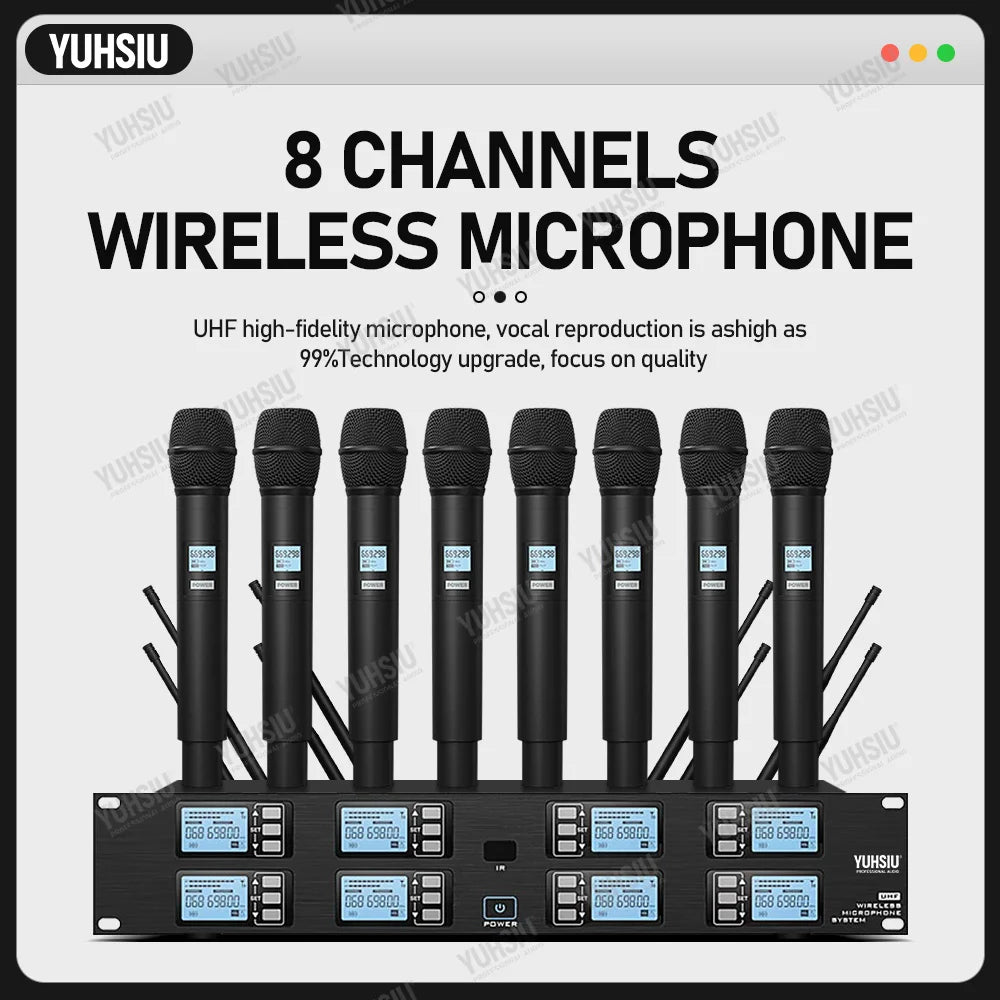

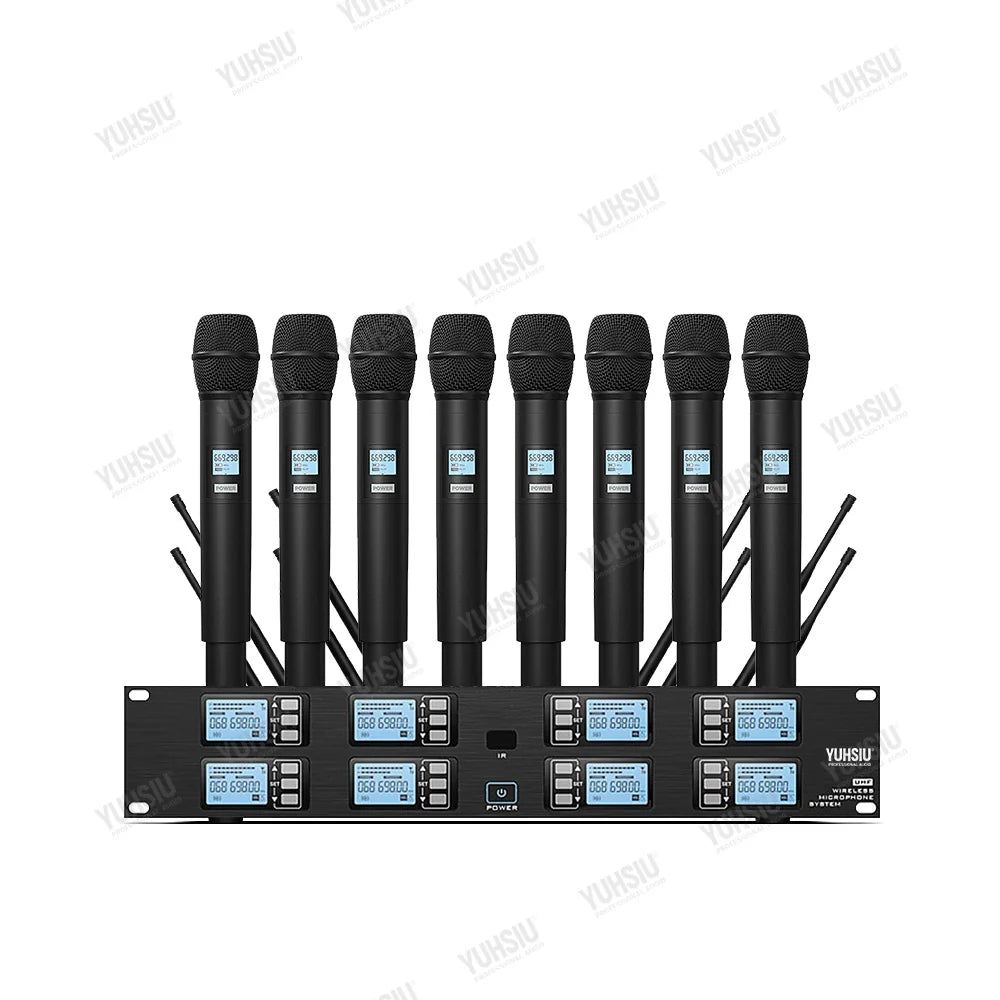

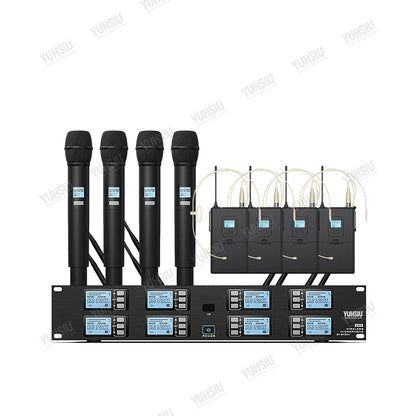

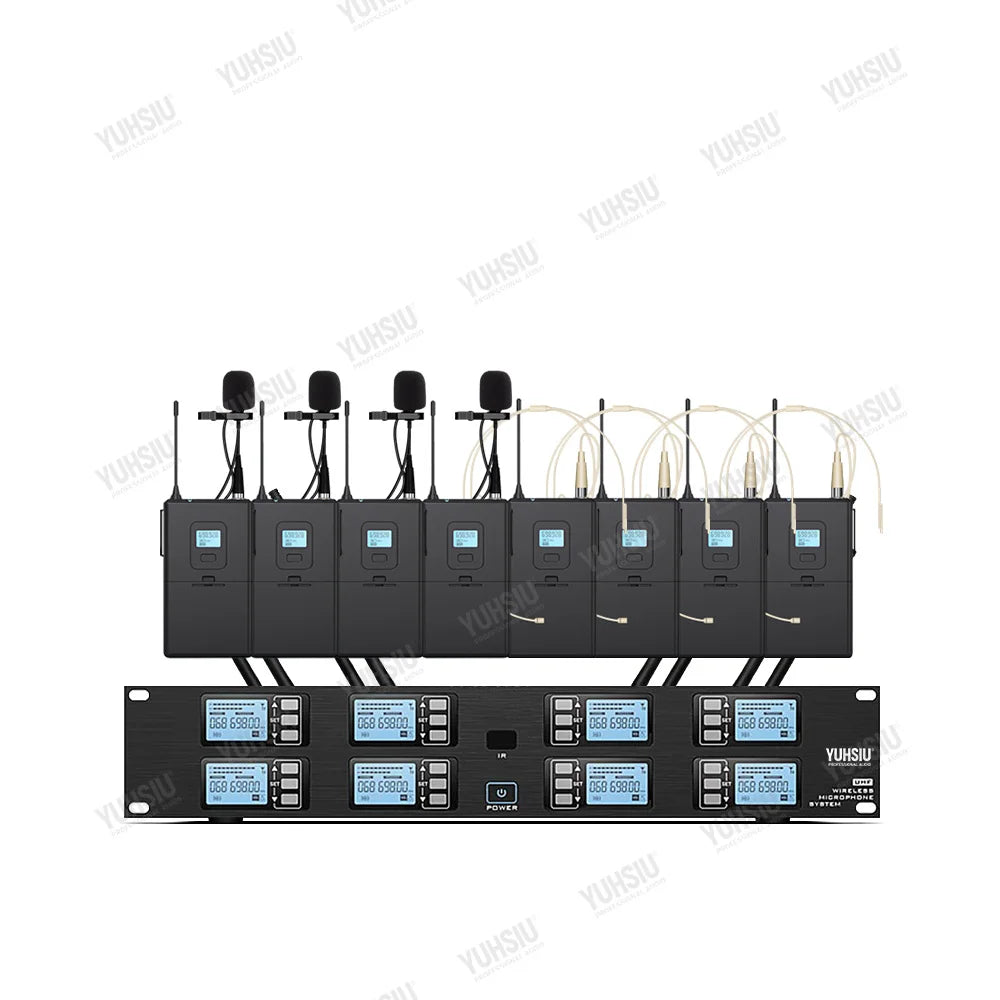

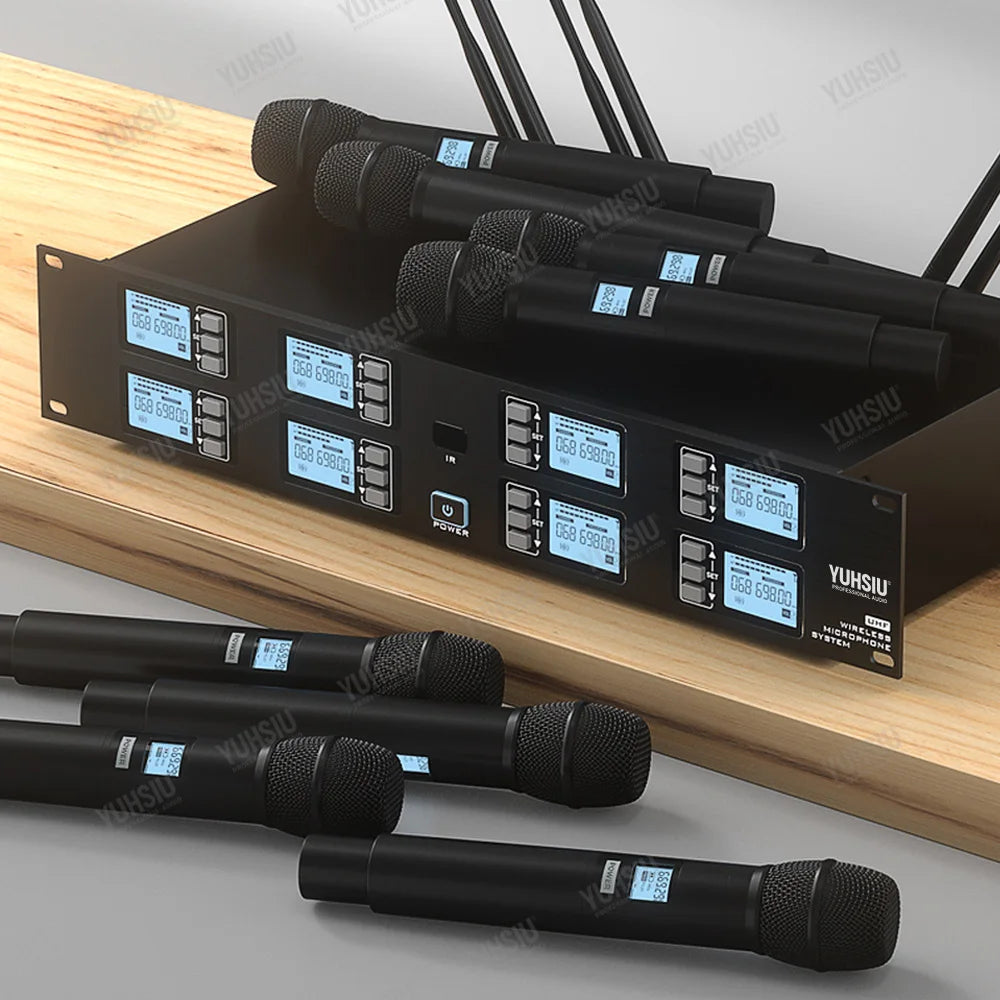

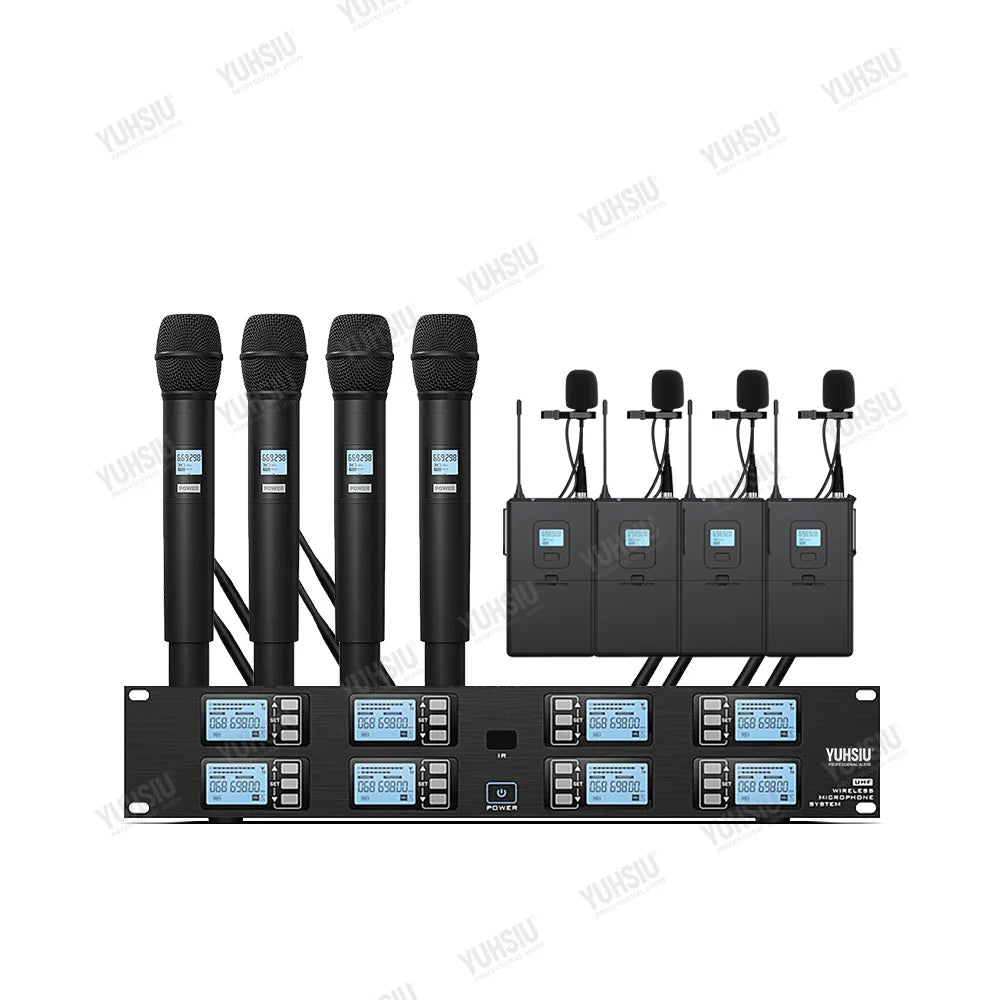

Specifications: 8 Channels UHF wireless microphones

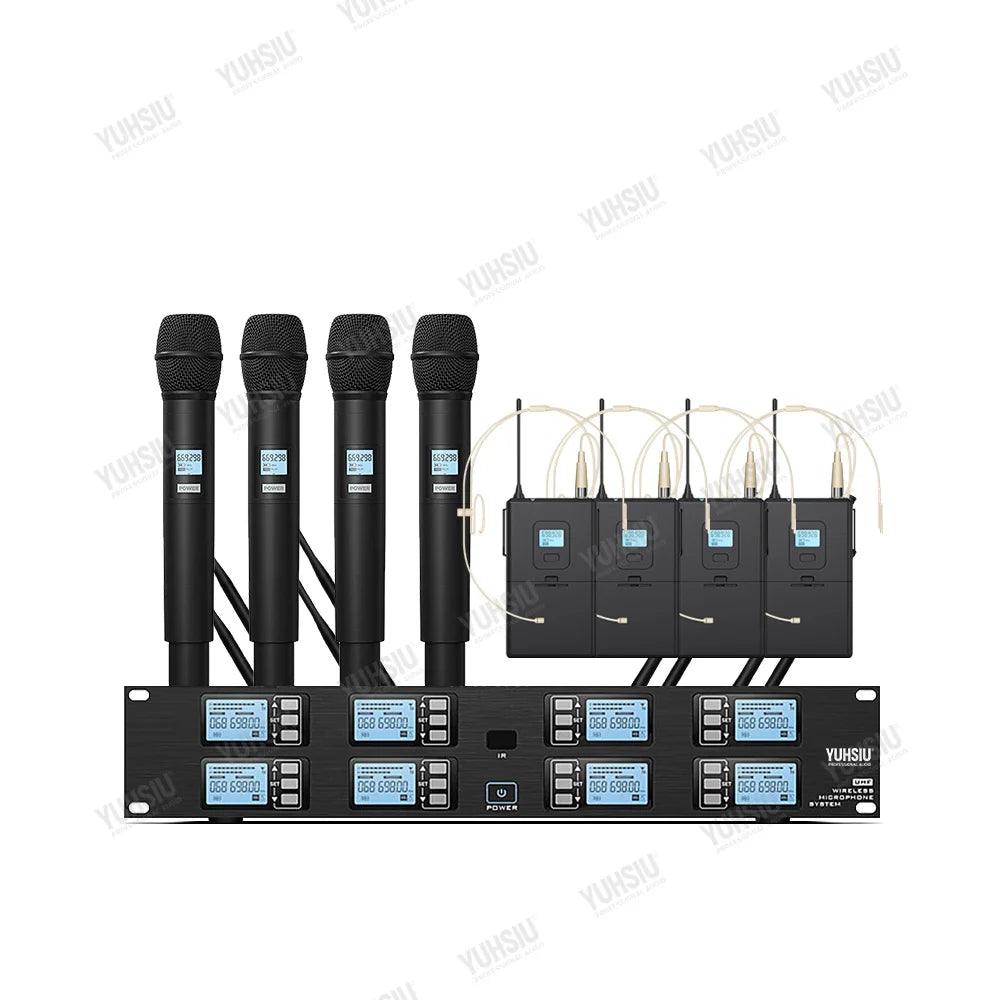

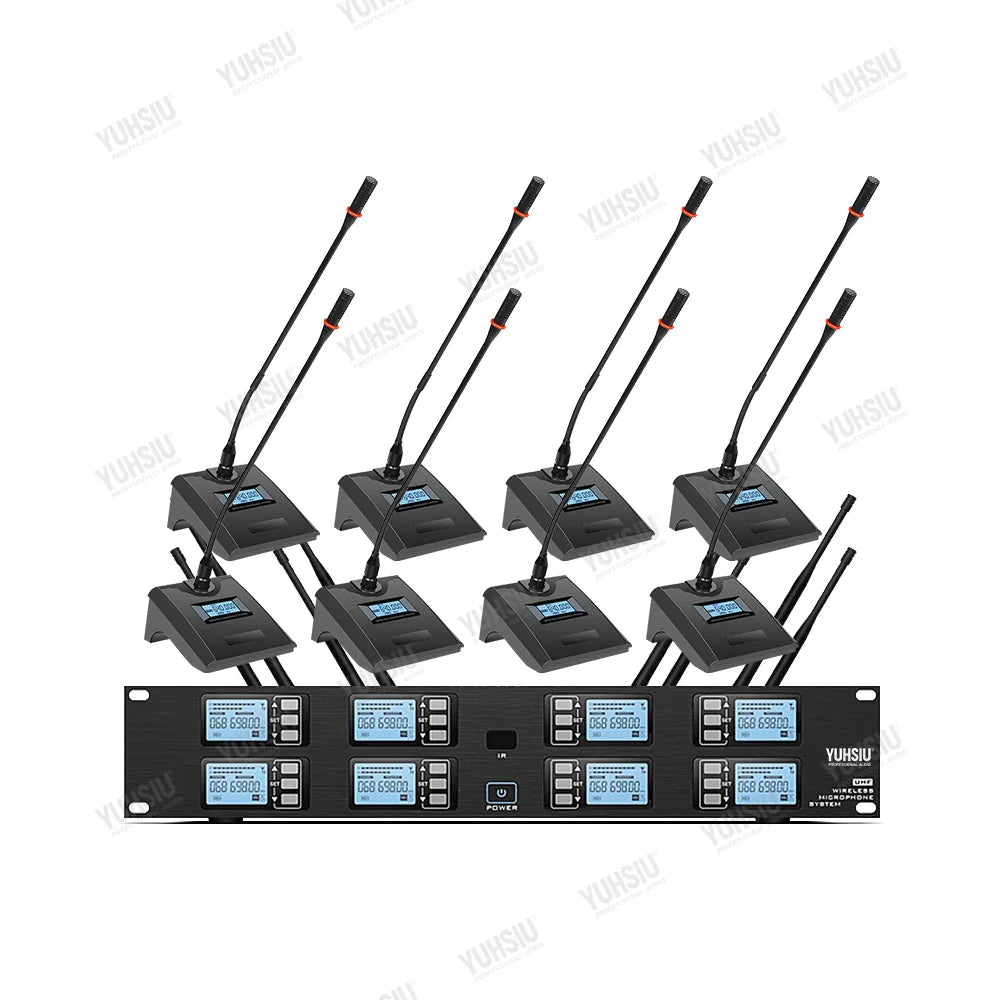

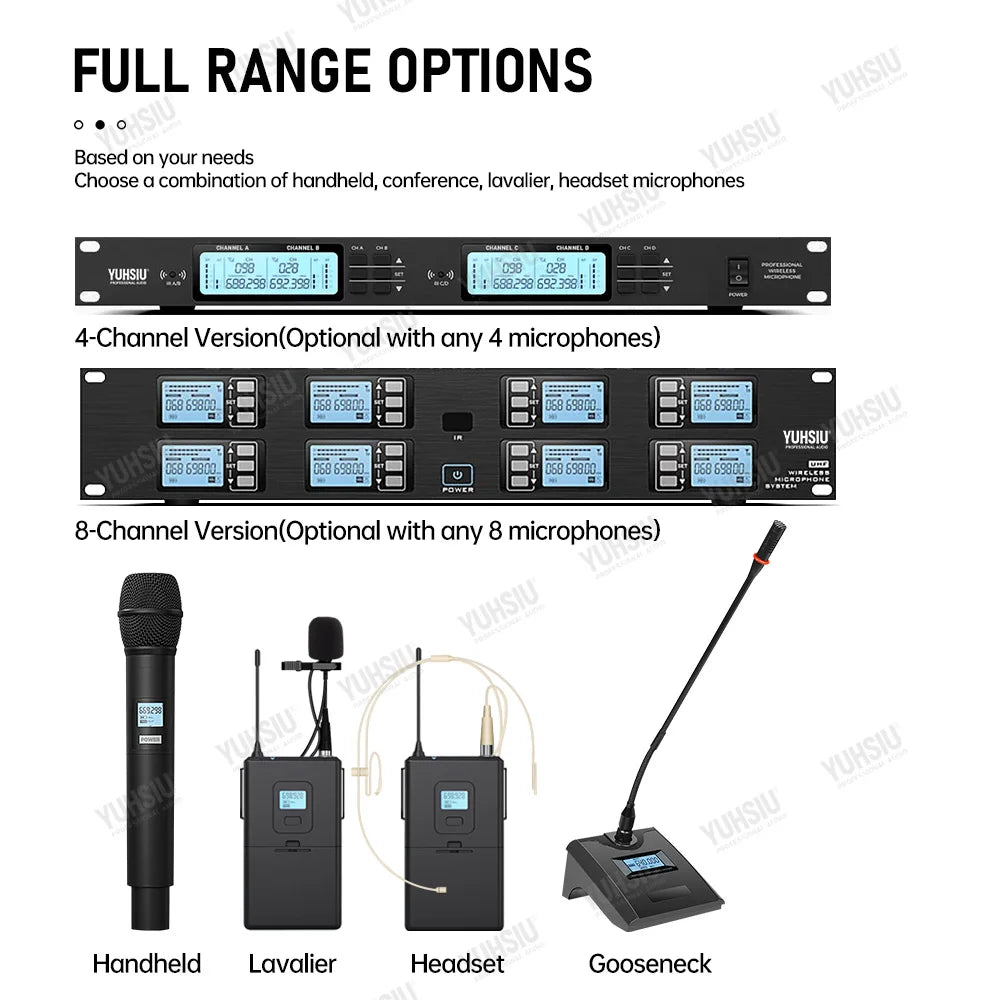

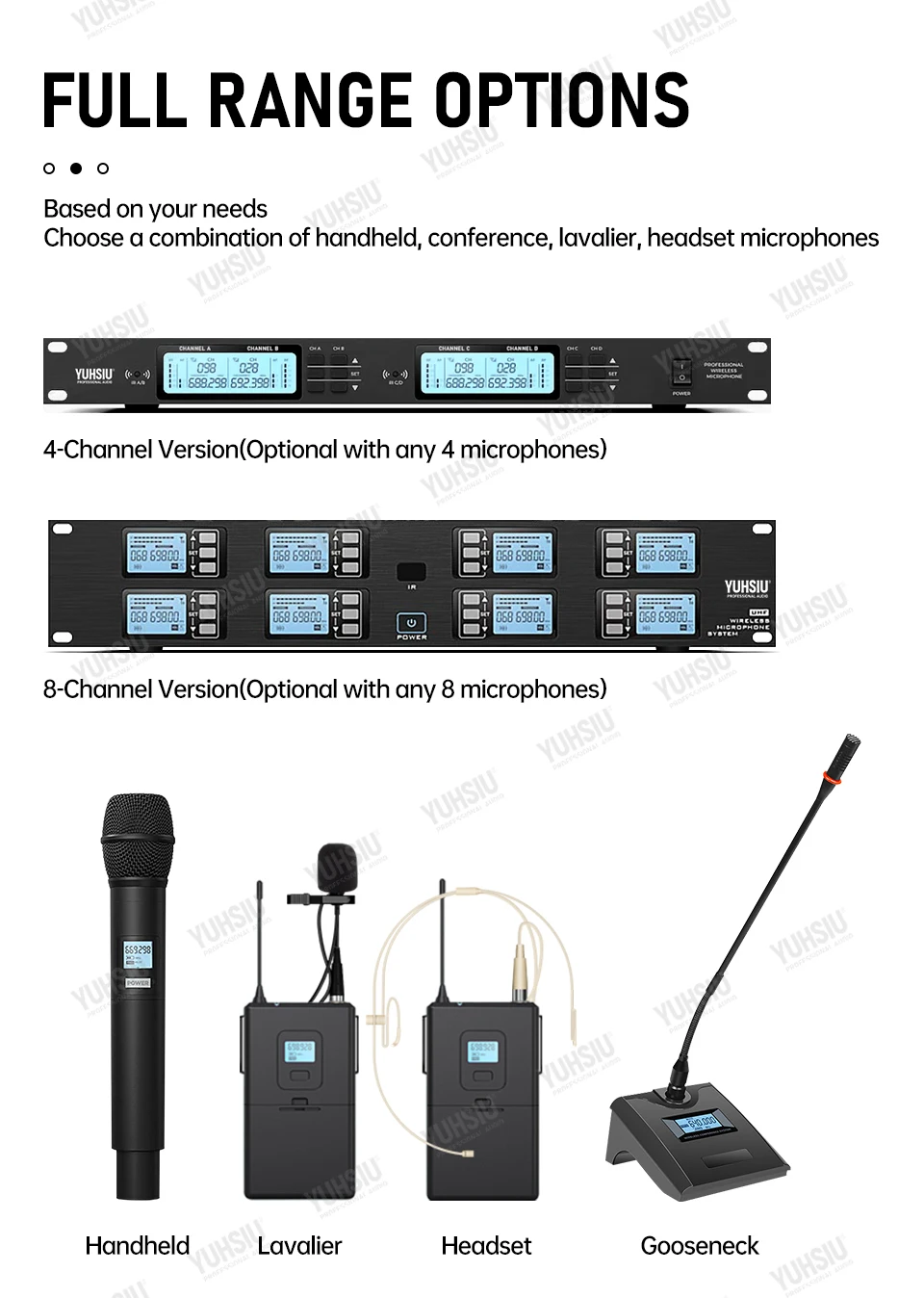

Accessories: conference, hand-held, lavalier, headset

Product remarks: high cost performance, stable performance

Category: Wireless Conference Microphone Series

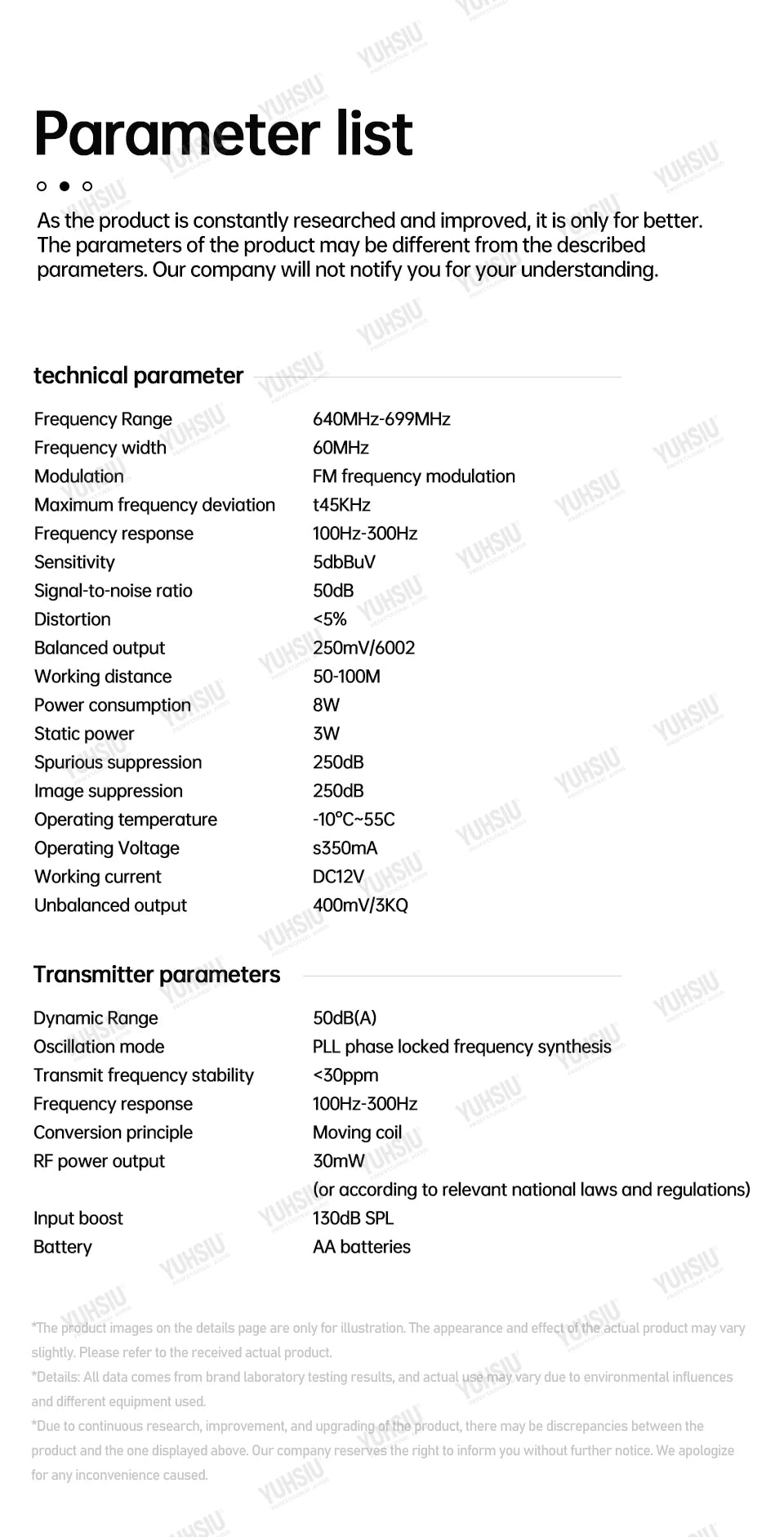

Technical Parameters

Comprehensive characteristics

Carrier frequency range: 610MHz-690MHz (depending on applicable country range)

Modulation method: FM frequency modulation

Maximum frequency deviation: ± 45KHz

Frequency response: 50Hz-15KHz

Signal to noise ratio (S / N):> 105dB (A)

Distortion: (1KHz): <0.3%

Working temperature: -10 ℃ ~ 55 ℃

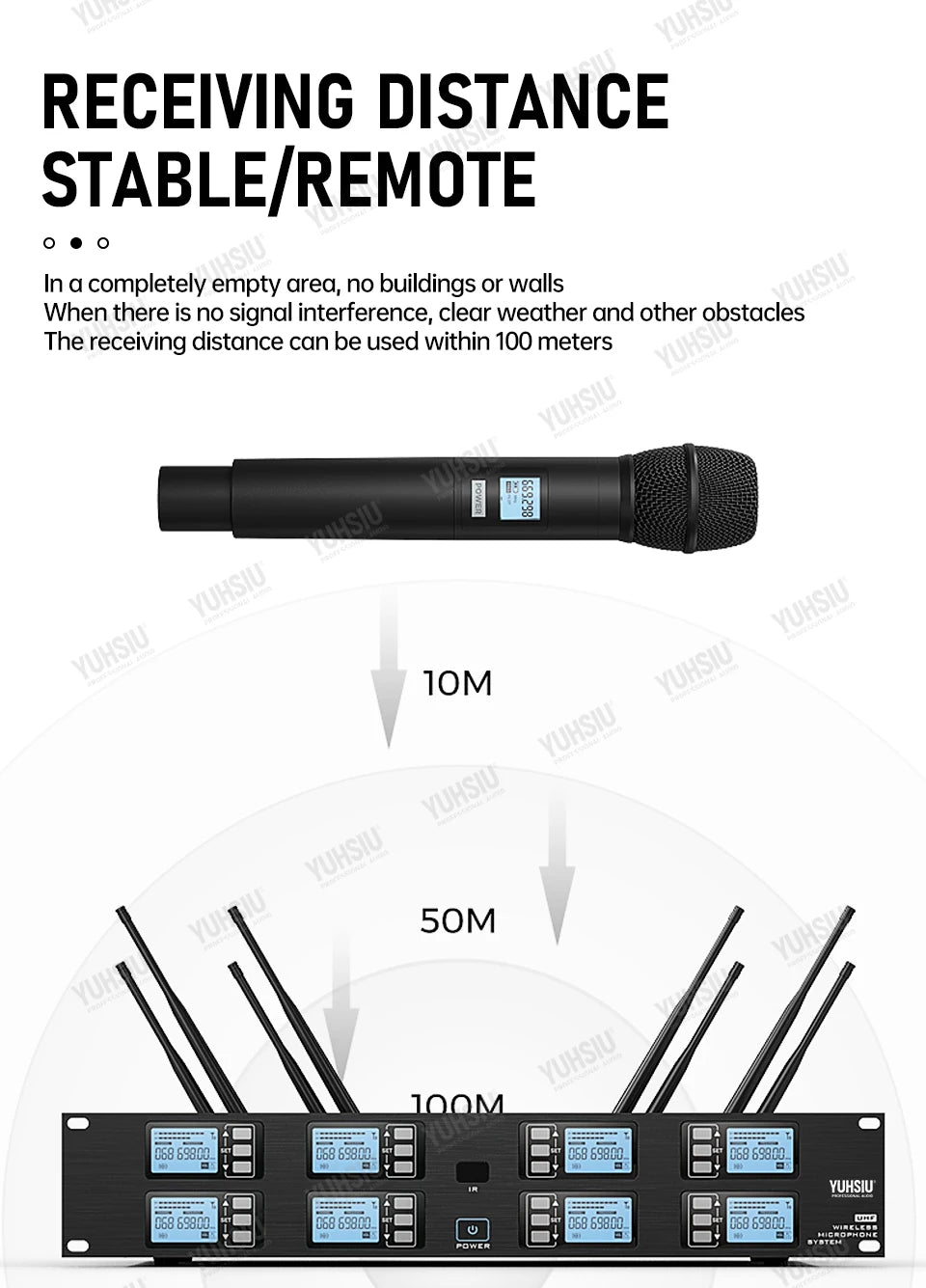

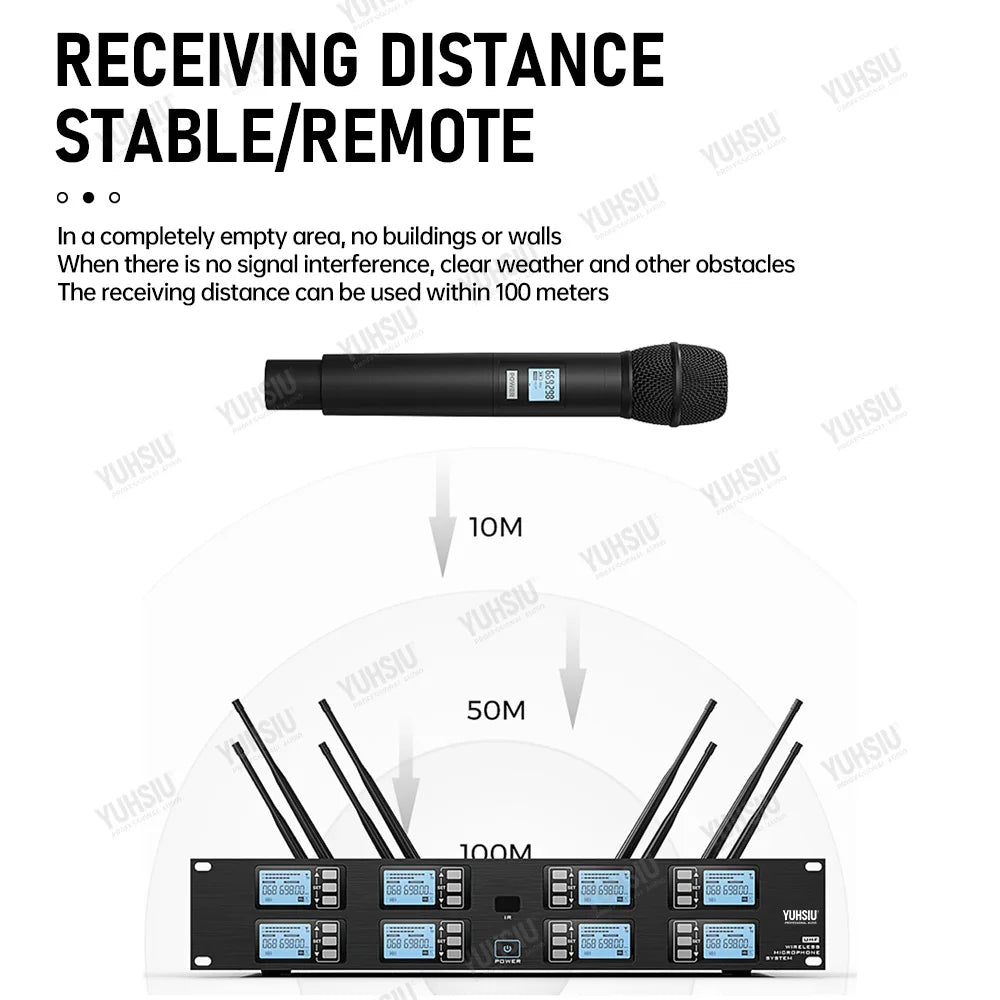

Working distance: 100 meters (under ideal environment)

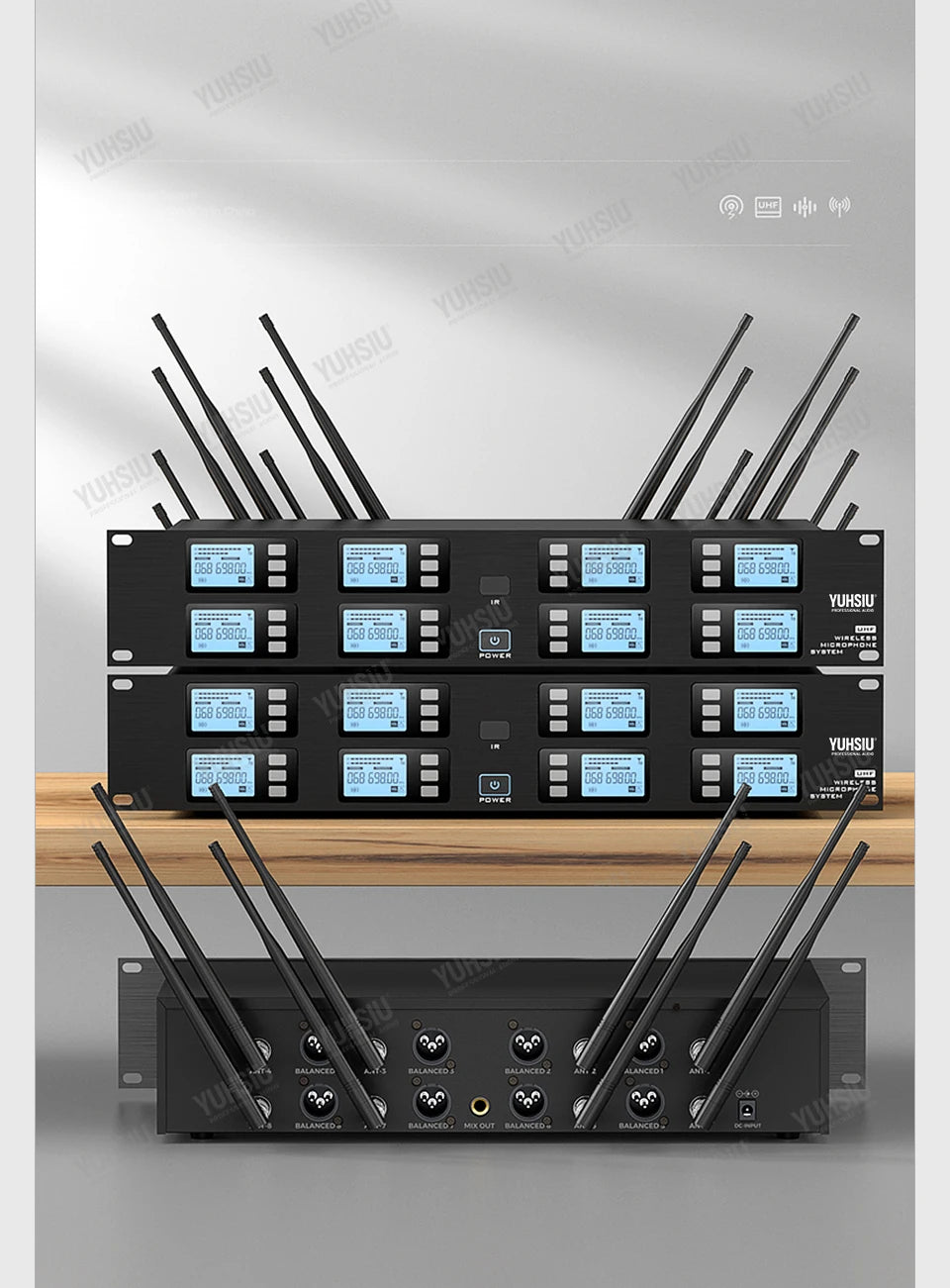

Receiver：

Oscillation mode: PLL (Digital Frequency Synthesizer)

Spurious suppression: ≥80dB

Image suppression: ≥80dB

Sensitivity: 5dBuV

Audio output level: balanced output (XLR output jack): 250mV / 600Ω

Unbalanced output (1/4 ”output jack): 400mV / 3KΩ

Working voltage: DC 13.5-16V

Working current: ≤800mA

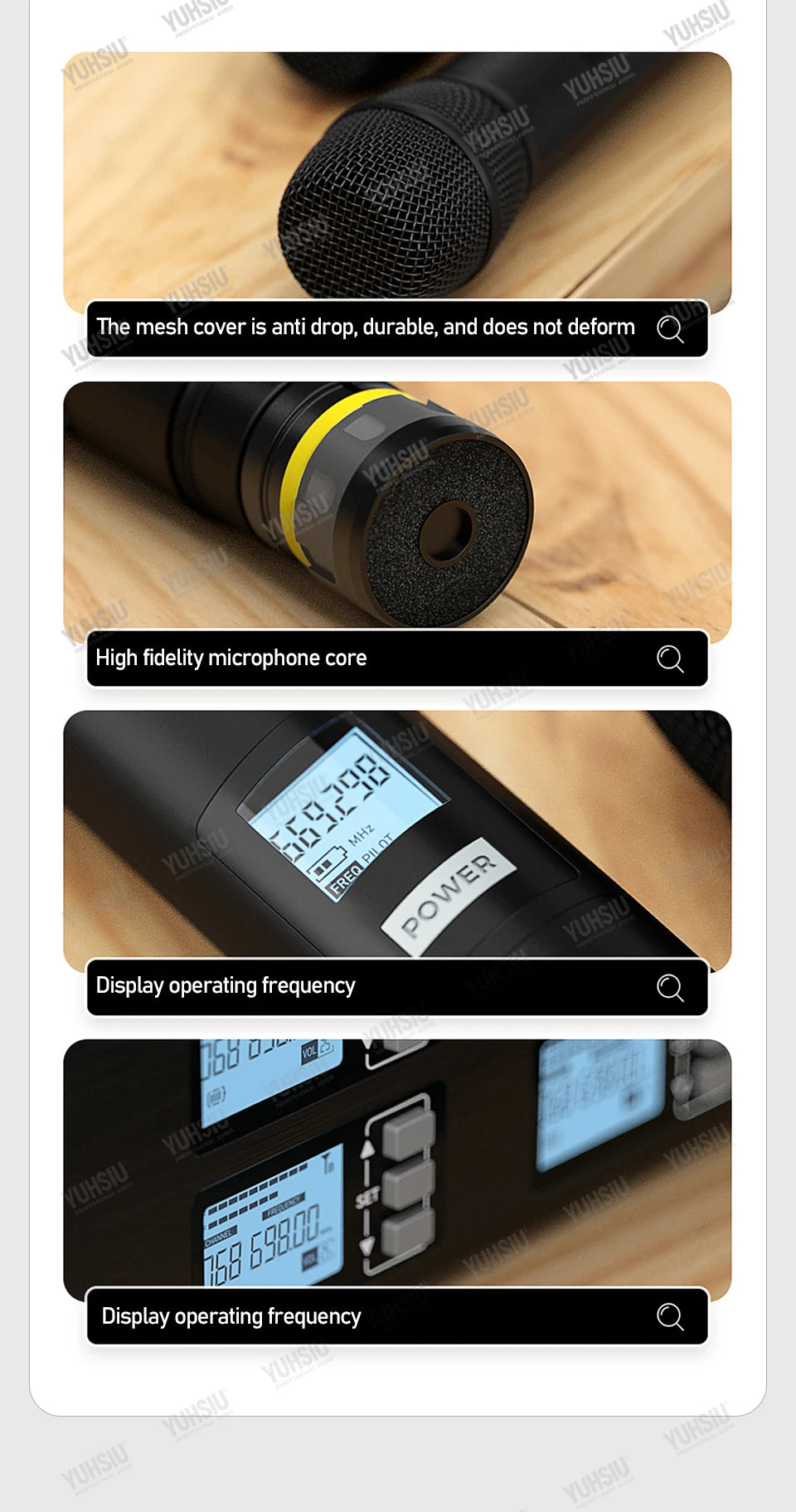

Hand-held Transmitter:

RF power output: 30mW maximum (depending on applicable national regulations)

Oscillation mode: PLL (Digital Frequency Synthesizer)

Transmitting frequency stability: <30ppm

Dynamic range: ≥100dB (A)

Frequency response: 50Hz-15KHz

Maximum input sound pressure: 130dB SPL

Microphone pickup head: moving coil

Power supply: 2 (1.5V) AA type alkaline batteries

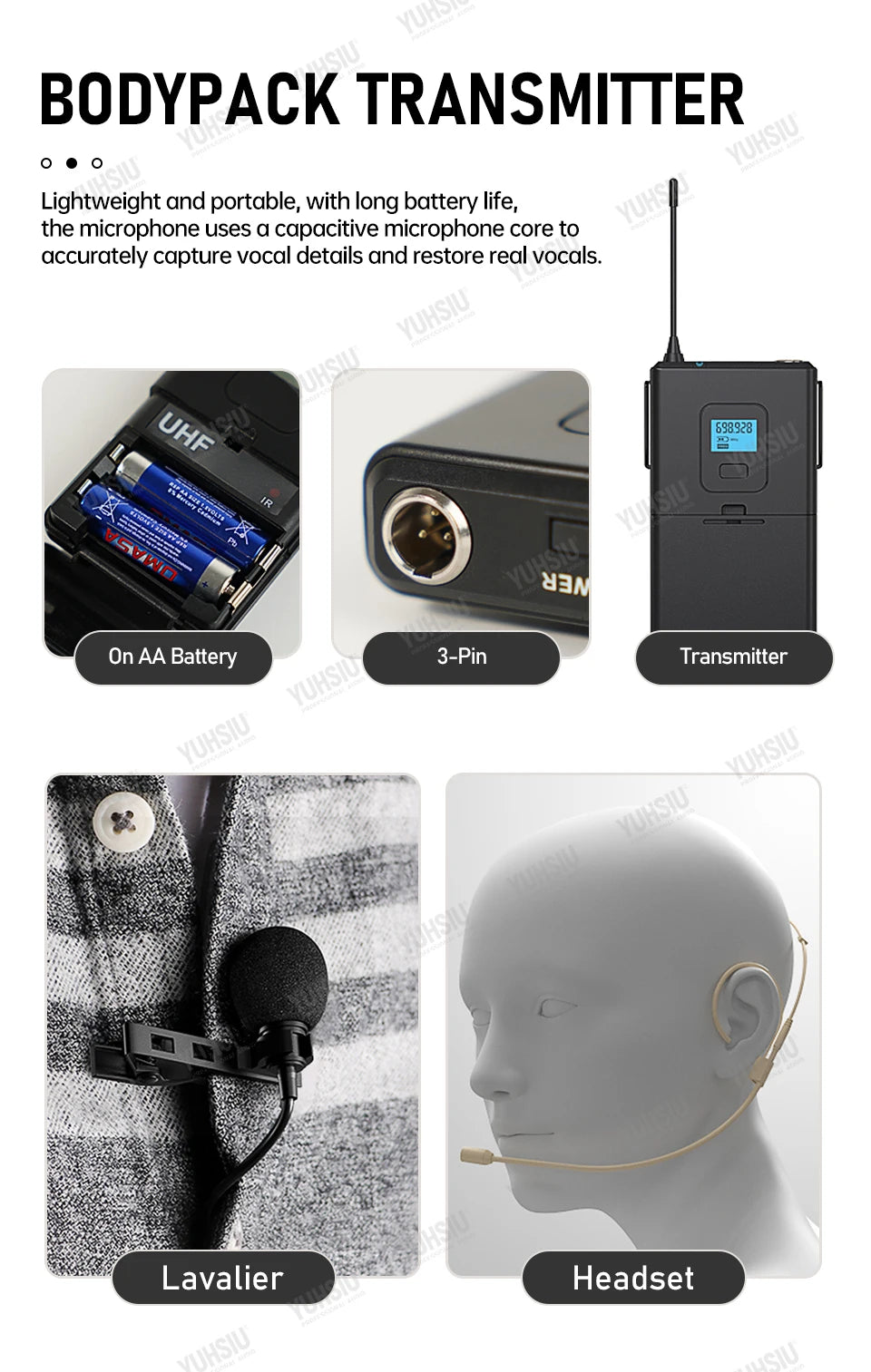

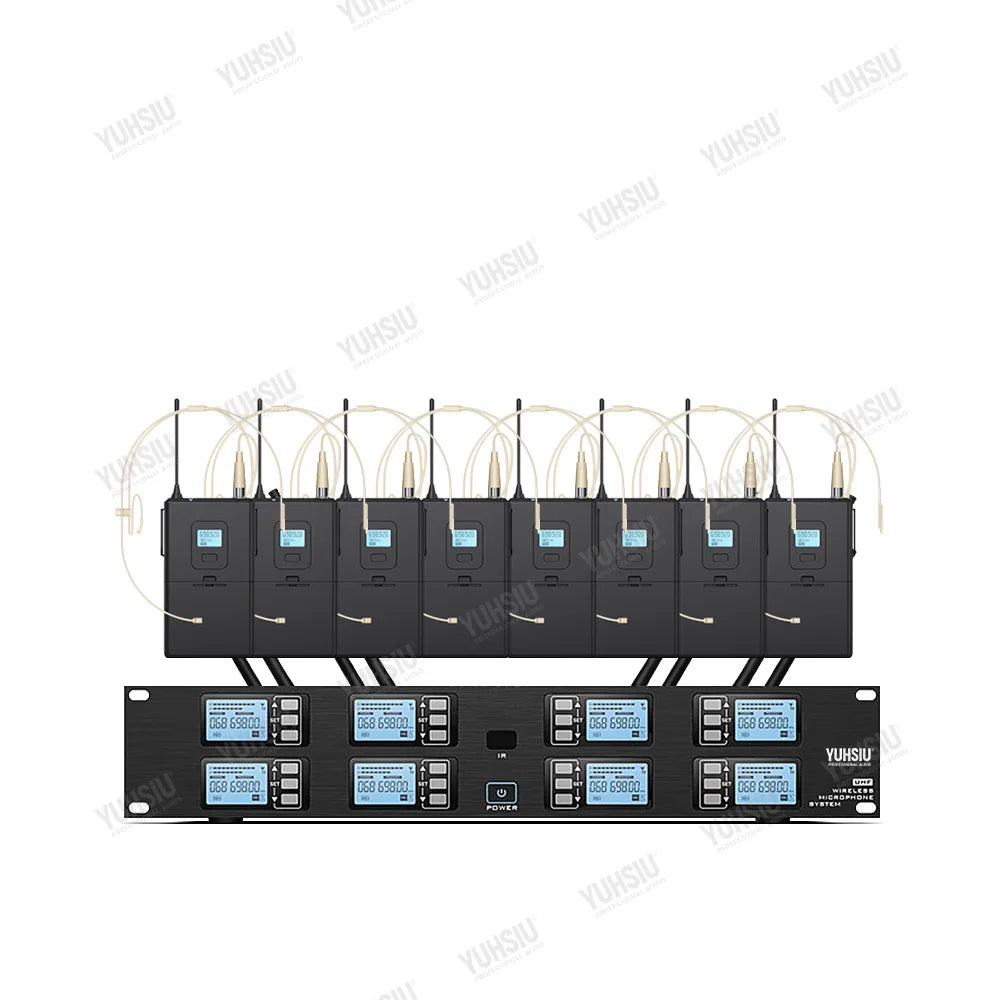

Conference Bodypack Transmitter:

RF power output: Max 30mW (depending on applicable country range)

Oscillation mode: PLL (Digital Frequency Synthesizer)

Transmitting frequency stability: <30ppm

Dynamic range: ≥100dB (A)

Frequency response: 50Hz-15KHz

Maximum input sound pressure: 130dB SPL

Microphone pickup head: condenser

Power supply: 2 (1.5V) AA type alkaline batterie
