SPECIFICATIONS

Body material: Ductile cast iron

Brand: Yoshitake

Connection: Flange Ends

Keyword: Strainer

Standard: Standard 80 mesh

Temperature: 220°

Type: SY-40

Working pressure: <1.0Mpa

application: General

brand name: Yoshitake

customized support: OEM

media: Water

model number: SY-40

place of origin: Japan

port size: DN15-DN300

power: Hydraulic

structure: Y type

temperature of media: Medium Temperature

type: Strainer

warranty: 1 years

Product Overview

Details Images

Products Description

Features

1. High-flow-rate marine type with the largestpossible filtration area in view of decrease inflow rate caused by clogging.

2. 65A or more (in nominal size) is designed ascompact as possible and reduced in weight,making plumbing easy.

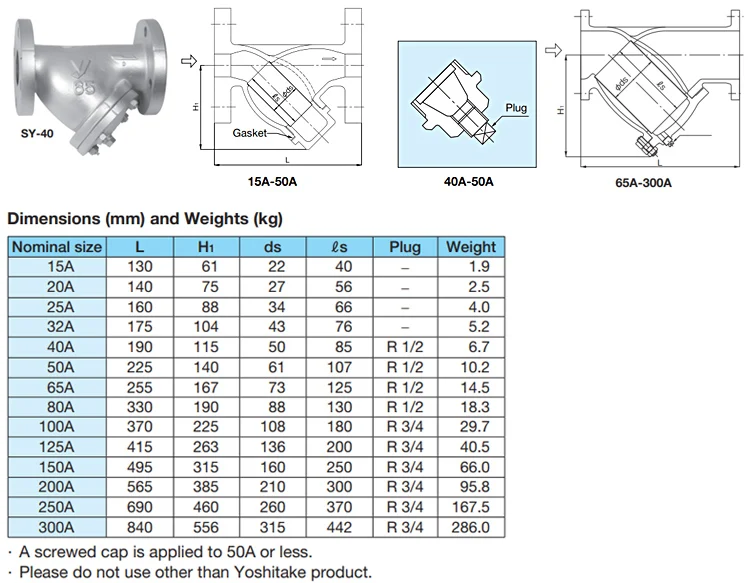

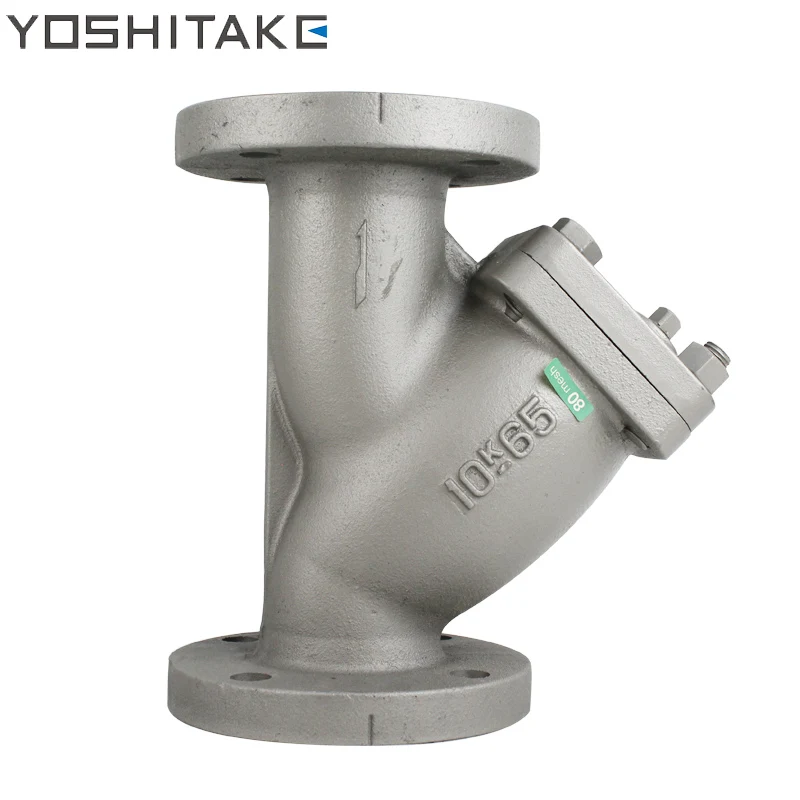

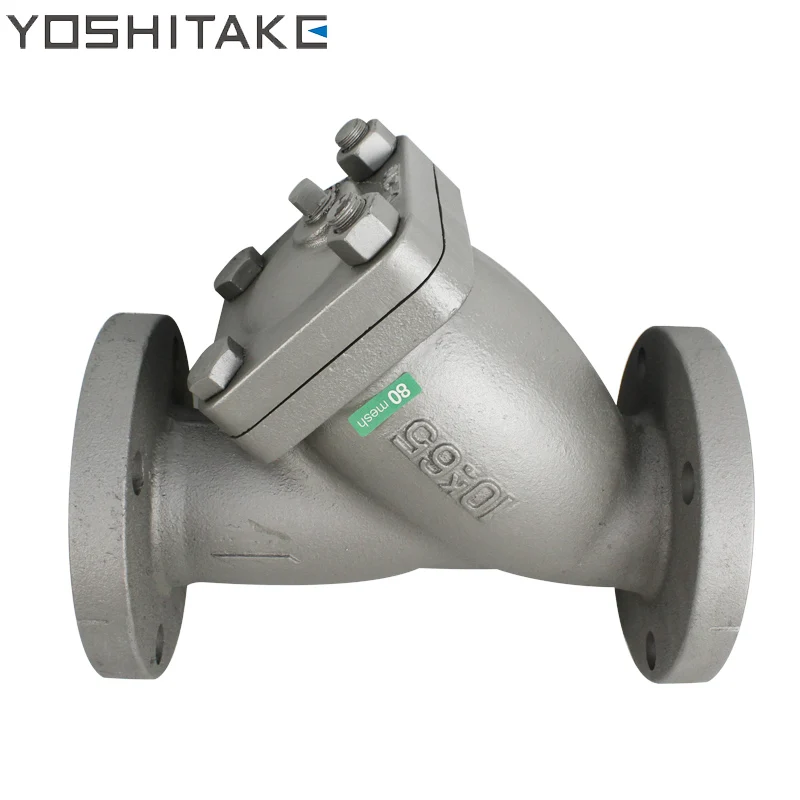

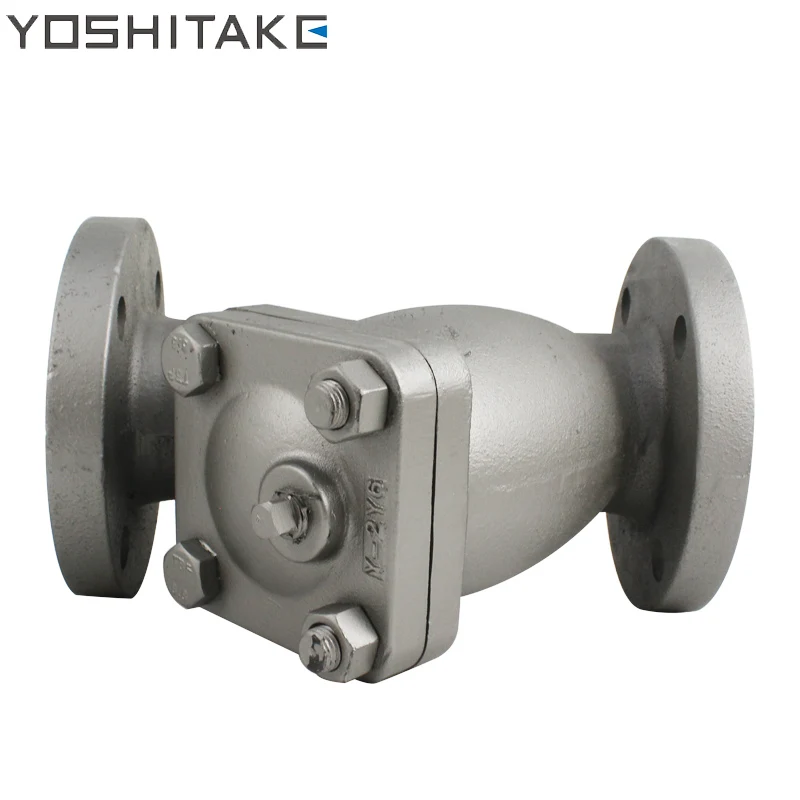

SY-40
1	Application	Steam, Air, Cold and hot water, Oil,other non-dangerous fluids
2	Maximum pressure	1.0 MPa
5	Maximum temperature	220°C
6	Material Body	Ductile cast iron
7	Material Screen	Stainless steel
8	Screen Perforation	φ 2.5-7.21 holes/cm2
9	Screen Mesh	Standard 80 mesh
10	Connection	JIS 10K FF flanged
