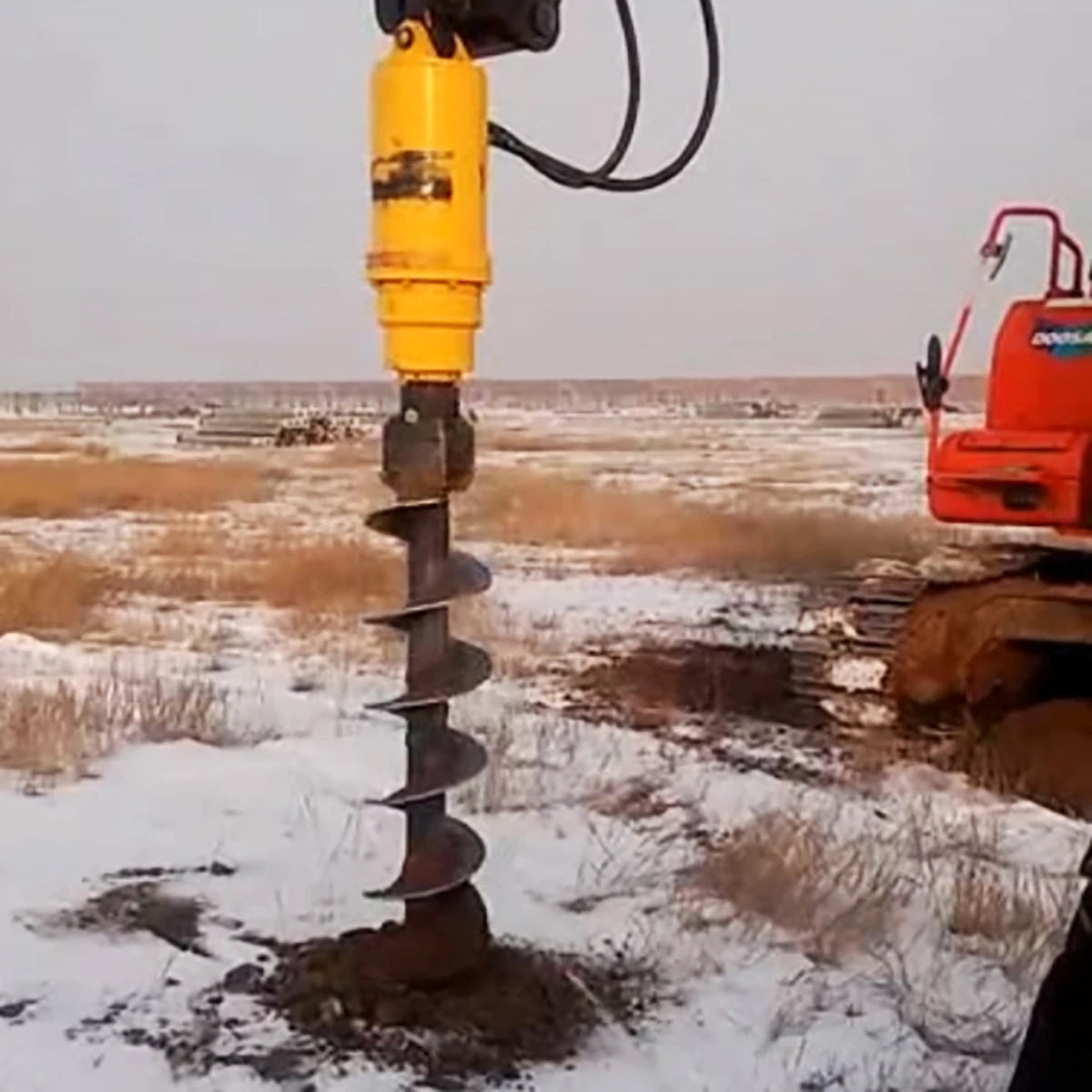

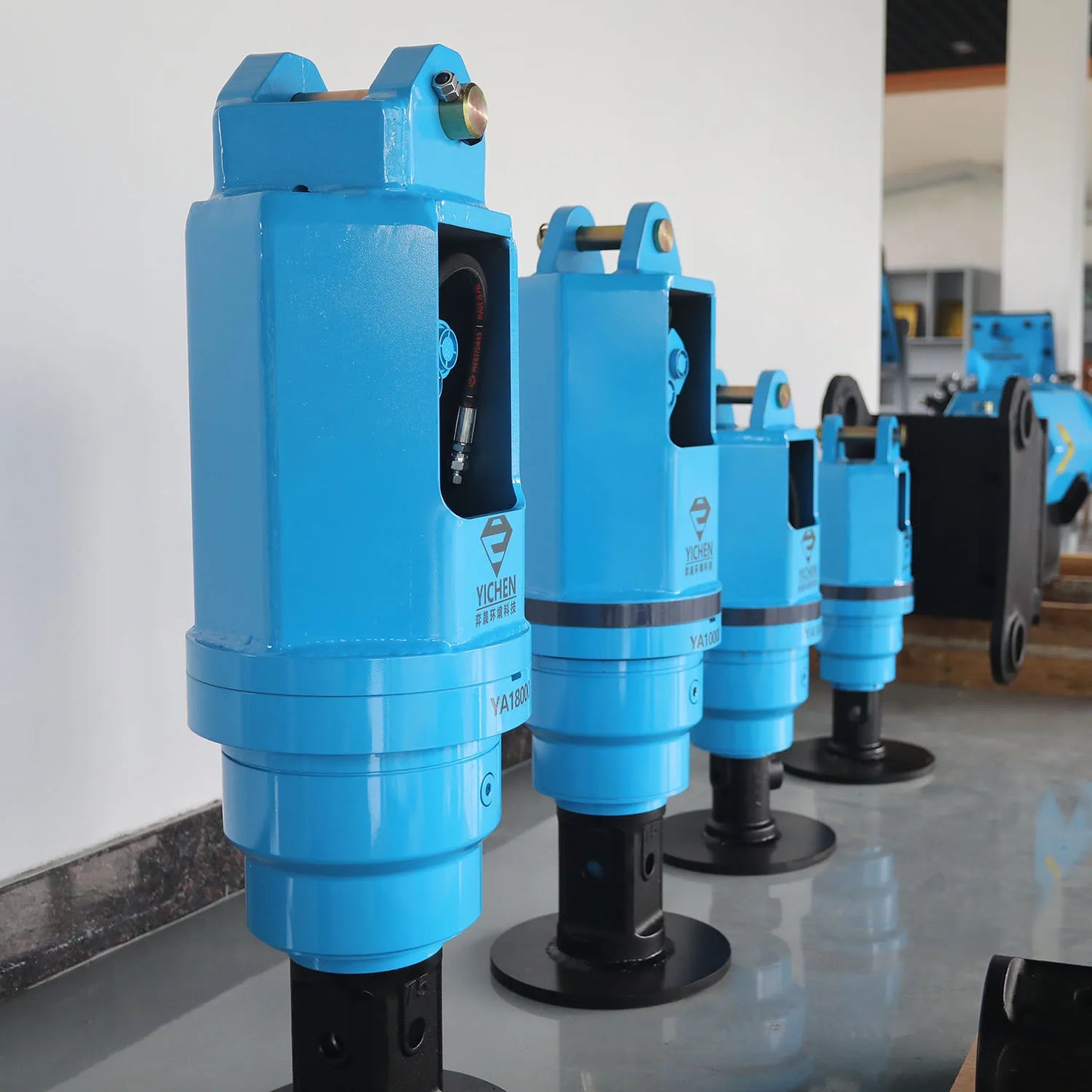

YA18000 Top-level High Quality Hydraulic Earth Auger Spiral Drilling Digga Auger Excavator Auger Attachment

YA18000 Top-level High Quality Hydraulic Earth Auger Spiral Drilling Digga Auger Excavator Auger Attachment

CFA1,302,959 XOF
CFA0 XOF CFA1,302,959 XOF
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Power(W)
Model Number

SPECIFICATIONS

Brand Name: yichen

Core Components: Motor,Pump,Engine

Dimension(L*W*H): 5350*1850*2600mm

Drilling Depth: Max.100m

Drilling Diameter: 300 mm,50 mm,75mm,60 mm,100 mm,200 mm

Key Selling Points: Competitive Price

Machinery Test Report: Provided

Mobility: yes

Place of Origin: Zhejiang, China

Power Type: Diesel

Type: Rotary Drilling Rig

Usage: Water Well

Video outgoing-inspection: Provided

Voltage: diesel engine

Warranty: 1 Year

Weight: 4200 KG

PRODUCT INTRODUCTION

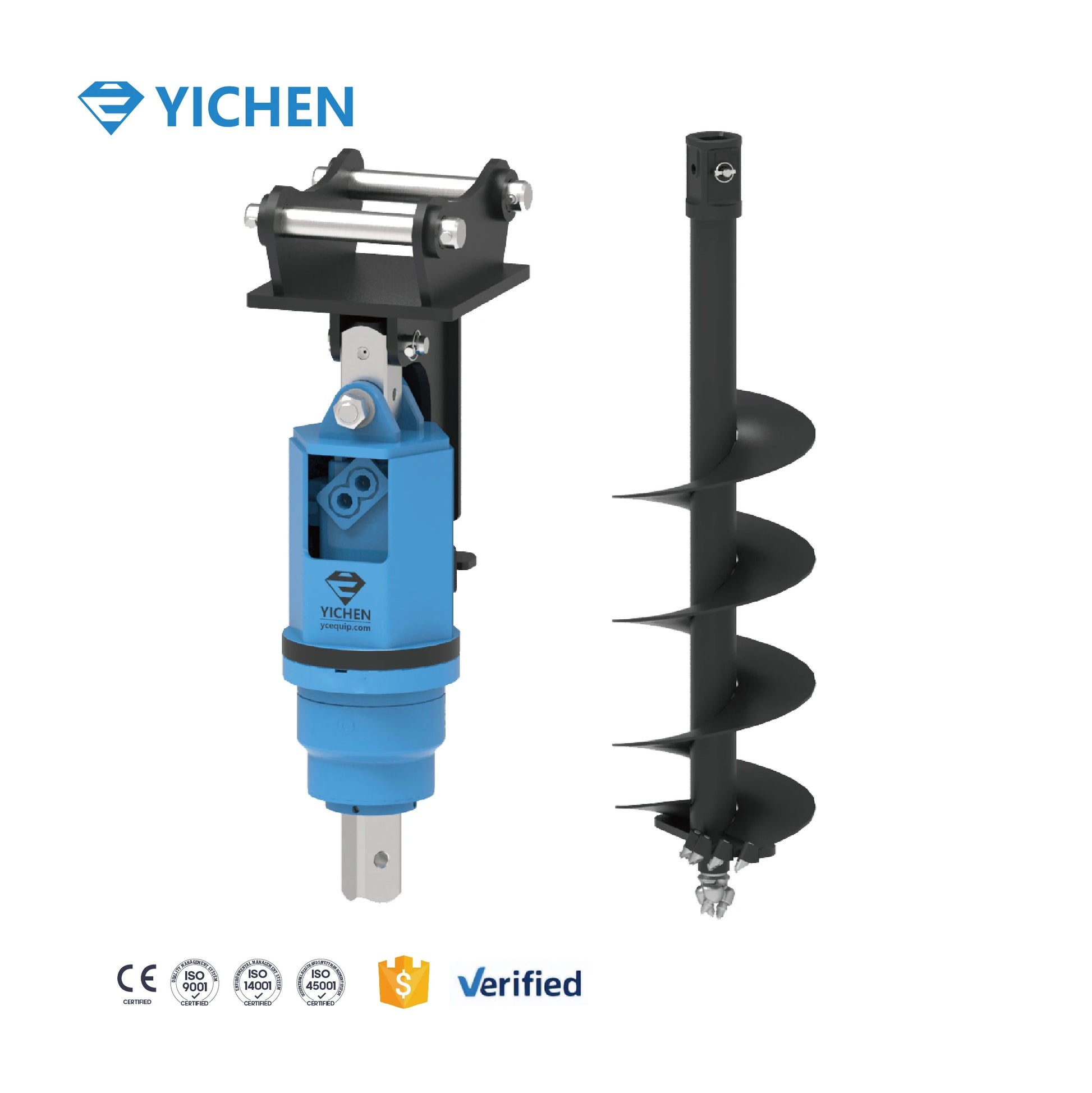

EQUIPMENT COMPOSITION
· auger drive
· Auger
· Hitch
· Extension
Product model
Excavator tonnage 1.5-40 ton
This product can be installed on different types of excavators.
Product features and advantages
PRODUCT FEATURES
① Made of high-quality materials
② The sturdy hood ear plate and safety pin design ensure that the drive head cannot fall off your bracket.
③ Structural design can withstand extreme working conditions
④ Equipped with high-quality and reliable motors

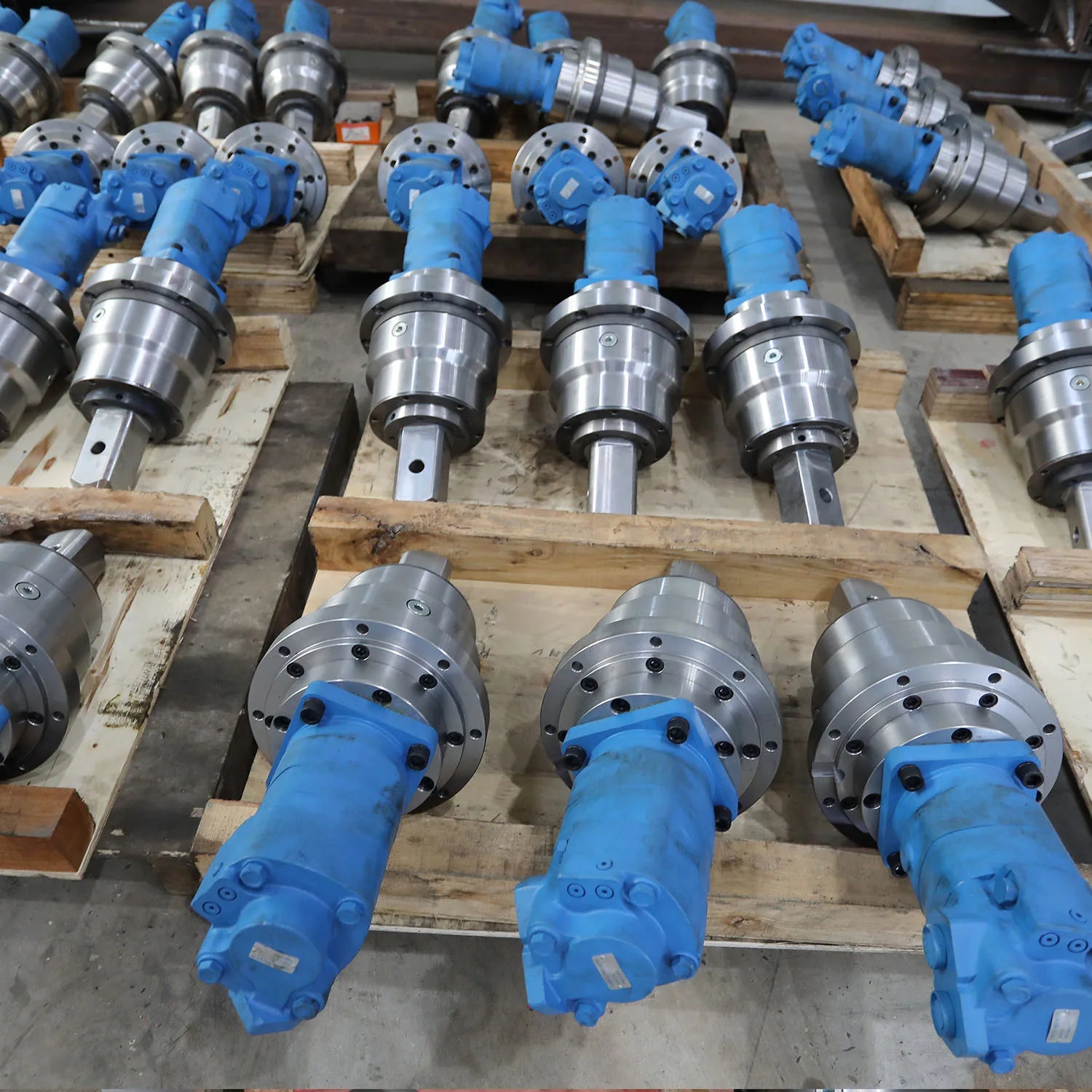

⑤ Adopting advanced carbon nitrogen co infiltration technology to achieve unparalleled strength and durability in gears. Precision planetary gearbox for more stable use and longer lifespan.
⑥ The output shaft provides a lifetime warranty
Based on the above characteristics, the performance is 50% higher than similar products
High efficiency and shortened construction period
PRODUCT FEATURES
① Can be used in conjunction with all major standard wheels on the market, including 65mm round, 75and 110mm square, 2 "and 2.5" hex, etc.
② This feature design provides maximum soil transportation capacity.
③ Constant spiral cutting improves productivity. Enable each rotation to cut into a new soil layer.
④ The safety pin design ensures that it will not fall off at any time.
⑤ Select the highest grade steel to make drill rods, and the size varies according to the grade and actual application.
⑥ Installation is simple, effective, and sturdy
⑦ There are three types of drill bit tooth combinations that can be used to handle different geological conditions.
Suitable for various geological conditions
The company produces drilling teeth suitable for various geological conditions

W2 EARTH AUGERS
(EARTH/ CLAY/ SHALES)

all purpose earth auger forgeneral drilling

W3 COMBINATION AUGER
(ALL GROUND CONDITIONS)

taper teeth design the ultimateall performance auger

W4 ROCK AUGER(CONCRETE/ SHALE/ FRACTURABLE ROCK)

heavy duty auger for dedicatedrock drilling



Drilling depth

up to12 meters

If an extension rod is installed


Single pin Hitch

The single pin hitch is lightweight and non-bulky, making it easy to transport and fit and offers a financially economical option.

Double Pin Hitch

The double pin hitch can be supplied in both loose and fixed pin versions to suit standard and quick hitch solutions on most excavators & backhoes.It is suitable for all Yichen drive unit ranges.

Double Pin Cradle Hitch

This hitch is suitable for all Yichen drives from the YA2000 to YA100000. Will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and
Auger on site.

Skid Steer Loader Frame

This product is designed to allow you to take your auger drive and add it to a skid steer mounted frame with slide operation. It is suitable for Yichen drives from the YA2000 to
YA5000.

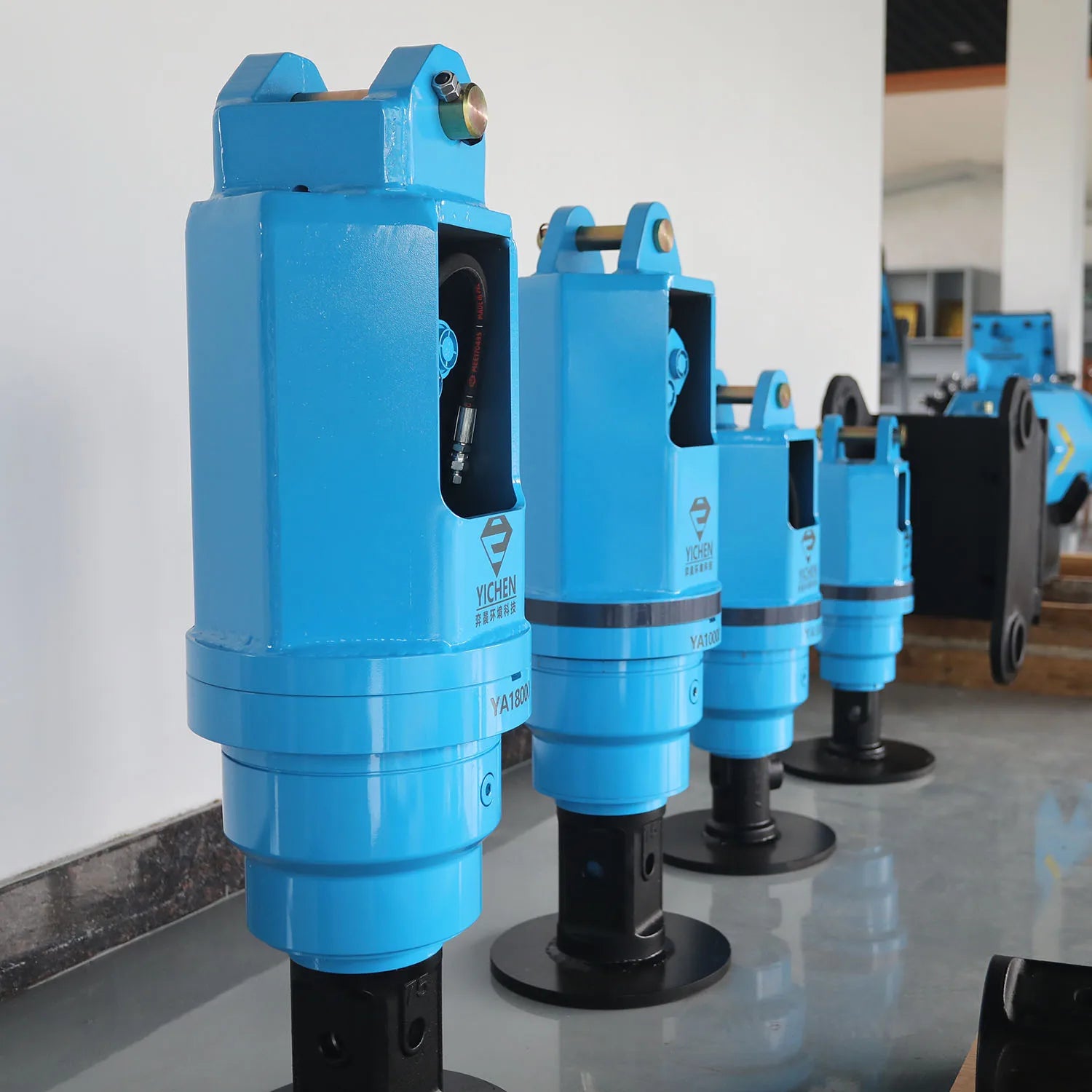

Detail display
PRODUCT DETAILS
Model
YA-2000
YA-3000
YA-5000
YA-8000
YA-10000
Excavaor（ton）
0.5-2
1-3
3-4.5
4.5 -8
5-10
Max.Output Torque（Nm）
1900
3000
5000
8000
10000
Pressue（Bar）
70-240
70-240
80-240
80-260
80-260
Oil Flow（LPM）
27-75
27-75
50-95
60-135
60-135
Rated Power（kw）
19
24
42
67
80
Output shaft Speed(RPM)
30-95
35-88
42- 80
35-80
35-80
Weight(kgs)
41
41
66
124
131
Overall Length(mm)
606
606
687
808
808
Hydraulic Hose
1/2"BSP
1/2"BSP
1/2"BSP
1/2"BSP (Or 3/4"BSP)
1/2"BSP(or 3/4" BSP)
Model
YA-18000
YA-30000
YA-50000
YA-80000
YA-100000
Excavaor（ton）
8-15
15-22
20-36
26-40
32-52
Max.Output Torque（Nm）
18000
30000
50000
80000
100000
Pressue（Bar）
80-240
160-260
220-350
220-350
250-300
Oil Flow（LPM）
80-170
80-170
100-300
200-400
300-477
Rated Power（kw）
80
94
157
167
157
Output shaft Speed(RPM)
20-42
12-28
0-30
0-20
0-15
Weight(kgs)
165
255
460
770
1050
Overall Length(mm)
937
1158
1354
1572
1725
Hydraulic Hose
3/4"BSP
1"BSP
1'BSP 1-1/4"
SAEFS-20 1-1/4"
SAEFS-20 G1-1/4”

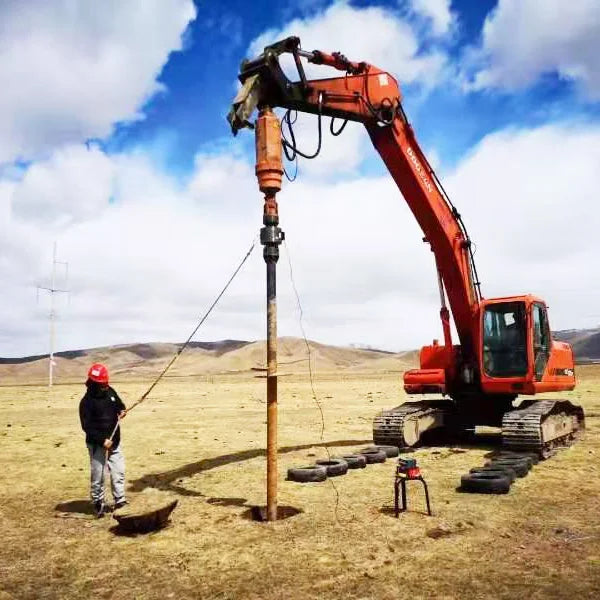

APPLICATIONS

· Fence piling · rod and mast installation · Sound barriers · Landscaping
· Tree planting · Screw pile installations · Exploration and research · Ground source heat pumps
· Well boring · Solar energy equipment installation · Well boring · Pole and mast installations · Road signage · wind turbine installation · Foundation piles
Packing of products
Product transportation
F&Q
Q1: Are you a trading company or a manufacturer?
A1: We are a product manufacturer.
Q2: Can you design the product according to our size?
A2: Yes, we can customize the size of the equipment to fit your excavator according to wour needs.
Q3: What is the minimum order quantity?
A3: The MOQ is 1 unit.
Q4: How long is your delivery time?
A5: Usually, we have it in stock. So as soon as the customer orders, we can ship it.If the purchased quantity exceeds the stock, we will determine the delivery timeaccording to the product type, production quantity and delivery address.
ABOUT US

COMPANY PROFILE

Ningbo Yichen Environmental Technology Co., Ltd. referred to as " Yichen ", formerly known as Ningbo ANT Heavy Industry Technology Co., Ltd., was officially renamed in November 2020. It is a one-stop service provider for all environmental engineering equipment solutions. Products are widely used in new/reconstructed roads, airports, tunnels, bridges, heavy engineering infrastructure and other fields, providing a strong guarantee for municipal construction, transportation, water conservancy and other urban construction.The company integrates technology research and development, manufacturing, construction guidance, and after-sales service, and has won 20 national patents. The products are exported to dozens of countries including the United States, Australia, Britain, Southeast Asia and so on. Provide products and technical services for more than ten Fortune 500 companies such as China Communications Construction, China Railway Construction, China Railway, Xugong Group, Sany Group, etc.With nearly two decades of experience in the development of excavator attachments and solid material handling equipment production. At present, the company has six product series, including earth drill (auger drive, auger, helical pier and torque indicator), drum cutter, rock saw, crusher bucket and screening bucket. In 2018, the company completed the design and development of soil stabilization system and put it into the market. The successful development of the system makes Yichen the first in-situ soil solidification and remediation system using a more environmentally friendly slurry solidification agent in the world.
