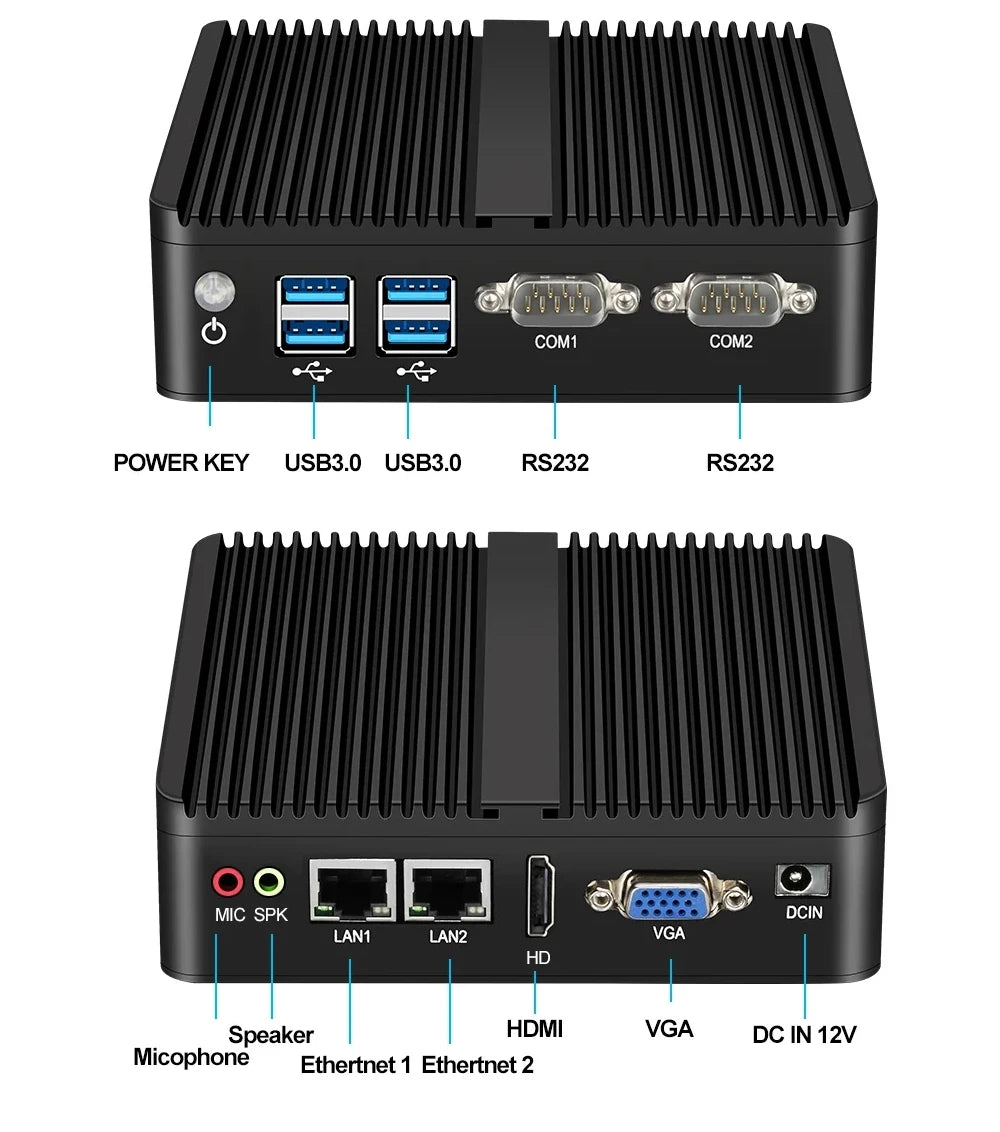

XCY Fanless Mini PC Intel Core I5-5200U I3-5005U Dual GbE LAN 2x RS-232 Serial Ports 4x USB Embedded IPC WiFi Windows Linux
XCY Fanless Mini PC Intel Core I5-5200U I3-5005U Dual GbE LAN 2x RS-232 Serial Ports 4x USB Embedded IPC WiFi Windows Linux
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Audio Chipset: Realtek ALC662/892
Audio Ouput: 3.5mm audio combo jack
Brand Name: XCY
COM Ports: RS-232 Serial Ports x2
Case Material: Aluminum Alloy
Certification: CE,FCC,RoHS
Cooling: Passive Cooling
Dimension: 132x132x40mm
Function: Wake on LAN, automatically power on after power restore
Graphics Card Type: Integrated Card
Hard Disk: mSATA SSD
Hard Drive Capacity: 128 GB
High-concerned chemical: None
Indicators: HDD LED, Power LED
LAN Ports: Realtek 8111H Gigabit Ethernet x2
Max Resolution: 1920x1080P
Memory: SODIMM DDR3L, 1.35V (N5095 use DDR4)
Memory Capacity: ≥ 4GB
Model Number: X30G
OS Support: Windows, Linux, Ubuntu
Origin: Mainland China
Power Supply: AC 100-240V to DC 12V 3A/5A
Processor Brand: Intel
Processor Main Frequency: 2.0GHz
Processor Model: Intel Celeron N5095, i3-5005U, i5-5200U, i5-4200U, Pentium J2900
Type: Mini Desktop,Mini PC
USB Ports: USB3.0 x2, USB2.0 x2
Use: Commercial
Video Output: HDMI x1, VGA x1
Wi-Fi: Mini PCIe
Processors |
Intel Core i3-4005U, 2 cores 4 threads, 3M Cahce, 1.70GHz Intel Core i3-5005U, 2 cores 4 threads, 3M Cache, 2.0GHz Intel Core i5-4200U, 2 cores 4 threads, 3M Cache, 1.60,GHz up to 2.60GHz Intel Celeron N2840, 2 cores 2 thredas, 1M Cache, 2.16GHz, up to 2.58GHz Intel Pentium j2900, 4 cores 4 threads, 2M cache, 2.41GHz Intel Pentium 3805U, 2 cores 2 threads, 2M Cache, 1.90GHz Intel Celeron N5095/N5105, 4 cores 4 threads ,4M cache，2.0GHz, up to 2.90GHz |
Memory Types |
N5095/N5105 CPU use 1x SODIMM DDR4 RAM, max suppport to 16GB, other CPUs use 1x SODIMM DDR3L 1333/1600MHz, max support to 1x 8GB RAM |
Hard Drive |
N5059/N5105: support 1x M.2 NVMe SSD, 1x 2.5 inch HDD/SSD, other CPus Support 1x mSATA SSD , 1x 2.5 inch SATA HDD/SSD |
Graphics |
Processor graphics |
Network Interfaces |
2x GbE RJ45 Realtek 8111H, Support Wake on LAN, PXE boot |
Expansion |
1x Mini PCI-E slot for WiFi/Bluetooth/4G LTE modules |
OS Support |
Windows7 |
USB Ports |
J2900: 1x USB3.0, 5x USB2.0 |
Display Port |
1x VGA, 1x HDMI, supports dual monitors independently video output |
COM Ports |
2x RS232 (Pentium J2900/N2840 two COM ports support RS232/485 adjustable ) |
Audio Ports |
Realtek RTL662/897 HD Audio |
Construction |
Fanless passive cooling |
Case |
Aluminum Case |
Dimension |
135x124x40mm |
Netweight |
1.0Kg |
Storage Temperature |
﹣20℃to +60℃ |
Operating Temperature |
﹣20℃to +60℃ |
RH |
5%~90% @30℃, Non-condensing |
Working Voltage |
DC12V-3A/5A (customize working voltage please conatct us) |
Package List |
1x Mini PC X30G |
NOTE:
NOTE:
