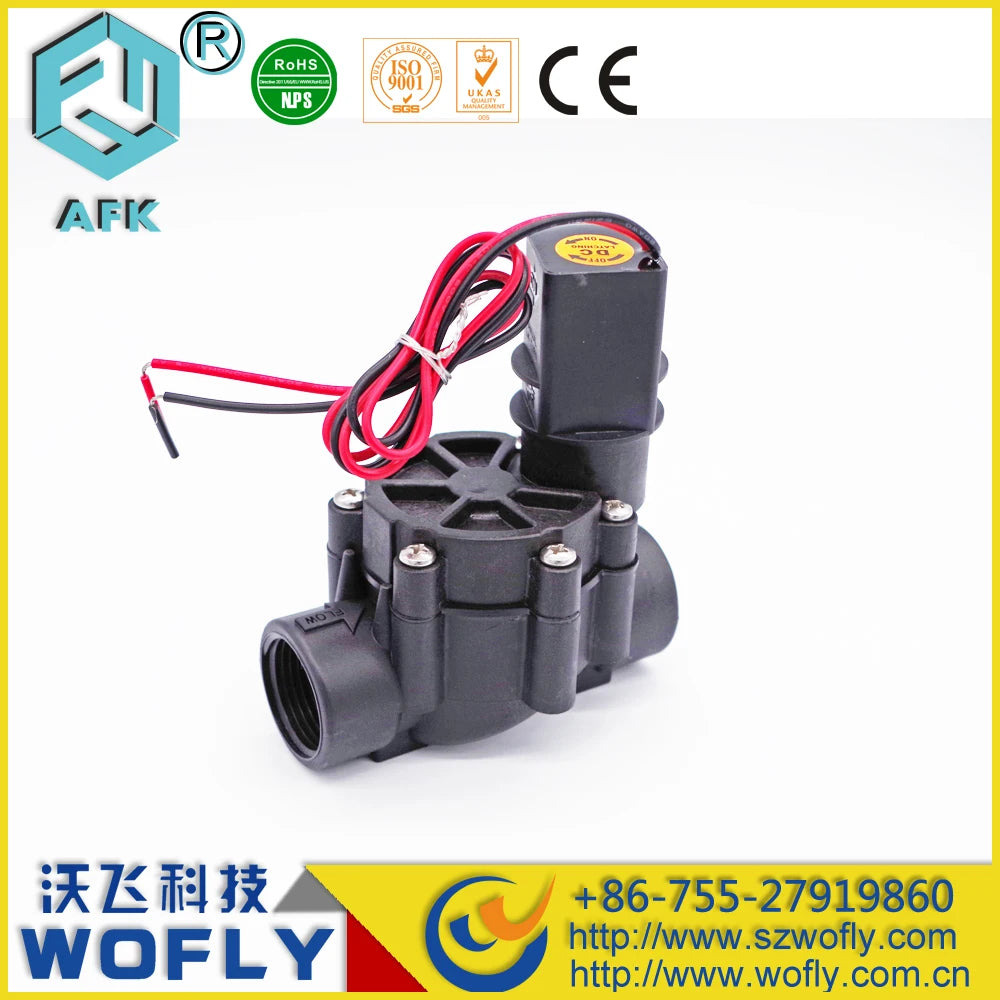

Water Irrigation Valve 1inch AC220 AC110 AC24 DC24 DC12v DC Latching Solenoid Valve
Water Irrigation Valve 1inch AC220 AC110 AC24 DC24 DC12v DC Latching Solenoid Valve
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Application: Power Industry
Certification: CE
Connection: BSP female threaded, flanged
MOQ: 1pcs
Material: Plastic Body
Standard or Nonstandard: Standard
Type: Normally closed
Voltage: 6-20VDC latching coil, 24VAC, 110VAC, 220VAC
application: Agriculture Irrigation
brand name: AFK
customized support: OEM,ODM
media: Water
model number: 100D and 075D
place of origin: Guangdong, China
port size: 1" and 3/4"
power: Solenoid
structure: Other
temperature of media: below 43°C
type: solenoid valve
warranty: 1 years
water irrigation valve 1inch 12v latching solenoid
| No. | ITEM | TECHNICAL PARAMETERS |
| 1 | Material | nylon plastic body, NBR seal |
| 2 | Fluid | water |
| 3 | Fluid temperature | ≤43°C |
| 4 | Environment temperature | ≤52°C |
| 5 | Service voltage | 6-20VDC(can order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC |
| 6 | Pulse width | 20-500mSec (only for latching type) |
| 7 | Coil resistance | 6 Ω |
| 8 | Capacitance | 4700uF |
| 9 | Coil inductance | 12mH |
| 10 | Connection | G(BSP) female thread is regular, special order for NPT(3/4" and 1") |
| 11 | Size |

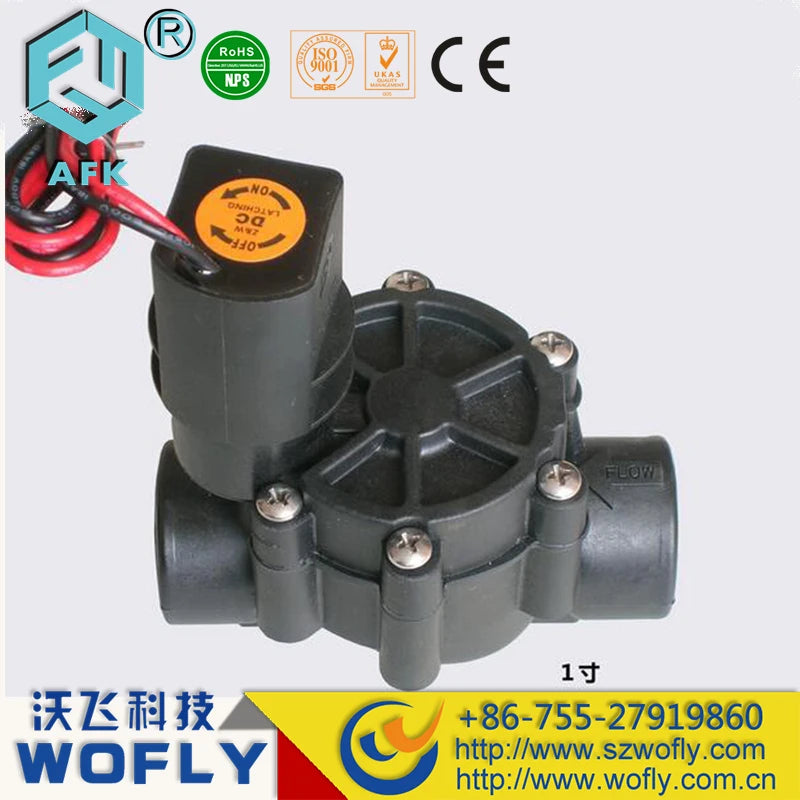

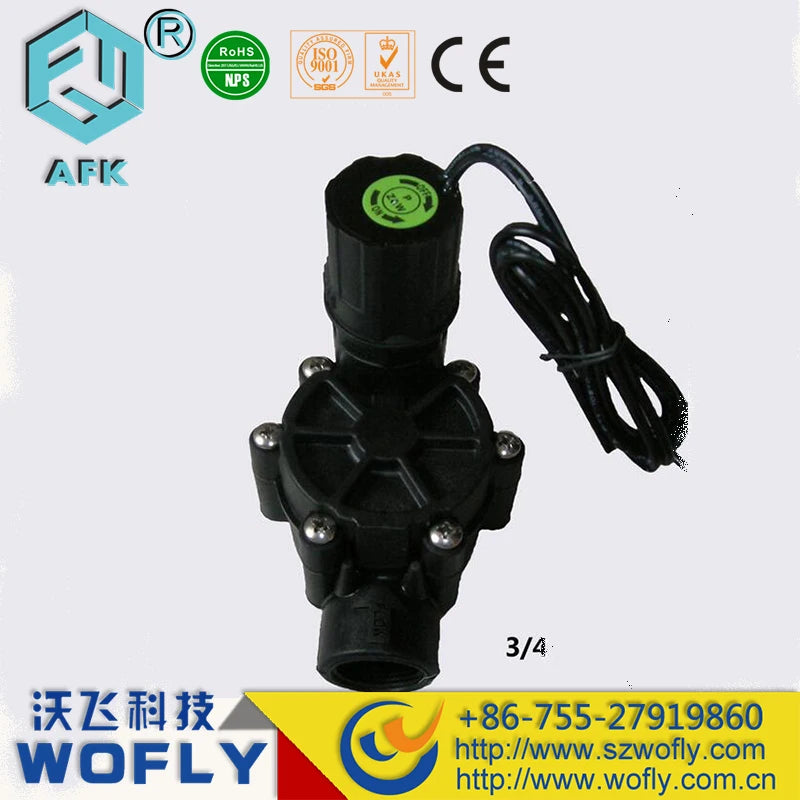

075D: 3/4", 20mm (BSP or NPT female) 100D:1", 25mm (BSP or NPT female ) 100P:1", 25mm (BSP female) 150P:1-1/2"(1.5"), 40mm (BSP female) 200P:2", 50mm (BSP female) 300P:3", 80mm (BSP female, male, flange) 400P:4", 100mm (BSP female, male, flange)
|
| 12 | Working pressure |
3/4" and 1": 1-10bar 1.5"and 2": 1-10.4bar 3"and 4": 0.7-14bar
|
| 13 | Flow rate |
3/4": 5 m³/h 1": 9 m³/h 1.5"-2": 0.45-34.05 m³/h 3"-4": 1.1-70 m³/h
|
| 14 | Operation mode | valve element lock position,valve open, release position, valve close. |
Hi, my dear friend, if any interests, please send me an inquiry with the following information included as many as possible. You also can contact me directly. Your enquiry will be answered within 24 hours.
We will be very much appreciated if you can provide the parameters as below:
1. size
2. connection: G male thread, G female thread, NPT male thread, NPT female thread, flanged.
3. voltage
4. latching type coil required? 6-20vdc voltage range can be equiped with latching type coil.
5. quantity
