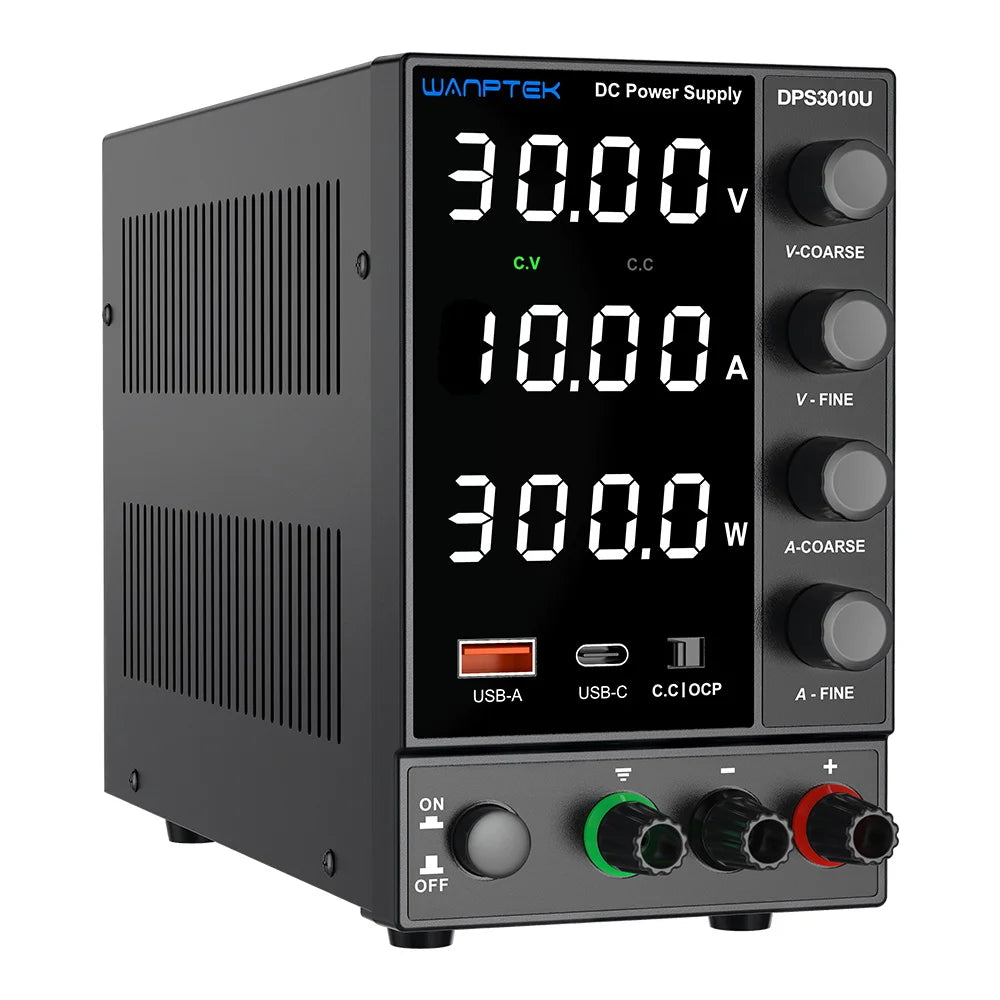

WANPTEK Adjustable Stable Voltage DC Power Supply 30V10A Mobile Maintenance Power Supply Battery Charging Switch Power Supply

WANPTEK Adjustable Stable Voltage DC Power Supply 30V10A Mobile Maintenance Power Supply Battery Charging Switch Power Supply

CFA26,825 XOF
CFA0 XOF CFA26,825 XOF
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Output Power
Color

SPECIFICATIONS

Application: Laboratory teaching mobile phone repair

Brand Name: WANPTEK,WANPTEK

Certification: CE FCC LVD

Input Voltage: 110 V,230 V

Model Number: DPS3010U (30V/10A)

Output: 30V10A

Output Current: 10A

Output Frequency: 50/60 Hz

Output Type: Single

Output Voltage: 30 V

Place of Origin: China GuangDong

Product Name: DC Power Supply

Protections: OVP OTP OCP

Type: AC-DC

Warranty: 1 Year



WANPTEK Adjustable Stable Voltage DC Power Supply 30V10A Mobile Maintenance Power Supply Battery Charging Switch Power Supply



Product Features


USB-A/Type-C fast charging function, supporting multiple fast charging protocols.
OCP short circuit protection function, short circuit stops output.
Small size, light weight, and high power density.
Four sets of encoders, coarse adjustment and fine adjustment, high-precision adjustment.
Three sets of LED four digit displays for voltage, current, and power, with high accuracy.
Temperature controlled fan for heat dissipation, low noise, and long service life.




More parameters
The output voltage range is 0-30V and can be continuously adjusted.
The output current range is 0-10A and can be continuously adjusted.





Model DPS305U DPS3010U DPS605U DPS1203U DPS1602U
Output Power 150W 300W 300W 360W 320W
Output voltage 0~30V 0~30V 0~60V 0~120V 0~160V
Output current  0~5A 0~10A 0~5A 0~3A 0~2A
Auxiliary functions USB-A/Type-C fast charging, supporting various fast charging protocols
Protection mode Current limiting protection / short circuit alarm stop output, self recovery
Working environment
  Input voltage:AC 230V/115V±10%;50Hz/60Hz
Working temperature:0℃~40℃;relative humidity:<80%RH
Storage temperature:-10℃~70℃;relative humidity:<70%RH
Constant voltage CV
  Voltage stability:0.1%±3mV
Load stability: 0.2%±3mV
Ripple voltage:≤0.5% Vp-p
0 to rated voltage continuously adjustable
Constant current CC
  Current stability:0.1%±3mA
Load stability: 0.2%±3mA
Ripple current:≤0.5% Vp-p
Recovery time:≤500μS
Temperature coefficient:≤100ppm/℃
0 to rated current continuously adjustable
Display
  0.56 inch white light four digit digital tube display
Display accuracy:0.5%±digits
Display resolution: voltage  0.01V, current  0.001A

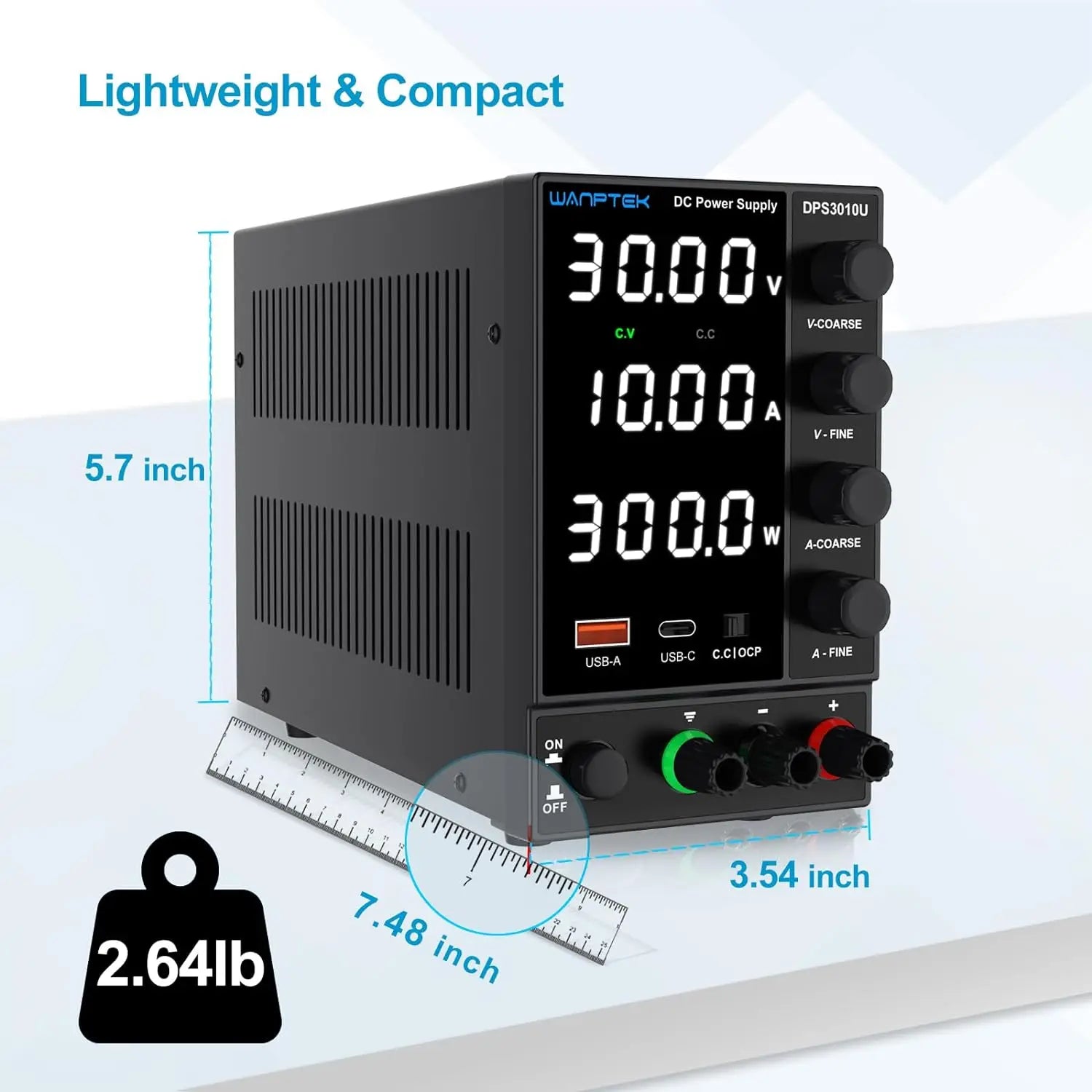

Size and weight
  Product size:190(L) x 90(W) x 145(H) mm
Packing size:265(L) x 135(W) x 190(H) mm
Net weight:1.2Kg
Gross weight:1.6Kg
8sets/piece, box size:550*275*405mm,box weight:13.5kg
Random attachment
  power cord x 1 (EU,US,UK, ...)
Instructions x 1,
Test line x 1,
Machine color black





12





    4.4     Encoding switch

                                                                                    Voltage and current can be adjusted

                                                                                    in a step-by-step manner

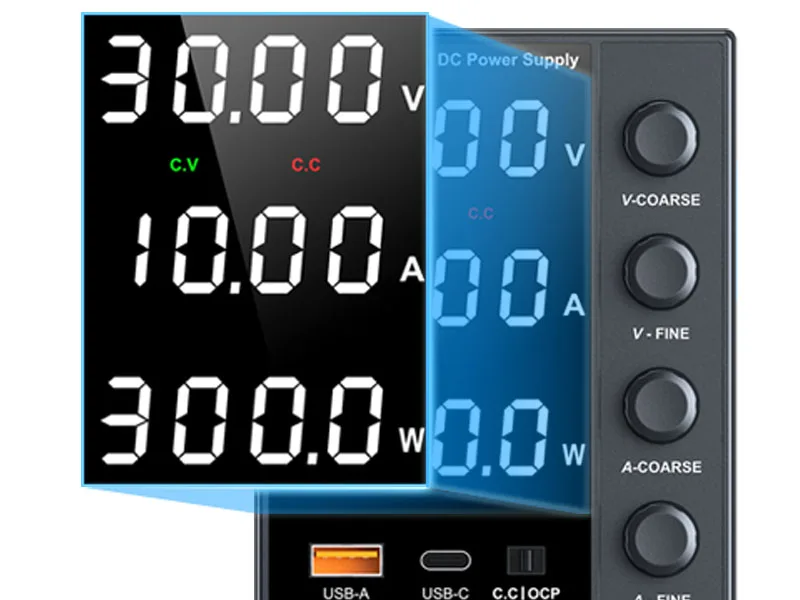

High-resolution 4-digit display

The values are clearly displayed

evenin dimly lit environments.               4









4.1      4.2      4.3      4.4

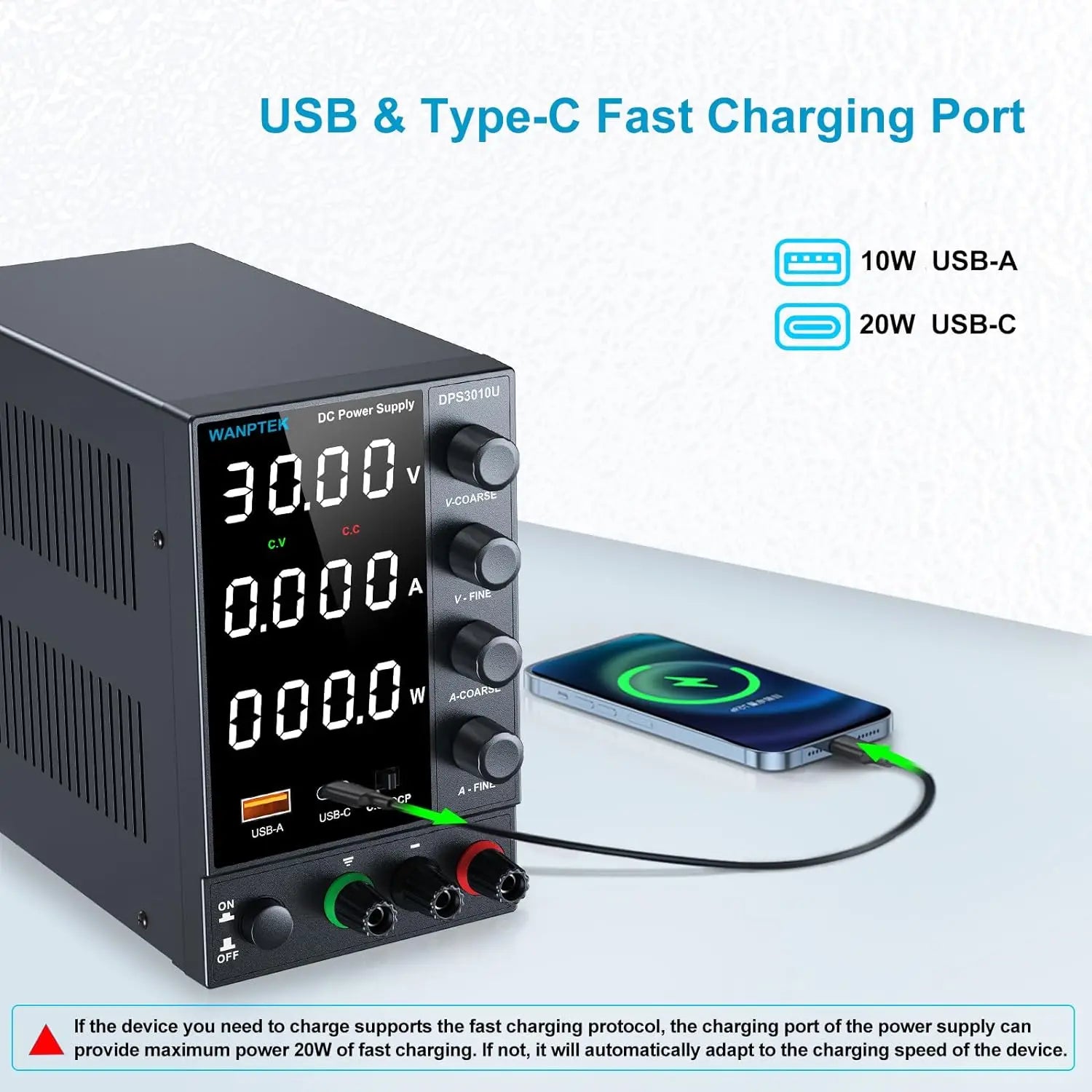

USB & Type-C Charging Ports



Both interfaces can be used simultaneously. They can charge your mobile phone or the device being repaired.

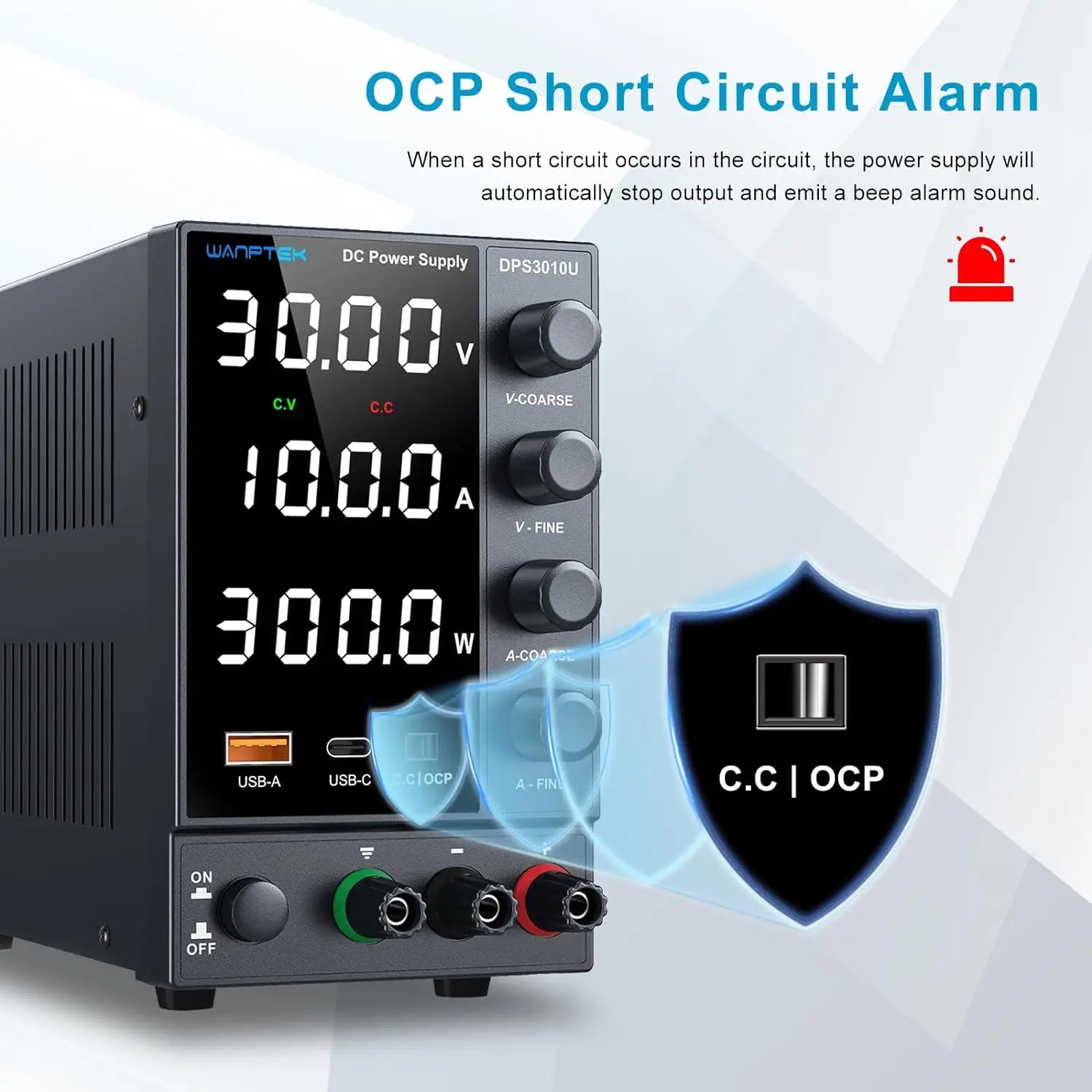

  OCP Short Circuit Alarm



115V/230±10%

Two input voltage selection ranges. If your area uses 115V, you will need to flip this switch to 115V.

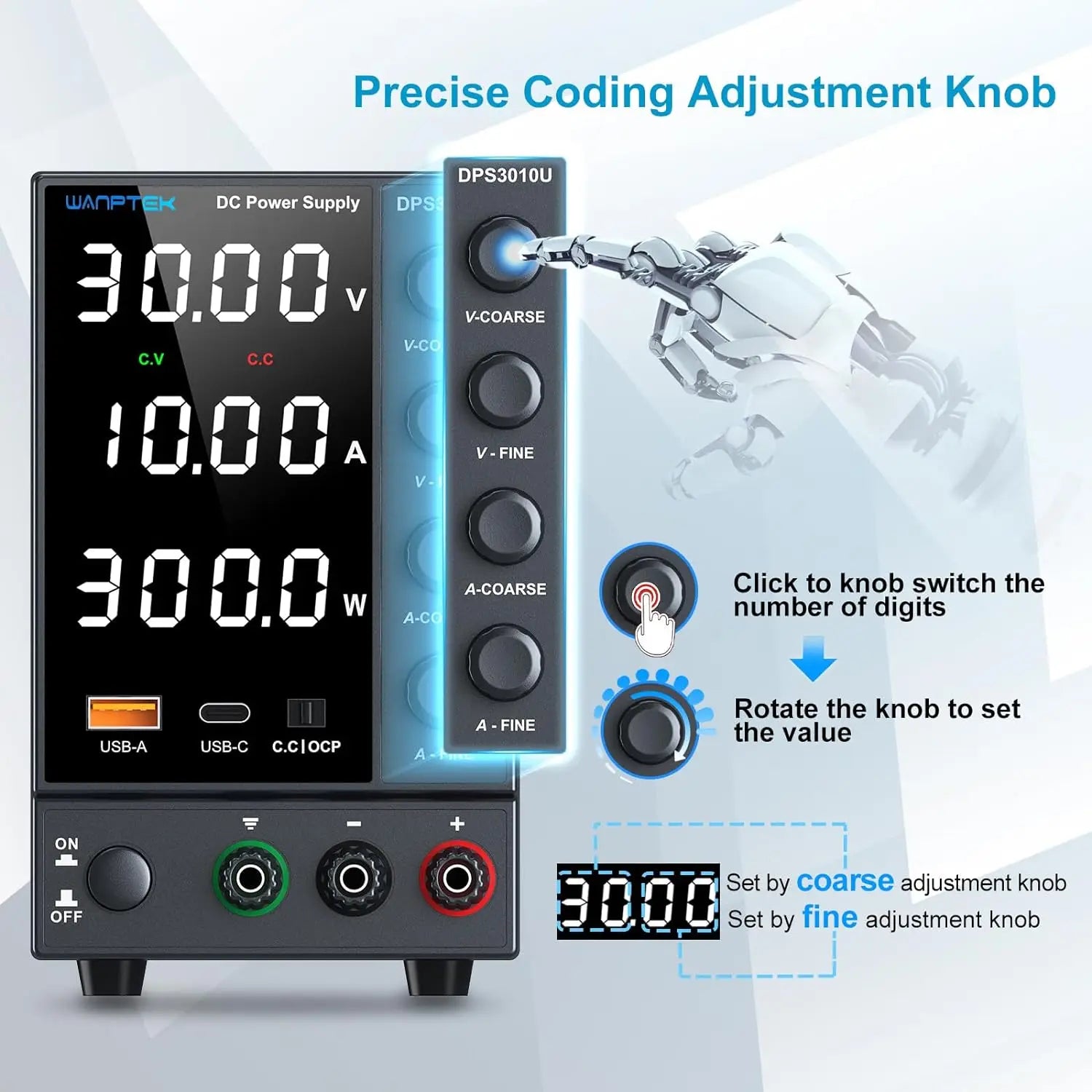

Encoder knob combination



Using a combination of coarse and fine adjustmentknobs

makes it quicker andmore precise to set the settings you want.























5601_02DSC_0026_photobank_









Q: How long does the product warranty last?
A: Usually comes with a one-year warranty.
Q: What is the delivery time?
A: This will depend on the quantity of your order. Usually, we have stock available. If your order quantity is large or our inventory is insufficient, we will communicate with you to negotiate another time.
Q: What is your minimum order quantity?
A: The minimum order quantity for WANPTEK is 1 piece. If you have an OEM order, please contact customer service for negotiation
Q: Can I take a sample from you for testing?
A: Of course, but we need to pay for the sample fee. If your order quantity is 200pcs, we will refund the cost of the sample to you in your order fee.
Q: What are your transportation methods?
A: We have UPS, DHL Express, FedEx, and so on. If there are large items, we will negotiate with you.
