SPECIFICATIONS

CHIPSET: AMD X570 Chipset

CPU (MAX SUPPORT): AMD RYZEN

DIMM SLOTS: 4

M.2 SLOT: 3

MAX MEMORY (GB): 128

MEMORY CHANNEL: Dual

Memory: 4 x DDR4 DIMM sockets

PCI-E X1: 1

PCI-E X16: 3

SATAIII: 6

application: Desktop

brand name: MSI

chipset: AMD X570

chipset manufacturer: AMD

cpu type: AMD

form factor: ATX

fsb / ht: 2133mhz

graphics card type: Integrated-need CPU support

hard drive interface: SATA,1 x M.2 ports (Key M)

item condition: Used

maximum ram capacity: 128 GB

memory bank: 4 DDR4

memory channel: Double

memory type: DDR,DDR4

package: No

place of origin: Guangdong, China

ports: SATA,DVI,VGA ,PCI-Express X16,PCI-Express X8,PCI-Express X4,USB 2.0,PS2,Mini USB,Fiber,E-sata,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,AGP 8X,AGP 4X,HDMI

private mold: Yes

products status: Used

socket type: AM4

with cpu: No

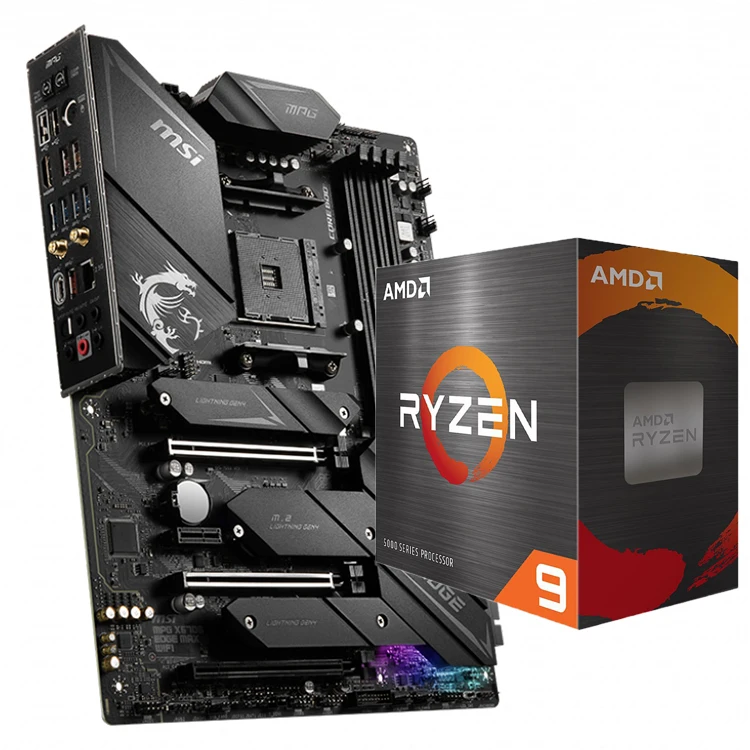

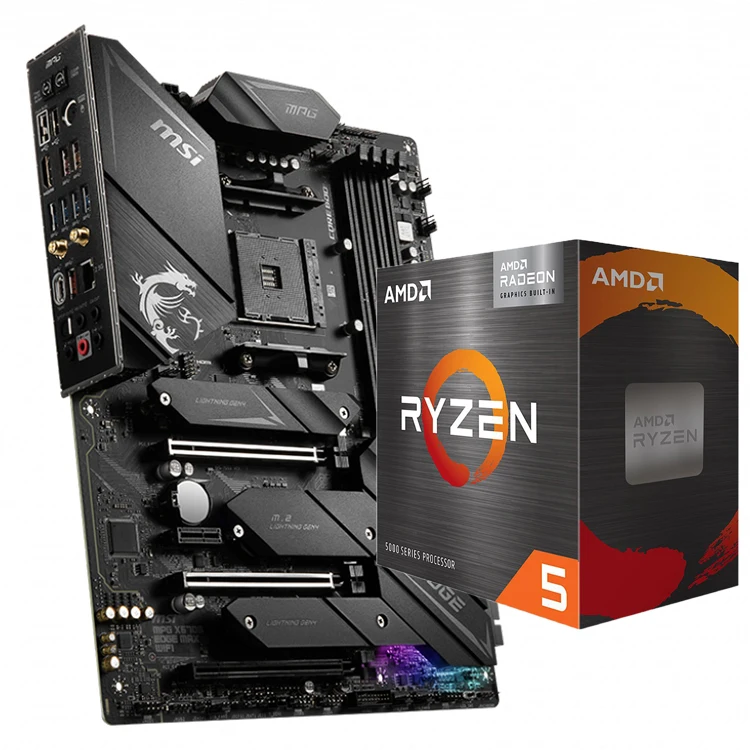

MSI MPG X570S EDGE MAX WIFI GAMING Motherboard with AMD Ryzen 5 7 5600G 5600X 5700G 5800X 5900X  5950X Desktop Processor

• Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
• Supports DDR4 Memory, up to 5300+(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
• Enhanced Power Design: 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Aluminum cover, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

PROCESSOR

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors¹
• Supports Socket AM4

CHIPSET

AMD X570 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB
• Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC¹
• Max frequency by A-XMP OC mode:
  • 1DPC 1R Max speed up to 5300 MHz
  • 1DPC 2R Max speed up to 4266 MHz
  • 2DPC 1R Max speed up to 4400 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • 1DPC 1R Max speed up to 5100 MHz
  • 1DPC 2R Max speed up to 4000 MHz
  • 2DPC 1R Max speed up to 4000 MHz
  • 2DPC 2R Max speed up to 3600 MHz
• For Ryzen™ 5000 G-Series & 4000 G-Series processors
• For Ryzen™ 5000 Series & 3000 Series processors
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

EXPANSION SLOTS

• Supports PCIe 4.0 / PCIe 3.0
• PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
• 1x PCIe x16 slot (From processor)
• PCI_E1 supports x16 for AMD Ryzen™ 5000 Series,5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors
• PCI_E1 supports x8 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors
• 2x PCIe x16 slots (From X570 chipset)
• PCI_E3 supports x4
• PCI_E4 supports 3.0 x1 only
• 1x PCIe 3.0 x1 slot (From X570 chipset)

ONBOARD GRAPHICS

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz¹/ ²

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the processor installed.

MULTI-GPU

• Supports AMD CrossFire™ Technology

STORAGE

• 6x SATA 6Gb/s ports (From X570 chipset)¹
• 3x M.2 slots (Key M)
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports 2242/ 2260/ 2280 storage devices
• Supports PCIe 4.0 / PCIe 3.0
• Support SATA 6Gbps
• M2_1 (From processor)
• M2_2 (From X570 chipset)
• M2_3¹ (From X570 chipset)

1. SATA5 and SATA6 will be unavailable when installing M.2 PCIe SSD in the M2_3 slot.

RAID

AMD X570 Chipset

• Supports RAID 0, RAID 1 and RAID 10

USB

AMD X570 Chipset

• 1x USB 3.2 Gen 2 10Gbps Type-C internal connector
• 4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors
• 2x USB 2.0 ports on the back panel
• Asmedia^® 1074 Chipset
• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
• GL850G Hub
• 4x USB 2.0 ports are available through the internal USB connectors

AMD Processor

• 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel)

AUDIO

Realtek^® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek^® RTL8125B 2.5 Gbps LAN controller

WIFI & BLUE.TOOTH

Intel^® Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz¹ (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Blue.tooth^® 5.2², FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Blue.tooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 2x USB 2.0 connectors (support additional 4 USB ports)
• 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports)
• 1x USB 3.2 Gen 2 10Gbps Type-C connector
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x 2-pin Thermal sensors connector
• 1x Tuning Controller connector

LED FEATURE

• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 1x EZ LED Control switch
• 4x EZ Debug LEDs

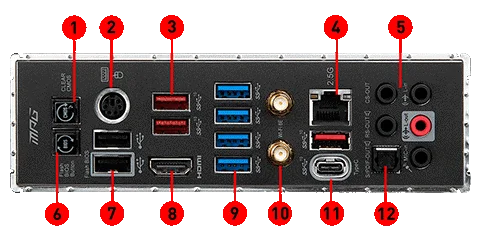

BACK PANEL PORTS

1. Clear CMOS Button
2. Keyboard / Mouse
3. USB 3.2 Gen 2 10Gbps Type-A
4. 2.5G LAN
5. Audio Connectors
6. Flash BIOS Button
7. USB 2.0
8. HDMI
9. USB 3.2 Gen 1 5Gbps Type-A
10. Wi-Fi / Blue.tooth
11. USB 3.2 Gen 2 10Gbps Type-A/C
12. Optical S/PDIF Out

DIMENSIONS

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows^® 10 64-bit
