SPECIFICATIONS

Audio: Realtek ALC887 Codec

BIOS: 1 x 128 Mbit flash

Bundled Software: Norton Internet Security (OEM version)

CHIPSET: AMD A320

CPU (MAX SUPPORT): Supports AMD 3rd Gen Ryzen

FORM FACTOR: M-ATX, 24.4 cm x 20.6 cm

I/O Controller: iTE I/O Controller Chip

LAN: Realtek 8111H Gigabit LAN controller

Memory: 2 x DDR4 DIMM sockets

USB: 2 x USB 3.1 Gen1

application: Desktop

brand name: MSI

chipset: AMD B550

chipset manufacturer: AMD

cpu type: AMD

form factor: Micro-ATX

fsb / ht: 2133mhz

graphics card type: Integrated-need CPU support

hard drive interface: SATA,1 x M.2 ports (Key M)

item condition: Used

maximum ram capacity: 64 GB

memory bank: 2 DDR4 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,DVI,VGA ,PCI-Express X16,PCI-Express X8,PCI-Express X4,USB 2.0,PS2,Mini USB,Fiber,E-sata,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,AGP 8X,AGP 4X,HDMI

private mold: Yes

products status: Used

socket type: AM4

with cpu: No

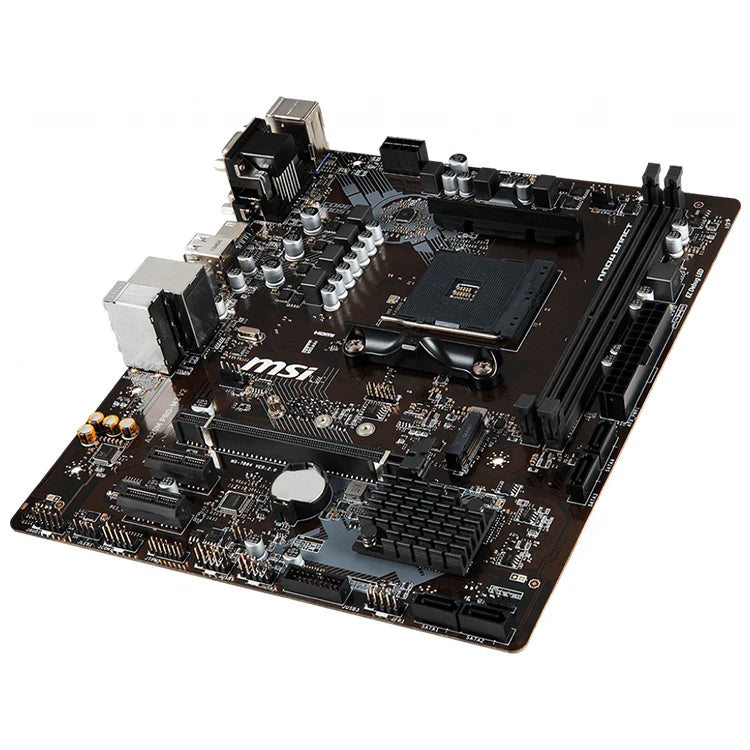

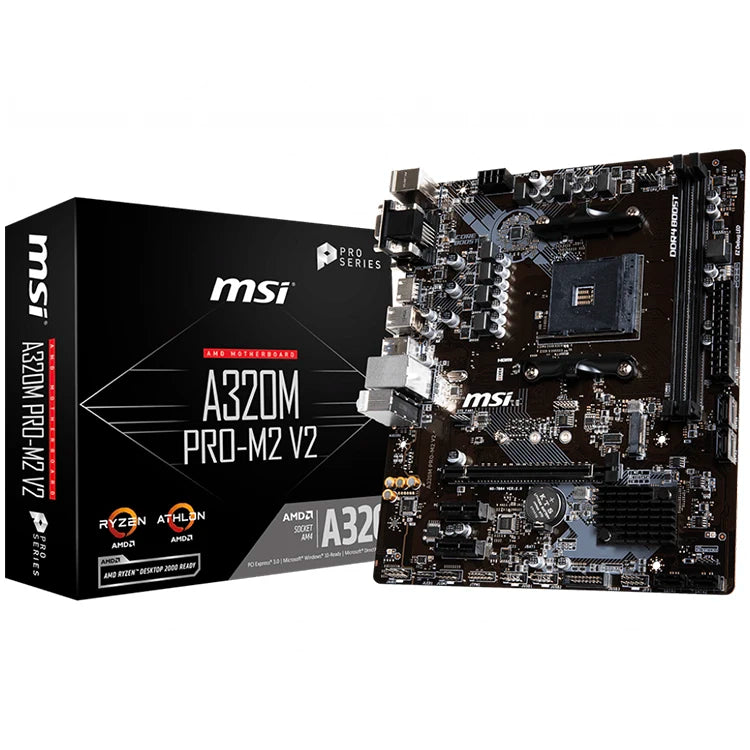

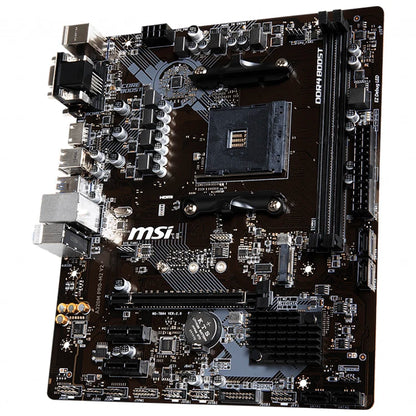

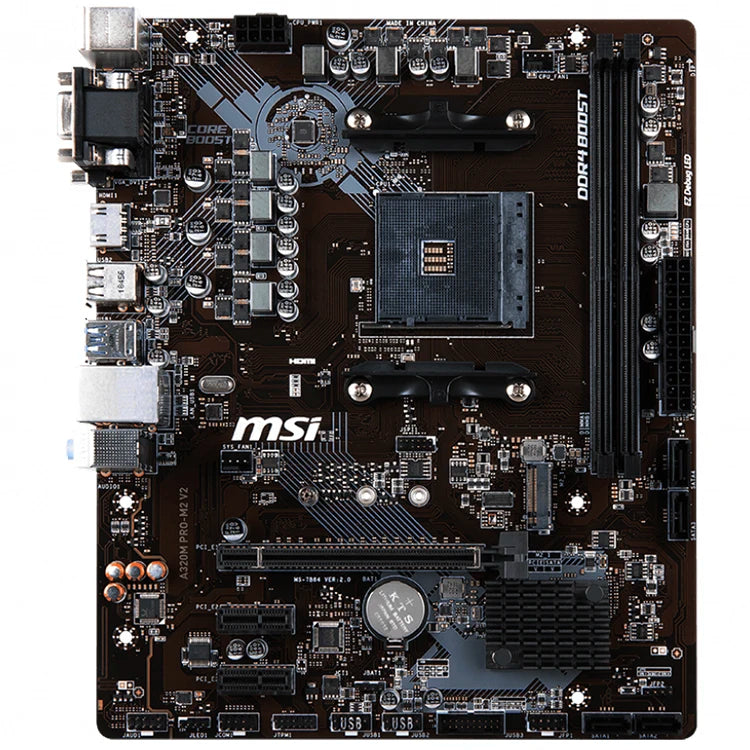

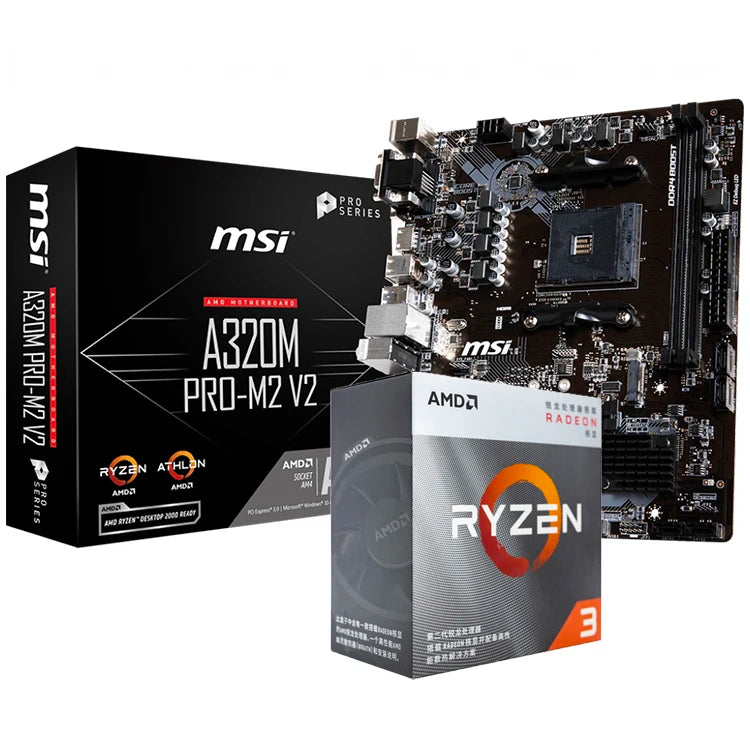

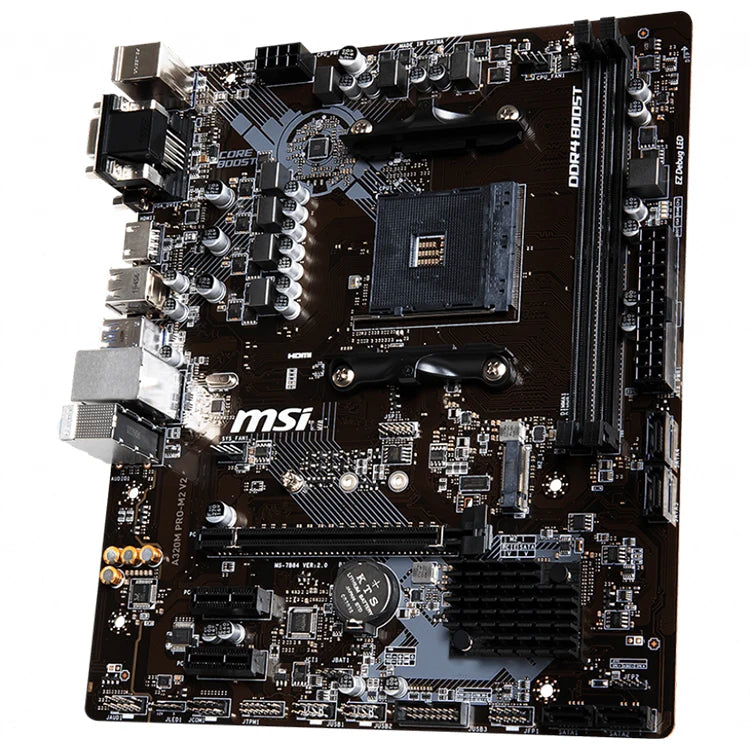

MSI A320M PRO-M2 V2 AMD AM4 Micro ATX Gaming Motherboard with AMD Ryzen 3 3200G CPU Combo

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2

• Supports AMD^® Ryzen 1^st and 2^nd Generation/ Ryzen™ and Athlon™ with Radeon™ Vega Graphics / A-series and Athlon™ X4 Processors for Socket AM4
• Supports DDR4 Memory, up to 3200+(OC) MHz
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
• Audio Boost: Reward your ears with studio grade sound quality.
• EZ Debug LED: Easiest way to troubleshoot
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• PCI-E Steel Slot: Protecting VGA cards against bending for better performance, stability and strength.

PROCESSOR

Supports AMD^® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4

CHIPSET

AMD^® A320 Chipset

MEMORY

• 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
• Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz¹
• Dual channel memory architecture
• Supports ECC UDIMM memory (non-ECC mode)
• Support non-ECC UDIMM memory

1. A-series / Athlon ™ X4 processors support up to 2400 MHz only. Please refer www.msi.com for more information on compatible memory.

SLOTS

• 1 x PCIe 3.0 x16 slot
• Supports x16 speed with AMD^® Ryzen™ 1st and 2nd Generation processors
• Supports x8 speed with AMD^® Ryzen™ with Radeon Vega Graphics and A-series/Athlon™X4 processors
• Supports x4 speed with AMD^® Athlon™ with Radeon™ Vega Graphics Processors
• 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

• 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz^1,2
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz^1,2
• 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160@24Hz^1,2

1. Only support when using Ryzen ™ with Radeon ™ Vega Graphics/ Athlon ™ with Radeon ™ Vega Graphics and A-series processors.
2. Processors Maximum shared memory of 2048 MB

STORAGE

AMD^® A320 Chipset

• 4 x SATA 6Gb/s ports
• Supports RAID 0, RAID1 and RAID 10
• 1 x M.2 slot (Key M)
• Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics and A-series /Athlon™ X4 Processors) and SATA 6Gb/s
• Supports 2242/ 2260 /2280 storage devices

USB

AMD^® A320 Chipset

• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
• 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AMD^® processor

• 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek^® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek^® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Serial port connector
• 1 x LED strip connector
• 1 x Clear CMOS jumper

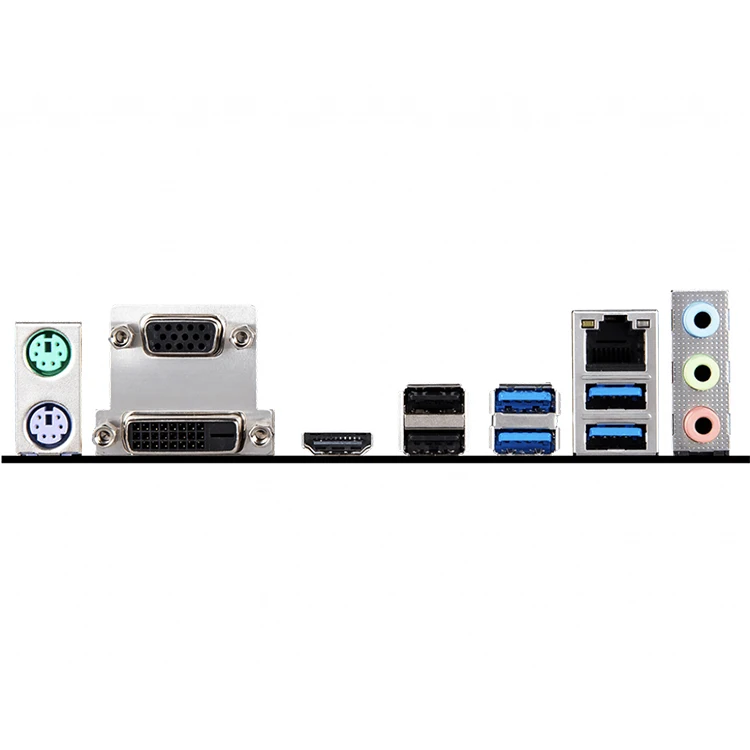

BACK PANEL PORTS

1. Mouse
2. VGA Port
3. USB 2.0
4. LAN Port
5. HD Audio Connectors
6. Keyboard
7. DVI-D Port
8. HDMI Port
9. USB 3.1 Gen1

DIMENSIONS

• 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
• m-ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit
Support for Windows^® 7 64-bit
* To support Windows^® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
