SPECIFICATIONS

Bluetooth: Bluetooth 5.0

CPU SUPPORT: 9th / 8th Gen Intel Core

Chipset: Intel Z390

Expansion Slots: PCIe 3.0

LAN: Intel I219V

Manageability: WOL , PXE

Memory: 64GB,DDR4

Operating System: Windows 10 64-bit

Size: 30.5 cm x 24.4 cm

USB Ports: USB 3.1,USB 2.0

application: Desktop

brand name: ASUS

chipset: IntelZ390

chipset manufacturer: Intel

cpu type: Intel

form factor: ATX

fsb / ht: 1333MHz

graphics card type: Integrated

hard drive interface: SATA

item condition: Used

maximum ram capacity: 64 GB

memory bank: 4 DDR4

memory channel: Double

memory type: DDR4

package: No

place of origin: Guangdong, China

ports: AGP 4X,Ethernet,M.2,PCI-E 3.0,PCI-Express X16,PCI-Express X4,PCI-Express X8,SATA,USB 2.0,VGA ,Wi-Fi,Usb3.1

private mold: Yes

products status: Used

socket type: LGA 1151

with cpu: No

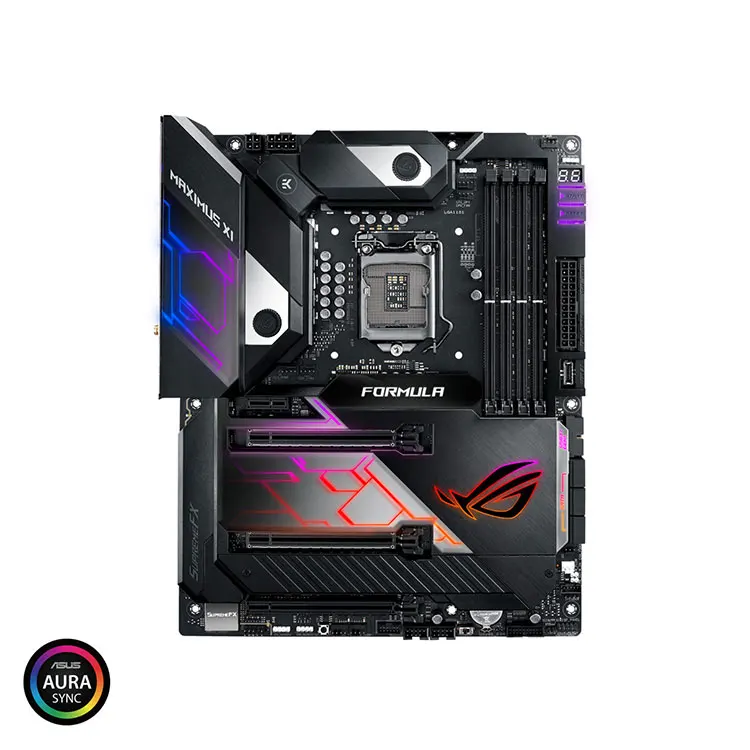

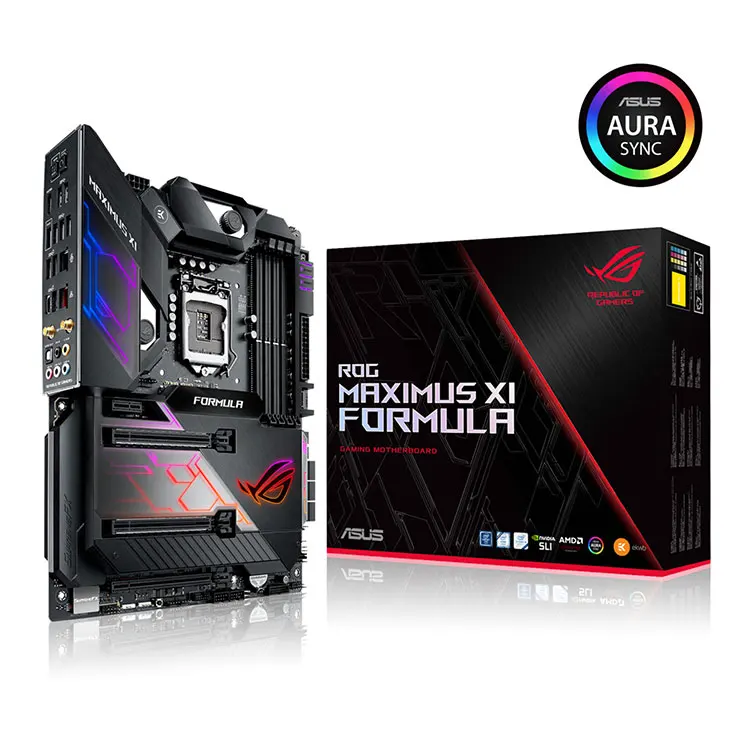

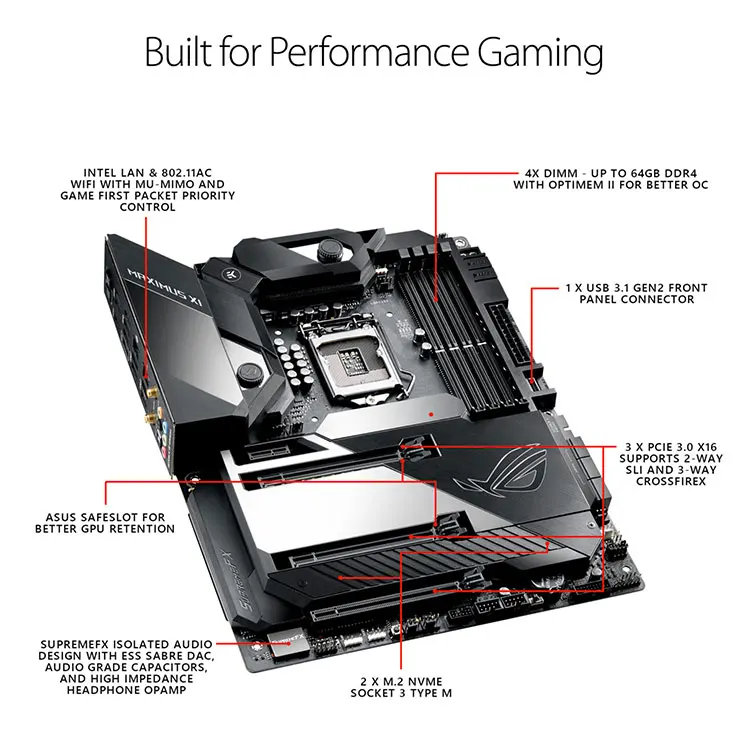

Intel Z390 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 4400MHz, 802.11ac Wi-Fi , dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

LGA1151 socket for 9th/8th -gen Intel® Core™ desktop processors

CrossChill EK III and Water Cooling Zone: Keep your system cool when the action heats up

ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips.

Gaming connectivity: Aquantia 5G LAN, Intel Gigabit Ethernet, LANGuard, 2x2 802.11ac Wi-Fi, Dual M.2, USB 3.1 Gen 2 Type-A and Type-C™ connectors.

Change to : 5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles trailor-made for your rig

Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action.

CPU

Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Memory

4xDIMM,Max.64GB,DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Expansion Slots

Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors

2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4)

Intel® Z390 Chipset

1 x PCIe 3.0 x16 (max at x4 mode) *

1 x PCIe 3.0 x16

Storage

Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Intel® Optane™ Memory Ready

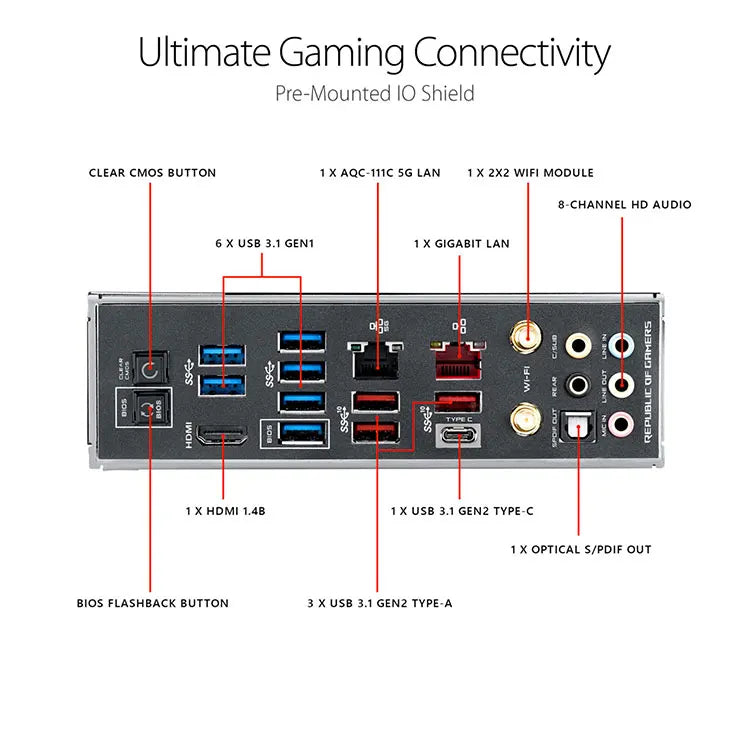

Back I/O Ports

1 x High Definition Multimedia Interface

4 x USB 3.1 Gen 2

6 x USB 3.1 Gen 1 ,

1 x Optical S/PDIF out

1 x Clear CMOS button(s)

1 x USB BIOS Flashback Button(s)

1 x ASUS Wi-Fi Module

5 x Gold-plated audio jacks

Anti-surge LAN (RJ45) port

1 x AQC-111C 5G LAN port

Internal I/O Ports

2 x Aura Addressable Strip Header(s)

2 x Aura RGB Strip Headers

2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

1 x Chassis Fan connector(s)

1 x Optional Fan connector(s)

1 x AIO_PUMP connector

1 x H_AMP fan connector

1 x W_PUMP+ connector

1 x 4-pin EATX 12 V Power connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x MemOK! II switch(es)

1 x Thermal sensor connector(s)

1 x Node Connector(s)

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x ReTry button

1 x System panel connector

1 x T_Sensor Connector

1 x W_IN header

1 x W_OUT header

1 x W_FLOW header

1 x USB 3.1 Gen 2 front panel connector

2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x Start button

1 x Reset button

1 x Q-Code

Note

* The PCIe x 16_3 slot shares bandwidth with SATA6G_56 ports. PCIe x 16_3 slot is set at x2 mode by default.

*2 When M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disabled.

When an 22110 M.2 SSD is installed in M.2_1, M.2_2 will be limited to an 2242 M.2 SSD.

*3 Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
