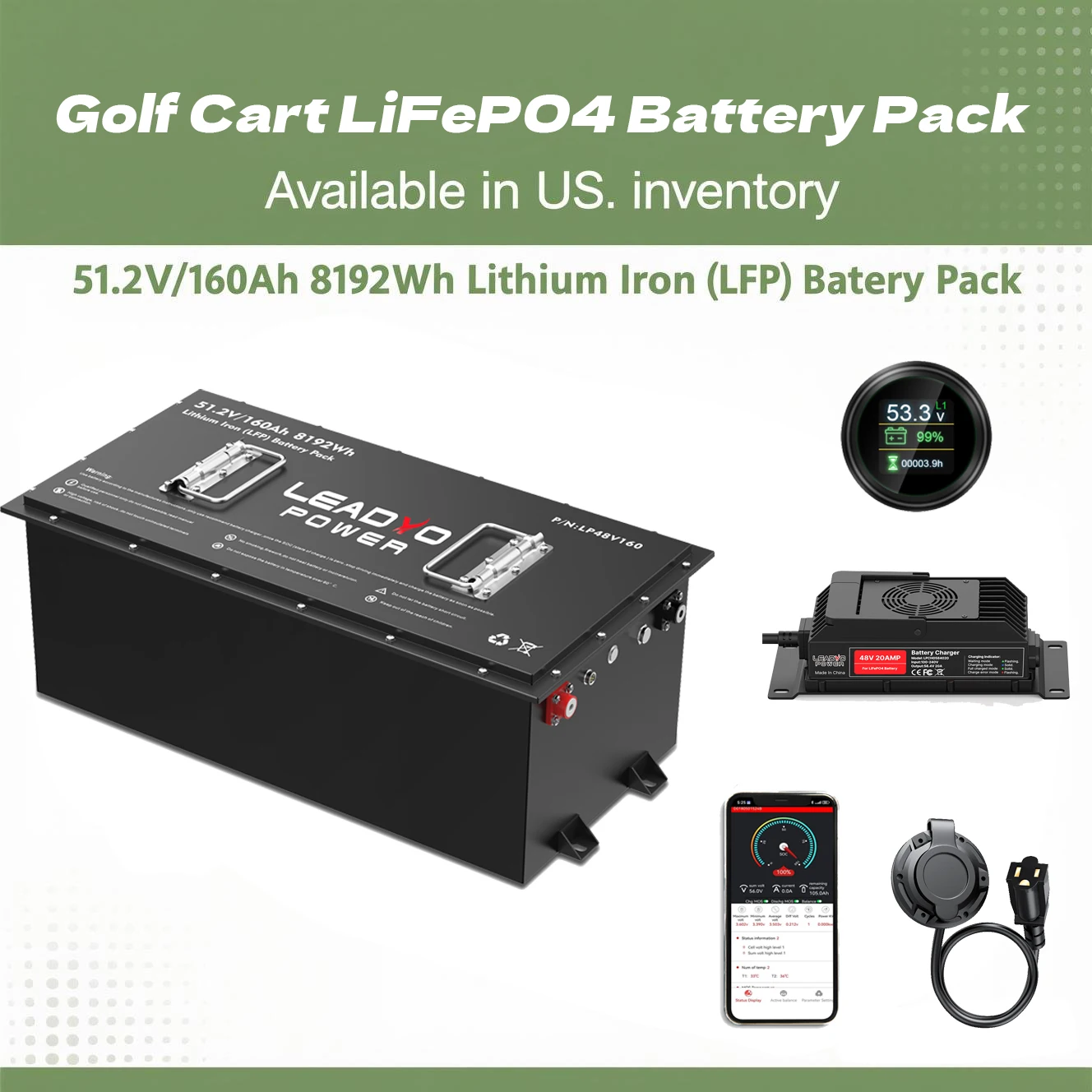

US Stock 48V Long-Life Lifepo4 Golf Cart Battery 51.2V 160Ah Lithium Ion Battery Pack for Golf Carts

US Stock 48V Long-Life Lifepo4 Golf Cart Battery 51.2V 160Ah Lithium Ion Battery Pack for Golf Carts

CFA652,966 XOF
CFA0 XOF CFA652,966 XOF
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Nominal Capacity
Nominal Voltage

SPECIFICATIONS

Apllication: Golf Carts

Application: electric vehicles,Home Appliances,SUBMARINES,Electric Forklifts,Electric Bicycles/Scooters,Golf Carts

BMS: Built-in BMS Protection

Battery cell: A-Grade 3.2V Prismatic Lifepo4 Cell

Brand Name: Leadyo

Capacity: 160Ah

Cathode Materials: LiFePO4

Certification: CE/UN38.3/MSDS

Cycle Life: 6000+ cycles

Dimension (L*W*H): 643*328*231

Material: Li-FePO4

Max Load Quantity(cells): 16

Model Number: LP48V160

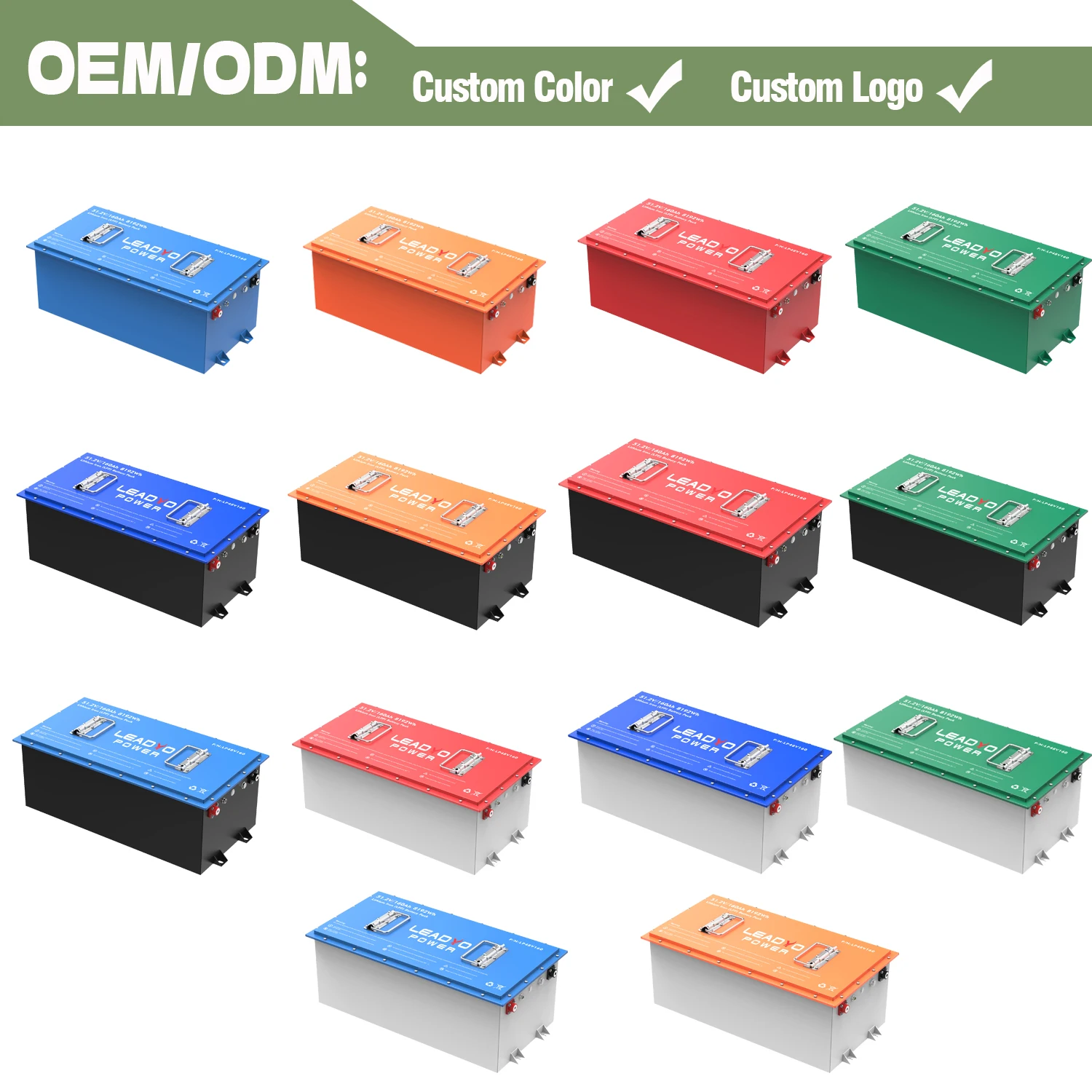

OEM/ODM: Yes(Accepted)

Operating Temperature(℃): -20~65°

Place of Origin: Guangdong, China

Product name: 51.2V160Ah LifePO4 Lithium Battery Pack

Voltage: 51.2V

Warranty: 5 Years

Weight: 74kg

We accept OEM orders!
LECTRICAL SPECIFICATIONS
Nominal Voltage
51.2V
Nominal Capacity
160Ah
Nominal Energy
5376Wh
Internal Resistance
≤30 @50% SOC
Capacity
@20A: 300minutes(5hours)
Self Discharge
5% /per month
Maximum In Series
No
Maximum In Parallel
No limit
MECHANICAL SPECIFICATIONS

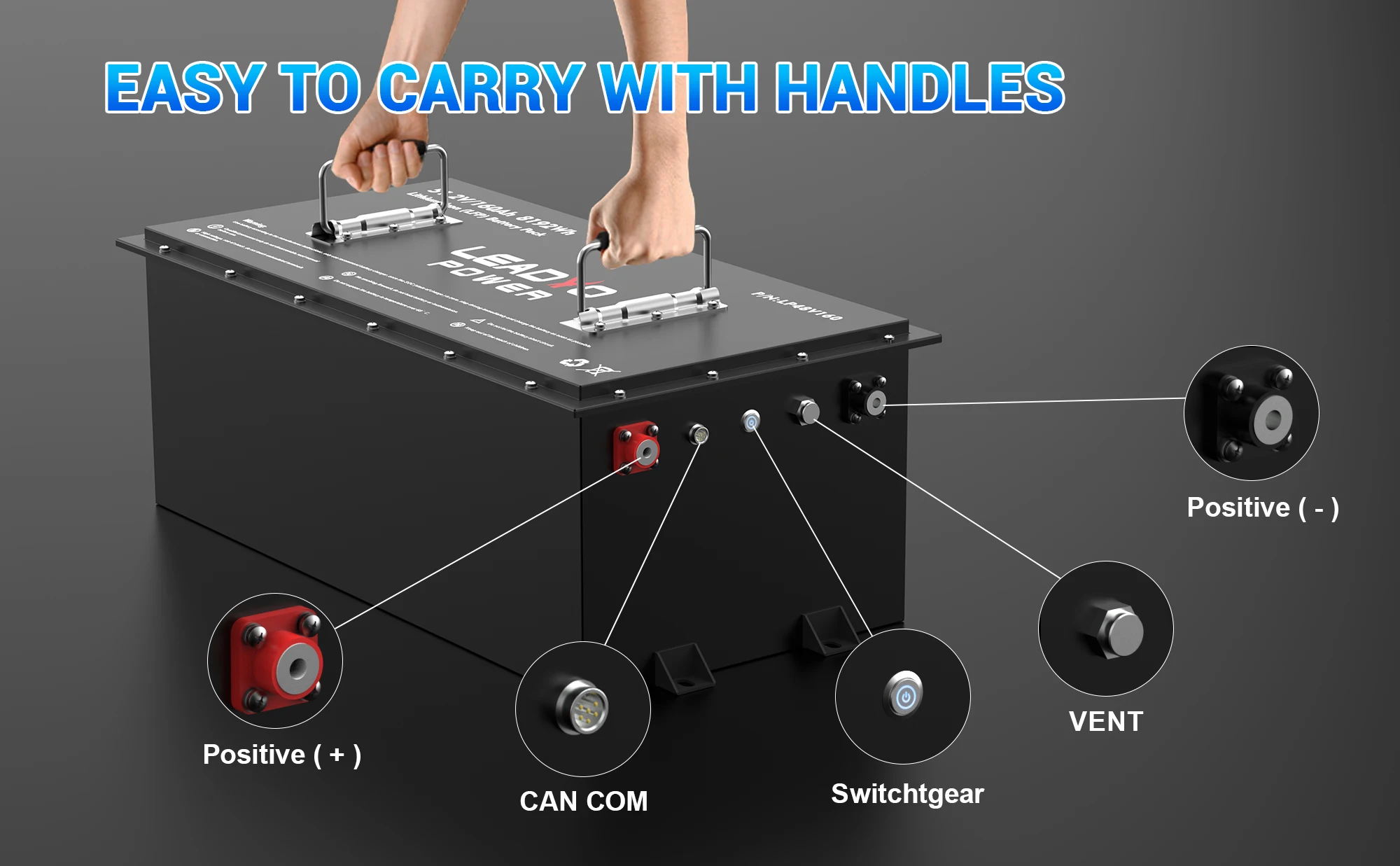

Terminal Type
M8
Weight
74kg
Case Size(L*W*H mm)
643*328*231mm
Case Type

Stainless steel case
Cell type / Chemistry
LiFePO4

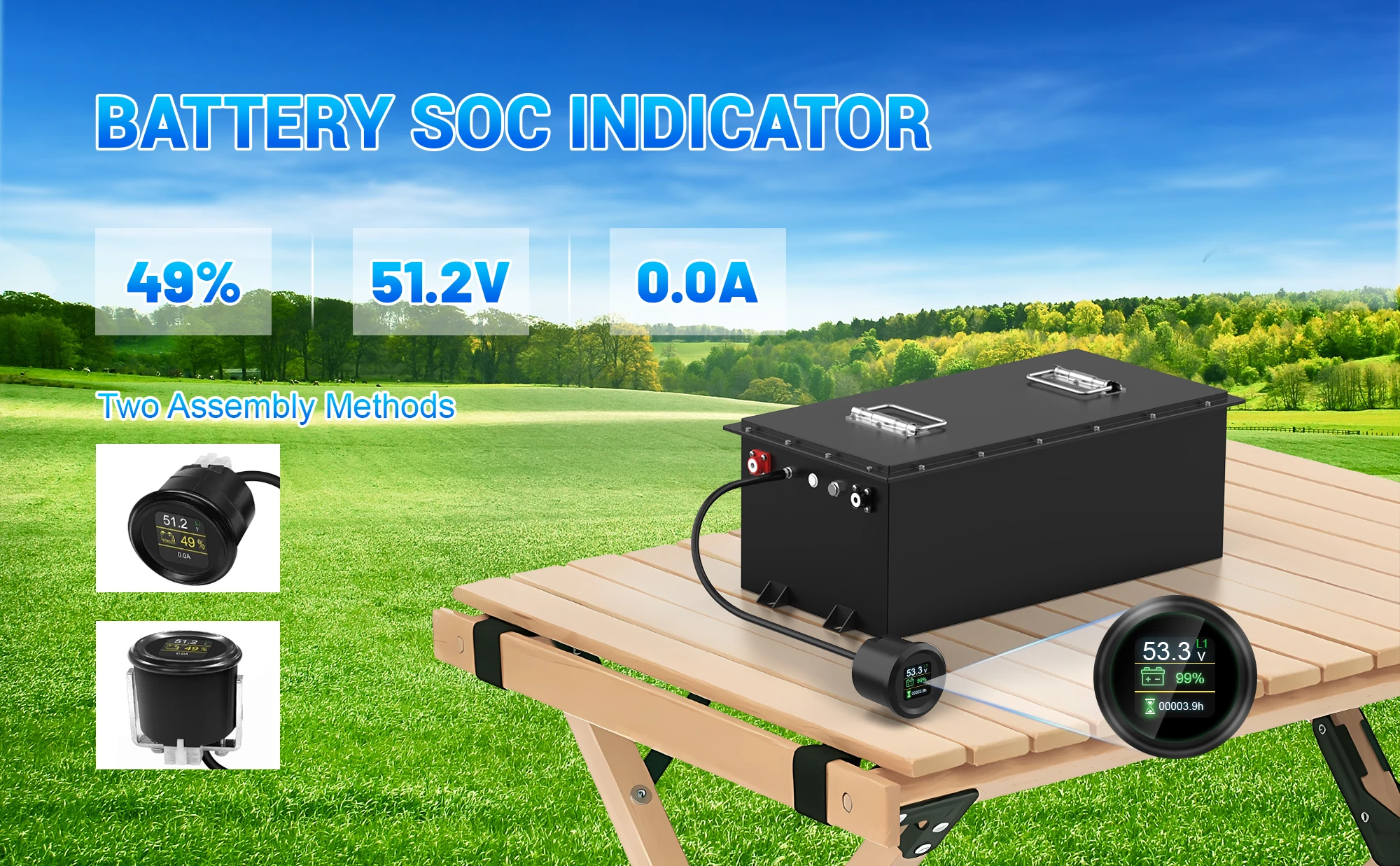

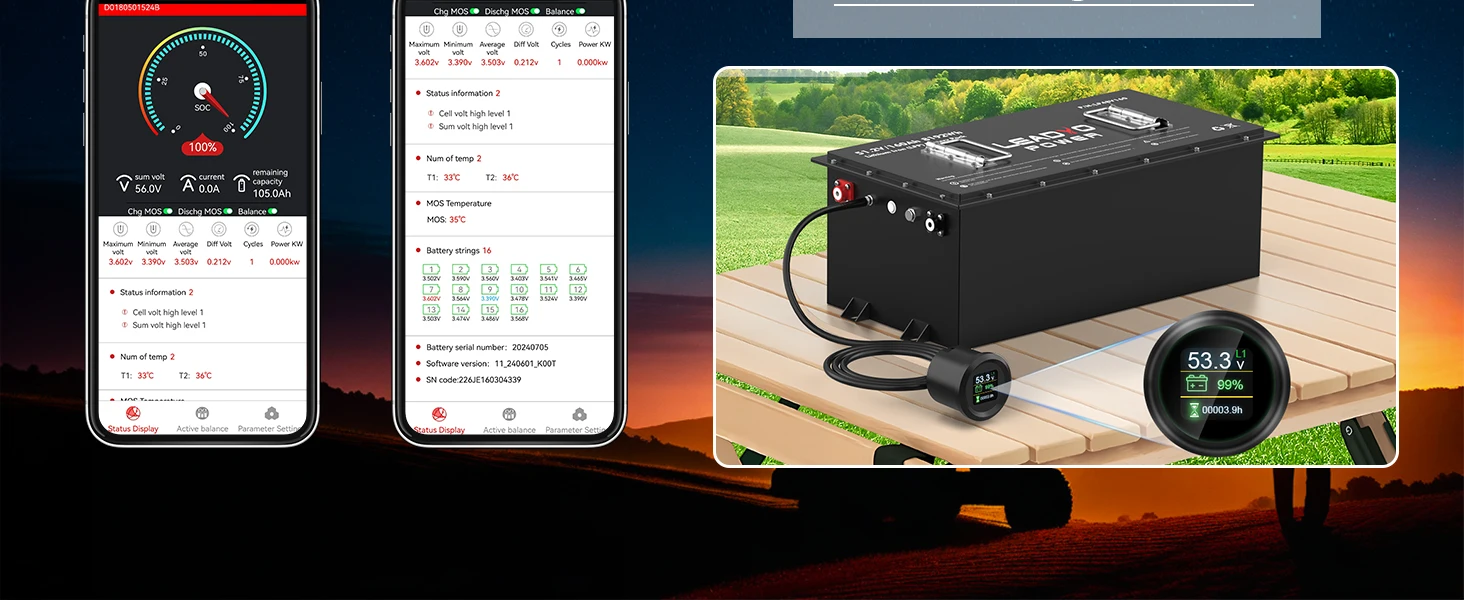

LCD or Bluetooth Function
Optional
BMS
low voltage,high voltage,over temperature ,over current,short-circuit protection,etc
Discharge Current and Voltage Specifications
MAX Continuous Discharge Current

250A
Max Discharge Current
520A /20s
Discharge pulse current
570±50A (31±10ms)
BMS Low Voltge Cut-off
35.2V (2.2V±0.05v) pc)
Short Circuit Protection
200-800 µs Auto recover or charge release
Charge Current and Voltage Specifications
Max Charge Current
100A
Recommended Charge Current
10A - 30A
End of Charge voltage
57.6V±0.2V
Balancing current
Auto start
Balancing Voltage
3.6V±0.05v pc
Temperature Ranges
Discharge Temperature
-20～+65℃
Charge Temperature
-20～+45℃
Storage Temperature Range
-20～+45℃
BMS High Temperature Protection
90℃
Battery High Temperature Protection
60℃
COMPLIANCE SPECIFICATIONS
Certifications
CE for Battery Pack,UL1642 & IEC62133 for cells
Shipping classification
UN 3480

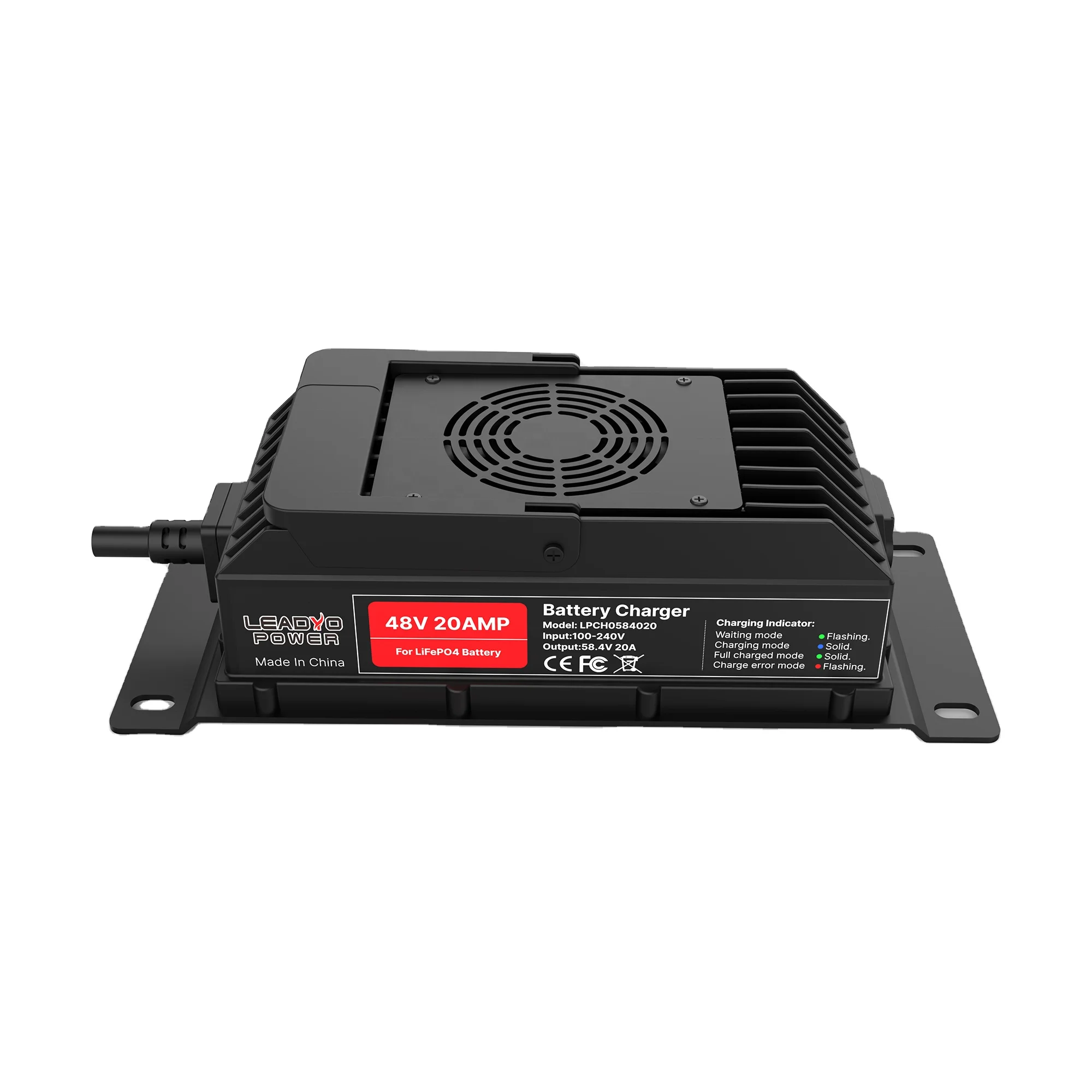

48V 20Amp High Performance Charger
1.Compatibility: Capable Of Seamlessly Matching With Our Battery Management System.
2. Safety: Equipped With Multiple ProtectionFunctions Against Overcharging, Overheating, And Short Circuits.
3. Efficiency: High Conversion Efficiency Reduces Energy Loss And Speeds Up Charging.
4. Stability: Provides Stable Voltage And Current Output To Protect The Health Of The Battery.
5.Intelligence: Intelligently Recognizes Device Requirements And Automatically Adjusts Charging Modes.
6. Durability: Made With High-Quality Materials To Ensure Long-Term Use.
7.Certification: Possesses International Safety Certifications, Such As UL,CE,UKCA,UTV,KC Etc
Ceritifaction

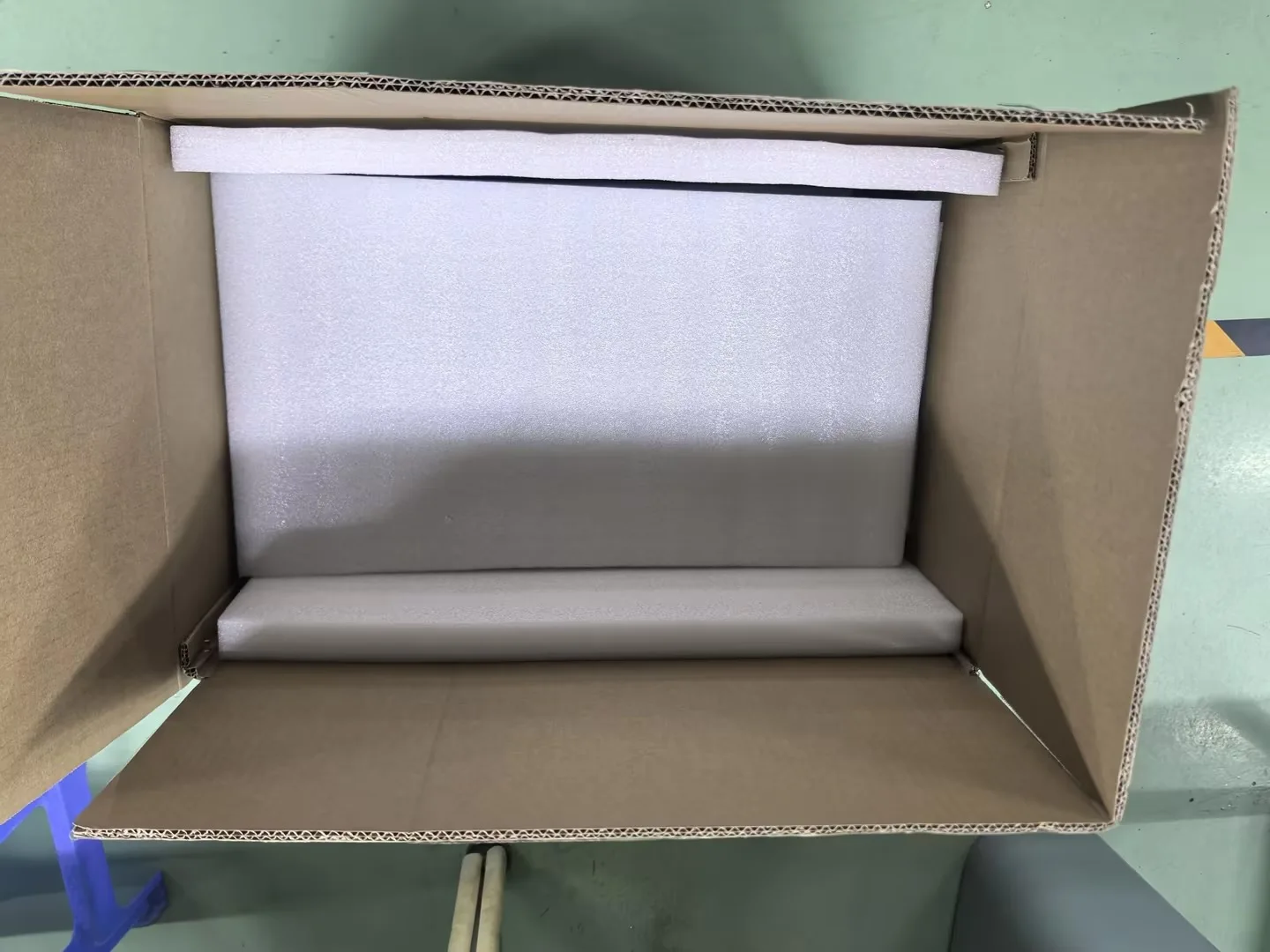

Packing with UN3480 Box

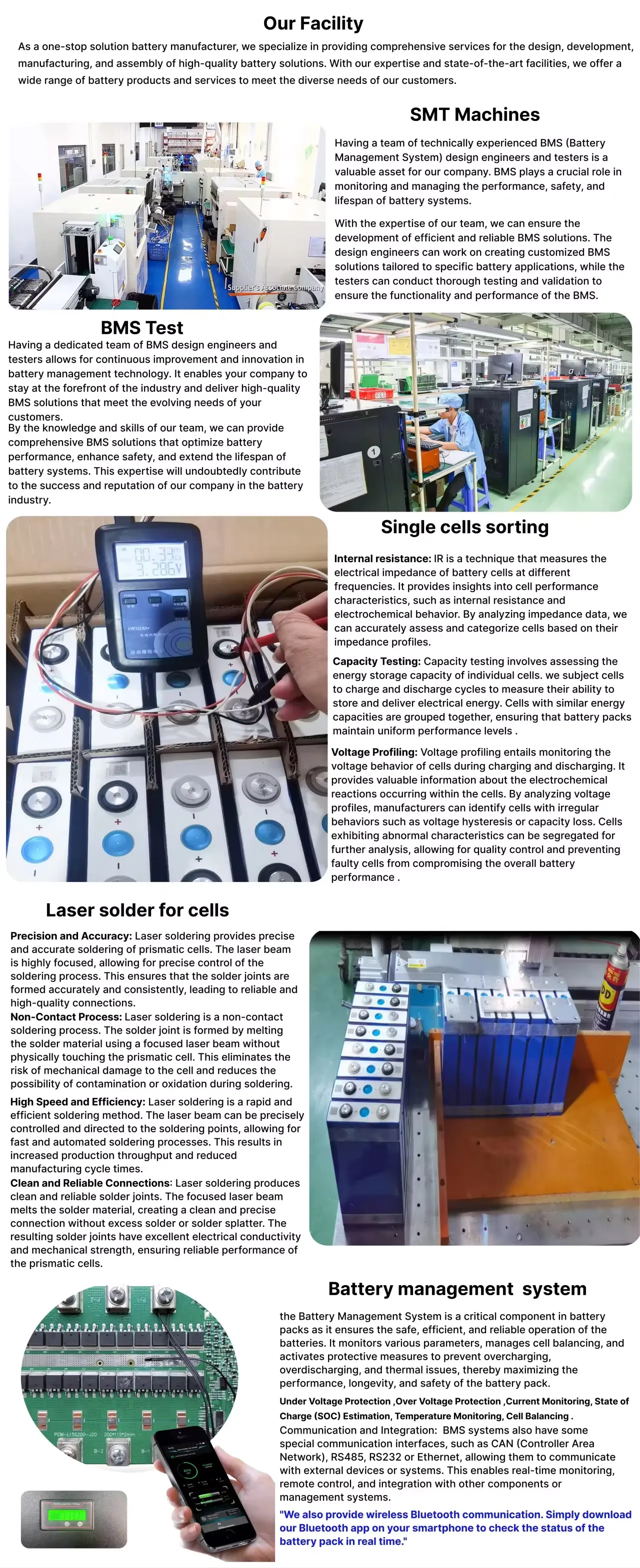

Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(18.00%),Western Europe(16.00%),Oceania(15.00%),Northern Europe(15.00%),Africa(12.00%),Eastern Asia(6.00%),South Asia(4.00%),Mid East(4.00%),Southern Europe(3.00%),Southeast Asia(3.00%),South America(2.00%),Eastern Europe(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lithium Iron Battery, Lithium Ion Battery, BMS, Charger, Car Batteries

4. why should you buy from us not from other suppliers?
Our innovative engineers, experienced staff, modern facility, strict management, and strong corporate responsibility make us capable of offering reliable products at competitive costs and allow us to provide the best service to meet our clients' requests.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DES；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
