Topton Solid Fanless Firewall Mini PC VPN Gateway Intel N150 N5105 J6412 J5005 7305 6305 4x2.5G LAN Home Server PfSense Computer
Topton Solid Fanless Firewall Mini PC VPN Gateway Intel N150 N5105 J6412 J5005 7305 6305 4x2.5G LAN Home Server PfSense Computer
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Brand Name: Topton
Certification: CE,FCC,RoHS
Graphics Card Type: Integrated Card
Hard Drive Capacity: ≤ 40 GB
High-concerned chemical: None
Memory Capacity: ≤ 128MB
Model Number: X2E/X2B
Origin: Mainland China
Processor Brand: Intel
Processor Main Frequency: Depends on CPU
Processor Model: Intel
Type: Mini Desktop,Mini PC
Use: Household

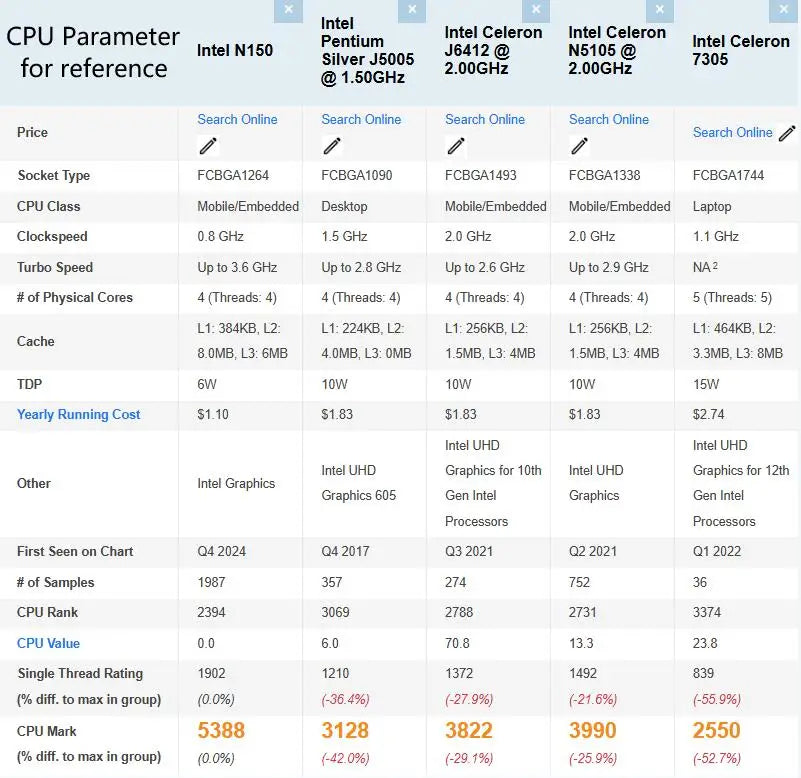

Processors |
Cores & Threads |
L3 Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
Intel N150 |
4 cores, 4 threads |
6M |
\ |
3.60 GHz |
6W |
Pentium J5005 |
4 cores, 4 threads |
4M |
1.50 GHz |
2.80 GHz |
10W |
Celeron J6412 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.60 GHz |
10W |
Celeron N5105 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.90 GHz |
10W |
Celeron 7305 |
5 cores, 5 threads |
8M |
1.10 GHz |
\ |
15W |
Celeron 6305 |
2 cores, 2 threads |
4M |
1.80 GHz |
\ |
15W |

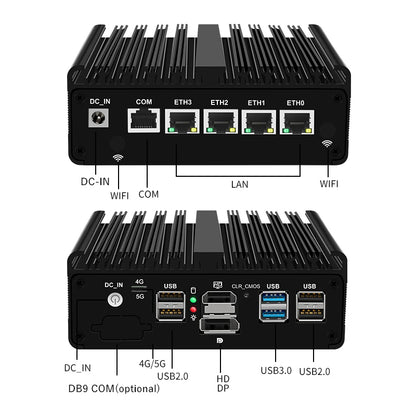

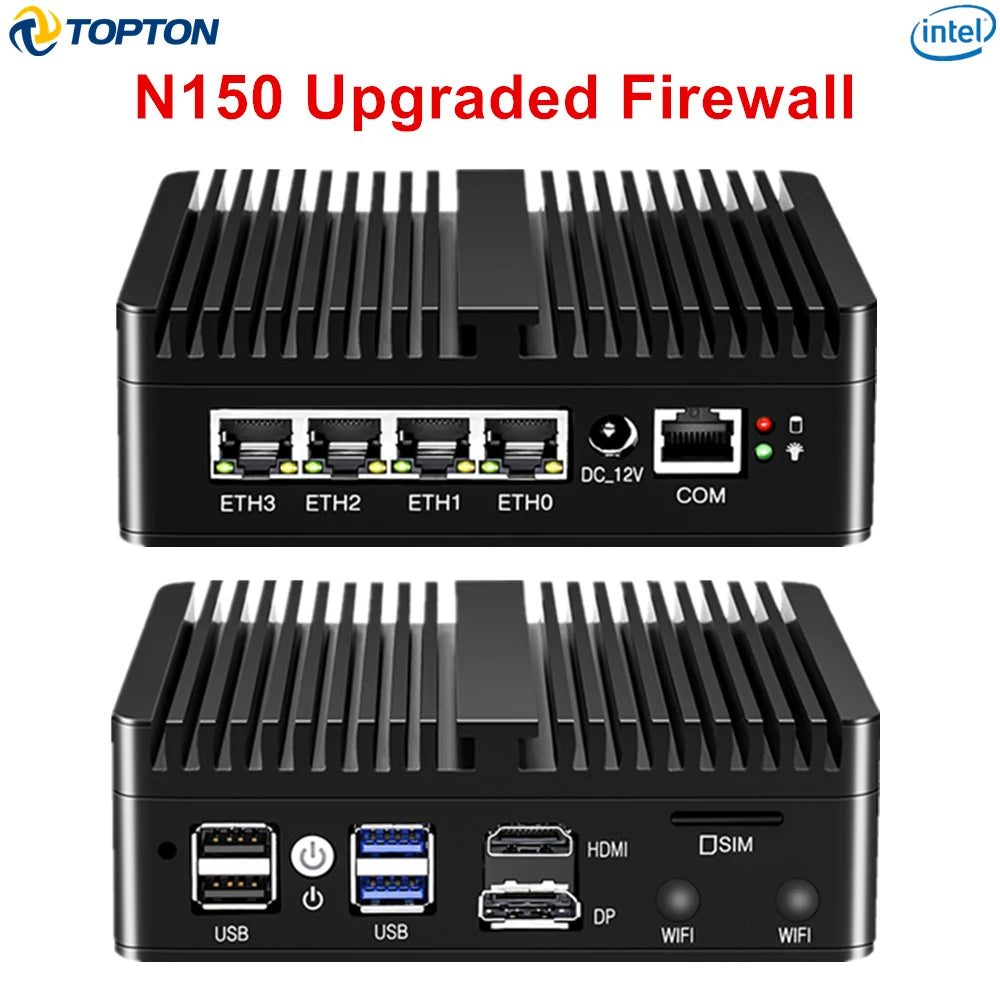

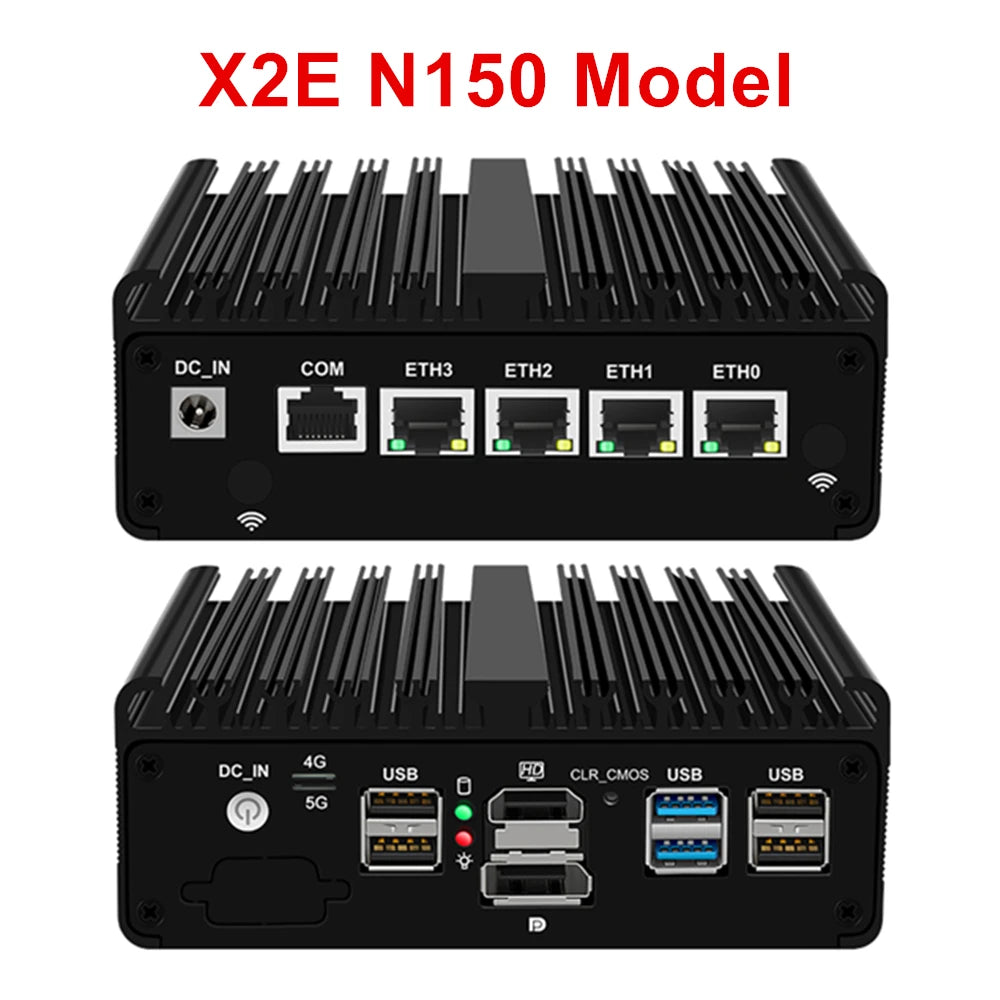

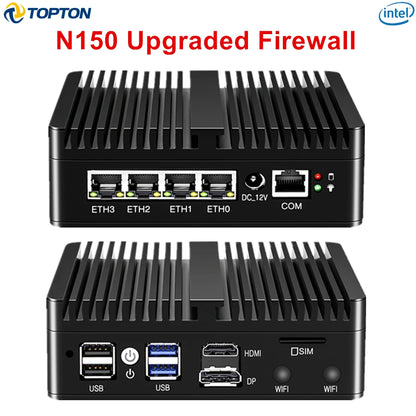

X2E N150 Model:

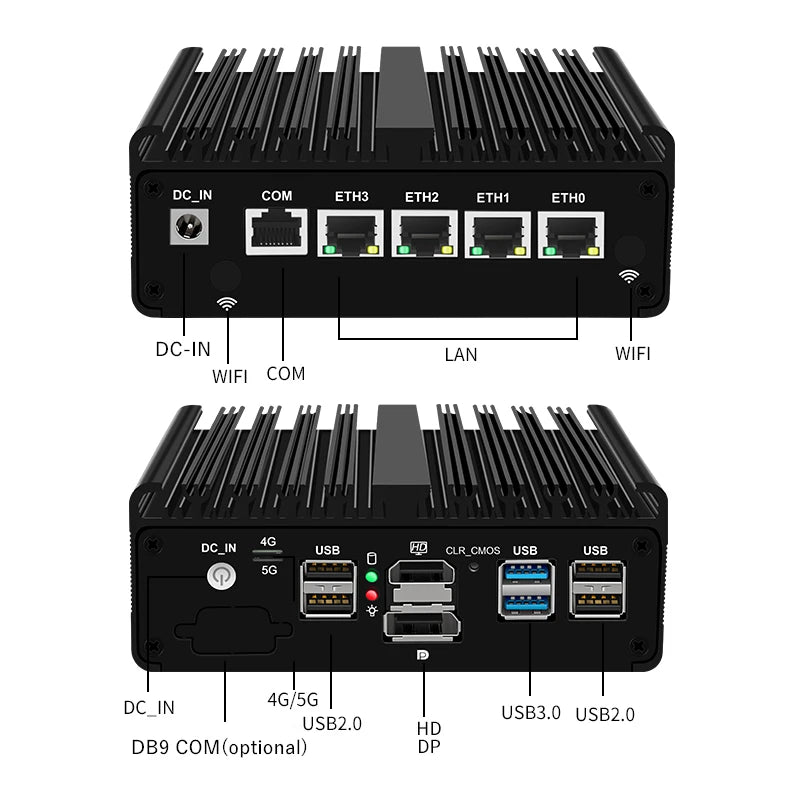

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 4xUSB2.0, 1xRJ45 COM console, 1x5G SIM slot, 1x4G SIM slot, DB9 COM RS232 or RS485 is optional.
-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.

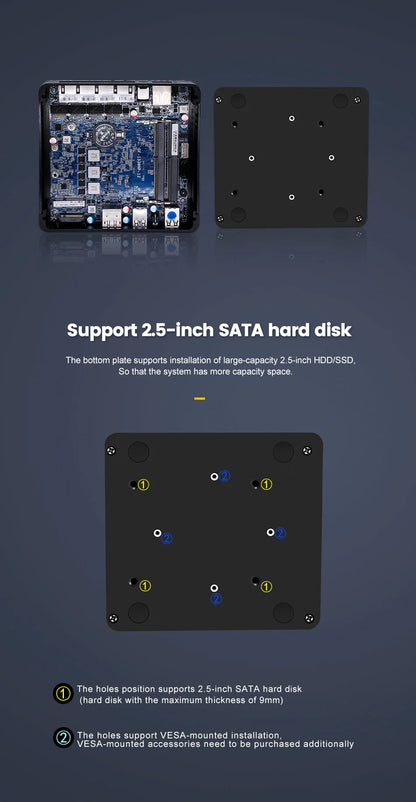

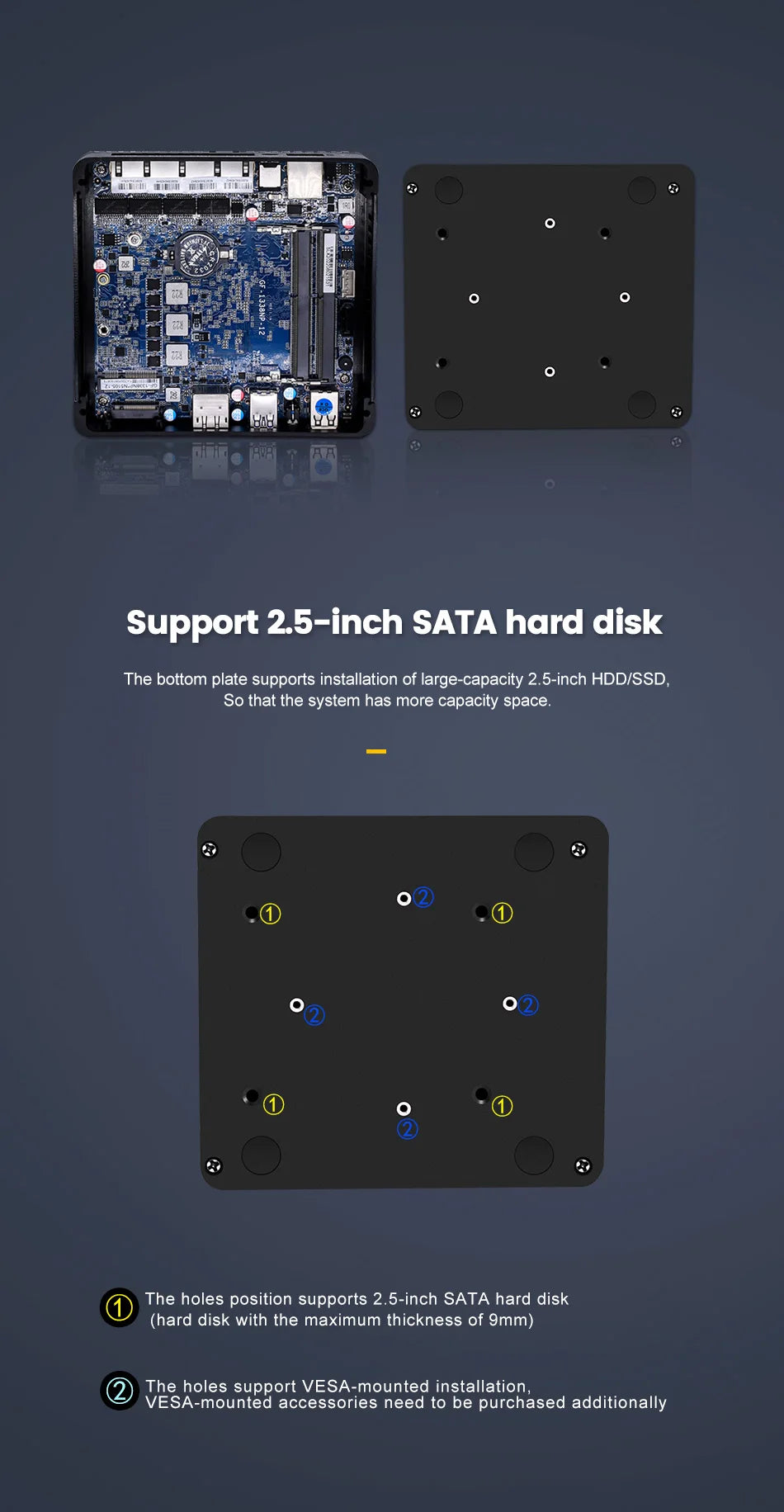

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/5G/4G(USB signal) connection.
X2B N100 model:
-4xIntel i226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G SIM slot.
-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G(USB signal) connection.

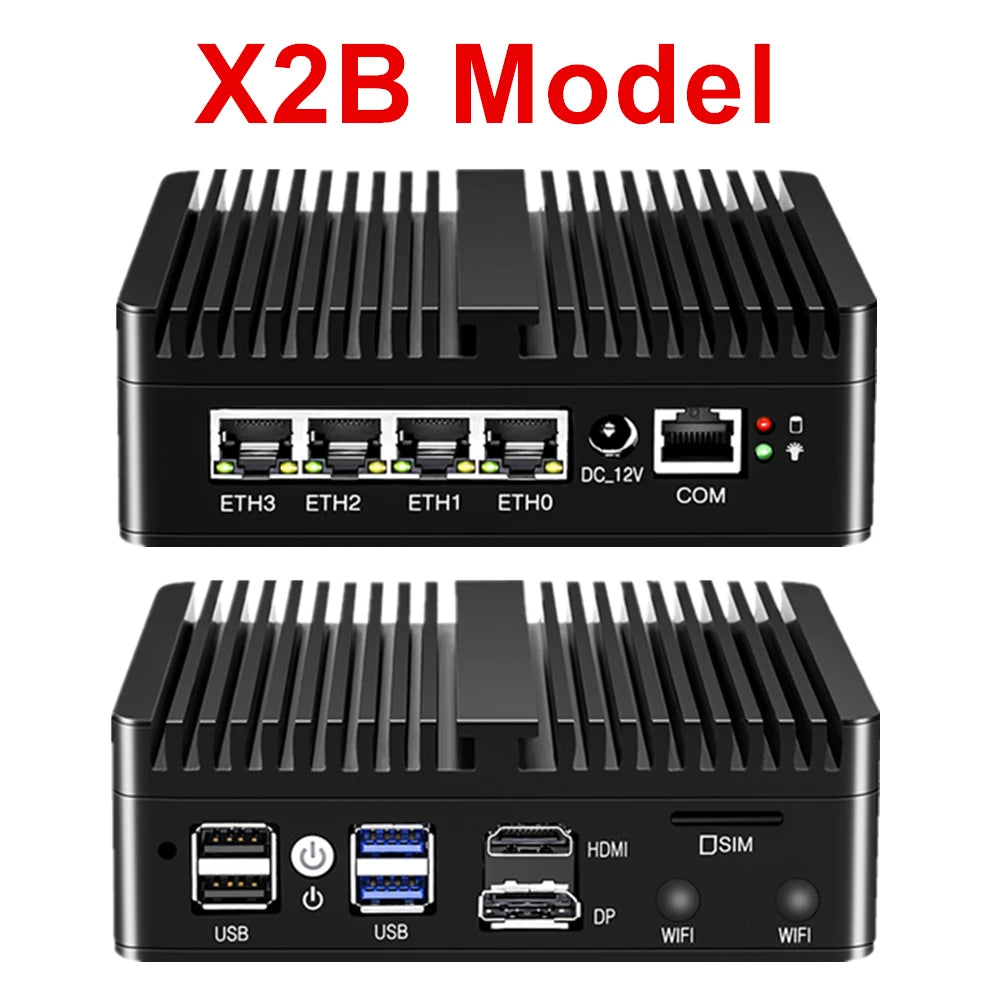

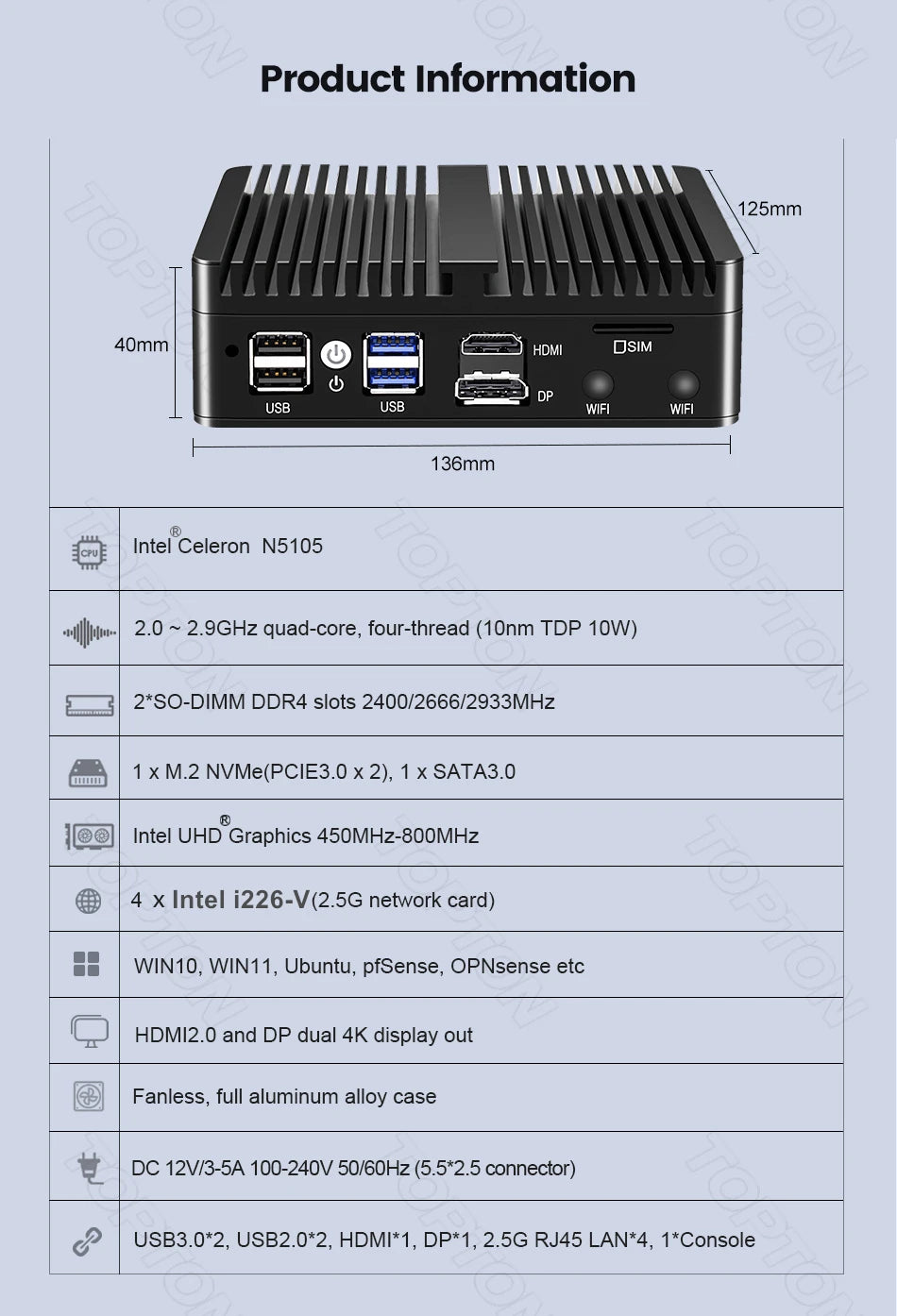

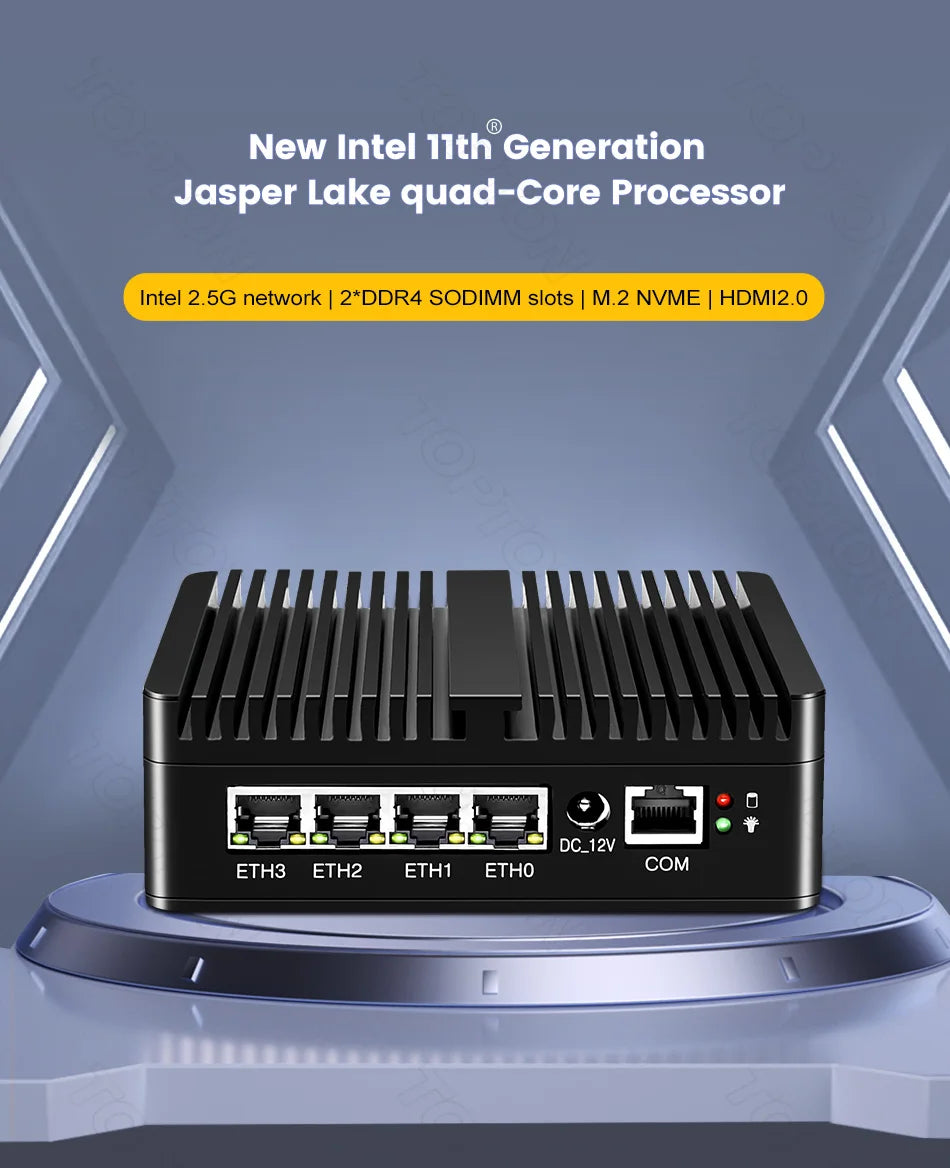

X2B N5105/J6412/J5005/7305/6305 model:

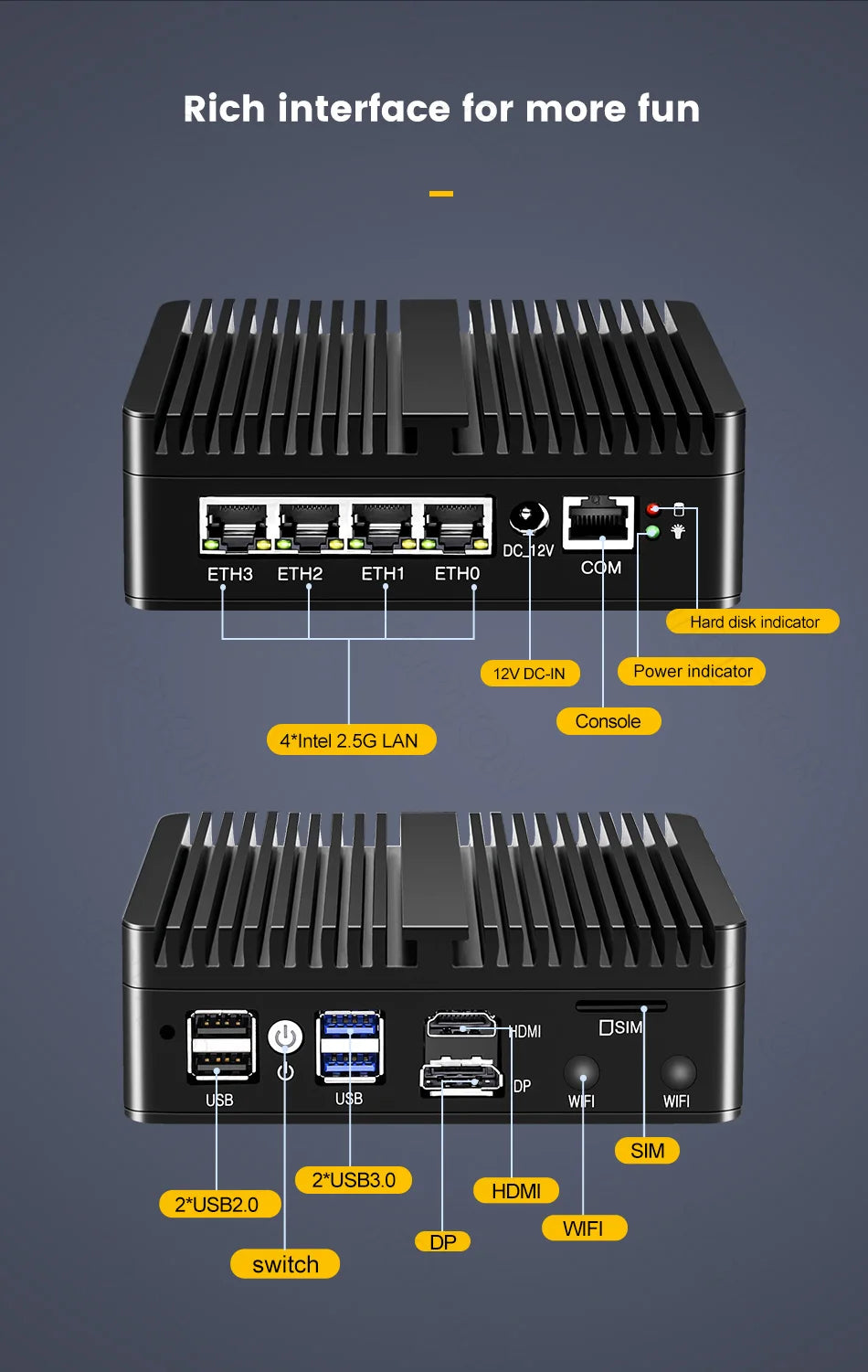

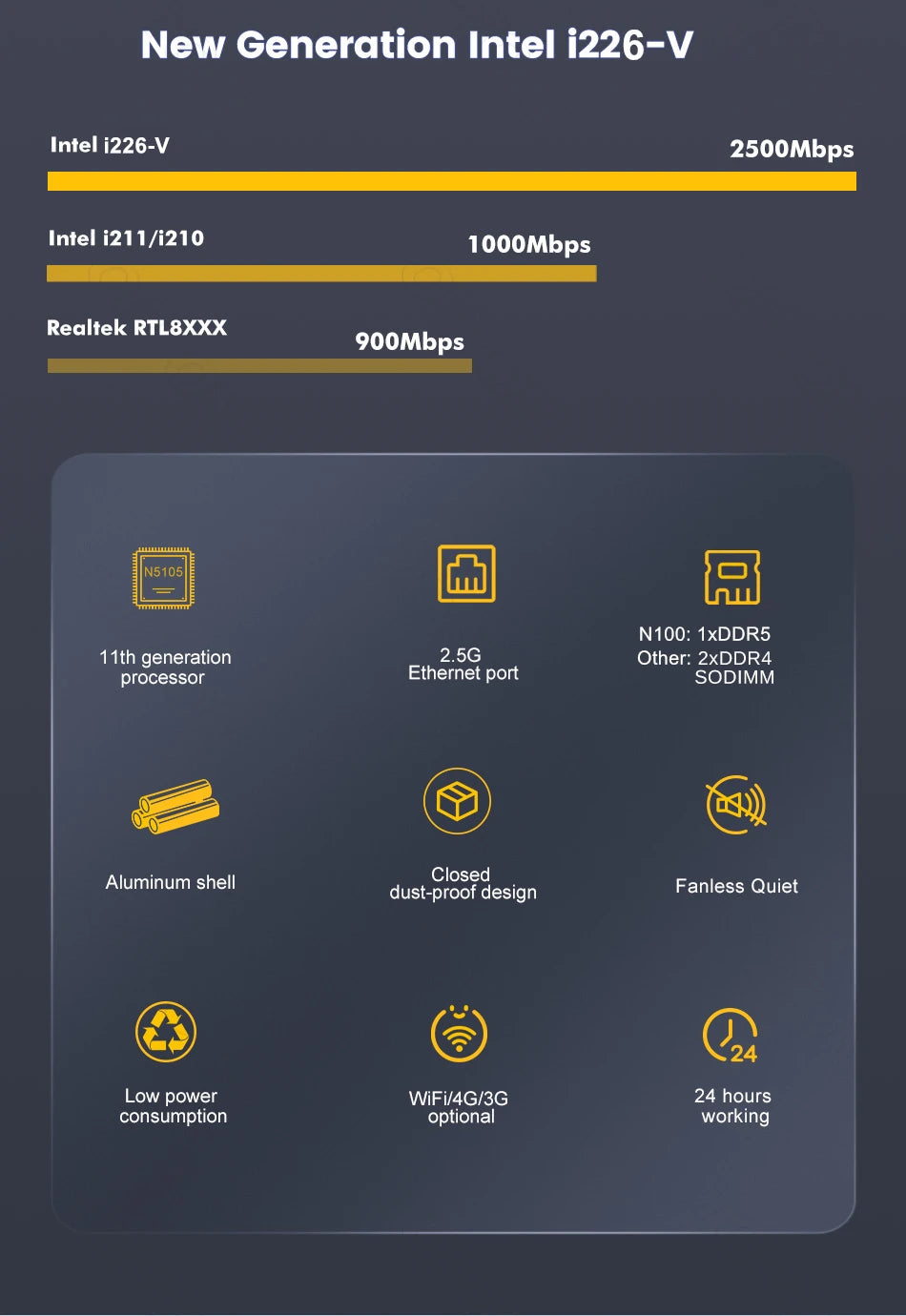

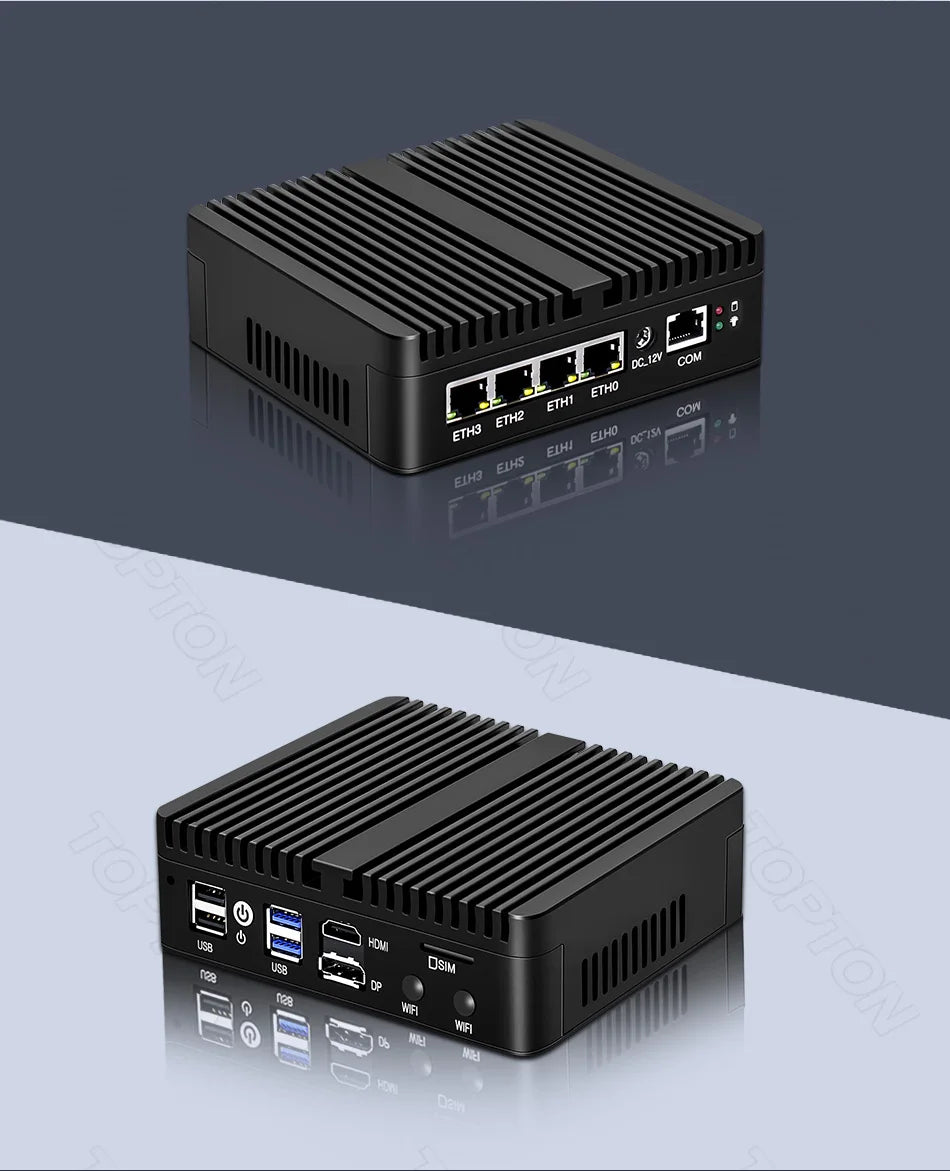

-4xIntel i226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G SIM slot.
-2xDDR4 SODIMM non-ecc ram slots, support 2400/2666/3200MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G(USB signal) connection.
-Support 1xHDMI and 1xDP dual 4K video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

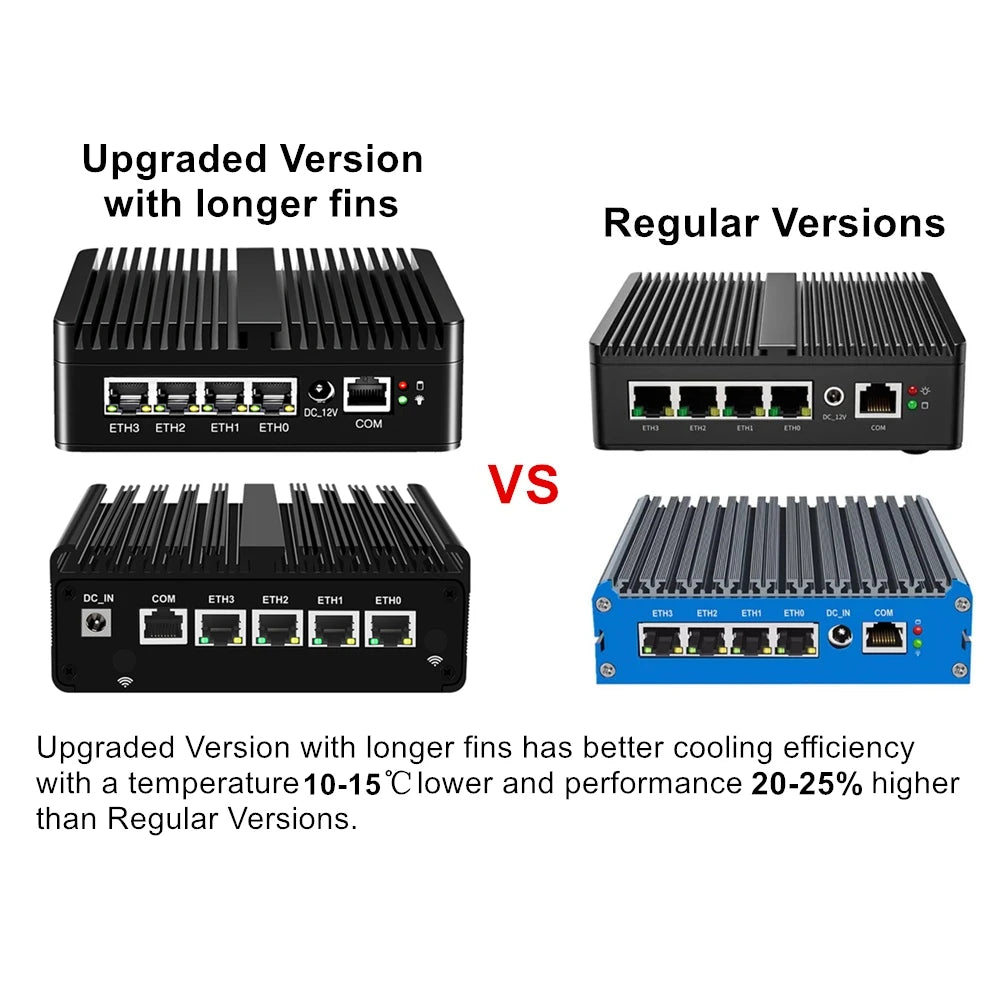

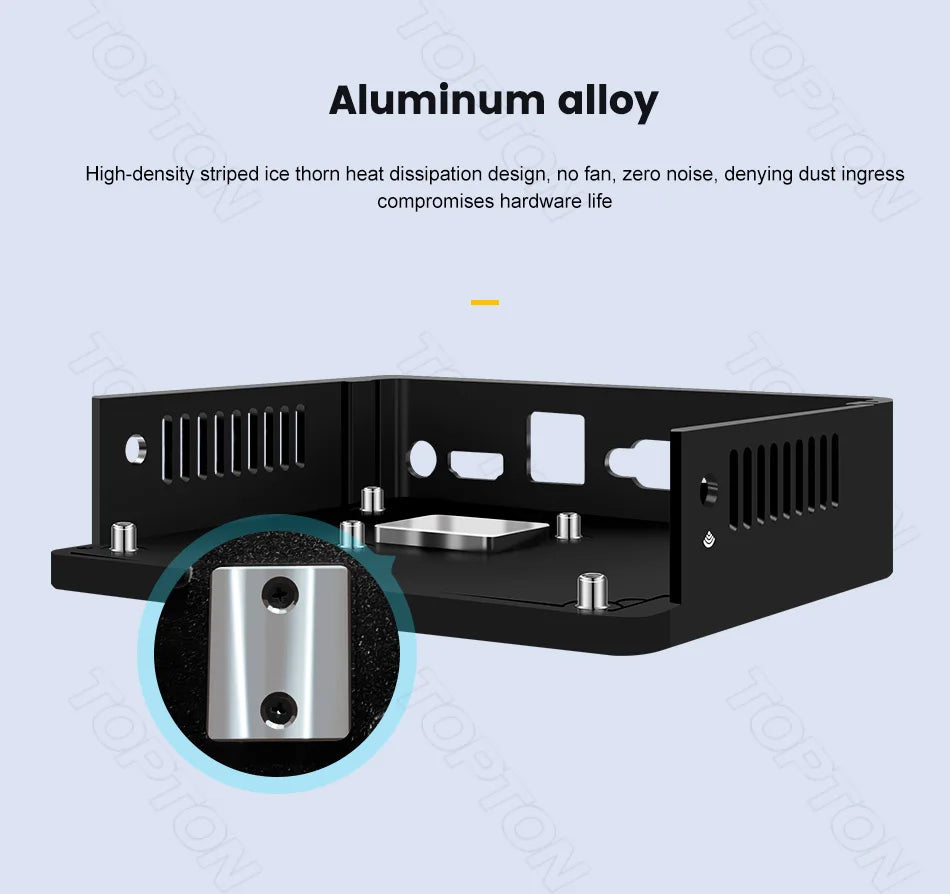

-All aluminum alloy fanless system with longer fins has better cooling efficiency with a temperature 10-15℃ lower and performance 20-25% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7x24 hours. Also it is a good option to add a USB fan if you have.

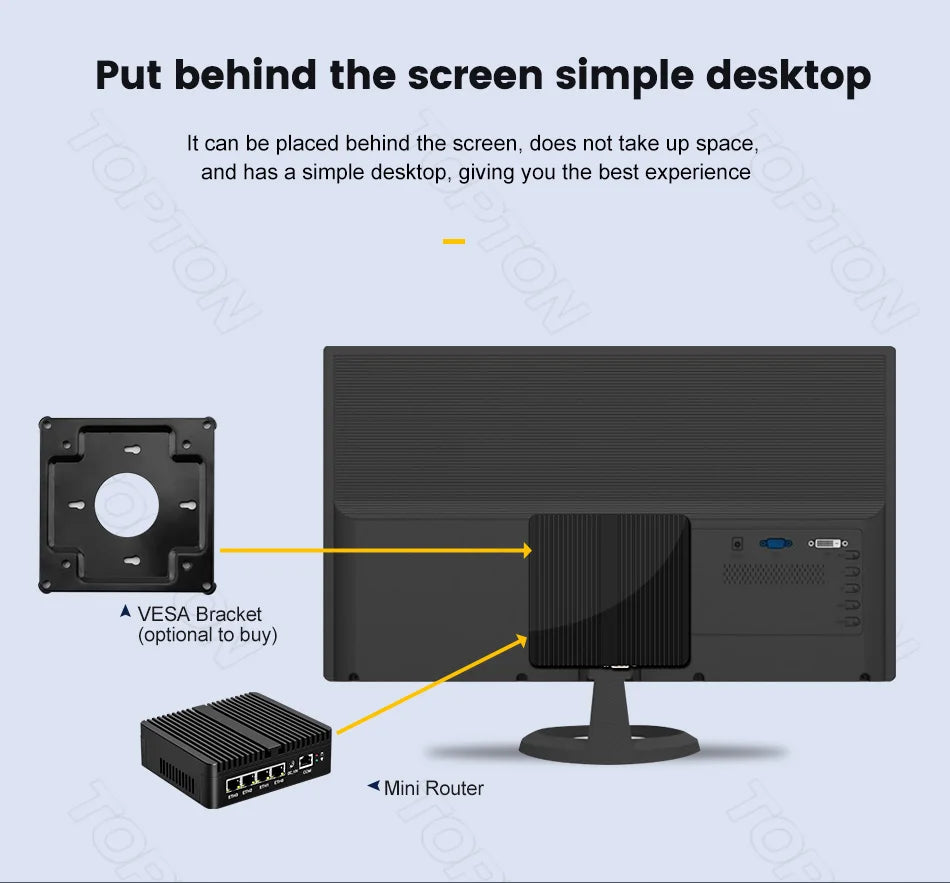

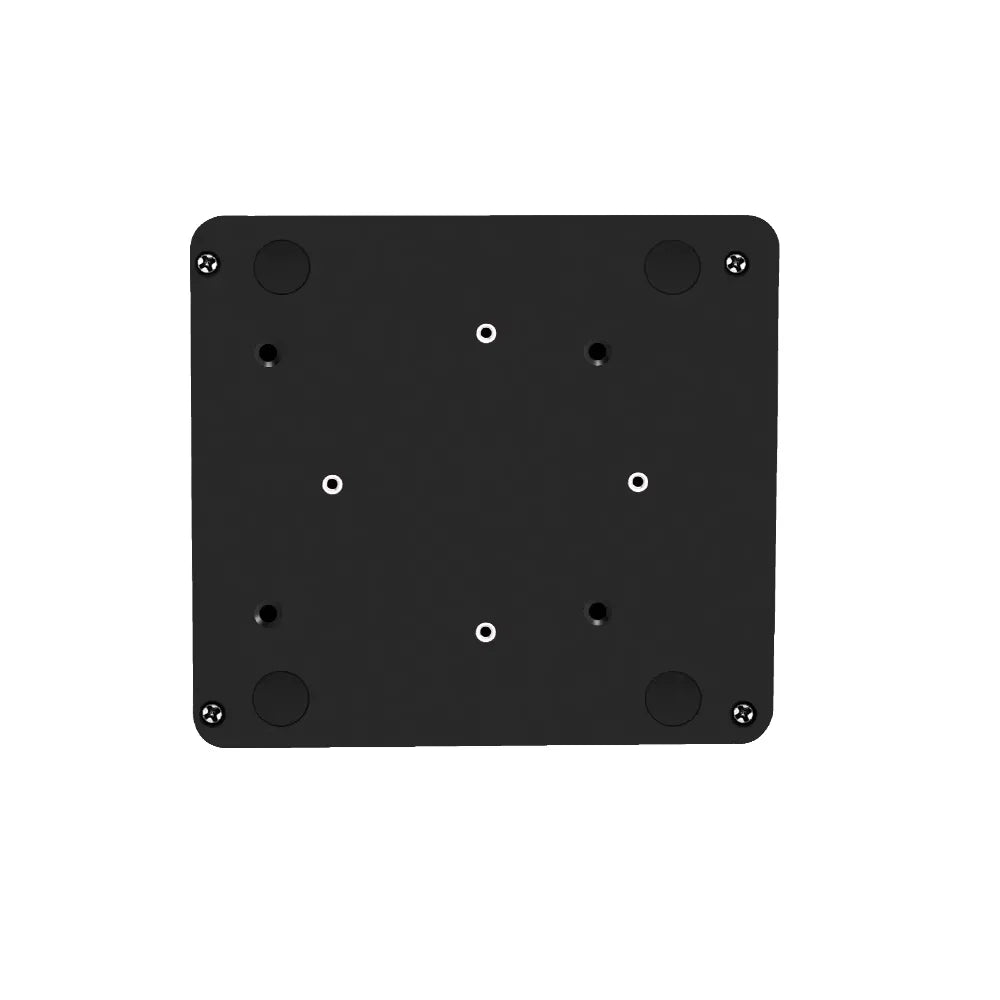

-It can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord(EU/US/UK/AU plug based on buyer's country)
1xSATA Cable
Suggest to install pfSense, OPNsense etc routing system. Suggest to add extra fan for ram and hard drive cooling if you install Proxmox, ESXi etc virtual machine system to avoid overheating crash.
X2E N150 model:
X2B N5105/J6412/J5005/7305/6305 model:

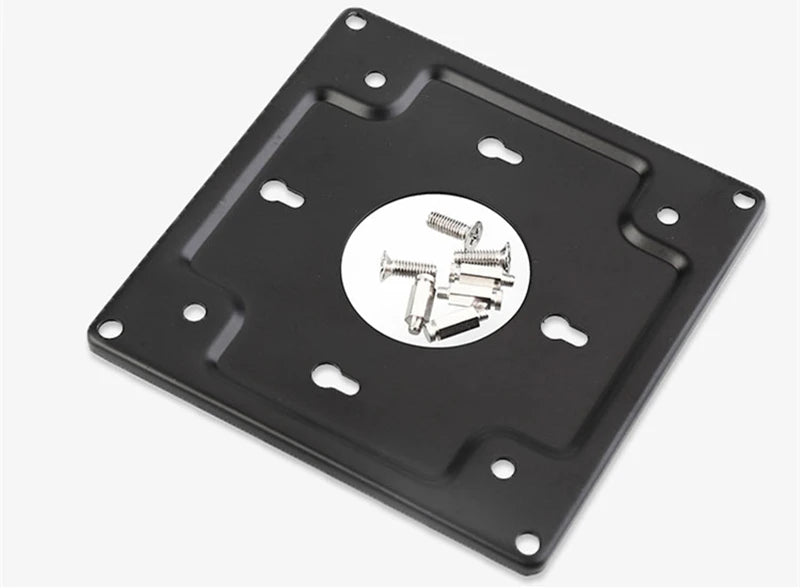

Welcome to click the picture of VESA Bracket to order together if you need:
