SPECIFICATIONS

Brand Name: Topton

Certification: CE,FCC,RoHS

Graphics Card Type: Integrated Card

Hard Drive Capacity: 1TB

High-concerned chemical: None

Memory Capacity: ≥ 4GB

Model Number: 1U-9.5-4L

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: Depends on CPU

Processor Model: Intel N150/i3 N305

Type: Mini Desktop,Mini PC

Use: Multimedia

Processor parameter for referance only

Processors	Cores & Threads	Cache	Max Turbo Frequency	TDP	Graphics
Intel N150	4 cores, 4 threads	6M	3.60 GHz	6W	Intel UHD Graphics 24EUS
Intel Core i3-N305	8 cores, 8 threads	6M	3.80 GHz	15W	Intel UHD Graphics 32EUS

Product Highlight

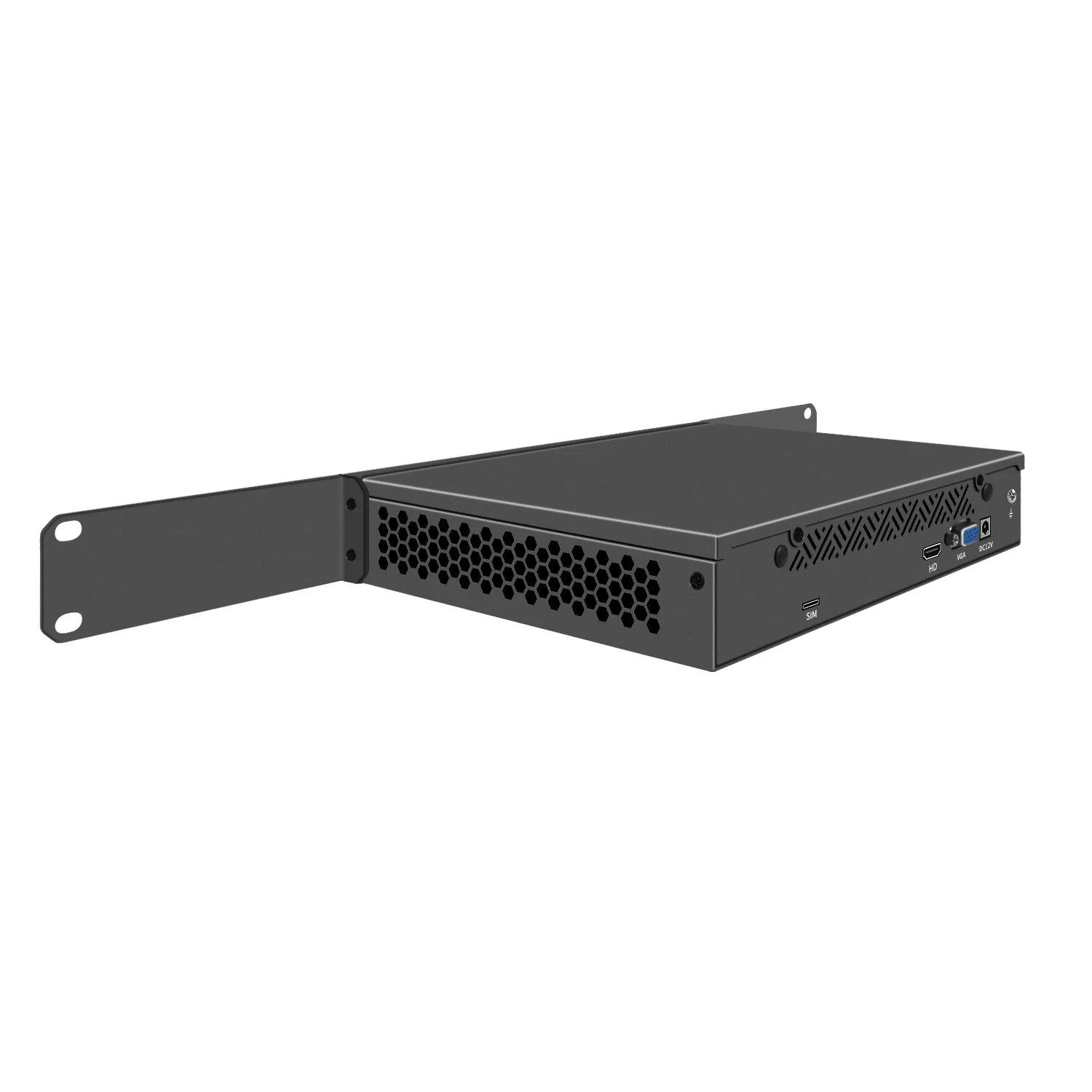

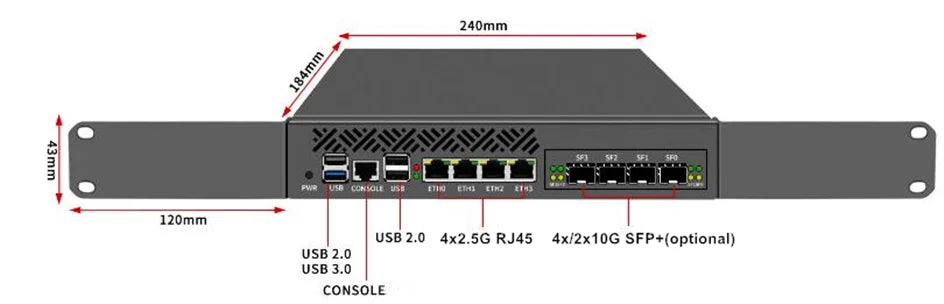

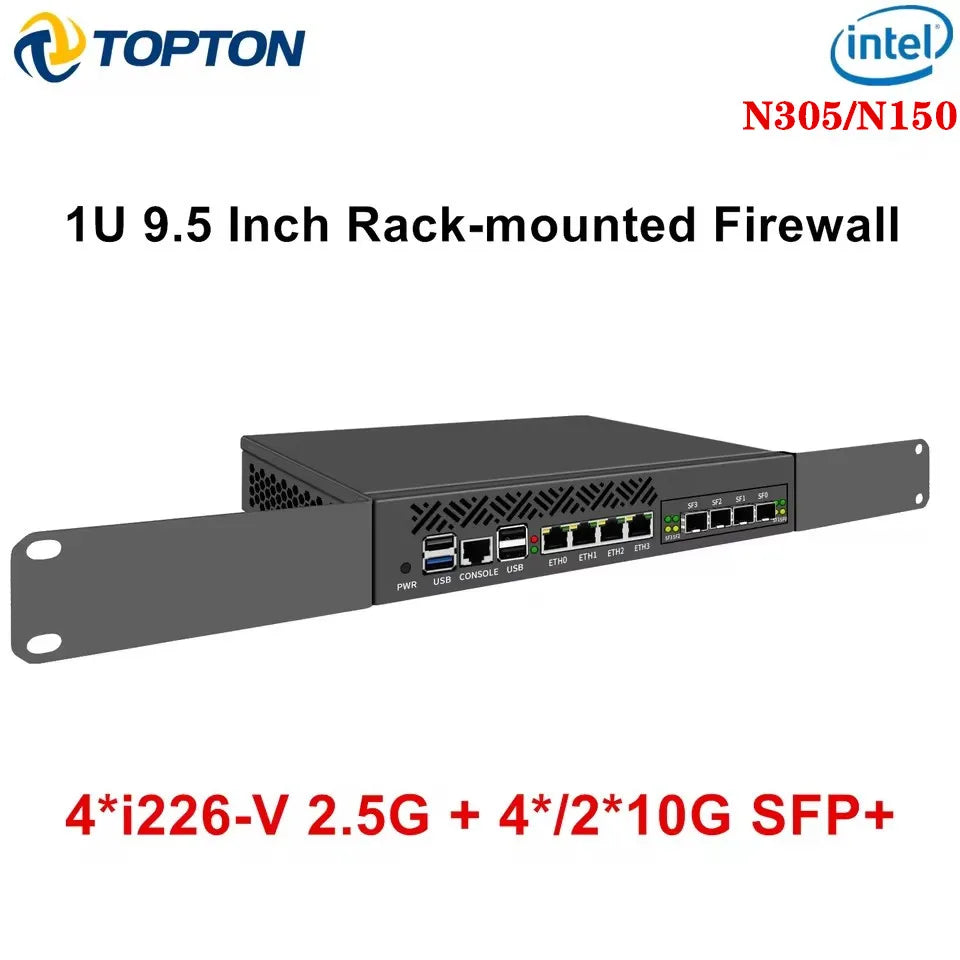

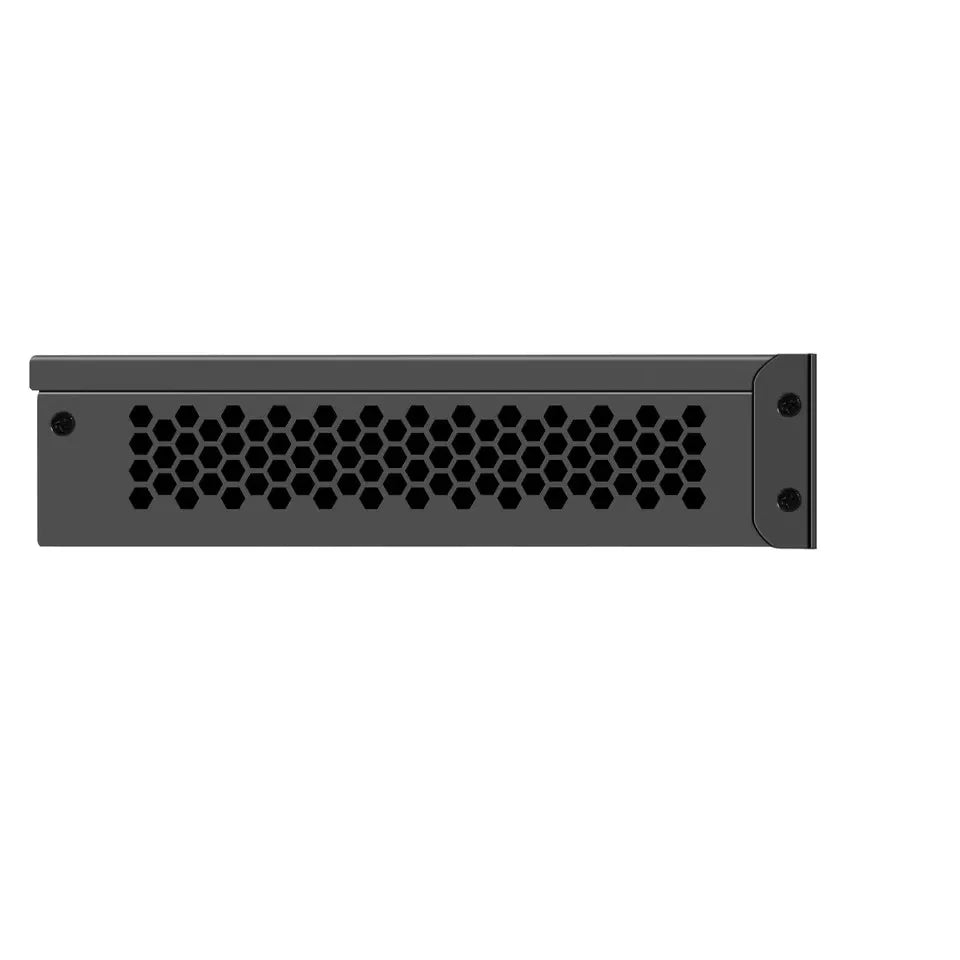

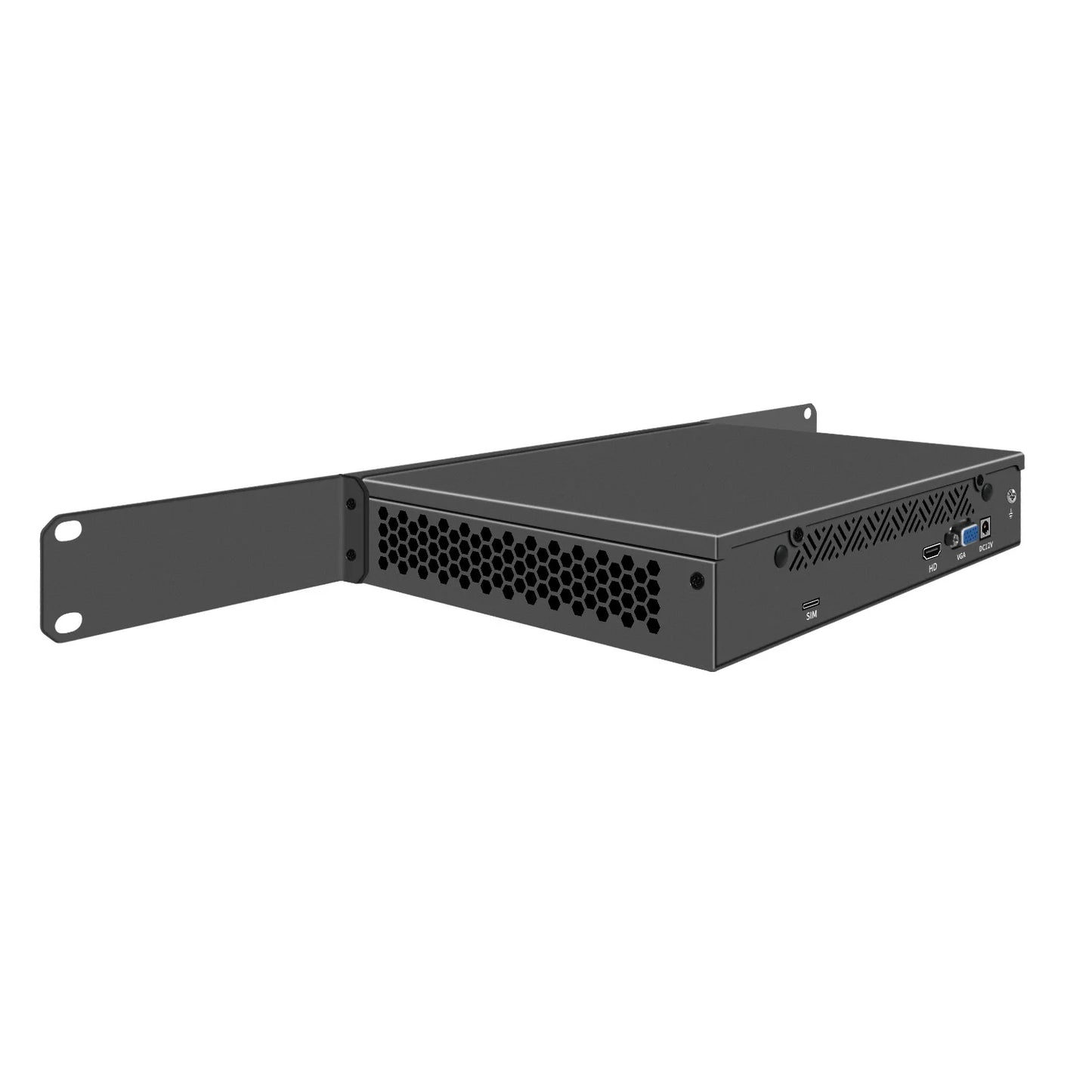

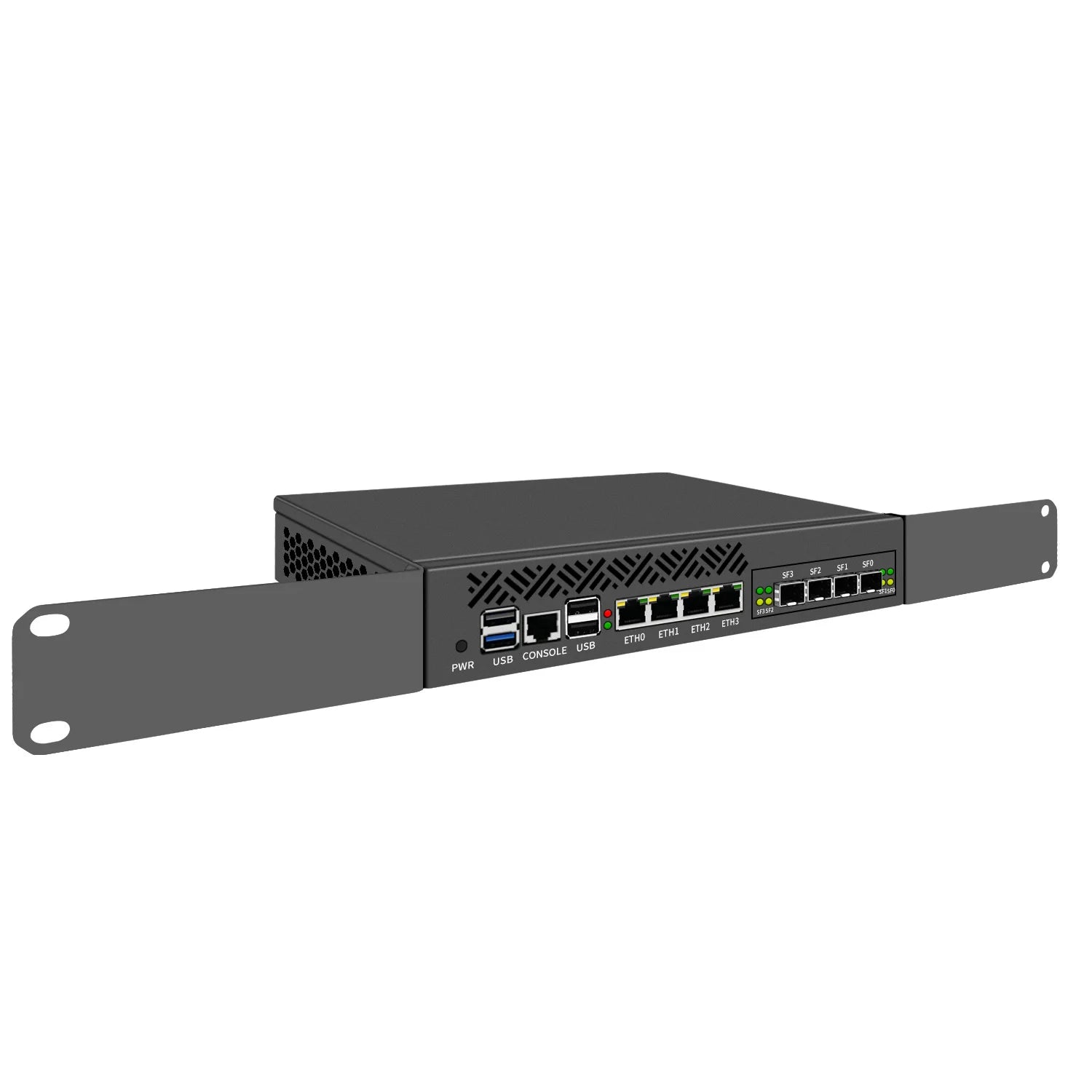

-9.5 inch solid metal body, compact and portable, support 1U rack-mounted with 2 hangers.

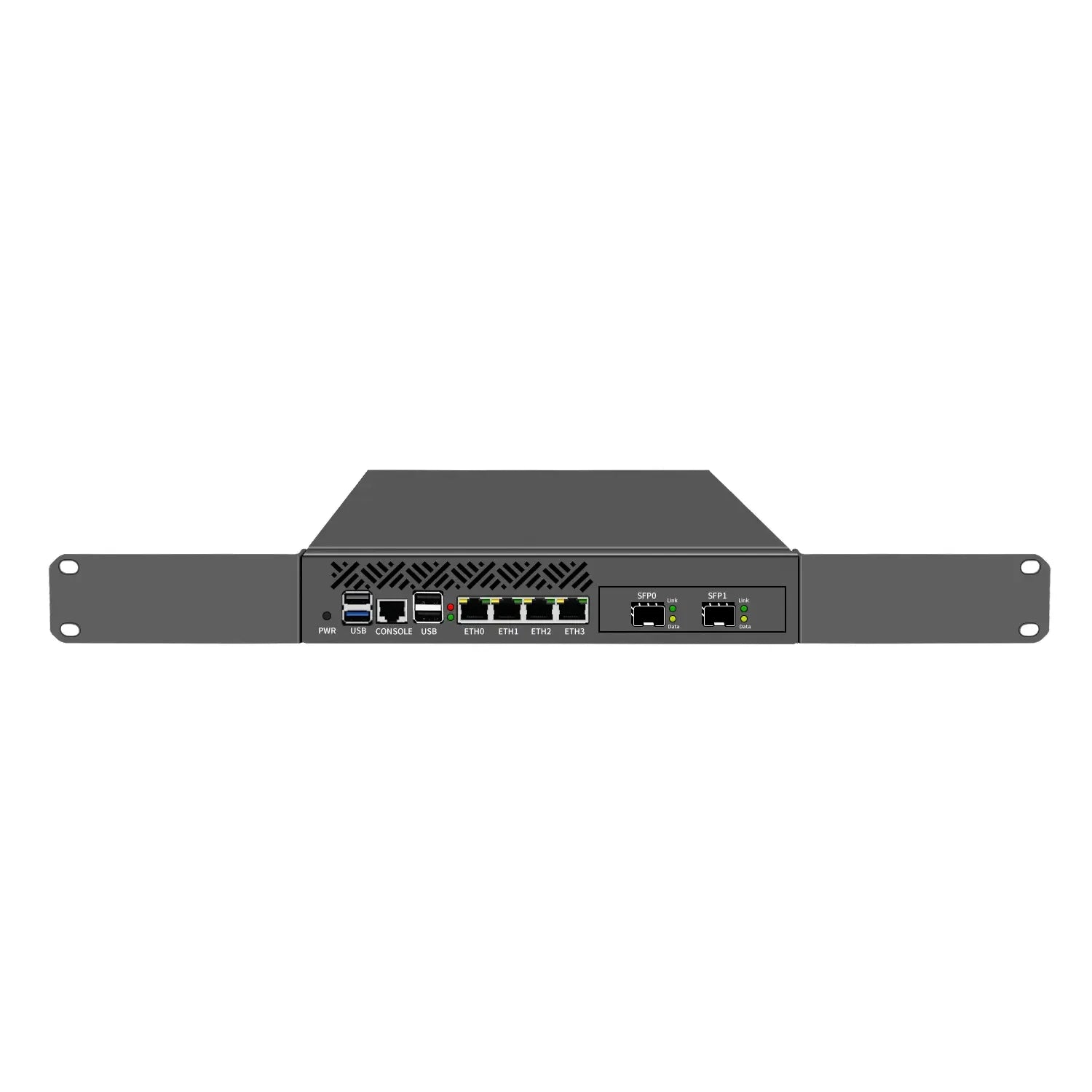

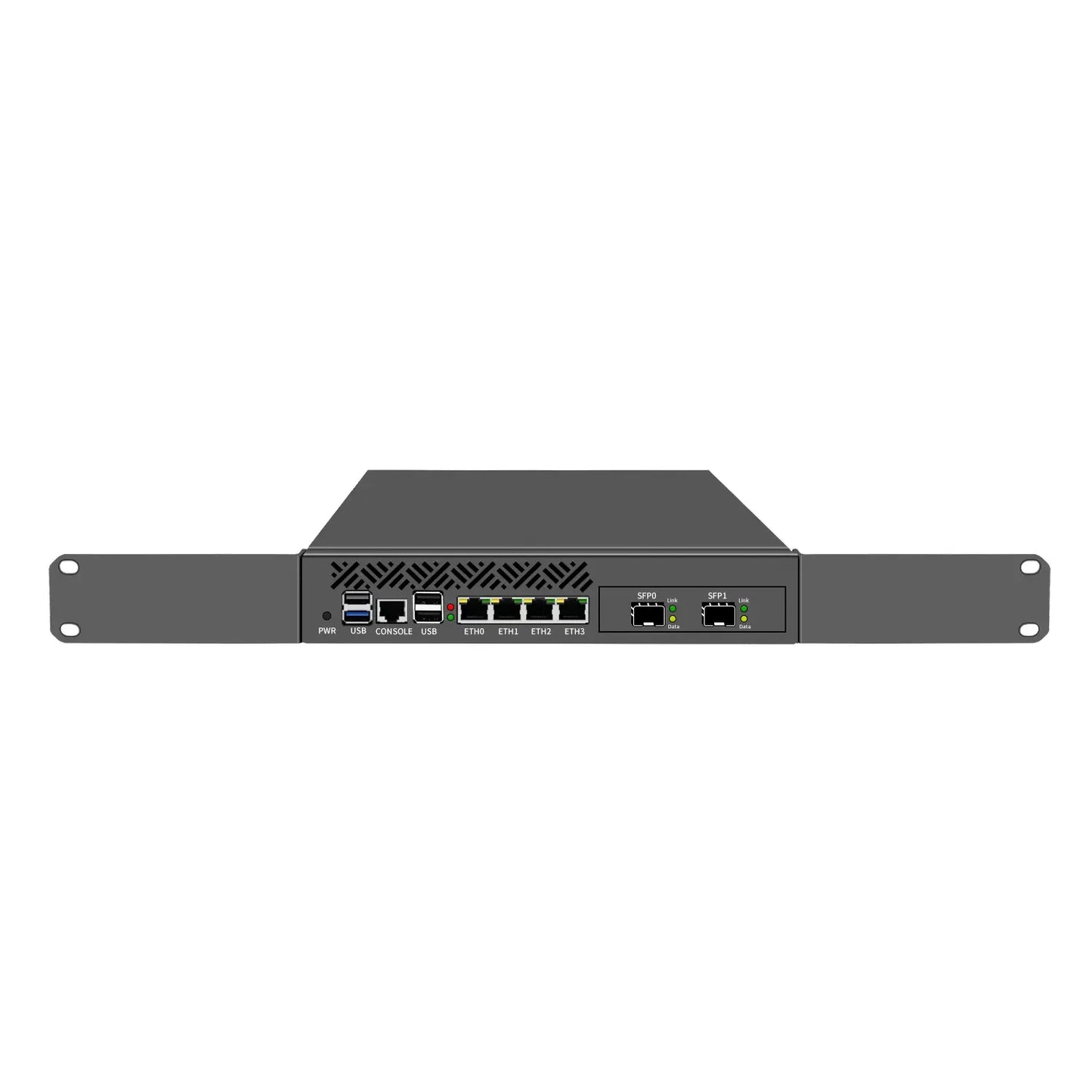

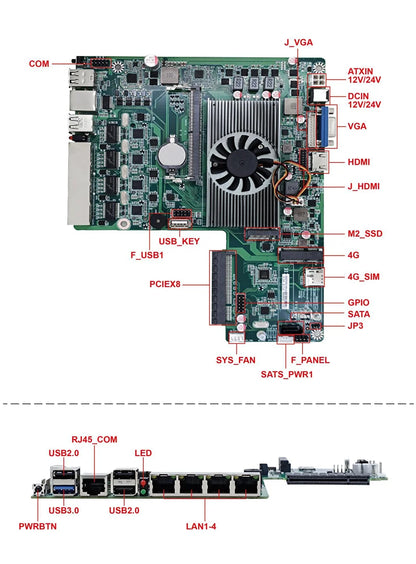

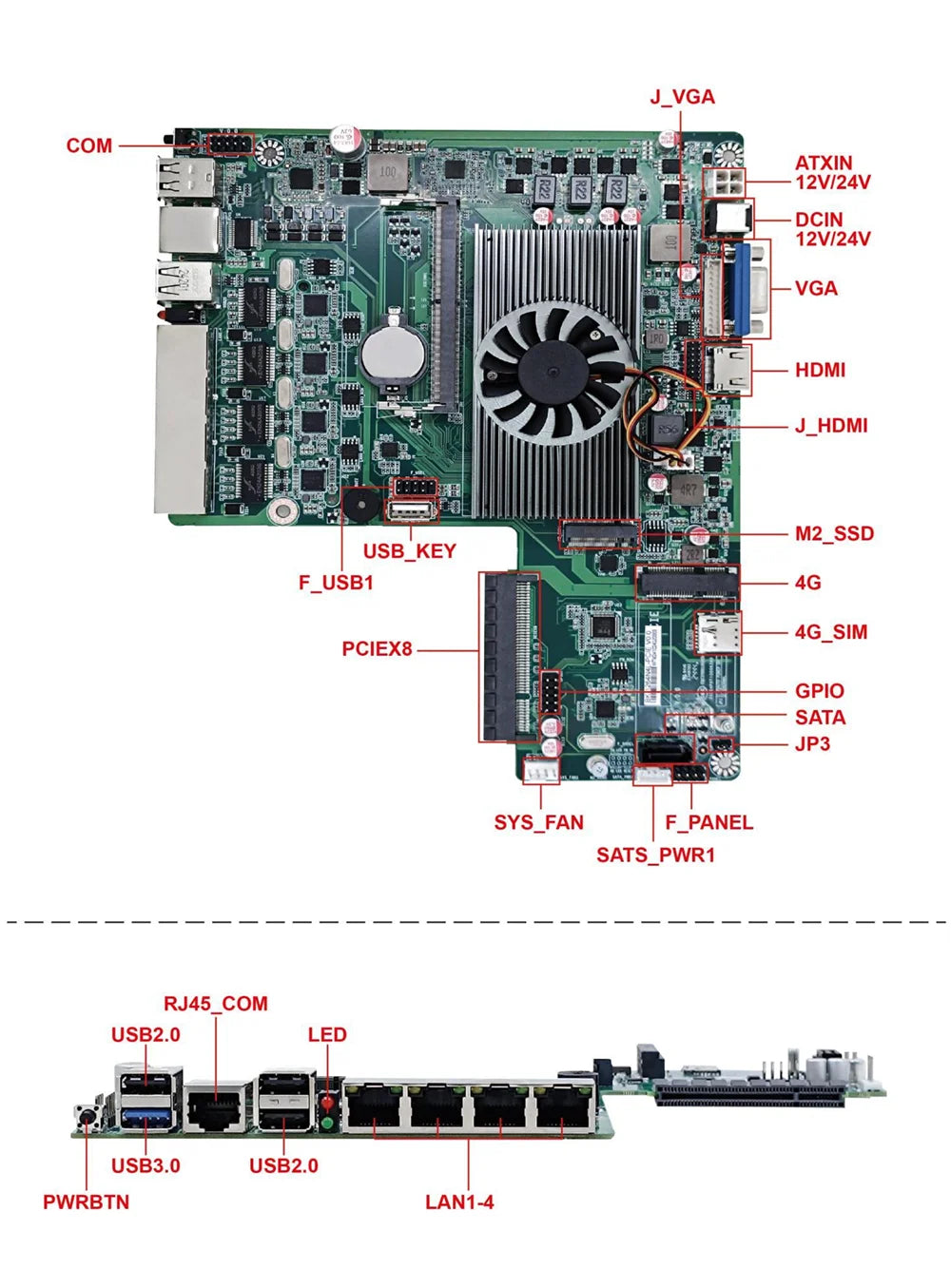

-4xIntel i226-V 2.5G RJ45 LANs, 1xRJ45 console, 1xUSB3.0, 3xUSB2.0.

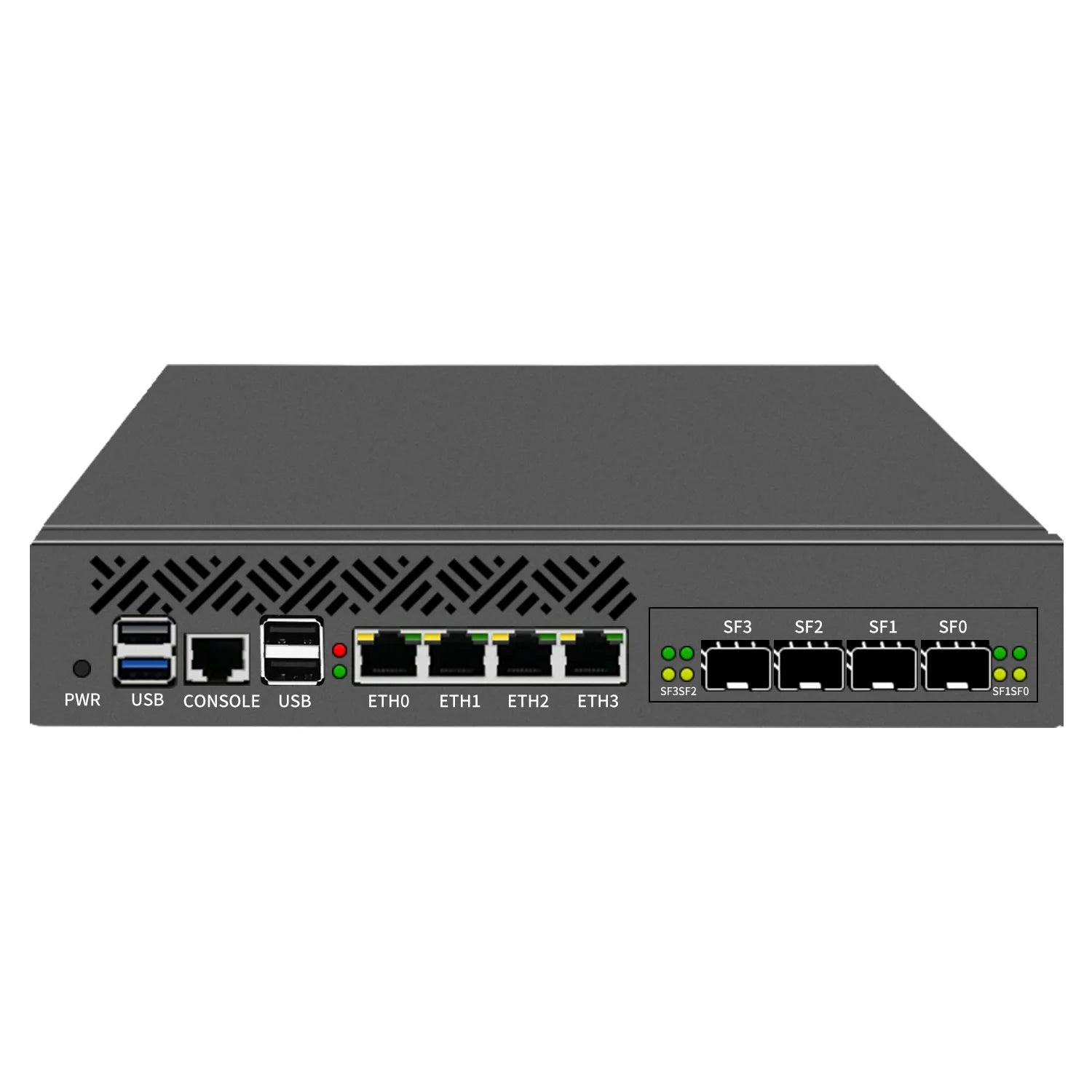

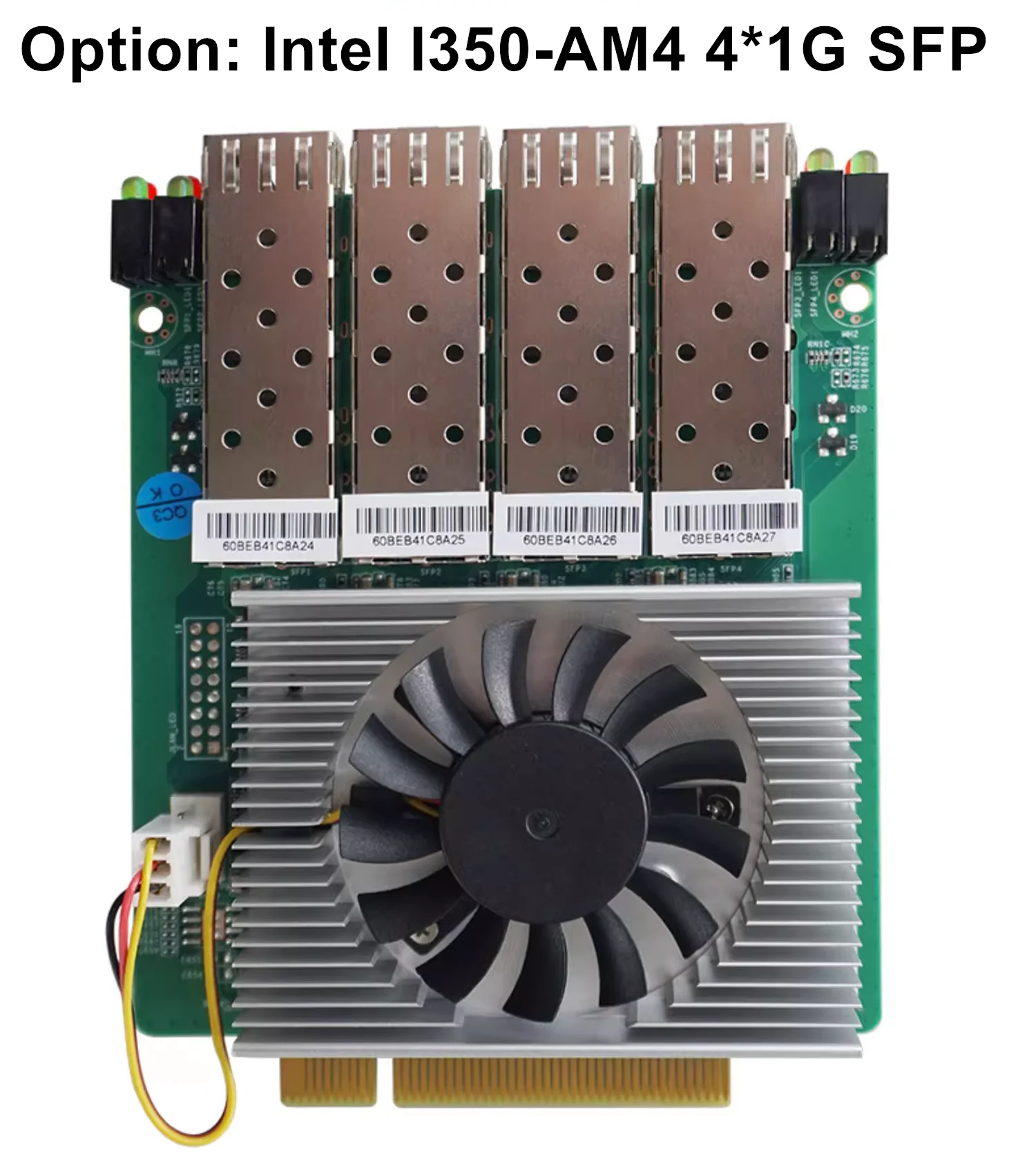

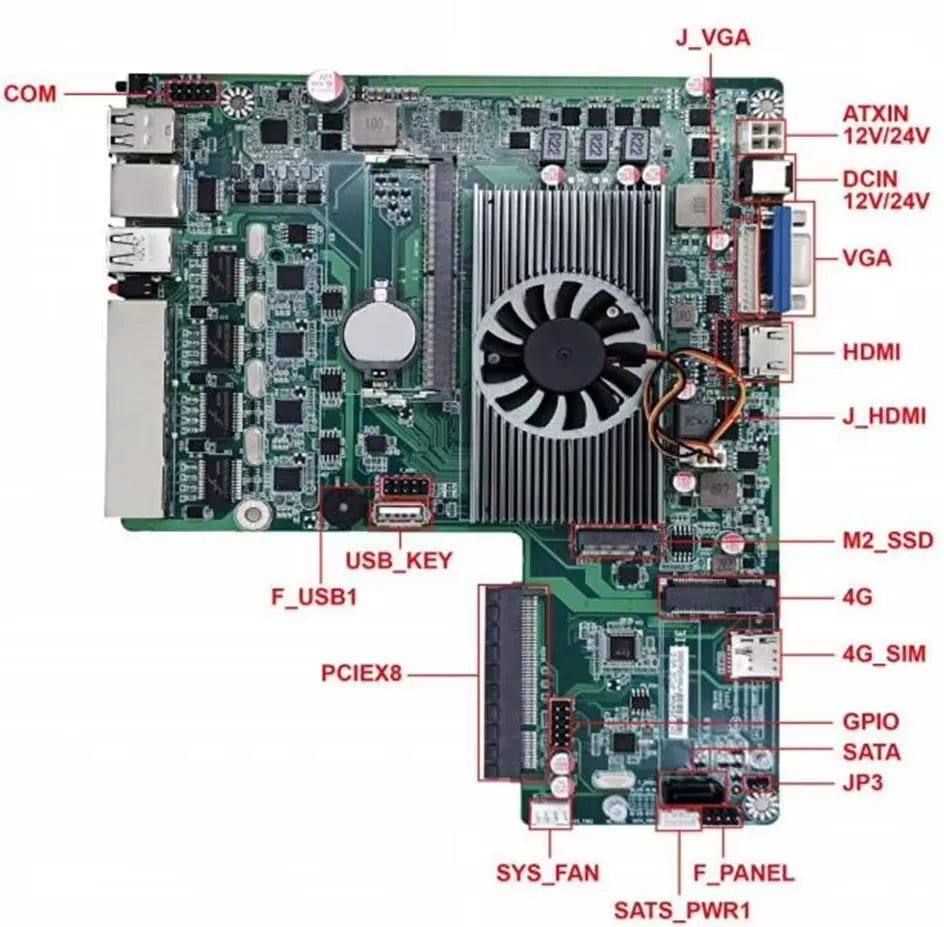

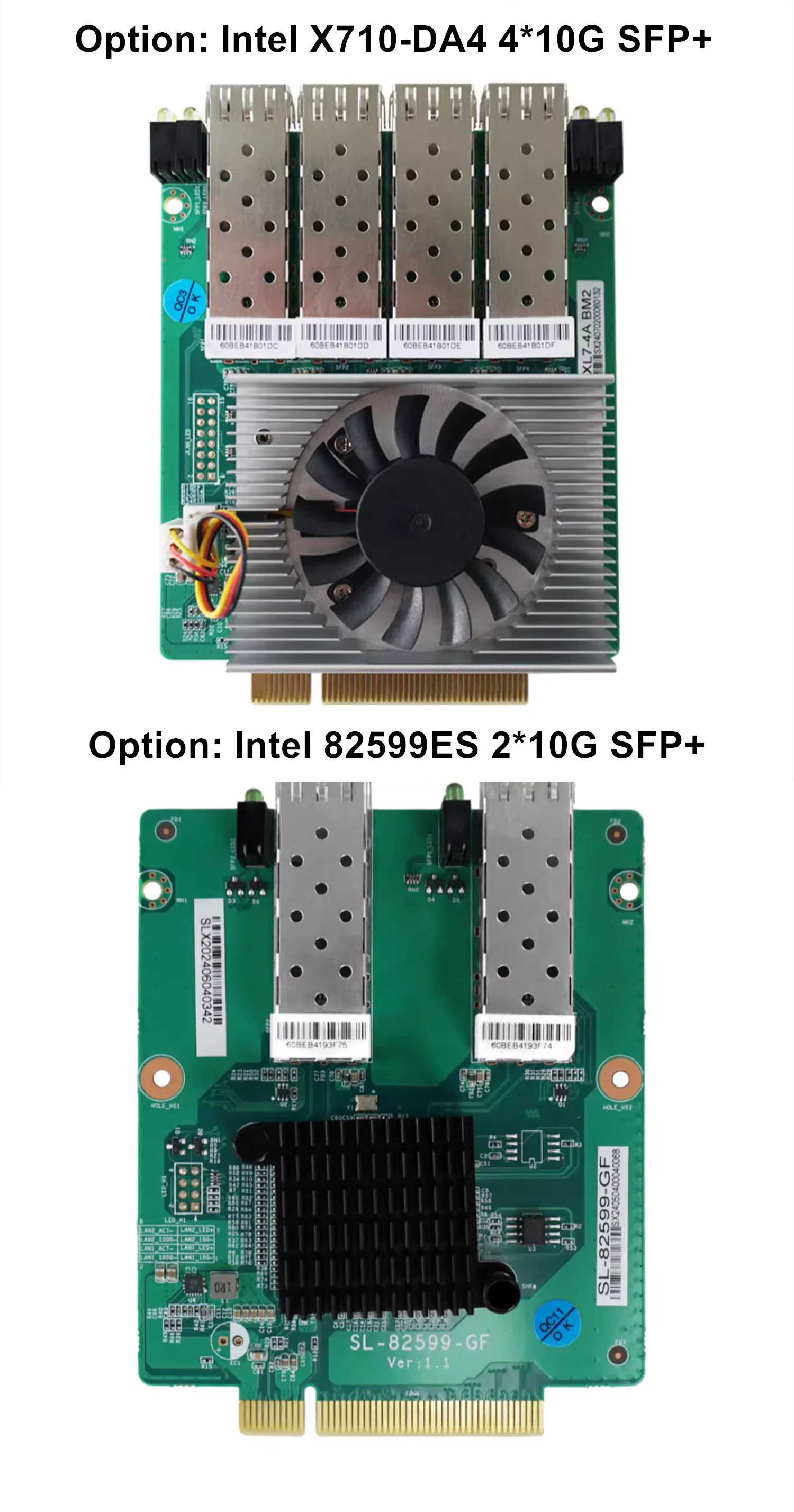

-1*PClEx8 expansion slot PCIe3.0x4 signal optional: Intel 82599ES 2*10G SFP+ module or Intel X710-DA4 4*10G SFP+ module or Intel I350-AM4 4*1G SFP module.

-1xDDR5 SODIMM non-ECC laptop ram slot, support 4800MHz.

-Support 1xM.2 2280 NVMe/PCIe3.0x1 SSD+1xSATA3.0.

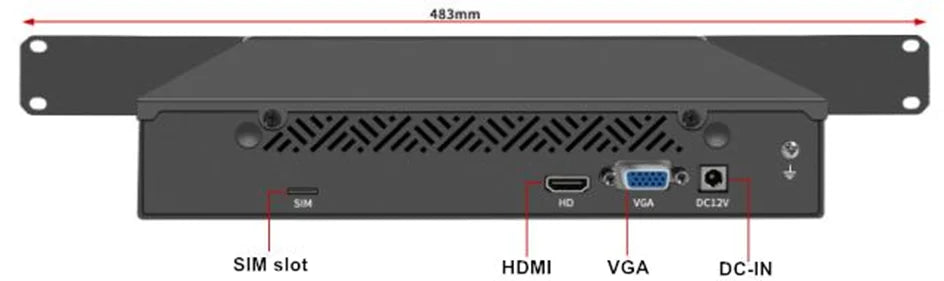

-1xMini PCIE slot, 1xSIM card slot, support 4G LTE wireless connection(USB signal, optional).

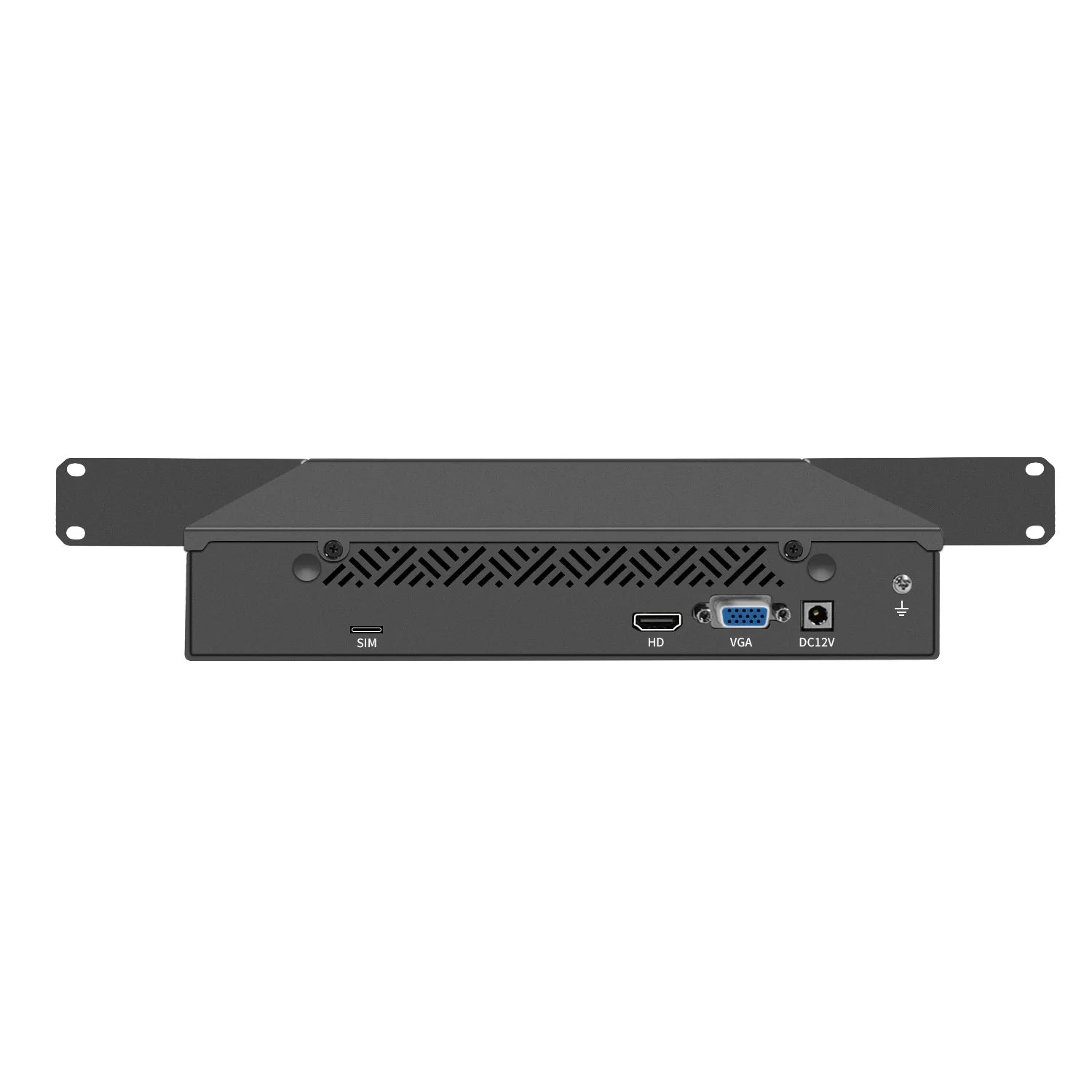

-1xHDMI, 1xVGA dual video display.

-Support uEFI BIOS, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
