SPECIFICATIONS

Application: Testing Repairing

Brand Name: NICE-POWER

Certification: CE/FCC

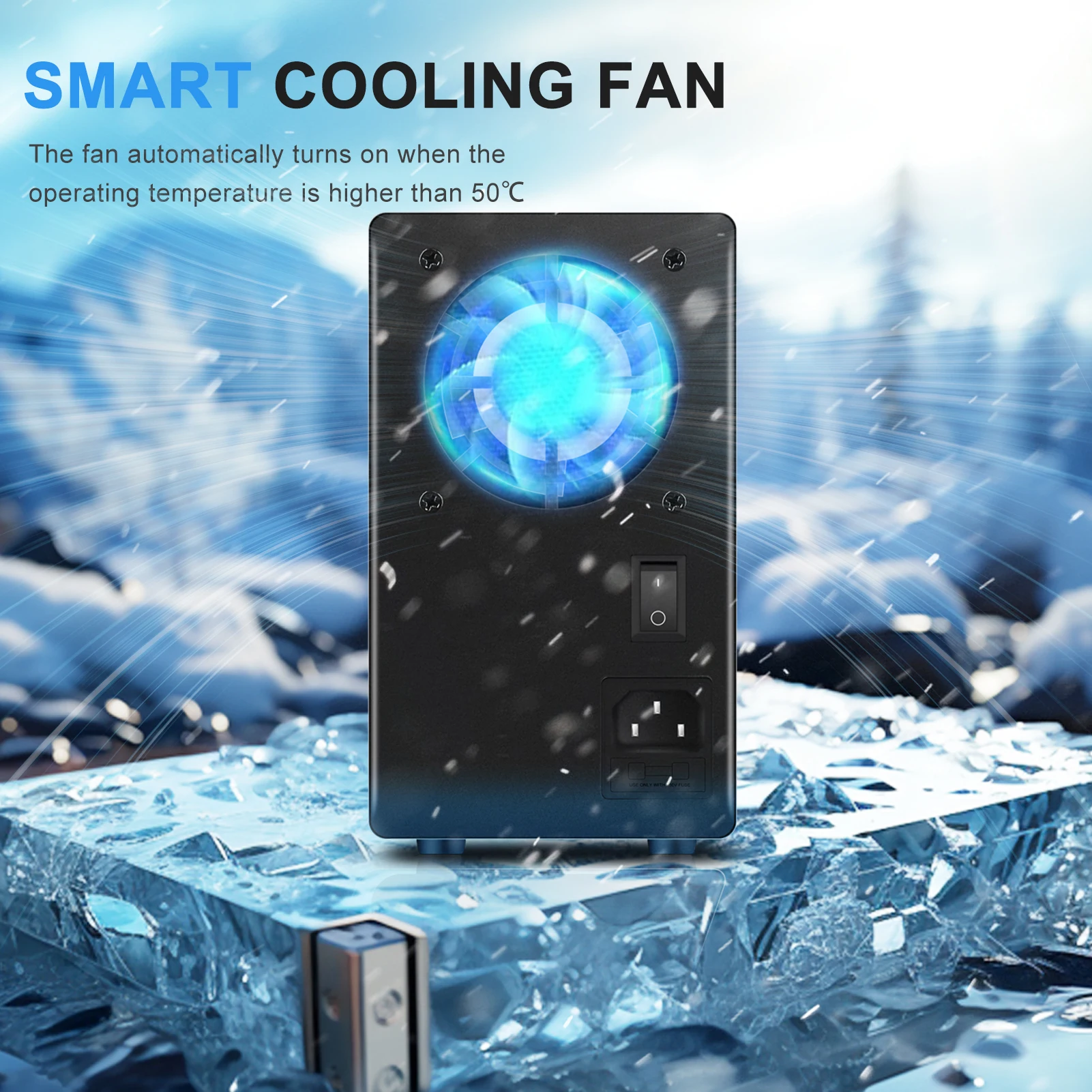

Cooling: Intelligent temperature control fan

Display Type: Four Digital Display

Feature: USB and USB-C Port output

Feature 1: QCP and Battery and Output Button

Feature 3: Positive and negative polarity reverse protection

Input Voltage: 220V

Model Number: SPS3010C black

Output Current: ~10A

Output Frequency: 50Hz

Output Type: Single

Output Voltage: 0~30V

Place of Origin: Guangdong, China

Product Name: Laboratory Power Supply

Protection: Overload Protection

Type: DC Power Supply

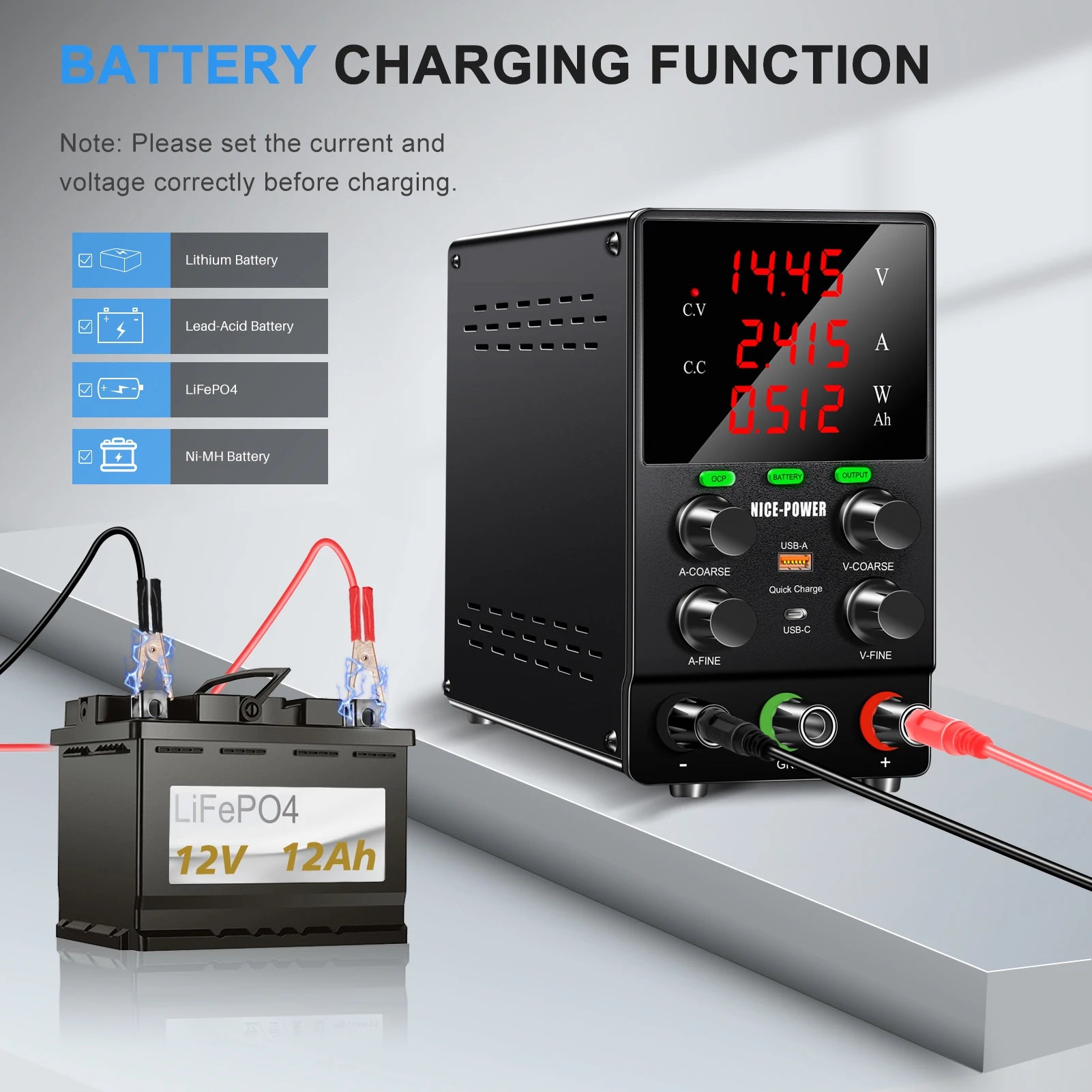

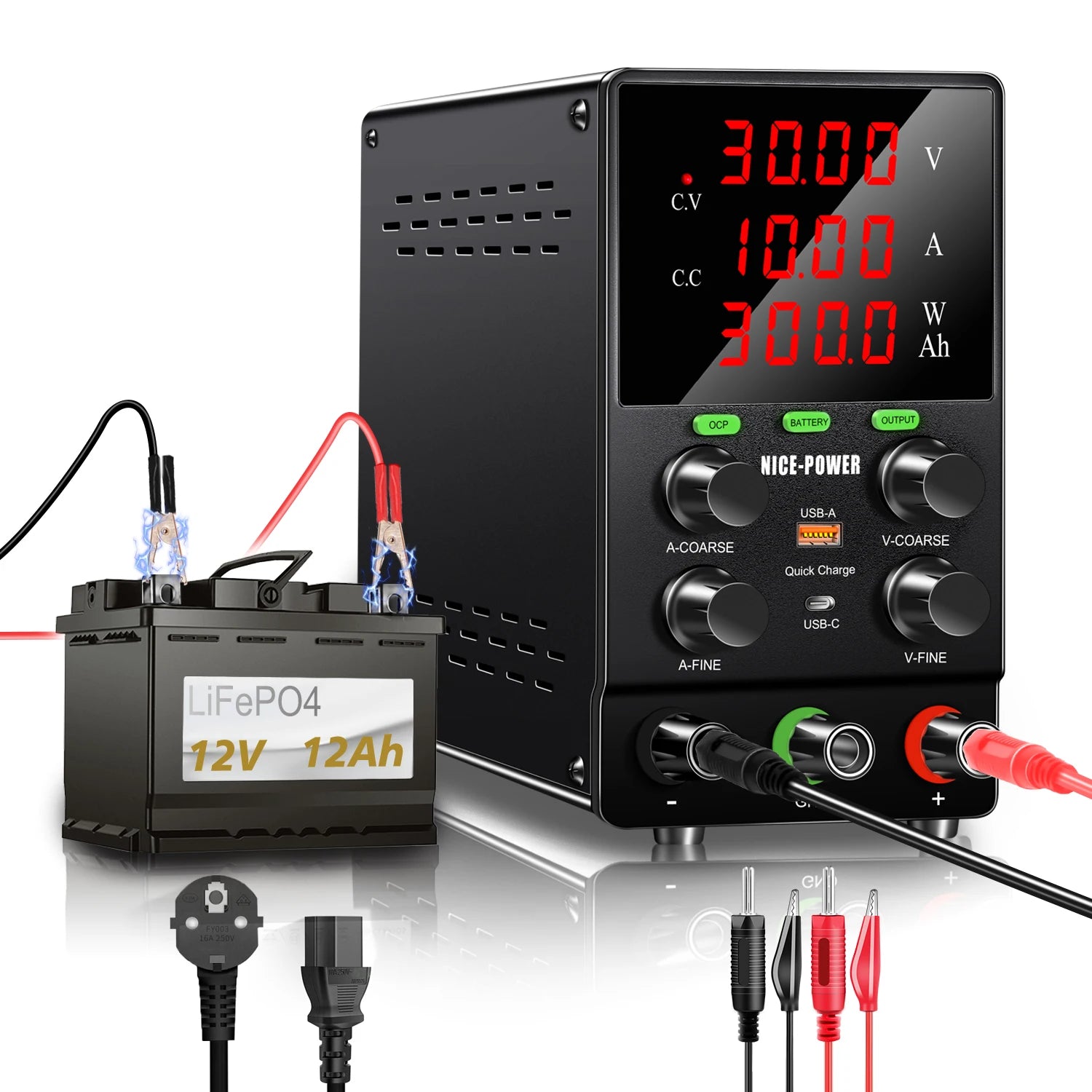

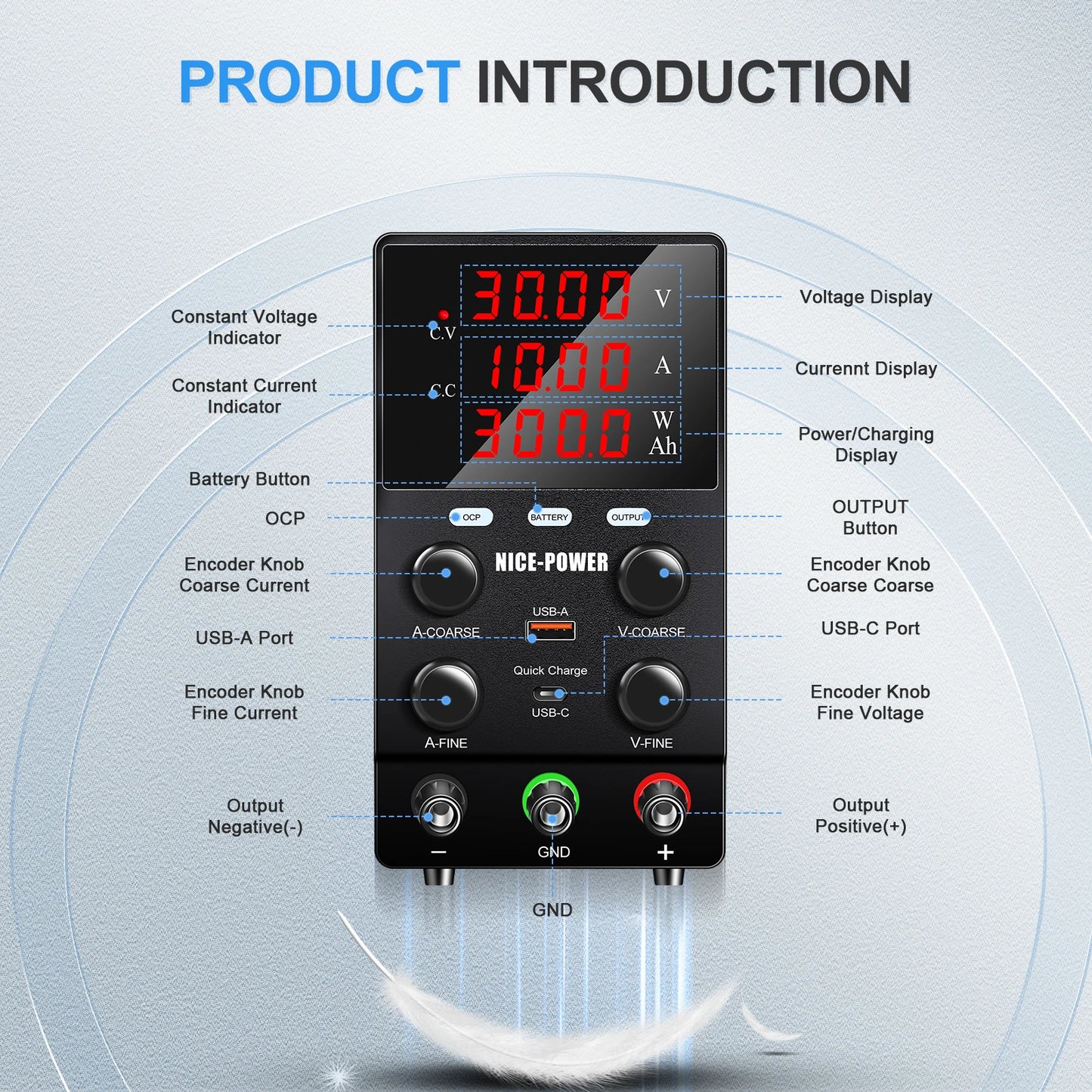

SPS3010C 30V 10A Adjustable DC Digital Display Switching Power Supply 300W DC Power Supply Battery Charging Repair Laboratory

Advantage 1.Have complete operating protection function 2.Highly efficient, low ripple, small volume, light weight 3.Double display voltage, current, and high precision 4.Voltage stabilization, current limiting, simple operation 5.Dual voltage input and convenient choice 6.Temperature control fan heat dissipation, low noise 7.Double potentiometer more precise adjustment

More Parameters Output Voltage ranges from 0 to 30V with continuous adjustment . Output Current ranges from 0 to 10A with continuous adjustment . Voltage regulation : Line regulation<5mV. Load regulation<5mV. Recovery time<500us(50% Load change, minimum load 0.5A) Ripple & Noise<5m Vrms, 100m Vp-p Temperature coefficient<100p pm/C. Output current ranges from 0 to rating current with continuous adjustment Current regulation line regulation<3mA. load regulation<3mA. Indicator Meter Voltage display precision: +-(0.5% of rdg + 2 digits). Current display precision: +-(0.5% of rdg + 2 digits). Operation Temperature & Humidity : 0 ~ 40 C, RH<80%. Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.

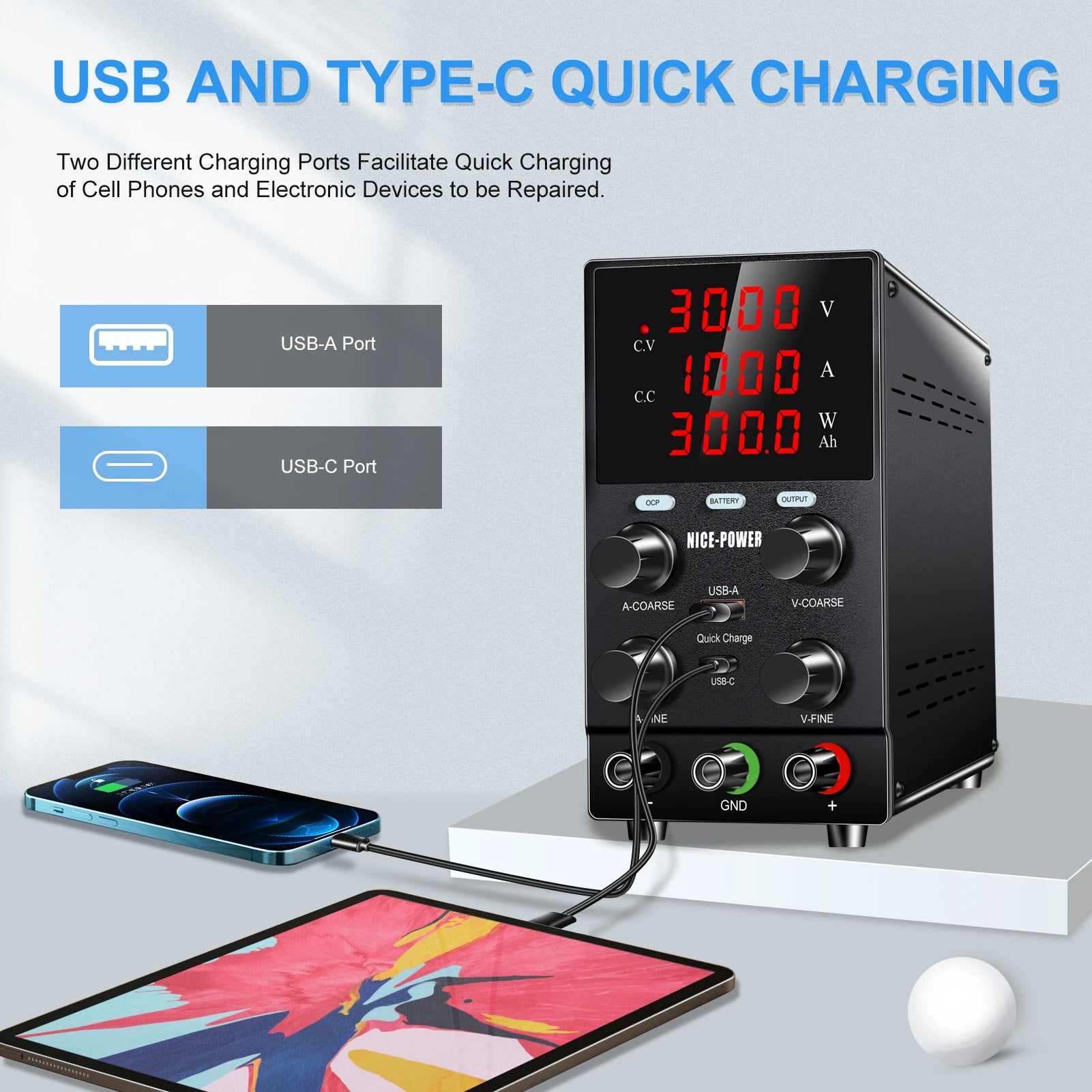

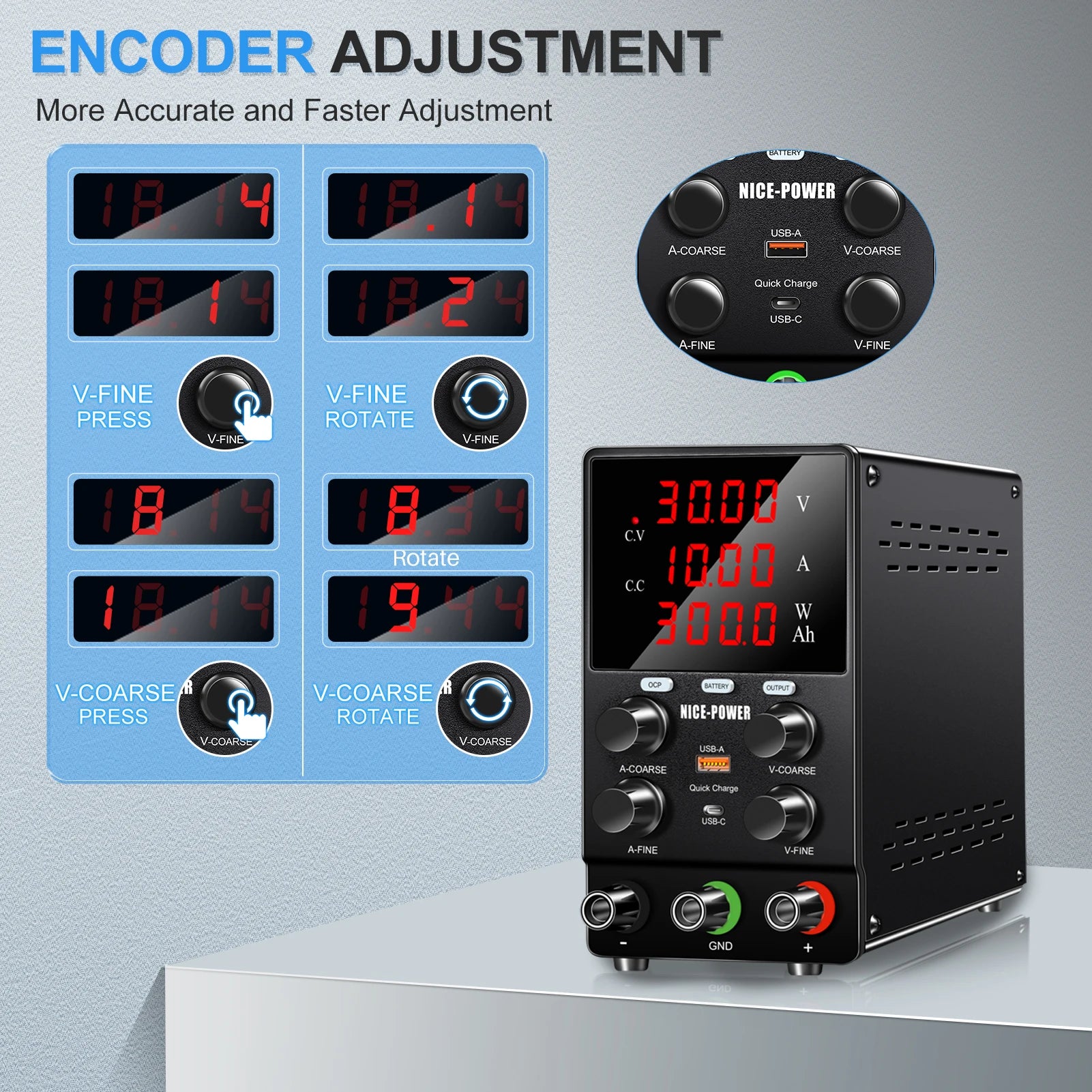

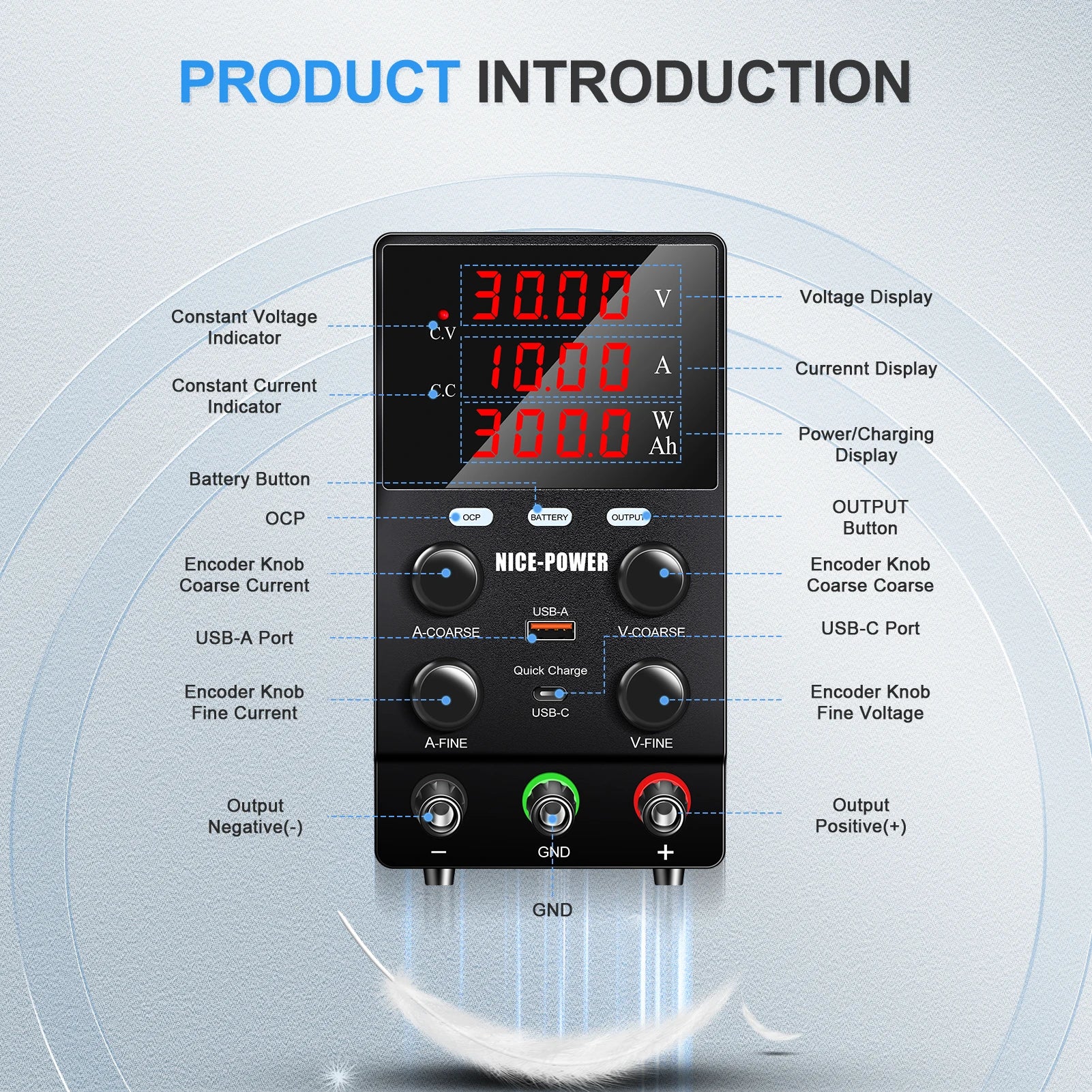

SPS vertical digital tube Charge series Four digit display With power(W) display 4 knobs adjustment USB-A Port output 5V2A USB-C Port output 5V2A OCP and Battery mode and Output Button Encoder Adjustment knob With buzzer Positive and negative polarity reverse protection

Model	SPS3010C
Input voltage	AC 110V 50HZ or 110V 60HZ
Output voltage	0 ~ 30V
Output current	0 ~10A
Input Voltage	230V±10% 50Hz (115V±10% 60Hz)
Working Temperature	0℃~40℃; Relative Humidity: <80%RH
Storage Temperature	-10℃~-70℃; Relative Humidity: <70%RH
Constant Voltage State	Voltage stability ≤0.1%+3mV Low Voltage: 0.2~0.3%+3mV
	Load stability≤0.5%+3mV
	Ripple noise≤30mVrms
Constant Current State	Current stability ≤0.2%+3mA
	Load stability≤0.2%+3mA
	Ripple noise≤20mArms (valid value)
Display Accuacy	0.5%+2digits

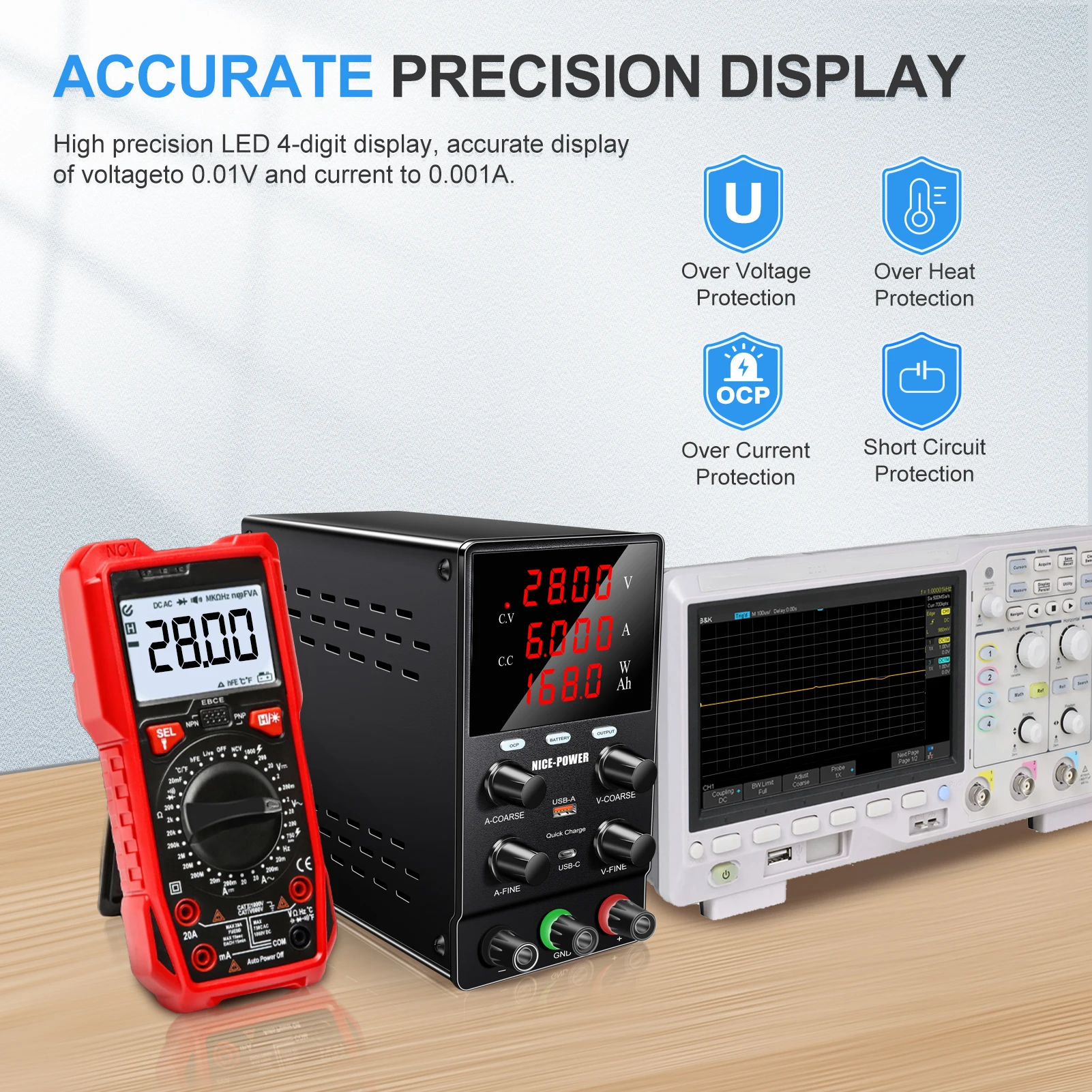

Display Resolution	Voltage: 00.01V Current: 0.001A

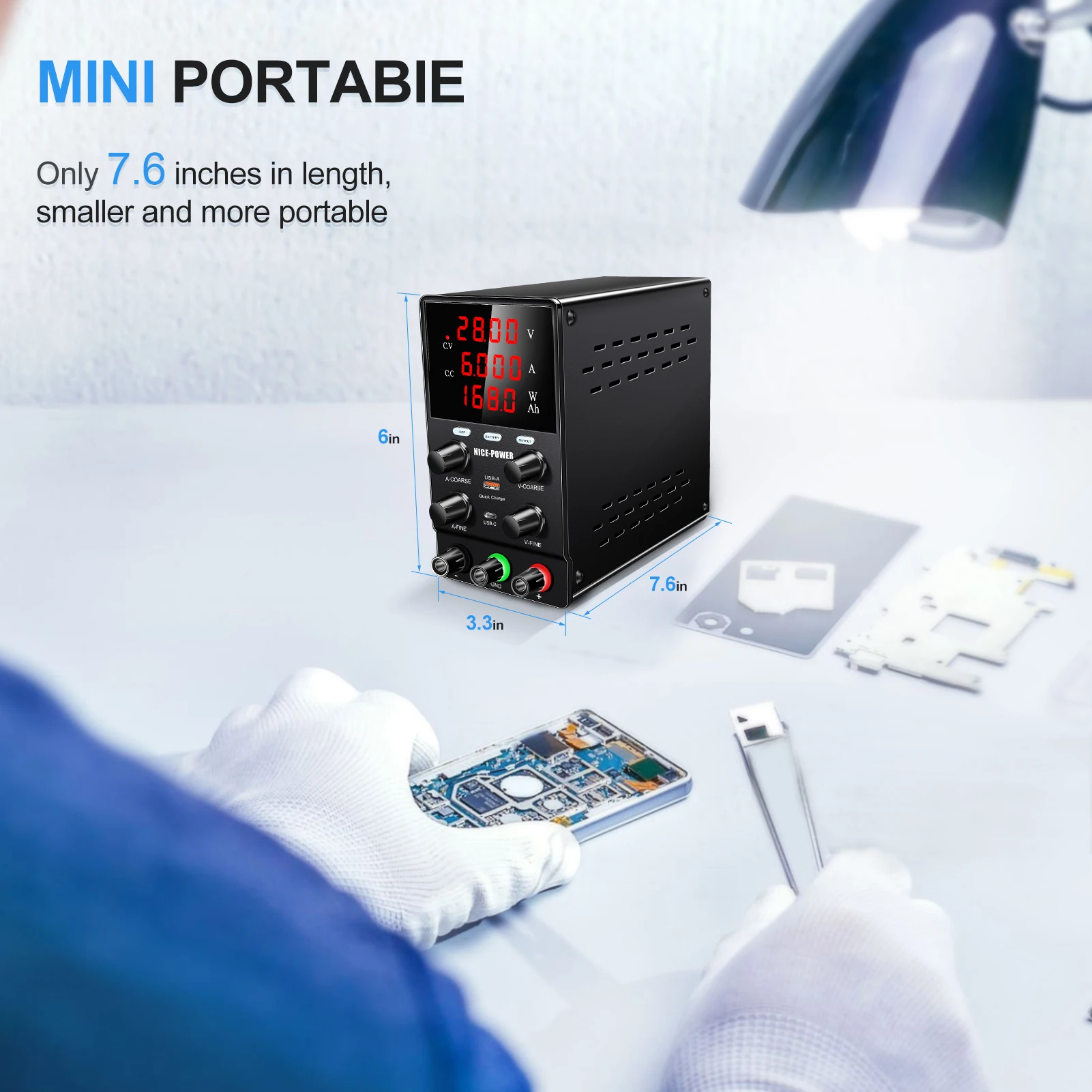

Product Dimension	240mm(L) x 85mm (W) x 155mm(H)
Product Weight	1.2Kg
Fuse Standard	3A (AC 220V Input) / 5A (AC 110V Input)
