SPECIFICATIONS

After Warranty Service: Video Technical Support Online Support

Applicable Material: Aluminum,Metal

Application material: Aluminum Copper SS CS MS

Cooling System: Air Cooling System

Fiber optic cable length: 10M

Function: Metal Part Laser Welding

Key Selling Points: Easy To Operate

Laser Source Brand: Raycus/MAX

Laser Type: Fiber Laser

Laser power: 800w/1200w/1500w/6000w

Laser type: Continuous Fiber Laser

Machine Structure: Handheld Type

Output Power: 1200w

Output method: Integrated armored cable+welding gun

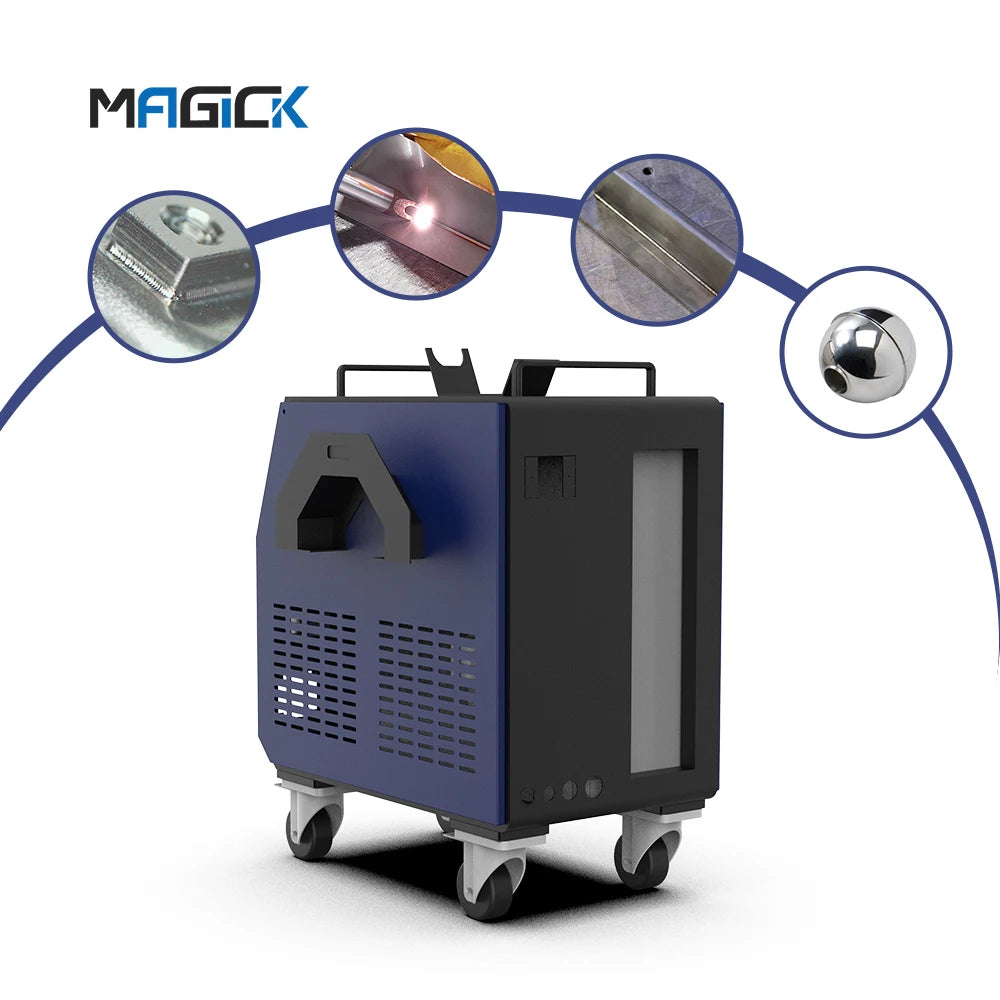

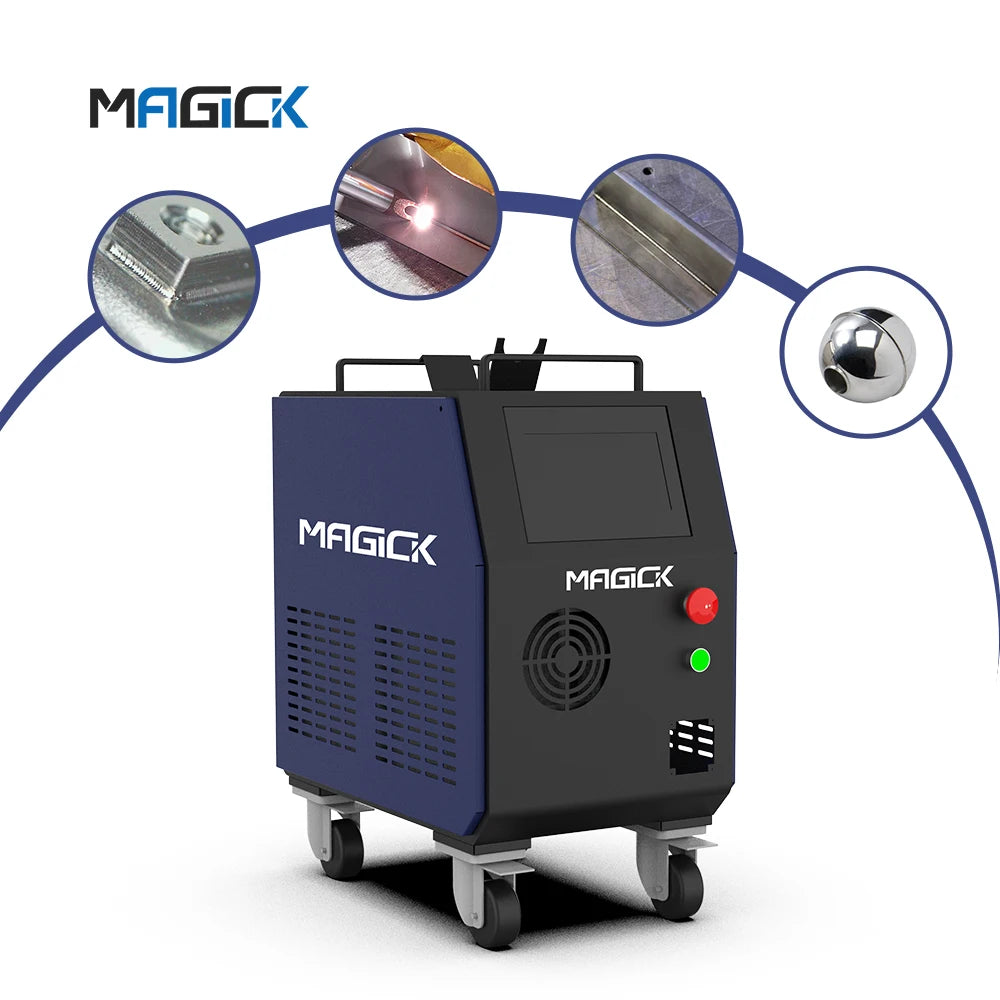

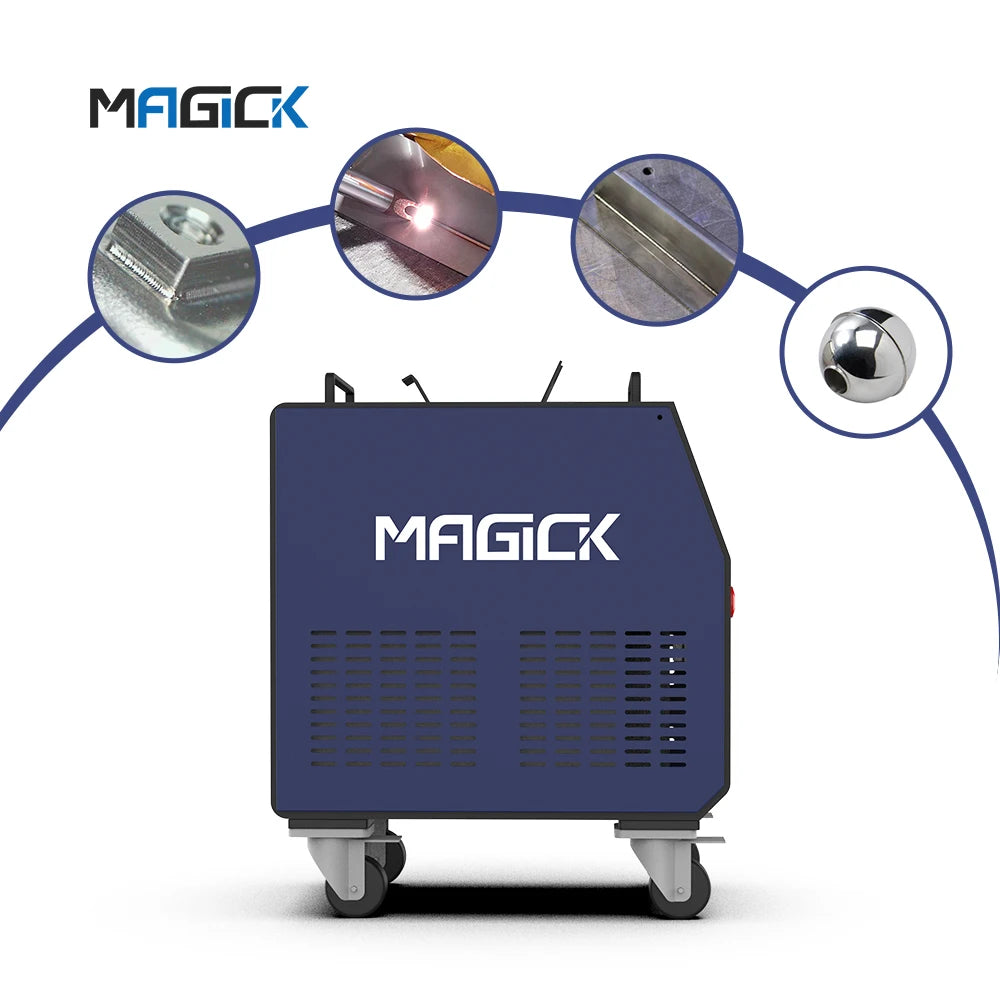

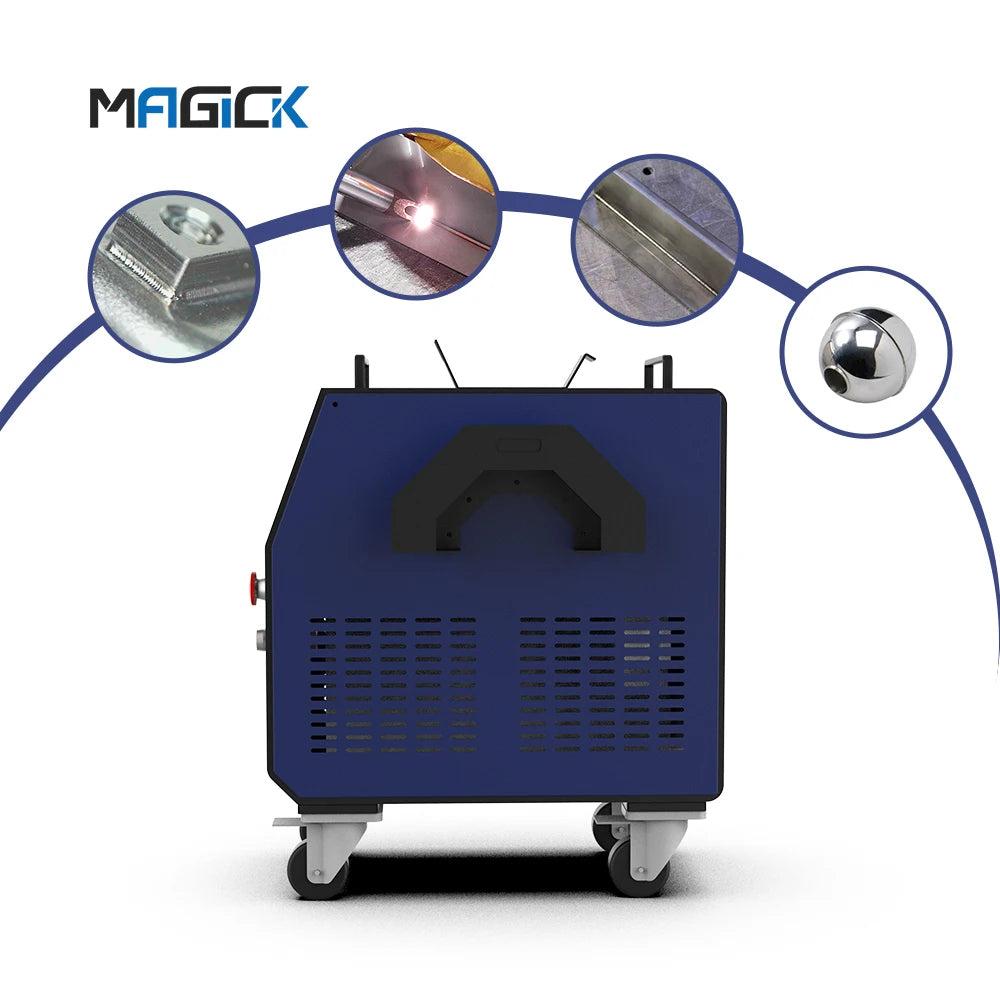

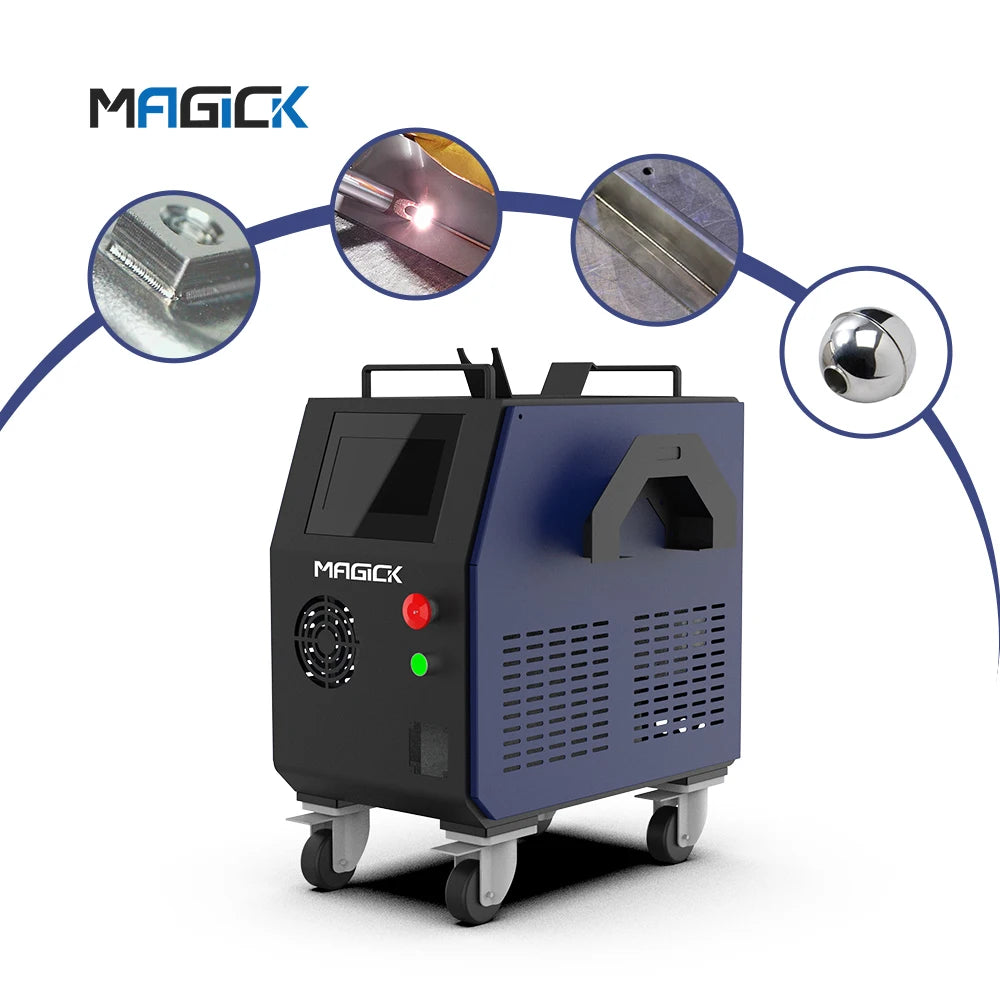

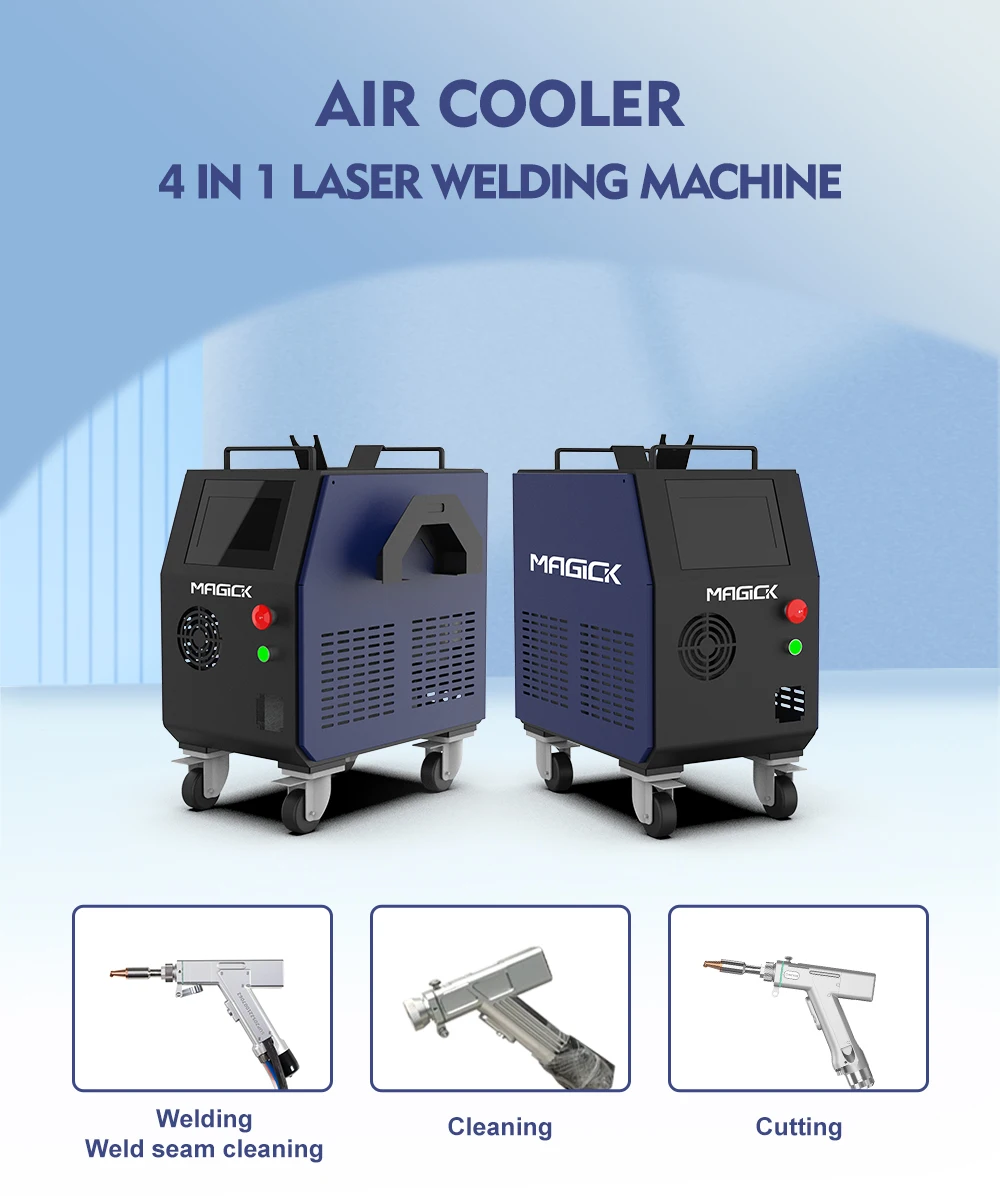

Product name: Air Cooled Handheld Laser Welding Machine

Usage: Matel Welding

Wavelength: 1080+5

Weight: 55

Welding Mode: Conduction

Welding Speed: 0-5 mm/s

brand name: Magick

condition: New

control system brand: Cypcut

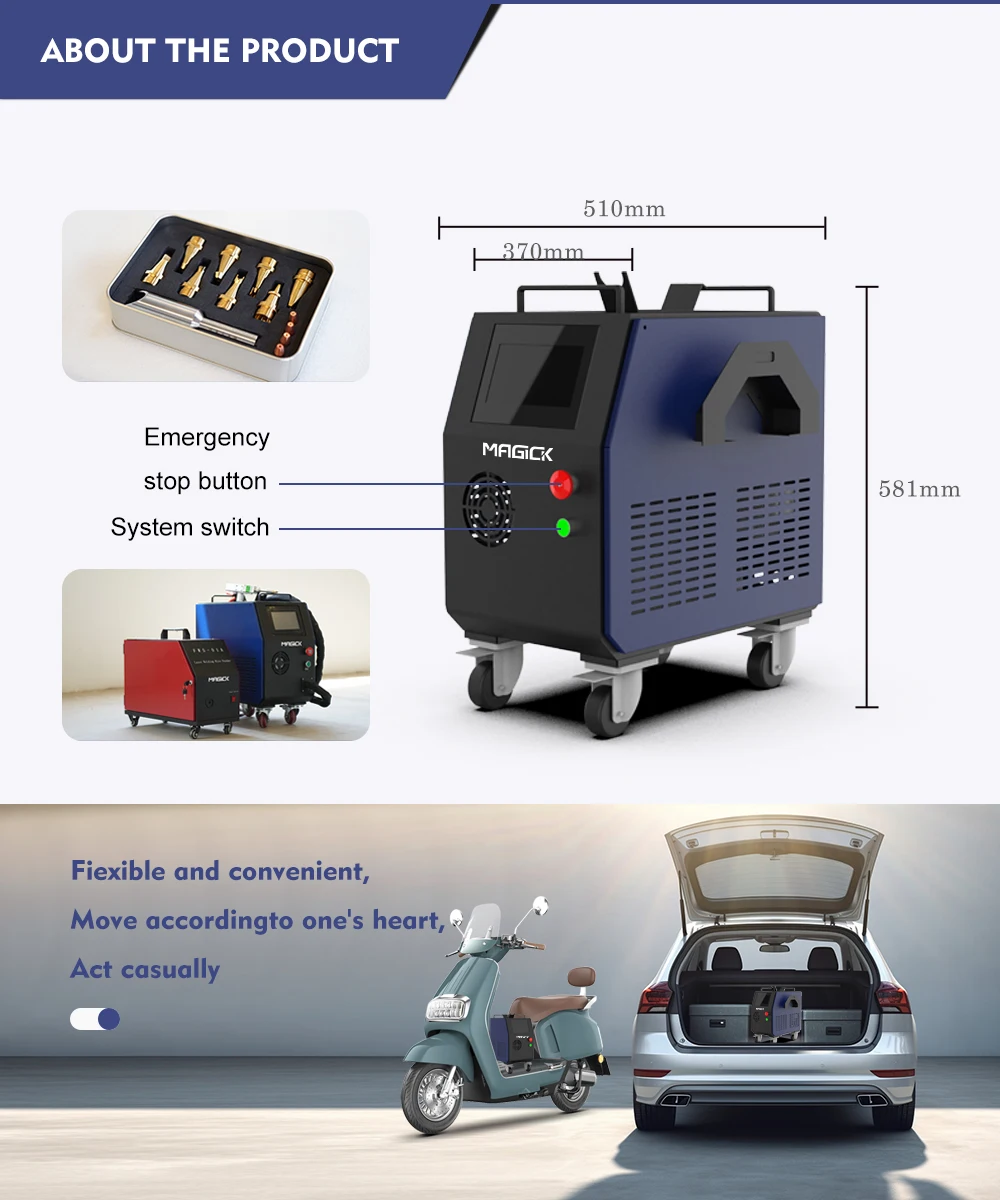

dimensions: 510*370*581.5mm

focal spot diameter: 0.2 ~ 2.0 mm

laser head brand: Raytools

place of origin: Shandong, China

pulse width: 0.1-10ms

servo motor brand: Yaskawa

single pulse energy: 80-120J

warranty: 2 Years

Specification

Model	4-in-1 air-cooled laser welding cutting and cleaning machine			MK-4020S	MK-6025S
Fiber Laser Power	800w, 1200w, 1500w,
Welding Width	0.2-5mm

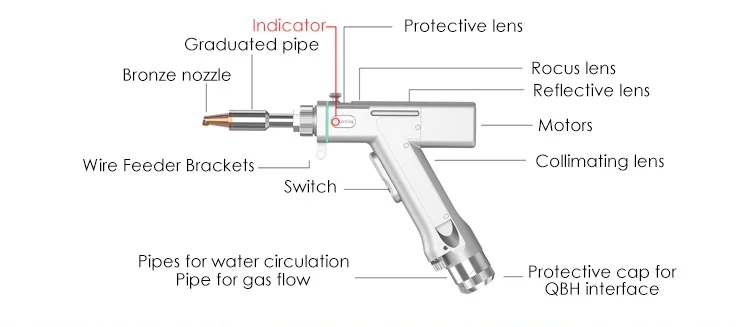

Head Type	LightWeight Handheld
Cooling Type	Air cooling
Laser Source Brand	Max, Raycus, IPG, Reci, Leapion, etc.
Shell Material	Metal	7kw	8kw

Technical Parameters
Spot adjustment range	0-5mm
Effective light aperture	16mm
Weight	53KG
Optical fiber interface	QBH
Wavelength range	1070±20nm
Intelligent protection function	Protective lens intelligent temperature control device
Collimating focal length	50mm
Focal length	9m
Core diameter of supported wire	10m
Maximum wire feed speed	80mm/s
Machine Package Dimension	580*400*620mm

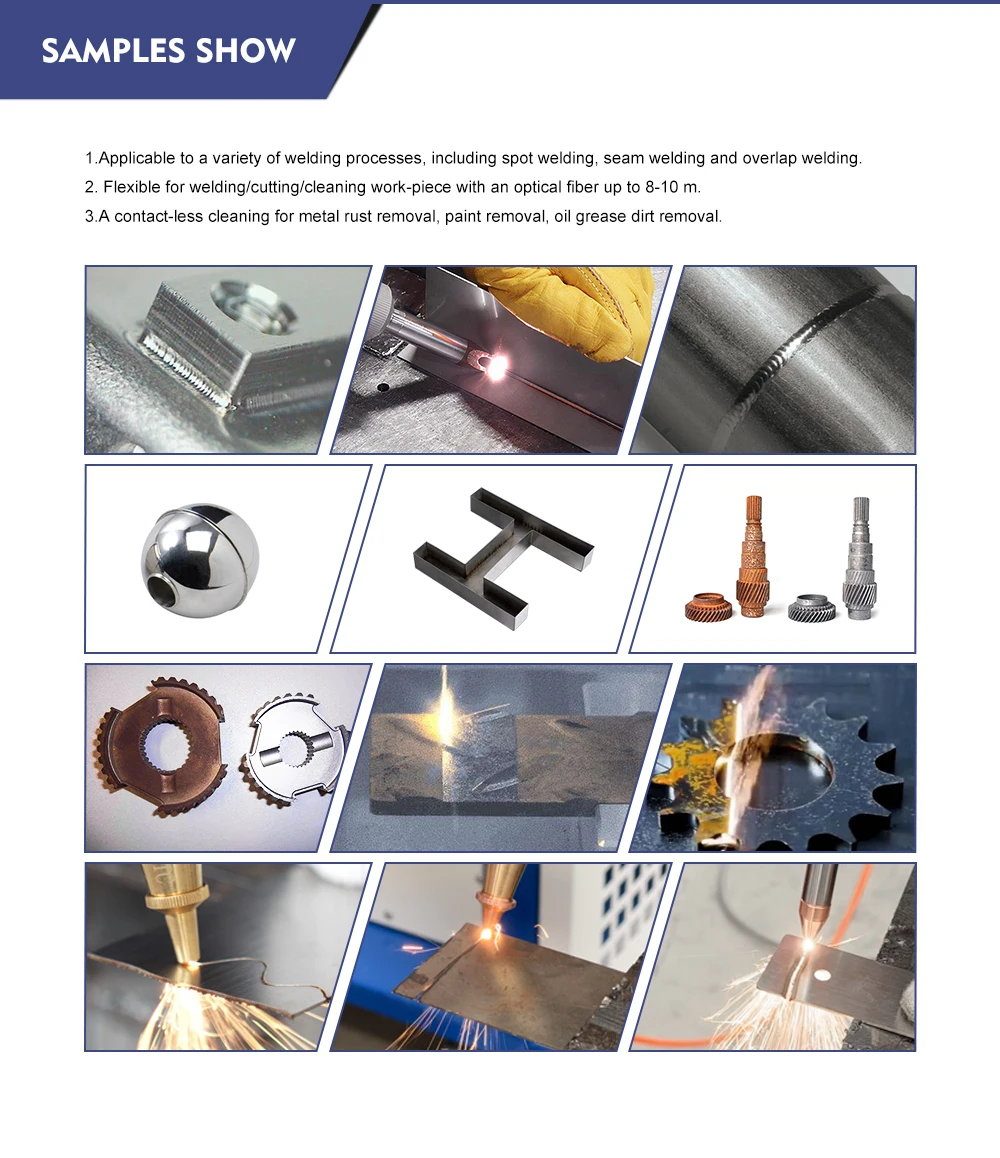

Welding sample

Company Profile

Magick Laser

Shandong Magick Intelligent Technology Co., Ltd. is a professional manufacturer of Industrial Laser Equipment. Our machines are widely used in metal processing industry. All of our products have passed

ISO, CE, RoHS,TUV, SGS, EAC, FDA, FCC,agency testing. We are a reliable supplier of laser equipment, providing 2-3 years of complete quality assurance services to ensure customer experience. We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, We export to more than 100 countries.

10

MORE THAN 10 YEARS PROFESSIONAL MANUFACTURER

100

TRUST AND RECOGNITION FROM 130 COUNTRIES AND REGIONS

200

PROFESSIONAL TECHNICAL TEAM OF OVER 200 PERSONS

5000

DEEP COOPERATION WITH 5,000 ENTERPRISES

50000

HIGH-LEVEL PROFESSIONAL FACTORY WITH OVER 50,000 ㎡

25

25 PATENTS AND CERTIFICATES

MAGICK AFTER SALES SERVICE

Free software training

Immediate installation guide

Free equipment maintenance

Professional workshop planning

One year free warranty

Future equipment upgrades

FAQ

Q1: How about the warranty? A1: Two-year warranty, the machine has problems during the warranty period, and the main parts (except consumables) are replaced free of charge (some parts are repaired). We provide door-to-door service, local after-sales, video teaching and other after-sales. Q2: I don't know how to choose the configuration? A2: please tell me 1) Your materials 2) What kind of impurities 3) The thickness of your impurities 4) Your type of industry Q3: Payment terms? A3: Alibaba trade guarantee/TT/Western Union/Payple/LC/cash etc. Q4: Do you have CE documents and other customs clearance documents? A4: Yes, we have the original. First, we will show you and after shipping, we will give you CE/packing list/commercial invoice/customs clearance sales contract. Q5: I don't know how to use it after receiving it, or if I encounter a problem during use, what should I do? A5: 1) We have a detailed user manual with pictures and CD, you can learn step by step. There is also our user manual, if the machine has any updates, it will be updated every month for you to learn. 2) If there are any problems during use, you need our technicians to judge We solve the problems in other places by ourselves. We can provide the team viewer Whatsapp/Email/PhoneSkype with cam until you solve all the problems. If you need, we can also provide door-to-door service.
