Small Mini Solar Panel Monocrystalline Battery Charger for Cctv Camera With 6v 9v 12v External Solar Power Panel Lithium 8000mah
Small Mini Solar Panel Monocrystalline Battery Charger for Cctv Camera With 6v 9v 12v External Solar Power Panel Lithium 8000mah
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Application: outdoor or indoor power supply
Brand Name: OEM
Cell size: 156.75mmx156.75mm
Color: Black

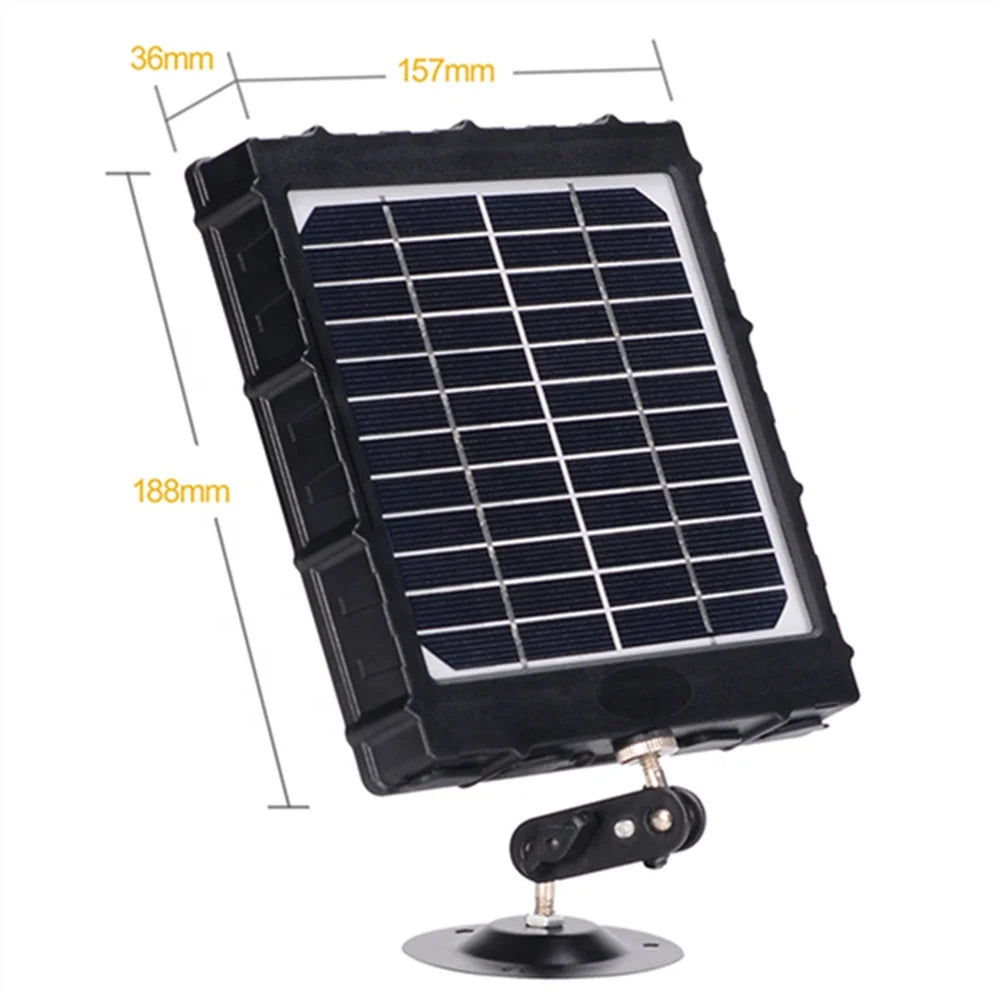

Dimension: 188*157*36mm
Input: 5V/2A
Interface dimensions: 4*1.7mm
Li battery capacity: 8000mah
Model Number: BL8000

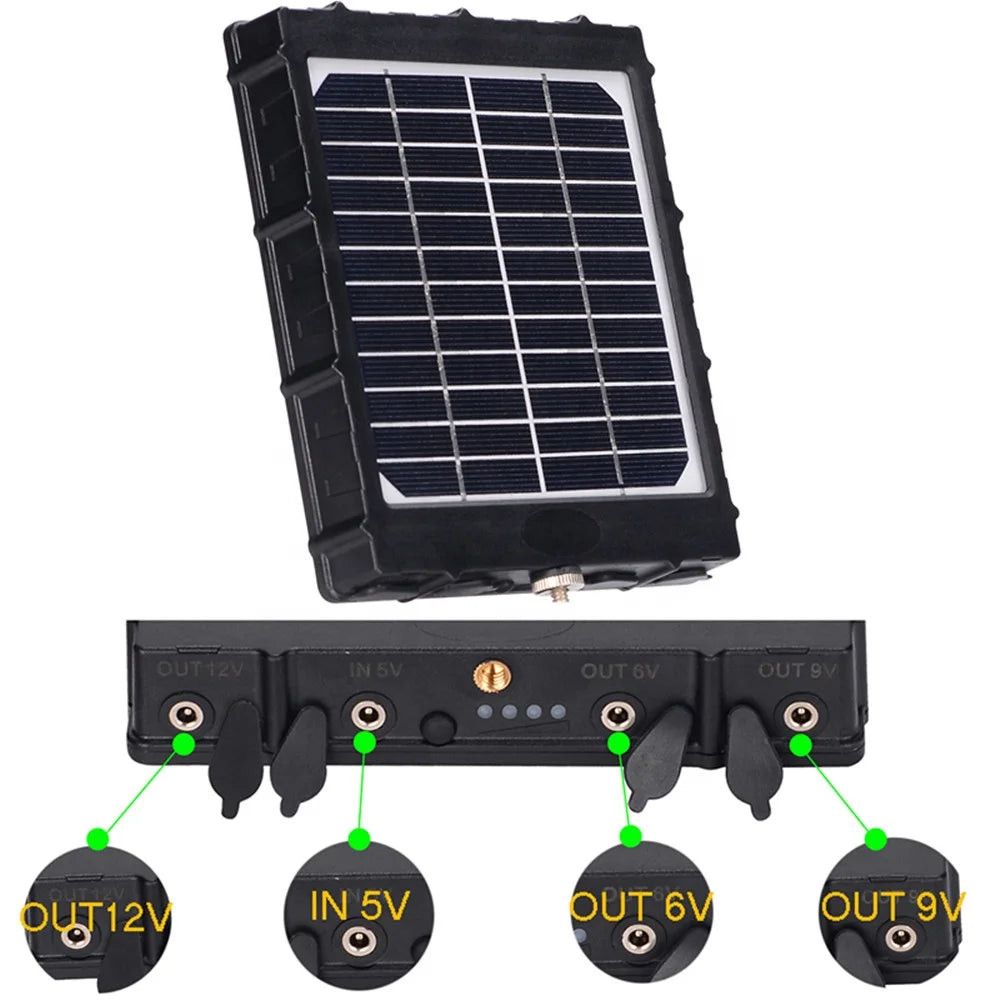

Output: 12V/1.2A,12V/1.6A,6V/2.4A
Panel Dimensions: 188*157*36mm
Photovoltaic Panels Material: High-Quality Monocrystalline Silicon
Place of Origin: Guangdong, China
Product name: Small Solar panel battery charger for cctv camera with 12v
Type: All Black
Working temperature: -10℃~60℃/14℉~140℉
Small mini Solar panel battery charger for cctv camera with 6v 9v 12v external Solar power panel 8000mah
Specifications:
|
Model |
BL8000 |
|
Input Voltage |
5V/2A |
|
Output Voltage |
12V/1.2A,9V/1.6A,6V/2.4A |
|
Dimension |
188mm(L)*157mm(W)*36mm(H) |
|
Li Battery Capacity |
8000mAH |
|
Interface Dimensions |
4*1.7mm |
|
Working Temperature |
-10℃~60℃/14℉~140℉ |
|
The time of charging fully |
charging by 5V/2A adaptor,5 hour Charging by sunshine, about 40 hour |
|
Color |
Black |
|
Photovoltaic Panels Material |
High-Quality Monocrystalline Silicon |
|
Application |
outdoor or indoor power supply |

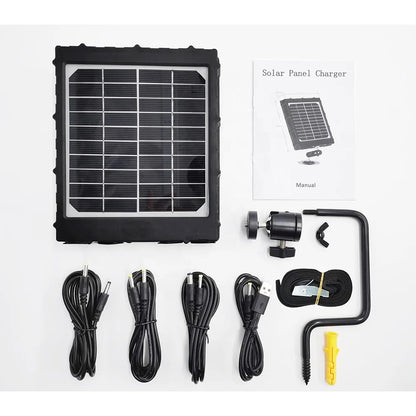

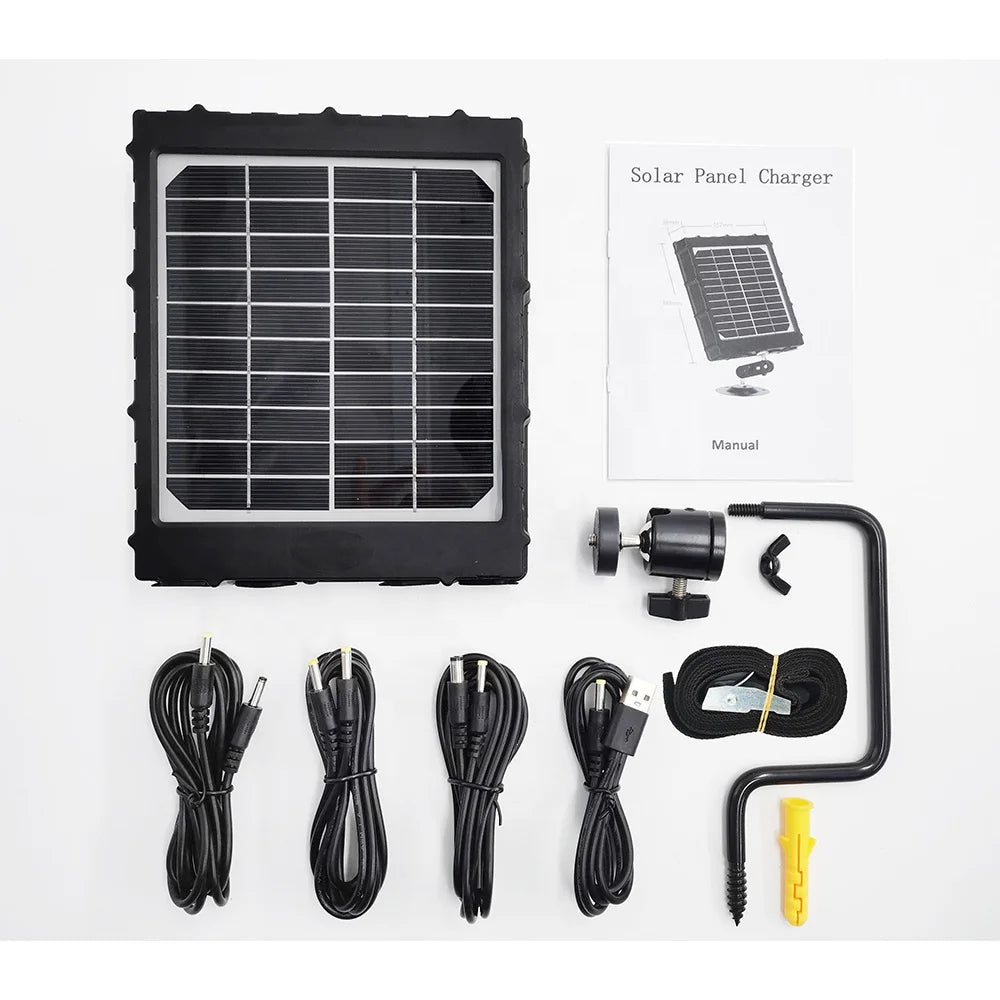

1pcs in a gift box
20pcs in a carton
Carton size:48*35*44cm
G.W.:20KGS/CTN
Solar Panel Q&A

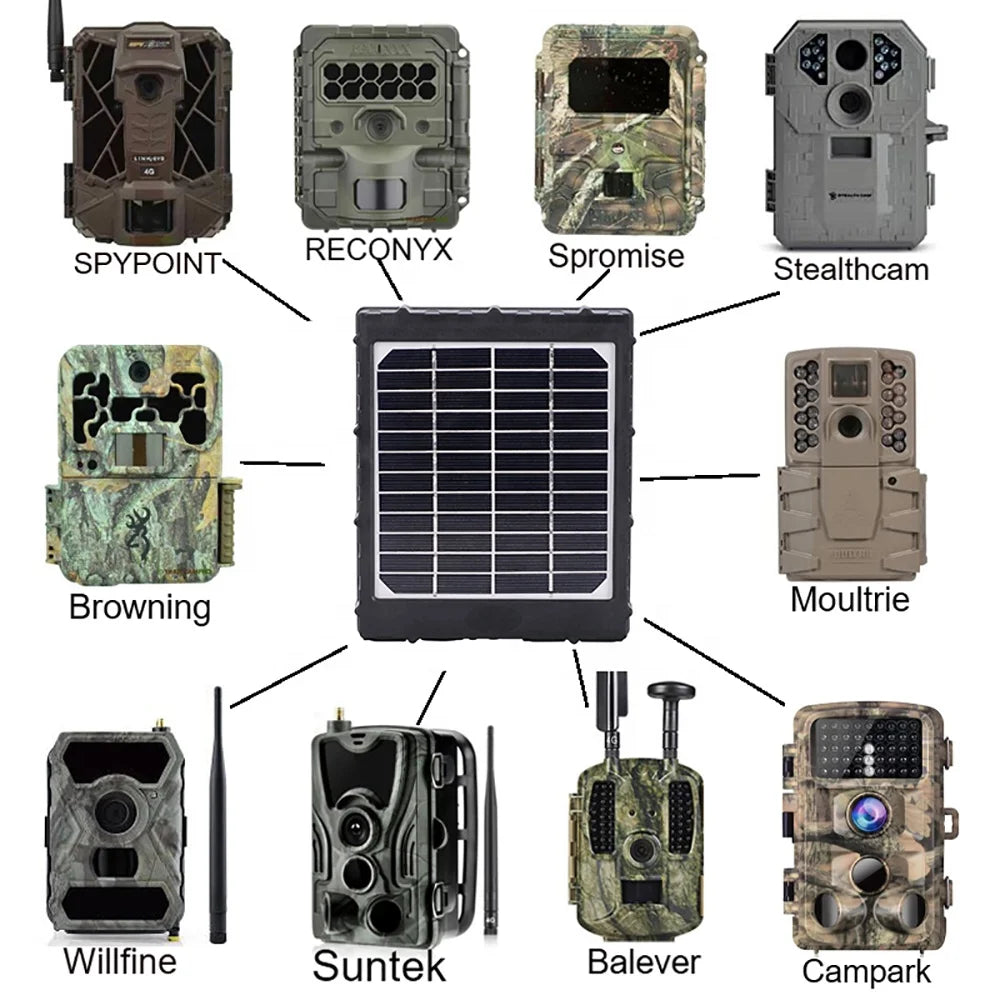

Question:This charger will support all trail camera?
Answer: Yes it supports
Question:If user use rechargeable batteries in camera, charger also will it recharge them?
Answer: This charger has rechargeable lithium batteries inside which feeds power to the camera. The sunlight charges the batteries inside the Solar Charger. The solar charger does not charge the batteries inside the camera. When camera is connecting AA battery and solar panel, camera will choose the one who is with higher power to work.
Question:Is this compatible with Moultrie cameras?
Answer:yes, this charger has 12V/9V/6V output, and it can support 3.5*1.35mm,4.0* 1.7MM and 5.5*2.1MM DC jack
Question:Is it weatherproof?
Answer: Yes, it is waterproof and anti-hail
Question: How is this solar panel charged by DC power
Answer: Please use DC adapter(5V/2A) to support it via USB cable. Normal mobile adapter can charge this solar panel kits.
Question:When temperature is under -20℃,it can work?
Answer: NO. the inside Li battery can not work, if it is forced to work, it may be damaged.
Question: If there are something like leaves on solar panel surface, the solar panel can work?
Answer: yes, the solar panel can work, but the inside battery can not be charged fully due to lack of sunlight.
