SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: None

Origin: Mainland China,Mainland China

Package: TQFP

Quantity: 1

Type: Module

feature1: backlight functionality for use in low-light environments

feature2: PD and QC fast charging technologies

feature3: Supports DC 5V, 12V, 24V multi-voltage input to accommodate various device requirements

is_customized: Yes

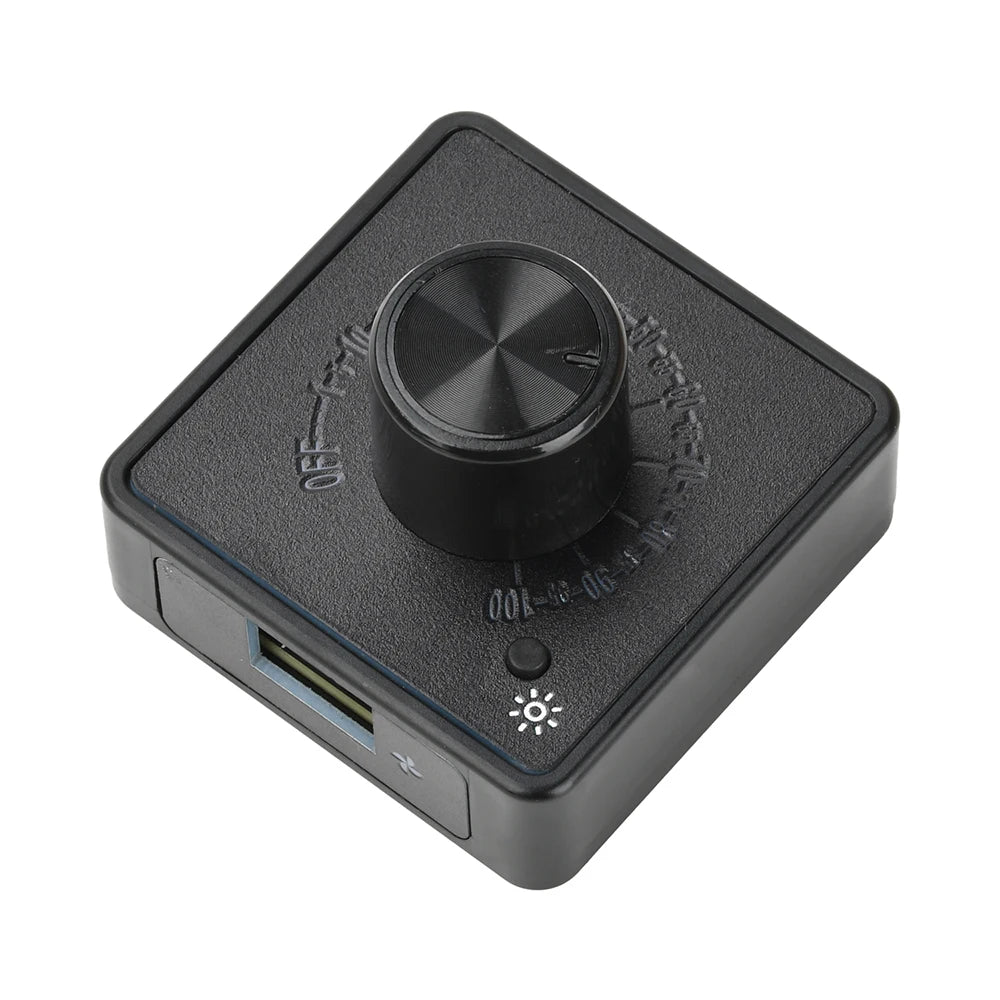

product name1: 4-wire fan speed controller

product name2: PWM speed controller

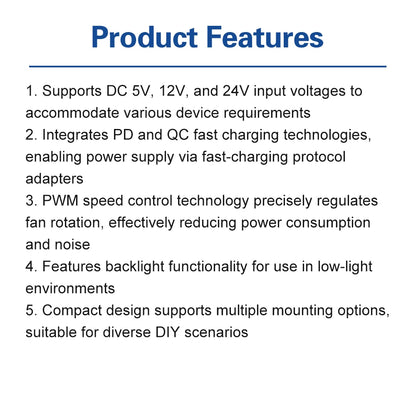

Features:

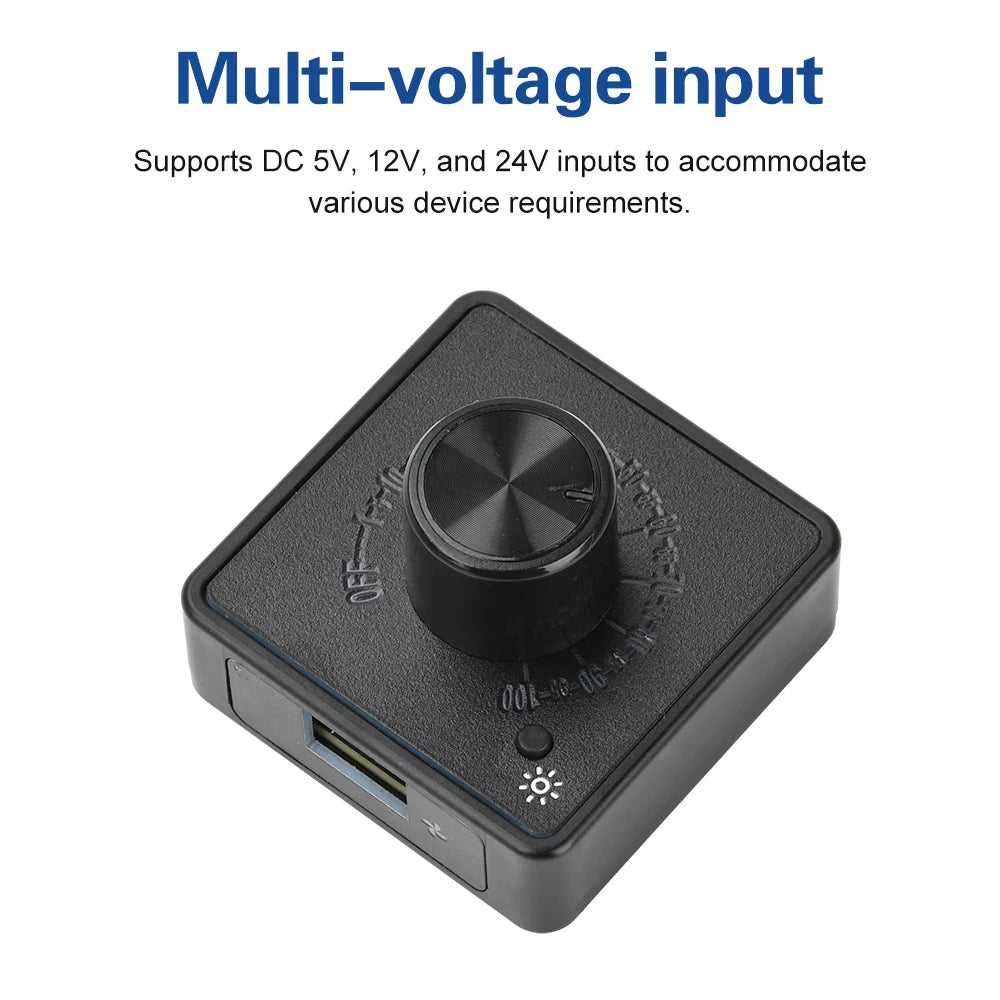

1. Supports multiple voltage inputs of DC 5V, 12V, and 24V to meet the needs of various devices

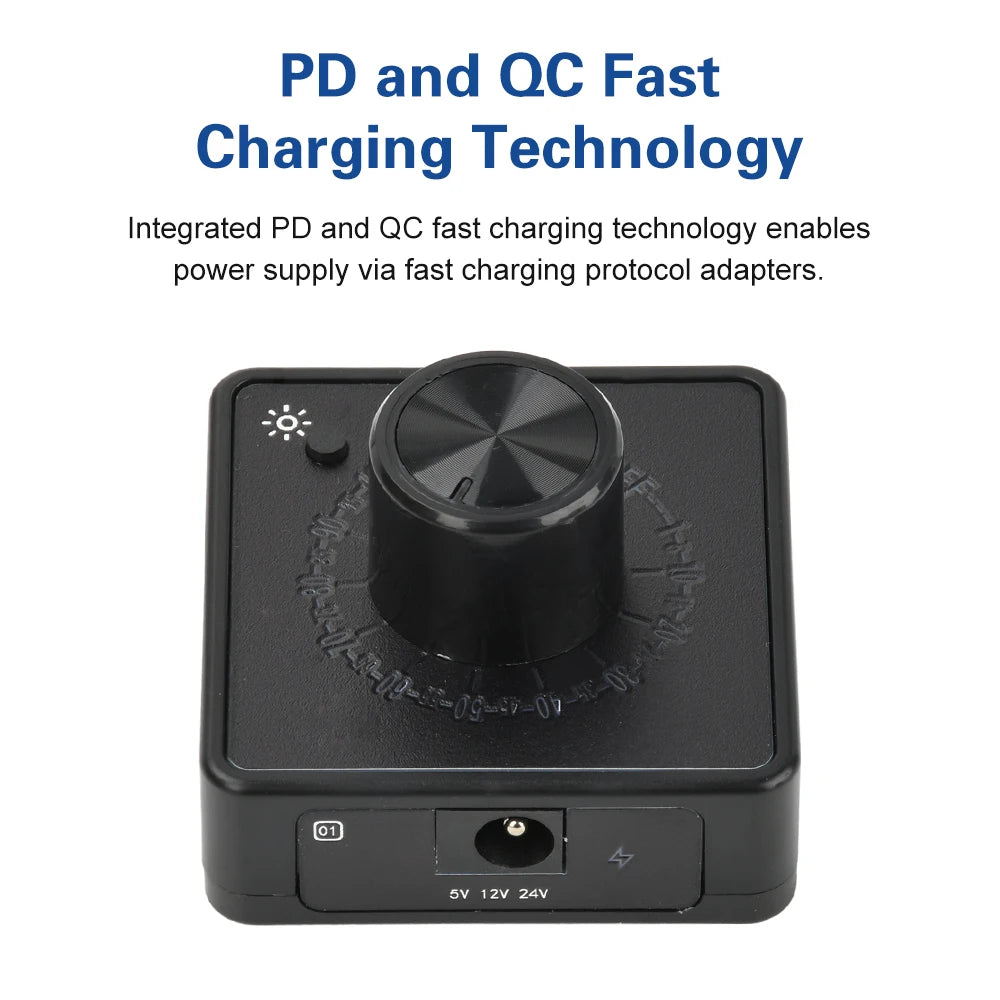

2. Integrated PD and QC fast charging technology, capable of using fast charging protocol power supply for power supply

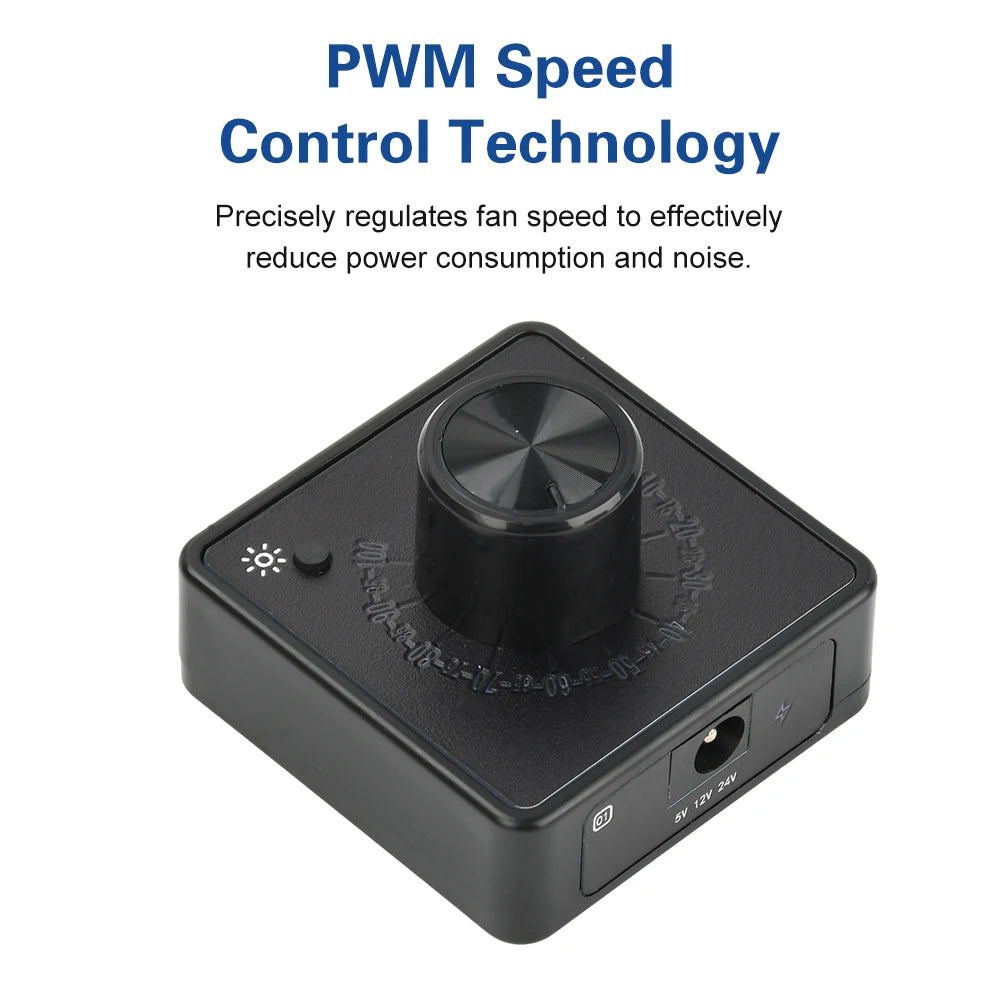

3. PWM speed regulation technology, precise control of fan speed, effectively reducing power consumption and noise

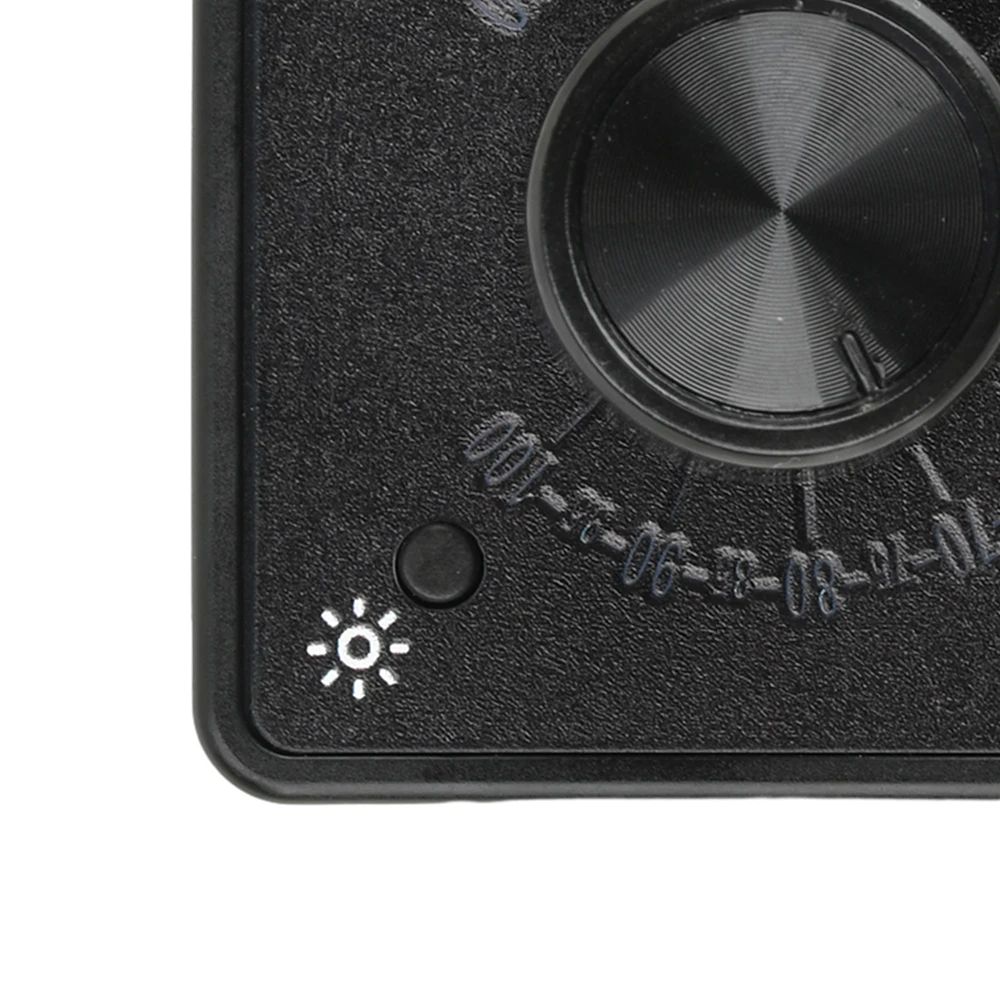

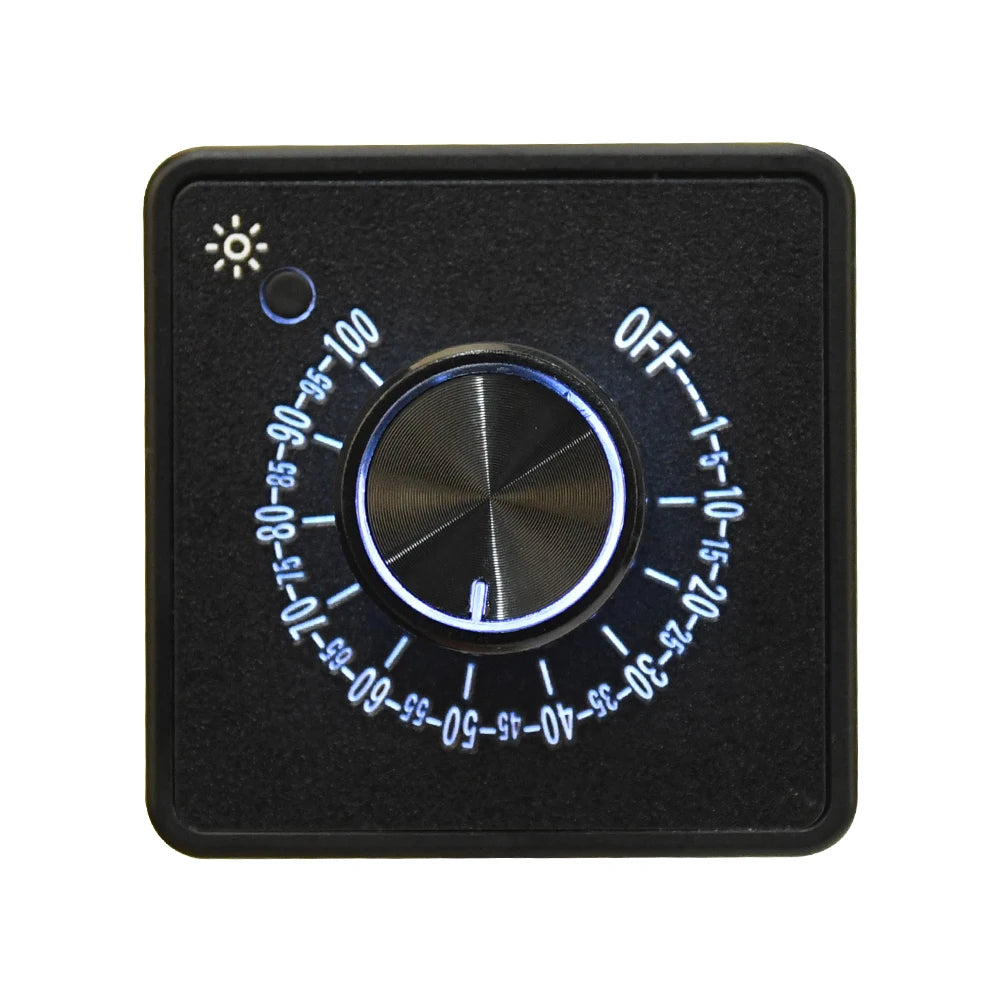

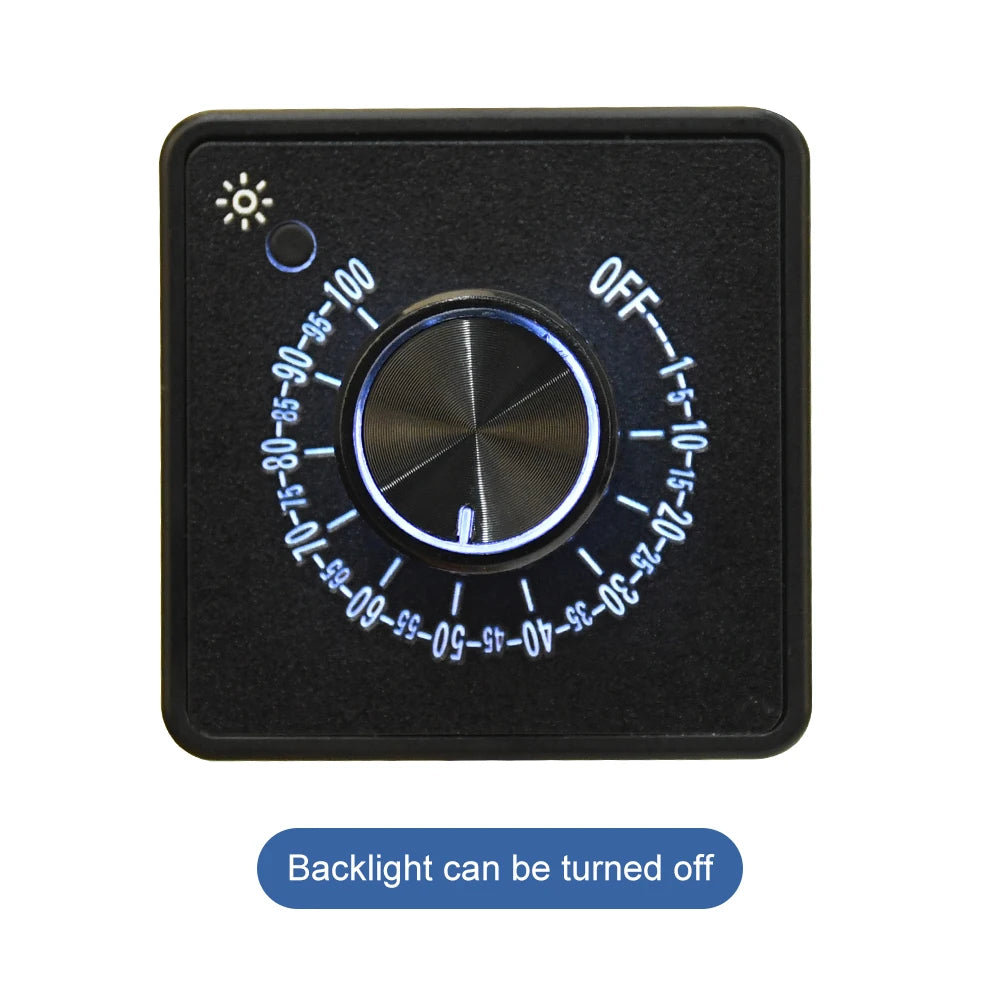

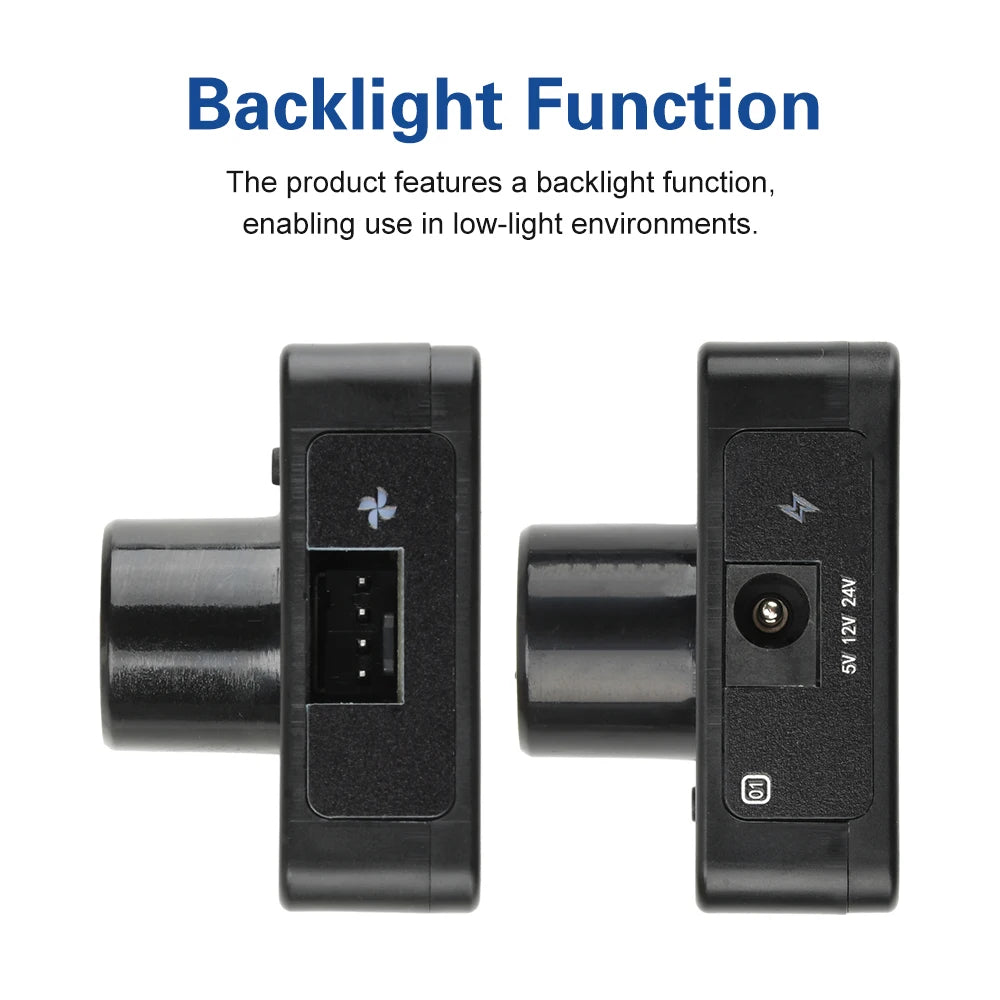

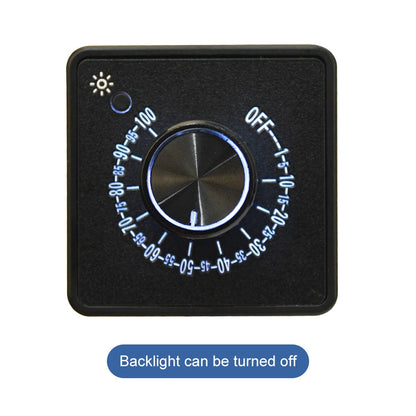

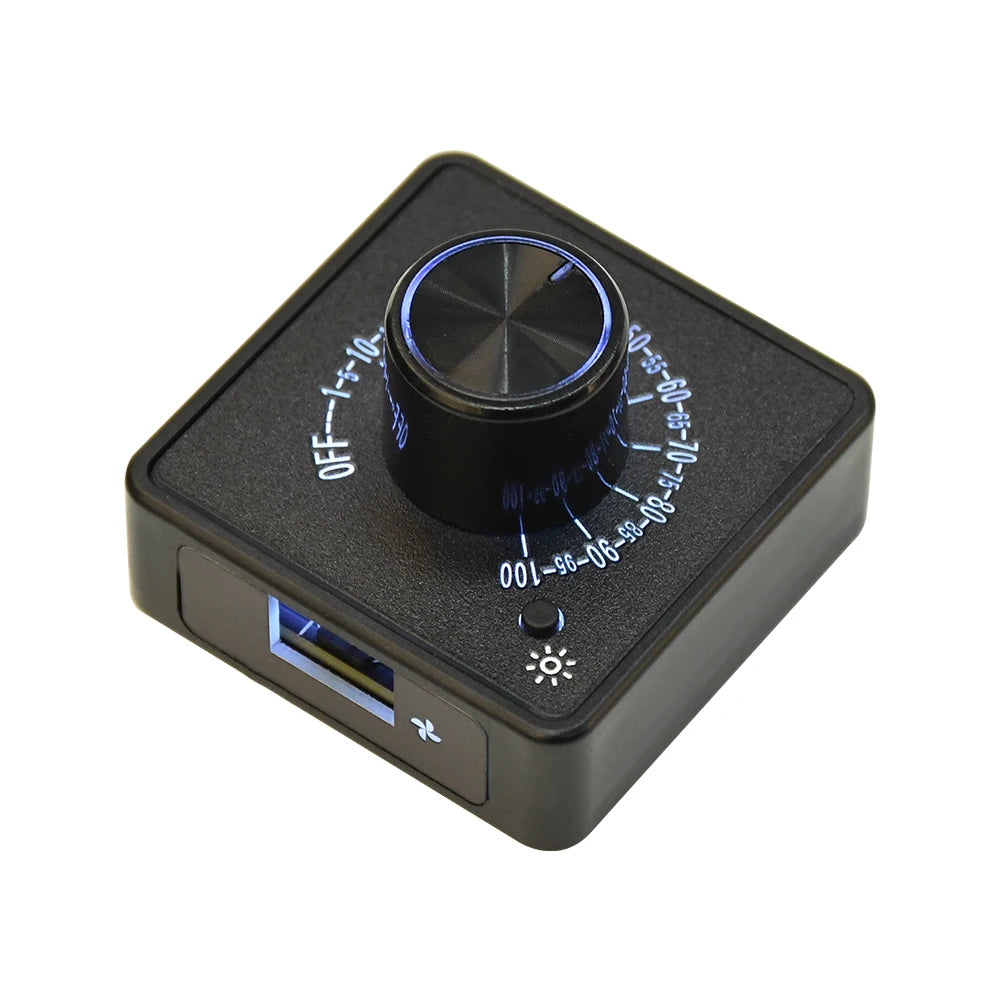

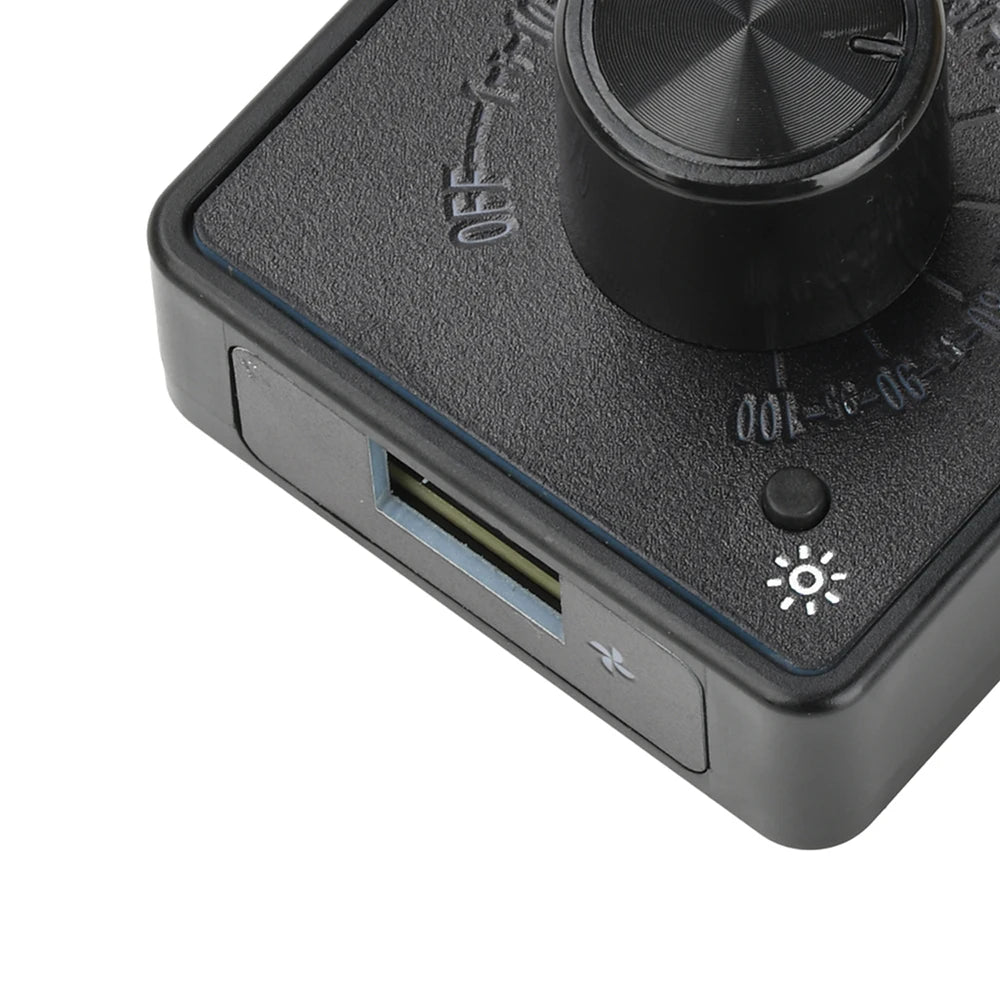

4. The product is equipped with backlight function, which can be used in low light environments

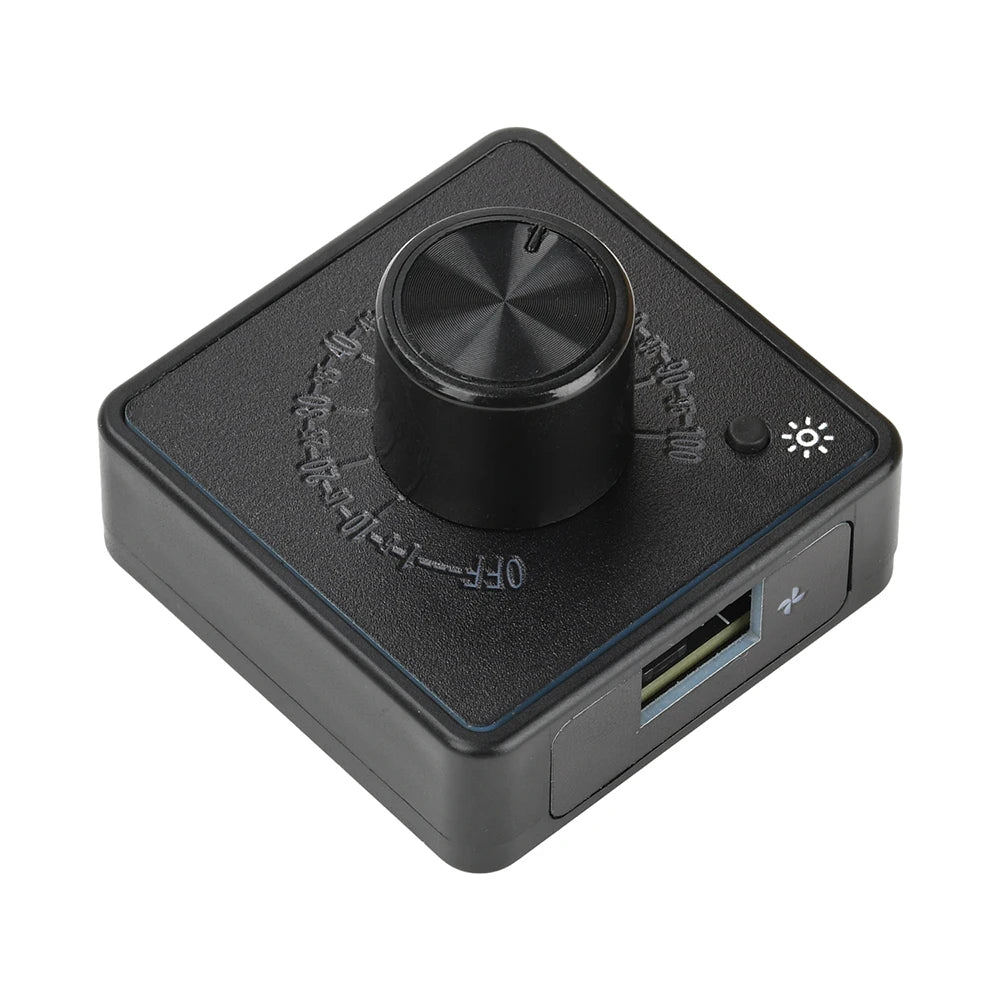

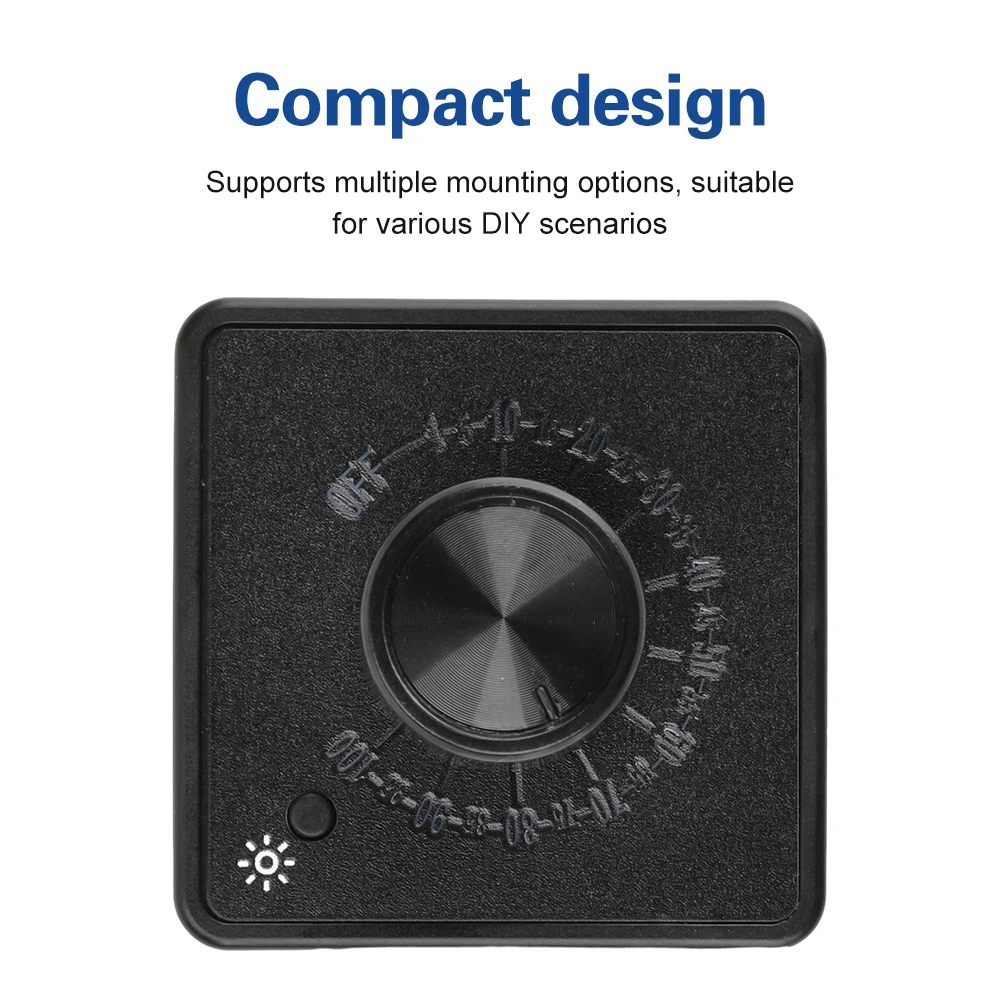

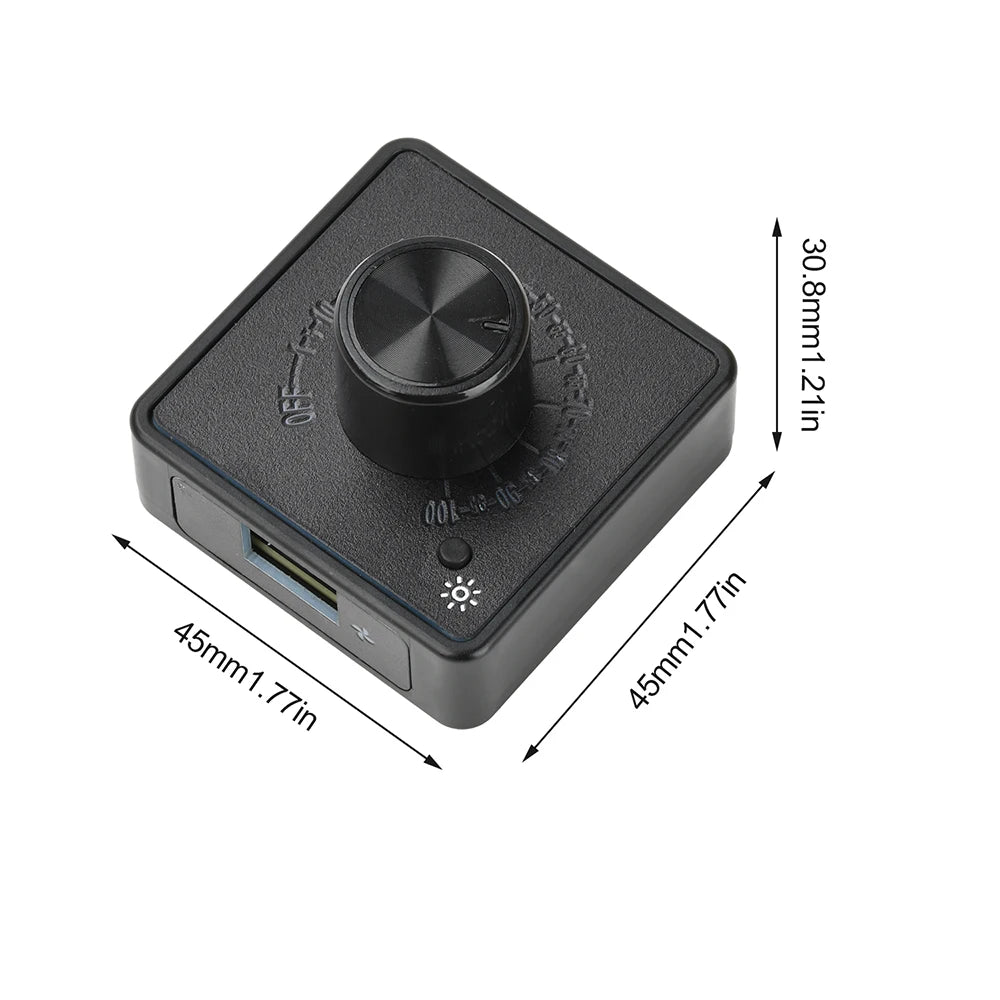

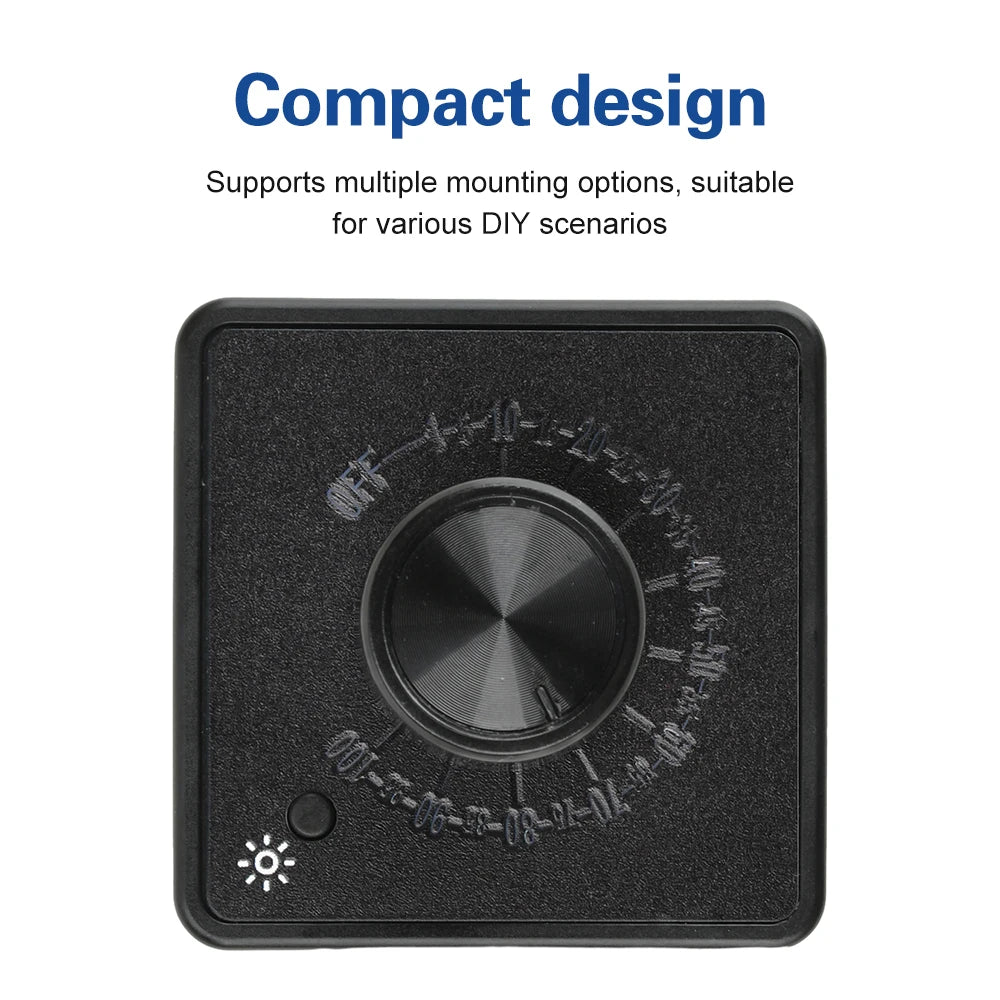

5. Compact structure, supports multiple installation methods, suitable for various DIY scenarios

Product Parameters:

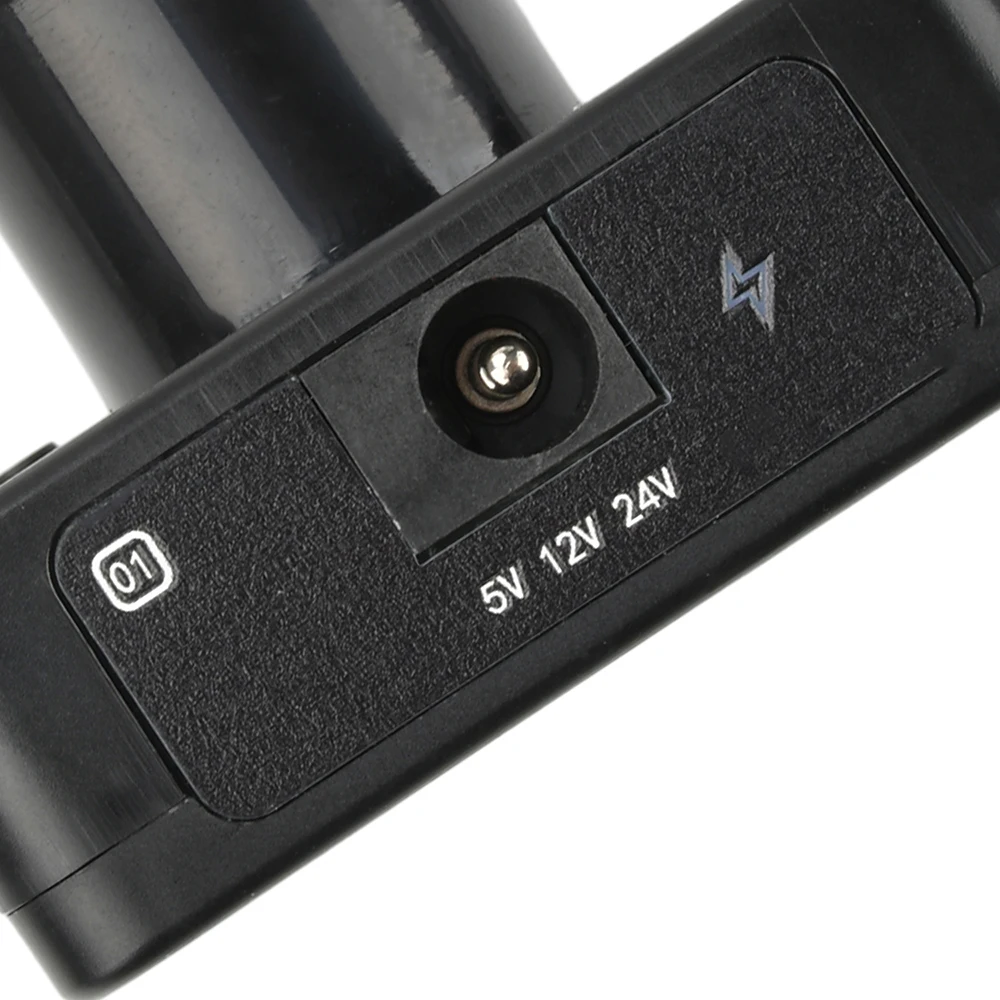

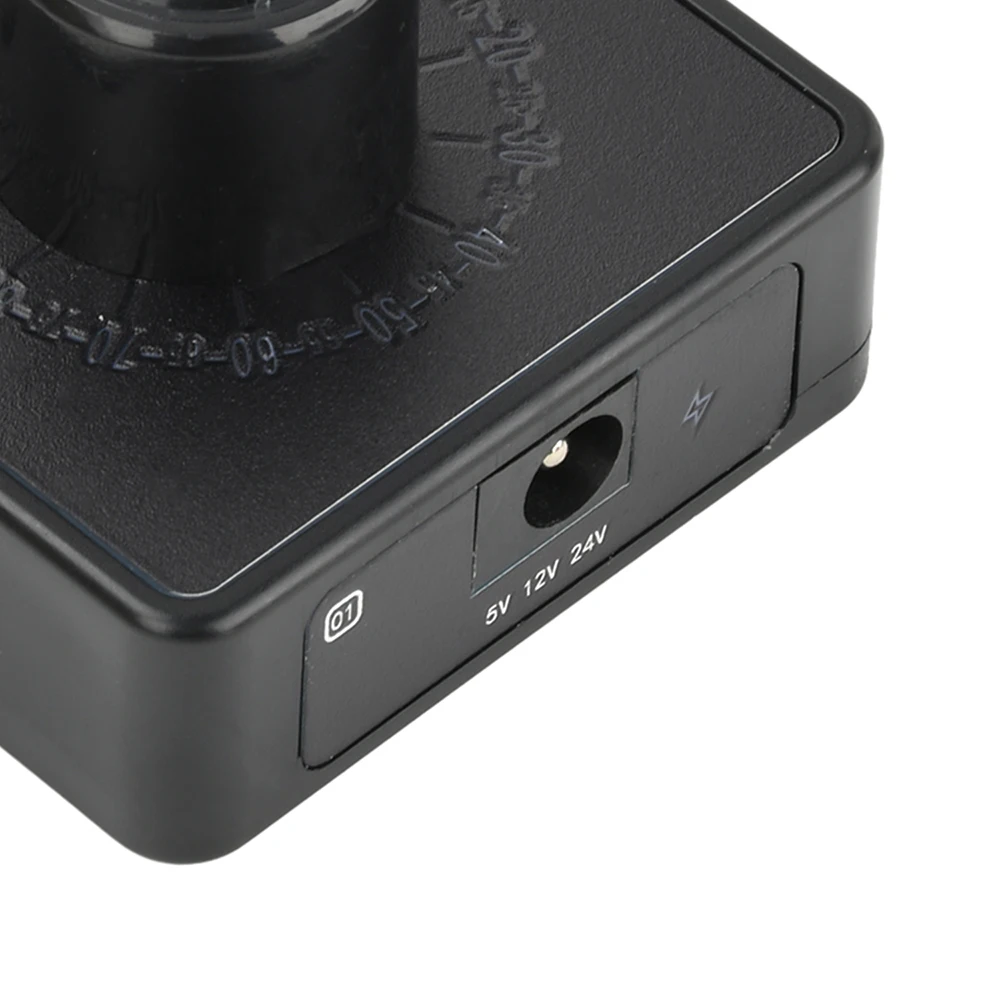

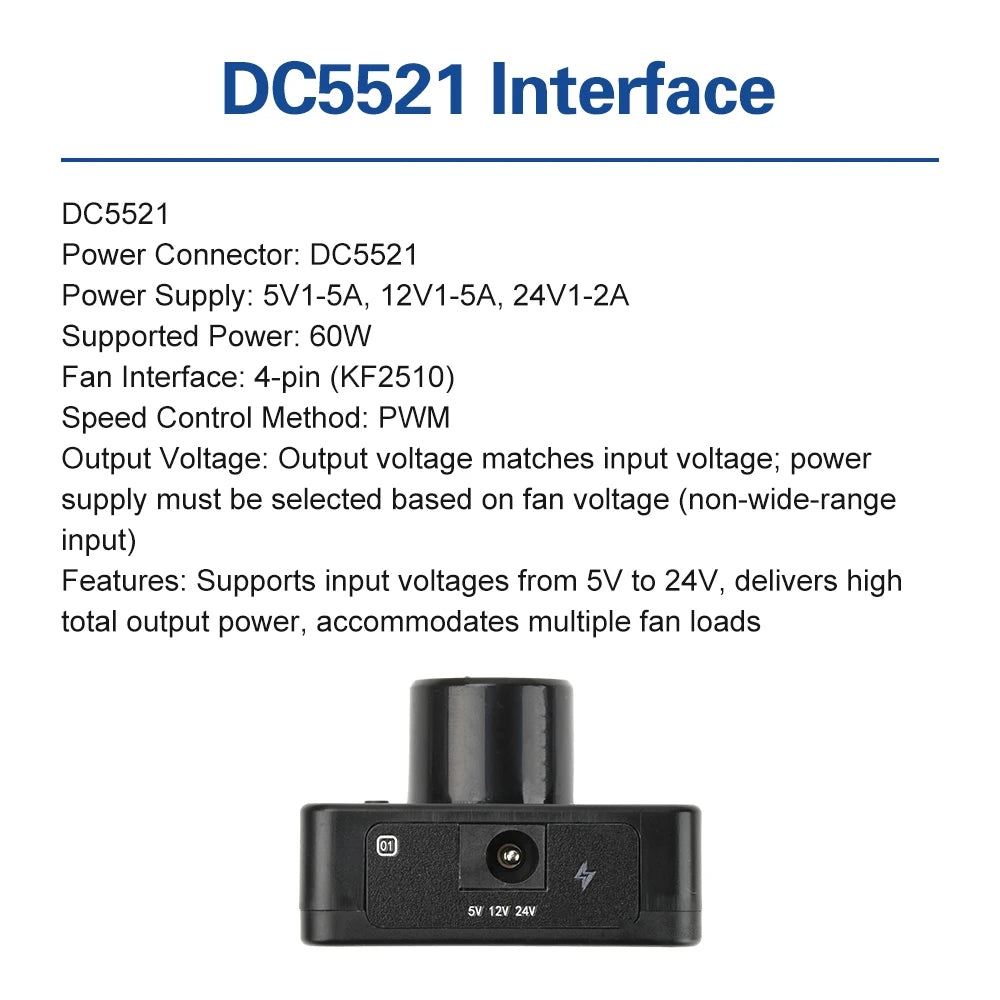

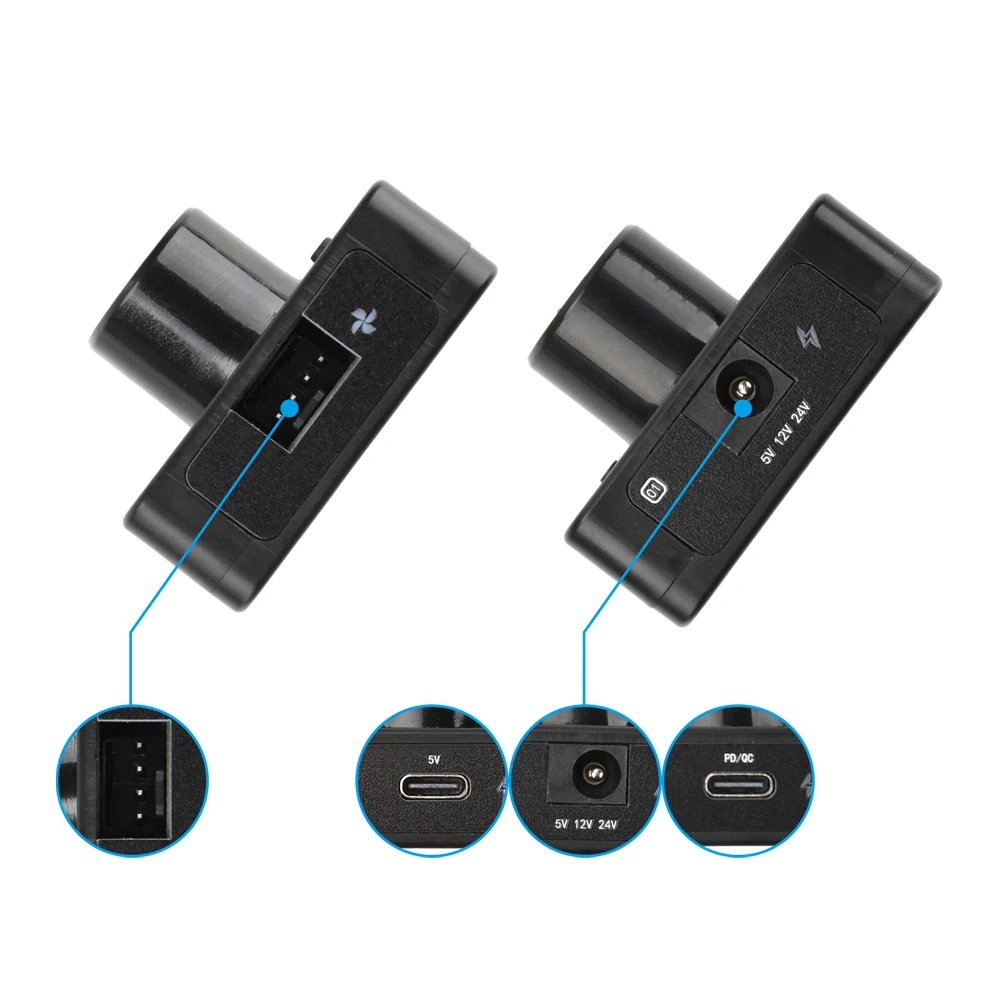

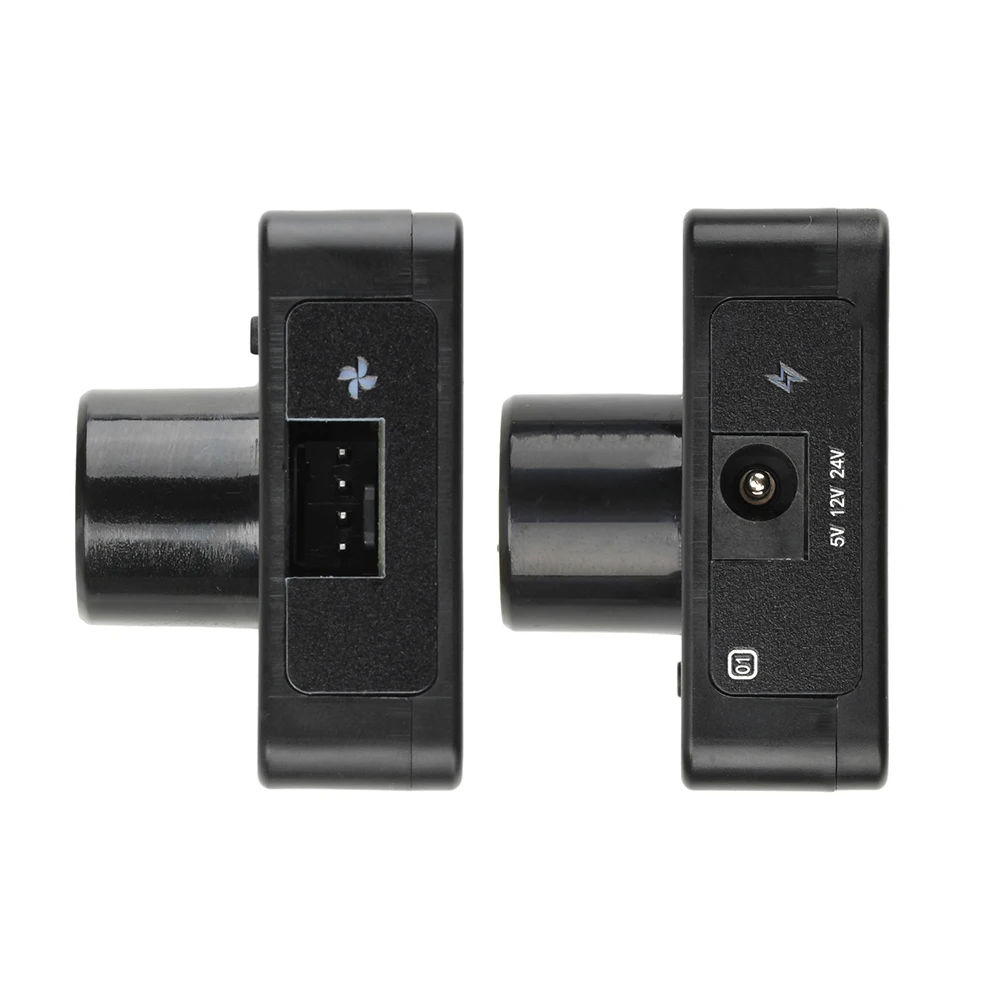

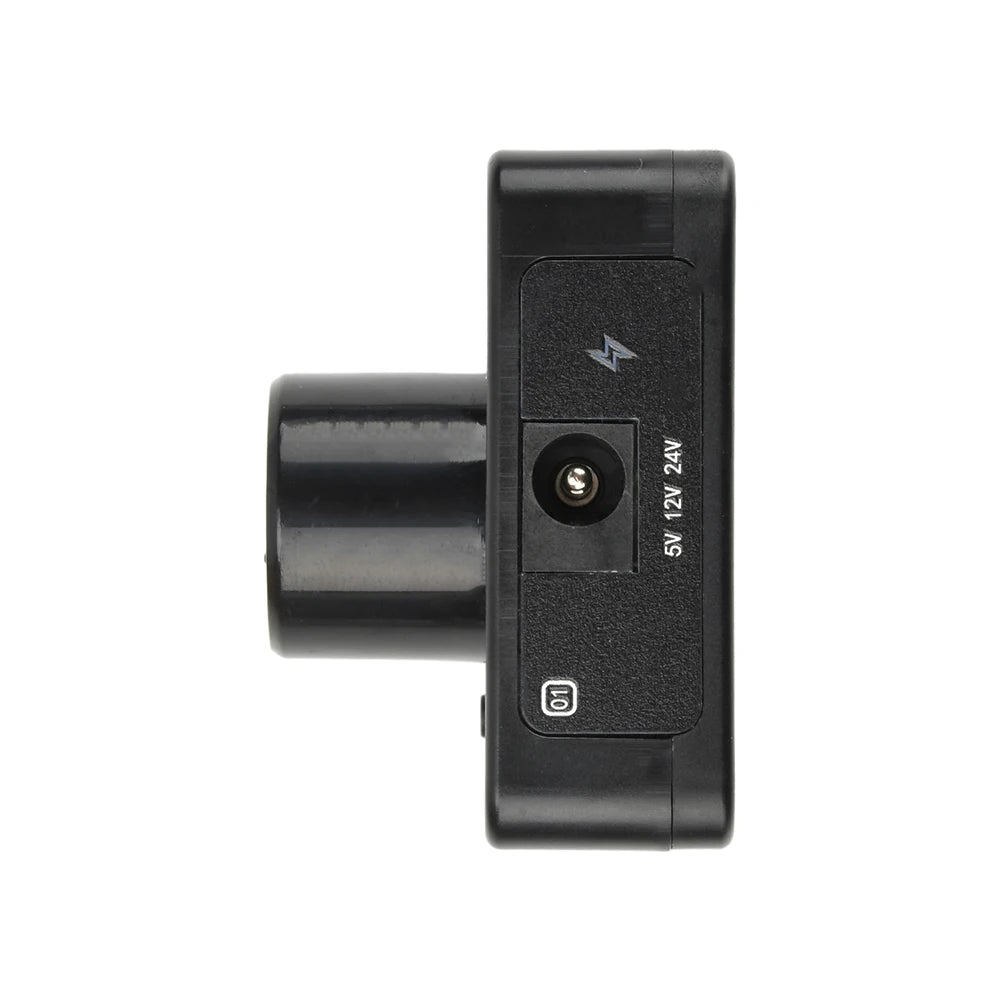

DC5521

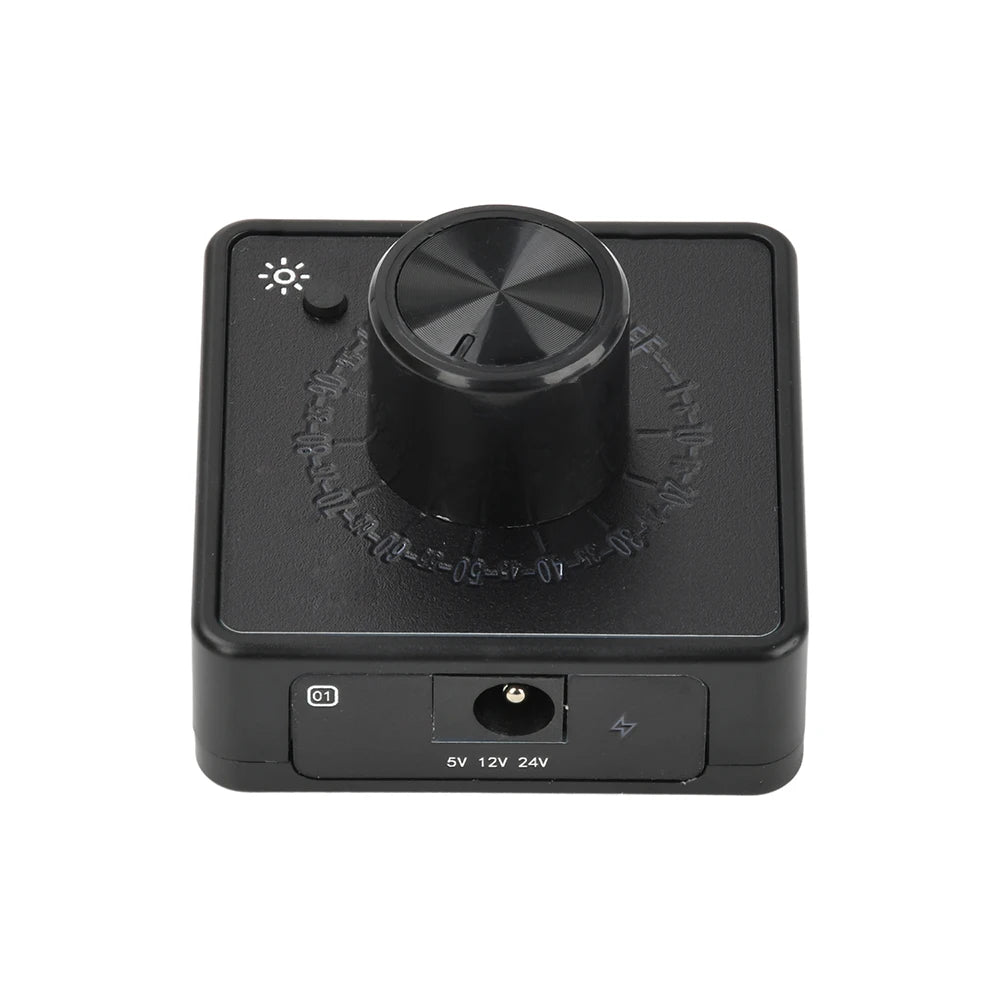

Power interface: DC5521

Power supply mode: 5V1-5A, 12V1-5A, 24V1-2A

Supported power: 60W

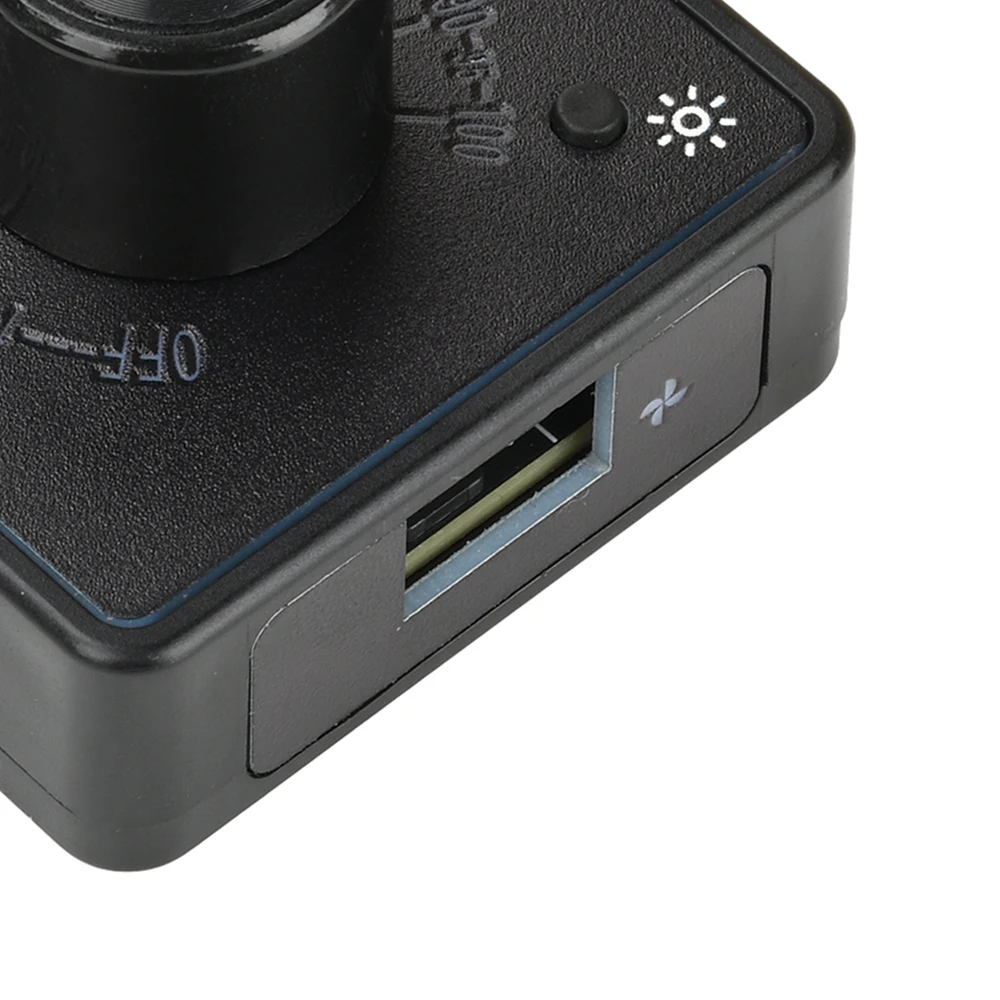

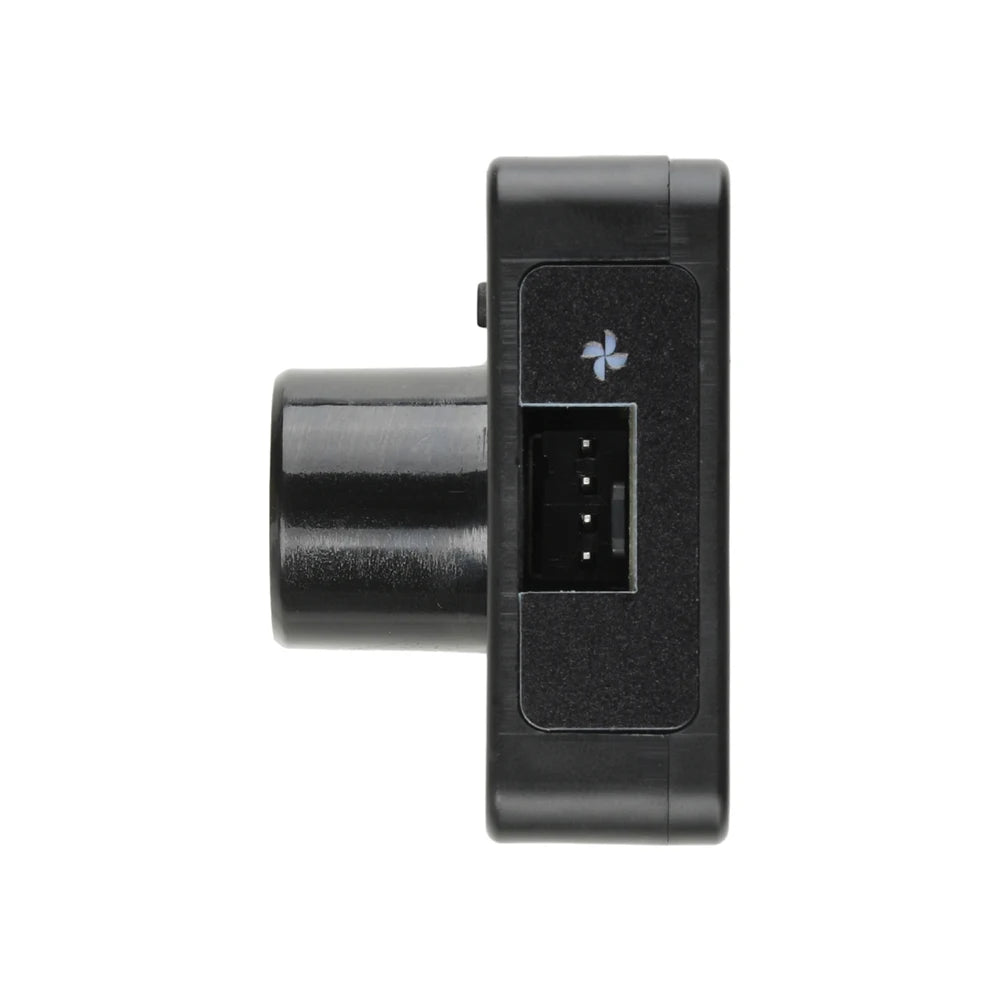

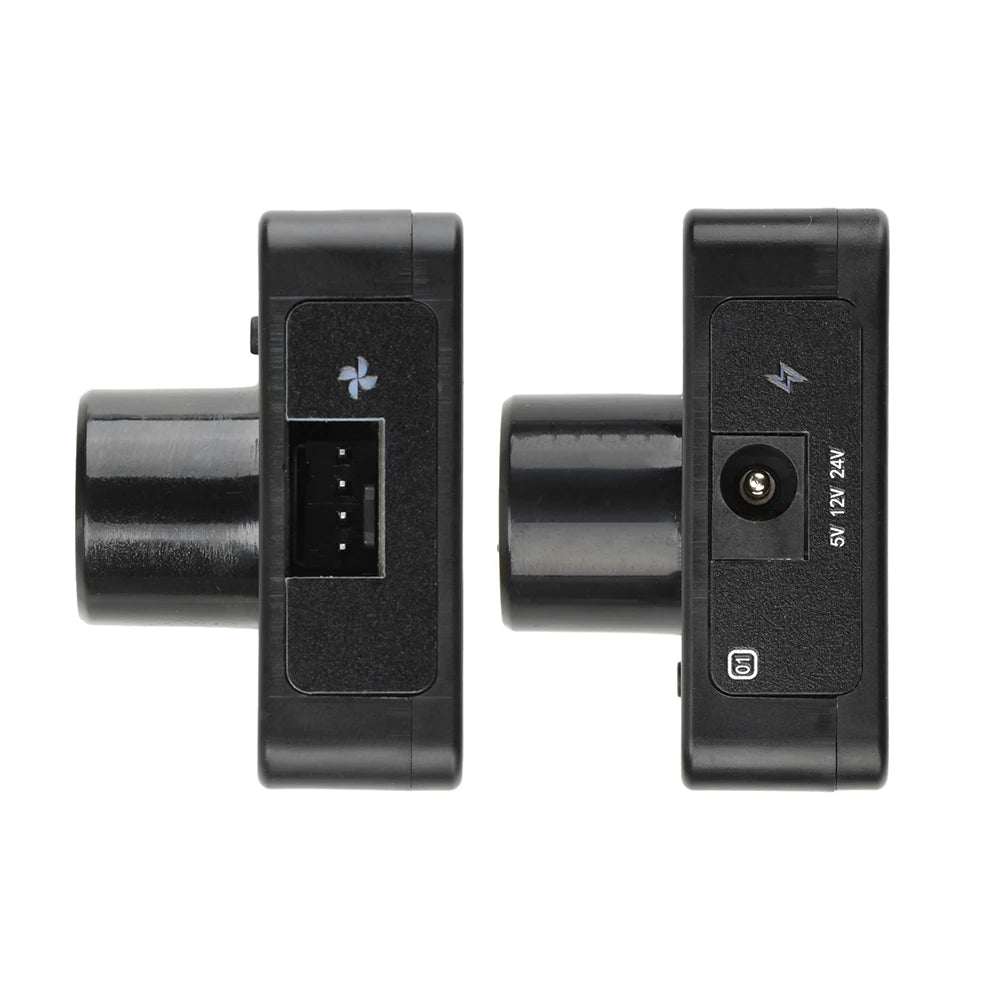

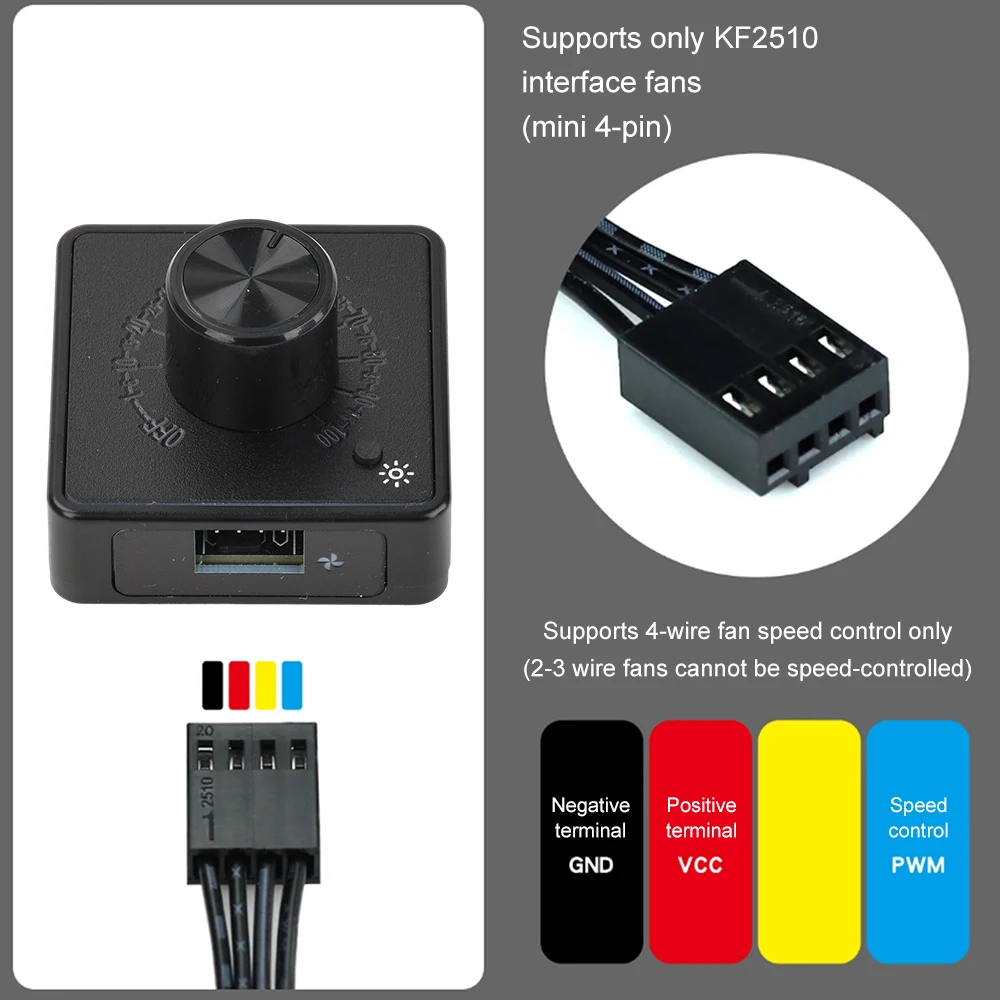

Fan interface: 4Pin (KF2510)

Speed regulation method: PWM

Output voltage: The output voltage is consistent with the input voltage, and the power supply needs to be selected based on the fan voltage (non wide voltage input)

Features: Supports voltage input within the range of 5V-24V, with a high total output power and a large number of load fans

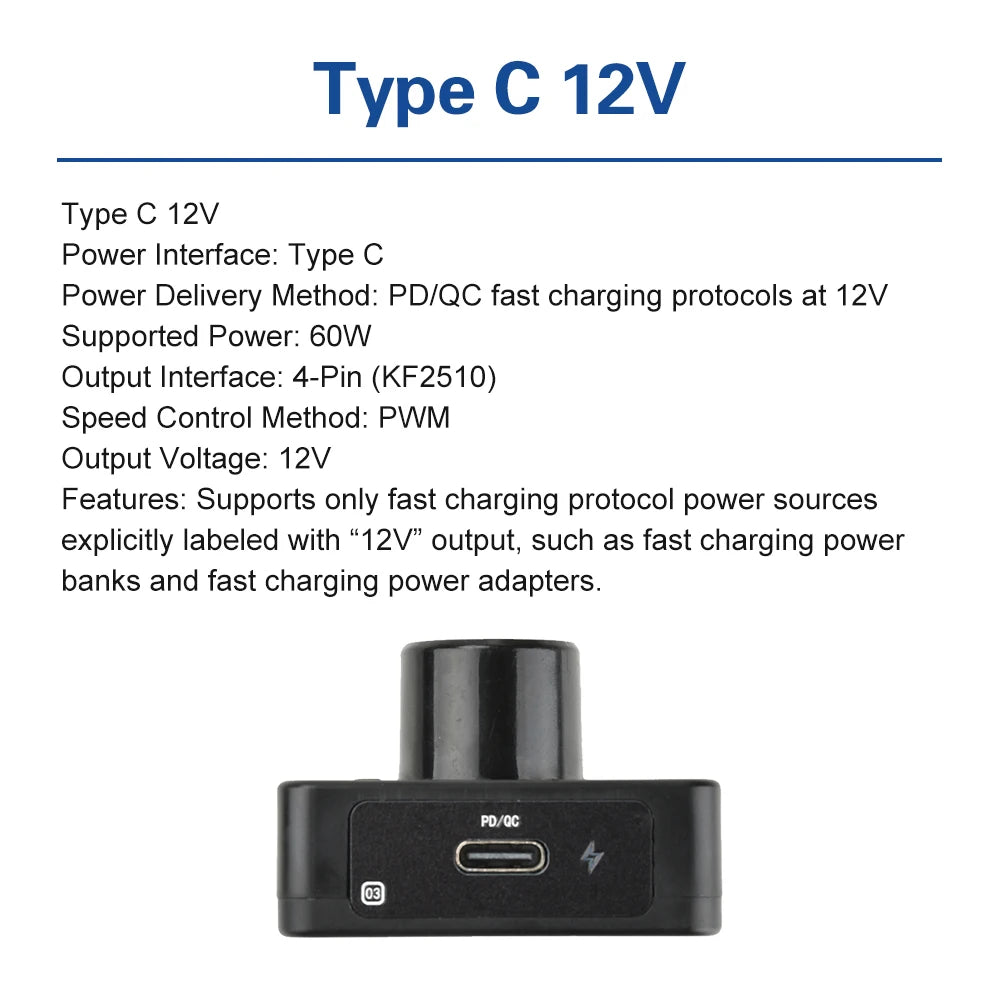

Type C 12V

Power interface: Type C

Power supply mode: PD/QC fast charging protocol takes 12V

Supported power: 60W

Output interface: 4Pin (KF2510)

Speed regulation method: PWM

Output voltage: 12V

Features: Only supports fast charging protocol power supplies with clearly labeled "12V" output, such as fast charging portable power banks and fast charging power adapters

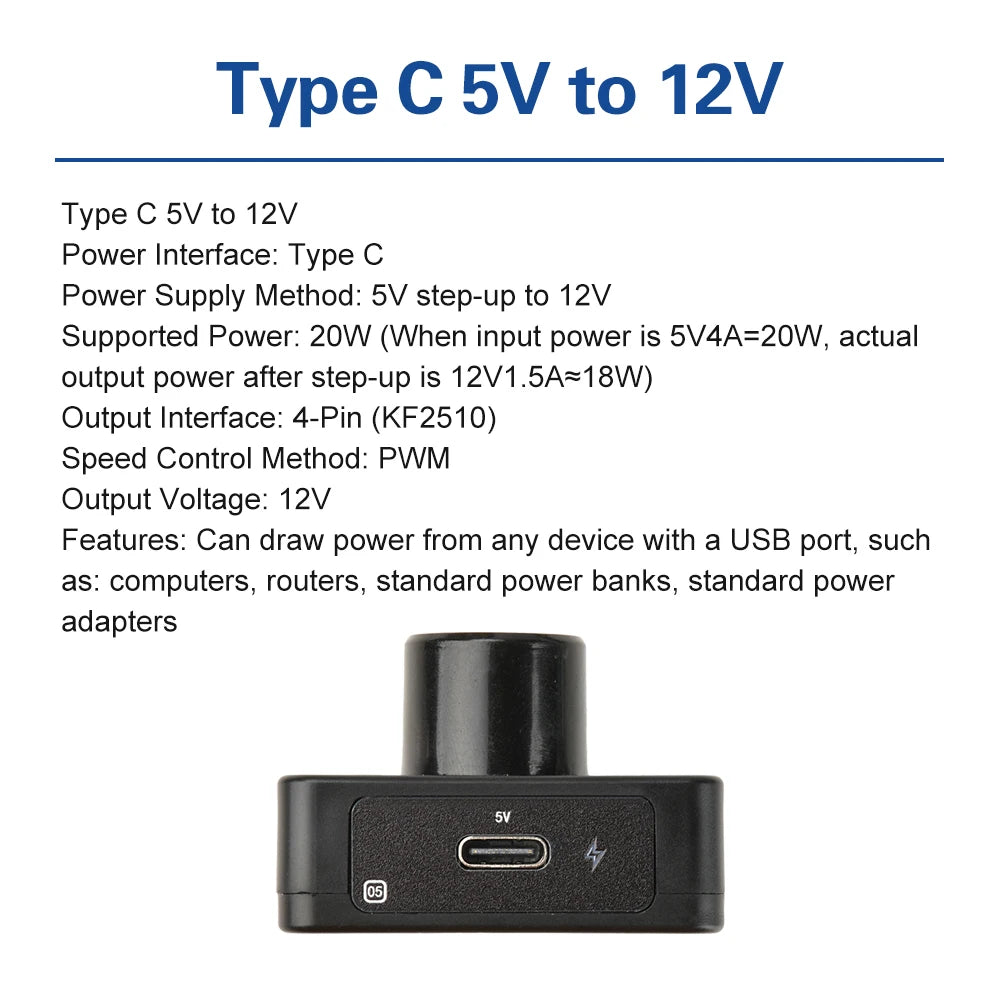

Type C 5V to 12V

Power interface: Type C

Power supply mode: 5V boost to 12V

Supported power: 20W (when 5V4A=20W power input, the actual output power after boosting is 12V1.5A ≈ 18W)

Output interface: 4Pin (KF2510)

Speed regulation method: PWM

Output voltage: 12V

Features: It can be powered on any device with a USB interface, such as computers, routers, regular power banks, and regular power adapters

Packing List:

Speed controller * 1
