Pet Pp Film Roll to Sheet Cross Cutting Machine for Sale Bopp Pvc Film Roll Slitting Cutter A4 Paper Manufacturer

Pet Pp Film Roll to Sheet Cross Cutting Machine for Sale Bopp Pvc Film Roll Slitting Cutter A4 Paper Manufacturer

CFA750,873 XOF
CFA0 XOF CFA750,873 XOF
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
model number
Product Description

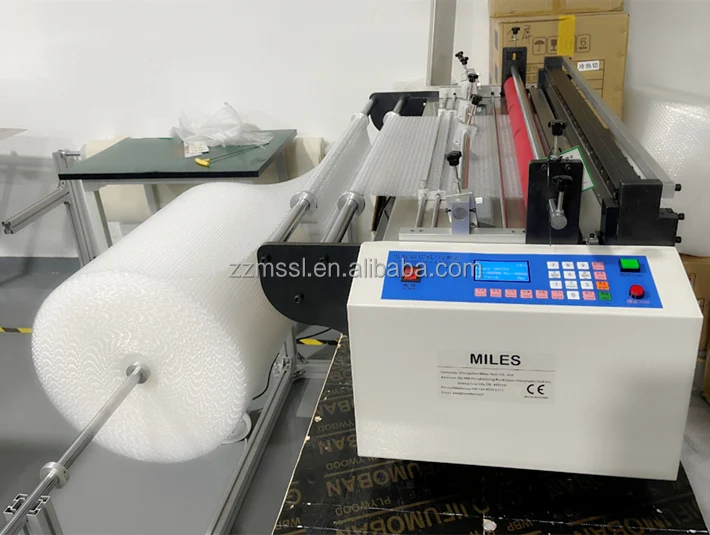

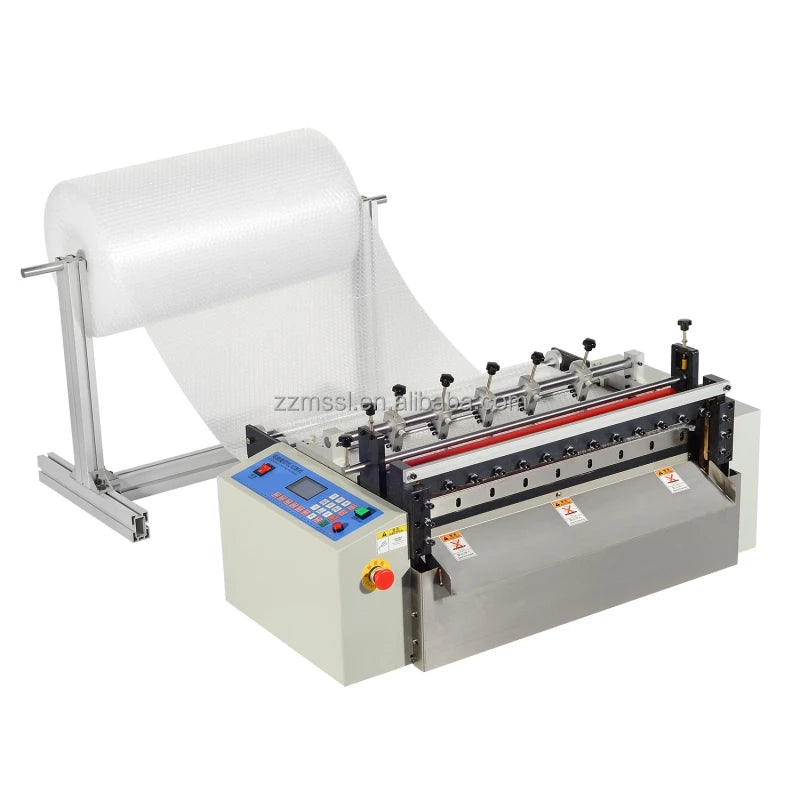

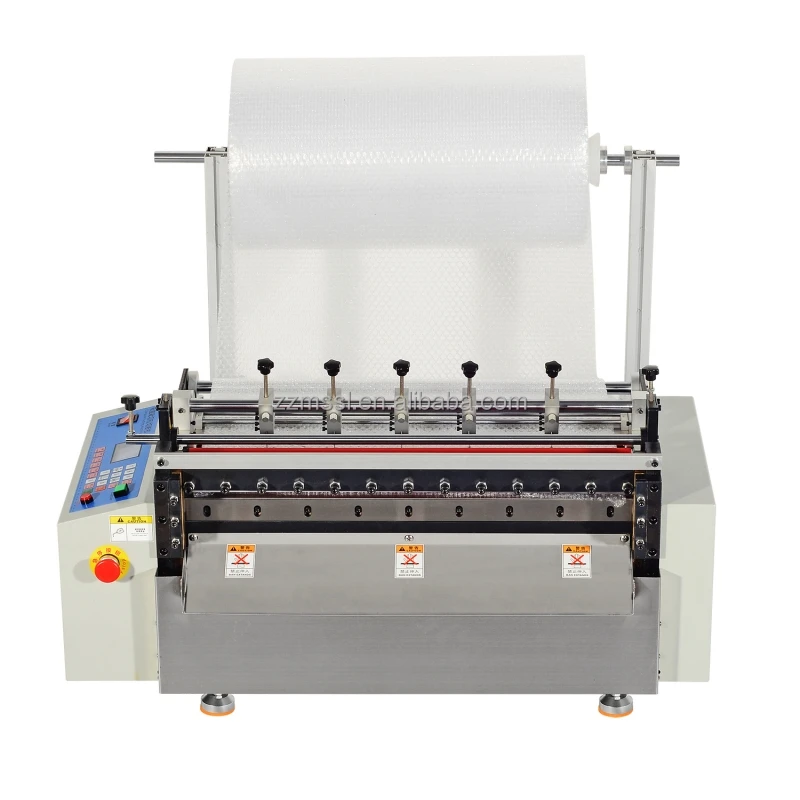

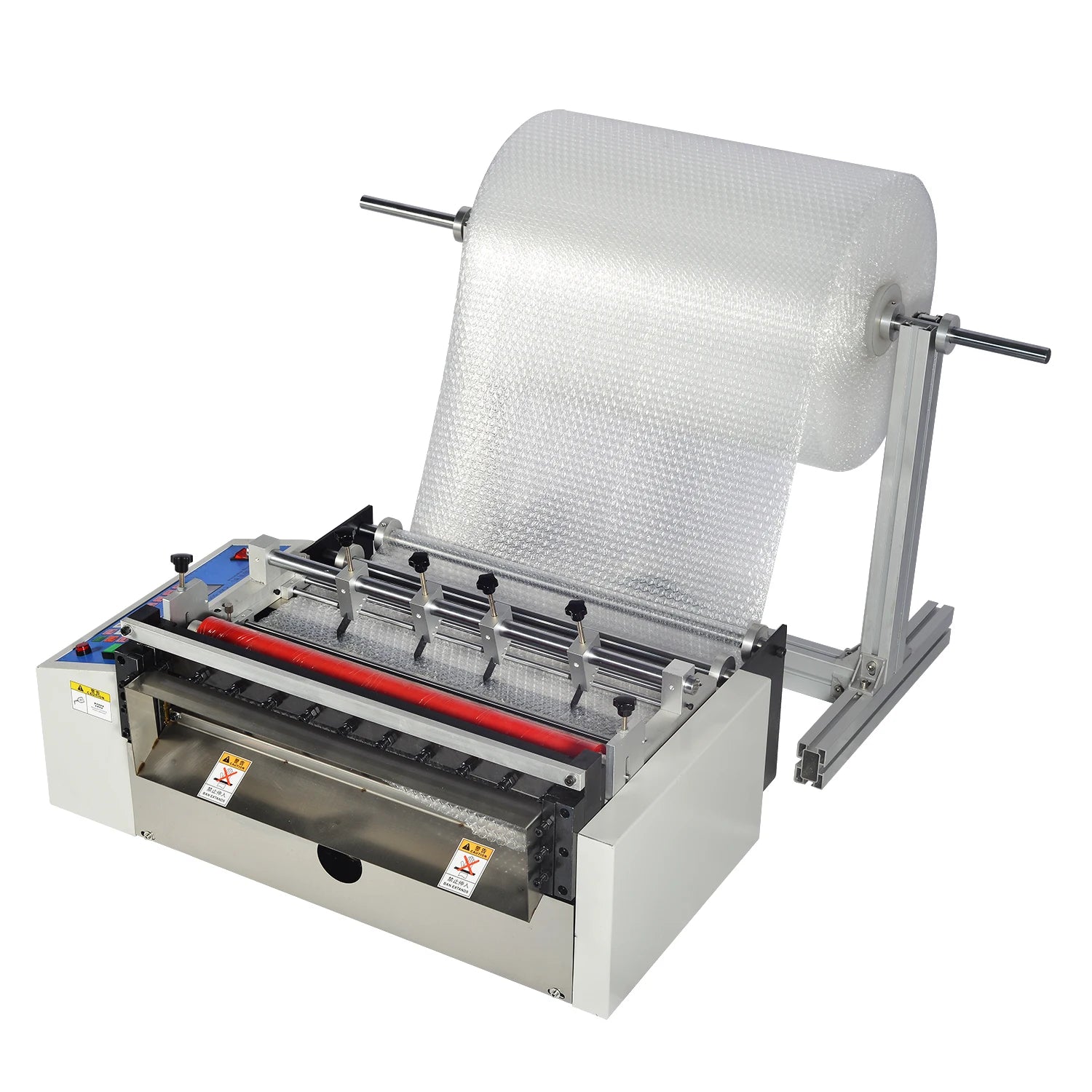

Bopp Pvc Bubble Plastic Film Roll To Sheet Cross Cutting Machine
Fabric Roll Slitting Cutting Machine Paper Cutter for Sale

Film Roll: PVC/ PET/ OPP film, Bubble film, heat shrinkable film, insulating film, Canvas, insulating film... Paper Roll: printing paper, adhesive label, kraft paper, release paper, barley paper, wallpaper, double-sided adhesive tape... Foam Roll: EVA foam, pearl cotton... Fabric Roll: Thread Knitted Hat Fabric, non-woven fabric, felt... Other: leather, cowhide, copper foil, aluminum foil, wire mesh, tarpaulin, etc.
Specification
Model
MT-300G/400G/500G/800G/1000G/1200G/1300G/1500G/1600G/1700G/1800G/2100G
Max cutting width
300/400/500/800/1000/1200/1300/1500/1600/1700/1800/2100mm
Cutting length
1-9999mm adjustable
Cutting precision
0.1mm
Cutting speed
30-120 pcs/min
Voltage
220V/110V,50/60hz, Ac
Language
Chinese and English
Package
Wooden case
Optional
Electronic eye, Knife slitting group, Round blades slitting group, Spring.Static Eliminator

Features:

1.Batch pause and time can be set. 2.The cutting section is flat and the length is accurate. Automatic counting. The microcomputer program control has a minimum accuracy of 0.1 mm. 3.Total setting, segment and batch setting, and segment pause time are adjustable. 4.High-power feeding motor, automatic and manual free switching, convenient and simple operation. 5.It can be cut in two or more rows at the same time, and the length and speed can be continuously adjusted. 6.Using a special mechanical structure and thickened cutter, coupled with special software control, solves the problem of unevenness.
Details Images

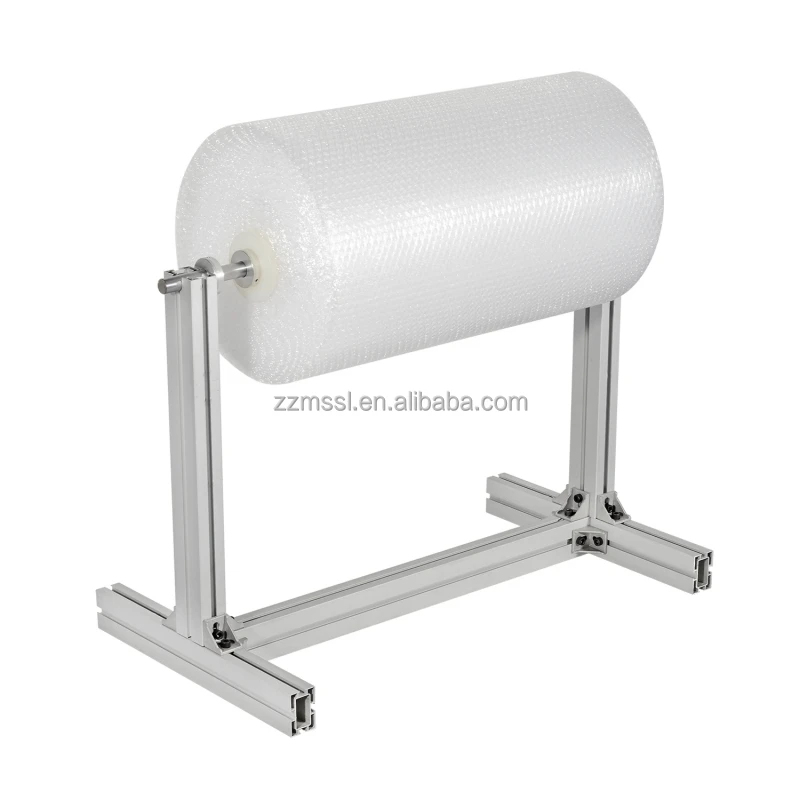

Independent Shaft

G series can load 30-40kgs. Easy to assemble and easy to move. The tapered holder can use different core sizes.

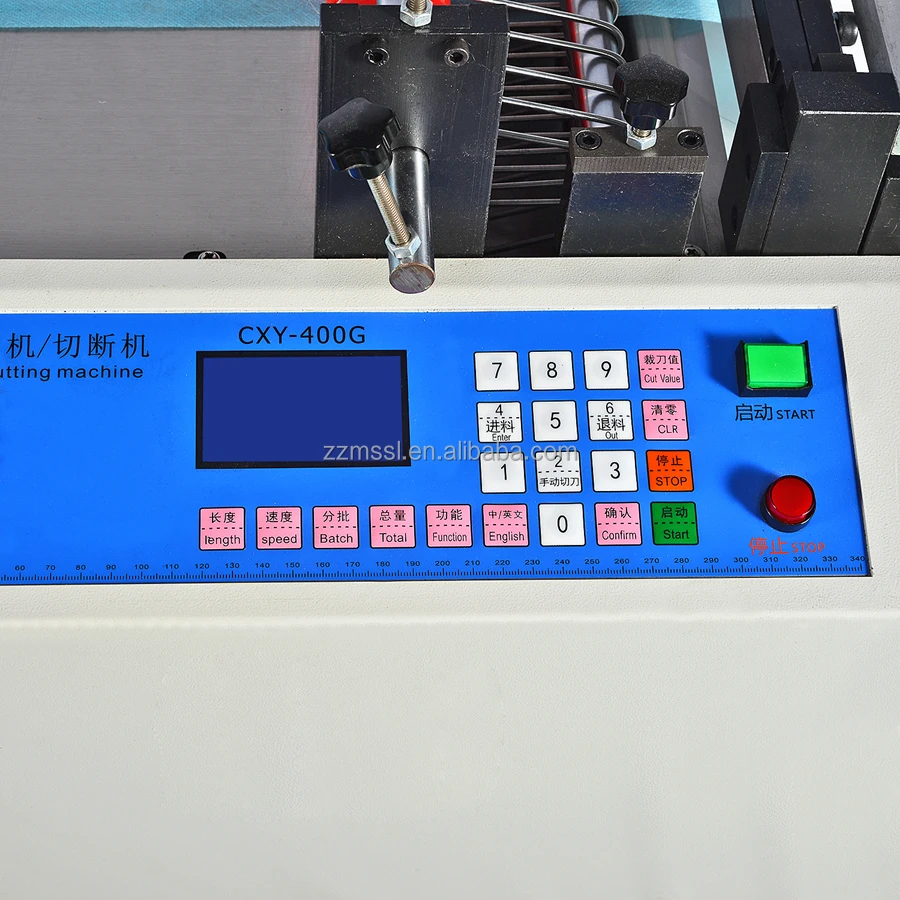

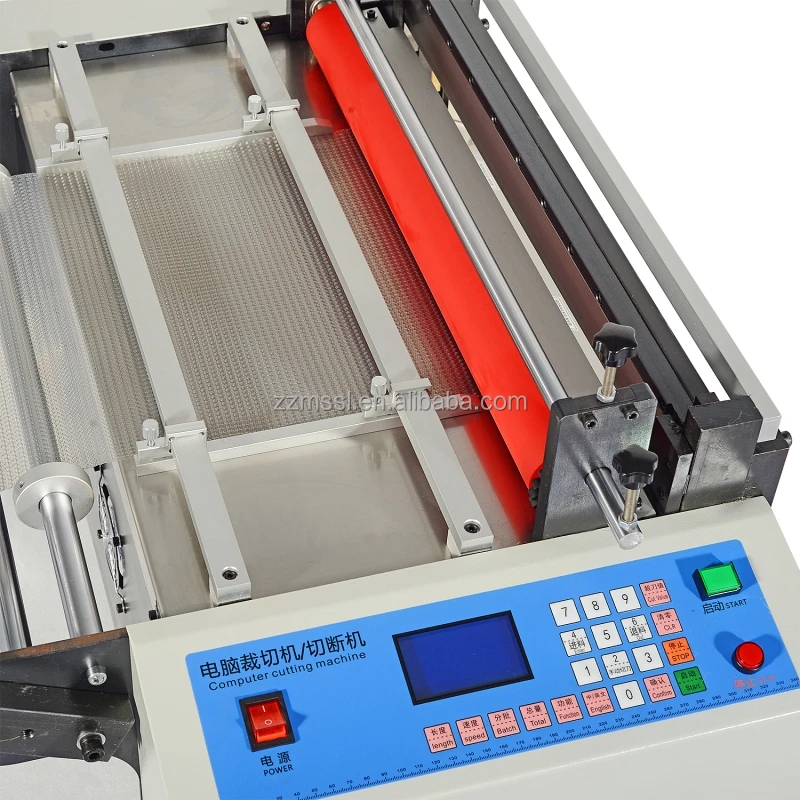

Control Panel

LCD multi-function large screen display，one-key switch between Chinese and English. The panel is simple and easy to operate.Other languages can be customized.

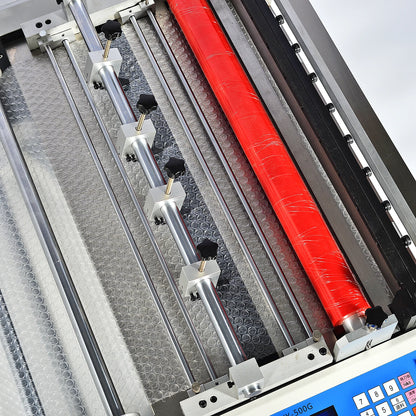

Feeding Rubber Roller

It is made of special superior rubber, which is wear-resistant, pressure-resistant and high temperature resistant.

Cutting Blade

Using high-quality SKD11 high-speed steel knife, it's sharp and durable. Ensure that the section is flat and free of burrs.
Optional Items: Electric Eye, Spring Device, Slitting Group, etc

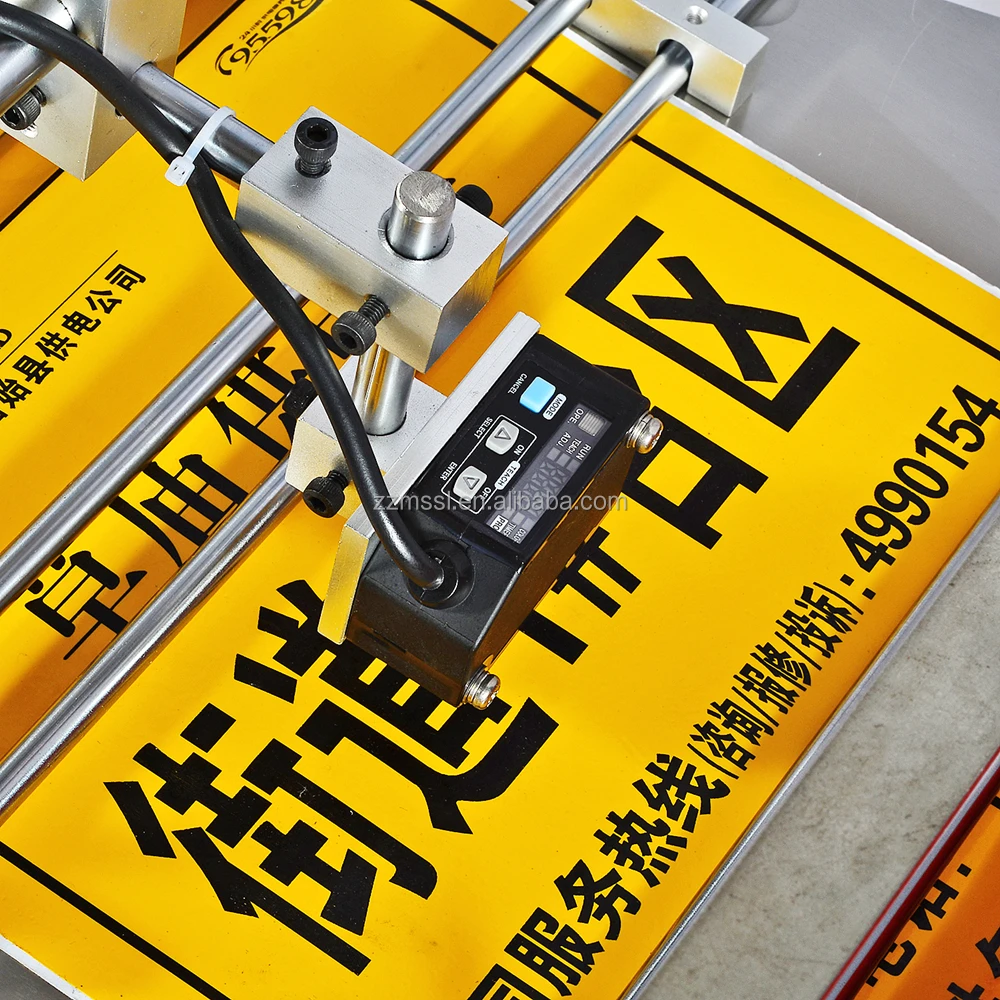

Matsushita Electronic Eye

Fully automatic location tracking. Positioning and cutting, higher accuracy.

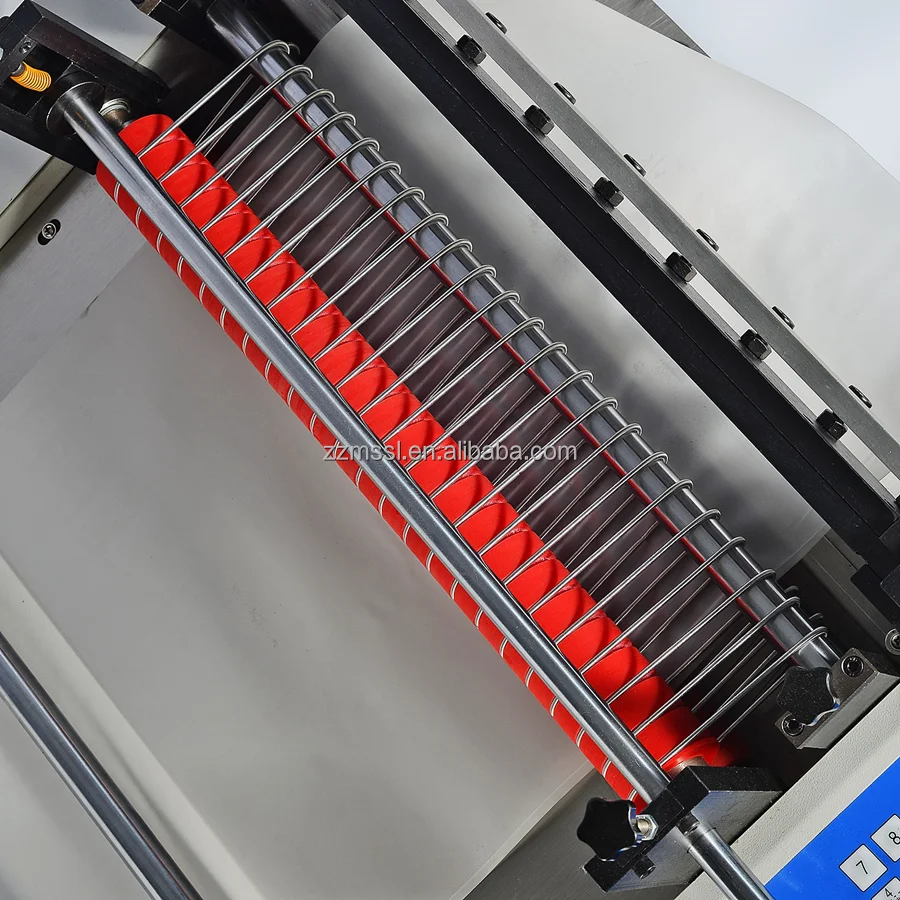

Spring Device

Flatten and straighten the material. Prevent wrinkles and cutting precision.

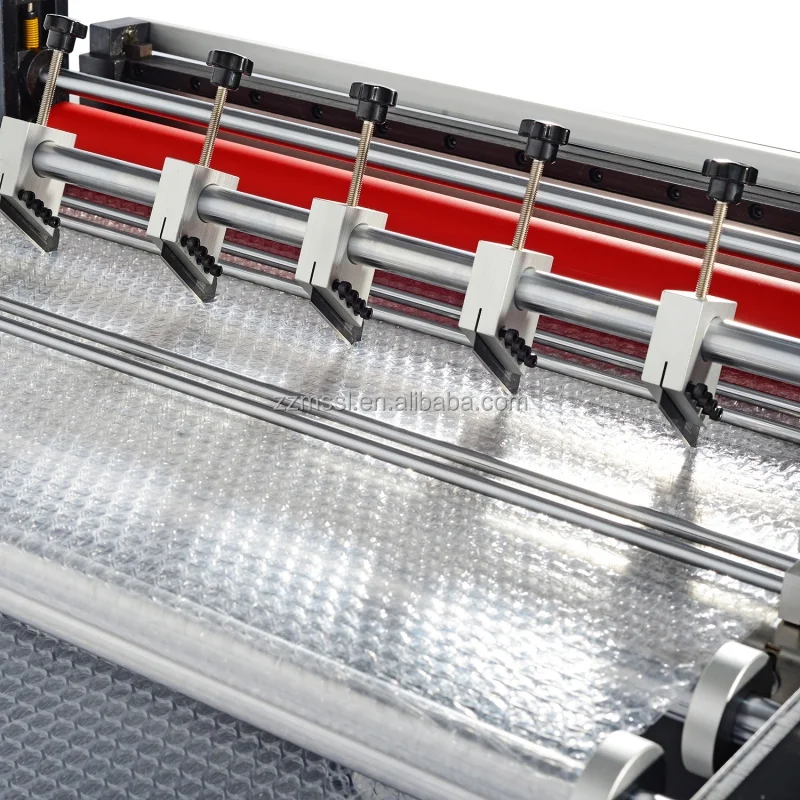

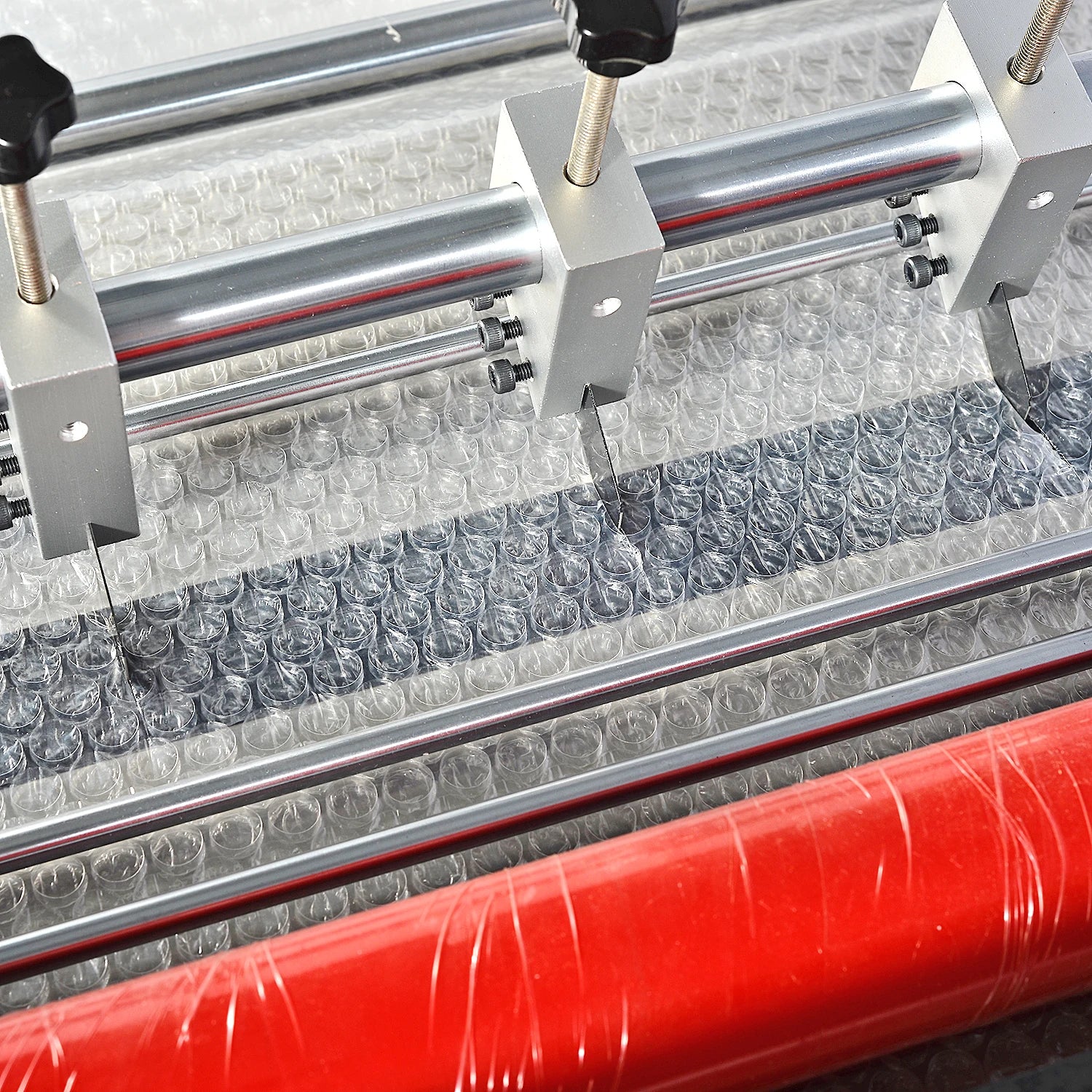

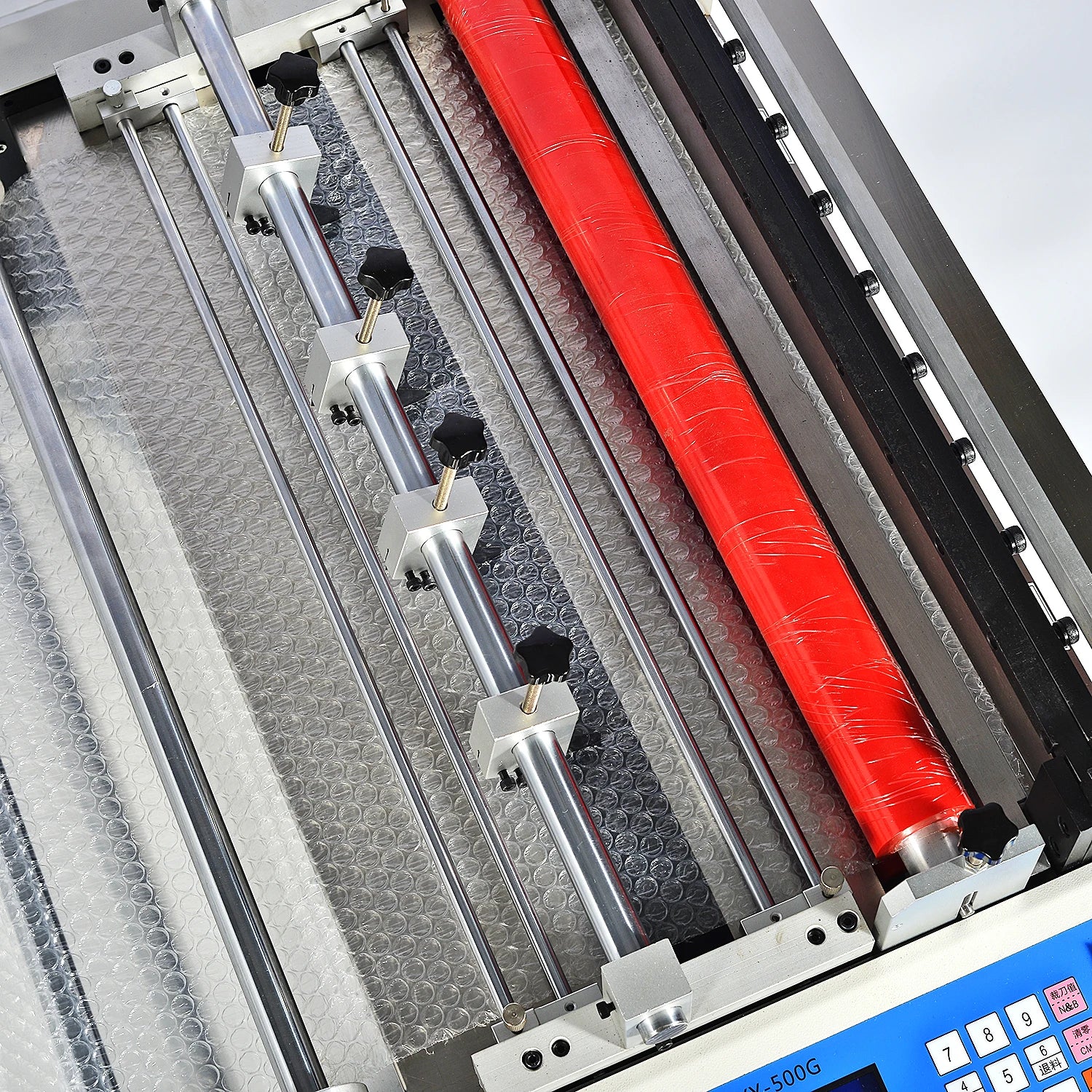

Straight Blades Slitting Group

There are 5 slitting knives in one set. Distance between blades can be adjusted. It can work alone. For thin material, bubble film, film, thin paper, fabric, etc.

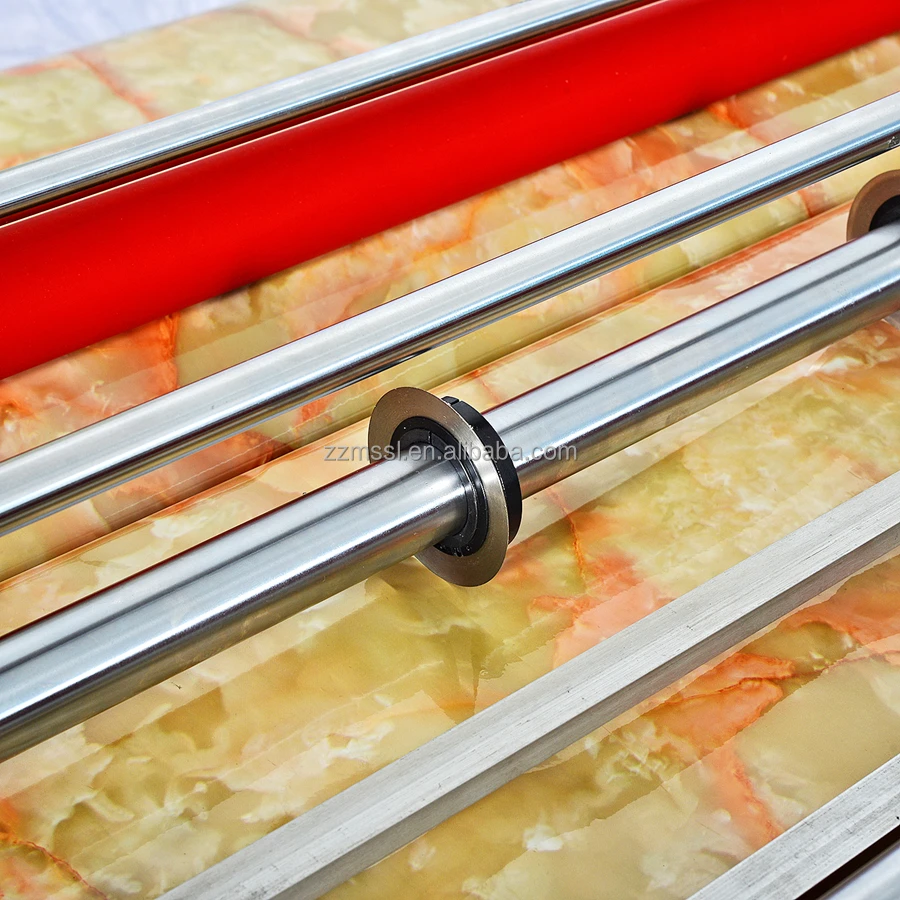

Round Blades Slitting Group

There are 3 slitting knives in one set. Distance between blades can be adjusted. It can work alone. For some thick materials, such as leather, EVA foam, etc
Finished Products
Recommend Products
Packing & Delivery
Company Profile
Zhengzhou Miles Technology Co. , Ltd. is a production of paper processing and packaging machinery manufacturers, with perfect testing facilities and strong technical force. A wide range of products, good quality, reasonable price, design fashion, widely used in printing, packaging and other industries. Our products are widely recognized and trusted by our users to meet changing economic and social needs. We welcome new and old customers from all walks of life to contact us, looking for future business relations and common success
FAQ
1.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 10 years and also a professional exporter.

2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.

3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.

4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat.

5. Q: What is the delivery time?
A: Mostly it takes 5 to 10 working days (depend on different machine).
