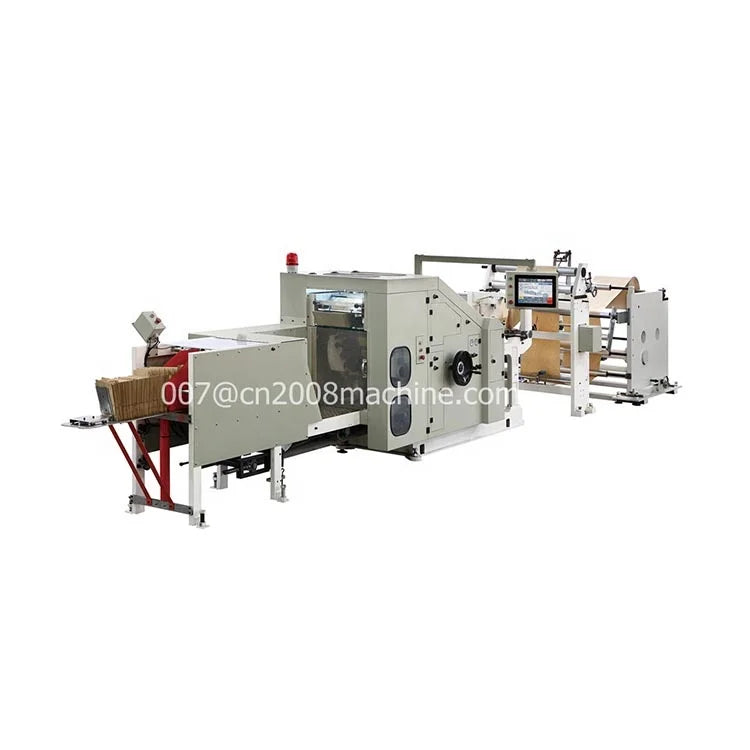

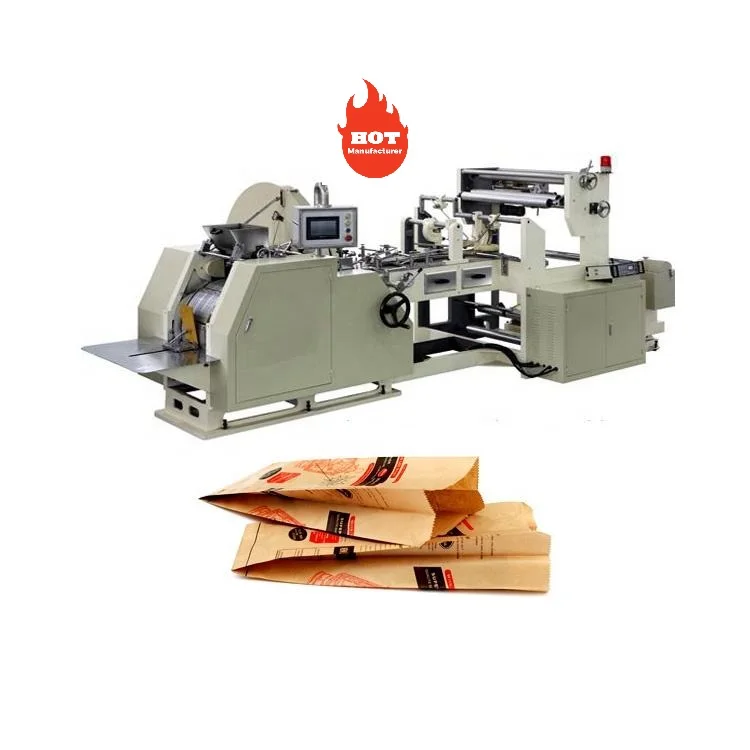

Paper Bag Making Machine Fully Automatic Food Brown Craft Paper Bag Machine
Paper Bag Making Machine Fully Automatic Food Brown Craft Paper Bag Machine
Prix habituel
CFA15,124,435 XOF
Prix habituel
CFA0 XOF
Prix promotionnel
CFA15,124,435 XOF
Frais d'expédition calculés à l'étape de paiement.
Quantité
Impossible de charger la disponibilité du service de retrait
Paper weight |
40-80gsm |
bag length |
160-450mm |
bag width |
70-260mm |
speed |
100-300pcs/min |
power |
10kw |
total weight |
2500kg |
machine dimension |
4000*2100*1900mm |
1)Paper bag making machine part:
Max bag size: L*W 420*260mm
Min bag size: L*W 160*70mm
Paper weight: 40-80 gsm
Performance and Characteristics:
Suited for 40-80gsm paper.
controls bag length through the human-machine interface.
PLC system for calculating parameters.
Equipped with an accurate photocell system.
Operating together with printing machine
Bags can make:
Sharp Bottom food bags like bread bags, KFC bags and Mcdonald's bags with or without pp window
Advantage:
Suited for 40-80gsm paper.
controls bag length through the human-machine interface.
PLC system for calculating parameters.
Equipped with an accurate photocell system.
Device:
Japanese YASKAWA Servo motor (two sets)
Taiwan PLC
Taiwan Touch Screen
Germany Photo-cell (two pieces)
Automatic Counter
Automatic Tension controller
One set Frequency converter(inverter)
Pneumatic shaft
Magnetic powder brake
Features:
This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag
Easy operation, low power consumption, high efficiency.
It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald's bags.
More Detail:
YT2800 two colors flexographic printing machine part:
Model No. YT-2800
Max.Web Width 800mm
Max.Effective Printing Width 760mm
Range of Repeat Printing Length 191~914mm
Max.Diameter of Roll Material 1000mm
Printing Speed 5-50m/min
Plate Thickness(Both side adhesive tape included) 2.38mm
Total Power 8kw
Weight of Machine 1800kg
Machine Dimension 2300×1700×2500mm
YT4800 four colors flexographic printing machine part:
Model No. YT-4800
Max.Web Width 800mm
Max.Effective Printing Width 760mm
Range of Repeat Printing Length 191~914mm
Max.Diameter of Roll Material 1000mm
Printing Speed 5-50m/min
Plate Thickness(Both side adhesive tape included) 2.38mm
Total Power 12.5kw
Weight of Machine 3500kg
Machine Dimension 4200*1800*2400mm
Max bag size: L*W 420*260mm
Min bag size: L*W 160*70mm
Paper weight: 40-80 gsm
Performance and Characteristics:
Suited for 40-80gsm paper.
controls bag length through the human-machine interface.
PLC system for calculating parameters.
Equipped with an accurate photocell system.
Operating together with printing machine
Bags can make:
Sharp Bottom food bags like bread bags, KFC bags and Mcdonald's bags with or without pp window
Advantage:
Suited for 40-80gsm paper.
controls bag length through the human-machine interface.
PLC system for calculating parameters.
Equipped with an accurate photocell system.
Device:
Japanese YASKAWA Servo motor (two sets)
Taiwan PLC
Taiwan Touch Screen
Germany Photo-cell (two pieces)
Automatic Counter
Automatic Tension controller
One set Frequency converter(inverter)
Pneumatic shaft
Magnetic powder brake
Features:
This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag
Easy operation, low power consumption, high efficiency.
It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald's bags.
More Detail:
YT2800 two colors flexographic printing machine part:
Model No. YT-2800
Max.Web Width 800mm
Max.Effective Printing Width 760mm
Range of Repeat Printing Length 191~914mm
Max.Diameter of Roll Material 1000mm
Printing Speed 5-50m/min
Plate Thickness(Both side adhesive tape included) 2.38mm
Total Power 8kw
Weight of Machine 1800kg
Machine Dimension 2300×1700×2500mm
YT4800 four colors flexographic printing machine part:
Model No. YT-4800
Max.Web Width 800mm
Max.Effective Printing Width 760mm
Range of Repeat Printing Length 191~914mm
Max.Diameter of Roll Material 1000mm
Printing Speed 5-50m/min
Plate Thickness(Both side adhesive tape included) 2.38mm
Total Power 12.5kw
Weight of Machine 3500kg
Machine Dimension 4200*1800*2400mm
