SPECIFICATIONS

Application: Warehouse,Workshop,Other

Battery Included: No

Battery Type: NO

Beam Angle(°): 110 degree

Beam angle: 110 degree

Brand Name: ONN

CRI: >80

Certification: CE FCC RoHS

Charger: no

Color: White

Color Rendering Index(Ra): >80

Color Temperature(CCT): 2800-3200K, 4000-4500K, 6000-6500K

Color temperature: 2800-3200K, 4000-4500K, 6000-6500K

Emitting Color: Cold White,Warm White,White

Feature: Waterproof

IP Rating: IP67

IP rating: IP67

Input Voltage(V): AC100-240V(50/60Hz), AC/DC24V

Input voltage(current): AC100-240V(50/60Hz), AC/DC24V

Lamp Body Material: Aluminum alloy

Lamp Luminous Efficiency(lm/w): 120lm/w

Lamp Luminous Flux(lm): 840/1440/1920/2400

Lens Material: tempered glass

Lifetime: 50,000 hours

Light Source: LED

Lighting solutions service: Customization

Lumen efficiency: 120lm/w

Model Number: M9SL

Mounting type: screw

Number Of Lamp Heads: no

Place of Origin: Guangdong, China

Power Source: AC,DC

Power(length): 7W(200/300mm), 12W(400mm), 16W(600mm), 20W(800mm)

Support Dimmer: No

Warranty(Year): 2-Year

Working Hours: 50000

Working Temperature(℃): 50000

Working temperature/ humidity: -20~45℃ / 10%-90%

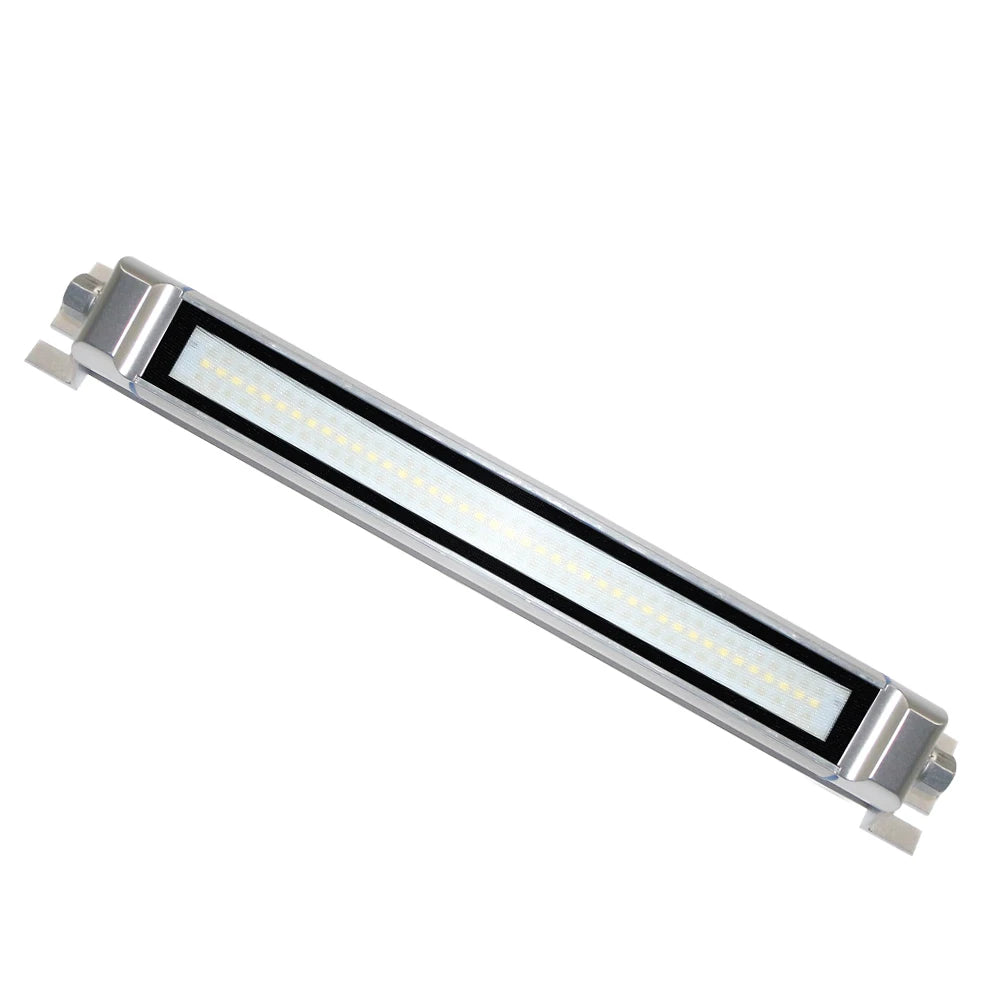

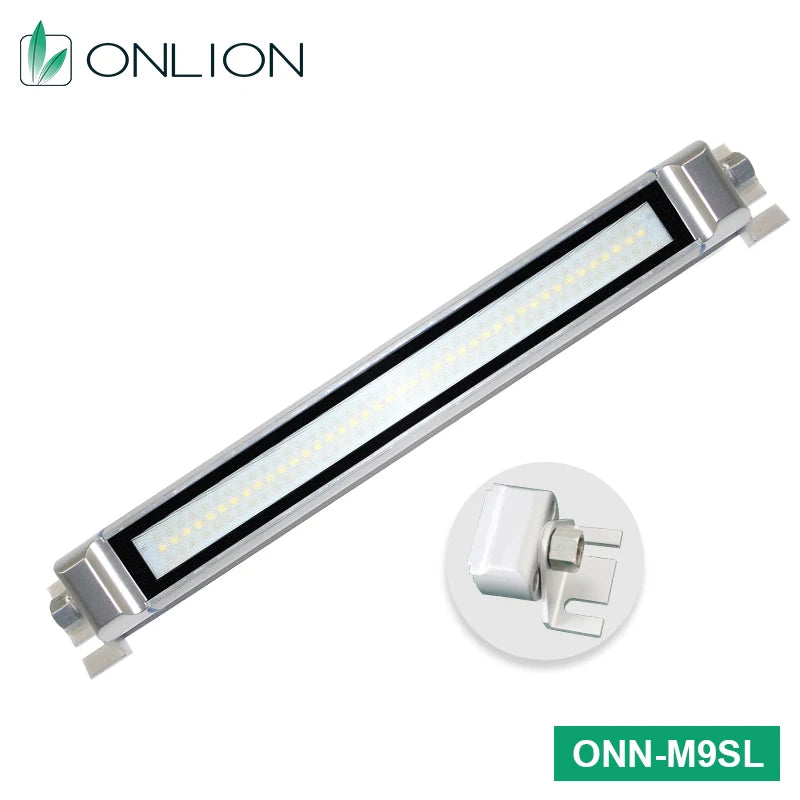

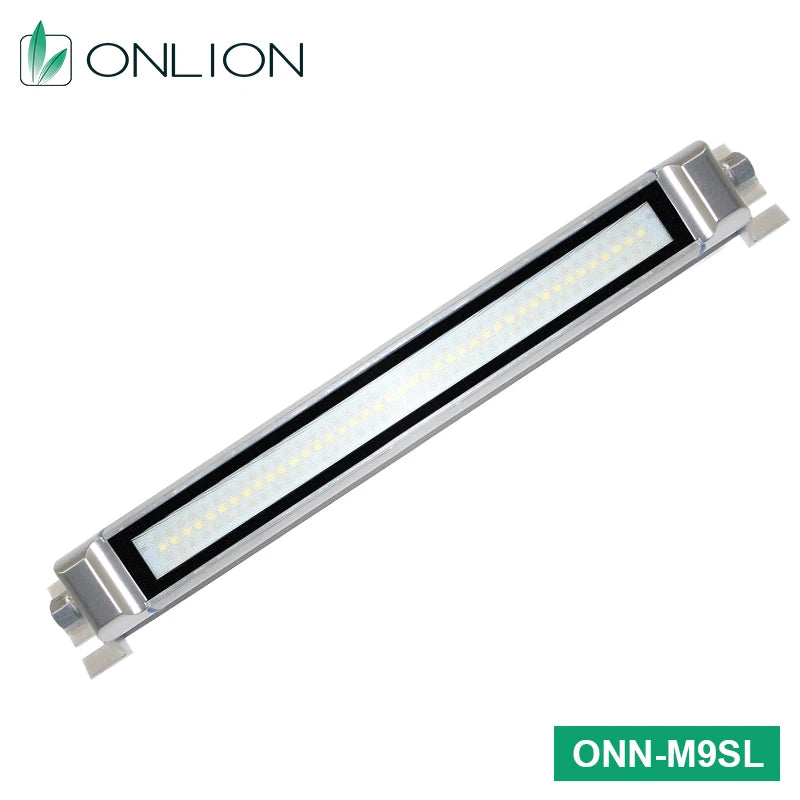

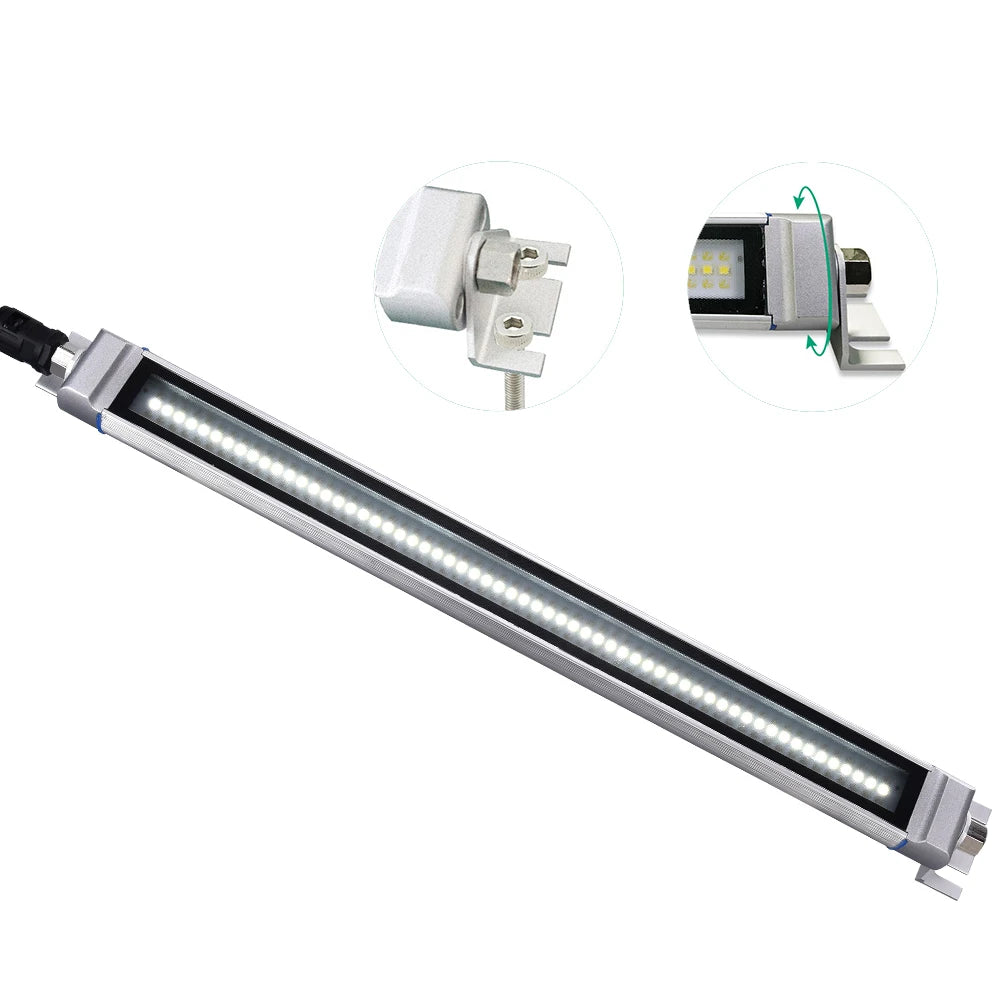

ONN-M9SL High Quality 800mm CNC Wholesale LED Working Light 20W IP 67 Machine Lamp

Product Description

Features

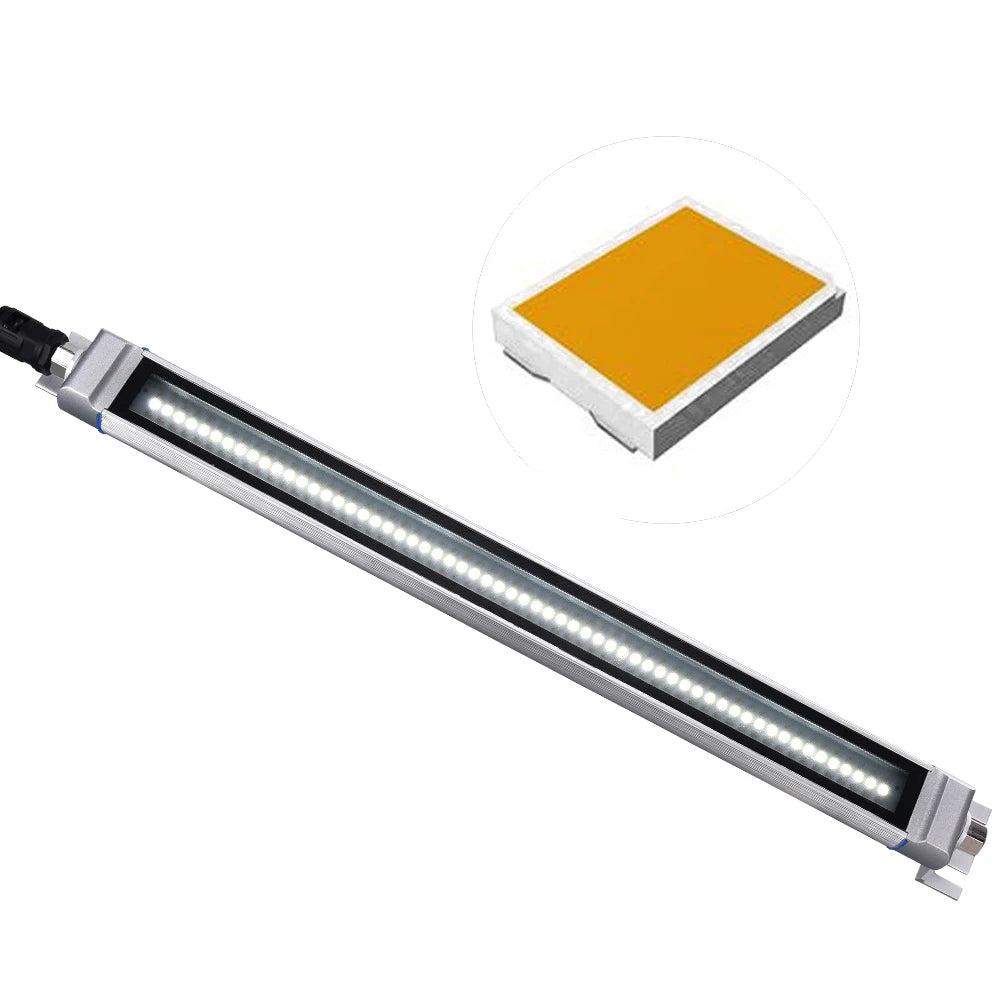

1.ONN-M9SL is designed for harsh environment. 2.Using anodized aluminum lamp body and tempered glass. 3.IP67 rating, resistant to high pressure wash, coolants and detergents. 4.Adopt high brightness SMD2835 LED chip, 120lm/w. 5.Frosted cover available to decrease glare. 6.Easy to install and control the lighting direction. 7.Two input voltages optional: AC90-240V 50/60Hz, AC/DC24V.

Specifications

Power(length)	7W(200/300mm), 12W(400mm), 16W(600mm), 20W(800mm)
Input voltage(current)	AC100-240V(50/60Hz), AC/DC24V
Lumen efficiency	120lm/w
CRI	>80
IP rating	IP67
Beam angle	110 degree
Color temperature	2800-3200K, 4000-4500K, 6000-6500K
Material	Aluminum housing , Tempered glass
Lifetime	50,000 hours
Working temperature/ humidity	-20~45℃ / 10%-90%
Storage temperature/ humidity	-40~60℃ / 10%-90%
Installation	Fixed by brackets

Ordering Code

ONN M9SL - B 1 - 600S - 12W
1        2  3     4         5
1. Model	M9S
2. Input Voltage	B. AC/DC24V C. AC90-240V
3. CCT.	1: 6000-6500K(cool white)   2: 4000-4500K(natural white)  3: 2800-3200K(warm white)
4. Length	200S.200mm 300S. 300mm 400S. 400mm 600S. 600mm 800S. 800mm
5. Power	7W, 12W, 16W, 20W

Product Size Drawing

Application

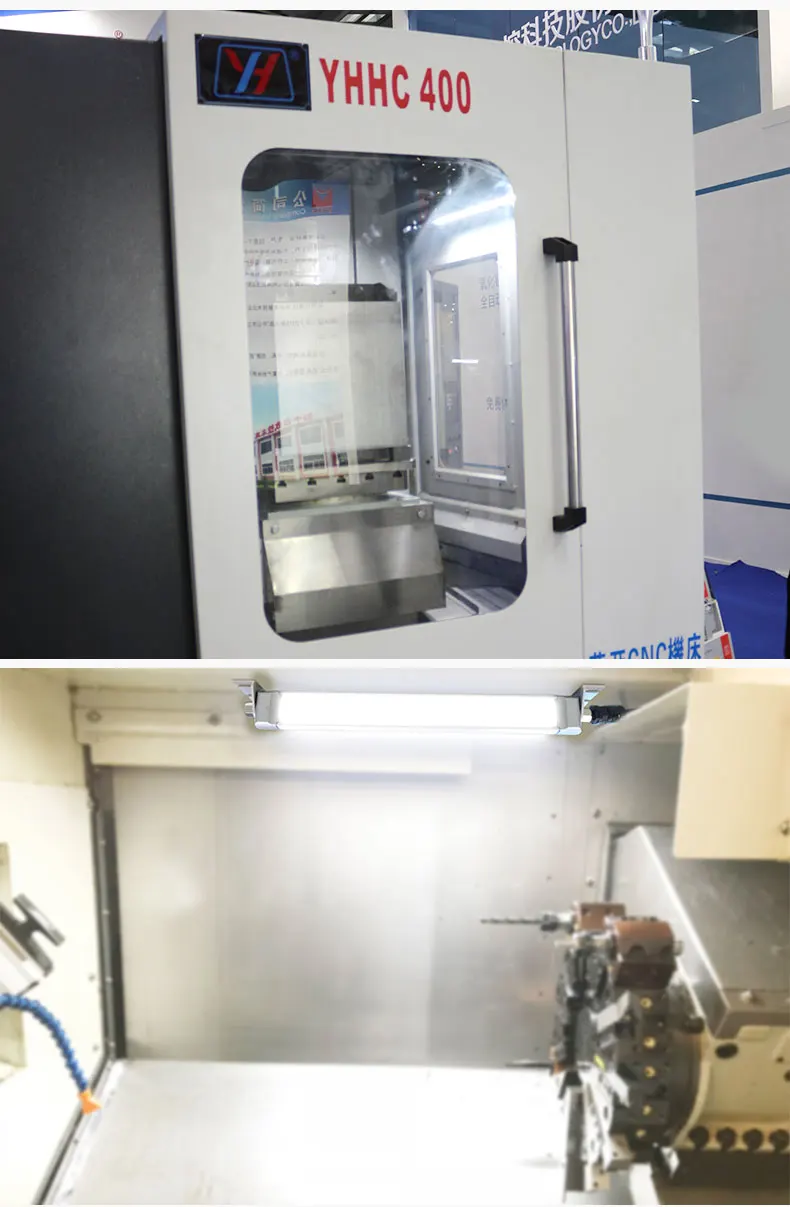

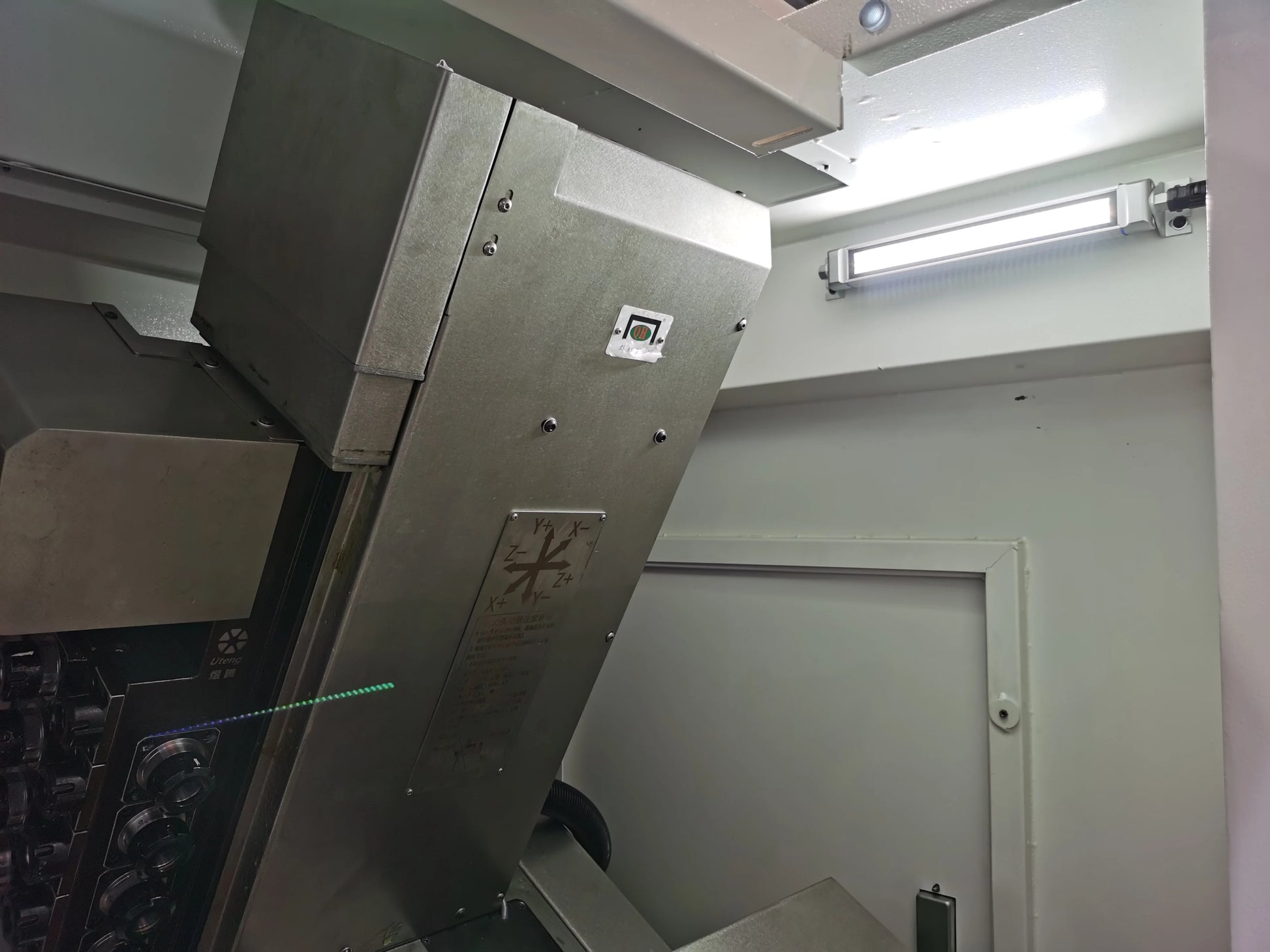

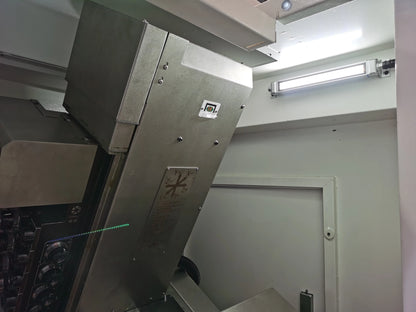

CNC machine work: engraving machine, EDM machine etc.
Assembly and repair work.
Laboratories.

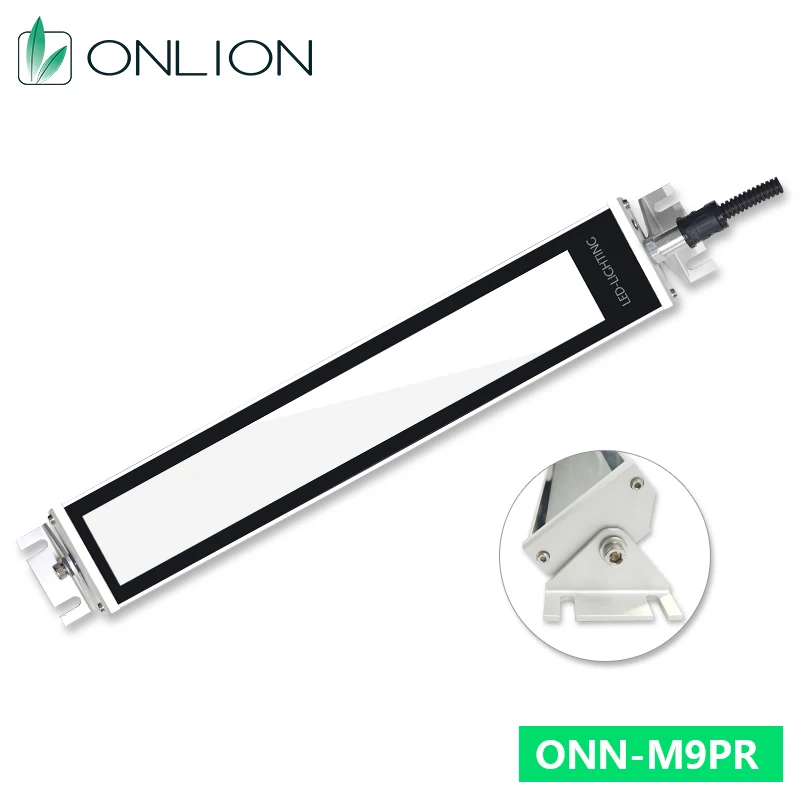

Related Products

Company Information

Shenzhen ONN Semi-conductor Lighting Co., LTD. established in 2010 and located in Shenzhen, as a National high-tech enterprise, we design, manufacture and supply L E D Machine Light, Signal Tower Light and L E D Freezer Light to global industrial customers.

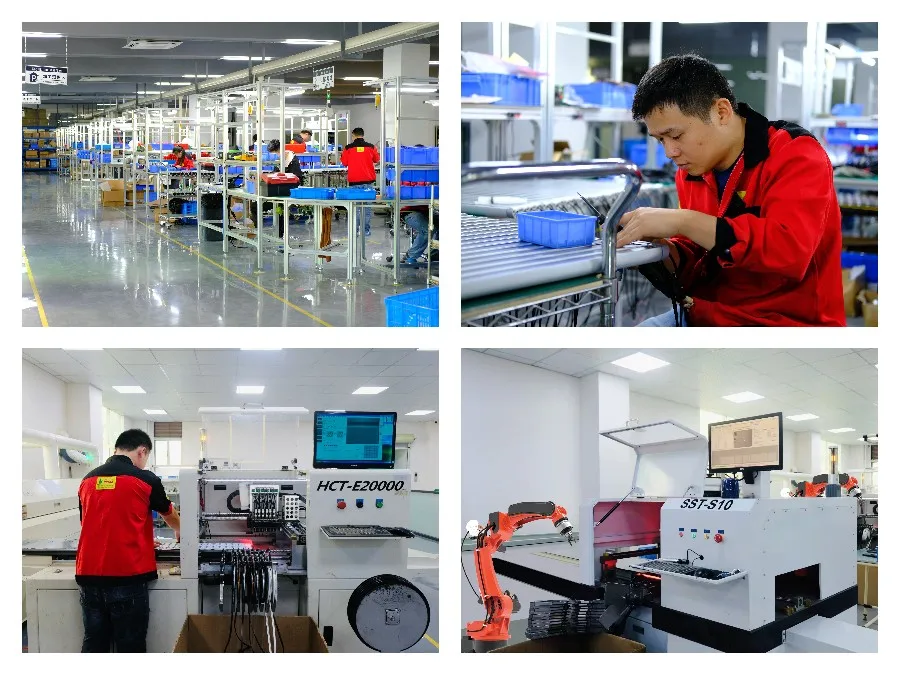

ONN Lighting has a complete range of professional equipment for production, testing and research and development, and we have 6 U shape production lines, 13 workbenches, 2 automated S M T Lines and 1 automation line. Each line equipped LightMES system, we can manage, monitor and trace the status of production on MES Screen and Smartphone. With very strong and flexible production capacity, we can produce average 3500pcs lamps and 160 orders per day.
