SPECIFICATIONS

Application: Laboratory

Brand Name: NICE-POWER

Certification: CE FCC

Feature: Long Life

Input Voltage: 220V (110V need customization)

Keyword: Mobile Phone Repair Power Supply

Model Number: SPS305

Name: Adjustable Switching Dc Power Supply

Output Current: 5A

Output Frequency: /

Output Type: Single

Output Voltage: 30V

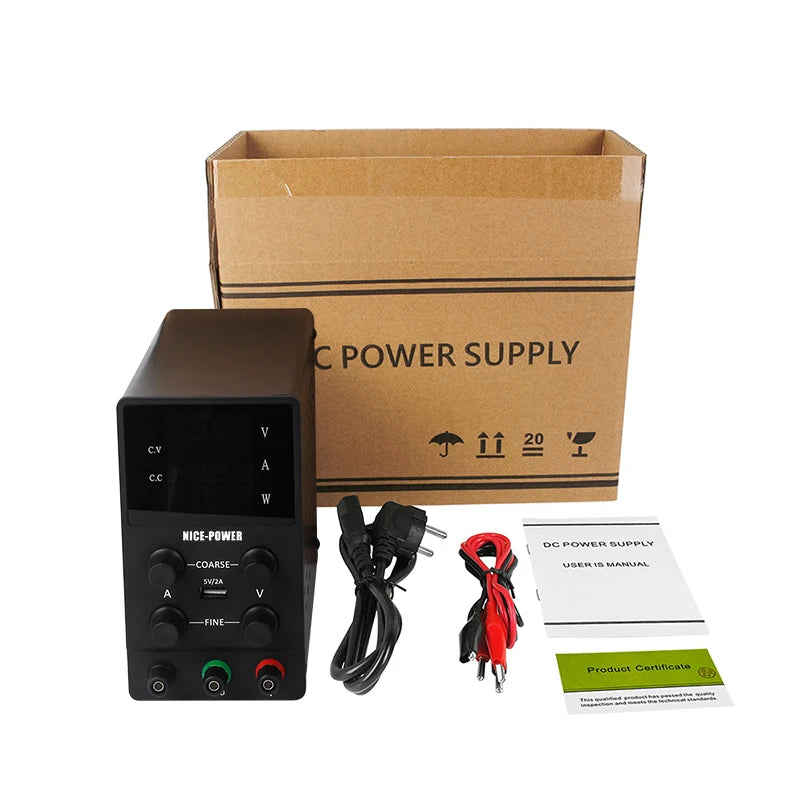

Packing: Carton

Payment: L/C

Place of Origin: Guangdong, China

Product: 30V 5A Power Supply

Product Name: Electroplating Rectifier

Warranty: 1 Year

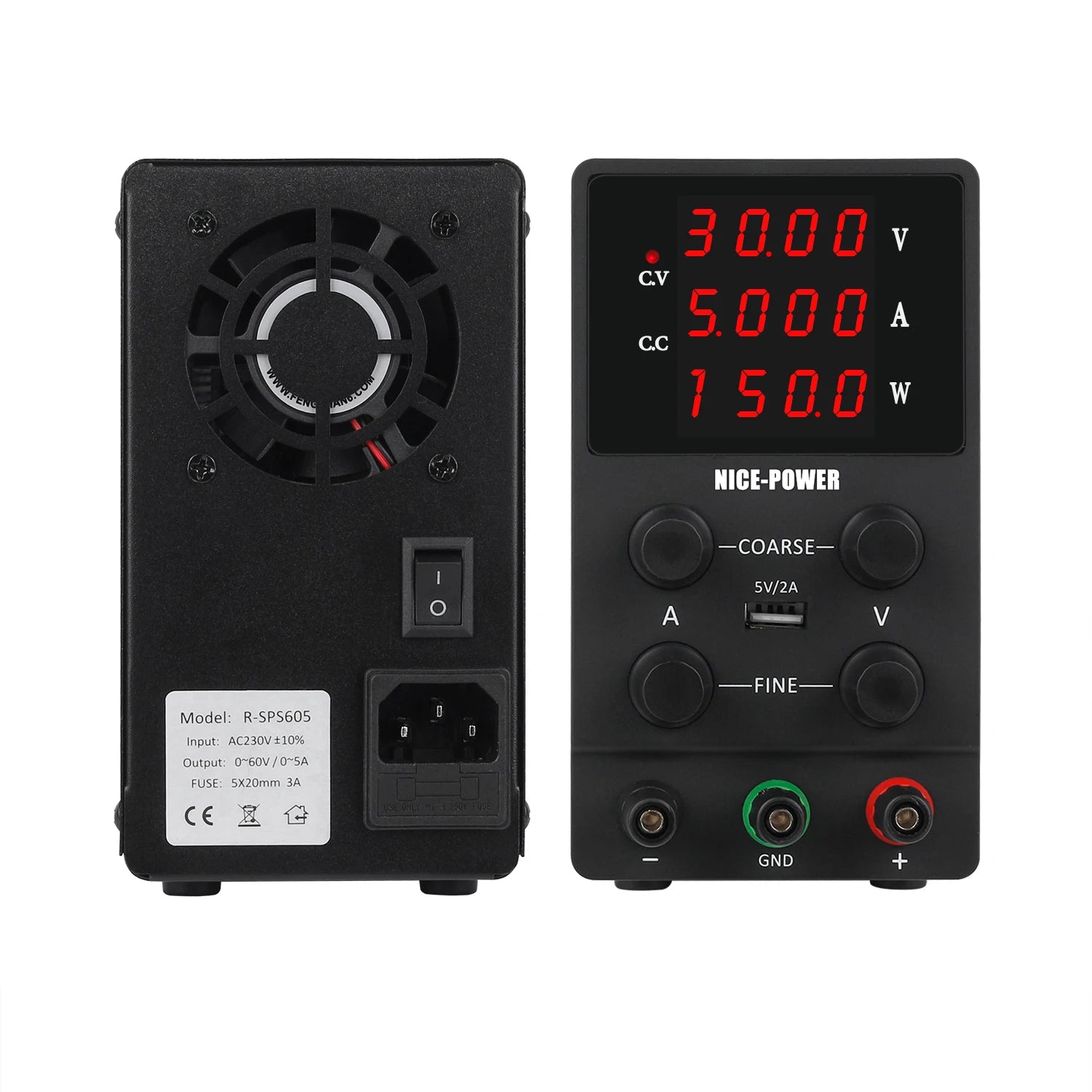

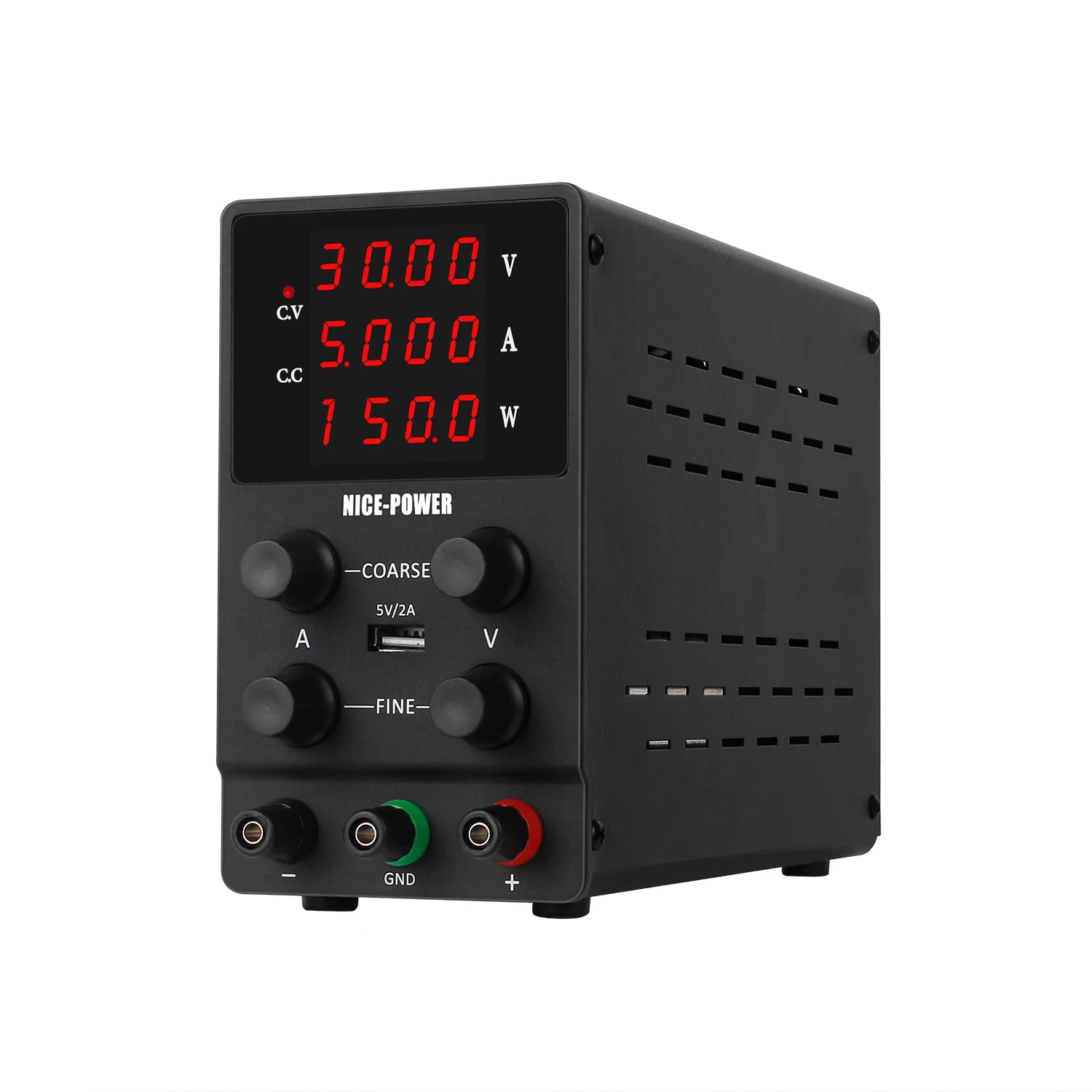

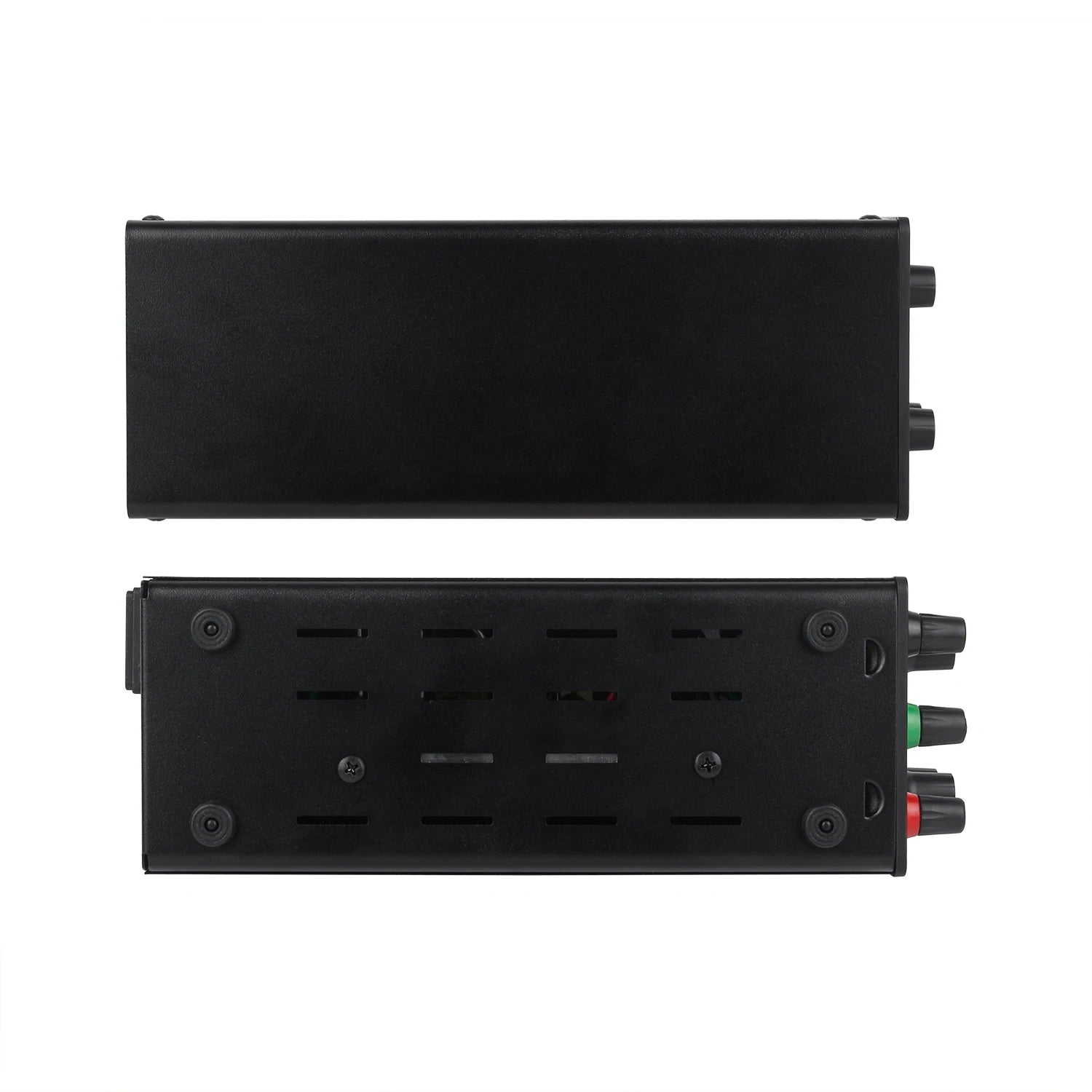

NICE-POWER SPS305 Adjustable Stable DC Power Supply 30V 5A Workbench Maintenance Desktop Switching Power Supply

The SPS series of adjustable regulated DC power supply designed for use in laboratories, schools and production lines. Both output voltage and output current are continuously adjustable between 0 and nominal.The stability and ripple factor of the power supply are very good and have a perfect protection circuit. It can work at full load for a long time. This power supply can be used as both a regulated power supply and a regulated current supply.

Model Number	SPS305/305D	SPS3010/3010D	SPS605/605D	SPS1203/1203D
Output Voltage	0~30V	0~30V	0~60V	0~120V
Output Current	0~5A	0~10A	0~5A	0~3A
Input Voltage	230V±10% 50Hz (115V±10% 60Hz)
Working Temperature	0℃~40℃; Relative Humidity: <80%RH
Storage Temperature	-10℃~-70℃; Relative Humidity: <70%RH
Constant Voltage State	Voltage stability ≤0.1%+3mV Low Voltage: 0.2~0.3%+3mV
	Load stability≤0.5%+3mV
	Ripple noise≤30mVrms
Constant Current State	Current stability ≤0.2%+3mA
	Load stability≤0.2%+3mA
	Ripple noise≤20mArms (valid value)
Display Accuacy	0.5%+2digits

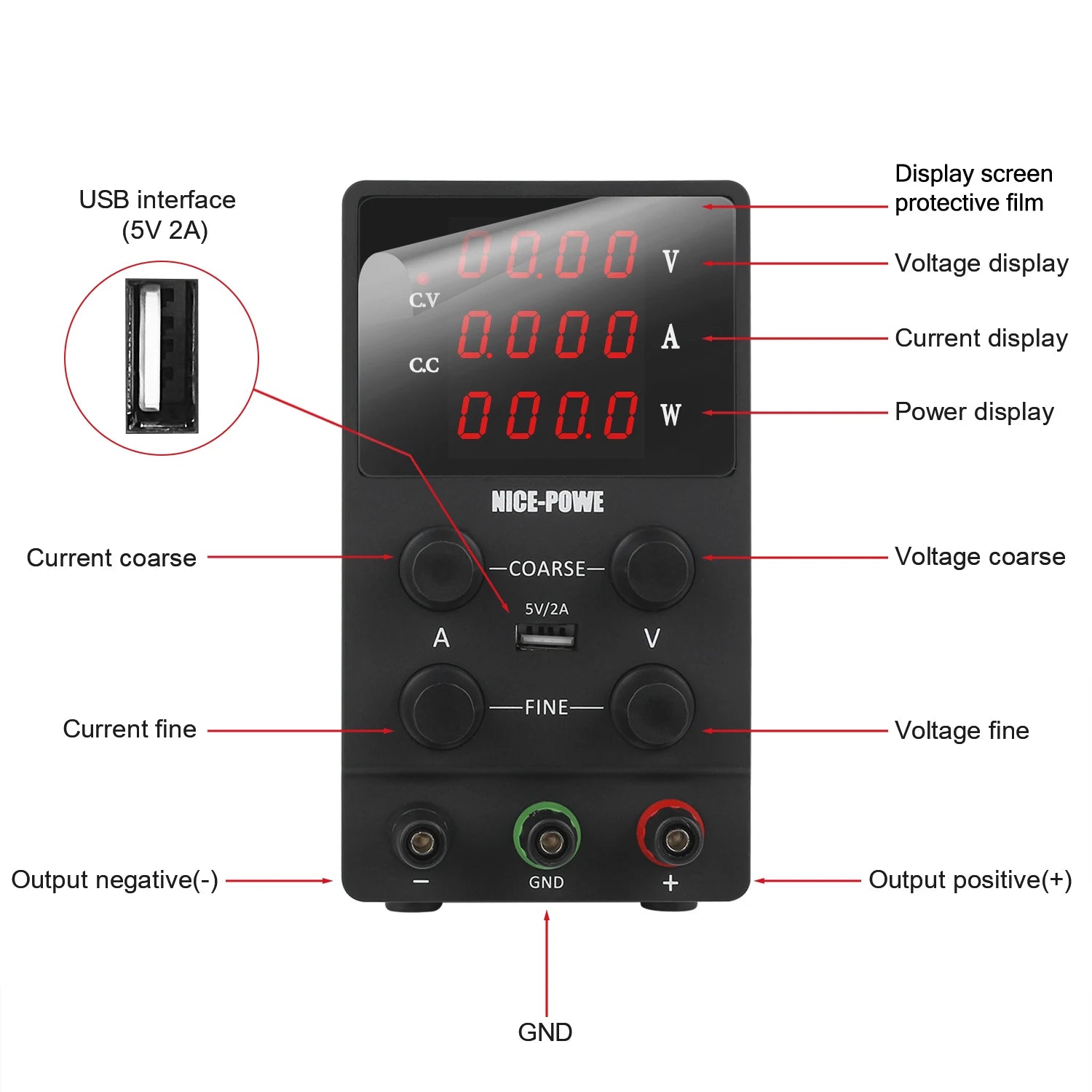

Display Resolution	Voltage: 00.01V Current: 0.001A
Product Dimension	240mm(L) x 85mm (W) x 155mm(H)
Product Weight	1.2Kg	1.2Kg	1.2Kg	1.2Kg
Fuse Standard	3A (AC 220V Input) / 5A (AC 110V Input)
