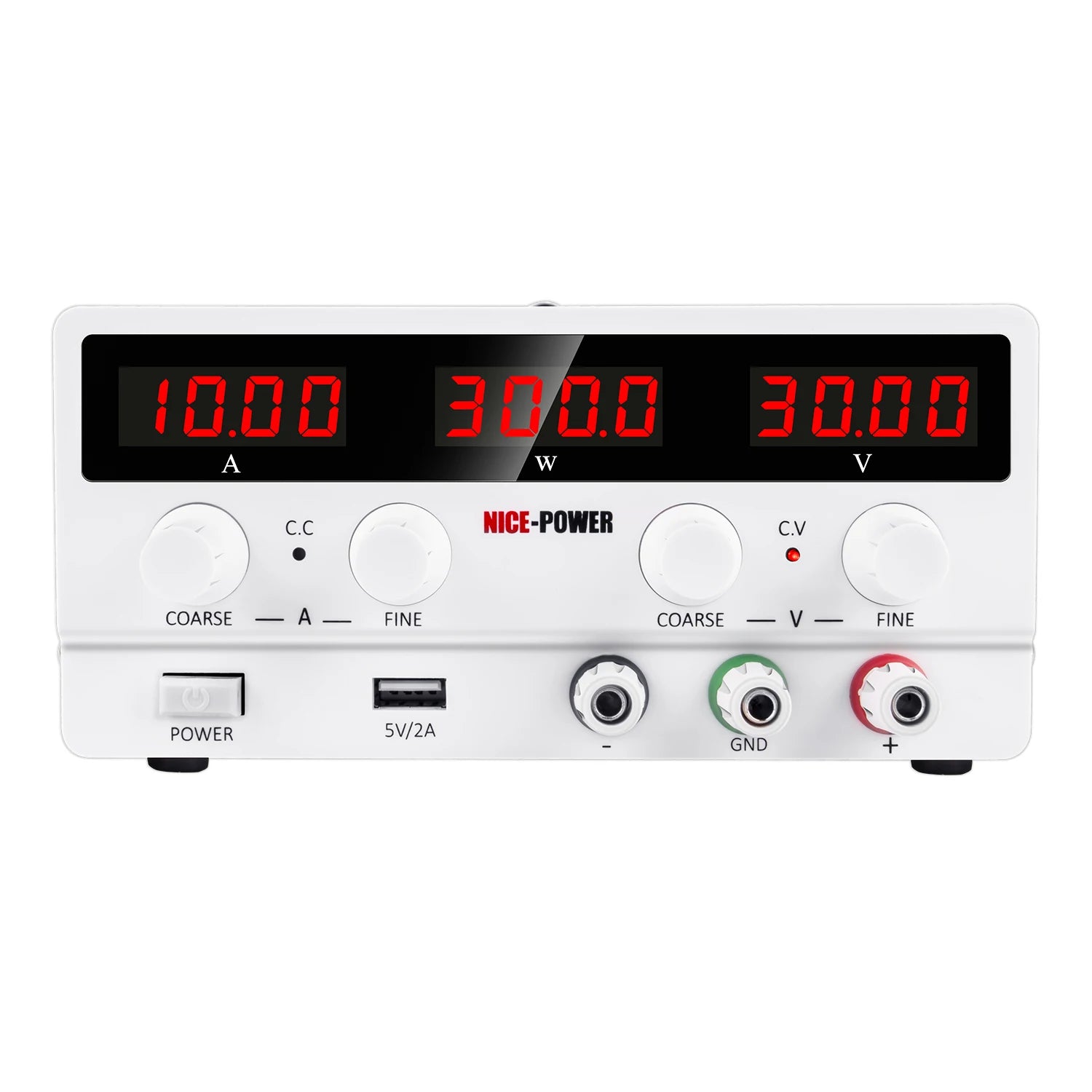

NICE-POWER SPS-H3010 Black 30V 10A New High Precision Stabilized Voltage Adjustable Lab Stabil Mobile Repair Dc Power Supply
NICE-POWER SPS-H3010 Black 30V 10A New High Precision Stabilized Voltage Adjustable Lab Stabil Mobile Repair Dc Power Supply
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Application: Testing Repairing
Band: IDEALPLUSING
Brand Name: IDEALPLUSING
Certification: CE ROHS

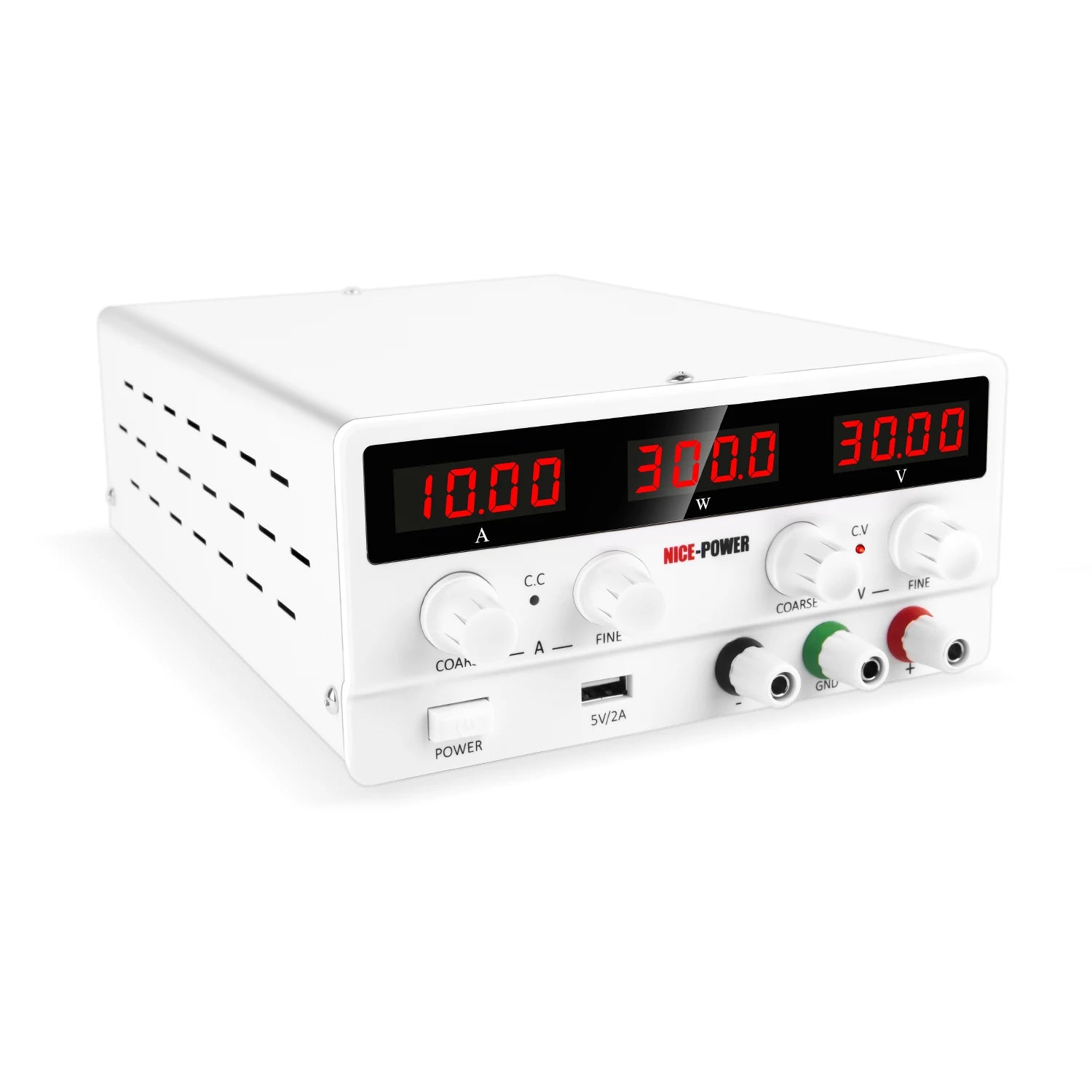

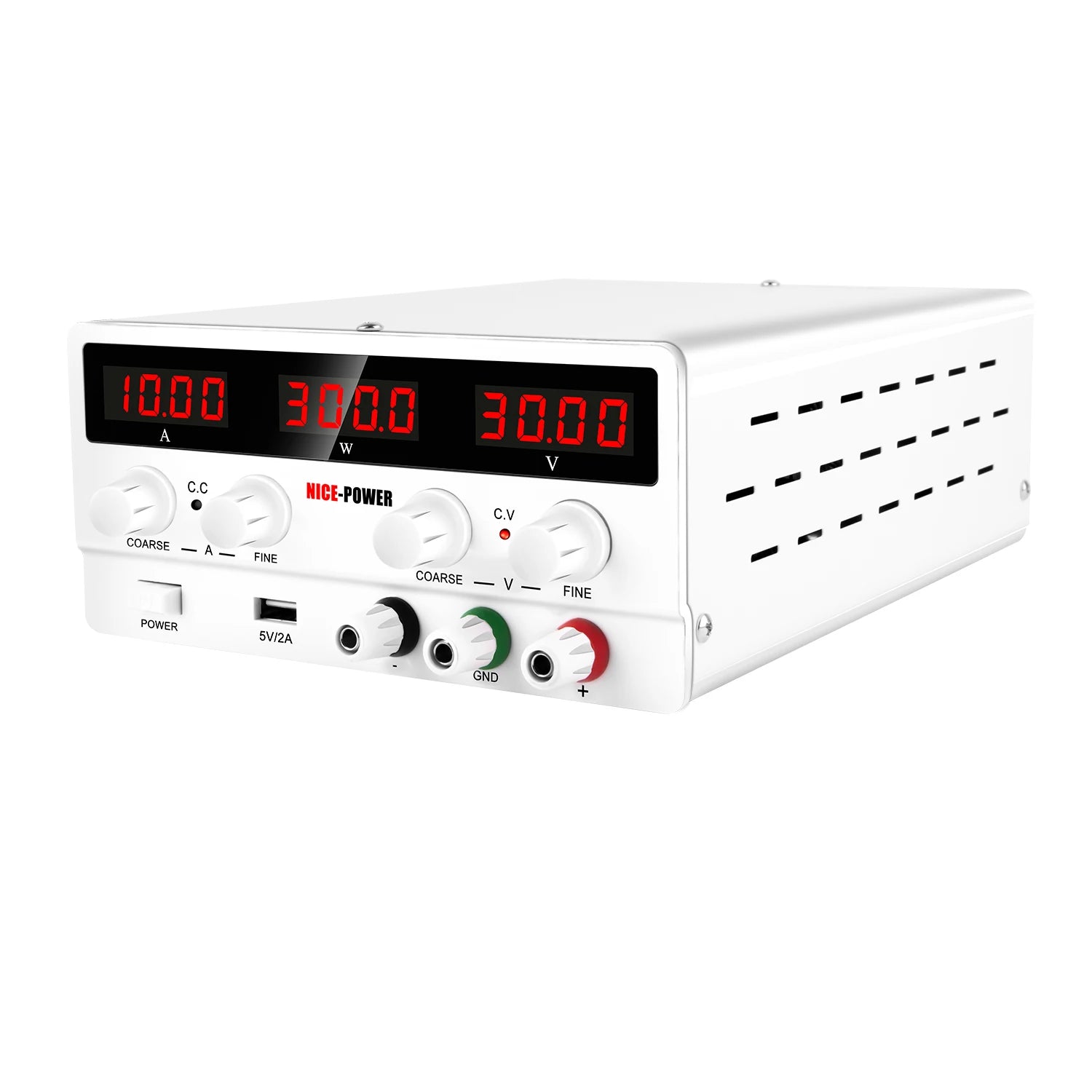

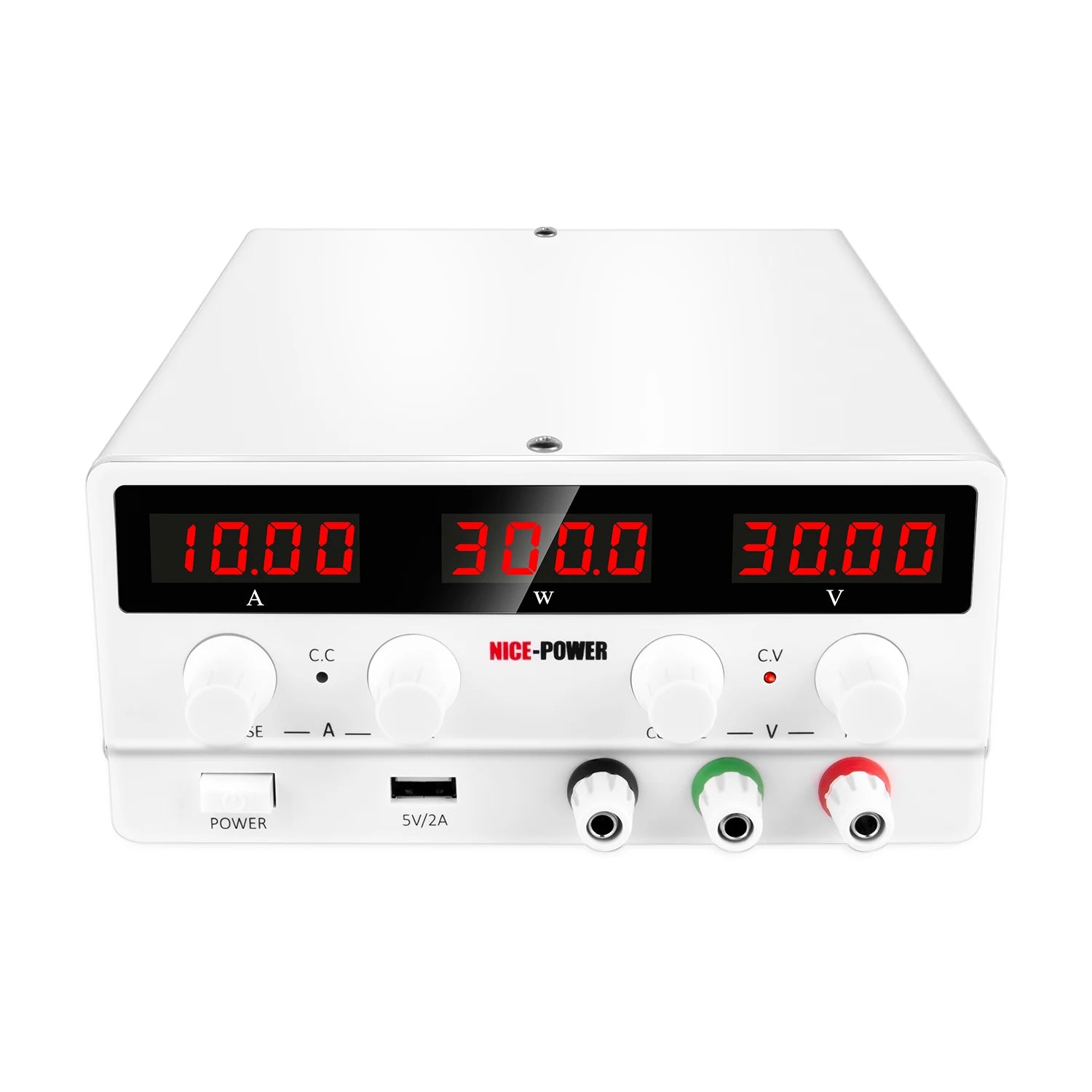

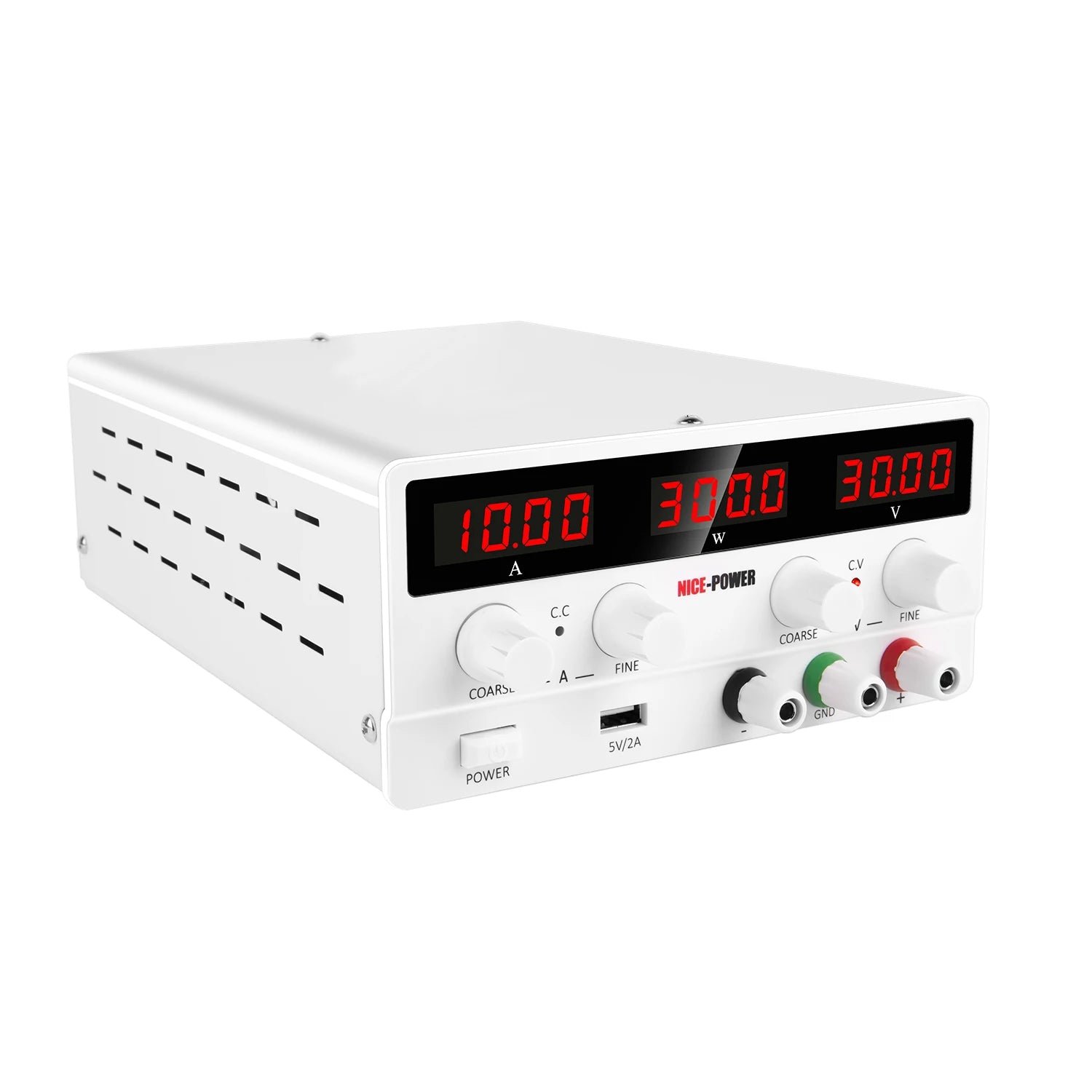

Color: White or Black
Efficiency: >89%
Input Voltage: 220VAC,230v±10% or 115v±10%
Model Number: SPS-H3010
Name: 30v dc power supply
Output Current: 10A
Output Frequency: /
Output Type: Single
Output Voltage: 30VDC
Place of Origin: Guangdong, China
Protections: Overload Protection

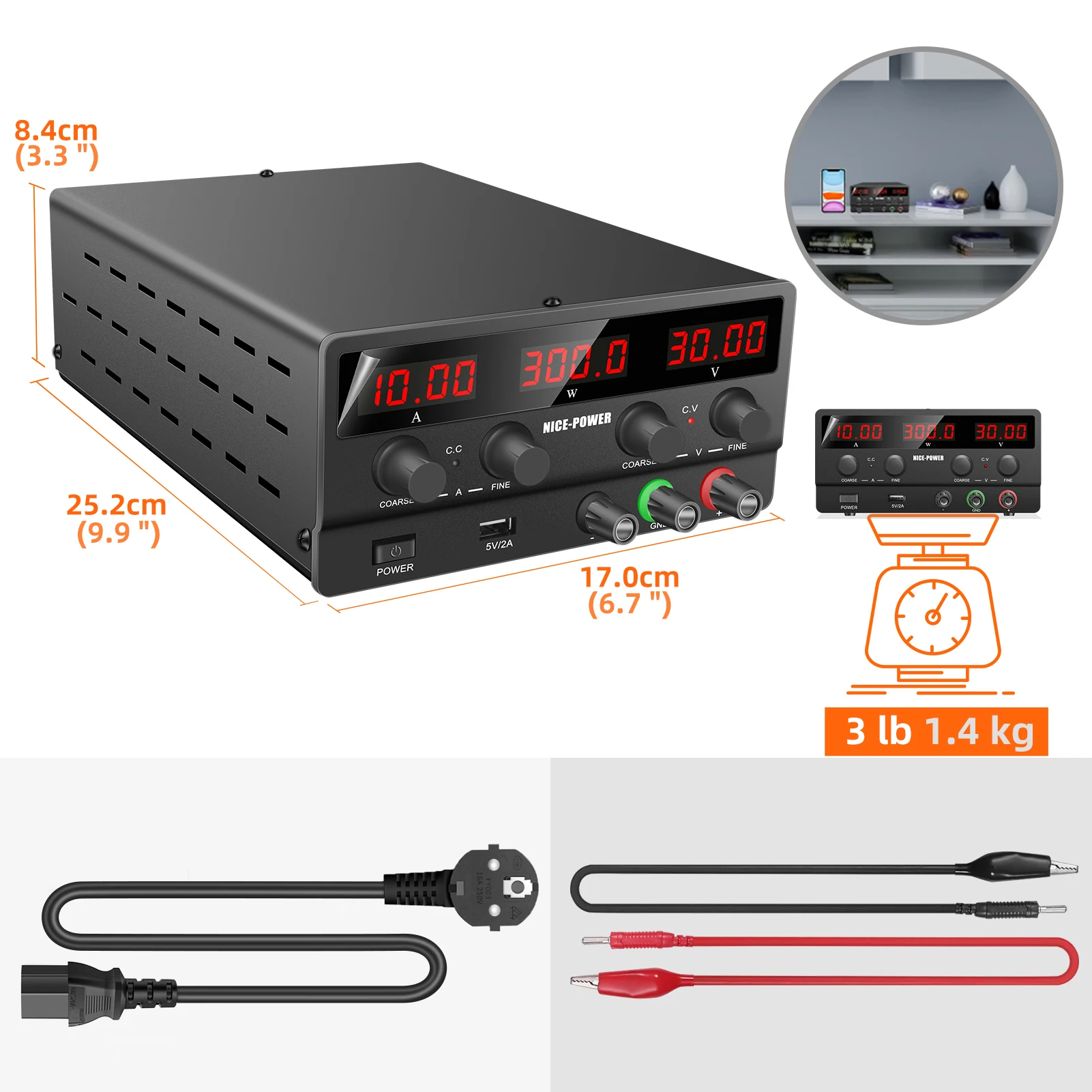

Size: L170*W250*H84MM
Warranty: 1 Year
NICE-POWER SPS-H3010 Black 30V 10A New high Precision Stabilized voltage adjustable Lab stabil mobile repair dc power supply
PRODUCT FEATURES
|
1 |
Small size, light weight and high power density. |
|
2 |
Constant voltage, constant current automatic switching. Voltage, current, power |
|
3 |

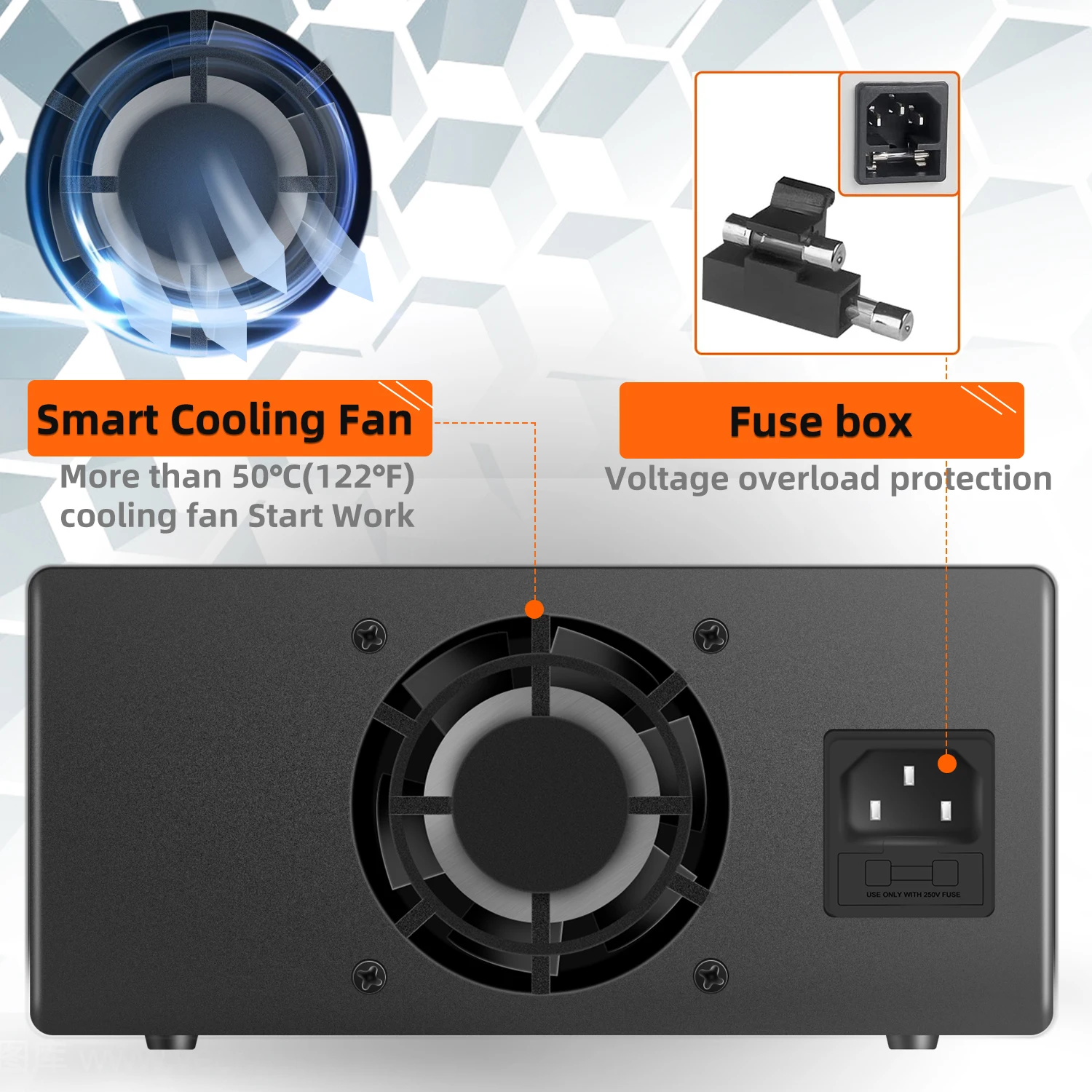

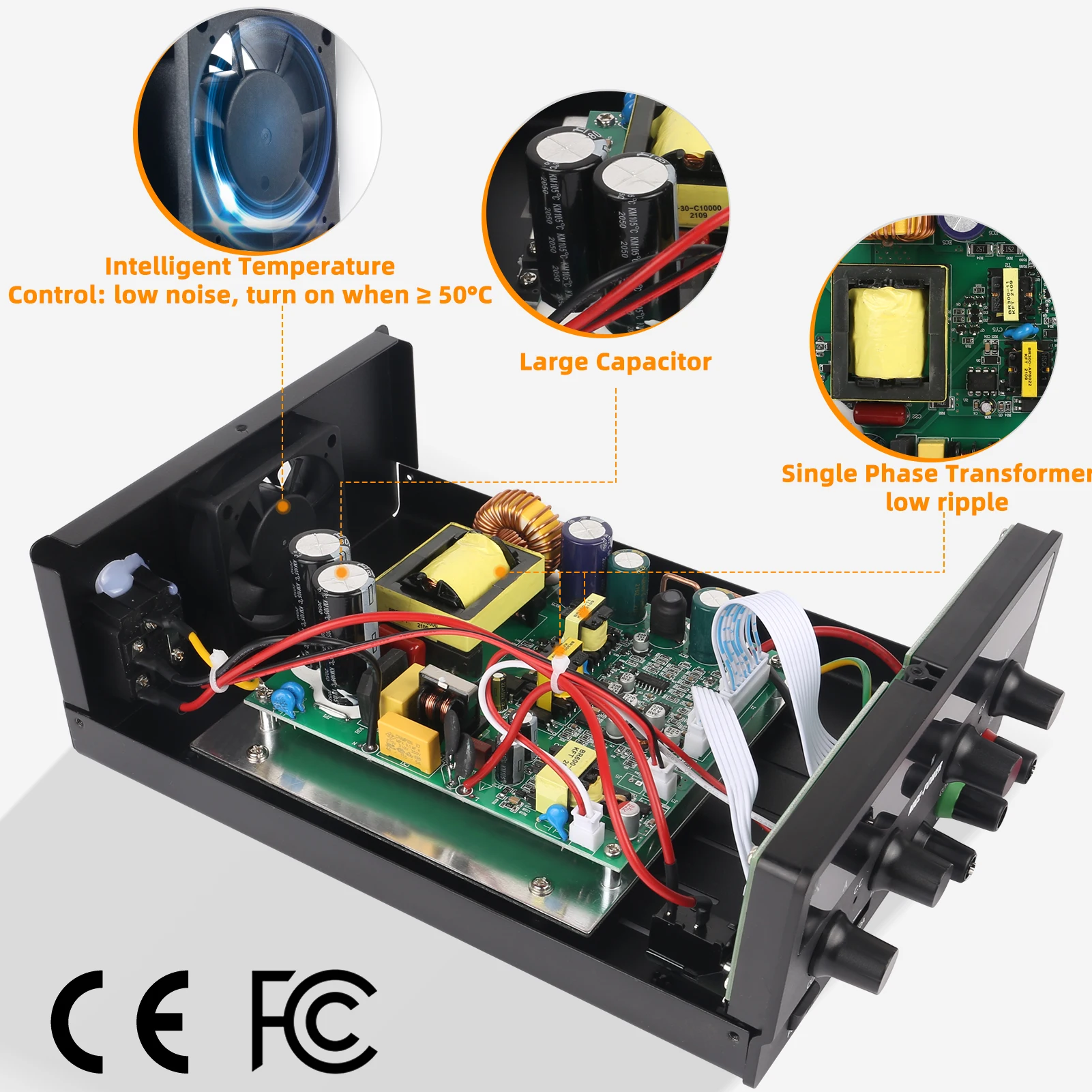

Temperature controlled fan heat dissipation, low noise and long life |

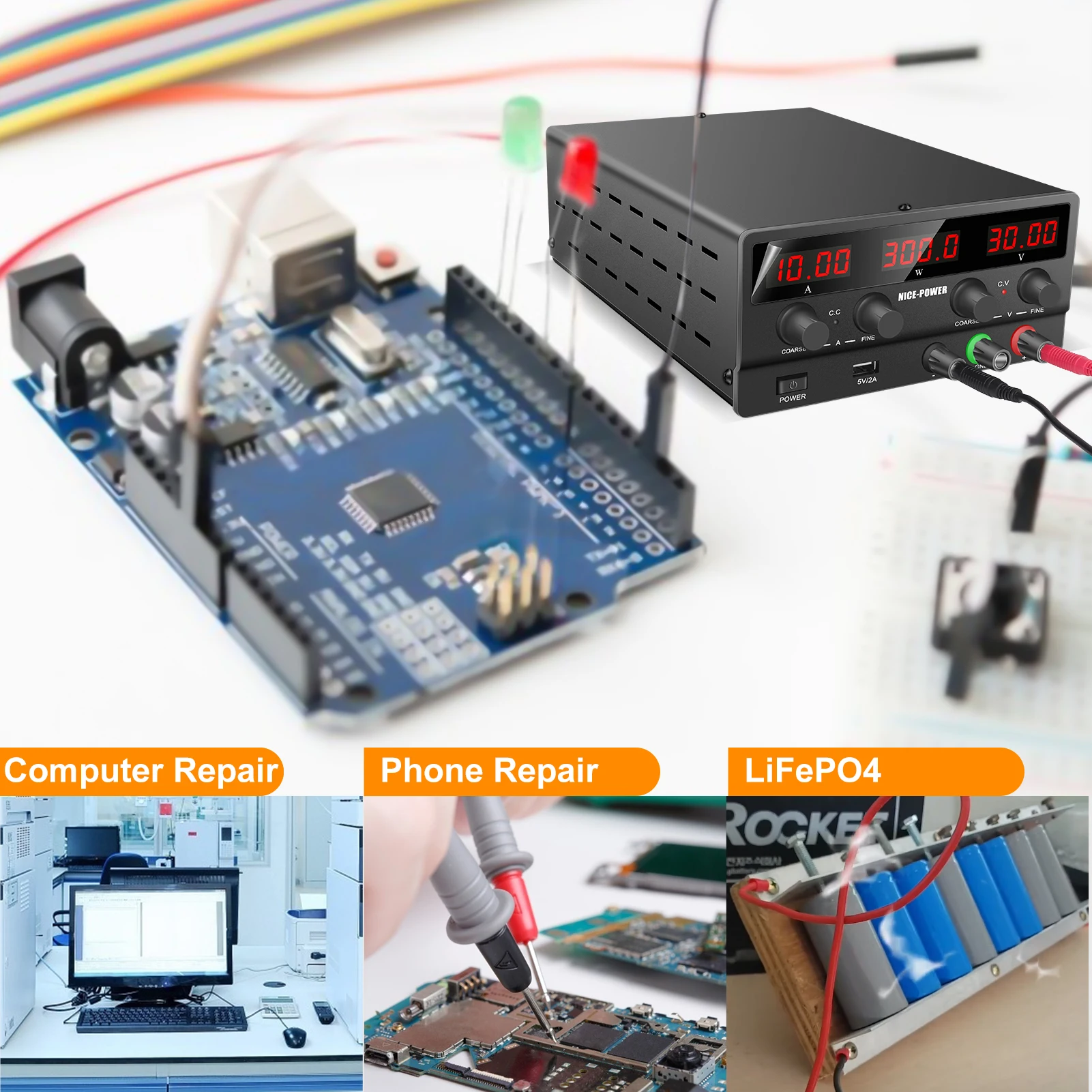

APPLICATION FIELD
|
1 |
Production line testing. |
|
2 |
Mobile phone, computer, electrical maintenance. |
|
3 |
Product aging, plating. |
|
4 |
Charge the battery. |
|
5 |
Laboratory, research and teaching. |
|
6 |
Everything else needs a DC regulated power supply. |
SPECIFICATION
|
Model |
SPS-H305 |
SPS-H3010 |
SPS-H605 |
SPS-H1203 |
|
Condition |
100% Brand New |
|||
|
Input Voltage |
230V+10%50Hz (115%+10% 60Hz) |
|||
|
Output Voltage |
0~30VDC |
0~30VDC |
0~60VDC |
0~120VDC |
|
Output Current |
0~5A |
0~10A |
0~5A |
0~3A |
|
Fuse Standard |
5A |
10A |
5A |
3A |
|
Voltage Resolution |
0.1V |
|||
|
Current Resolution |
0.01A |
|||
|
Ripple Voltage |
Vpp≤1% |
|||
|
Power Effect |
CV≤1%+10mV |
|||
|
Effect of Load |
CV≤1%+10mV |
|||
|

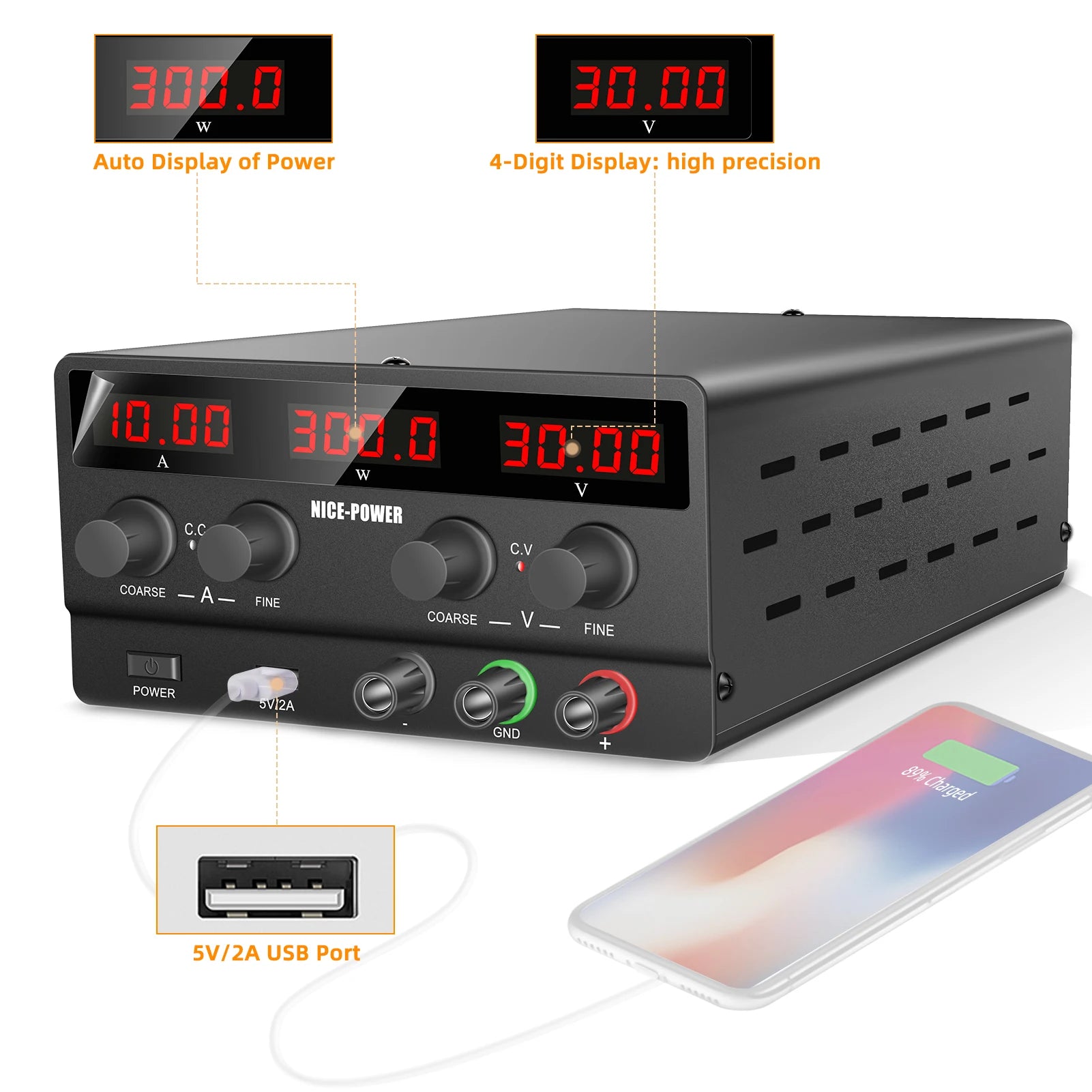

Digital Display |

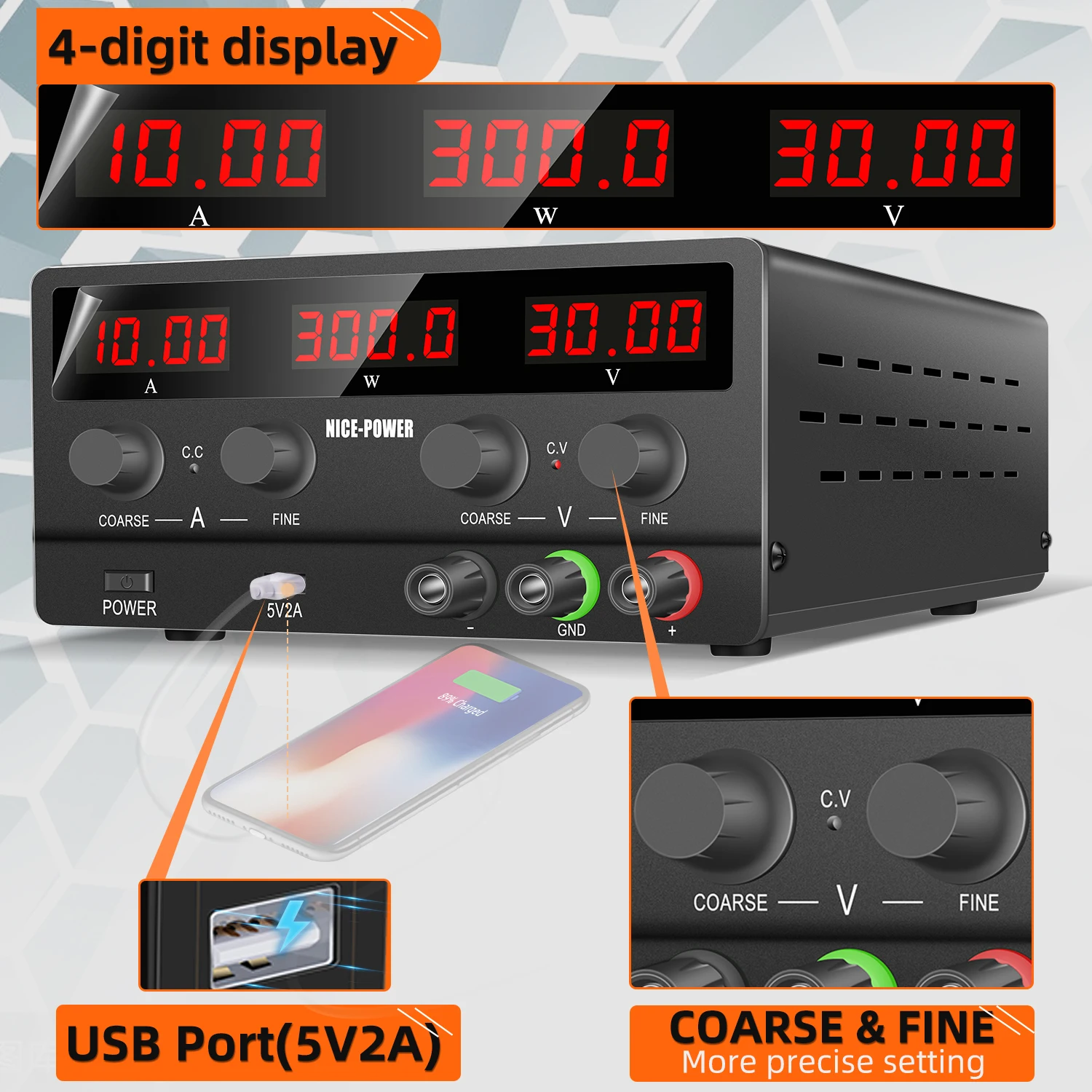

4 LED Digital Display |
|||
|
Ripple Noise |
≤1 MV |
|||
|
Voltage Display Precision |
±1% + 1 digits |
|||
|
Current Display Precision |
±1% + 2 digits |
|||
|
Operating Environment |
-10~45℃ /14~113℉ Rh≤90% |
|||
|
Storage Environment |
-20~60℃ /4~140℉ Rh≤80% |
|||
|
Net Weight |
1.4KG |
|||
|
Gross Weight |
1.8KG |
|||
|
Machine size |
L170*W250*H84(MM) |
|||
|
Package size |
L330*W220*H130(MM) |
|||
|
USB Output |
Fixed on 5V-2A output |
|||
|
Working Temperature |
0℃-40℃; Relative Humidity: <80%RH |
|||
|
Storage Temperature |
-10℃-70℃; Relative Humidity: <70%RH |
|||
|
Constant Voltage State |
Voltage stability ≤0.1%+3mV |
|||
|
Load stability≤0.1%+3mV |
||||
|
Ripple noise≤20mVrms |
||||
|
Constant Current State |
Current stability≤0.2%+3mA |
|||
|
Load stability≤0.01%+3mA |
||||
|
Ripple noise≤20mArms (valid value) |
||||
|
Display Accuracy |
0.5%+2digits |
|||
|
Display Resolution |
Voltage:0.1V Currenrt: 0.001A |
|||
Q1. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q2. What about the lead time?
A: Most of the model in the stock, sample lead time after receive payment 1-3 working days
Q3. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.
Q6. Is it acceptable to print the buyer logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the flaw?
A: Our products are produced in a strict quality control system and the percent of pass is often maintained over 99.8%.
Q8: Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty for all power supply.
