New Mini ITX Motherboard LGA1151 Intel 8th 9th Gen I7 I5 I3 DDR4 PCIEX16 Double Embedded Server Industrial X86
New Mini ITX Motherboard LGA1151 Intel 8th 9th Gen I7 I5 I3 DDR4 PCIEX16 Double Embedded Server Industrial X86
Prix habituel
CFA62,970 XOF
Prix habituel
CFA0 XOF
Prix promotionnel
CFA62,970 XOF
Frais d'expédition calculés à l'étape de paiement.
Quantité
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
application: Server/Workstation
chipset: Intel H310
chipset manufacturer: Intel
cpu type: Core I7/Core I5/Core I3/Pentium/Celeron
form factor: Mini-ITX
graphics card type: Integrated-need CPU support
hard drive interface: SATA
item condition: New
maximum ram capacity: 32 GB
memory bank: 2 DDR4 DIMM
memory channel: Double
memory type: DDR4
package: Yes
place of origin: Guangdong, China
ports: SATA,VGA ,PCI-Express X16,USB 2.0,PS2,Usb3.1,HDMI
products status: New
socket type: LGA 1151
with cpu: No
Company Profile
Product Paramenters
Product model |
MINl-TX Embedded Motherboard |
CPU |
Intel 8th and 9th Generation CoreTM i3/i5/i7 (with low-power CPU),Pentium, Celeron CPU, LGA1151 |
Chipset |
Intel H310, TDP 6W |
Memory |
2 S0-DIMM, DDR4-2400/2666, up to 32 GB |
BIOS |
AMI EF BIOS |
super l/o |
Fintek F81866AD |
Ethernet |
2 LAN (1xintel1225-V/i226-V+1xintel 1219-V) |
Graphic control |
intel HD Graphics |
Display interface |
1 HDMl: HDMl supports a maximum resolution of 4096* 2160@24HZ 1 VGA: VGA supports a maximum resolution of 1920x1200@60HZ
1 LVDS/eDP:
The maximum resolution supported by LvDS is 1920x1200@60Hz Supports single, dual 18bits, and 24bits
EDP supports a maximum resolution of 4096* 2160@60Hz
|
Storage interface |
Support independent 3D graphics |
audio frequency |
Realtek ALC662 HD Audio Line out/MlC in (rear 10 panel, 2-in-1 quad core)
Built in Line out2/Line in audio pins
1x4Pin 2.5W amplifier function
|
GPIO |
8-bit programmable digital l/0 pin |
Expansion interface |
2 M.2 interfaces (1 supports NVMe protocol M.2 hard drive, 1 supports WiFl/BT funcion) 1 standard PClE x16 slot (clamp type crossbar)
|
Fan interface |
1x 4Pin CPU fan interface, 1x 4Pin SYs fan interface |
watchdog |
255 level timer, resettable |
Power type |
1x2 green phoenix terminal+12V DC input |
temperature |
Working temperature: -10 °C~60 °C Storage temperature: -40°C~80 °C
|
humidity |
5%~95% relative humidity,no condensation |

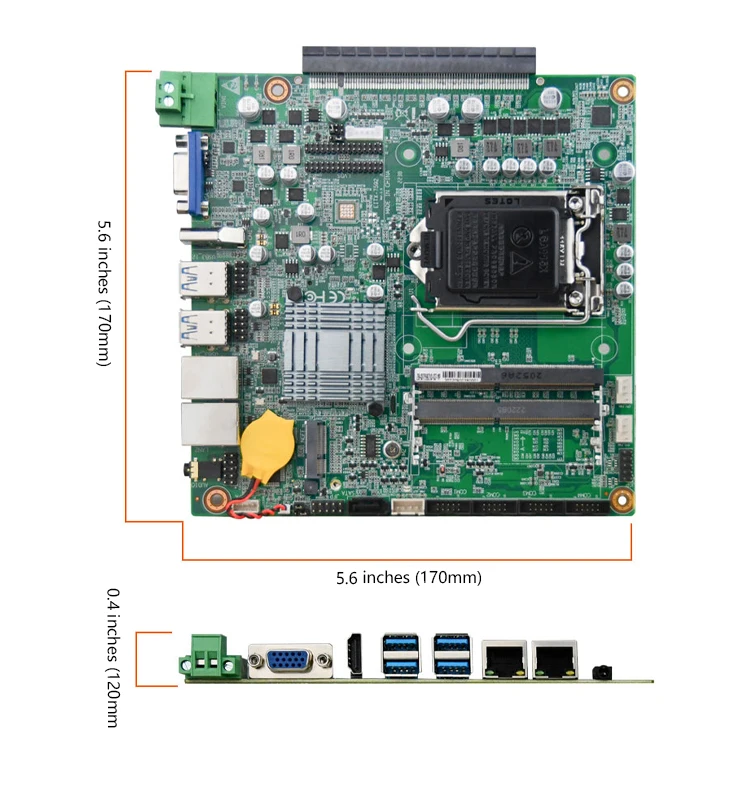

size |
170mmx170mm |
