SPECIFICATIONS

AUDIO PORTS (REAR): Realtek ALC892 Codec

CHIPSET: Intel Z390 Chipset

CPU (MAX SUPPORT): i9

CROSSFIRE: Y

FORM FACTOR: ATX

MEMORY CHANNEL: Dual

PCI-E GEN: Gen3

PCI-E X16: 3

RAID: 0/1/10

TPM (HEADER): 1

application: Desktop

brand name: MSI

chipset: Intel Z390

chipset manufacturer: Intel

cpu type: Core I7/Core I5/Core I3/Pentium/Celeron

form factor: ATX

graphics card type: Integrated-need CPU support

hard drive interface: SATA,1 x M.2 ports (Key M)

item condition: Used

maximum ram capacity: 128 GB

memory bank: 4 DDR4

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,AGP PRO,PCI-Express X16,PCI-Express X8,PCI-Express X4,AGP 2X,USB 2.0,PS2,Mini USB,E-sata,Display Port,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,AGP 8X,AGP 4X,Ethernet

products status: Used,OPEN-BOX

socket type: LGA 1151

with cpu: No

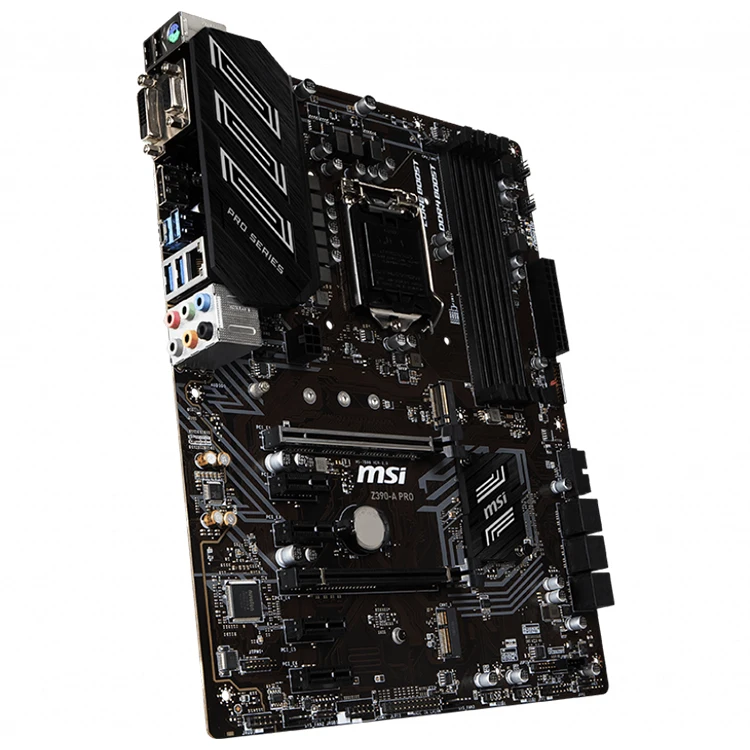

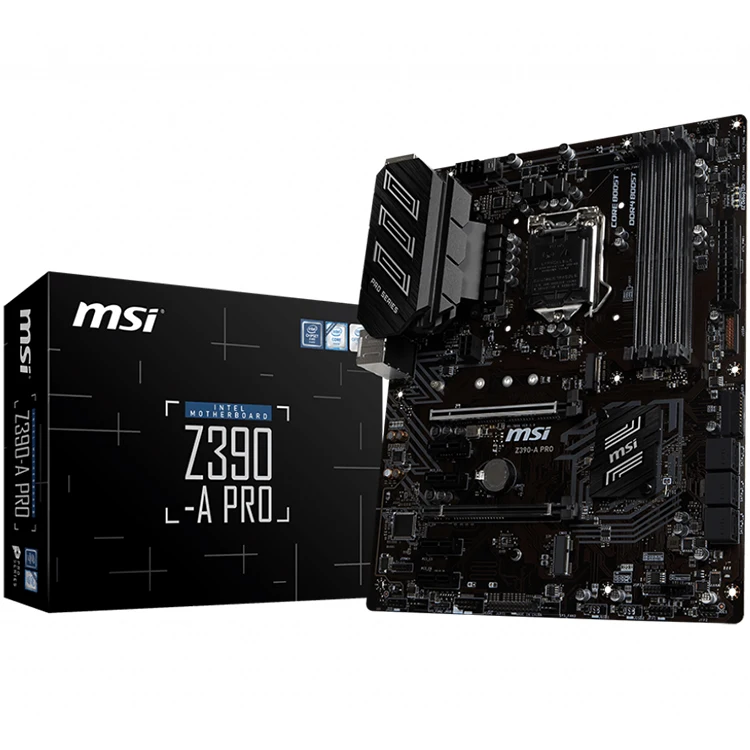

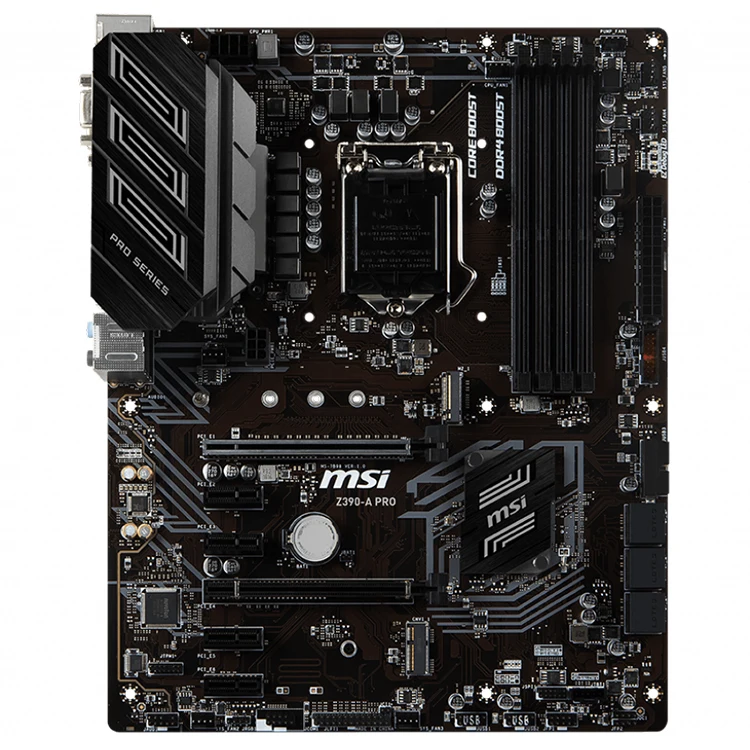

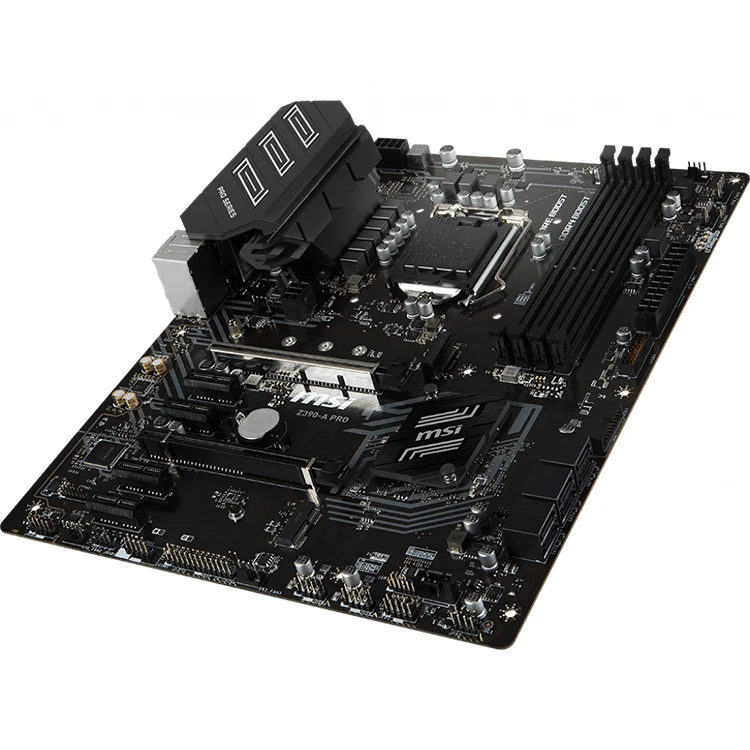

MSI Z390-A PRO Used Gaming Motherboard with Intel LGA 1151 Socket Z390 Chipset Supports Intel Core 9th/ 8th Gen Processors

Inspired from architectural design with the extended heatsink for having better thermal solution; also Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.1 Gen2 connector

• Supports 9th / 8th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1151 socket
• Supports DDR4 Memory, up to 4400(OC) MHz
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost
• Audio Boost: Reward your ears with studio grade sound quality.
• Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
• Intel^® LAN:Premium network solution from Intel^® for professional and multimedia use. Delivers a secure, stable and fast network connection.
• Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
• Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

PROCESSOR

Supports 9^th/ 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket

CHIPSET

Intel^® Z390 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 128GB¹
• Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz¹
• Supports Dual Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer to Compatibility for more information on compatible memory

SLOTS

• 2 x PCIe 3.0 x16 slots(support x16/x4 mode)
• 4 x PCIe 3.0 x1 slots
• 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

ONBOARD GRAPHICS

• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz

*No Display support when using the Processor model with suffix “F”

MULTI-GPU

• Supports 2-Way AMD^® CrossFire^™ Technology

STORAGE

Intel^® Z390 Chipset

• 6 x SATA 6Gb/s ports¹
• 1 x M.2 slot (Key M)
• Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
• Intel^® Optane™ Memory Ready²

1. The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
2. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® Z390 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel^® Z390 Chipset

• 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
• 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)¹

1. The CNVI_1 and JUSB2 share the same bandwidth. Please refer to page 32 for details.

AUDIO

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Intel^® I219-V Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 6-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x M.2 slots (1 M-Key slot,1 E-Key slot)
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 5 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x 4-pin RGB LED connector
• 1 x Serial Port connector
• 1 x Clear CMOS jumper
• 1 x Parallel port connector
• 1 x TPM module connector
• 1 x thunderbolt Add-on card connector
• 1 x Front OC button connector

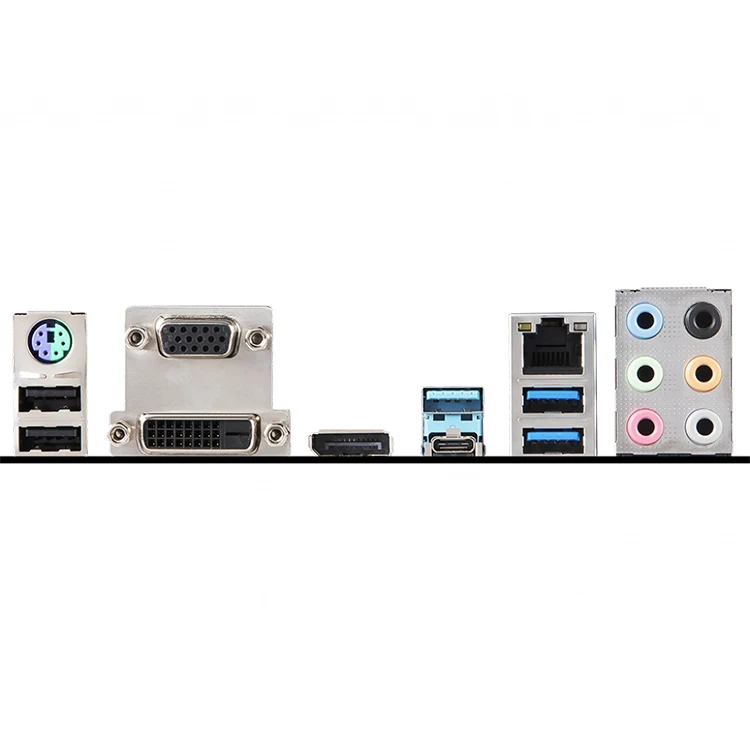

BACK PANEL PORTS

1. PS/2 Combo
2. VGA
3. USB 3.1 Gen2 Type A+C
4. LAN
5. HD Audio Connectors
6. USB 2.0
7. DVI-D
8. Displayport
9. USB 3.1

DIMENSIONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit
