SPECIFICATIONS

Audio: Realtek ALC892 Codec

BIOS: 1 x 256 Mbit flash

CHIPSET: AMD B550

CPU (MAX SUPPORT): Supports AMD 3rd Gen Ryzen

FORM FACTOR: Micro-ATX; 24.4 cm x 24.4 cm

LAN: 1x Realtek 8RTL8111GN controller

MOUNTING: 8 mounting holes

Memory: 4 x DDR4 DIMM sockets

Operating System: Support for Windows 10 64-bit

USB: 3x USB 3.2 Gen 1

application: Desktop

brand name: MSI

chipset: AMD B550

chipset manufacturer: AMD

cpu type: AMD

form factor: Micro-ATX

graphics card type: Integrated-need CPU support

hard drive interface: SATA,2 x M.2 ports (Key M)

item condition: New

maximum ram capacity: 128 GB

memory bank: 4 DDR4

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: Wi-Fi,SATA,PCI-Express X16,PCI-Express X8,PCI-Express X4,USB 2.0,PS2,E-sata,Display Port,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,AGP 4X,HDMI

private mold: Yes

products status: New

socket type: AM4

with cpu: Yes

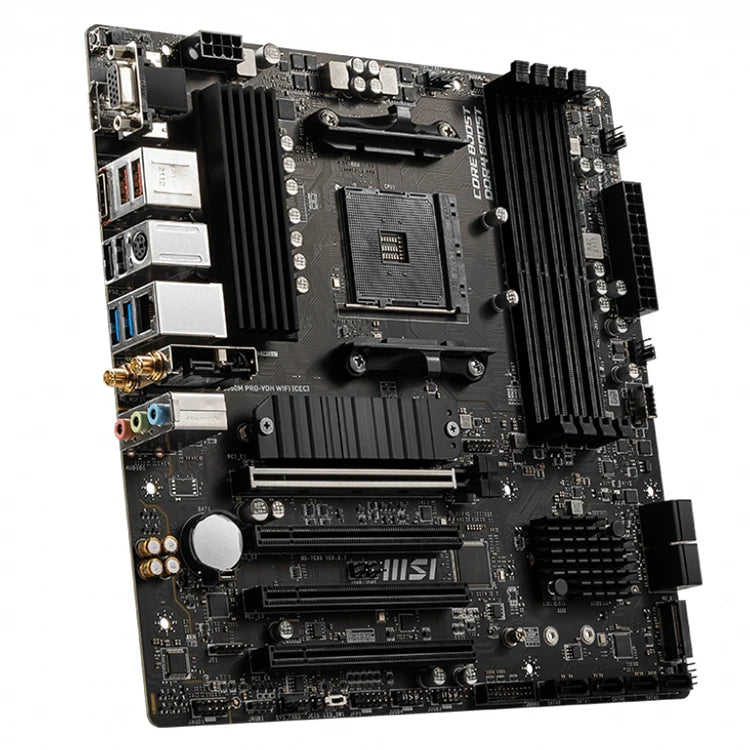

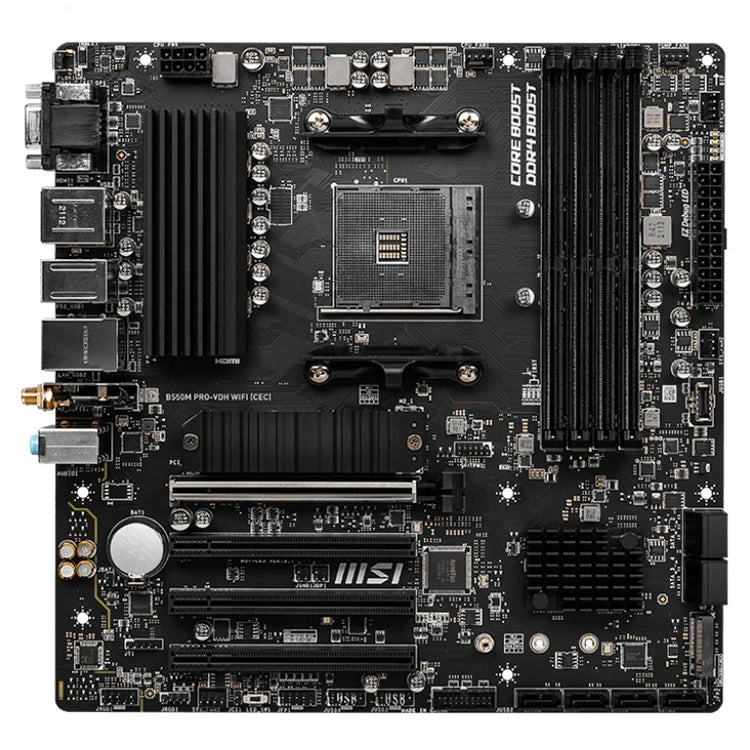

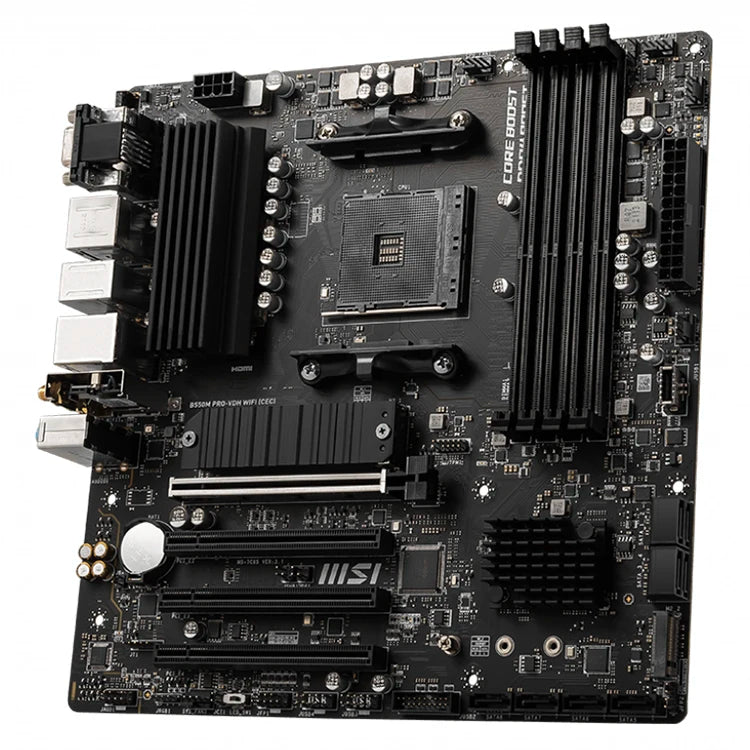

MSI B550M PRO-VDH WIFI CEC MicroATX Gaming Motherboard with B550 Chipset Support AMD Ryzen 5000 & 3000 Series Desktop Processors

• Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• Supports DDR4 Memory, up to 4400(OC) MHz
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
• Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
• Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
• Audio Boost: Reward your ears with studio grade sound quality
• Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™processors with BIOS update

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB ¹
• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
• 1DPC 1R max speed 4400 MHZ
• 1DPC 2R max speed 3733 MHZ
• 2DPC 1R max speed 3866 MHZ
• 2DPC 2R max speed 3466 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory
• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

• 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)¹
• 3x PCIe 3.0 x16 slots, support PCIe x1 speed

1. The supported specification depends on installed processor.

ONBOARD GRAPHICS

• 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz ¹
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz ¹
• 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz ^1 2
• Maximum shared memory of 16 GB

1. Available for the processor with integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

STORAGE

ASMedia AM1064 Chipset

• 4x SATA 6Gb/s ports

AMD B550 Chipset

• 4x SATA 6Gb/s ports
• 2x M.2 slots (Key M)
• M2_1 slot (from AMD Processor)
• Supports PCIe 4.0/ 3.0 x4 ¹
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• M2_2 slot (from AMD B550 chipset)
• Supports PCIe 3.0x4
• Supports 2242/ 2260/ 2280 storage devices

1. The supported specification depends on installed processor.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
• 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

AUDIO

Realtek^® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® 8RTL8111GN / RTL8111HN 1Gbps LAN controller

WIRELESS LAN & Blue.tooth^®

Intel^®Wi-Fi 6 AX200/ AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Blue.tooth® 5.2, FIPS, FISMA
• WiFi 6 pre certified¹

1. Only support WIN 10 64-bit

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 8x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 3x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 1xTPM module connector
• 1x Clear CMOS jumper

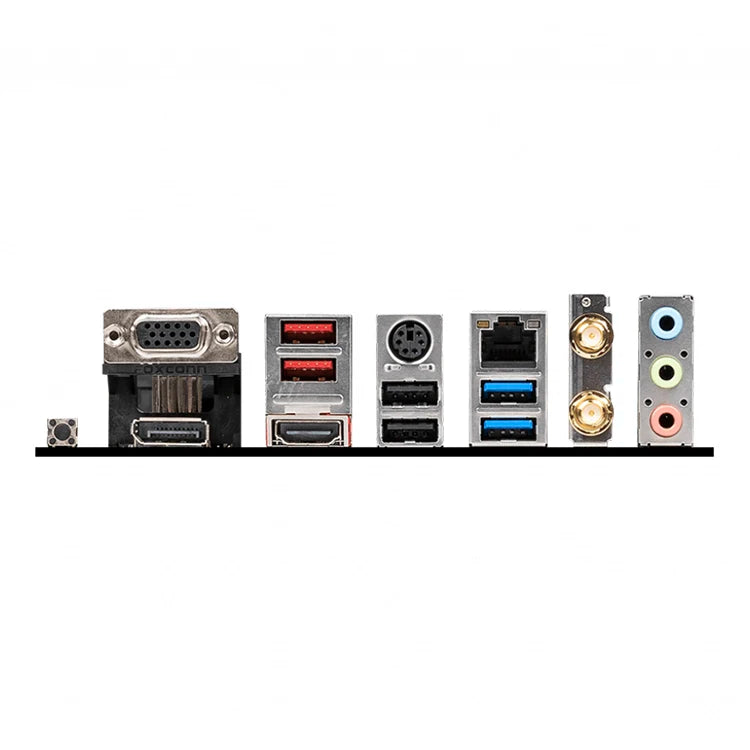

BACK PANEL PORTS

1. VGA
2. USB3.2 Gen 2 10Gbps Type-A
3. Keyboard / Mouse
4. LAN port
5. WiFi/Blue.tooth
6. Audio connector
7. Flash BIOS Button
8. DisplayPort
9. HDMI
10. USB 2.0
11. USB3.2 Gen1 5Gbps Type-A

DIMENSIONS

• Micro-ATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes
