SPECIFICATIONS

COM Port: NONE

CPU: AMD A4-5145M 2.0GHz quad-core processor

Diaplay: 1*VGA, 1*HD OUTPUT,1*LVDS

Dimensions: 170mm x 170mm

LAN: 1* RTL8106E Gigabit Ethernet

Memory: 1* DDR3 SODIMM,up to 8GB

Power Supply: DC 12V

Product Name: MINI ITX Motherboard

Storage: 1* SATA3.0,1* MSATA slot

USB: 2*USB3.0, 6*USB2.0

application: mini pc, nano pc, industrial pc

brand name: Yentek

chipset: 218-0844029

chipset manufacturer: AMD

cpu type: AMD

form factor: THIN MINI ITX

graphics card type: Integrated

hard drive interface: SATA,MSATA

item condition: New

maximum ram capacity: 8 GB

memory bank: 1 DDR3 DIMM

memory channel: Single

memory type: DDR3

package: Yes

place of origin: Guangdong, China

ports: Wi-Fi,SATA,VGA ,USB 2.0,PS2,Ethernet,USB 3.0,PCI-E 3.0,HDMI

products status: New

socket type: Integrated

with cpu: Yes

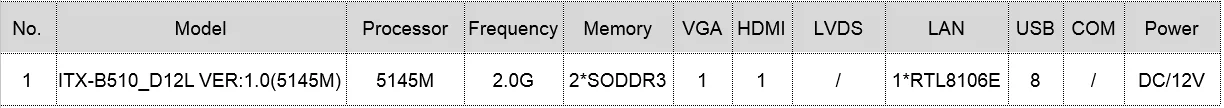

Order Information

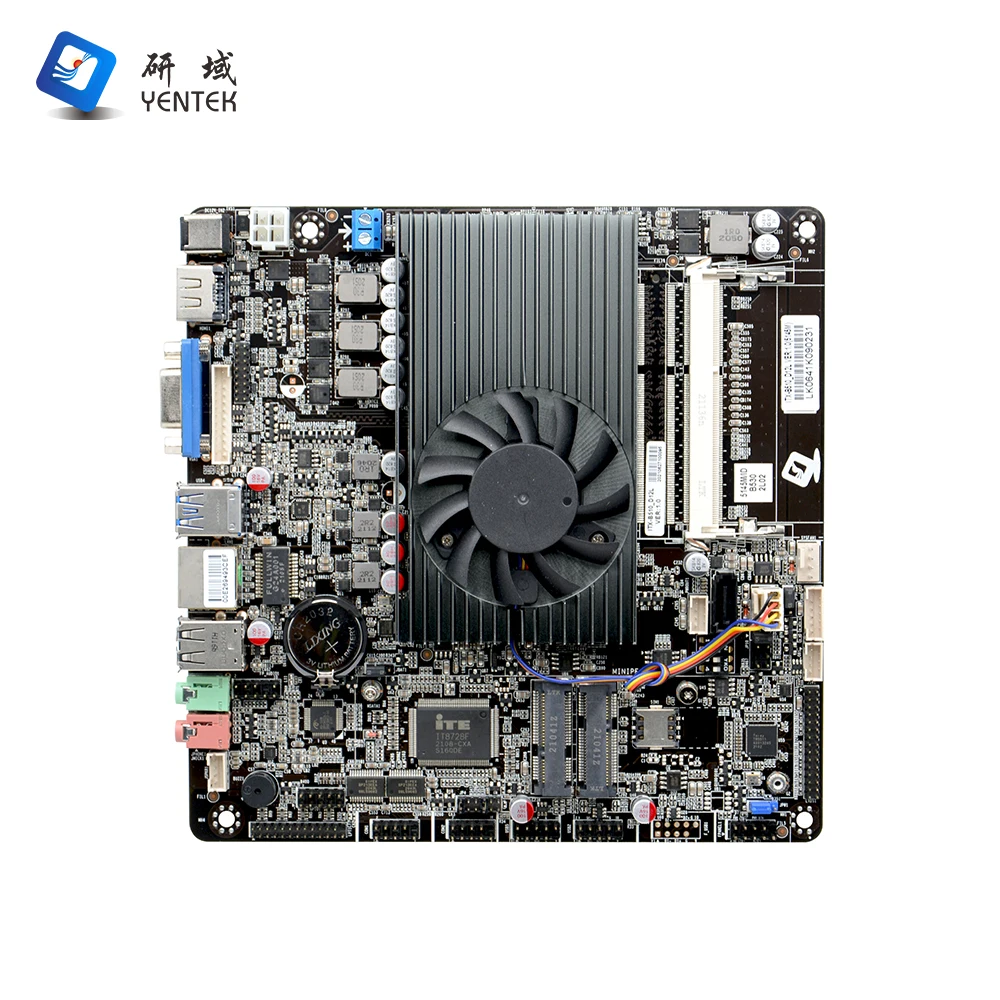

Products Description

Product number	ITX-B510_D12L VER:1.0(5145M)
processor	Integrated AMD A4-5145M @2.0G dual-core 2-thread processor, TDP 17W
	Compatible with APU A10/A8/A6/A4 (FP2 package) dual-core and quad-core processors
chipset	Using 218-0844029 high-speed chipset
RAM	1* SODIMM memory slot, support dual-channel DDR3 1333MHz memory, maximum support 8GB
show	Integrated AMD Radeon HD 8000 series core graphics,
		1*VGA port, 2*HDMI port, 1*support 24BIT LVDS port
The internet	1* RTL8106E Gigabit network card, supports Wake-on-LAN and PXE functions.
Store	1* SATA3.0 hard disk interface, transmission speed can reach 6Gbps
	1* MSATA slot, SSD solid state drive supporting Intel protocol, transfer rate up to 6Gbps
Audio	Onboard USB HS-100B sound card, support MIC/Line-out.
		It is recommended to use 2Ω5W speakers for the power amplifier
Expand	1* Mini-PCIE slot, support WIFI, 3G/4G module

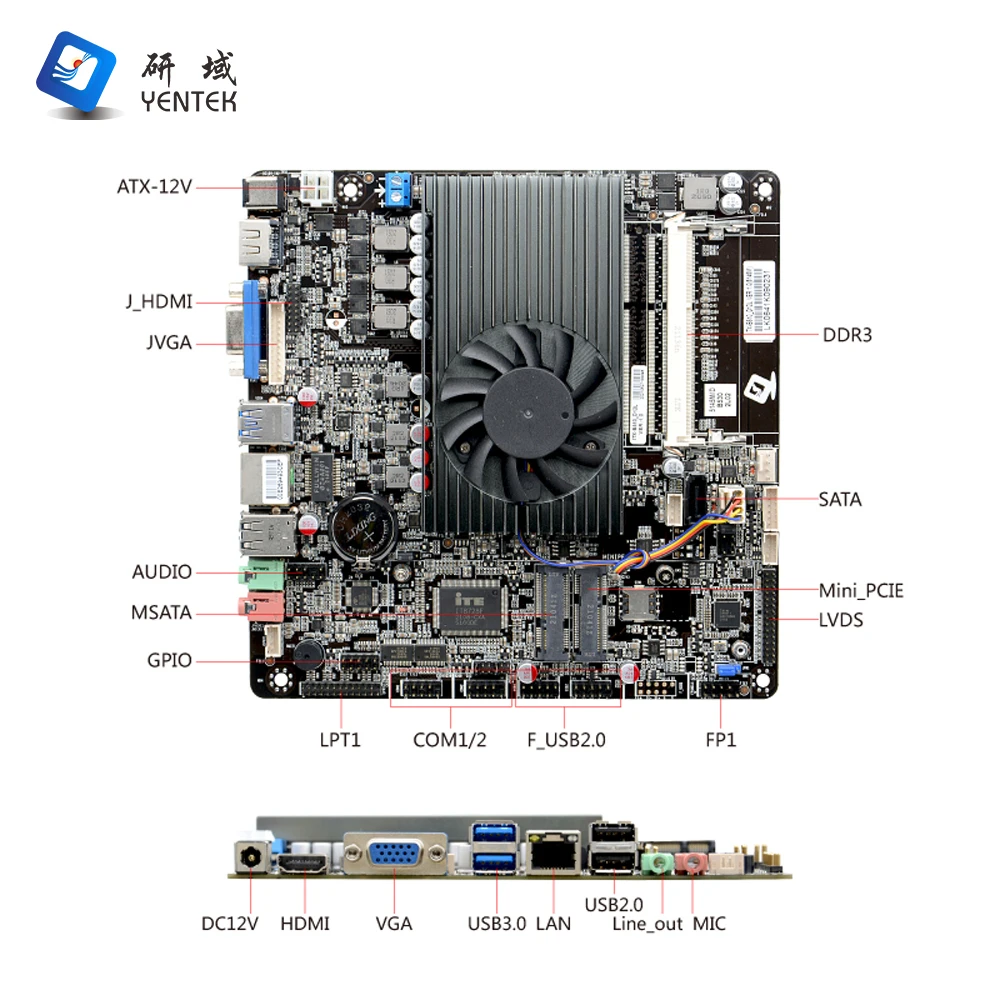

Backplane I/O interface	2* USB 2.0 interface
		2* USB 3.0 interface
		1* HDMI port
		1* VGA port
		1* RJ-45 Gigabit network interface
		1* Line out (green)
		1* MIC (red)
		1* DC 12V power input interface
Built-in I/O interface	4* USB 2.0 interface 2*5pin
		1* LVDS interface 2*15pin, support 24BIT LVDS display
		1* Screen backlight power supply interface 1*6pin
		1* Screen brightness adjustment interface 1*4pin
		1* LPT interface 2*13pin
		1* JVGA interface 1*12pin, the same signal as the external VGA interface
		1* JHDMI port 2*8pin
		2* RS232 serial port, 2*5pin, the 9th pin supports live function
		1* Front audio interface 2*5pin
		1* power amplifier interface 1*4pin
		1* Front panel function button and indicator port 2*5pin
		1* SIM card holder
		1* 4pin ATX power interface (can be used as 12V input and output power interface)
		1*2pin blue power socket, support 12V power input and output
		1* Hard disk power supply interface 1*4pin
		Note: This model does not support hardware power-on boot
GPIO	Support 4 input and output GPIO function
Fan interface	1* 4pin CPU intelligent fan interface, 1*4Pin intelligent system fan interface
BIOS	32Mb Flash ROM
Watchdog	Support hardware reset function (256 levels, 0~255 seconds)
Power type	Adopt DC 12V single power supply
Operating temperature	-10℃～60℃
Storage temperature	-20℃～70℃
Working humidity	5%-95% relative humidity, non-condensing

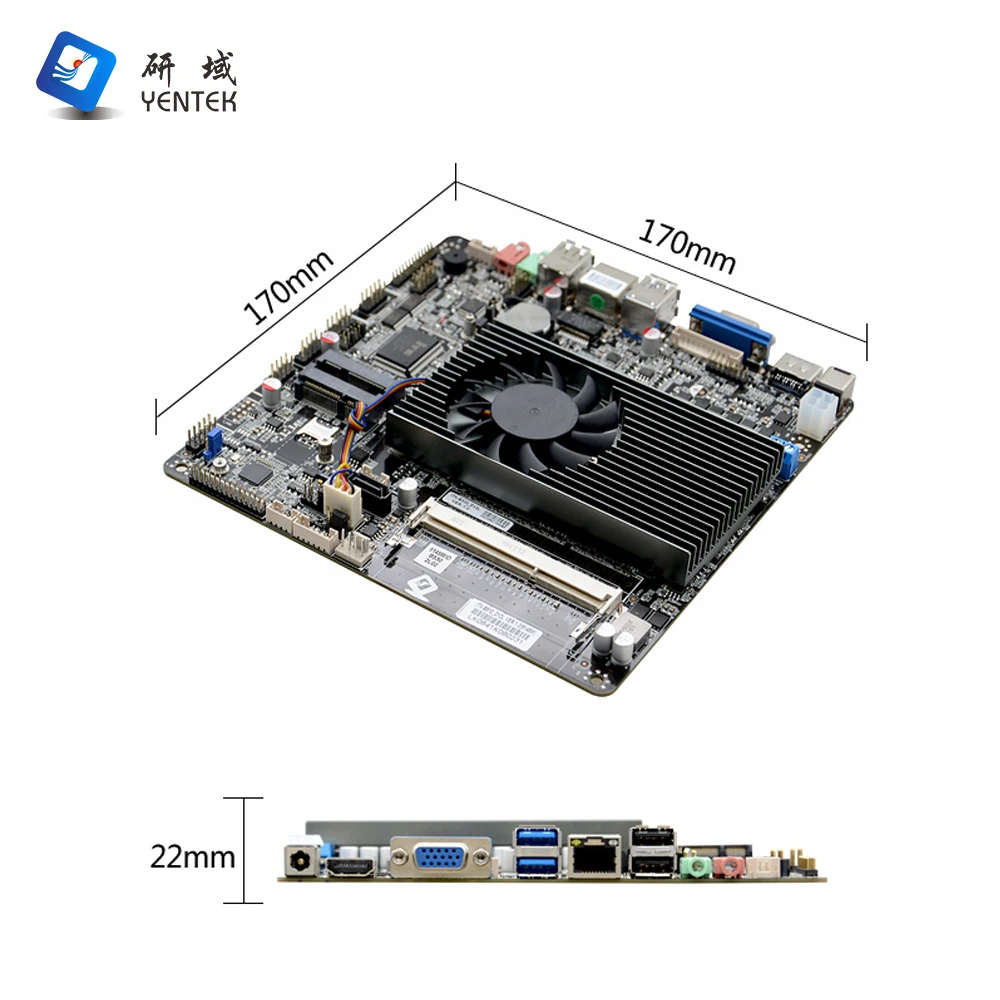

size	170mm x 170mm
