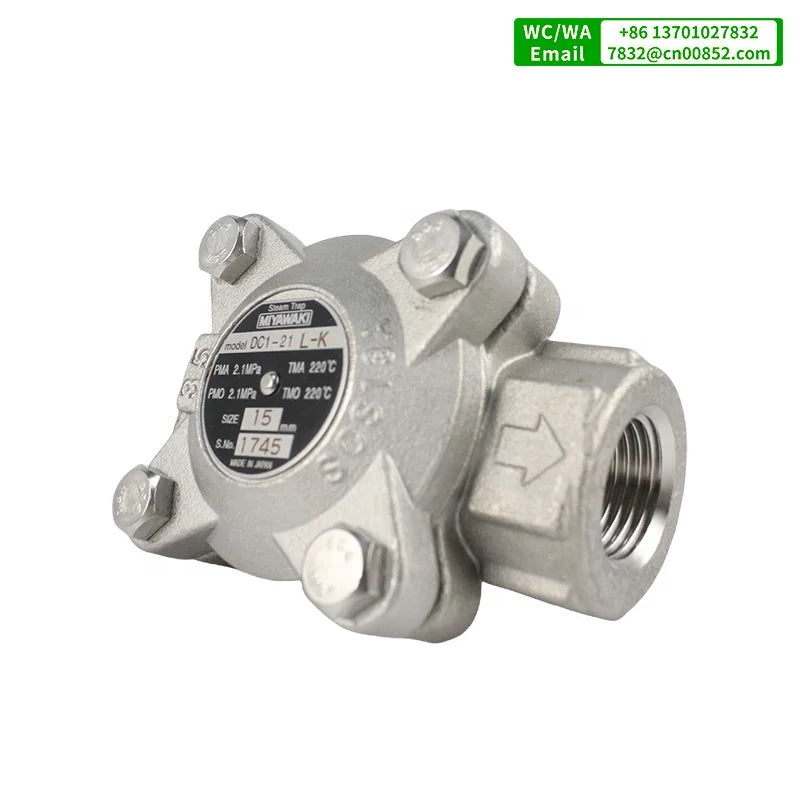

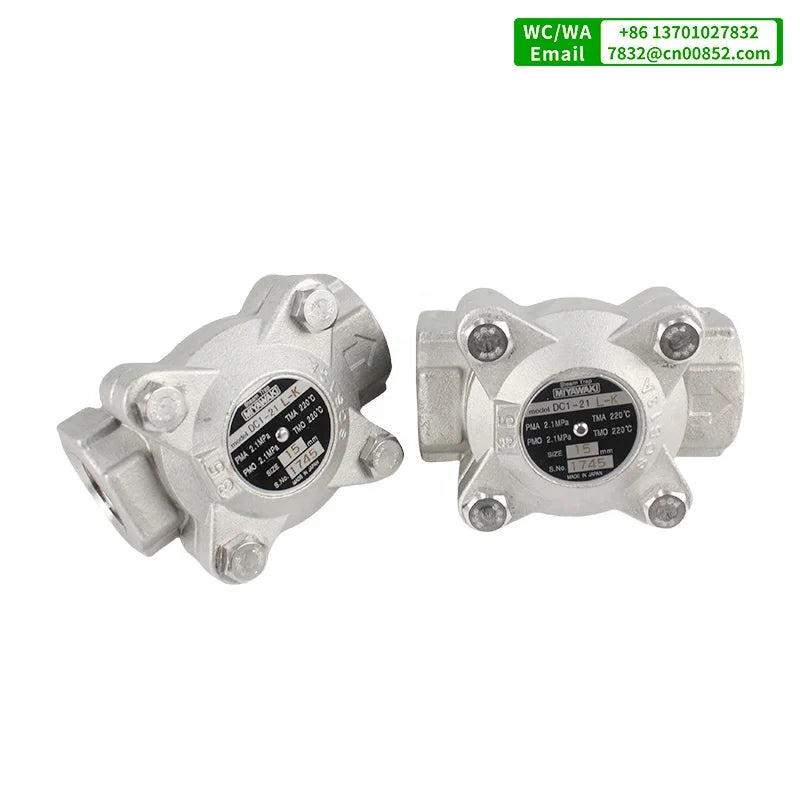

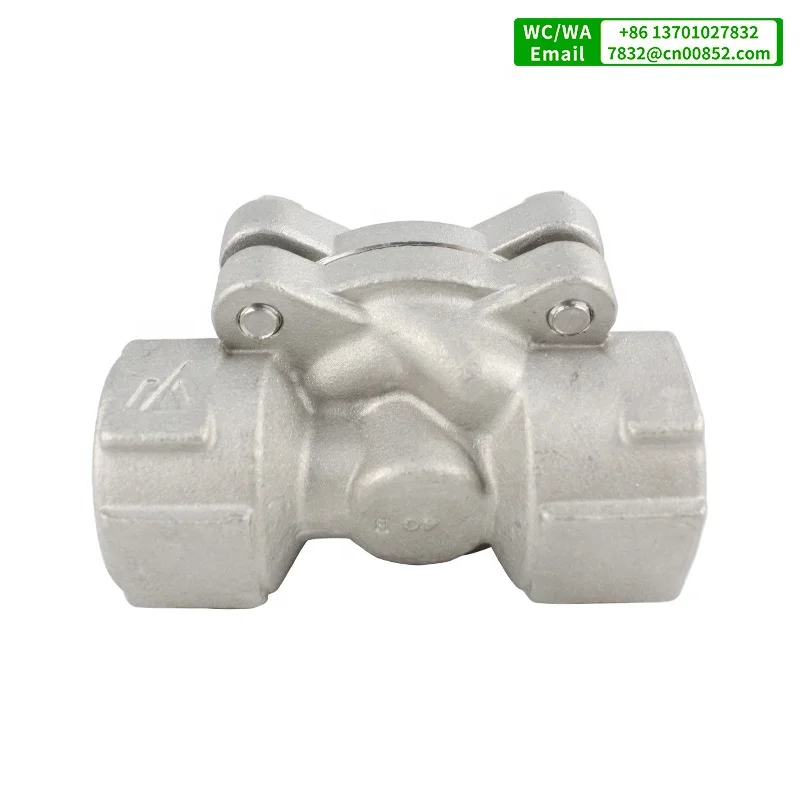

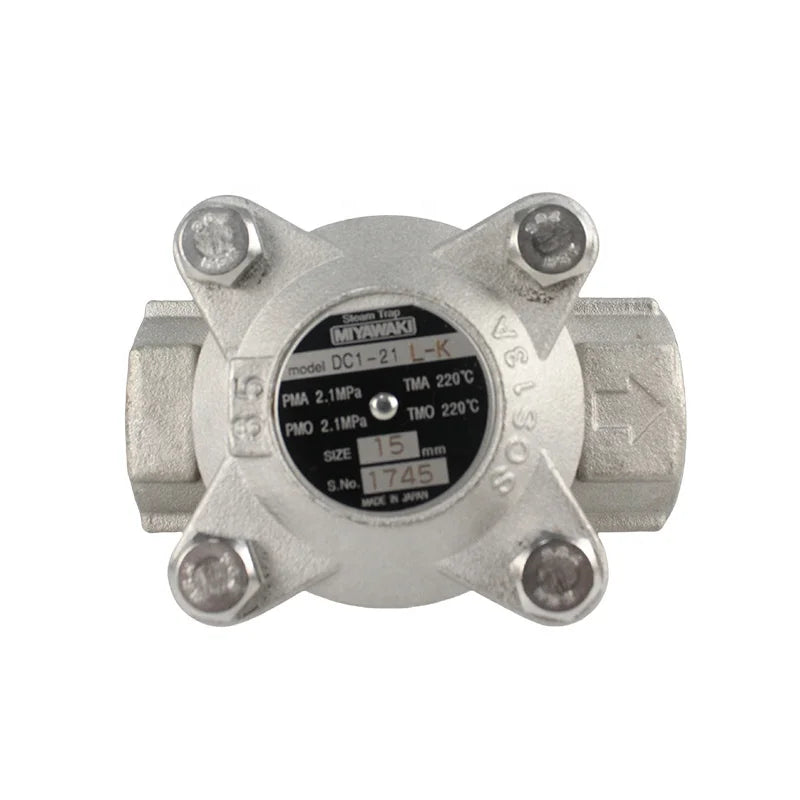

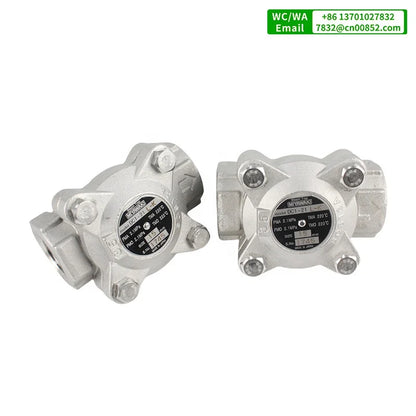

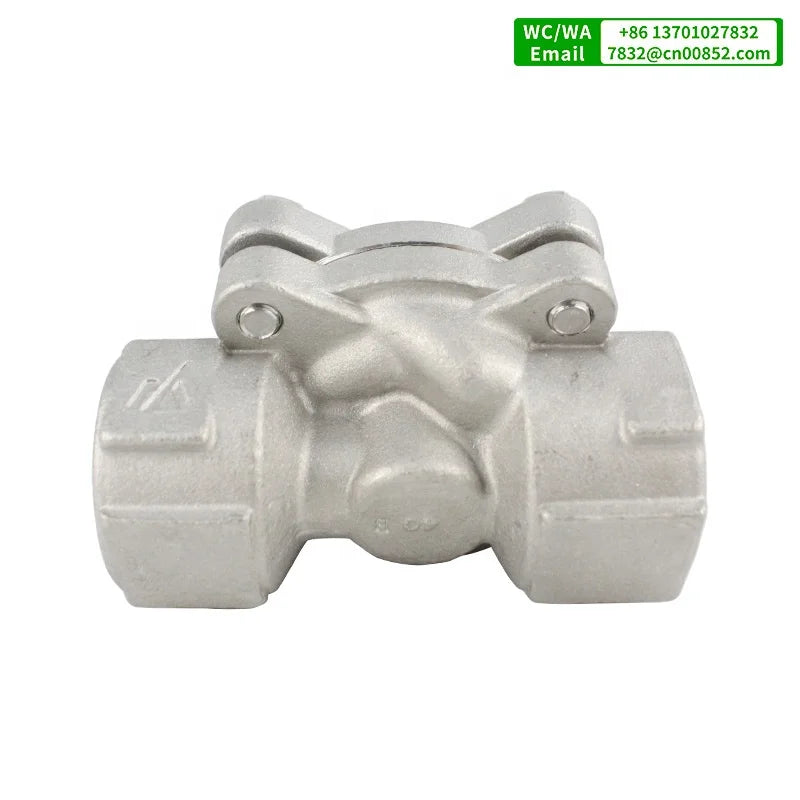

SPECIFICATIONS

Body material: Stainless Steel

Brand: MIYAWAKI

Connection: Screwed Rc, NPT

Name: Steam Traps

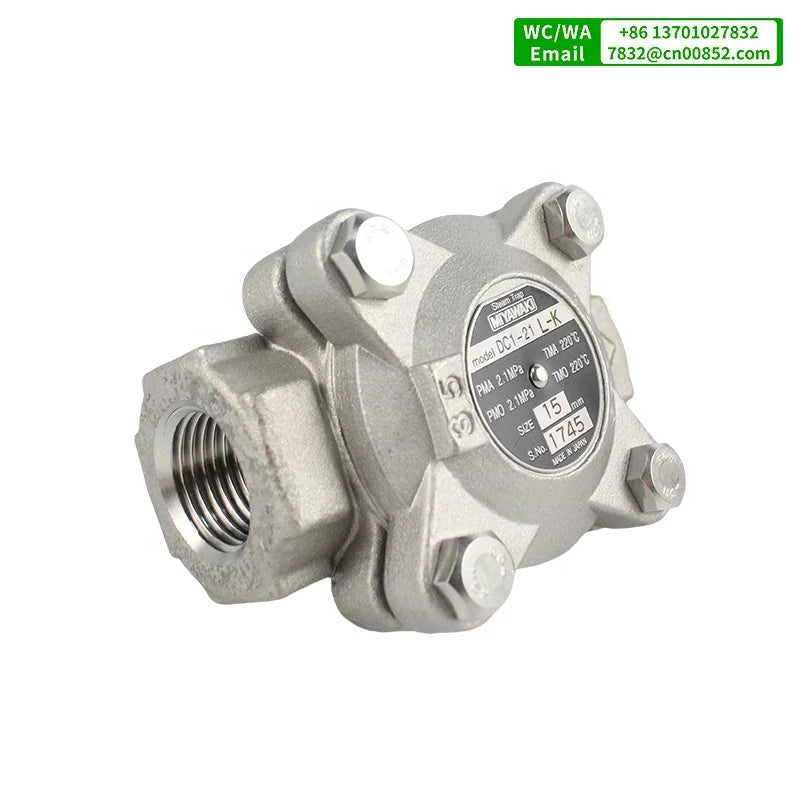

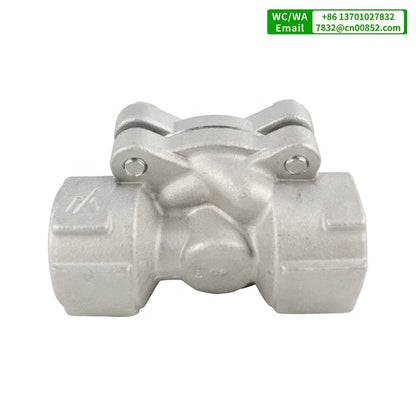

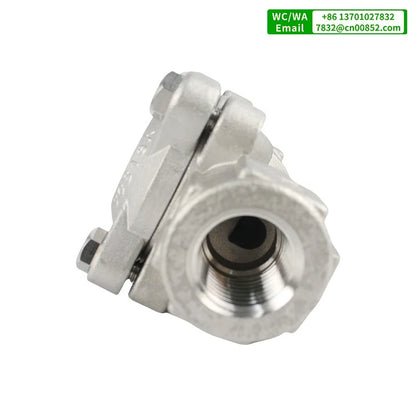

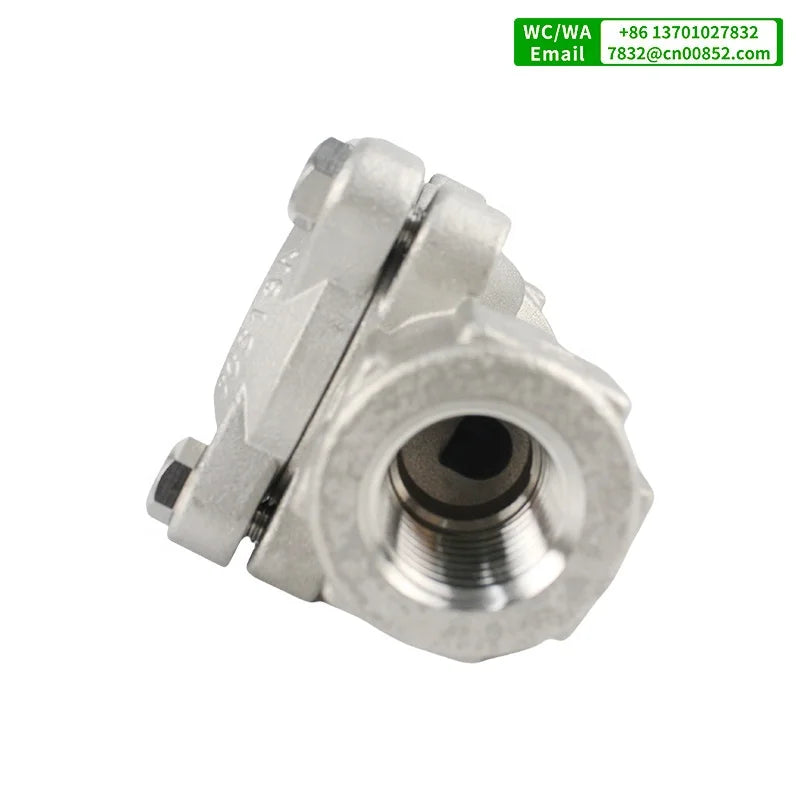

Product name: DC1-21L

Working Temperature: 220°

Working pressure: 2.1MPa

application: General

brand name: MIYAWAKI

customized support: OEM

media: Steam Trap

model number: DC1-21L

place of origin: Japan

port size: DN8-DN25

power: Hydraulic

structure: bellows-type

temperature of media: Medium Temperature

type: Steam Trap

warranty: 3 Years

Features

- Excellent air venting characteristics at start-up and during operation - Insensitive to waterhammer - The operation will not be influenced by back pressure - At time of non-operation self-draining - No steam loss throughout its operating range - All traps equipped with integral strainers - Can be installed both horizontally and vertically - Easy in-line inspection and maintenance - Lightweight, compact design

Model	Connections	Size	Max. Operating Pressure(MPa)	Max. Operating Temperature ℃	Body Material
DC1-21H	Screwed Rc, NPT	1/4¨, 3/8¨	2,1	220	Stainless Steel SCS13A
							1/2¨, 3/4¨
							1'''

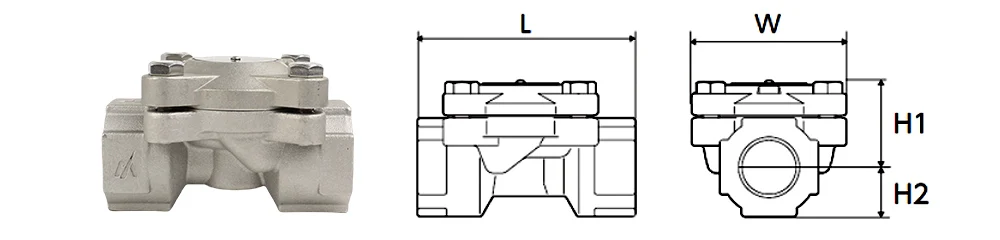

Dimensions (mm)
Model	L	H1	H2	W	Weight（kg）
1/4‘’, 3/8‘’	65	29	11	53	0.4
1/2‘’, 3/4‘’	75	31	17		53	0.5
1‘’	80	34	21		53	0.5
