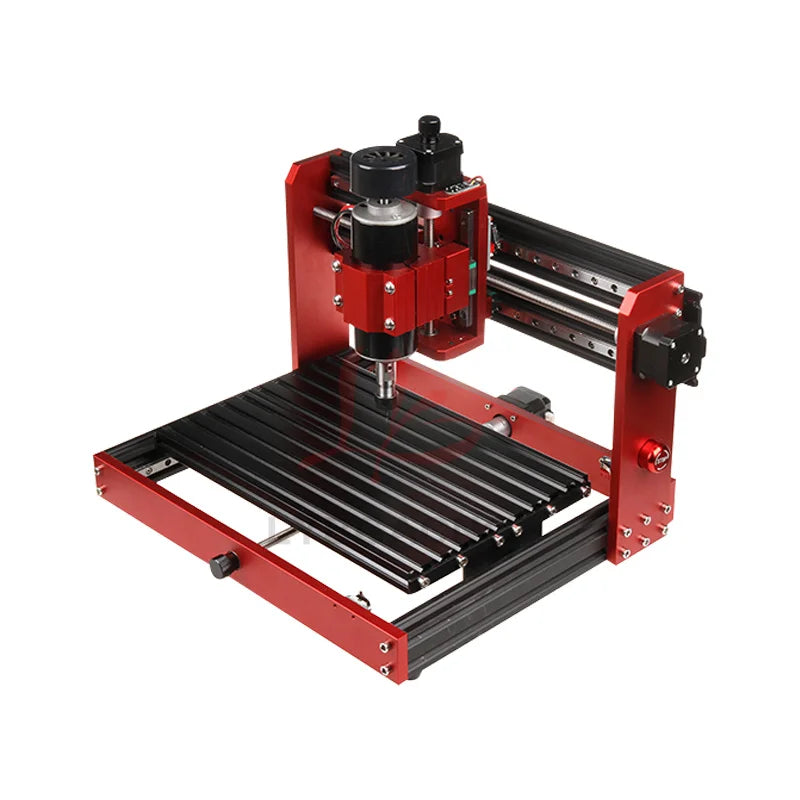

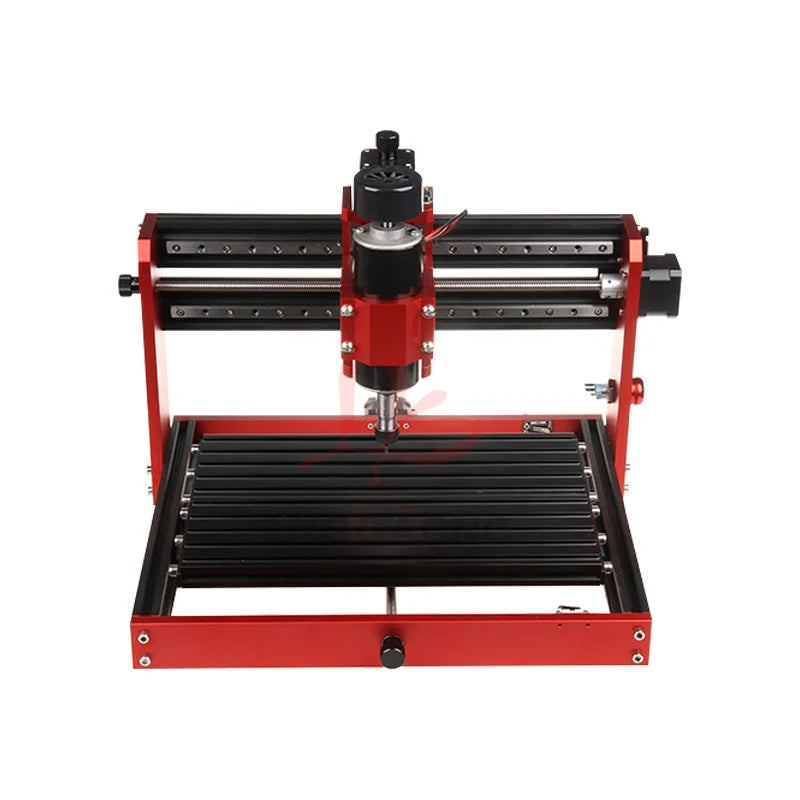

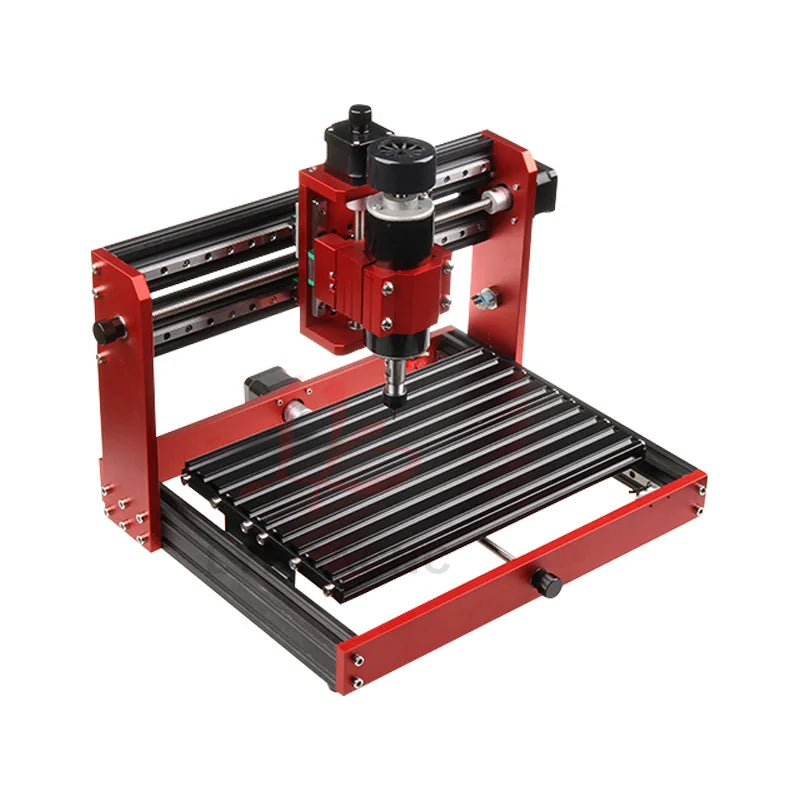

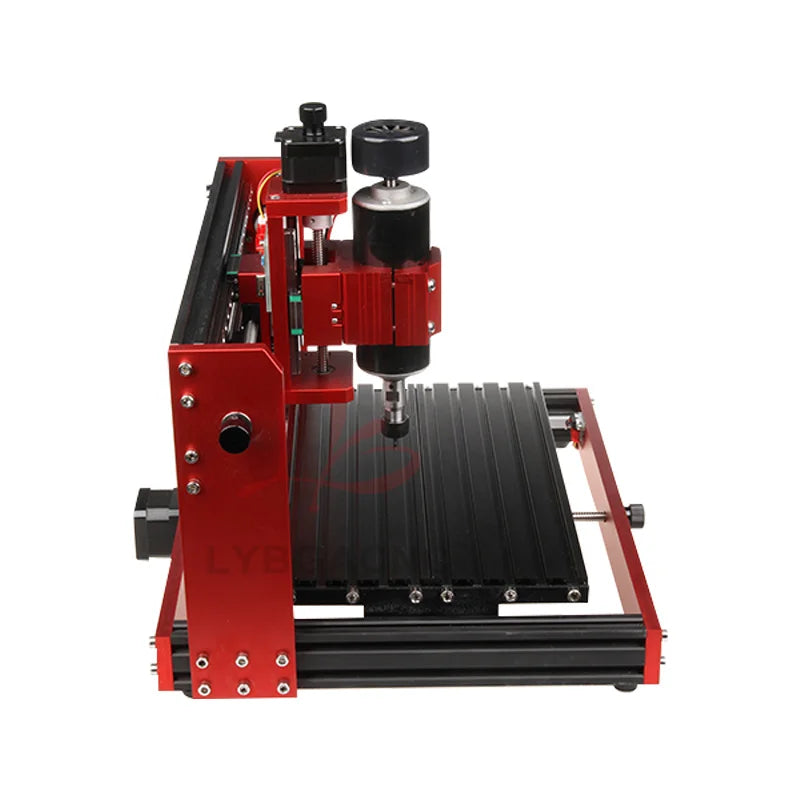

Mini CNC Engraving Cutting Machine 3020 500W Square Rails Full Metal Wood Router with Offline Controller Support Laser Module
Mini CNC Engraving Cutting Machine 3020 500W Square Rails Full Metal Wood Router with Offline Controller Support Laser Module
Prix habituel
CFA280,658 XOF
Prix habituel
CFA0 XOF
Prix promotionnel
CFA280,658 XOF
Frais d'expédition calculés à l'étape de paiement.
Quantité
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Body Material: All Aluminum Alloy
Control software: standard GRBL
No. of Spindles: Single
Spindle Motor: 500W
Spindle Motor Power (kw): 0.5
brand name: LYBGA
cnc or not: CNC
dimension(l*w*h): 420 x 350 x 280 mm
key selling points: Digital
machine type: CNC Router
machinery test report: Provided
model: L11008-1
number of axes: 3
place of origin: Guangdong, China
positioning accuracy (mm): 0.05
range of spindle speed(r.p.m): 0 - 10000
repeatability (x/y/z) (mm): 0.08
video outgoing-inspection: Provided
voltage: 220v
warranty: 1 Year
weight (kg): 14

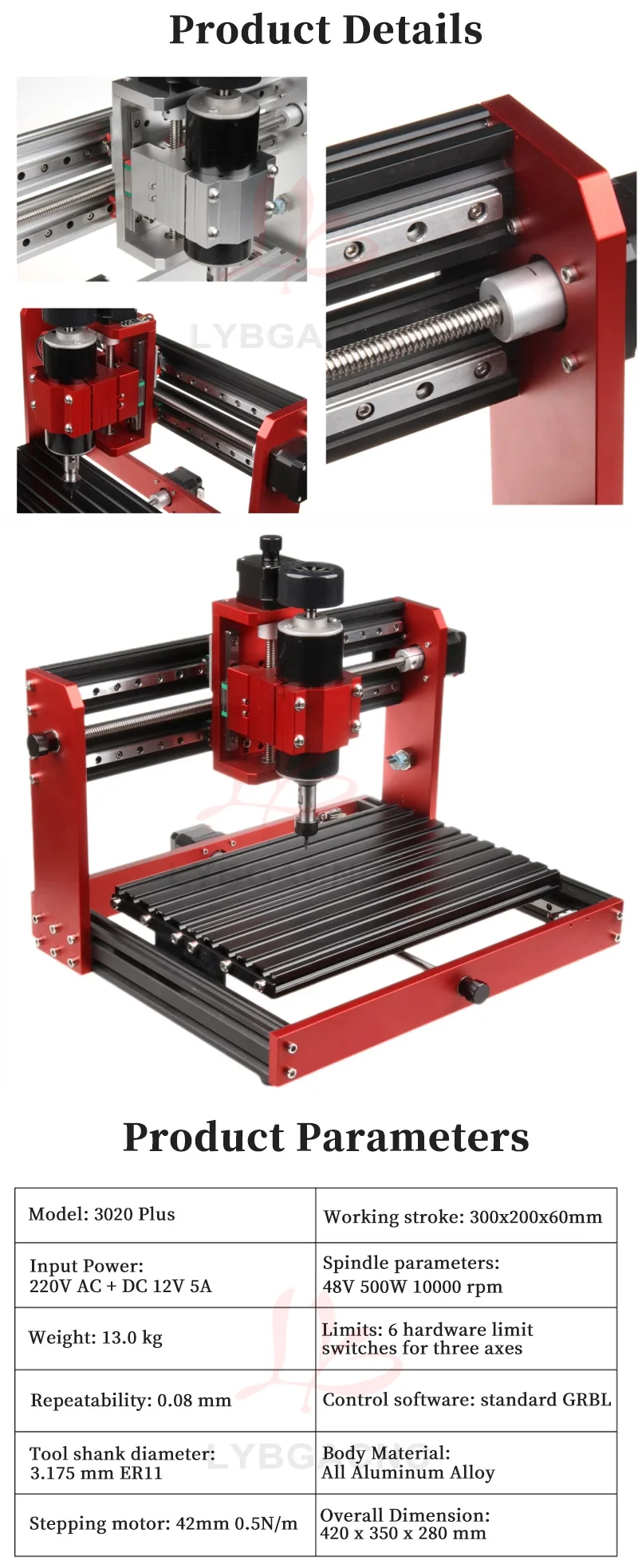

LY 3020 Plus Full Metal Desktop CNC Engraving Cutting Machine for Wood PVC Acrylic PCB Laser Module with Offline Controller 220V
Specification:
Brand: LY
Color: Red / Black / Silver (The default color is red. Other colors need to be customized and shipped from China. Please leave a message.)
Input Power: 220V AC + DC 12V 5A
Machine Weight: 13.0 kg
Repeat ability: 0.08 mm
Tool shank diameter: 3.175 mm ER11
Stepping motor: 42mm 0.5N/m
Working stroke: 300x200x60mm
Spindle parameters: 48V 500W 10000 rpm
Limits: 6 hardware limit switches for three axes
Control software: standard GRBL
Body Material: All Aluminum Alloy
Overall Dimension: 420 x 350 x 280 mm
3020 Plus Advantages: 1.A set of accessories are all metal materials, higher steel, can also be used for processing some soft metal materials.

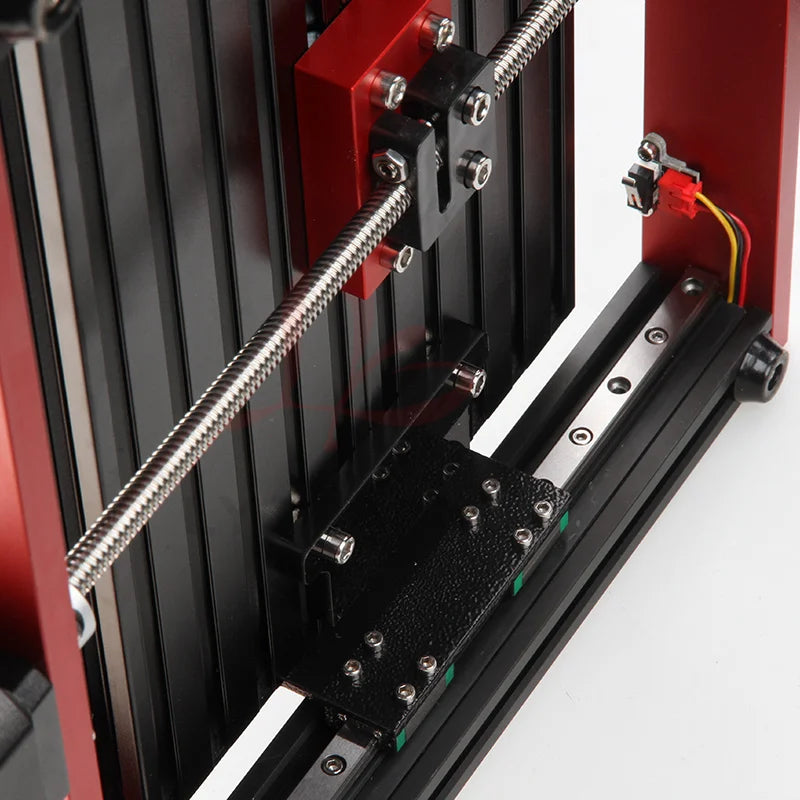

2.6 sets of 3 groups are industrial line rail structure, processing precision 0.05mm, higher precision.
3. This is a finished machine assembled, with three colors to choose from.
4. Equipped with a separate electronic control box
5. High power motor 500W, higher efficiency.
CNC tool processing range:
1.Cutting tool engraving materials: wood, plastic, acrylic, resin, carbon fiber and other non-metallic materials. Aluminum alloy, copper, brass and other soft metals can be engraved.
Laser engraving/cutting range: (For use with laser)
1.Laser engraving: wood. Paper, plastic. Leather, bamboo, dark colored pebbles, ceramic pieces, leaves, rubber, PVC, horn, bone, crab shell, ivory, resin, stainless steel and metal painted surfaces and other combustible materials.
2.Laser cutting: 40W
l10mm or so: paper/leather/fabric/dark-colored compressed sponge; 2. 8mm or so light wood.
l8mm or so: light wood (linden board).
l8mm or so dark color opaque acrylic.
l8mm or so dark-colored plastic, dark-colored PVC, etc.
Suggested engraving parameters:
1.Tool engraving parameters: feed F value, non-metal 300 ~ 500 mm / min, soft metal 50 ~ 100 mm / min, single undercutting step, non-metal 1 ~ 2 mm, soft metal 0.5 ~ 1 mm
2.Laser engraving parameters: combustible materials, speed 1000 ~ 2000 mm / min, power 30% ~ 100%, non-combustible materials, speed 500 ~ 1000 mm / min, power 70%6 ~ 100%
