SPECIFICATIONS

Brand Name: APCOM

Certification: Easy To Operate

Compressor Air-end warranty: 1.5 years

Core Components: PLC,Engine,Hydraulic motor,Diesel Engine,Air-end,Air compressor host

Diesel Engine warranty: 1 year

Dimension(L*W*H): 9,000*2,360*3,000 mm

Drilling Depth: Max.30m

Drilling Diameter: 89 mm,140 mm,90 mm,125mm,115 mm

Featured Product: Drilling Rig

Key Selling Points: Easy To Operate

Machinery Test Report: Provided

Mobility: Crawler type

New design: Rotary Drilling

New features: Low Maintenance Cost

New manufacturing: High Efficiency

New process: Hydraulic Drilling

New products: Crawler Mounted

New technology: For Hard Rock

Place of Origin: Shanghai, China

Power Type: Diesel

Type: Rotary Drilling Rig

Usage: Ore

Video outgoing-inspection: Provided

Voltage: No need

Warranty: 1 YEARS

Weight: 10000 KG

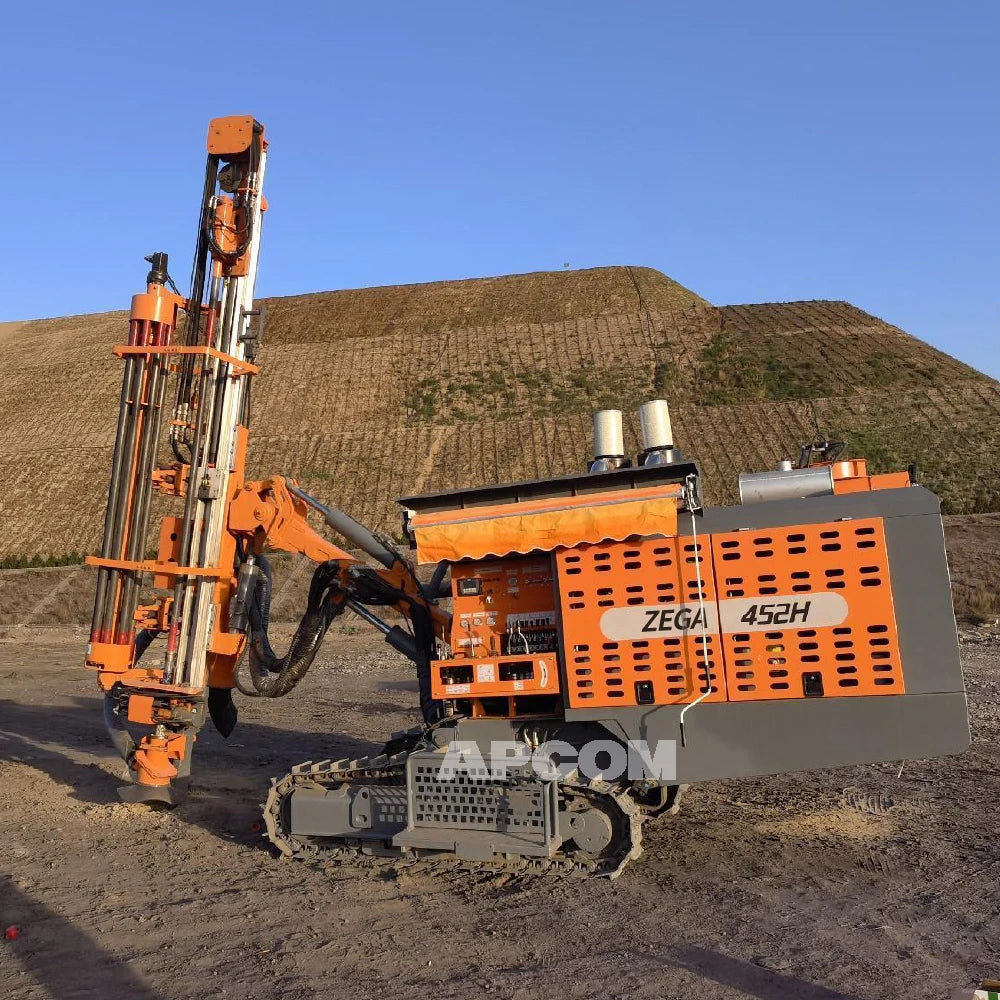

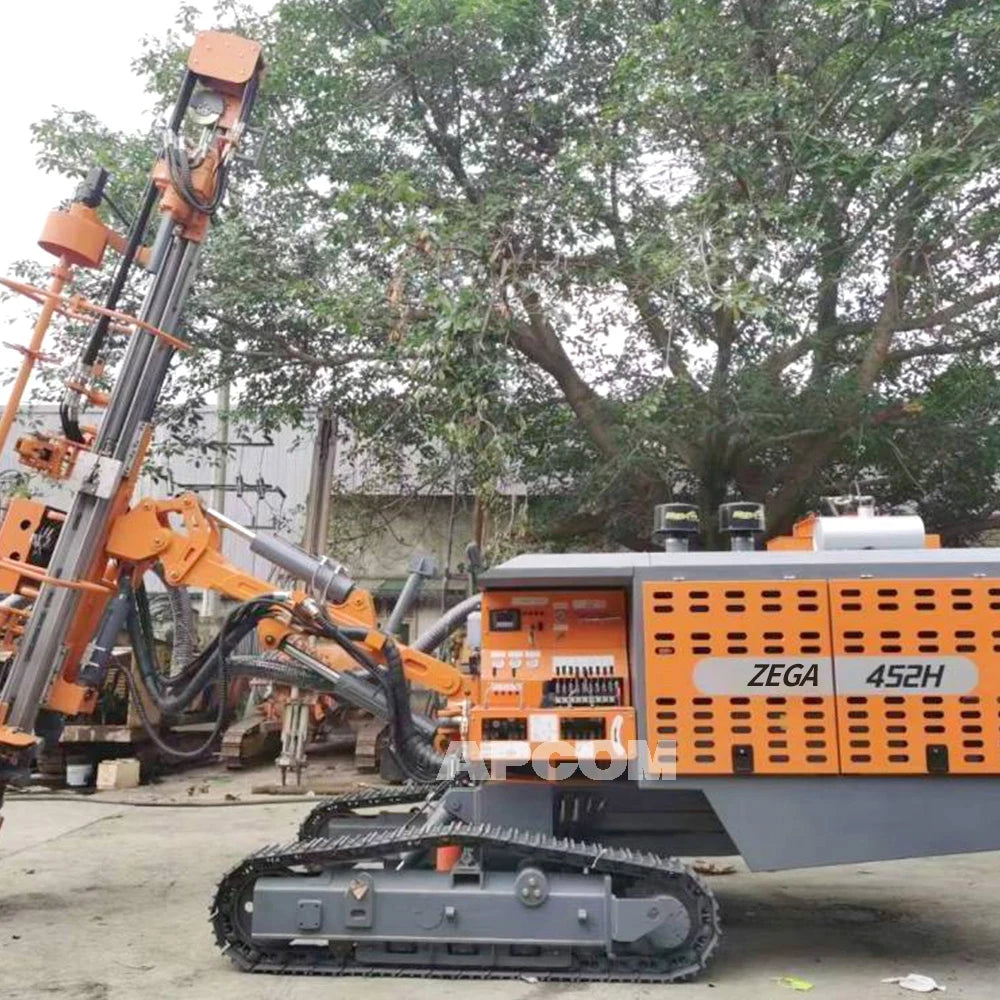

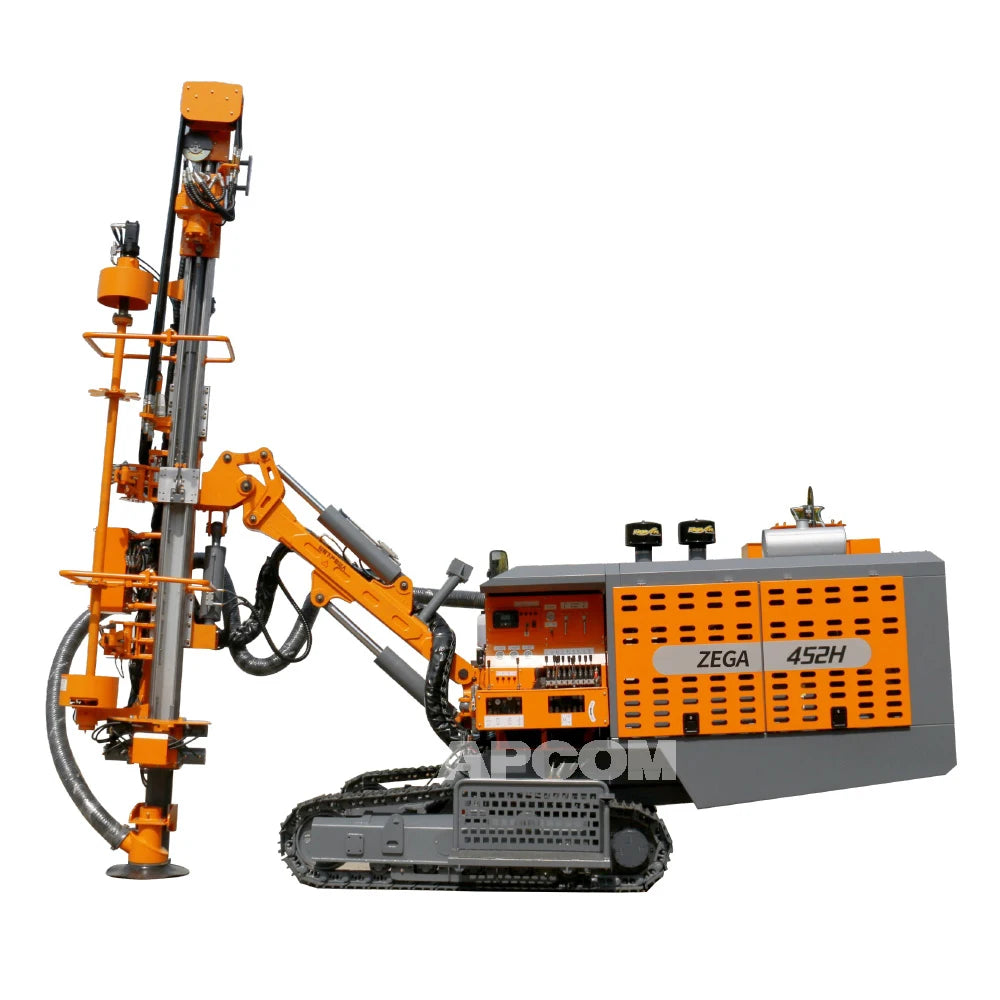

Separated DTH Surface Drill Rig ZEGA-452H

Mode	ZEGA 421TA	ZEGA 421H	ZEGA 452T	ZEGA 452H	ZEGA 453T	ZEGA 454T
Engine (kw)	Yuchai / 162			Yuchai / 191			Weichai / 220	Cummins/ 264
Rotation torque (N.m)	1,500			2,200			2,800	4,000
Drilling hole diameter (mm)	Φ90-127			Φ90-138					Φ115-152
DTH hammer	3.5"			4"					5"
Drilling rod (mm)	Φ76*3,000							Φ76*4,000	Φ89*5,000
tank volume (L)	250	250	300			480	480
Weight (kg)	7,150	8,630	8,860	10,000	13,640	15,000
Dimensions (mm)	7,480*2,300*2,750			9,000*2,360*3,000					11,200*2,360 *3,100

24 hours for you

WhatsApp: +86 137 0579 6425

WhatsApp: +86 137 0579 6425

WhatsApp: +86 137 0579 6425

Chinese Diesel Engine Compressor

Separated DTH surface Drill Rig without Air Compressor (Model with -1 with dust collector)

Mode

Engine

Rotation torque

Drilling hole diameter

DTH hammer

Drilling rod

tank

Weight

Dimensions

CLICK ON

(kW)

(N.m)

(mm)

(mm)

(L)

(kg)

(mm)

ZEGA 412B

Yuchai/58

1,650

Φ90-115

3.5"

Φ60*2,000

115

3,850

4,450*2,080*2,460

ZEGA 412B-1

Yuchai/58

1,650

Φ90-115

3.5"

Φ60*2,000

115

3,850

4,450*2,080*2,460

ZEGA 416T

Yuchai/58

2,200

Φ90-127

4"

Φ76*3,000

70

4,400

5,700*2,130*2,300

ZEGA 416T-1

Yuchai/58

2,200

Φ90-127

4"

Φ76*3,000

70

4,400

5,700*2,130*2,300

ZEGA 420B

Yuchai/58

2,200

Φ90-127

4"

Φ76*3,000

70

4,400

5,700*2,130*2,300

ZEGA 420B-1

Yuchai/58

2,200

Φ90-127

4"

Φ76*3,000

70

4,400

5,700*2,130*2,300

ZEGA 420T

Yuchai/73.5

3,200

Φ90-138

4"

Φ76*3,000

70

5,280

5,420*2,308*2,500

ZEGA 420T-1

Yuchai/73.5

3,200

Φ90-138

4"

Φ76*3,000

70

5,280

5,420*2,308*2,500

ZEGA 425-1

Yuchai/73.5

3,200

Φ90-138

4"

Φ76*3,000

80

6,230

7,000*2,250*2,700

ZEGA 430

Yuchai/73.5

3,500

Φ115-152

4"

Φ76*3,000

110

6,460

7,120*2,450*3,540

ZEGA 430-1

Yuchai/73.5

3,500

Φ115-152

4"

Φ76*3,000

110

6,460

7,120*2,450*3,540

ZEGA 431

Yuchai/73.5

3,500

Φ115-152

4"

Φ76*3,000

156

7,340

7,000*2,300*2,800

ZEGA 845-1

Yuchai/73.5

3,500

Φ115-165

4"

Φ76*3,000

156

7,460

7,000*2,300*2,800

Anchor drill rig without Air Compressor (diesel-electric dual power) Electric Motor 55KW

Mode

Engine

Rotation torque

Drilling hole diameter

DTH hammer

Drilling rod

Tank

Weight

Dimensions

CLICK ON

(kW)

(N.m)

(mm)

(mm)

(L)

(kg)

(mm)

ZEGA 420ST

Yuchai/58

5,000

Φ90-203

4"

Φ76*3,000

80

5,340

6,500*2,280*2,400

ZEGA 425S

Yuchai/73.5

5,600

Φ110-203

4"

Φ76*3,000

105

7,070

6,900*2,270*2,210

ZEGA 430S

Yuchai/73.5

8,000

Φ110-250

5"

Φ76*3,000

105

6,870

7,300*2,280*3,000

ZEGA 435S

Yuchai/73.5

8,000

Φ110-250

5"

Φ76*3,000

105

8,030

7,300*2,370*2,700

DTH surface Drill Rig with Air Compressor

Mode

Engine

Rotation torque

Drilling hole diameter

DTH hammer

Drilling rod

tank

Compressor F.A.D

Compressor Pressure

CLICK ON

(kW)

(N.m)

(mm)

(mm)

(L)

(m3/min)

(bar)

ZEGA 421TA

Yuchai / 162

1,500

Φ90-127

3.5"

Φ60*3,000

250

12

18

ZEGA 421H

Yuchai / 162

1,500

Φ90-127

3.5"

Φ60*3,000

250

12

18

ZEGA 452T

Yuchai / 191

2,200

Φ90-138

4"

Φ76*3,000

300

15

18

ZEGA 452H

Yuchai / 191

2,200

Φ90-138

4"

Φ76*3,000

300

15

18

ZEGA 453T

Weichai / 220

2,800

Φ90-138

4"

Φ76*4,000

480

18

22

ZEGA 454T

Cummins/ 264

4,000

Φ115-152

5"

Φ89*5,000

480

20

22

Tophammer Surface Drill Rig with Air Compressor

Mode

Engine

Drifter model

Drifter power

Drilling hole diameter

Drilling rod

tank

Compressor F.A.D

Compressor Pressuer

CLICK ON

(kW)

(kW)

(mm)

(mm)

(L)

(m3/min)

(bar)

ZEGA 650A

Cummins/119

ZY103

15

Φ45-102

T38/T45*3660

280

5

8

ZEGA 655

Cummins/154

ZY104H

20

Φ64-115

T45/T51* 3660

340

7

8

Cummins Engine Drill Rig

Cummins Engine Blasting Drilling Rig for Mine

Model Click on

Borehole  Diameter

Drill depth

DTH  Hammer

Pipe

Cummins  Power

Cummins  Model

Air  Compresor

Automatic Rod Change

V3

90-130mm

30m

3.5-4 inches

68*3m  76*3m

154kw

QSB5.9-C210

16bar  500cfm

/

V3A

90-130mm

21m

3.5-4 inches

76*3m

154kw

QSB5.9-C210

16bar  500cfm

6+1

V5

90-138mm

21m

3.5-4 inches

76*3m

194kw

QSC8.3-C260

17bar  550cfm

6+1

V6

90-138mm

21m

3.5-4 inches

76*3m

194kw

QSC8.3-C260

20bar  650cfm

6+1

V7

90-138mm

21m

3.0-4 inches

76*3m

264kw

QSL8.9-C360

18bar  550cfm

6+1  Cabin

V8

90-138mm

32m

3.0-4 inches

89*4m

264kw

QSL8.9-C360

20bar  700cfm

7+1  Cabin

Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine

Model Click on

Hole

Depth

Drill pipe

Compresor

Cummins  Power

Impactor parameter

Note

T5

45-90mm

25m

T38 T45

8bar 220cfm

134kw

Epiroc  YYG14L

145bar  30kN

Cabin

T7

76-115mm

25m

T51

9bar 370cfm

194kw

AtlasCopco RD18S

200bar  20kN

Cabin

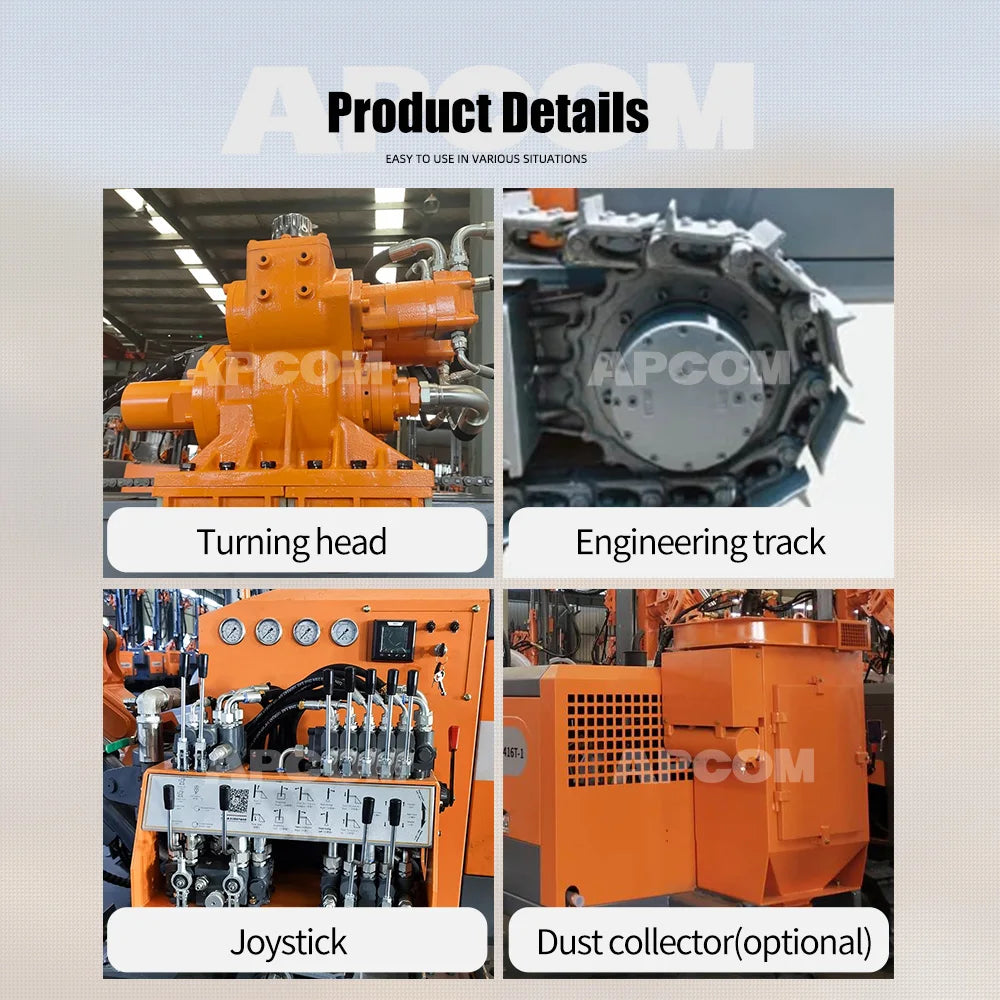

Product Details

Consttruction case

VR Showroom Online

VR

TUV Cerf Factory

APCOM drilling rigs,

Quality is our culture."Welcome know more about APCOM air compressor & drilling rigs;

1.Top 10 brand air compressor & drilling rigs;

2. Air compressor & drilling rigs independent R & D patent products;

3. The monthly output value of machine is 3000 sets;

4. Oil free air compressor TUV certified,drilling rigs CE.

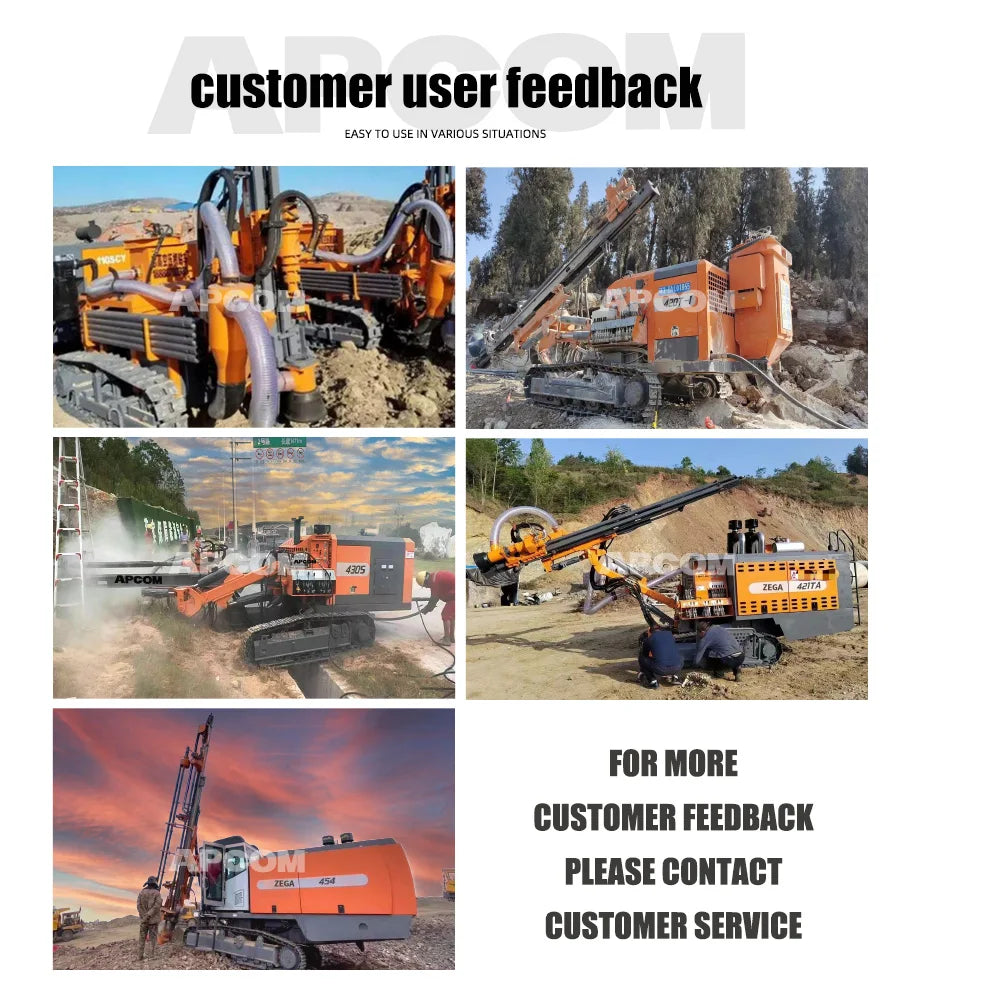

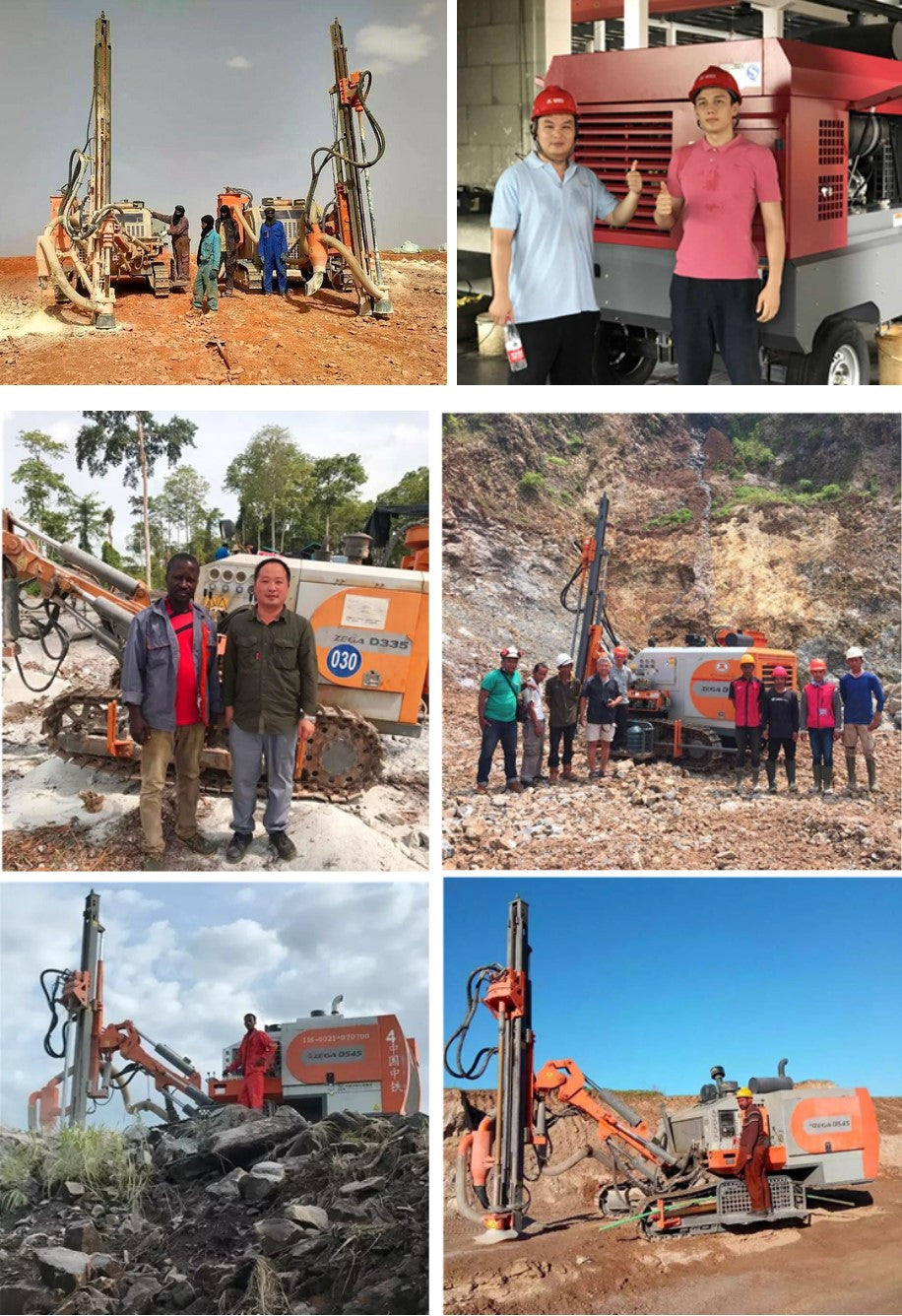

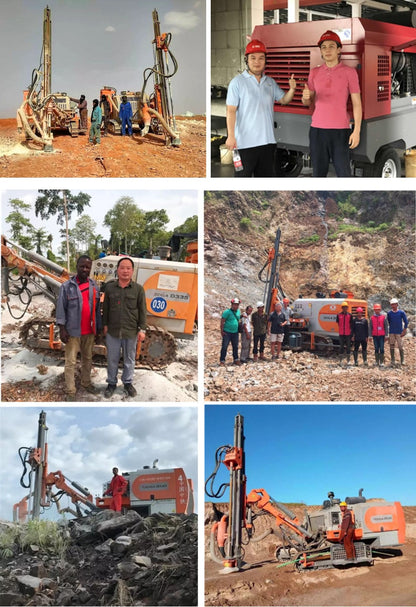

Exhibition & User
