SPECIFICATIONS

Acting Mode: On/off

Brand: Flomarvel

Certificate: IP67, CE, RoHS, NSF61

Coil connection: 35cm (13'') lead wires

Connection: NPT BSP thread, socket welding

Manual override: Optional

Port Size: 1/2'' - 2''

Pressure: PN16

Seal Material: Silicone rubber

Usage: Equipment and system automation

Valve seat: PTFE

application: General

brand name: Flomarvel

customized support: OEM,ODM

media: Water Oil Gas etc

model number: FH-B

place of origin: Tianjin, China

power: Electric

structure: Ball

temperature of media: Normal Temperature

warranty: 14 months

Product Overview

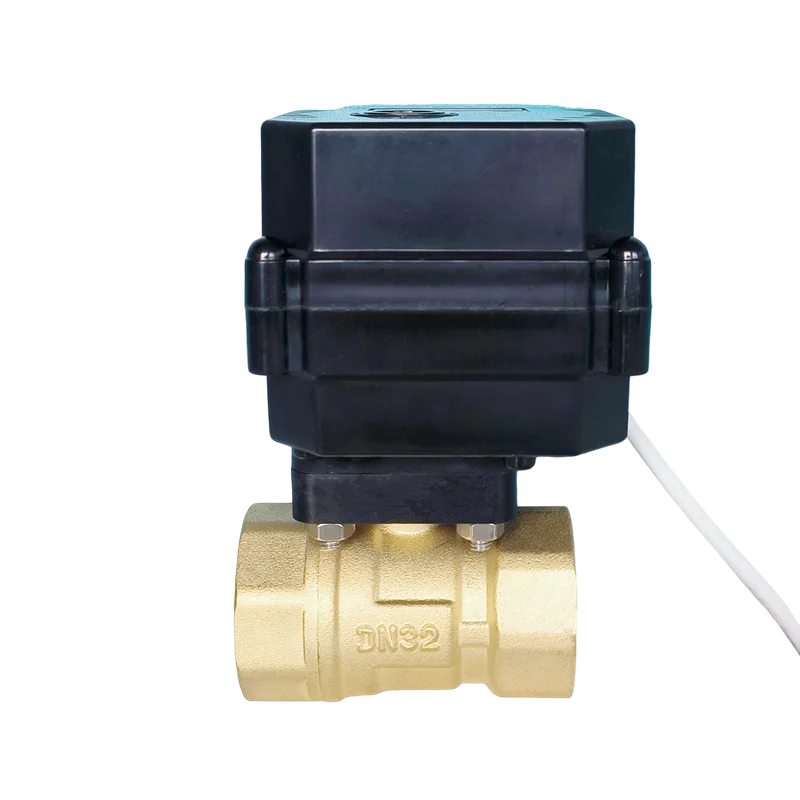

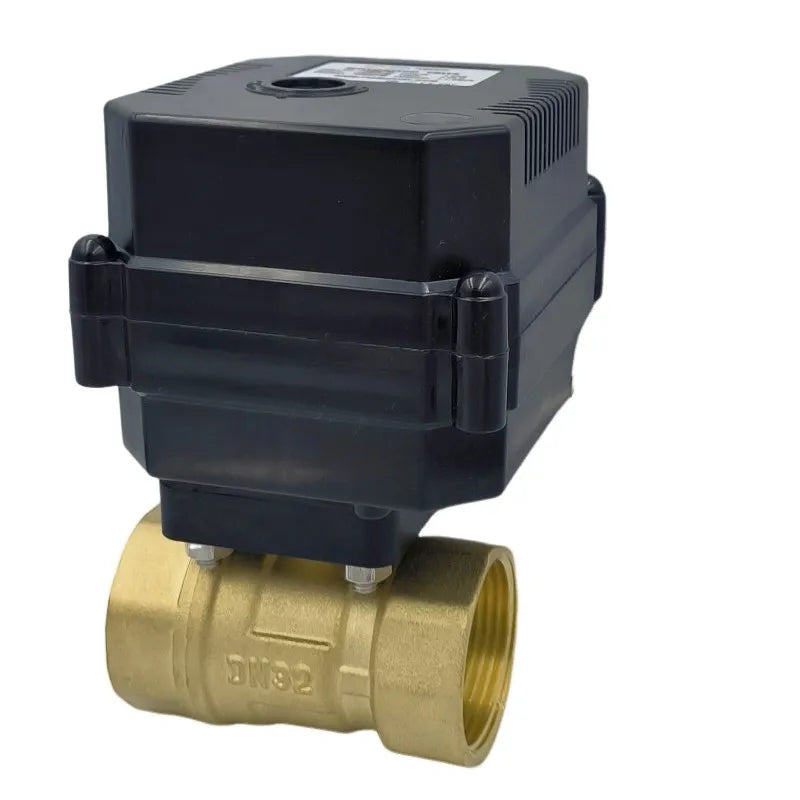

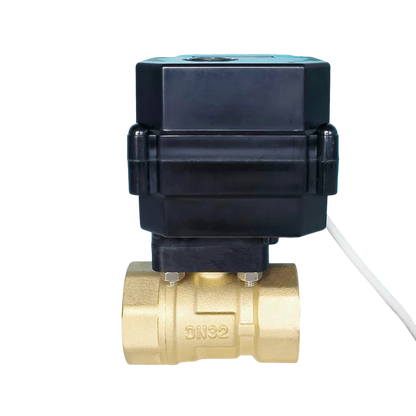

FH-B 15NM ball valve electric actuator

The electric actuator of FH-B series electric motorized ball valve has a 15 NM output torque, which makes it suitable for industrial light duties. Generally this ball valve electric actuator can actuate stainless steel/pvc plastic/brass DN50 (2'') 2 way ball valve and the sizes below and DN25 (1'') 3 way ball valve and the sizes below. The voltage available are 5V DC, 12V DC, 9-24V DC, and there are wiring diagram of 2 wires, 3 wires and 5 wires for option, which enable the electric ball valve to be integrated to various control systems. Using a ball valve electric actuator to automate fluid control also has a benefit of low power consumption, for most wiring, there will be no power consumption after the ball valve is in the open/close position. The ball valve electric actuator is assembled with ball valve by ISO 5211 standard flange pad (F03, F05), so generally it can connect with any ball valve with F03/F05 flange pad (make sure the output torque is enough to drive the valve, and the valve is quarter-turn valve though). This allows both the electric actuator and ball valve to be swapped out with another one using the same flange size, which makes repair much easier.

Features

∎ Precision metal gear, high strength, reliable performance, long service life ∎ Multiple wiring for remote control and valve status feedback to intelligent control unit ∎ With visual position indicator and manual override for sudden power failure or unexpected emergency operate ∎ ISO5211 standard flange connection - F03, F05 - for valve and actuator connection ∎ IP 67 protection, applicable for humid environment ∎ Two auxiliary limit switches for accurate and consistent valve position

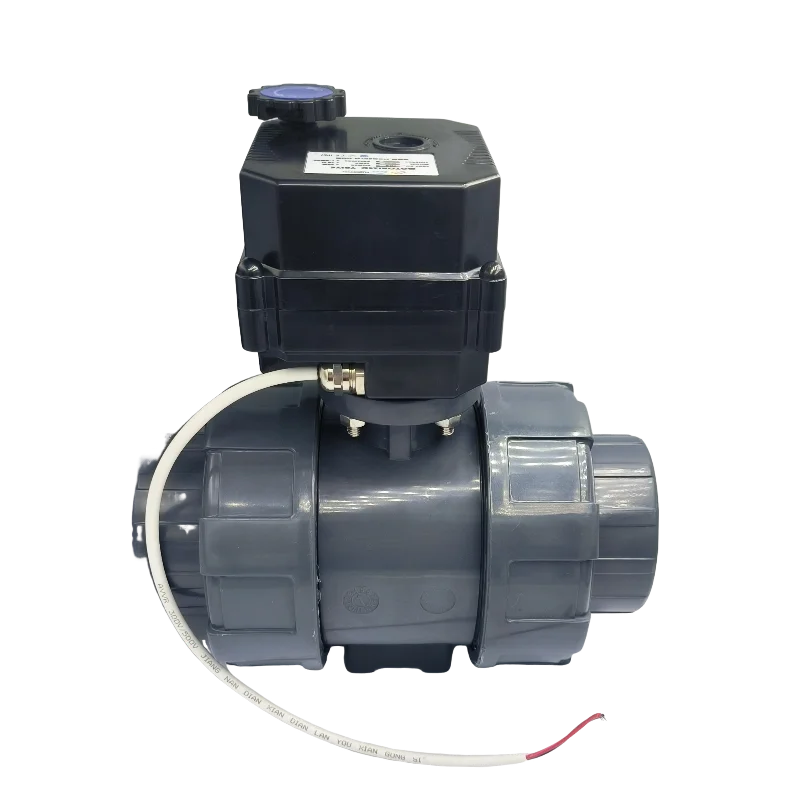

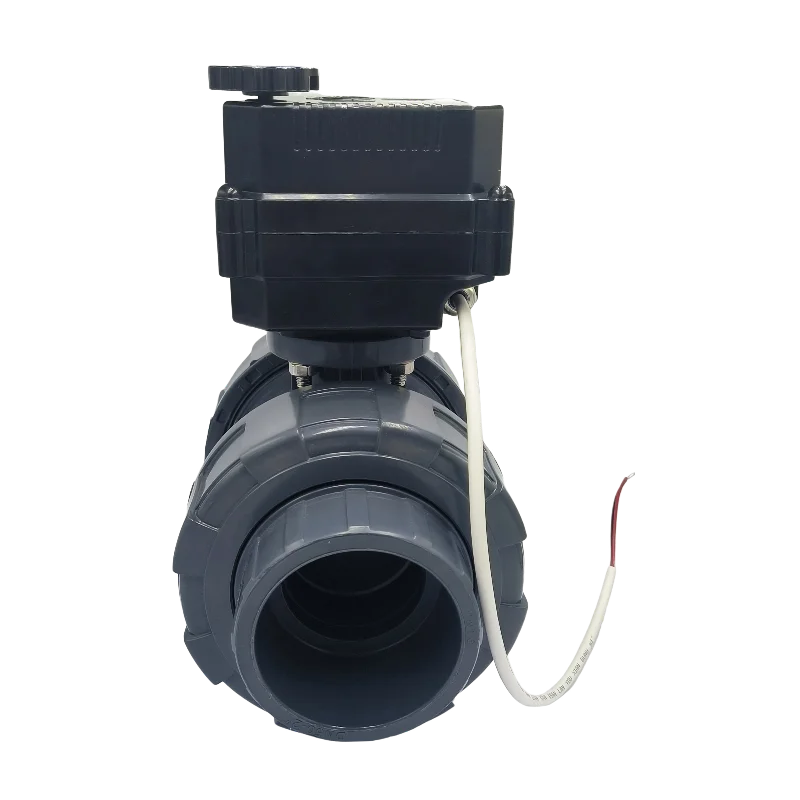

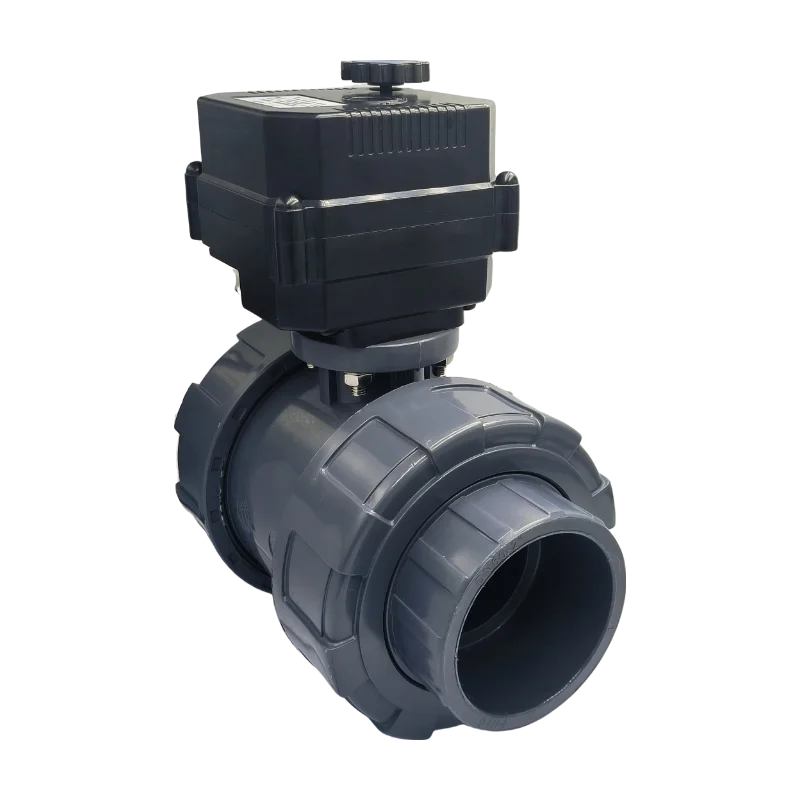

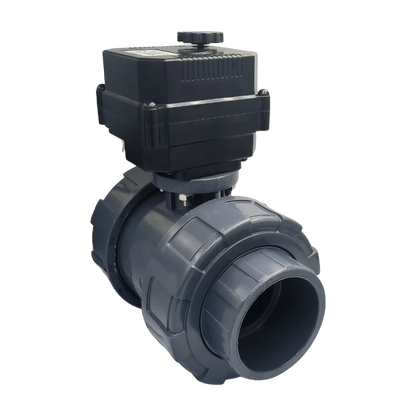

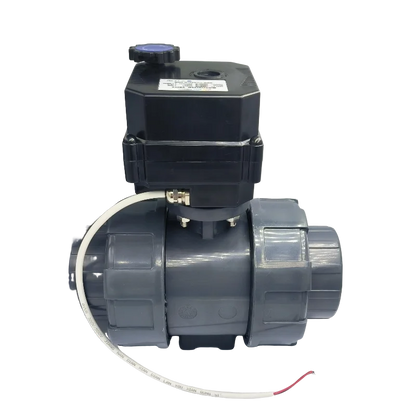

PVC electric ball valve

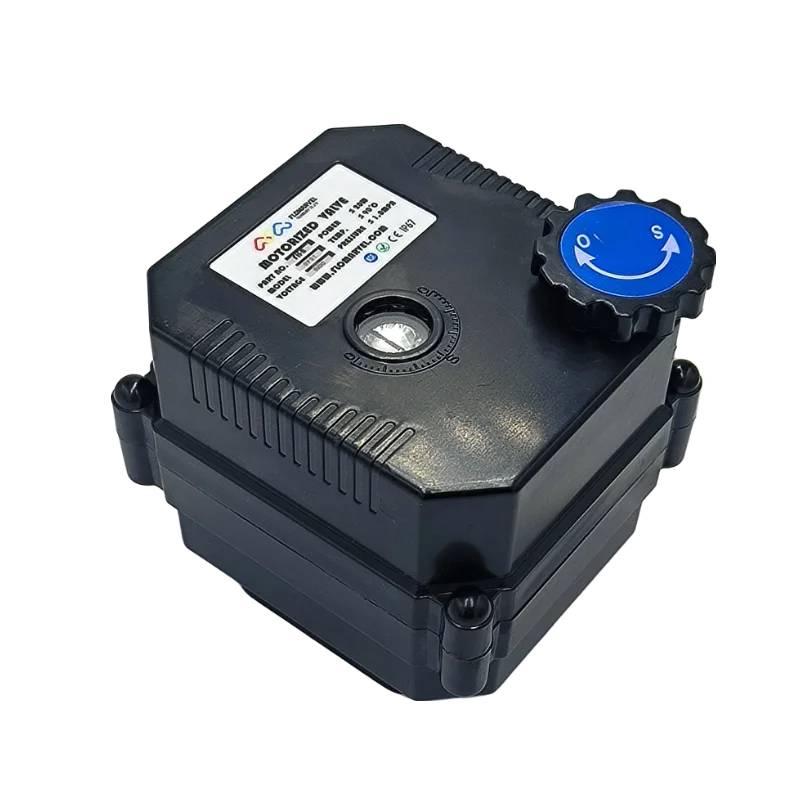

Electric ball valve actuator

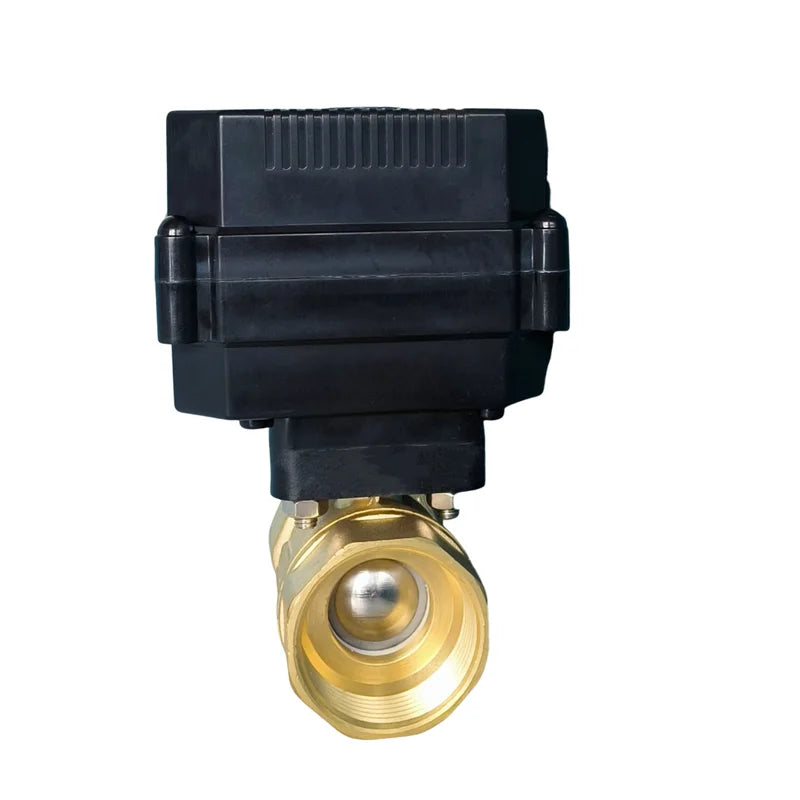

Stainless steel motorized ball valve

Connectors customizable

Various connectors customizable to fit into different control systems and meet requirement of different scenarios.

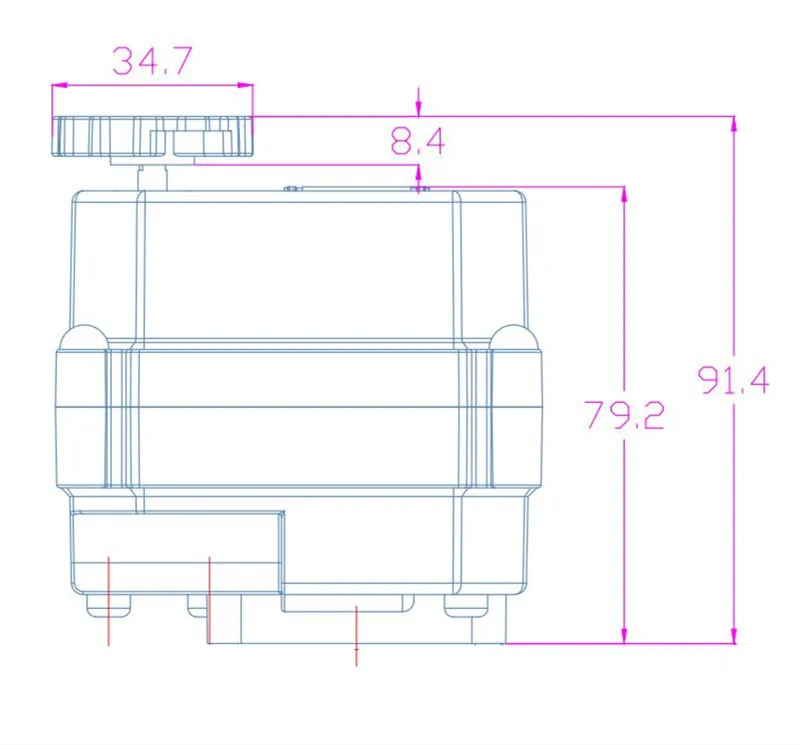

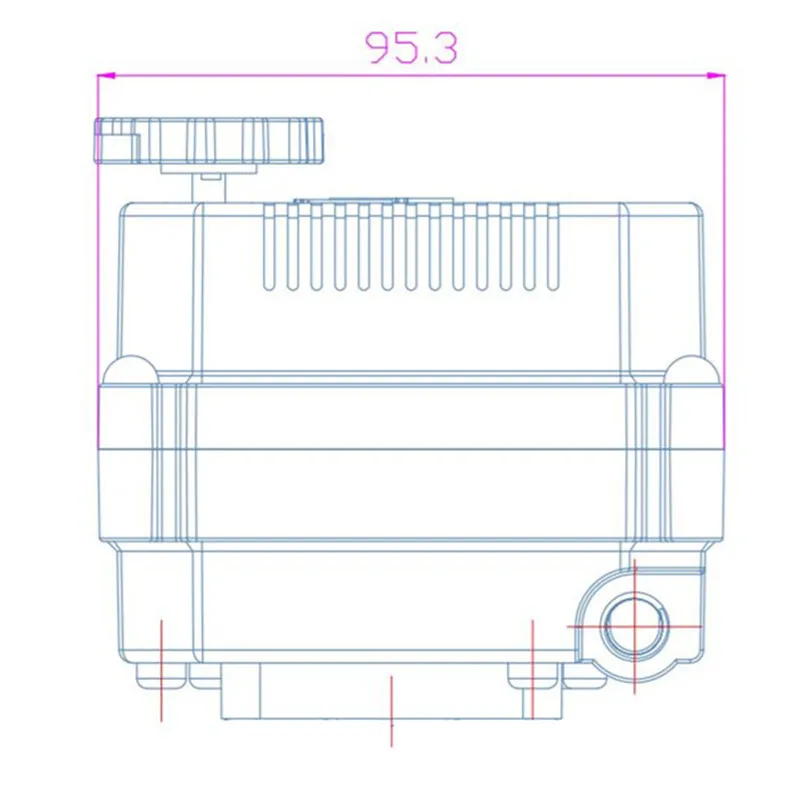

Product Paramenters

Series	Torque	Operating Time	Working Voltage	Working Current	Max. Power	Max. Pressure
FH-B	15NM	<5s	5V DC,12V DC, 24V DC	<300mA	22W	1.6 Mpa

Medium Temperature	Ambient Temperature	Humidity	Enclosure	Service Life	Wiring
0-100℃/ 32-212℉	-20-45℃/ -4 -113℉	95%	IP67	80,000 Times	OP01, OP02, OP03, OP04, OP05 Optional, Customization Available

Wiring diagram

OP01 Wiring - 2 Wires, Reverse Polarity

1.Connects red wire to positive pole, black wire to negative pole, the electric ball valve opens. 2.Reverse polarity, the electric ball valve closes. ※ Once in position, there will be no power consumption. ※ In case of power loss, valve will remain in its current state. ※ Voltage of power supply for option：5V DC/12V DC/9-35V DC ※ A DPDT switch is suggested for a simple set up.

OP02 Wiring - 3 Wires, 2 Points Control

1. Connects red wire to positive pole, black wire to negative pole, the ball valve opens. 2. Connects green wire to positive pole, black wire to negative pole, the ball valve closes. ※ Once in position, there will be no power consumption. ※ In case of power loss, valve will remain in its current state. ※ Voltage of power supply for option：5V DC/12V DC/9-35V DC ※  A SPDT switch is suggested for a simple set up.

OP03 Wiring - 3 Wires, 1 Point Control

1. Connects red wire and green wire to positive pole, black wire to negative pole, the ball valve opens. 2. Disconnects green wire, the ball valve closes. ※ Once in position, there will be no power consumption. ※ In case of power loss, valve will remain in its current state. ※ Voltage of power supply for option：5V DC/9-24V ADC ※  A on/off switch can be installed in line with green wire for a simple set up. This op03 electric ball actuator uses a constant power and ground wire while a third green wire is used for the control switch to open and close the valve.

OP04 Wiring - 2 Wires，Auto Return / Fail Safe

1. Connects red wire to positive pole,  black wire to negative pole, the ball valve opens (the ball valve is normally closed by default). 2. Disconnect either wire (the circuit is open), there is no power supply to the ball valve, the ball valve closes. ※ Once in position, there is a nominal power consumption to keep the capacitor charged. ※ In case of power loss, valve will return to its normal position, which by default is normally closed valve. If normally open ball valve is needed, please let us know when place an order. ※ Voltage of power supply for option：5V DC/9-24V ADC ※  A on/off switch can be installed in line with red wire for a simple set up.

OP05 Wiring - 5 Wires，With Valve Position Feedback

1. There should be 2 power supply, one for electric ball valve actuator - red wire to positive pole,  black wire to negative pole; another one for customer’s position indication devices - the green wire outputting fully-open signal connects to one device, the yellow wire outputting fully-closed signal connects to another device, and the devices both should be connected to the positive pole of the power supply, and the white wire of the electric ball valve actuator connects to negative pole of the power supply, there conforms a closed circuit. The valve opens, the open position indication device receives the fully-open signal, will light up if lights are used as position indication devices. 2. Reverse polarity, the ball valve closes, the close position indication device receives the fully-closed signal, will light up if lights are used as position indication devices. ※ Once in position, there will be no power consumption for electric ball valve, nomial power consumption for position indication devices. ※ In case of power loss, valve will remain in its current state. ※ Voltage of power supply for option：5V DC/12V DC/24V DC ※  A DPDT switch is suggested for a simple set up.

Purchase Guide

The ball valve electric actuator is assembled with ball valve by ISO 5211 standard flange pad (F03, F05). Before purchasing, make sure the output torque is enough to drive the valve, the valve is quarter-turn valve and the valve has a F03/F05 mounting pad. Below form lists the voltage and wiring available, and manual override is optional too.

Factory

Flomarvel Technology Co., ltd (Tianjin Huayi Chenlong Technology Co., Ltd) has been specialized in the R&D and production of electric ball valve/motorized ball valve for more than 10 years. Our products are mainly exported to Canada, the United States, German, Sweden, Netherlands etc. And they are mainly used in equipment and system automation, smart home, building automation, municipal water supply etc. We have rich experience providing OEM service for customer to build their own product and ODM service to customize product according to customer’s project requirements. Welcome to contact us about your needs. “Details matter” Is our culture. We serve our customers well by doing each small thing and each valve well.

Successful Project

For Fire Extinguishing System

Automatic Equipment

Water Leakage Detection System

FAQ

1. Is OEM/ODM service available?

As a manufacturer, we have rich experience providing OEM service for customer to build their own product and ODM service to customize product according to customer’s project requirements. Welcome to contact us about your needs.

2. How many days is the lead time?

For standard products, when the order quantity is less than 50pcs, the lead time would be about 3 working days; when the order quantity is 50-200 pcs, the lead time would be 7 working days, for 200-1000pcs order, it would be 15 working days.

3. How do you do the shipment?

Our products are mostly shipped by express, such as UPS, DHL, Fedex etc. If the shipment could be done with cilent's courier account as payer, or the shipment is to be done by clients' own forwarder, then of course no freight charge. Otherwise, we could quote for the shipping cost, if it is acceptable to clients, then we can do the shipment.

For bulky order, surely we could also check the cost of shipment by air or by sea.

4. What is the MOQ？

Actually we don't have requirement about the MOQ, because for most clients, they would need to test sample first, which could be 2 pcs.
