SPECIFICATIONS

After Warranty Service: Video technical support

After-sales Service Provided: Engineers available to service machinery overseas

Product Type: Fertilizer

application: Chemicals Processing,Plastics Processing,Food Processing

brand name: haixiang

capacity: 100-300kg/h

core components: Bearing,Gear,Motor,Gearbox,Other,PLC,Engine

dimension(l*w*h): 400*500*1250mm

discharge size: 12-120mesh

feeding size: 6mm

feeding size (mm): 1 - 12 mm

key selling points: Automatic

machinery test report: Provided

material: SUS304,SUS304L,SUS316,SUS316L,Ti,Other

model: 30B

motor power: 5.5kw

output (kg/h): 100 - 300 kg/h

output size (mesh): 10 - 120 mesh

place of origin: Jiangsu, China

power (kw): 5.5

range of spindle speed(r.p.m): 1000 - 3800 r.p.m

speed: 3800rpm

type: Pulverizer

video outgoing-inspection: Provided

voltage: 100-300V

warranty: one year warranty

weight (kg): 250 KG

Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We are professional manufacturer of mixing machine,grinding machine,drying machine and other customized machines,we accept OEM,ODM.

Products Description

Model B Universal Grinder

Main Application:
Model B Universal Grinder is used in the industries of chemical,food and etc.

Operating Principle:
By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth
and impact among the material.The machine is designed according to GMP standard and made of stainless steel 304.The advantages of it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.

Technical Parameter:

Model	Capacity (kg/h)	Grinding Speed (RPM)	Motor Power(KW)	Feeding Fineness(mm)	Discharge Fineness (mesh)	Overall size(mm)	Weight(kg)
15B	10-50	6000	2.2	6	12-120	550*450*850	85
20B	60-150	4500	4	6	12-120	550*600*1250	330
30B	100-300	3800	5.5	6	12-120	600*700*1450	600
40B	160-500	3400	7.5	10	12-120	800*900*1550	900
60B	300-1000	2800	15	12	12-120	900*900*1880	1200
80B	400-2000	2000	22	12	12-120	1100*950*1960	1800
100B	500-3000	1500	30	12	12-120	1350*1000*2100	2000

Additional configuration:
1.material:all stainless steel/contact parts stainless steel/carbon steel or other.
2.dust collector type:easy dust collector or pulse dust collector
3.grinding knife type:hammer type.knife type,turbine type.active type.knife type,air cooling type or other.

4.frequency converter:Delta,Siemens,Mitsubishi or other

5.PLC,HMI:Siemens or other.

6.frequency converter:Delta,Siemens,Mitsubishi or other

7.motor: WNM,Siemens,ABB,Sumitomo or other.

8.bearing:HRB,NSK,SFK or other.

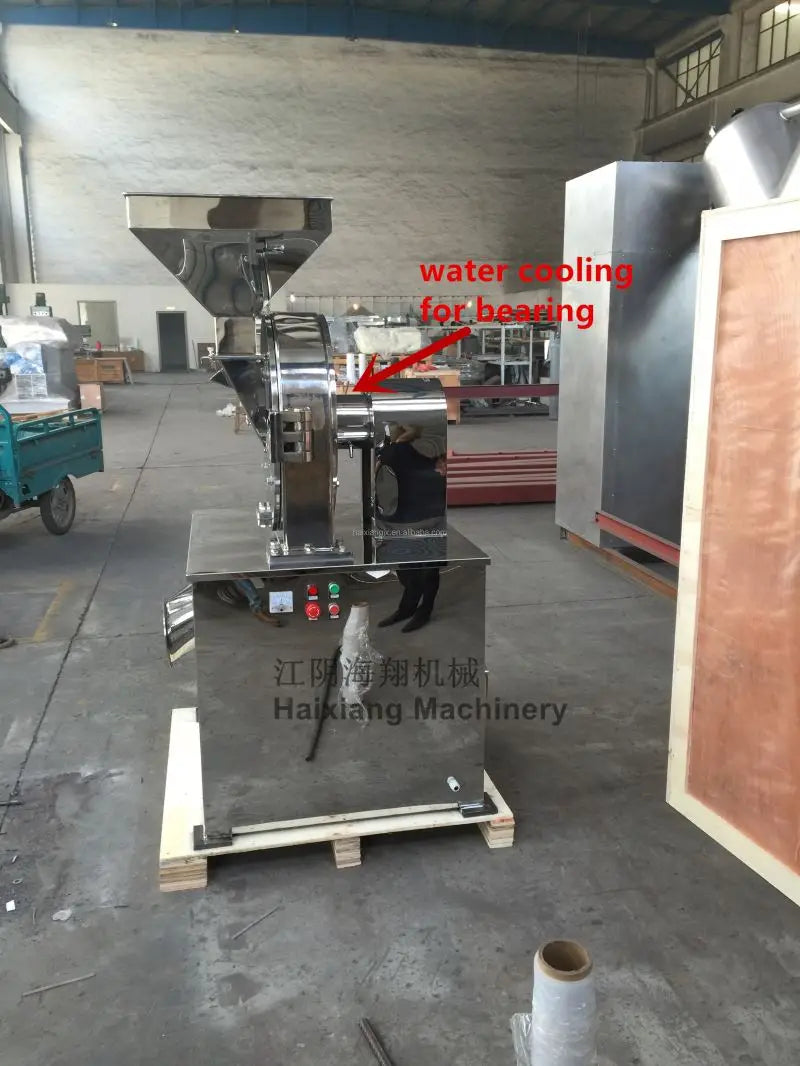

9.cooling type:water jacket for bearing and grinding chamber,air cooling system for chamber(-10°C inlet) or Liquid Nitrogen type.

10.Platform: we build the platform for you or we design it and you build it locally.

11.other machines: including packing machine, bucket elevator, Sieve, screw conveyor and so on.

Customizing according to client’s specific requirement

FAQ

1.what's your raw material?do you know the density and packing density of your raw material?

for example black pepper,density:580g/L,packing density:450g/L
2.what capcity do you require？

for example 300kg/kg

3.what's your industry voltage in your factory?we only accept 3 phase power sullpy.

foe example 380V,50HZ,3PH;220V,60HZ,3PH;we accept customize.

4.what's the material of the grinder do you require?

for example carbon steel,contact parts stainless steel 304,all parts stainless steel 304,contact parts stainless steel 316,Titanium material.

5.how much fine of the feeding size and discharge size:

for example black pepper.feeding size:4mm,discharge size:60 mesh.

Details Images

Different kinds of knives for choice

accept customized

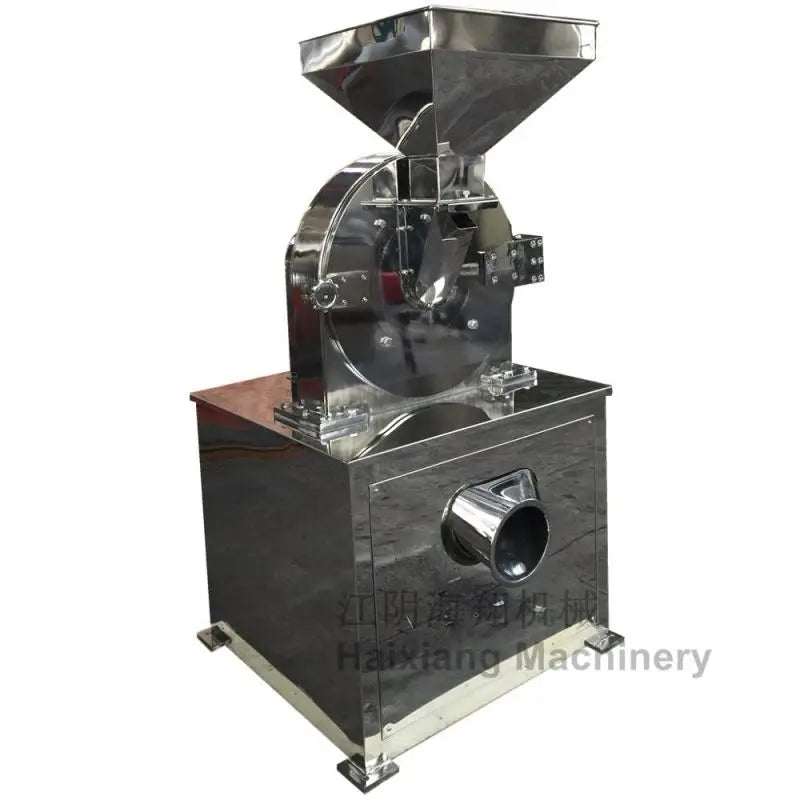

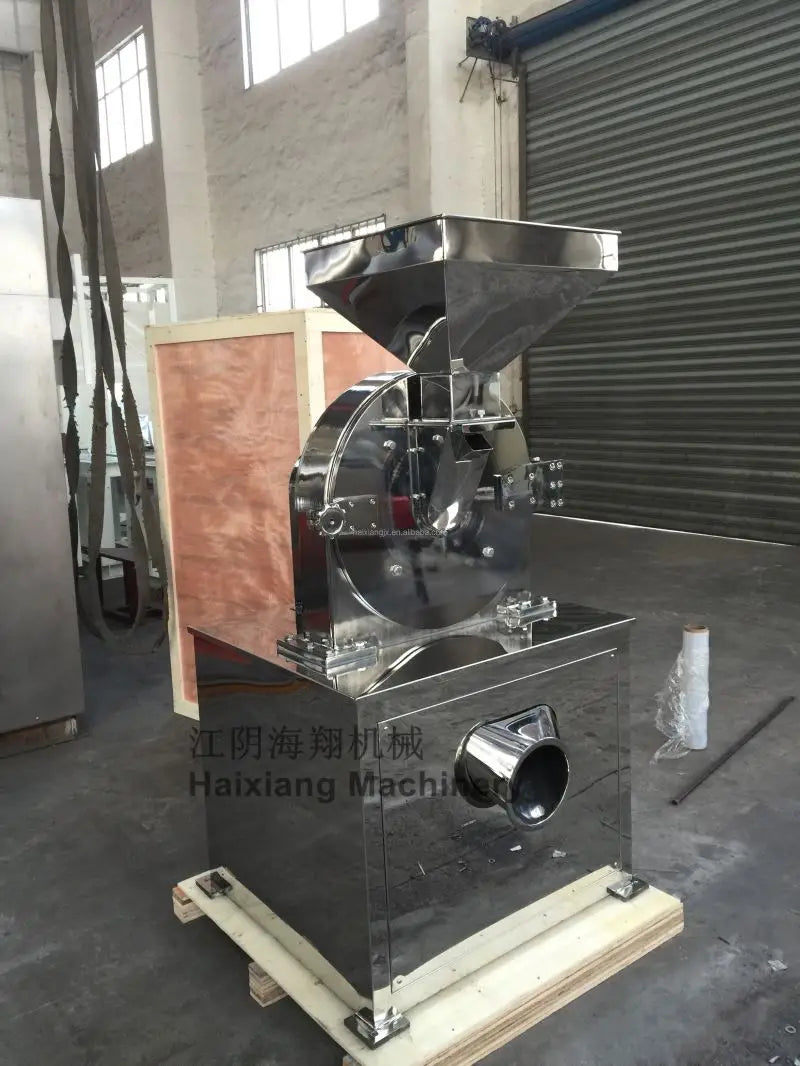

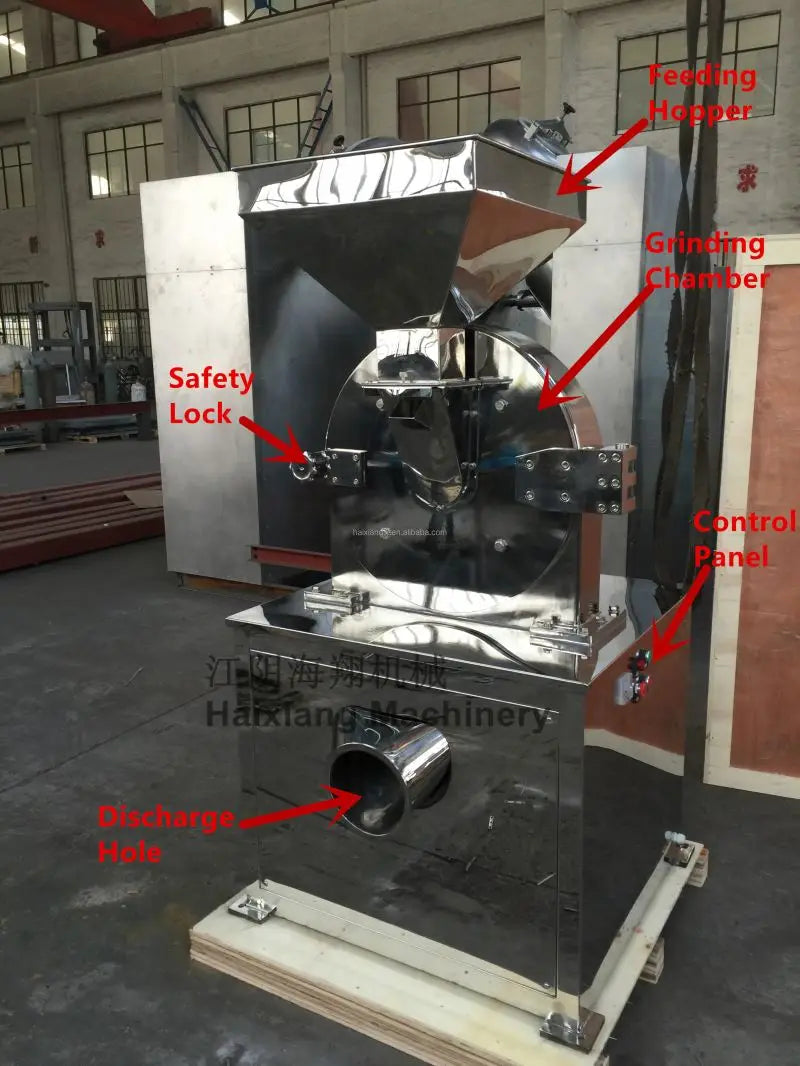

Single Machine

easy clean and easy operate

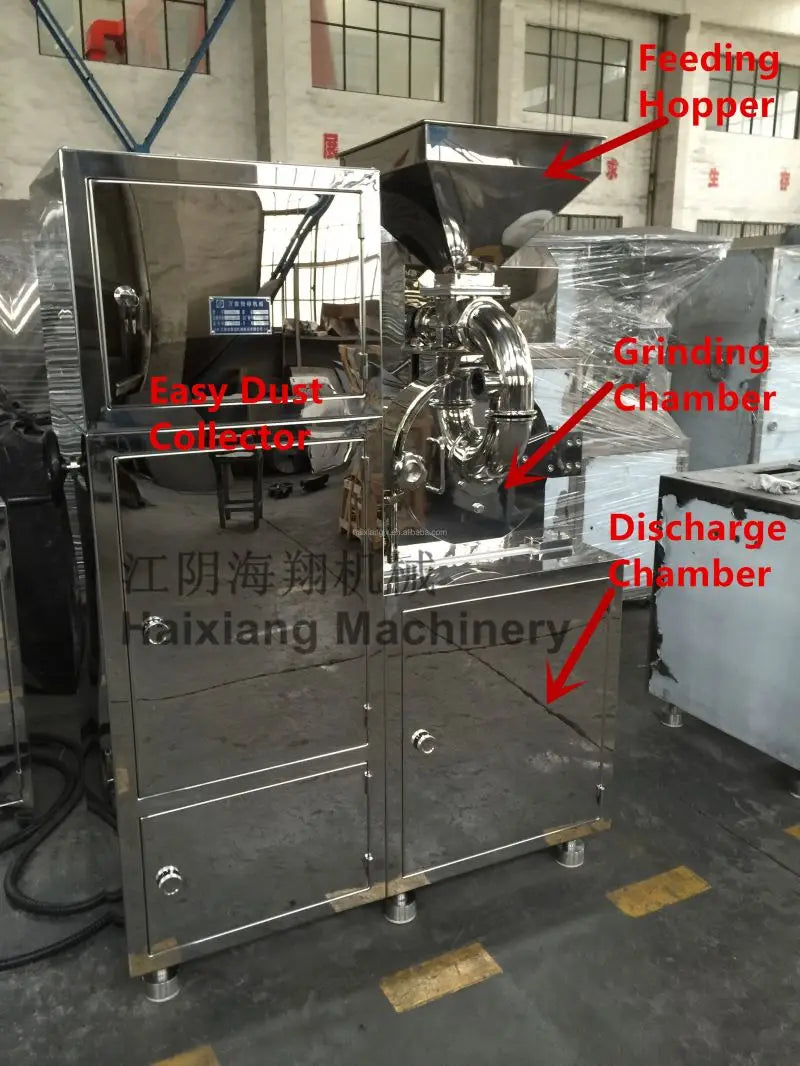

Easy dust collector

have easy dust collector device.it can collect some dust in working.but still have dust in working.

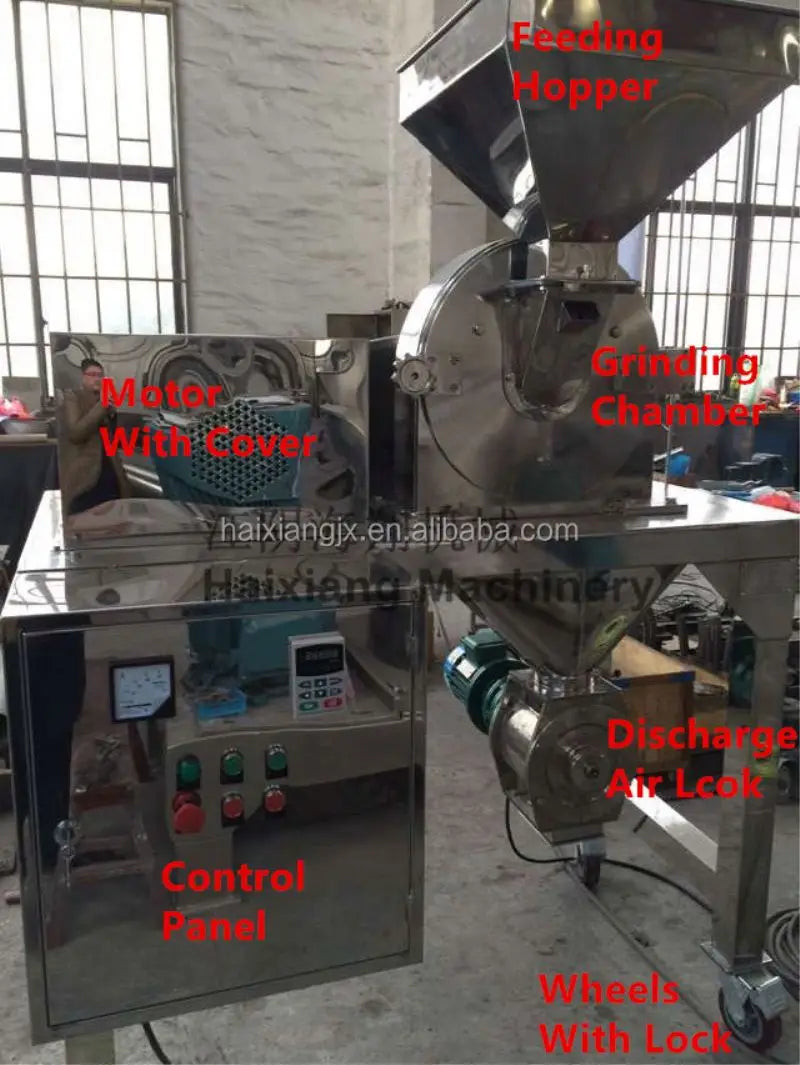

Table type

Discharge at the bottom.

it can connect with other machine,for example screw conveyor,vacuum conveyor,sifter,mixer and other.

easy operate and clean

Pulse Dust Collector

Pulse Dust collector type

won't make any dust in working.

Recommend Products

micro pulverizer

grind material from 10mm to 40-320mesh.no screen design

Vacuum Conveyor

lift material from ground to the machine.

ribbon mixer

 machineribbon type mixi
