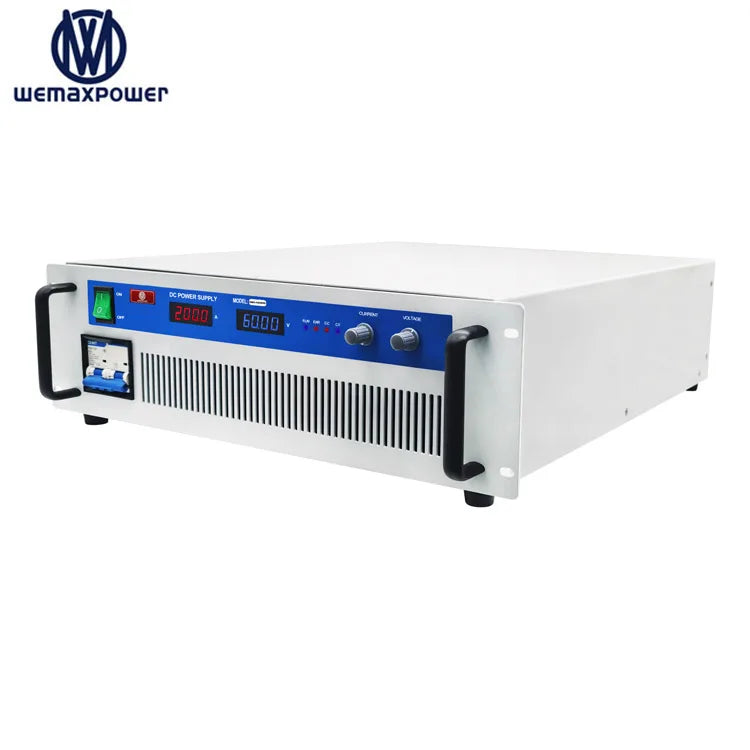

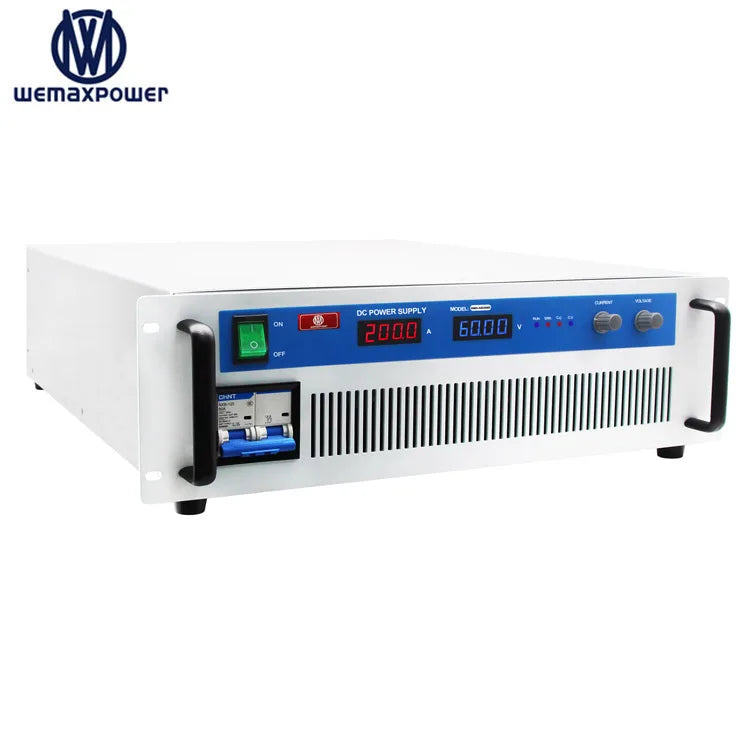

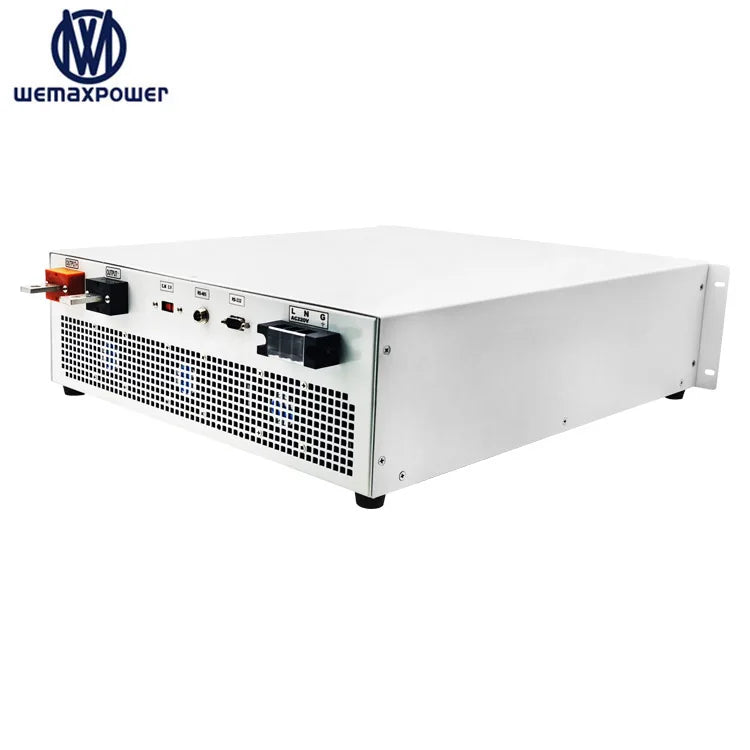

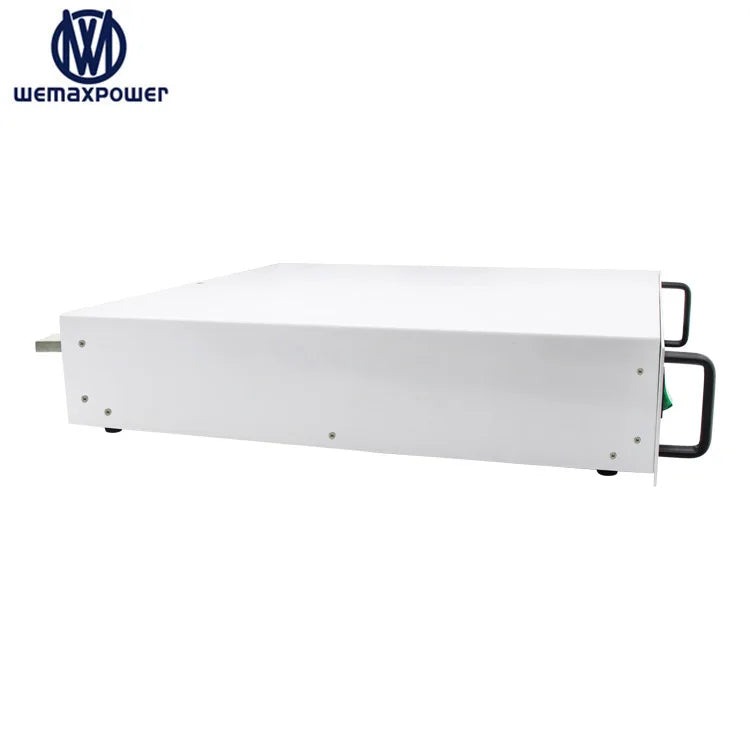

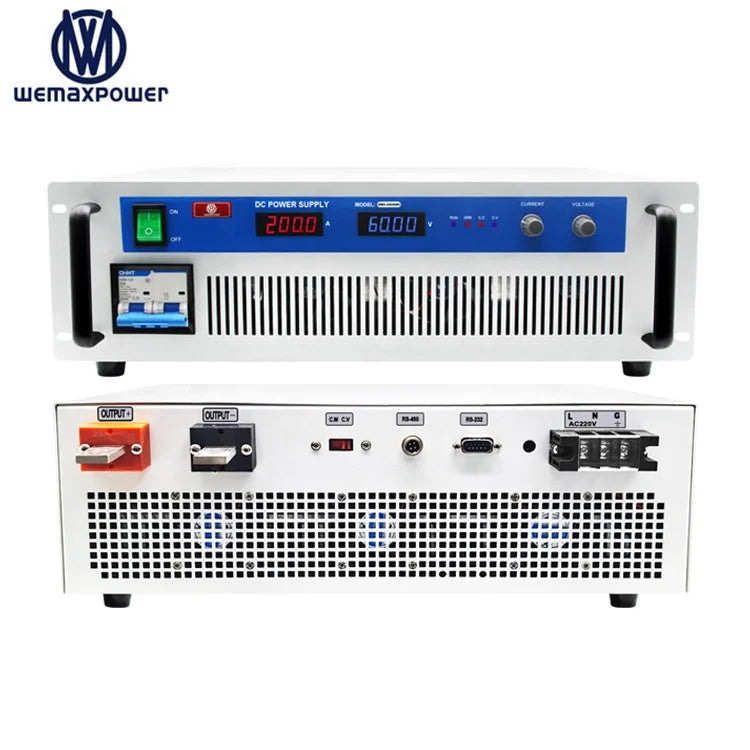

Laboratory High Voltage Power Supply 1200V 10A 12KW Adjustable Voltage Current Single Output Switching Variable AC to DC
Laboratory High Voltage Power Supply 1200V 10A 12KW Adjustable Voltage Current Single Output Switching Variable AC to DC
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Application: Battery Charging,CCTV,Industrial DIN Rail Power Supply,Industrial Equipment,Industry,Laboratory,Led Lighting,Machines
Brand Name: WEMAXPOWER
Certification: CE
Display Type: 4 digital display
Efficiency: 0.86
Input Voltage: 380 V
Model Number: WMX-ASD120010
Output Current: 10A
Output Frequency: 50/60 Hz
Output Type: Single
Output Voltage: 1200V
Output mode: Adjustable voltage & current output
Place of Origin: Guangdong, China
Product Name: 1200V 10A High Voltage DC Power Supply
Protection: Over Power Protection,Over Temperature Protection,Overcharging Protection,Overcurrent Protection,Overloading Protection,Overvoltage Protection,Short Circuit Protection,Undervoltage Protection
Type: AC-DC
Warranty: 1 Year
Laboratory High Voltage Power Supply 1200V 10A 12KW Adjustable Voltage Current Single Output Switching Variable AC to DC
1200v 10a DC Power Supply
| *Adjustable Power Supply Series* | ||||
| 500~1000W | 1501~2000W | 3001~4000W | 6001~8000W | 10.1~12KW |
| 1001~1500W | 2001~3000W | 4001~6000W | 8001~10KW | 12.1~20KW |
DC Power Supply is widely applied into industrial control, electronic power, electroplating, communication, scientific research, instrument, medical, ship, railway and other high-tech fields.
1. Electric tools: LED test and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification.
2. Automobile: automobile electronics, high power dc motor, automobile motor controller, car lighting, cigarette lighter, automobile audio and video.
3. Electronic devices: capacitors, resistors, relays, transistors, sensors.
4. Motor: electric motor, electric vehicle controller, dc motor test.
5. Display: display screen, liquid screen, touch screen, on-board DVD, mobile phone display.
6. Electrochemical class: electrolysis, electroplating, anodic oxidation, nonferrous metal research.
|
Brand |
WEMAXPOWER |
|
Model |
WMX-ASD 1200 10 1200-Output Voltage,10-Output Current |
|
Input Voltage |
3 Phase: AC380V±10%,50Hz/60Hz |
|
Output Voltage/Current Customize range |
0~1200V, 0% to 100% adjustable, 1~10A,10% to 100% adjustable. |
|
Output Power |
12000W |
|
Output mode |
Constant voltage & Constant Current |
|
Load Regulation |
≤0.5%+30mV |
|
Ripple |
≤0.5% + 10mVrms |
|
Power supply stability |
≤0.3%+10mV |
|
Voltage | Current Display Accuracy |
Precision of 4 digit table : ±1%+1 word (10%-100% rating) |
|
Voltage | Current value display Format |
Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A; |
|
Output Voltage Overshoot |
Build in O.V.P Protection with a rate of + 5% |
|
Operation Temperature | Humidity |
Operation Temperature : (0~40)℃; Operation Humidity : 10% ~ 85% RH |
|
Storage Temperature | Humidity |
Storage Temperature : (-20~70)℃; Storage Humidity :10% ~ 90% RH |
|
Over-Temperature Protection |
(75~85) C. |
|
Heat Dissipation Mode/ Cooling mode |
Forced air cooling |
|
Efficiency |
≥86% |
|
Start-up Output voltage setting time |
≤3S |
|
Protections |
Lower voltage, over voltage, over current, short circuit, overheating. |
|
Insulation Strength |
Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
|
Insulation Resistance |
Input-Output ≥20MΩ; Input-Output ≥20MΩ; Input-Output ≥20MΩ. |
|
MTTF |
≥50000h |
|
Remote Control Functions (Non-Standard,additional payment) |
0-5Vdc /0-10Vdc analog signal control output voltage & current |
|
0-5Vdc /0-10Vdc analog signal to read-back output voltage & current |
|
|
0-5Vdc /0-10Vdc analog switch signal to control output ON/OFF |
|
|
4-20mA analog signal control output voltage & current |
|
|
RS232/RS485 Communication port control by computer |
|
|
Dimension |
483*575*135mmm |
