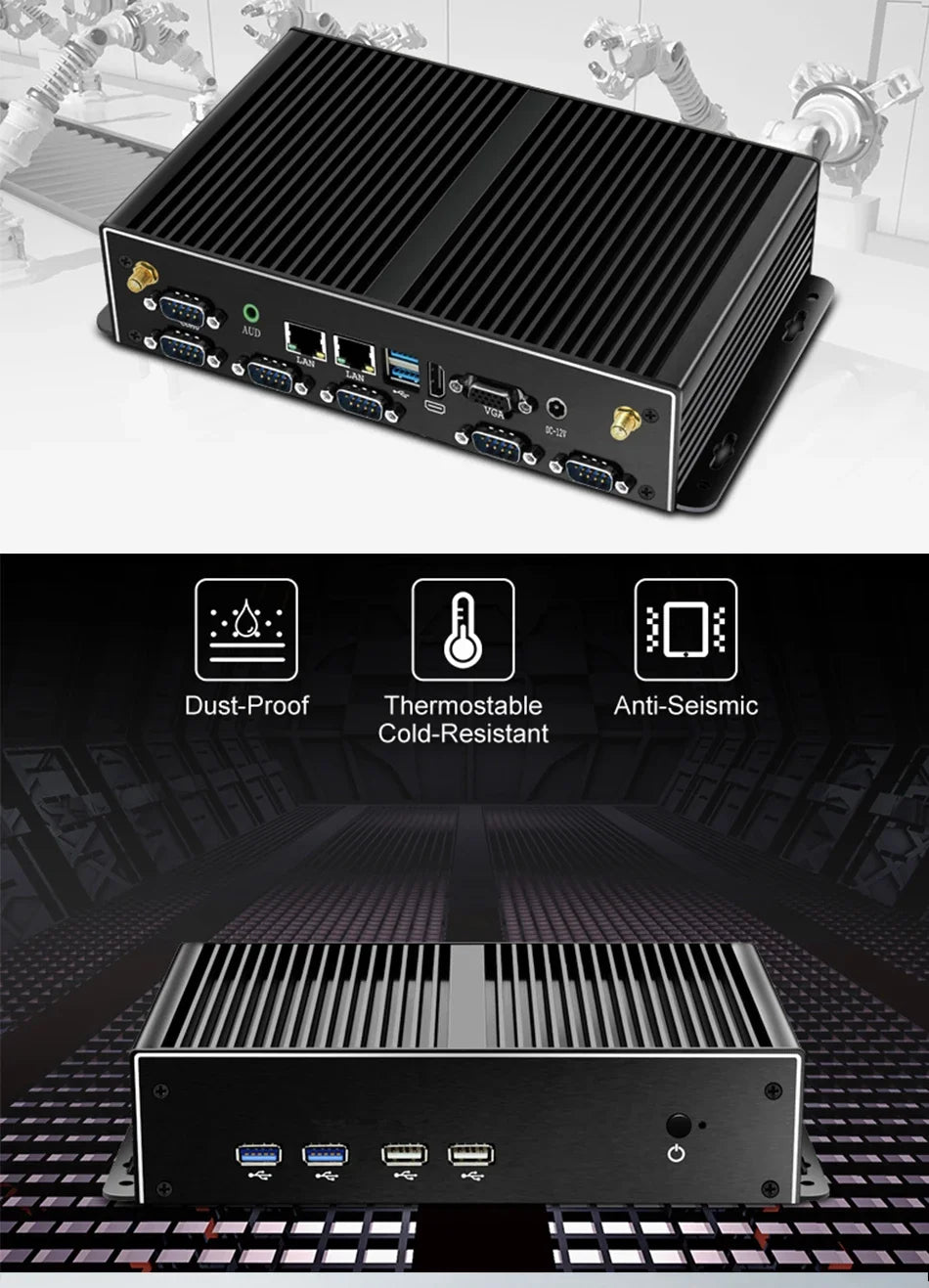

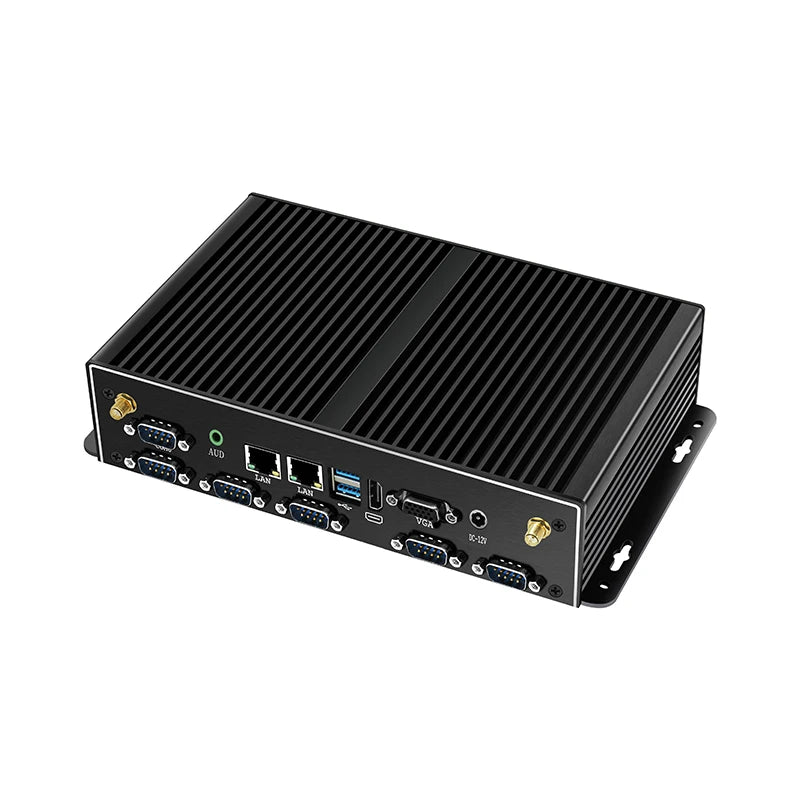

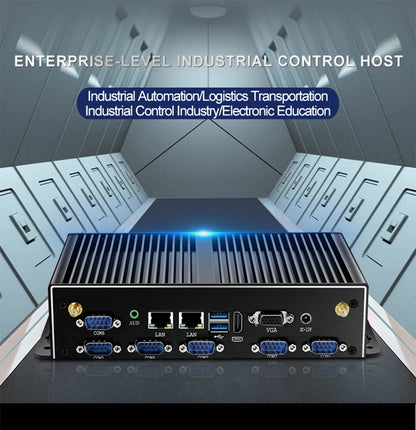

Industrial Mini PC Fanless Dual LAN 6x COM-RS232 Support 1x RS485 Intel I7-5500U Celeron J1900 SIM Slot Mini-PCIe Windows Linux

Prix habituel CFA93,848 XOF

Prix habituel ~~CFA0 XOF~~ Prix promotionnel CFA93,848 XOF

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Color intel Celeron 2955UVariante épuisée ou indisponible intel Core i7-4500UVariante épuisée ou indisponible intel Core i5-4200UVariante épuisée ou indisponible intel Core i7-5500UVariante épuisée ou indisponible intel Core i5-5200UVariante épuisée ou indisponible intel Celeron J2900Variante épuisée ou indisponible intel Core i3-4005UVariante épuisée ou indisponible intel Celeron J1900Variante épuisée ou indisponible

Bundle 8G RAM 256G SSD WiFiVariante épuisée ou indisponible 8G RAM 128G SSD WiFiVariante épuisée ou indisponible 4G RAM 128G SSD WiFiVariante épuisée ou indisponible NO RAM SSD NoWiFiVariante épuisée ou indisponible

Quantité Quantité

(0 dans le panier)

SPECIFICATIONS

Brand Name: NoEnName_Null

COM type: 6*RS232, support 1x 485

Certification: CE,FCC,RoHS

Cooling system: Fanless

Graphics Card Type: Integrated Card

Hard Drive Capacity: 250GB

High-concerned chemical: None

Interfaces: 6*USB 6* COM, 2*LAN, 1*HDMI, 1*VGA

Memory Capacity: 8 GB

Mini PCIe slot: 1x mini pcie slot support WiFi/4G LTE

Model Number: X26A 6USB

Origin: Mainland China

Power Supply: DC12V-5A

Processor Brand: Intel

Processor Main Frequency: 2.40GHz

Processor Model: Intel Core i7-5500U Celeron J1900

RAM type: DDR3L 1333/1600MHz 1.35V SO-DIMM

SIM slot: 1

SSD type: 1*mSATA ,1* 2.5inch HDD SATA slot

Supported OS: Windows, Linux, Ubuntu, etc.

Type: Mini Desktop,Mini PC

Use: Multimedia

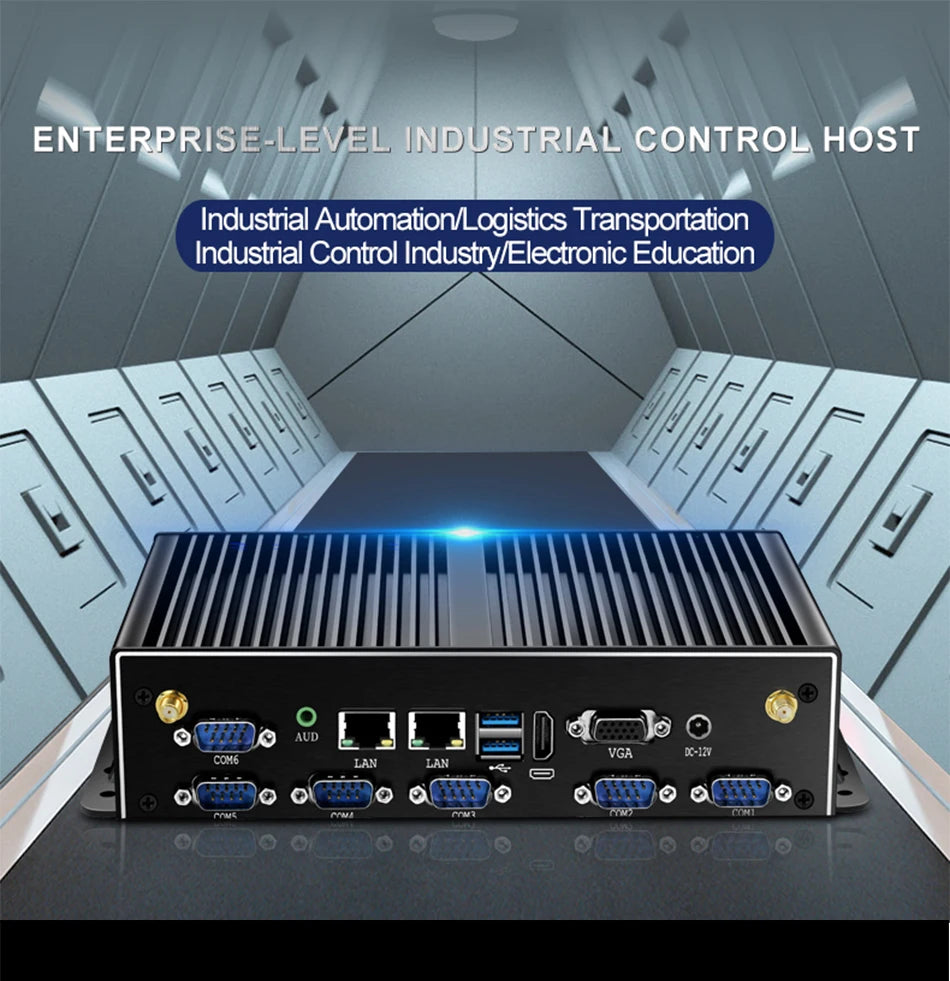

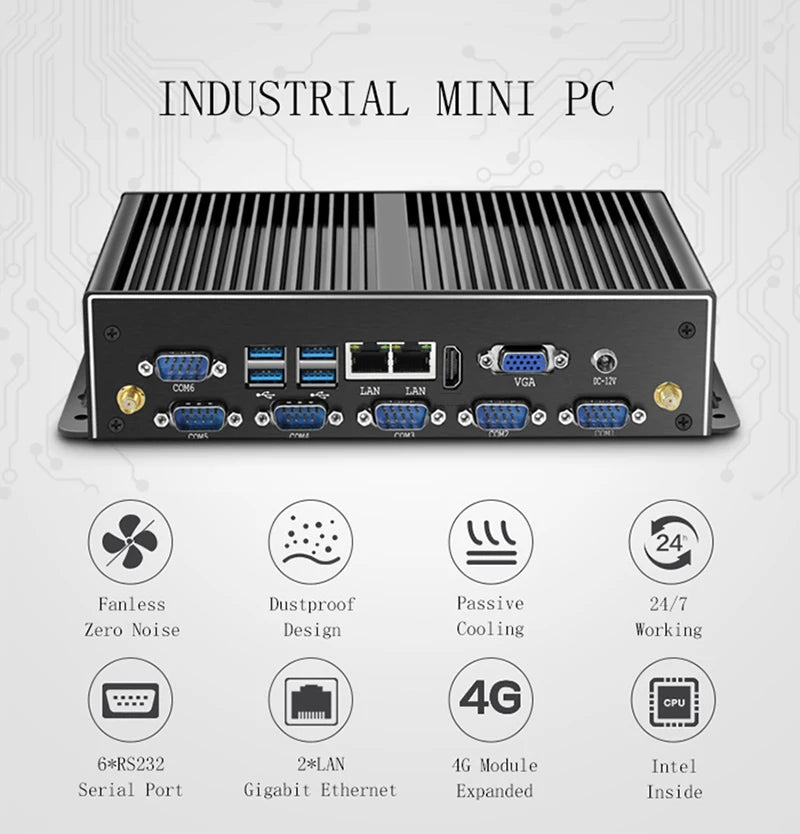

X26A 2AN 6COM 6USB Industial PC:

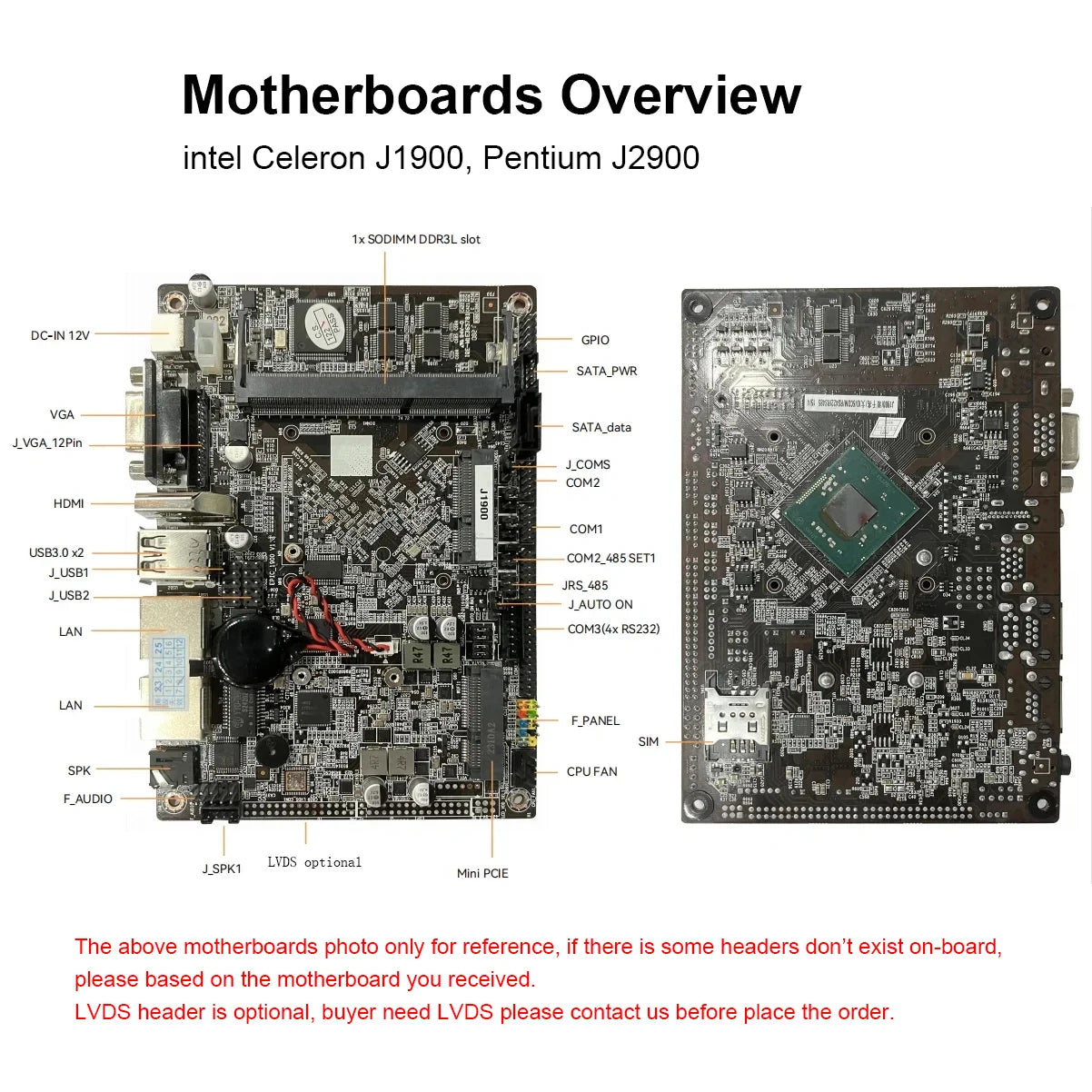

1) CPU J1900, J2900 Single memory DDR3L maximum support 1x 8G RAM, intel i211 network card, COM2 adjustable to RS485 serial port

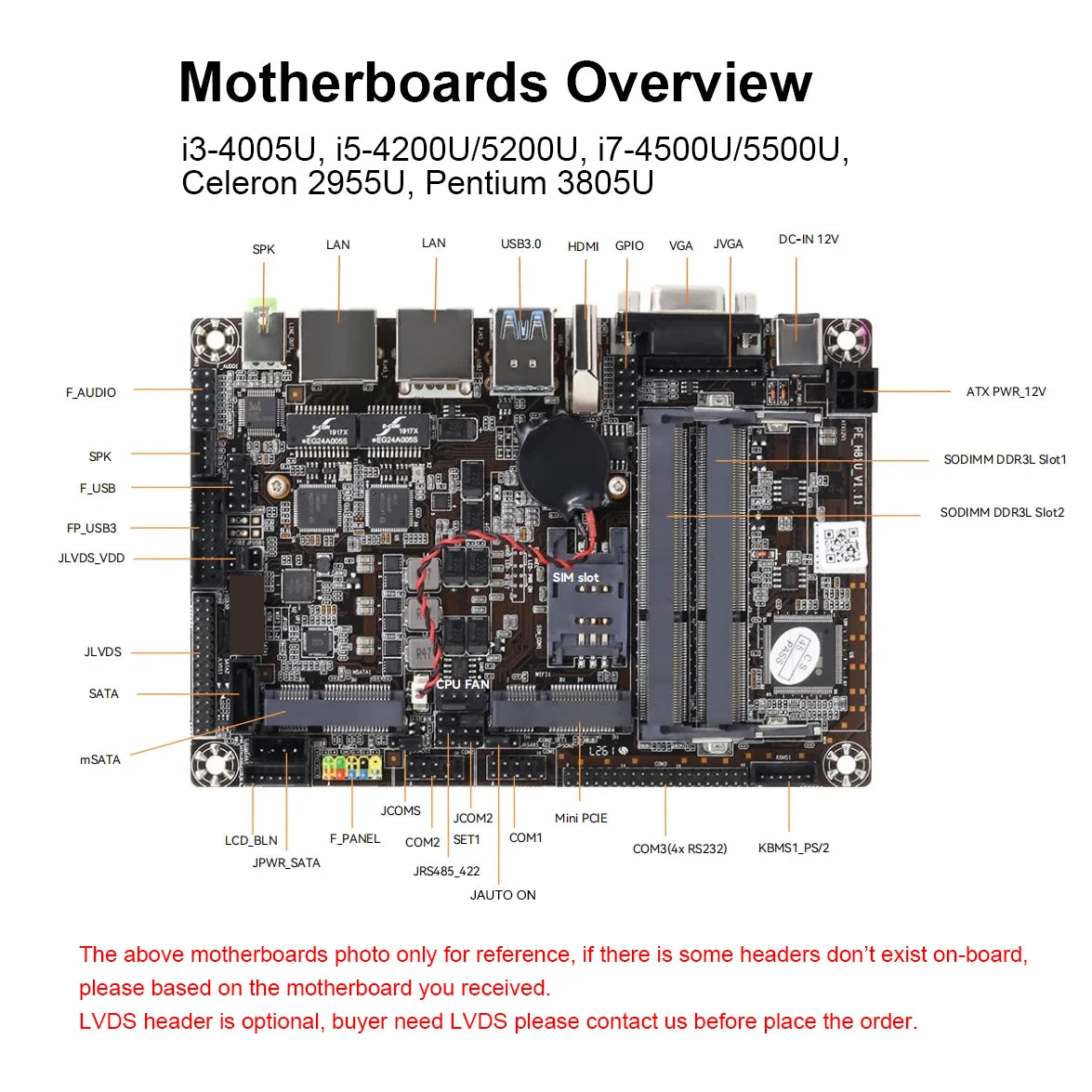

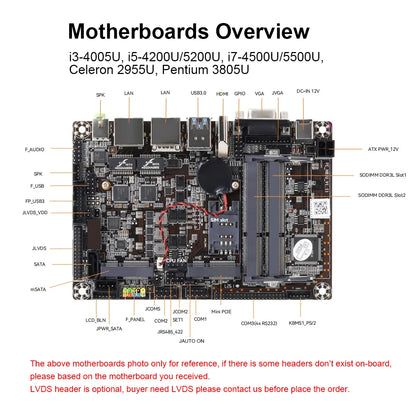

2) CPU 2955U, i3-4005U, i5-4200U, i3-5005U, i5-5200U, i7-4500U, i7-5500U Dual Memory DDR3L maximum support 2x 8GB RAM ;

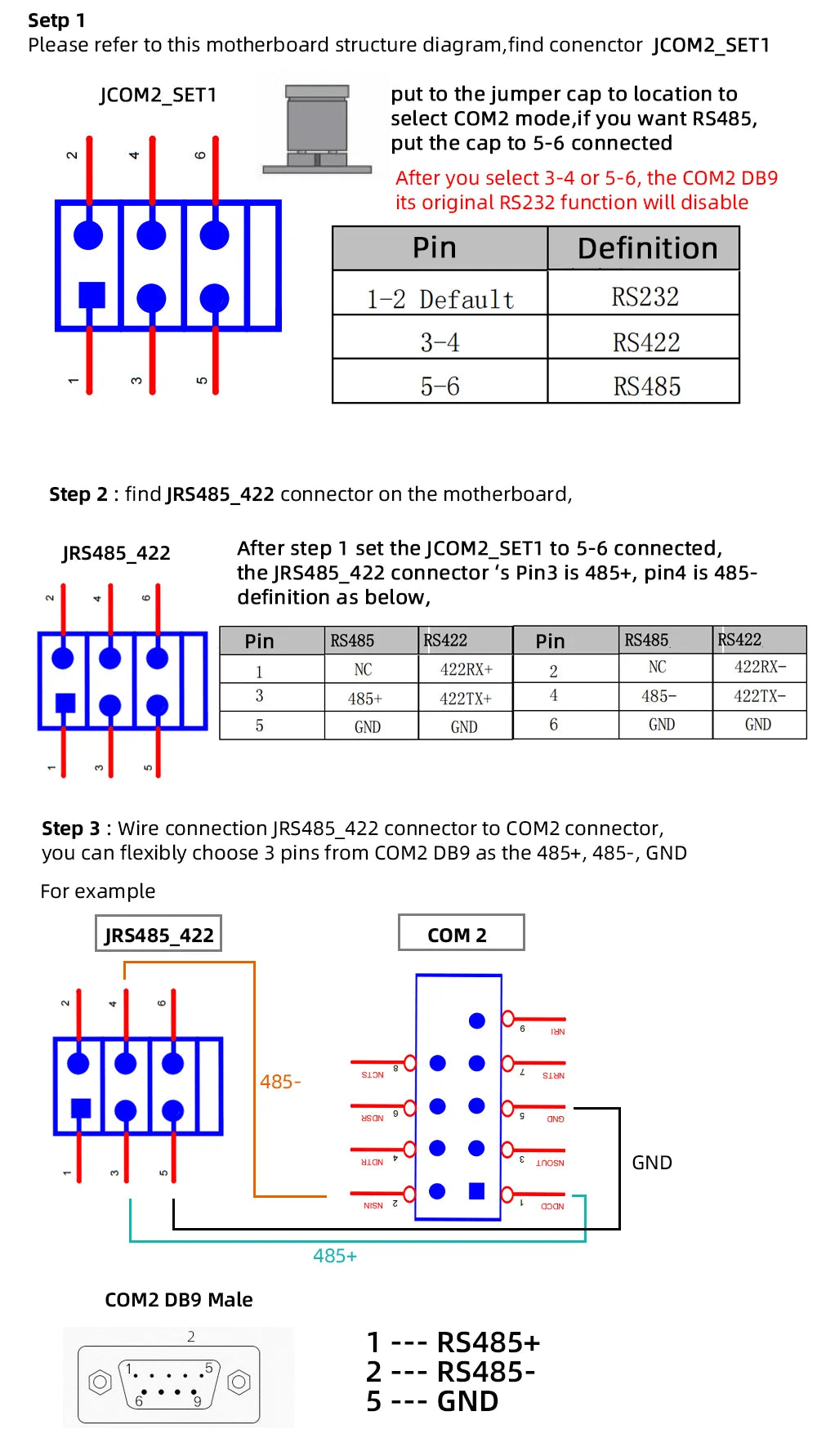

Jump cap COM2 can be set rs-485 serial port; In addition to i3-5005U is i211 network card, the rest are intel i225V network card.

3) i225V NIC CPU does not support the installation of Win7 system, support the installation of Win10-64 bit system.

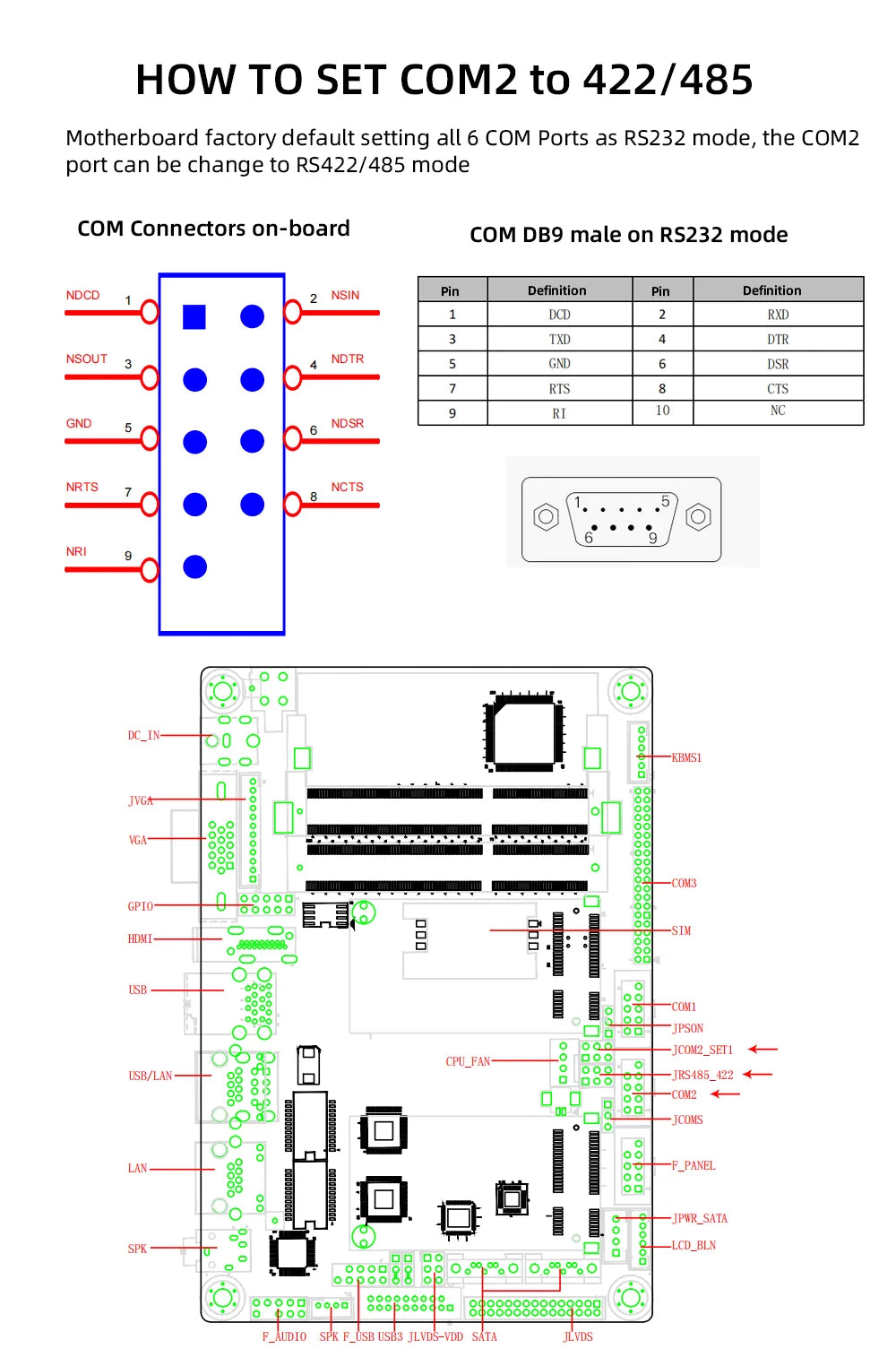

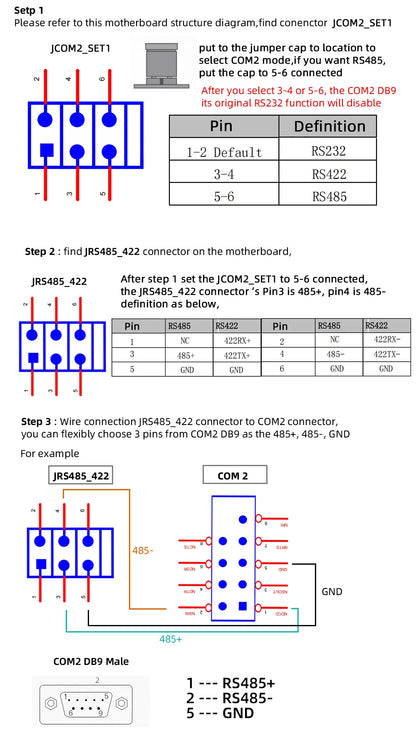

4) 6* COM RS232 ( COM2 support adjust to RS485, if you need COM2 RS485, please contact us)

NOTE:

1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;

2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;

3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need

Specification:

CPU	Intel Core i5 4200U ( 3MB Cace, 2 core 4 threads, 1.60 GHz, Intel HD Graphics 4400 )
	Intel Core i7 4500U ( 4MB Cache, 2 core 4 threads, 1.80 GHz, Intel HD Graphics 4400 )
	Intel Core i7 5500U ( 4MB Cache, 2 core 4 threads, 2.40 GHz, Intel HD Graphics 5500 )
Suppot OS	win10/7/ 8/ ubuntu/LINUX/CENTOS.
RAM type	1 x DDR3L 1333/1600MHz 1.35V SO-DIMM (6USB version have 2 slot for DDR3L)
SSD type	1x mSATA, 64GB 128GB 256GB 12GB, 1x 2.5’’ HDD SATA support
Wireless	Built-in WI-FI module

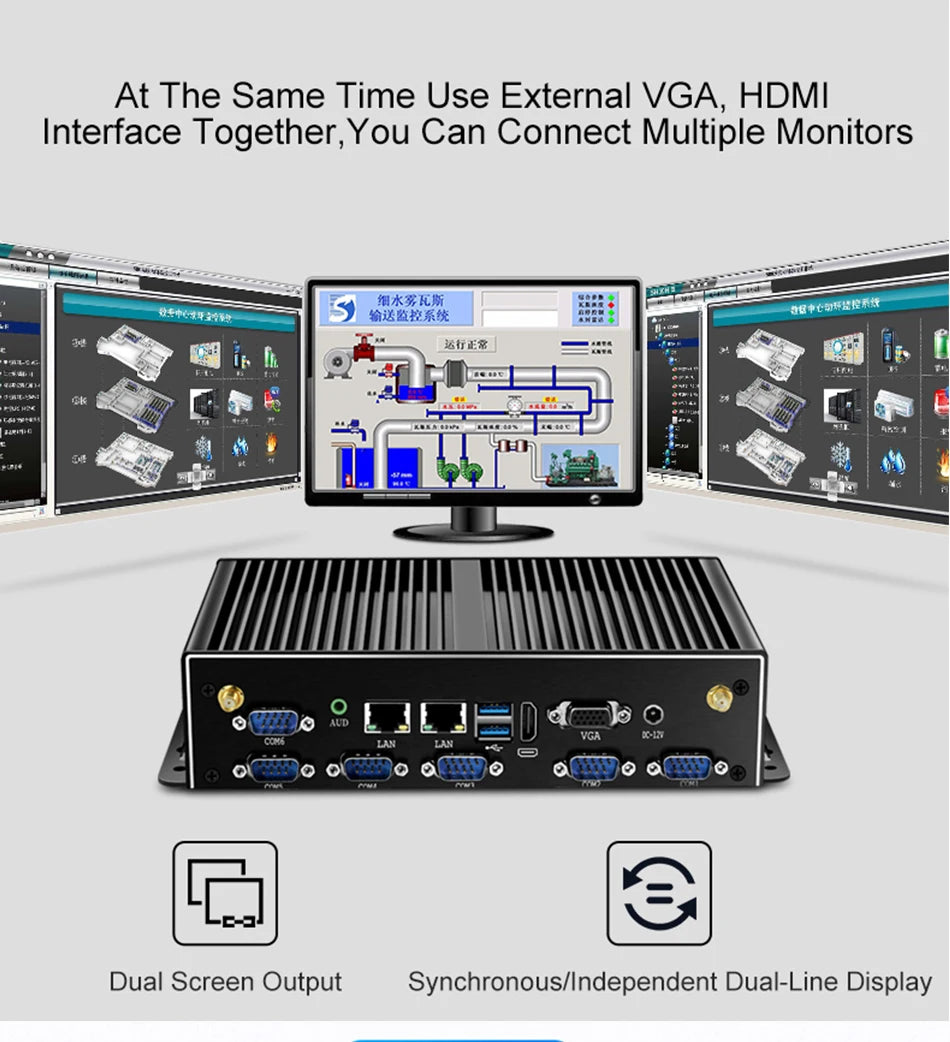

Graphics Output	Dual display，HD 1.4+VGA

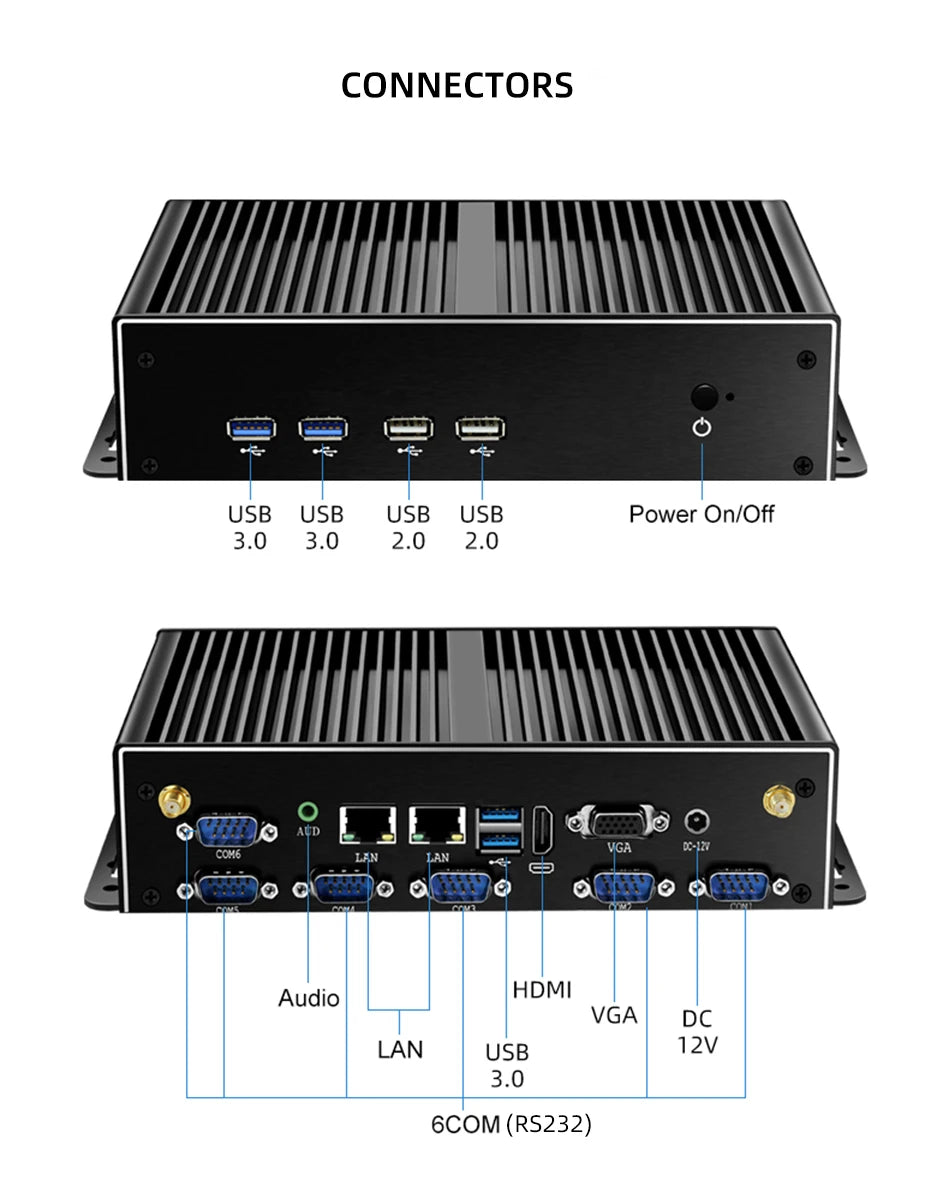

In/output port	8USB: 6xUSB3.0 2xUSB2.0
	8USB: 4xUSB3.0 2xUSB2.0
	1xVG
	1xHDMI-compatible
	2xLAN (Gigabit Ethernet)

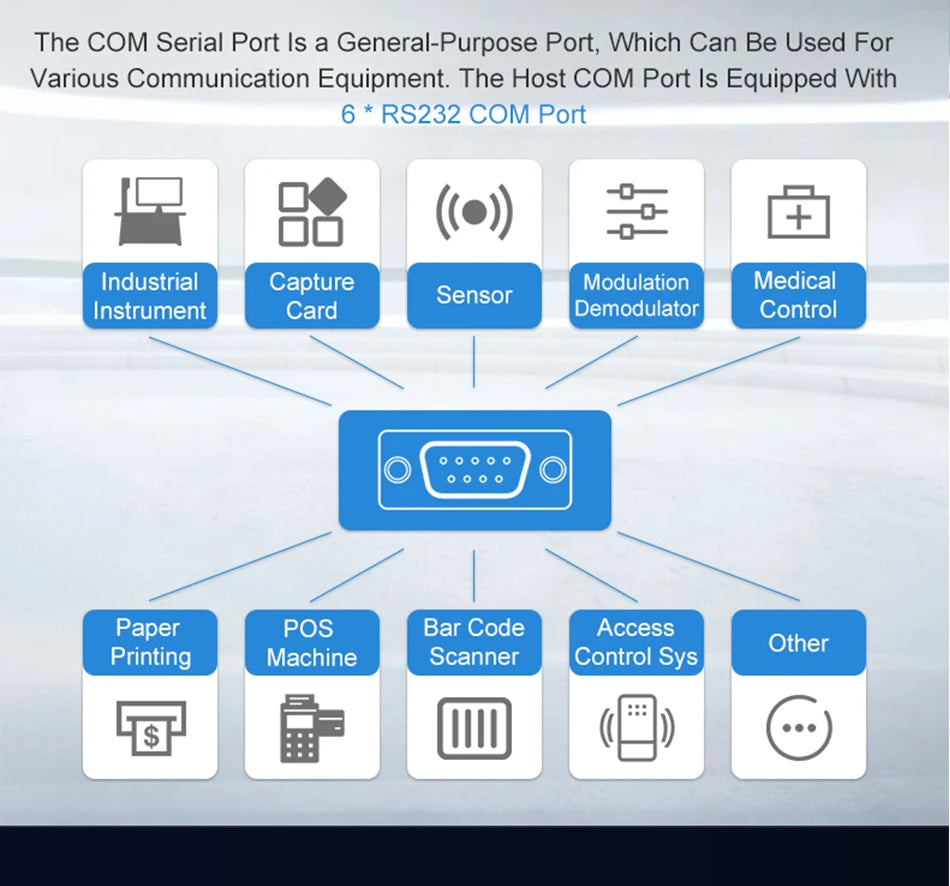

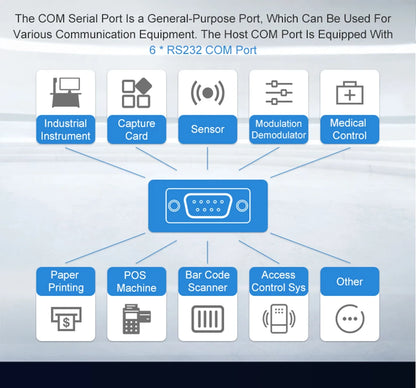

	6xRS232 COM （8USB version: 2 COM can be change to RS485）
	1xMIC/SPK
Adapter	AC100V-240V to 12V/5A
Size	235 x 137 x51mm
Color	Black(Other color suport customized)
Working Environment	Operating Temperature , -20-80℃
	Storage Temperature 0℃-80℃
	Relative Humidity 10%~90% (non-condensing)

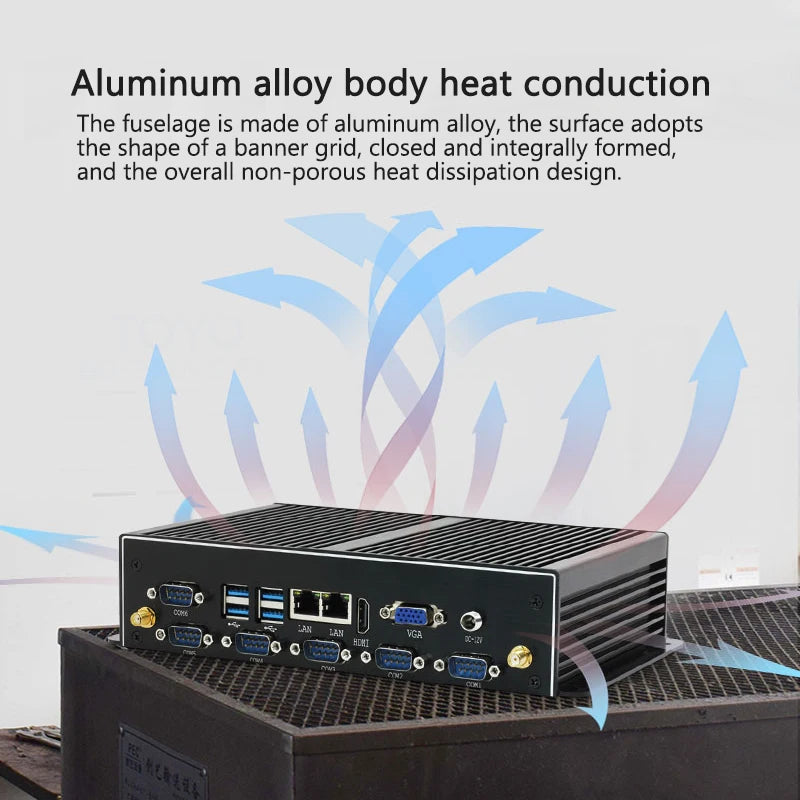

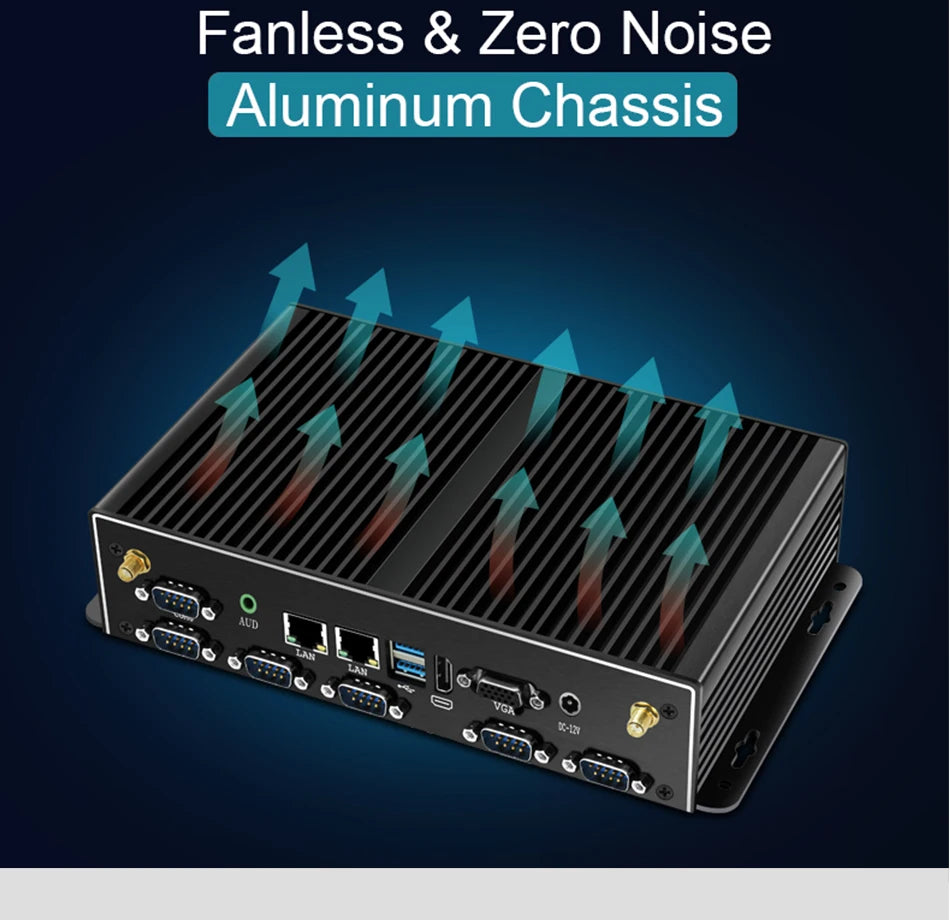

Cooling design	Fanless

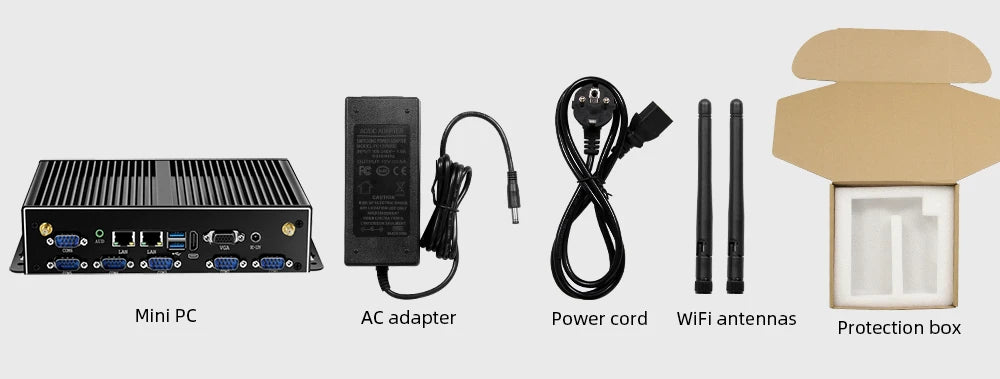

Package Content	1 x Mini PC
	1 x Power Adapter, 1xPower Cord(Adapter plug according to the shipping address )
	2 x Wi-Fi Antennas
	1 x User Manual
