SPECIFICATIONS

Batching Machine: PLD1600

Brand Name: Minrui

Concrete Mixer: JS1000 Twin Shaft Concrete Mixer

Control System: Automatic

Core Components: PLC,Bearing,Gearbox,Motor,Gear

Dimension(L*W*H): 18200*10000*19400mm

Discharging Height: 3.8m

Feeding way: Hoist hopper

Machine Type: Concrete batching plant

Machinery Test Report: Provided

Max Aggregate Diameter: 60/80mm

Mixing Power: 37kw

Place of Origin: Henan, China

Power Type: Electric

Power(W): 105kw

Product Keywords: Concrete Plant Batching

Productivity: 50m3/h

Video outgoing-inspection: Provided

Warranty: 3 Years

Weighing System: Water/cement/additive

Weight: 40000 kg

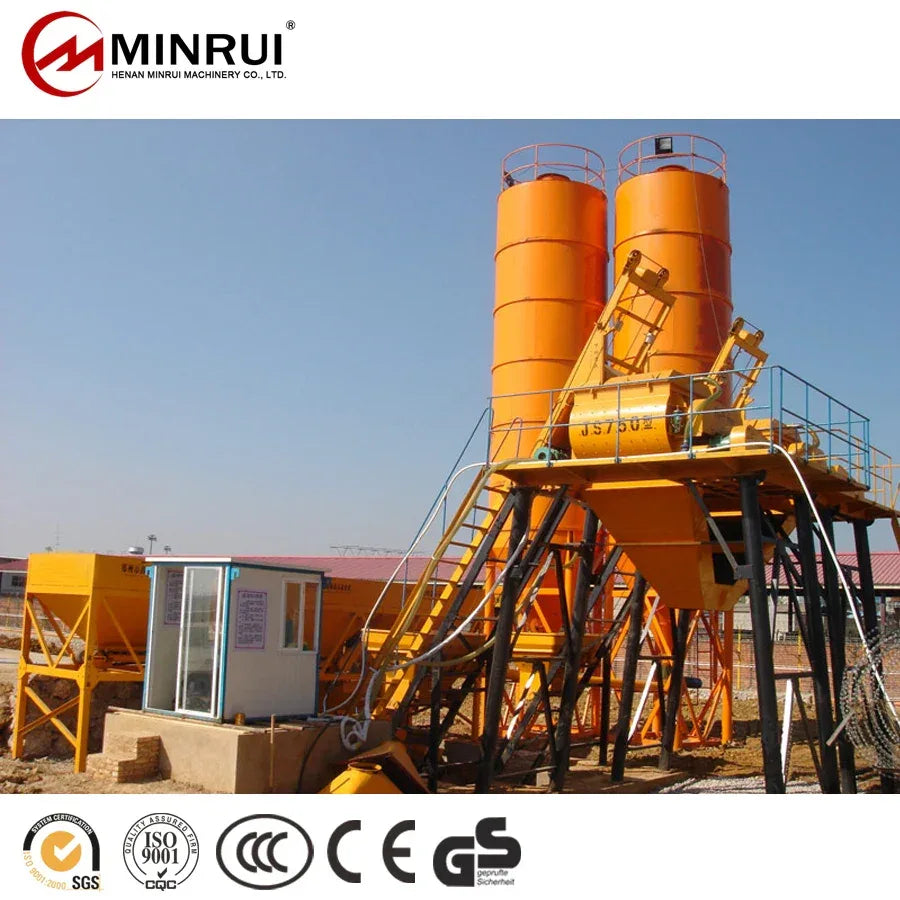

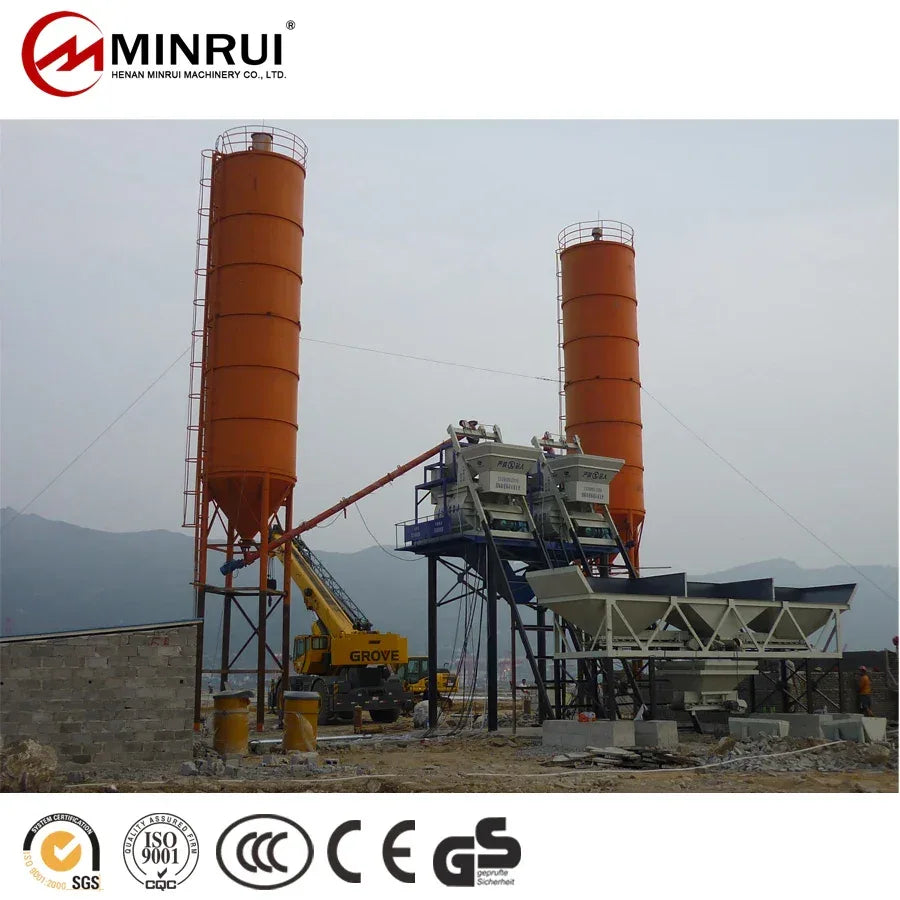

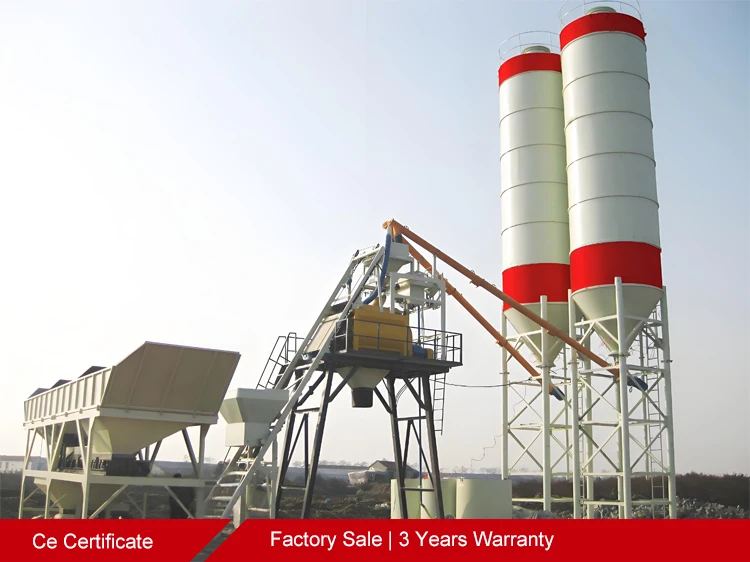

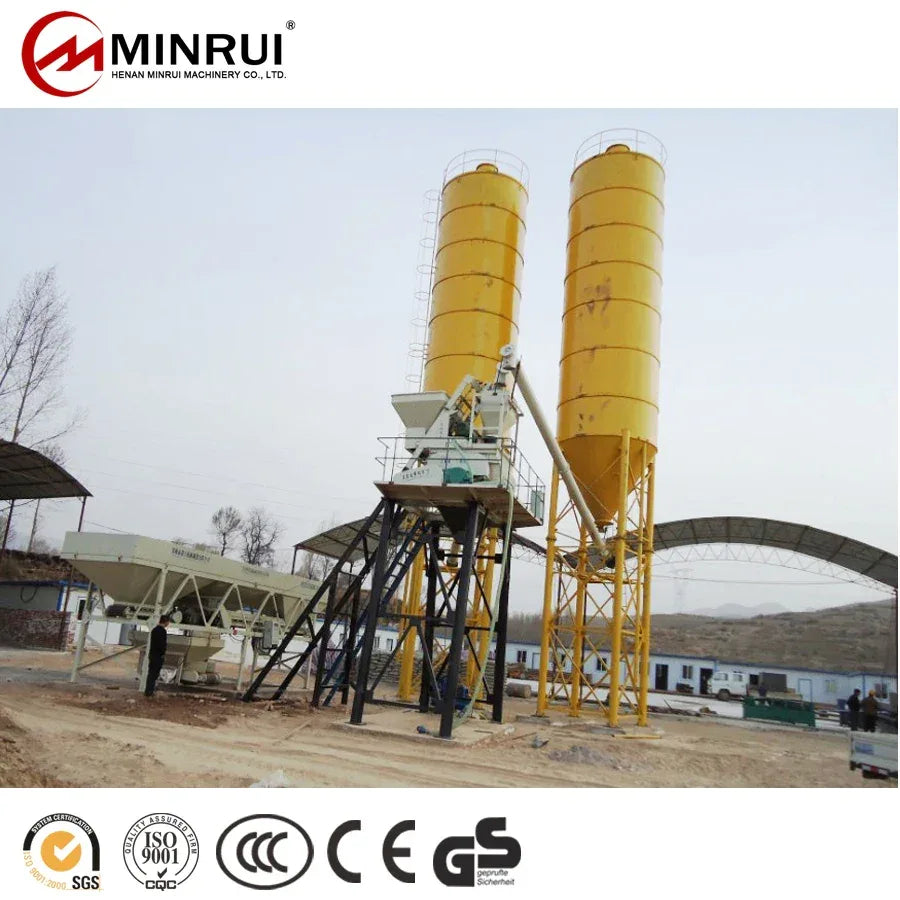

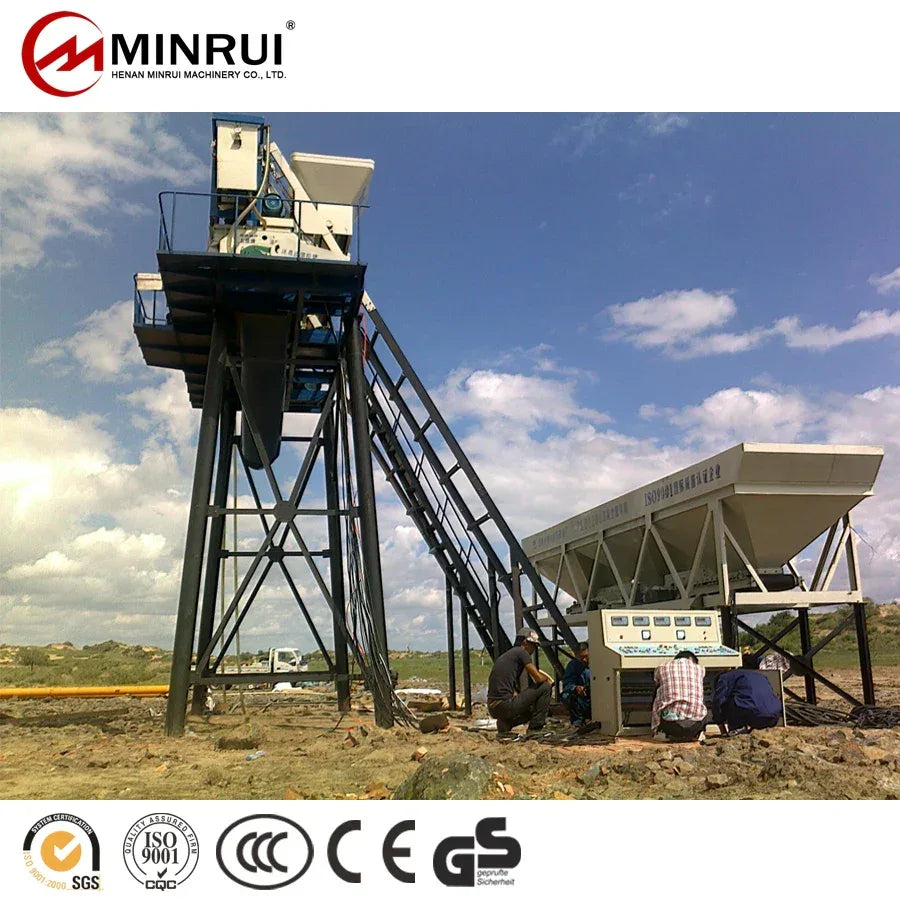

HZS50 50m3/h Concrete Batching Plant

Inquiry us to get one set spare of concrete mixer plant for free!

Concrete Plant Description

HZS50 Concrete Batching Plant Introduction:

1. Concrete mixing plant productivity: 50m3/h;

2. Control system for ready mix concrete batching plant: full automatic Siemens / Schneider controller;

3. Mixer for concrete plant: JS1000 1m3 twin shaft (double axis) horizontal forced type mixer with lifting hopper;

4. Aggregate batching machine: 2-4 bins PLD1600 or PLD2400 dosing machine;

5. Weighing system: automatic measuring device (load cell) for water, cement, additive and fly ash etc;

6. Cement silo and screw conveyor: 30-2000 ton;

7. Discharging height: 1.5-4.2m;

● Minrui Concrete Batching Plant Series

Stationary fixed concrete mixing plant | Mobile concrete batching plant | Foundation free concrete mixer plant

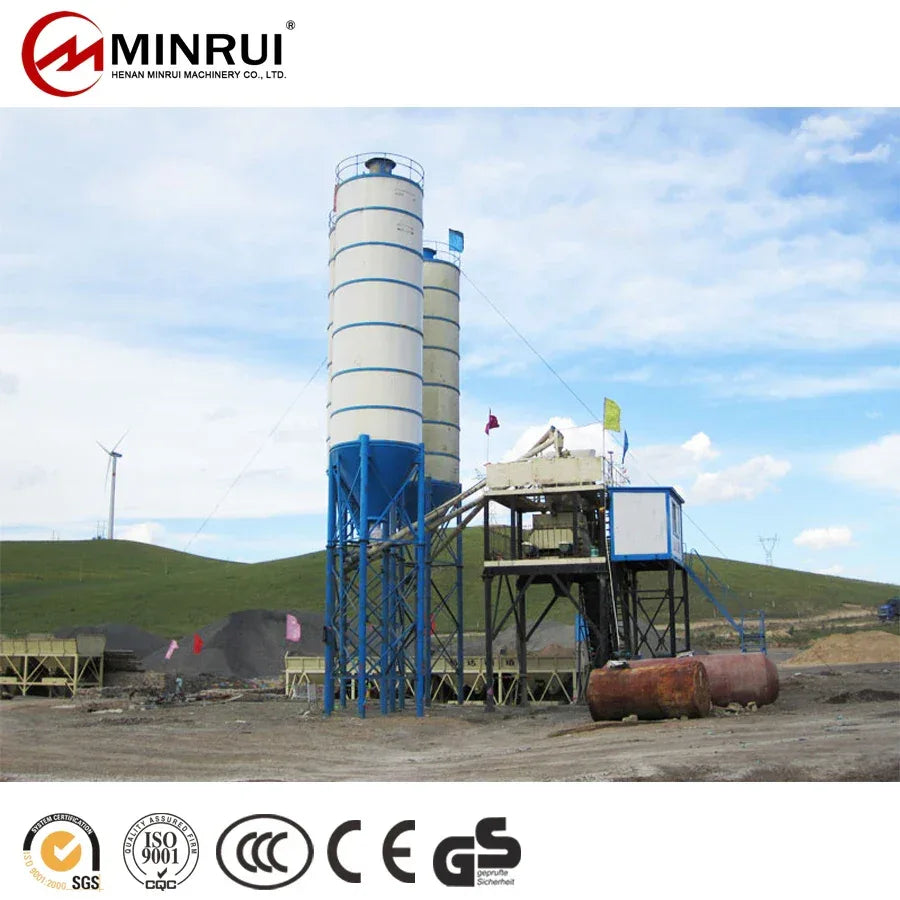

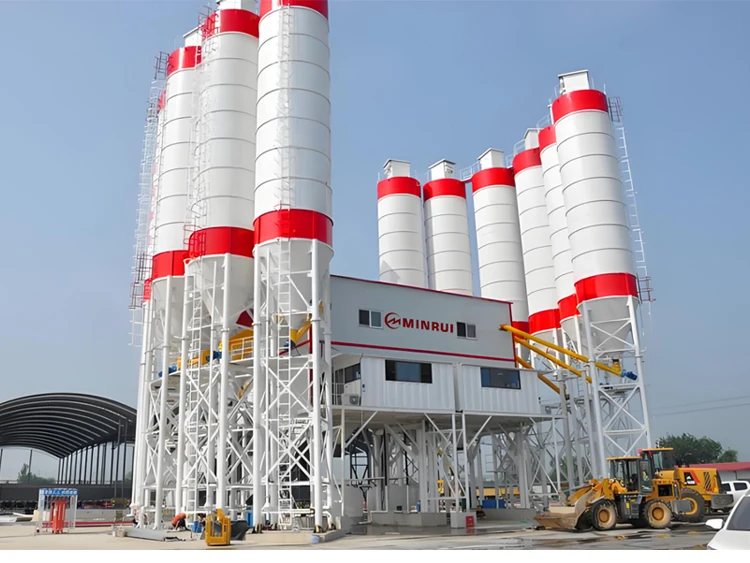

Stationary Concrete Mixing Plant

Capacity: 25-360 m³/h

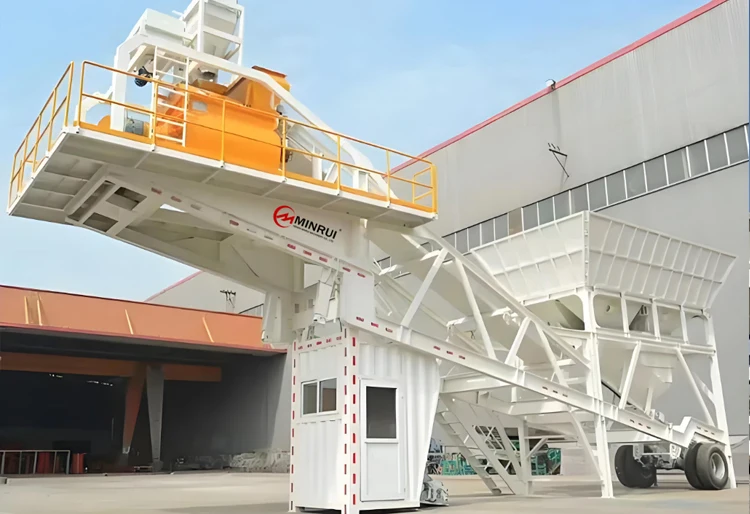

Mobile Concrete Batching Plant

Capacity: 25-120 m³/h

Foundation Free Concrete Plant

Capacity: 25-120 m³/h

Production Process

Minrui Group Production Introduction:

1. 98% parts of mixer concrete machine, concrete mixer plant, concrete pump are independent production.

2. Strict quality control: ensure the superior quality and long service life.

3. CE SGS, ISO, IAF, CQC, GS etc certificates.

4. Supply free OEM, ODM for large capacity concrete mixer, concrete plant.

5. Separated production line of concrete mixer and concrete plant: provide short delivery time and plentiful stocks.

● Concrete Mixer Production Process

High Hardness Concrete Mixer Gear

High Strength Concrete Mixer Shaft

Heavy Duty Concrete Mixer Drum

Thickness Concrete Mixer Hopper

Continuous Mixer Installation

Semi Finished Concrete Mixer

● Other Machinery for Concrete Plant

Minrui Factory Concrete Batching Plant Production Line:

Industrial China concrete mixer, aggregate batching dosing machine, cement silo, cement screw conveyor, cement | water | additive fly ash weighing system etc.

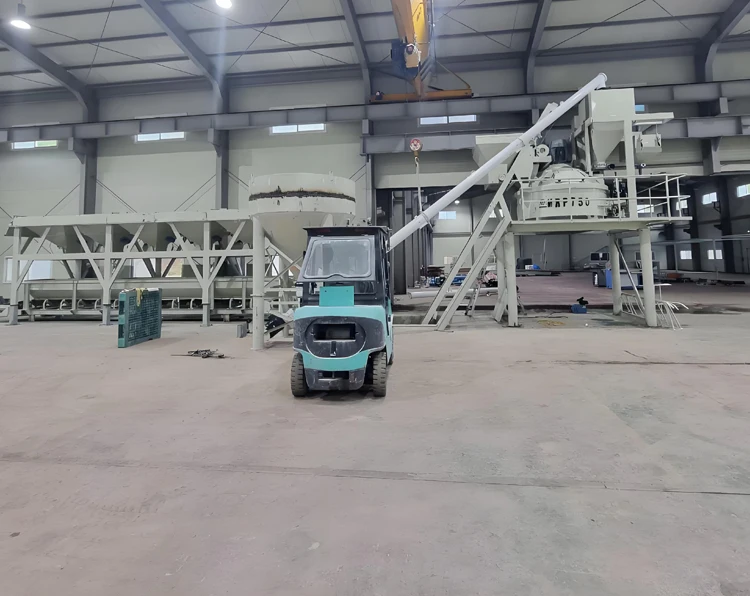

● Minrui Factory Stocks

Successful Cases

● Minrui's Global Partners

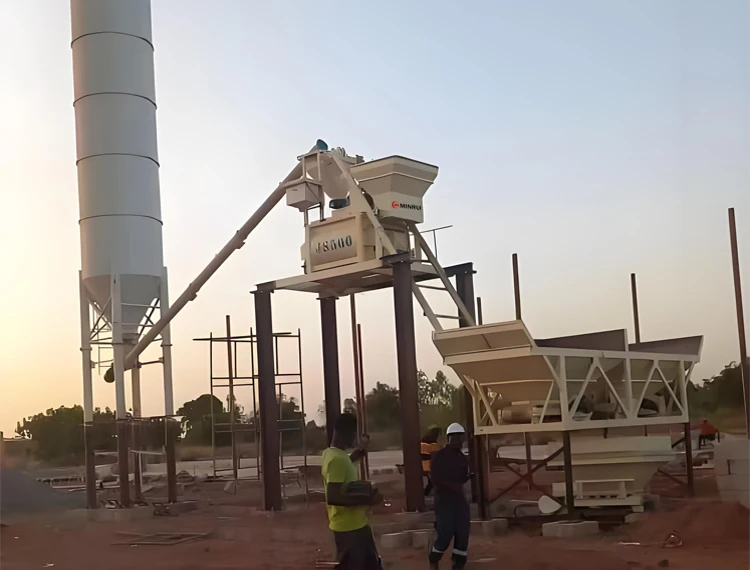

Minrui HZS25 25m3/h Concrete Plant in Burkina Faso

1. JS500 concrete mixer with 500L capacity;

2. PLD800 twin bins dosing machine;

3. 50 ton cement silo;

4. Automatic computer control system;

35m3/h Planetary Concrete Mixing Plant in Korea

1. MRP750 planetary vertical mixer with 0.75m3 capacity;

2. PLD1600 four bins aggregate batching machine;
3. Customized cement silo;
4.Automatic control system;

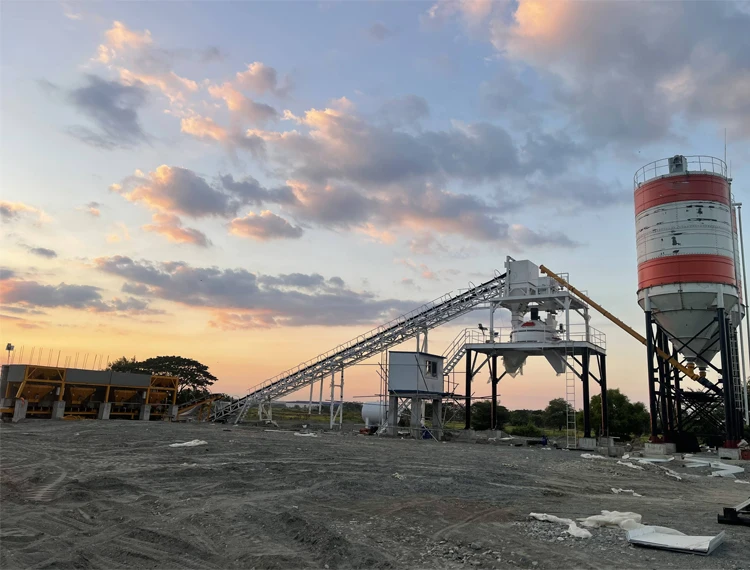

Minrui HZS90 Planetary Concrete Mixer Plant 90m3/h in Philippines

1. MRP1500 planetary vertical mixer with 1.5m3 capacity;

2. PLD2400 four bins aggregate batching machine;
3. Two sets 150 ton cement silo;
4.Automatic control system;

● Other Minrui Successful Cases

Our factory's concrete mixer, concrete plant have been exported to Africa, Europe, Asia, South America and North America Since 2010 year.

Main Exported Machinery Include:

1. 25m3/h to 360m3/h stationary fixed concrete plant and 25m3/h to 120m3/h foundation free or mobile concrete mixing plant.
2. 0.5m3 - 3m3Twin shaft horizontal forced and planetary vertical UHPC concrete mixer.

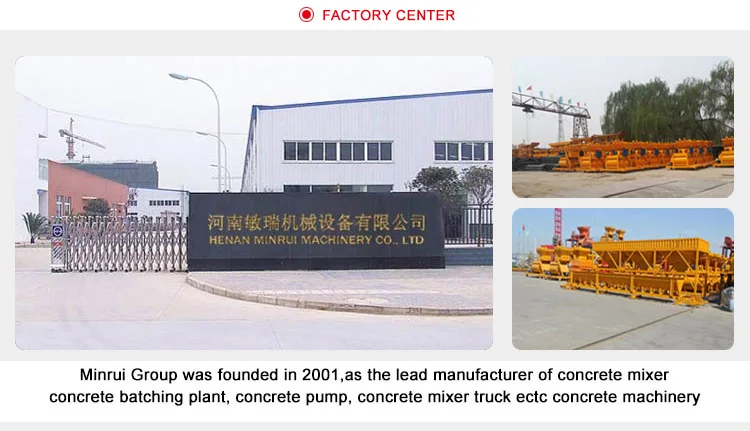

About Minrui Factory

Minrui Factory Introduction:

1. Minrui factory was founded in 2010 year. As the direct manufacturer of China auto concrete mixer, PLC concrete batching plant, concrete pump, concrete mixer truck etc concrete machinery.

2. 3 installation lines and 2 spares production lines for mixer and batching plant.

3. Supply free design for horizontal concrete mixer, concrete mixing plant, concrete pump etc.

4. Support free installation guidance of concrete mixer plant.

5. Provide pre-shipment inspection and test video before mixer and concrete plant delivery.

6. Pass CE certificate.

● Minrui Machinery Series

Double axle mixer | Planetary vertical UHPC mixer | Stationary and mobile concrete plant | Concrete pump | Self loading concrete mixer truck

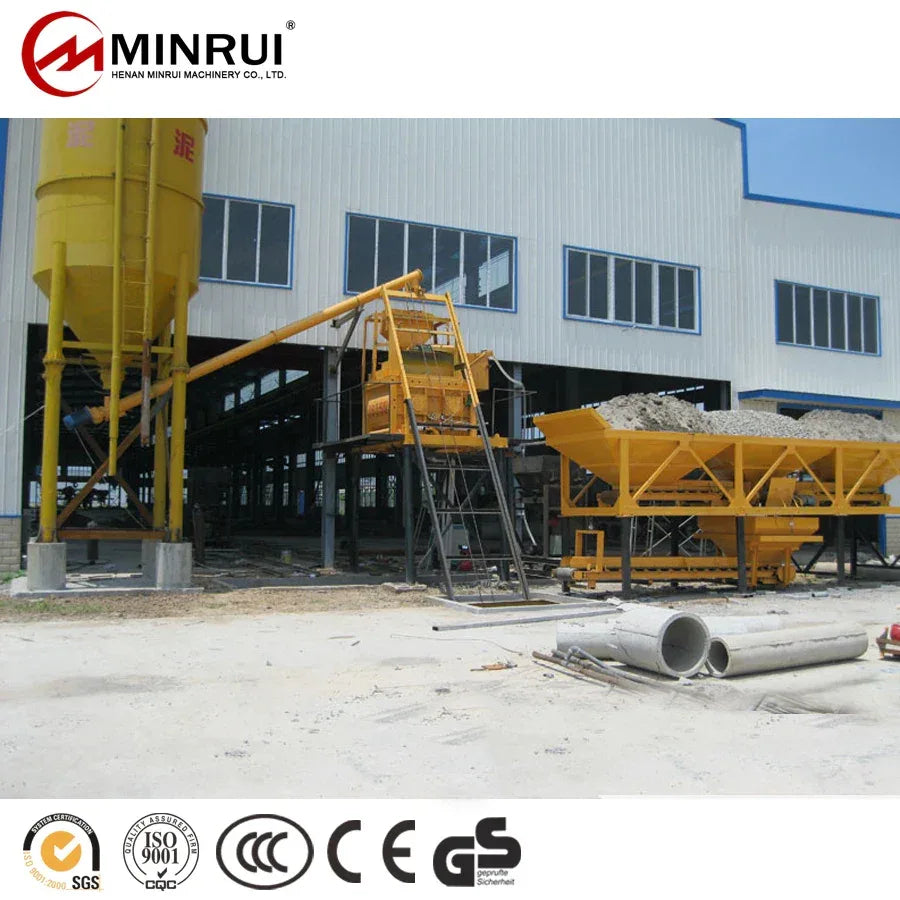

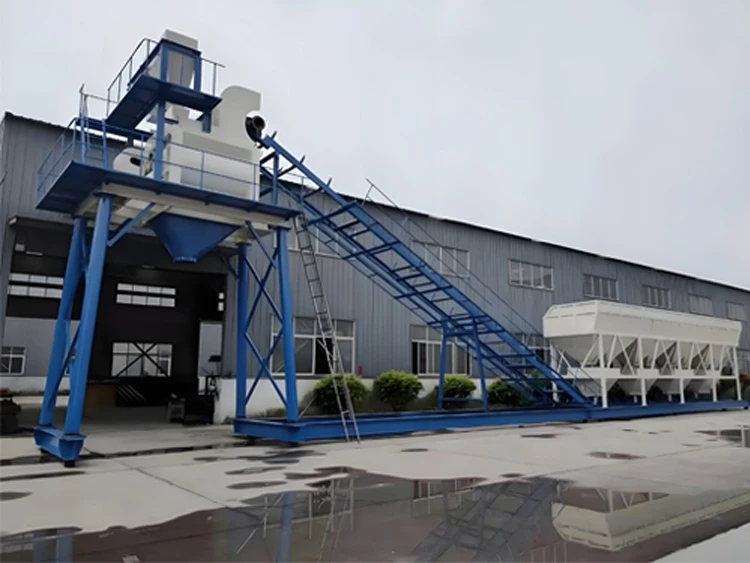

Lifting Hopper Concrete Batching Plant

Capacity: 25/35/50/75 m3/h

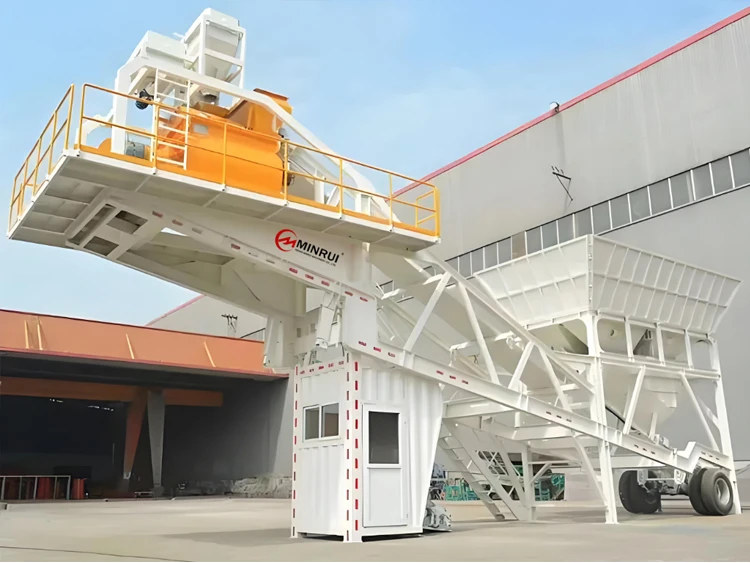

Mobile or Foundation Free Concrete Batching Plant

Capacity:25/35/50/75/90 m3/h

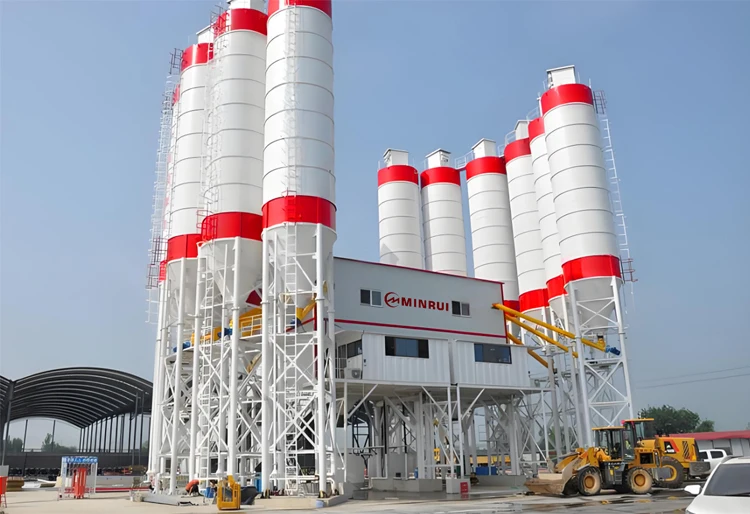

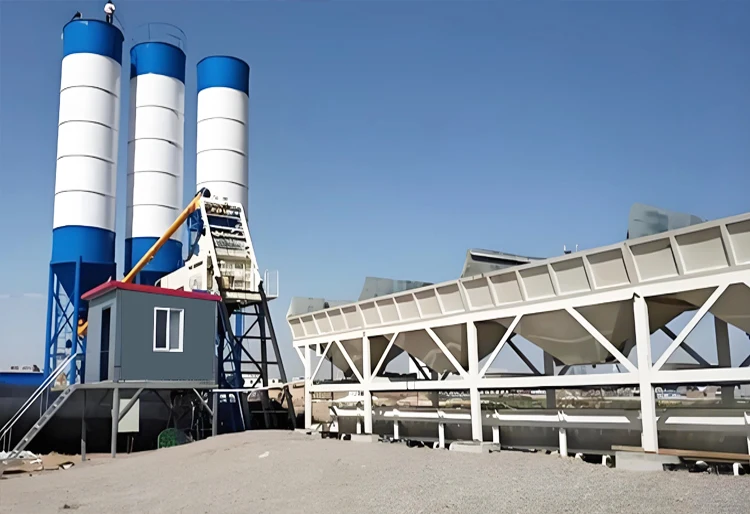

Belt Conveyor Concrete Plant

Capacity: 60/90/120/150/180/240 m3/h

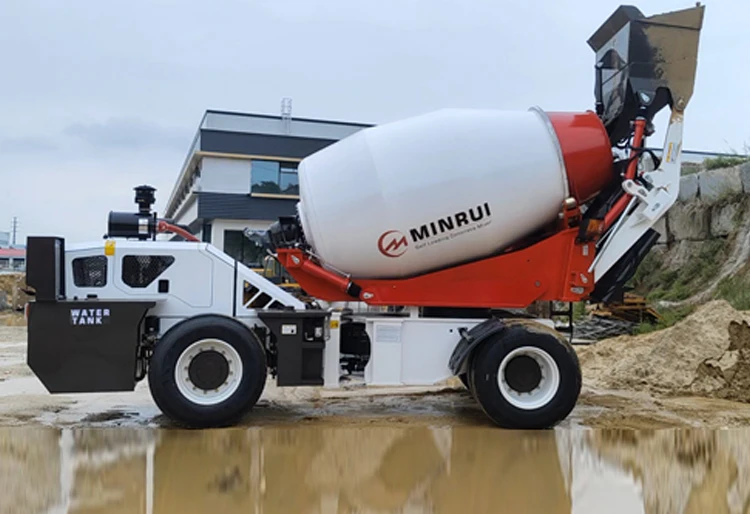

Self Loading Concrete Mixer Truck

Capacity: 1.2/2.0/2.6/3.5/4.0m3

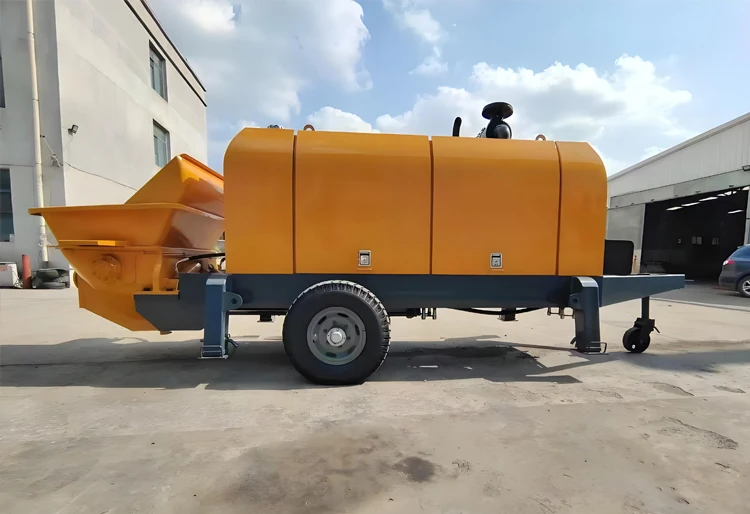

Diesel Electric Concrete Trailer Pump

Capacity:30/40/50/60/80/90 m3/h

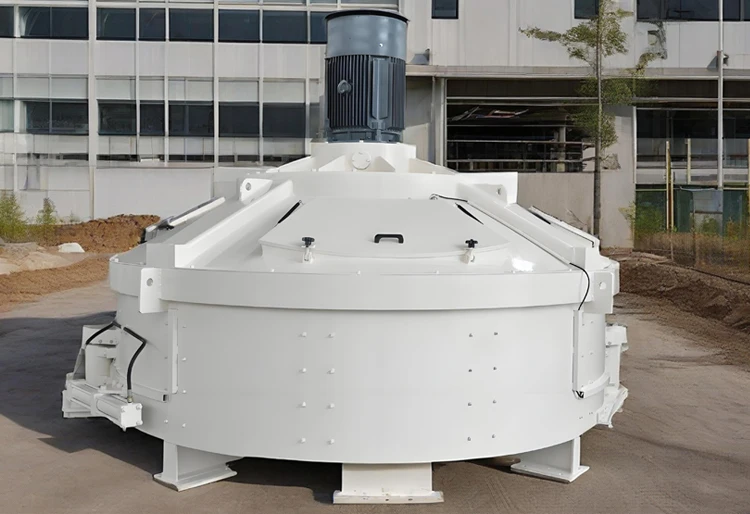

Planetary Vertical UHPC Mixer

Capacity: 500L-3000L

Shipment and Delivery

Minrui Actual Shipping Case

Here are the shipping cases of our factory.

The concrete batching plant have been delivered to various parts of the world.

The concrete mixing plant mainly be transported by sea, railway, and land transportation methods.

Minrui Concrete Mixer Plant Packing Details:

1. Concrete Batching Plant: load into 40HC or 40OT container. 2. Concrete Mixer: plastic film outside and fit in 20GP or 40HC container.

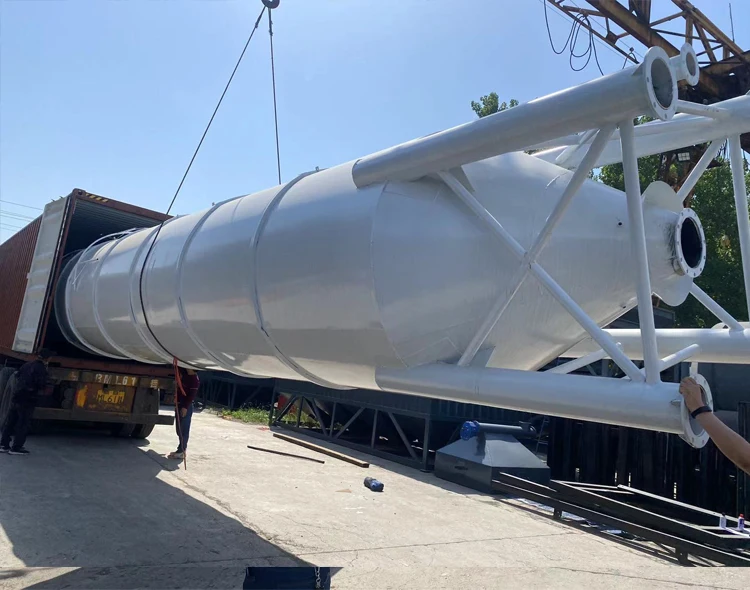

3. Cement silo, dosing machine and relative parts: by 40HC container.

Concrete Pump and Mixer Truck Shipment:

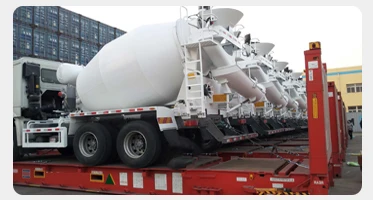

1. Concrete Mixer Truck: delivery by RO-RO ship or FR container. 2. Concrete Pump and Truck: delivery by 40OT container or RO-RO ship.

Technical Data

Lifting Hopper Concrete Mixer Plant	Belt Conveyor Concrete Batching Plant
Capacity: 25m3/h ~ 75m3/h	Capacity: 60m3/h ~ 180m3/h
Control: automatic & semi-auto	Control: automatic
Interruption of material feeding	Continuous material feeding
