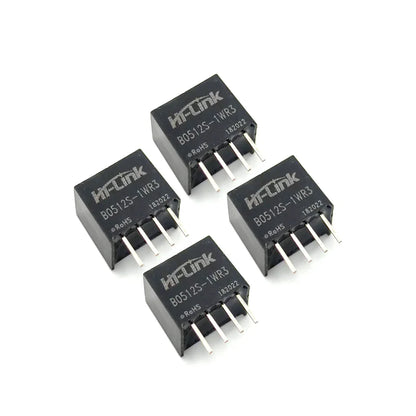

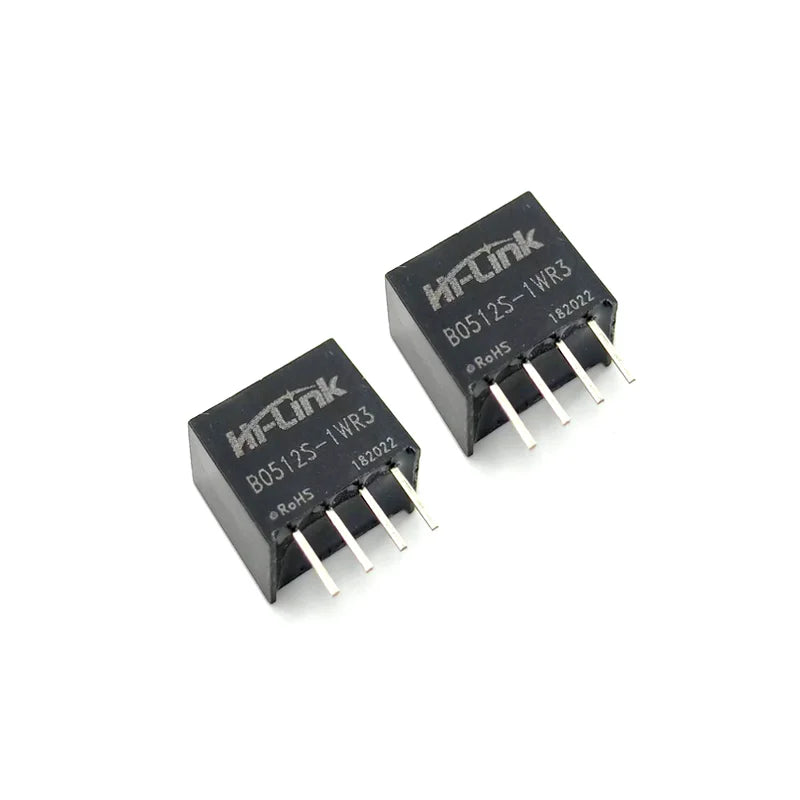

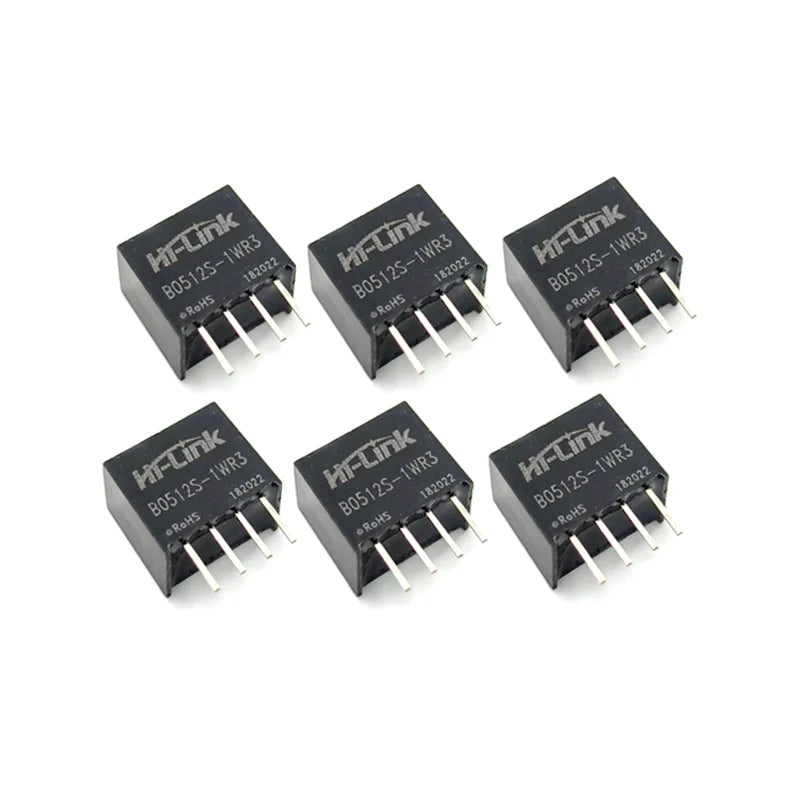

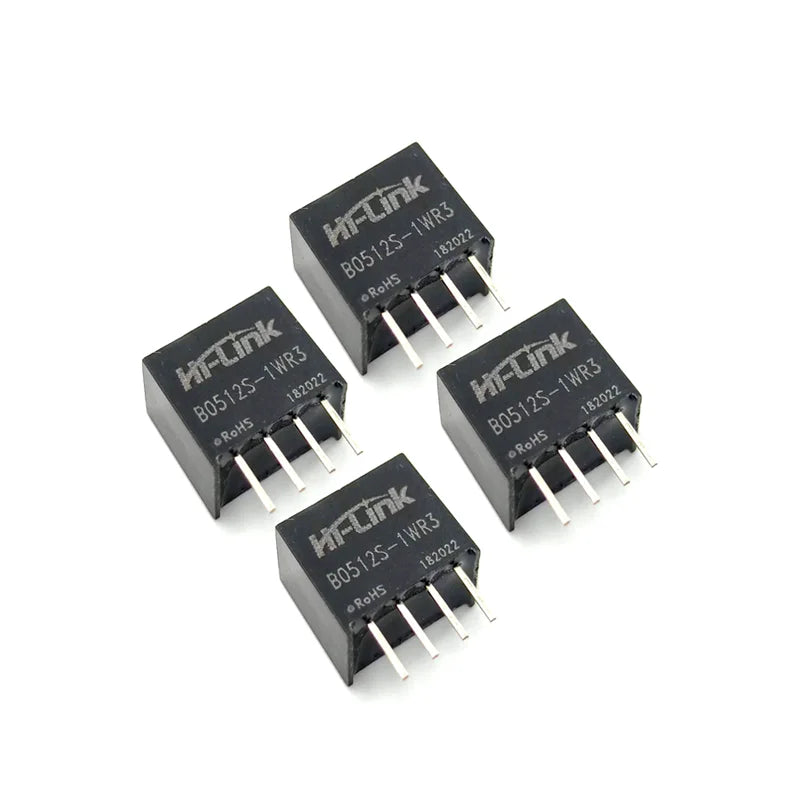

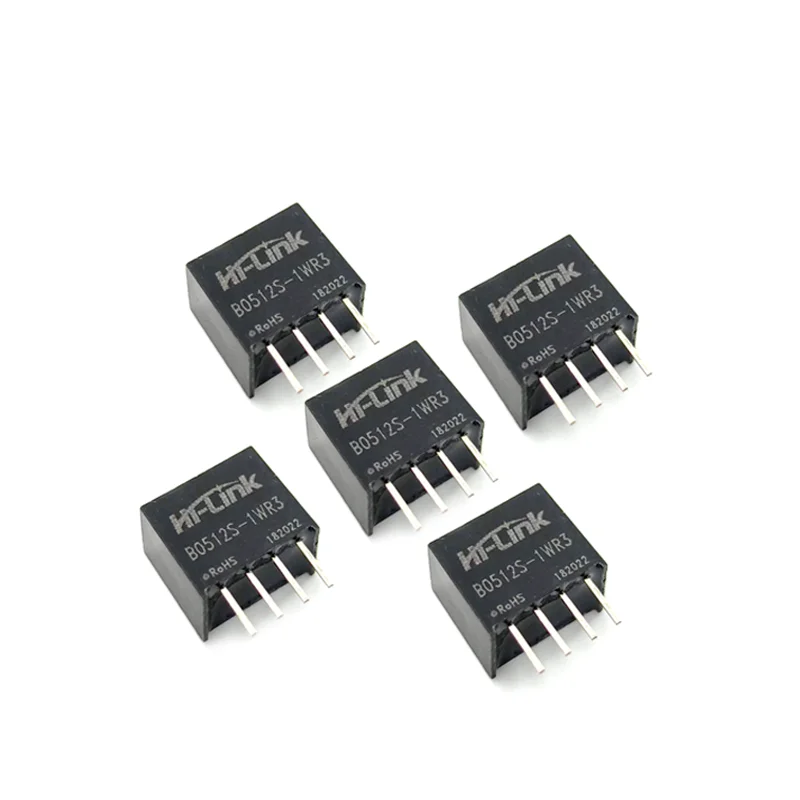

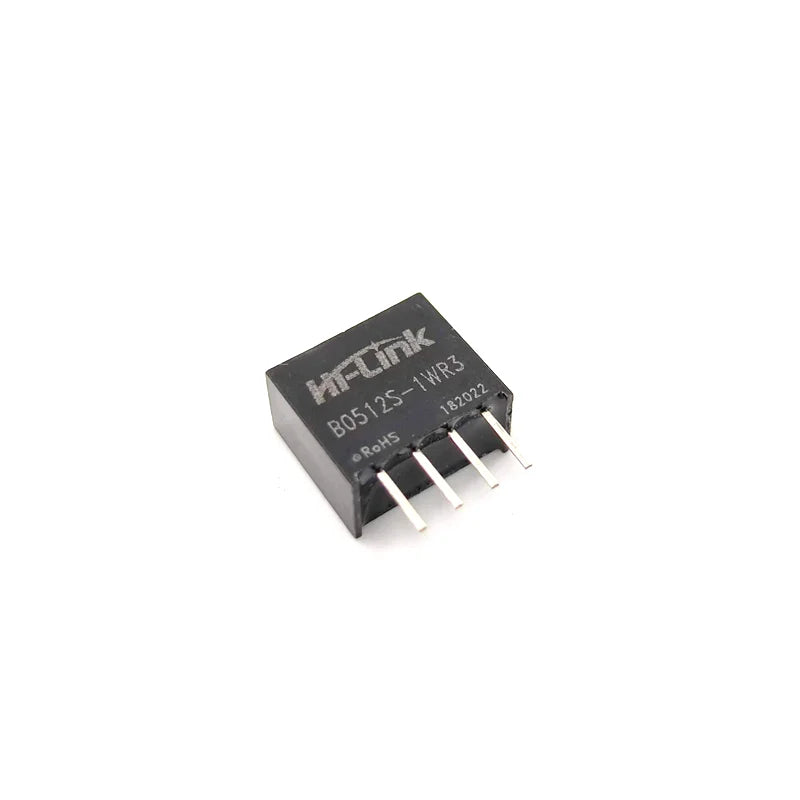

Hi-Link UL Certified DC DC Converter New Mini 1w 5v to 12v 84ma Single Output Isolated Switching Power Supply Module B0512S-1WR3

Hi-Link UL Certified DC DC Converter New Mini 1w 5v to 12v 84ma Single Output Isolated Switching Power Supply Module B0512S-1WR3

CFA422 XOF
CFA0 XOF CFA422 XOF
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Output Power

SPECIFICATIONS

Application: CCTV,Industry,Laboratory,Smart Home,Led Lighting

Brand Name: Hi-Link

Color: Black

Dimension: 11.50*6.0*10.0mm

Efficiency: 0.8,95%,0.92,89%,up to 88%

Input Voltage: 5V

Isolation Voltage: 1500VDC

MTBF: ≥3.5 million hours(3500000Hrs)

Model Number: B0512S-1WR3

Output Current: 84mA

Output Frequency: 50/60 Hz

Output Type: Single

Output Voltage: 12 V

Place of Origin: Guangdong, China

Protection: Short Circuit Protection,Overcurrent Protection,Overvoltage Protection,Over Temperature Protection,Overloading Protection,Over Power Protection,Undervoltage Protection,Overcharging Protection

Ripple/Noise (20MH Bandwidth): <100mVp-p

Type: DC-DC

Working temperature: -40℃~+85℃

Product Description

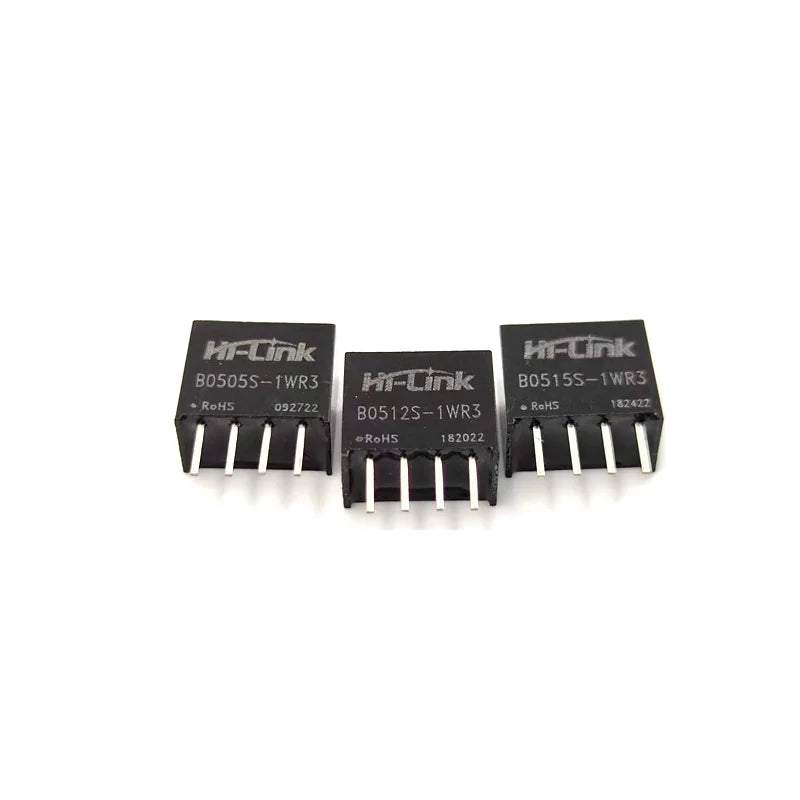

B05_S-1WR3 series is a small size, high-efficiency micro power, constant voltage, input isolation and unregulated, single output DC/DC power supply module provided by Hi-link to customers; this series of products are specially designed for the needs of on-board power supply systems. Designed for applications that generate a set of voltages isolated from the input power supply.

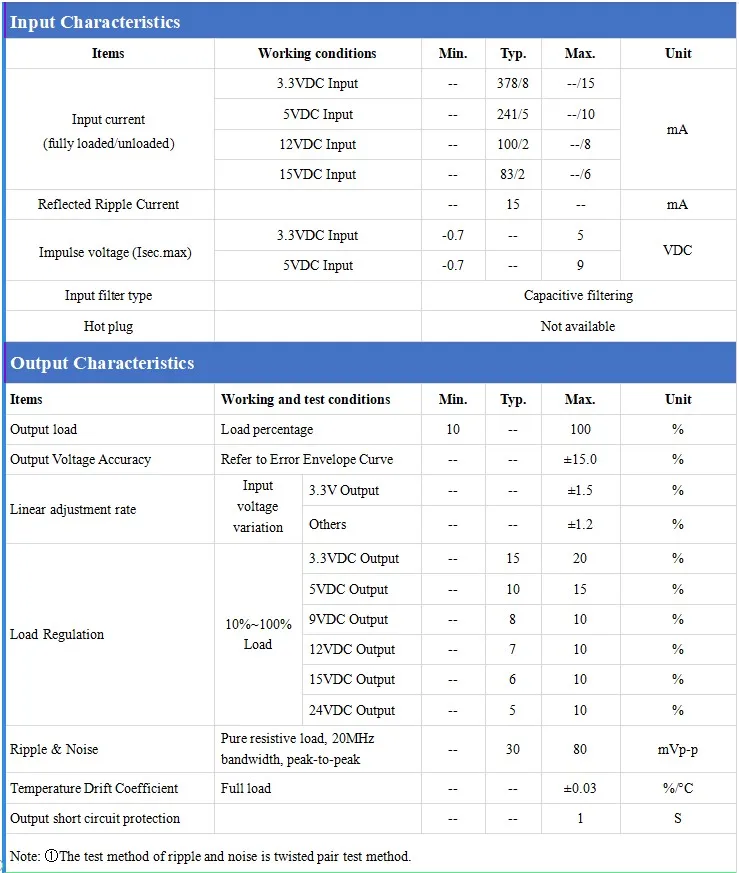

Specification
item
value
Place of Origin
China
Guangdong
Brand Name
Hi-Link
Model Number
B0512S-1WR3
Output Power
1W
Output Type
Single
Input Voltage
5V
Output Voltage
12V
Output Frequency
Output Current
84mA
Color
Black
Isolation Voltage
1500VDC
Efficiency
up to 88%
Working temperature
-40℃~+85℃
MTBF
≥3.5 million hours(3500000Hrs)
Ripple/Noise (20MH Bandwidth)
<100mVp-p
Dimension
11.50*6.0*10.0mm

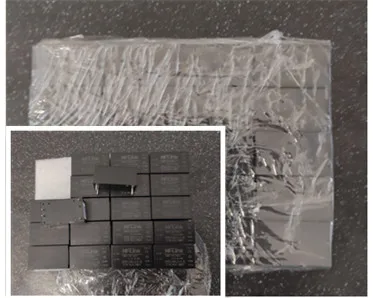

Packing & Delivery
