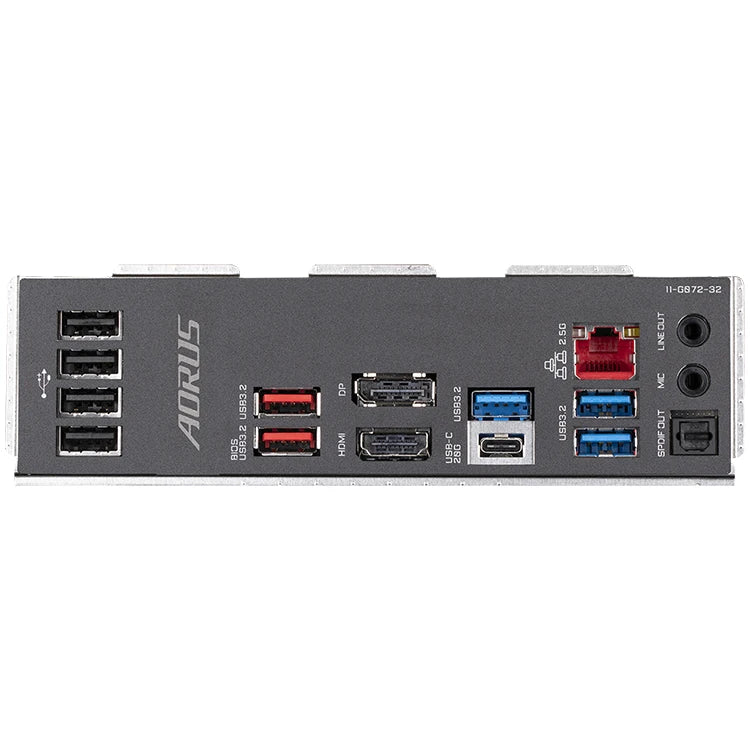

GIGABYTE Z790 AORUS ELITE Used Motherboard With LGA 1700 Supports 13th/12th Gen Intel Core Series Processors Used for Desktop



Key Feature

· Intel^® Socket LGA 1700:Support 13th and 12th Gen Series Processors

· Unparalleled Performance:Twin 16*+1+2 Phases Digital VRM Solution

· Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support

· Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors

· Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance

· EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design

· Fast Networks:2.5GbE LAN

· Extended Connectivity:DP, HDMI, Front USB-C^® 10Gb/s, Rear USB-C^® 20Gb/s

· Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

· Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

* 8+8 phases parallel power design



· CPU

1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

· Chipset

3. Intel^® Z790 Express Chipset

· Memory

4. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

5. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

6. Dual channel memory architecture

7. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

8. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

9. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

· Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

10. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

11. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

· Audio

12. Realtek^® Audio CODEC

13. High Definition Audio

14. 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

15. Support for S/PDIF Out

· LAN

16. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

· Expansion Slots

CPU:

17. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

18. 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

· Storage Interface

CPU:

19. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

20. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

21. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

22. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

· USB

Chipset:

23. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support

24. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header

25. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

26. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

27. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

· Internal I/O Connectors

28. 1 x 24-pin ATX main power connector

29. 2 x 8-pin ATX 12V power connectors

30. 1 x CPU fan header

31. 1 x water cooling CPU fan header

32. 3 x system fan headers

33. 1 x system fan/water cooling pump header

34. 2 x addressable LED strip headers

35. 2 x RGB LED strip headers

36. 4 x M.2 Socket 3 connectors

37. 6 x SATA 6Gb/s connectors

38. 1 x front panel header

39. 1 x front panel audio header

40. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support

41. 1 x USB 3.2 Gen 1 header

42. 2 x USB 2.0/1.1 headers

43. 2 x Thunderbolt™ add-in card connectors

44. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

45. 1 x reset button

46. 1 x Q-Flash Plus button

47. 1 x Clear CMOS button

48. 1 x reset jumper

49. 1 x Clear CMOS jumper

· Back Panel Connectors

50. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support

51. 2 x USB 3.2 Gen 2 Type-A ports (red)

52. 3 x USB 3.2 Gen 1 ports

53. 4 x USB 2.0/1.1 ports

54. 1 x HDMI 2.0 port

55. 1 x DisplayPort

56. 1 x RJ-45 port

57. 1 x optical S/PDIF Out connector

58. 2 x audio jacks

· I/O Controller

59. iTE^® I/O Controller Chip

· H/W Monitoring

60. Voltage detection

61. Temperature detection

62. Fan speed detection

63. Water cooling flow rate detection

64. Fan fail warning

65. Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

· BIOS

66. 1 x 256 Mbit flash

67. Use of licensed AMI UEFI BIOS

68. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

· Unique Features

69. Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

70. Support for Q-Flash

71. Support for Q-Flash Plus

72. Support for Smart Backup

· Bundled Software

73. Norton^® Internet Security (OEM version)

74. LAN bandwidth management software

· Operating System

75. Support for Windows 11 64-bit

76. Support for Windows 10 64-bit

· Form Factor

77. ATX Form Factor; 30.5cm x 24.4cm
