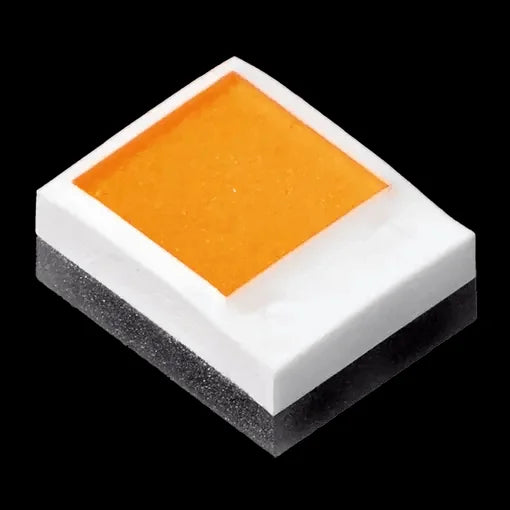

For Automotive LED Application High Power LED 4.44W 3V 1815 Amber NICHIA NCSA170BT

CFA4,817 XOF

~~CFA0 XOF~~ CFA4,817 XOF

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Color 10PCS 50PCS 100PCS

SPECIFICATIONS

Brand Name: NONE

Model Number: NCSA170BT

Origin: Mainland China

MODEL NAME : NCSA170BT

Manufacturer : NICHIA

Origin : Japan

Package Model:Loaded Quantity PCS Per Reel

Forward Current (IF ): 1200mA

Pulse Forward Curren t1 (IFp): 1500mA

Reverse Current (IR): 85mA

Reverse Voltage (VR): V (mA)

Power Dissipation (PD): 4.44W

Operatin Tgemperature (Topr): -40 - +125 °C

Storage Temperature (Tstg): -40 - +125 °C

Soldering Temperature (Tsld): Reflow Soldering:260 °C

for 10secs

Hand Soldering:350 °C

for 3secs

Junctio Tnemperature (Tj ): 150°C

Forward Voltage (VF): 3.4V (1000mA)

Luminous Flux (LM): 150-200lm (1000mA)

Luminous Intensity ( IV ) : cd (1000mA)

Wavelength (nm) : nm 1000mA

CIE : x=0.57 y=0.42 (1000mA)

Color Correlated Temperature (CCT): K

CRI : °

Viewing angle : 120°

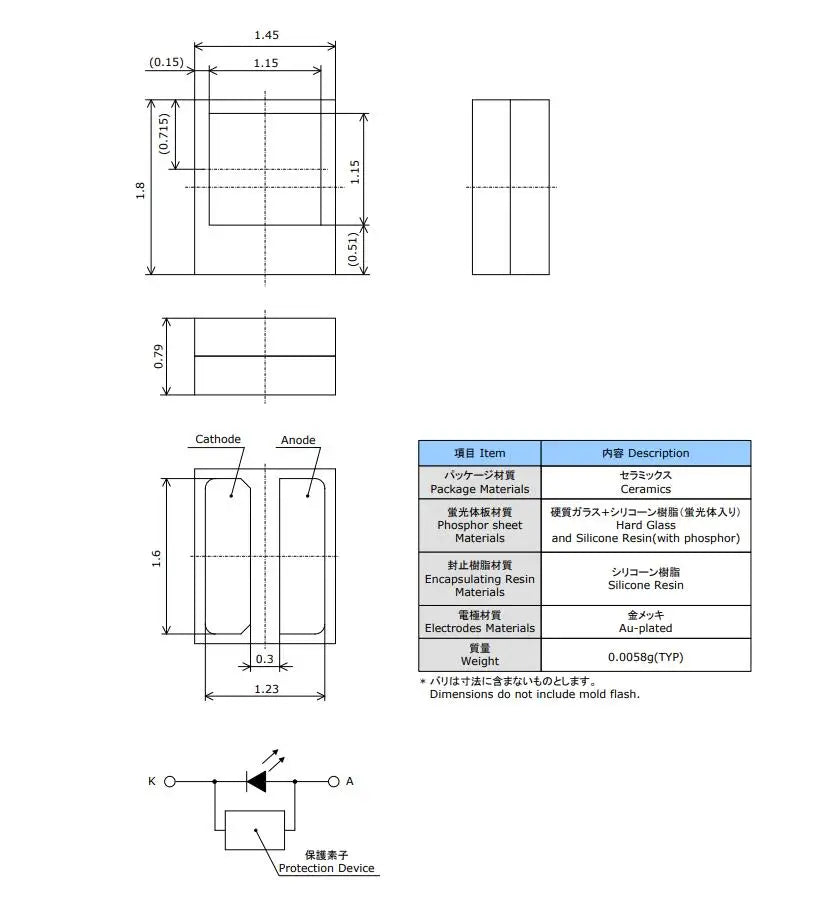

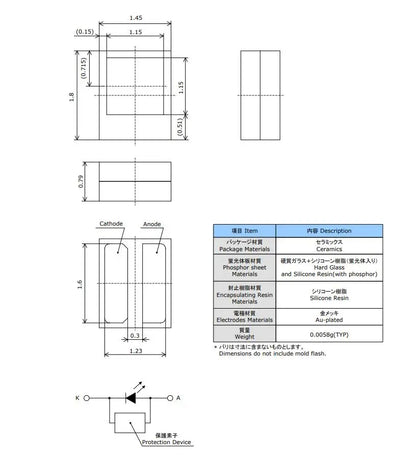

Lead Frame Type LED Package: 1.8×1.45×0.79mm L×W×H d=1.15mm
