SPECIFICATIONS

BL: 5P 1.25mm

Brand Name: GLZLDY

Compatible Audio & Video Equipment Style: Display Equipment

High-concerned chemical: None

LVDS: 1ch 8bit 30p R

Origin: Mainland China

resolution: 1366*768

Before placing an order, please provide your panel model to us by webmail if you are not sure about your lcd

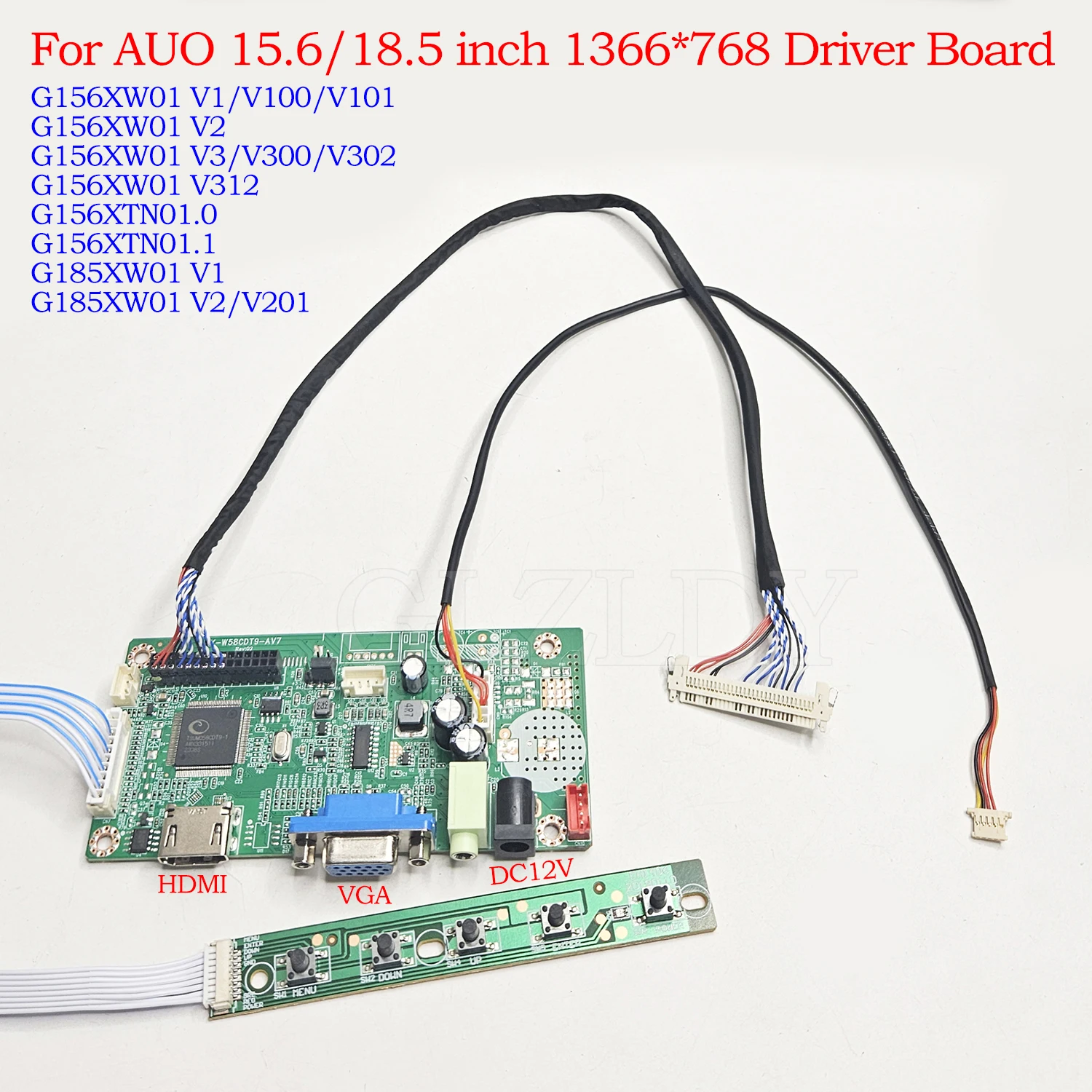

For AUO G156XW01 G185XW01 G156XTN01.0 1366x768 Controller Board HDMI+VGA To LVDS LCD LED Screen Laptop display Driver Board Kit

This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD 15" 1024*768 industrial Display into a desktop/PC monitor. It will be a surprise that your bare LCD will be of good use, and no longer be a waste. Or it is a very insteresting things that we make a monitor successfully by ourselves.  Giving your lcd a new life with your fantastic idea.

The driver board needs to be connected to the signal input source (as hdmi/vga/DVI/AV/DP/USBC) to display, no signal input will be black screen into the power saving mode, not the driver board broken.

support LCD Include but not limited to, if your screen model isn't listed，pls contact us to check

For LED screen: 1366*768 1ch 8bit 30pin ,5pin 1.25mm

G156XW01 V1

G156XW01 V100

G156XW01 V101

G156XW01 V3

G156XW01 V2

G156XW01 V312

G156XW01 V302

G156XW01 V300

G156XTN01.0

G156XTN01.1

G185XW01 V1

G185XW01 V2

G185XW01 V201

How to know the resolution of your screen:

You can check the resolution from this link: http://www.panelook.com/index.php, enter the panel model to search.

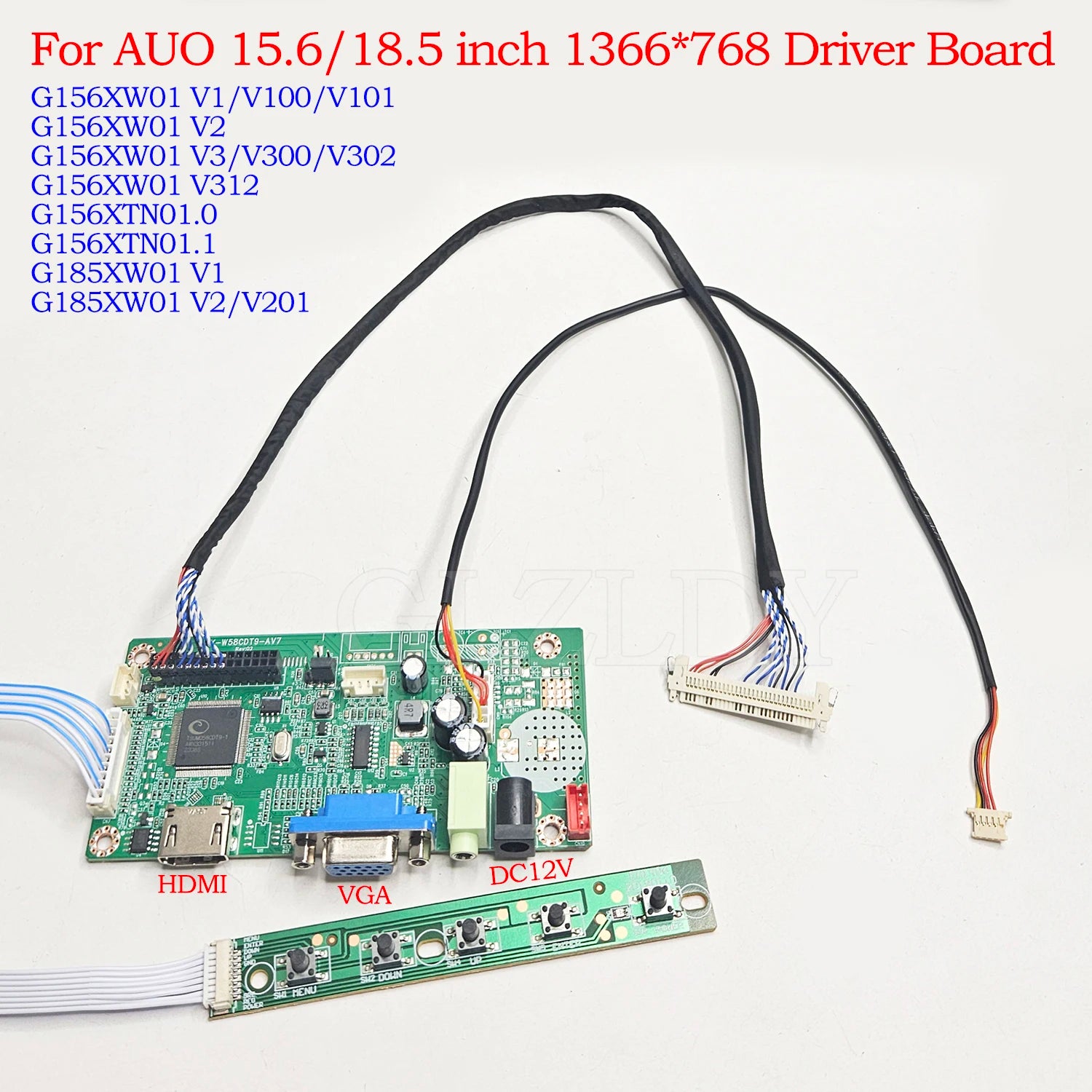

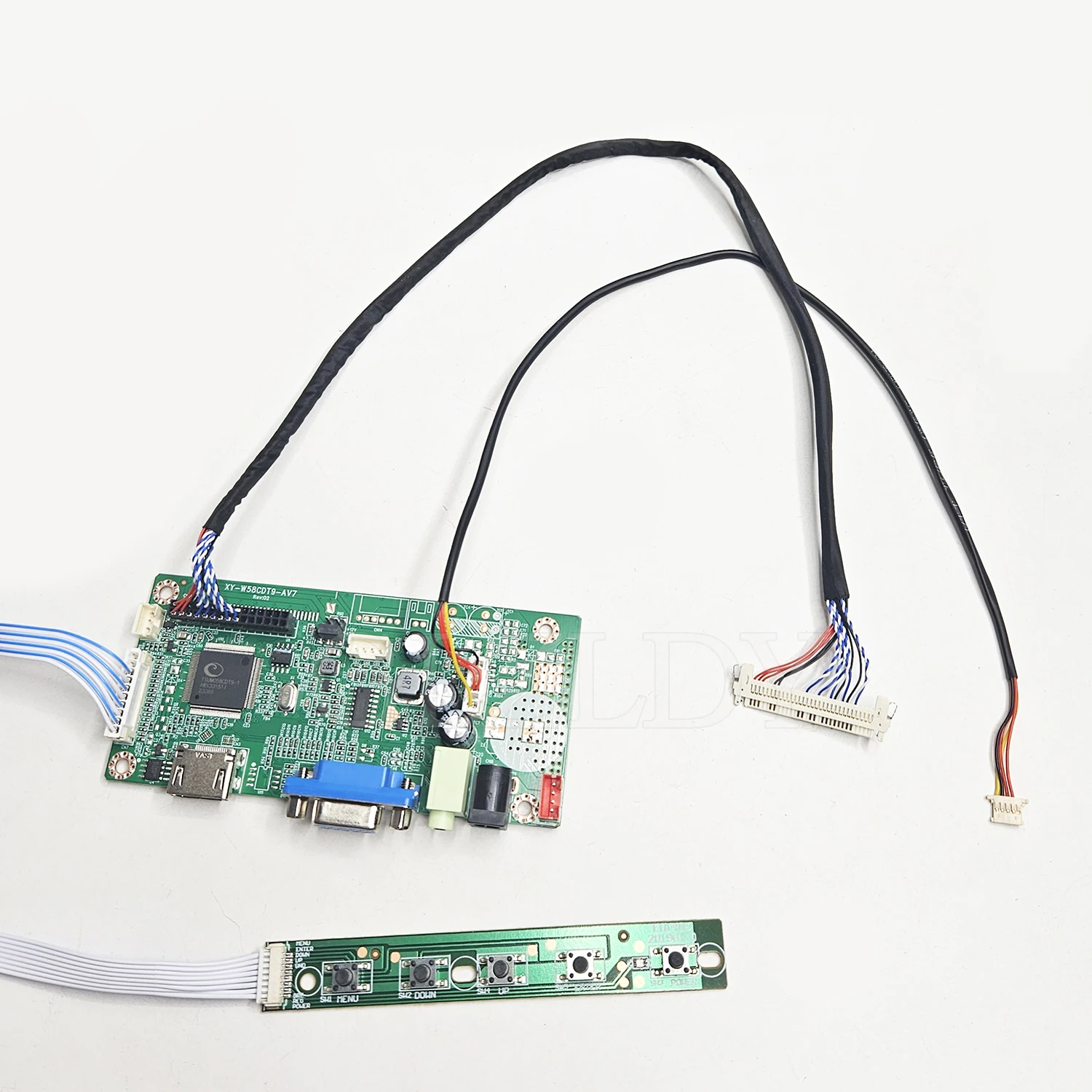

Package included:

1 x Driver board

1 x 5 Key board

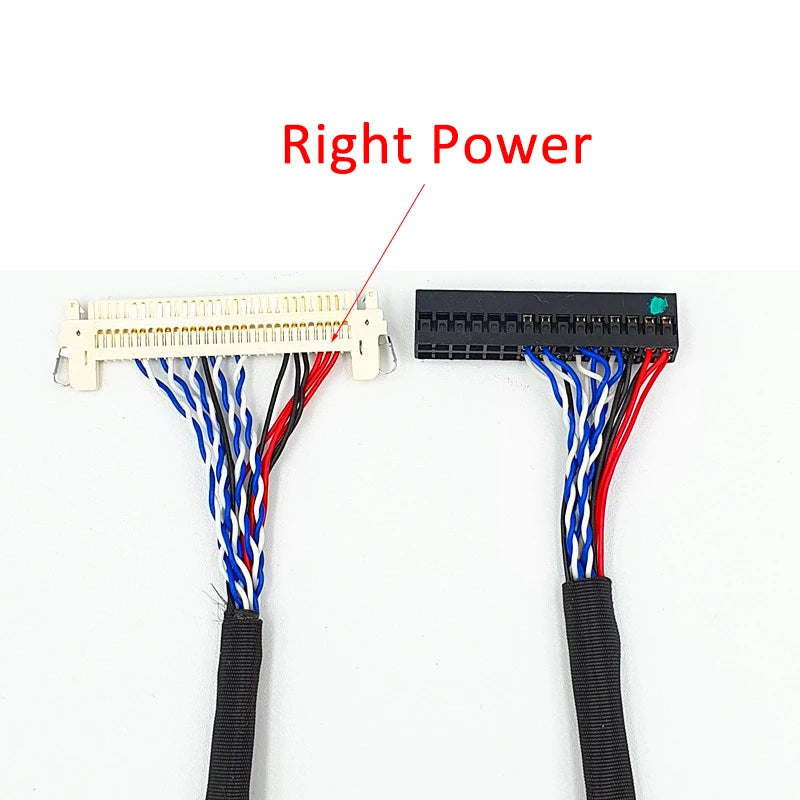

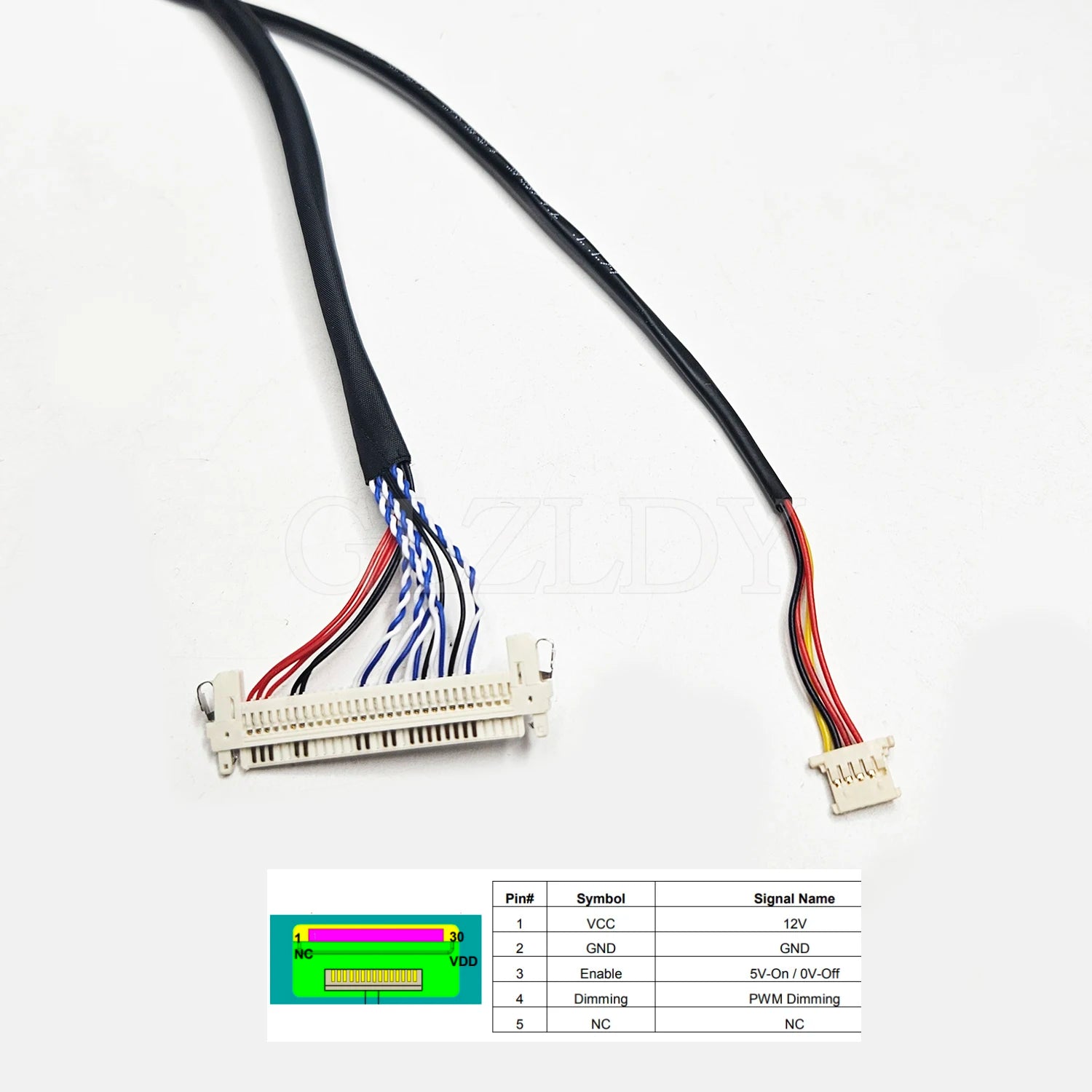

1 x LVDS cable

1 x backlight Cable

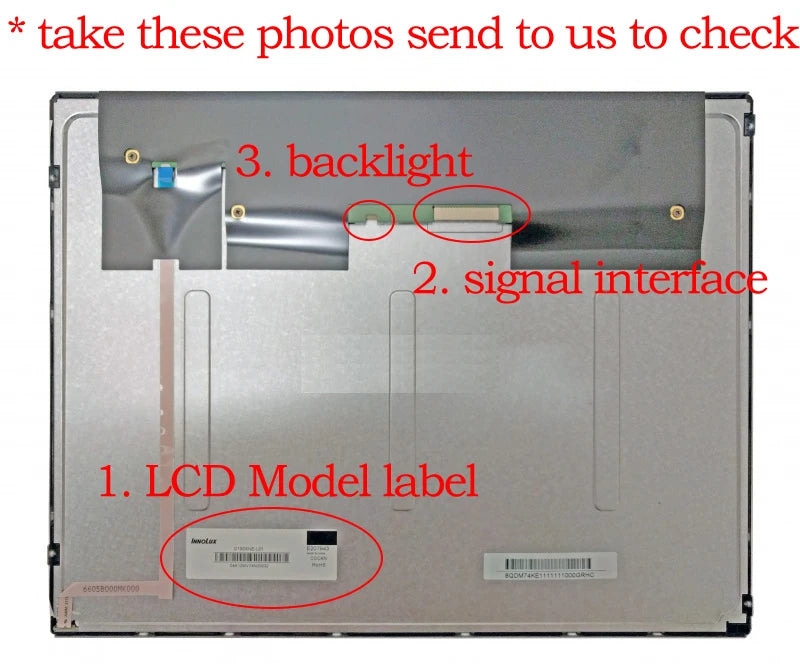

Before placing an order, If you have doubts，please provide your panel model to us.

we can help you install the corresponding program.

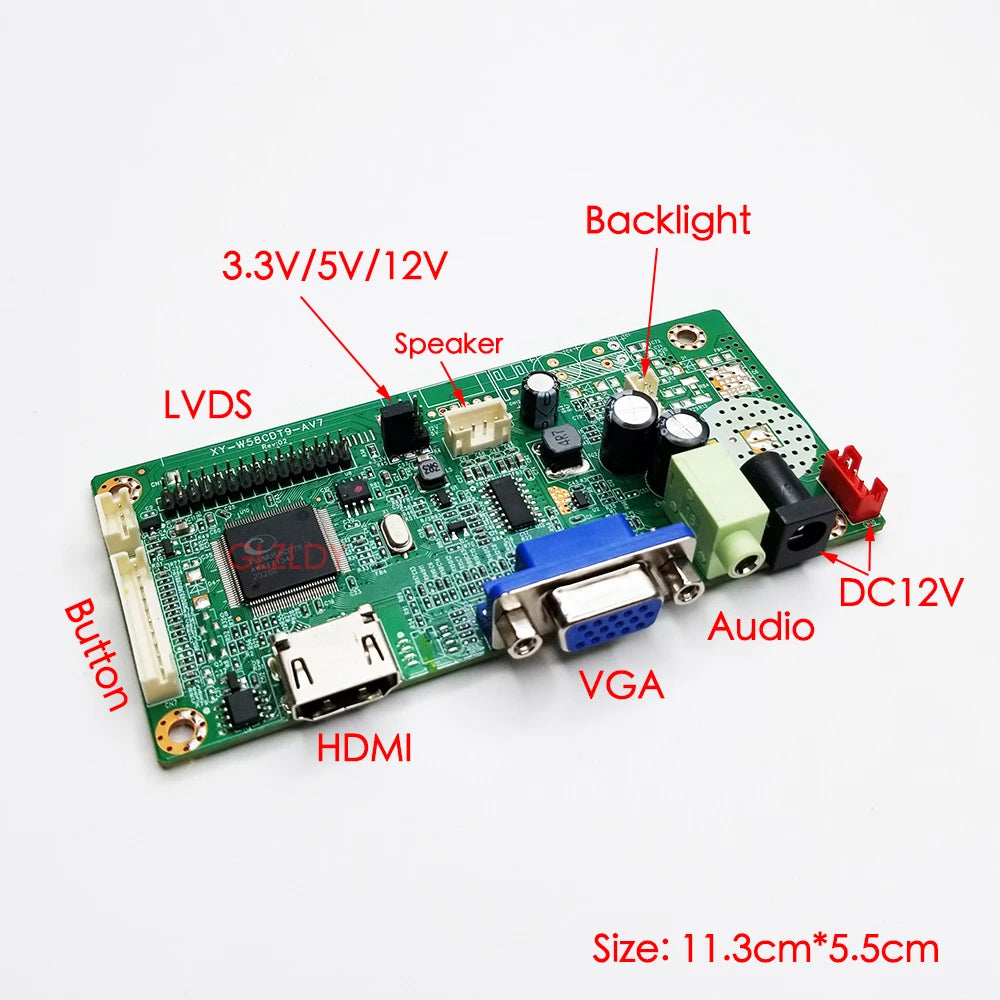

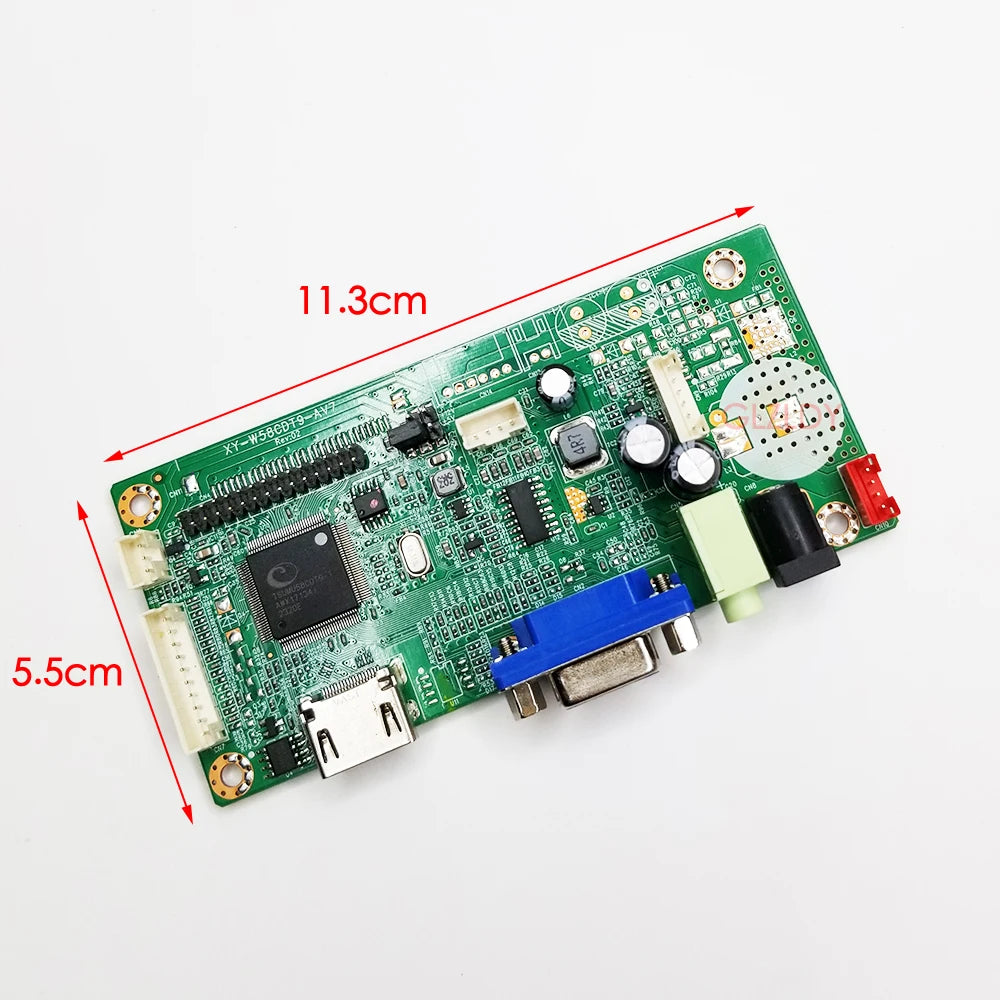

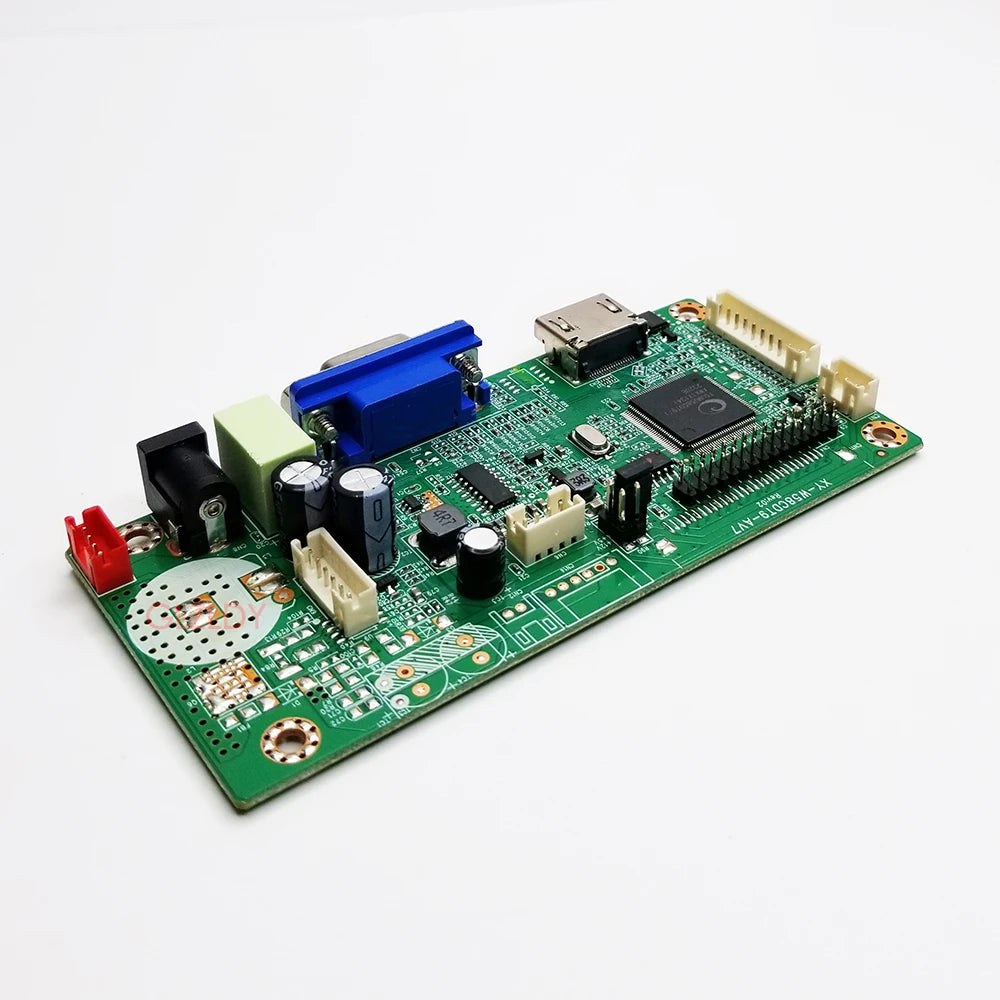

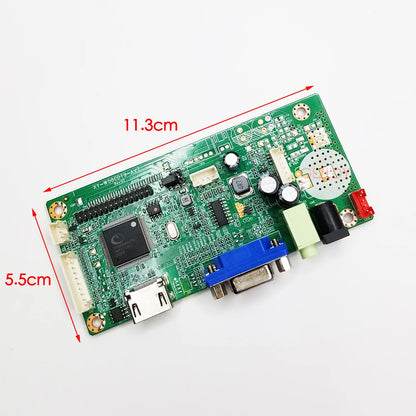

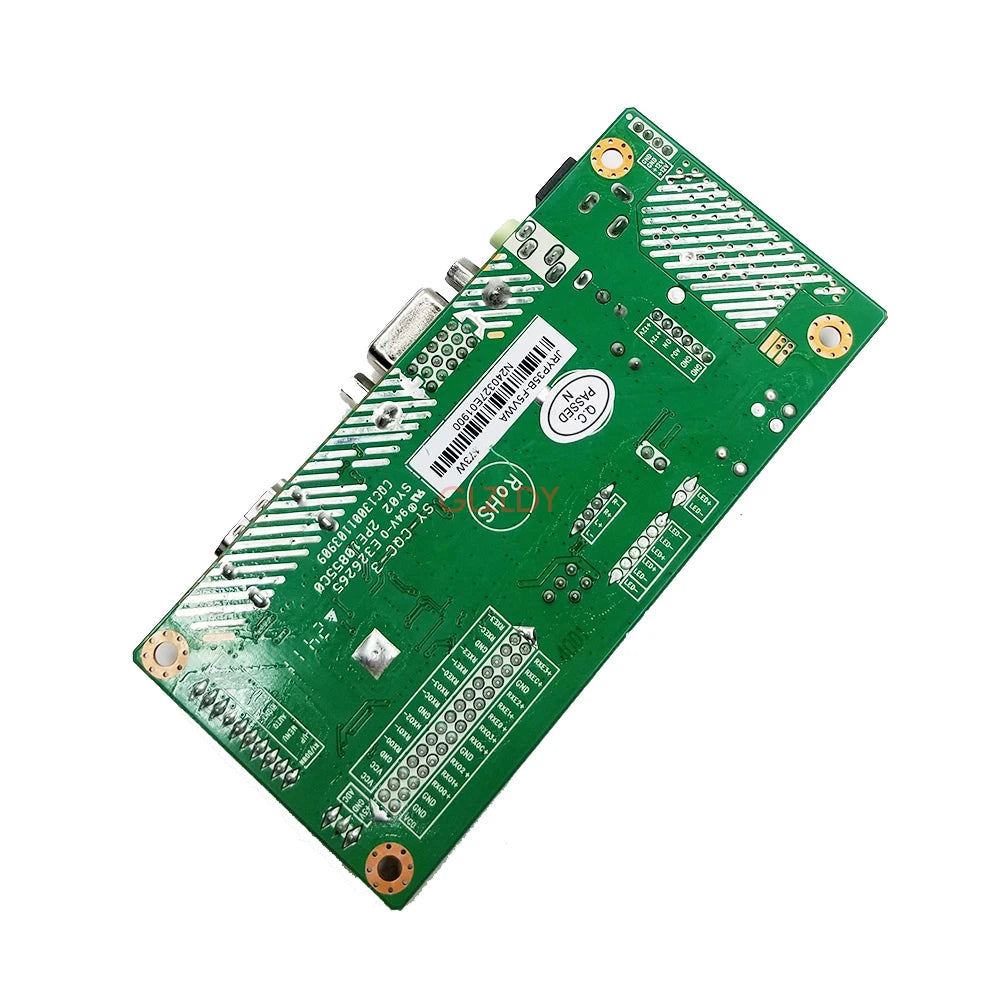

Product Photo

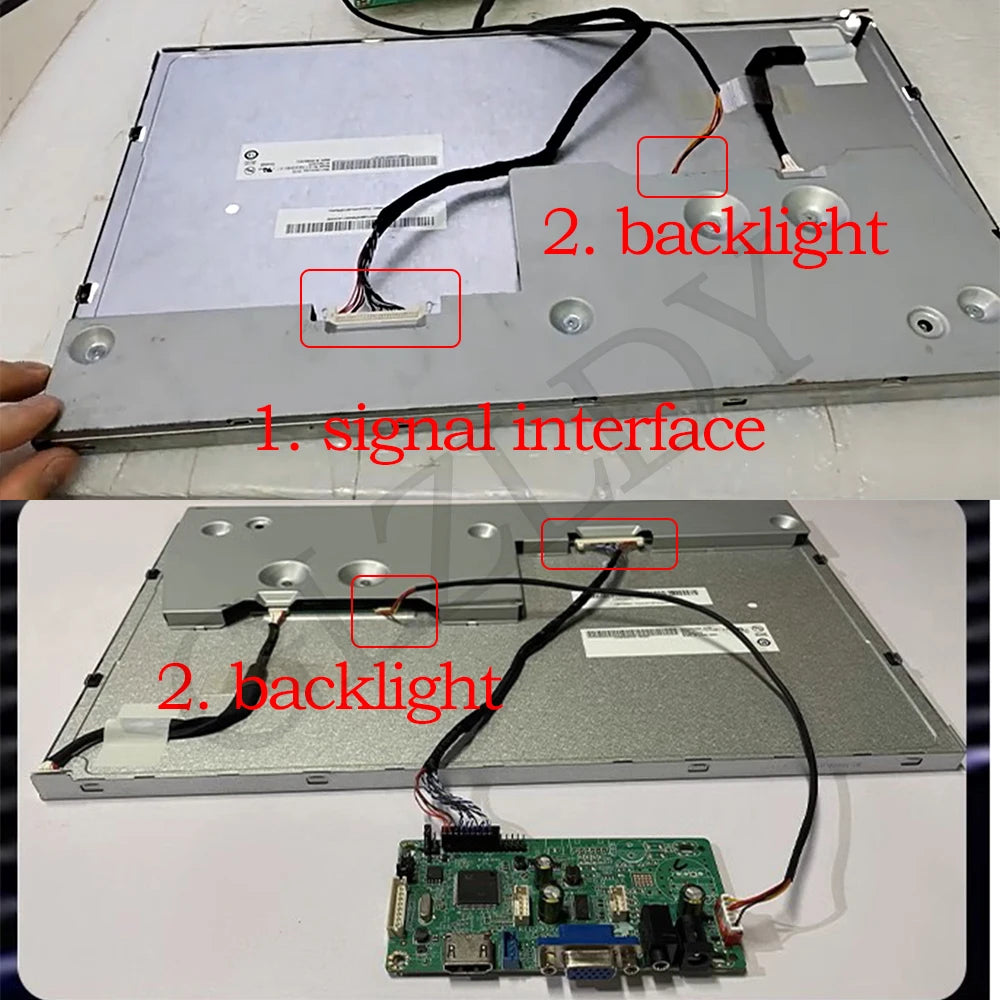

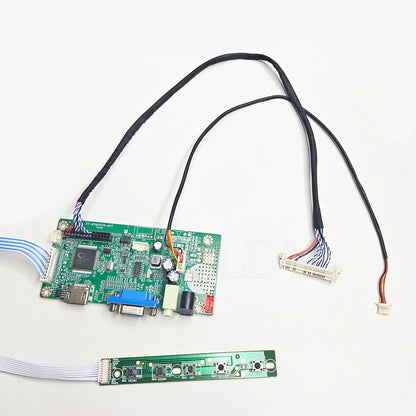

How is the connection ? just for reference, not include the LCD screen
