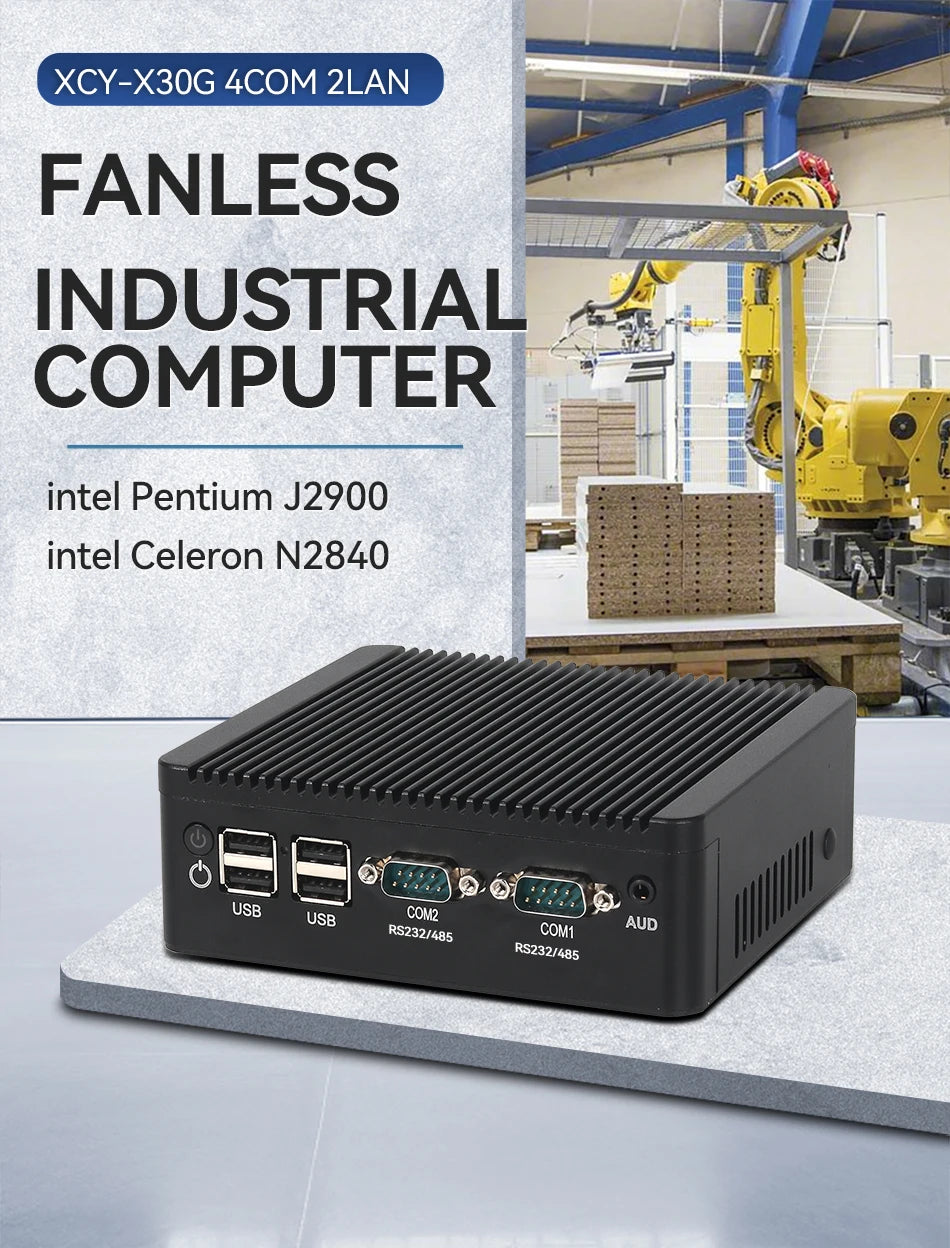

Fanless Industrial PC Intel J6412 N2840 J2900 4xCOM RS232 RS485 6xUSB 2x LAN HDMI VGA Mini PCIe WiFi 4G LTE GPIO Windows Linux

Prix habituel CFA197,279 XOF

Prix habituel ~~CFA0 XOF~~ Prix promotionnel CFA197,279 XOF

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Color 8G RAM 512G SSD WiFiVariante épuisée ou indisponible 8G RAM 128G SSD WiFiVariante épuisée ou indisponible 8G RAM 256G SSD WiFiVariante épuisée ou indisponible 4G RAM 64G SSD WiFiVariante épuisée ou indisponible 4G RAM 128G SSD WiFiVariante épuisée ou indisponible No RAM No SSD NoWiFiVariante épuisée ou indisponible 2G RAM 64G SSD WiFiVariante épuisée ou indisponible 16G RAM 256G SDDWiFIVariante épuisée ou indisponible

Bundle intel Celeron J6412Variante épuisée ou indisponible intel Pentium J2900Variante épuisée ou indisponible intel Celeron N2840Variante épuisée ou indisponible

Quantité Quantité

(0 dans le panier)

SPECIFICATIONS

Audio: 1x 3.5mm Jack support Microphone, speaker

Brand Name: XCY

COM1 COM2: RS232 RS485 adjustable

COM3 COM4: RS232

Certification: CE,FCC,RoHS

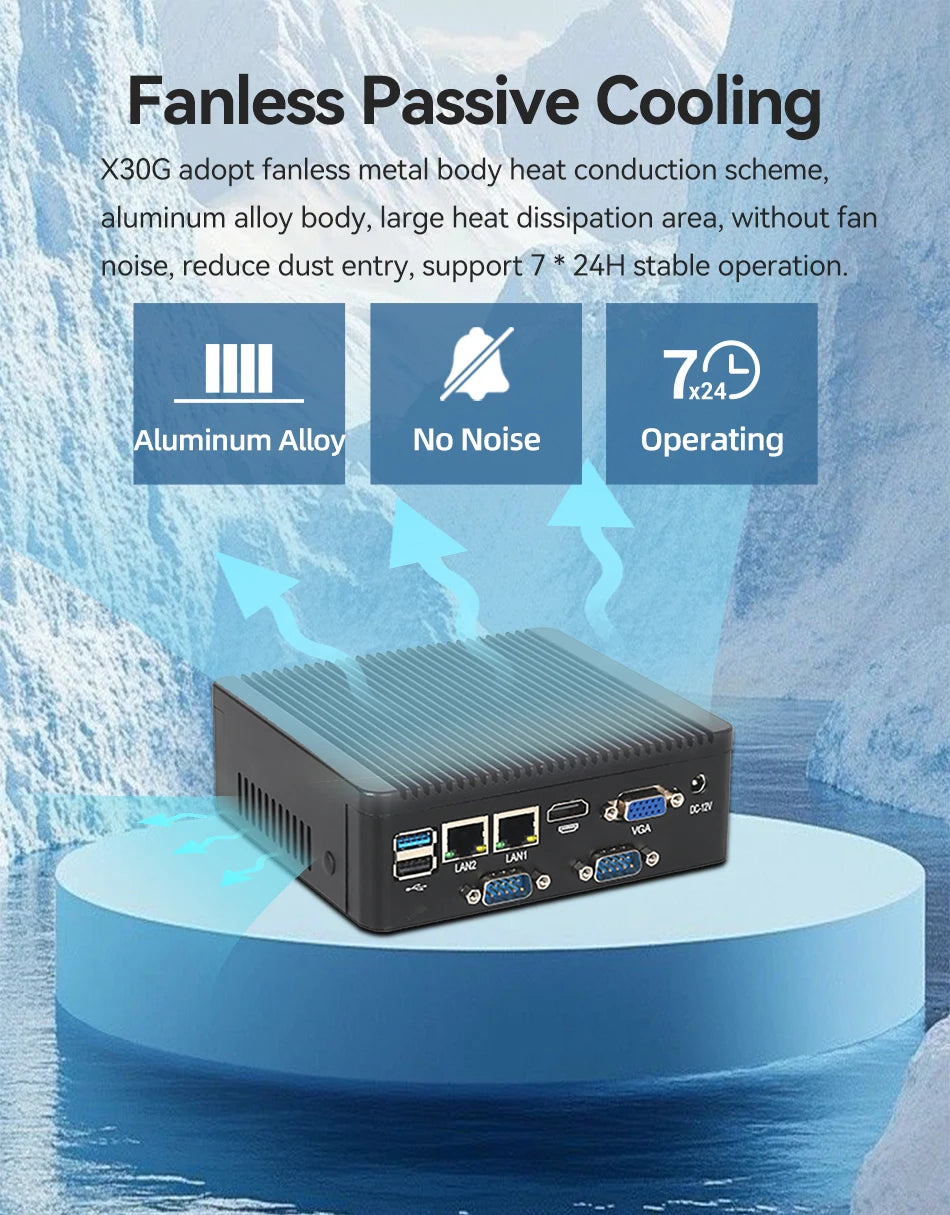

Cooling: Fanless Passive Cooling

Display: 1x HDMI, 1x VGA

GPIO Extension: 4x Input, 4x Output, 5V

Graphics Card Type: Integrated Card

Hard Drive Capacity: 128 GB

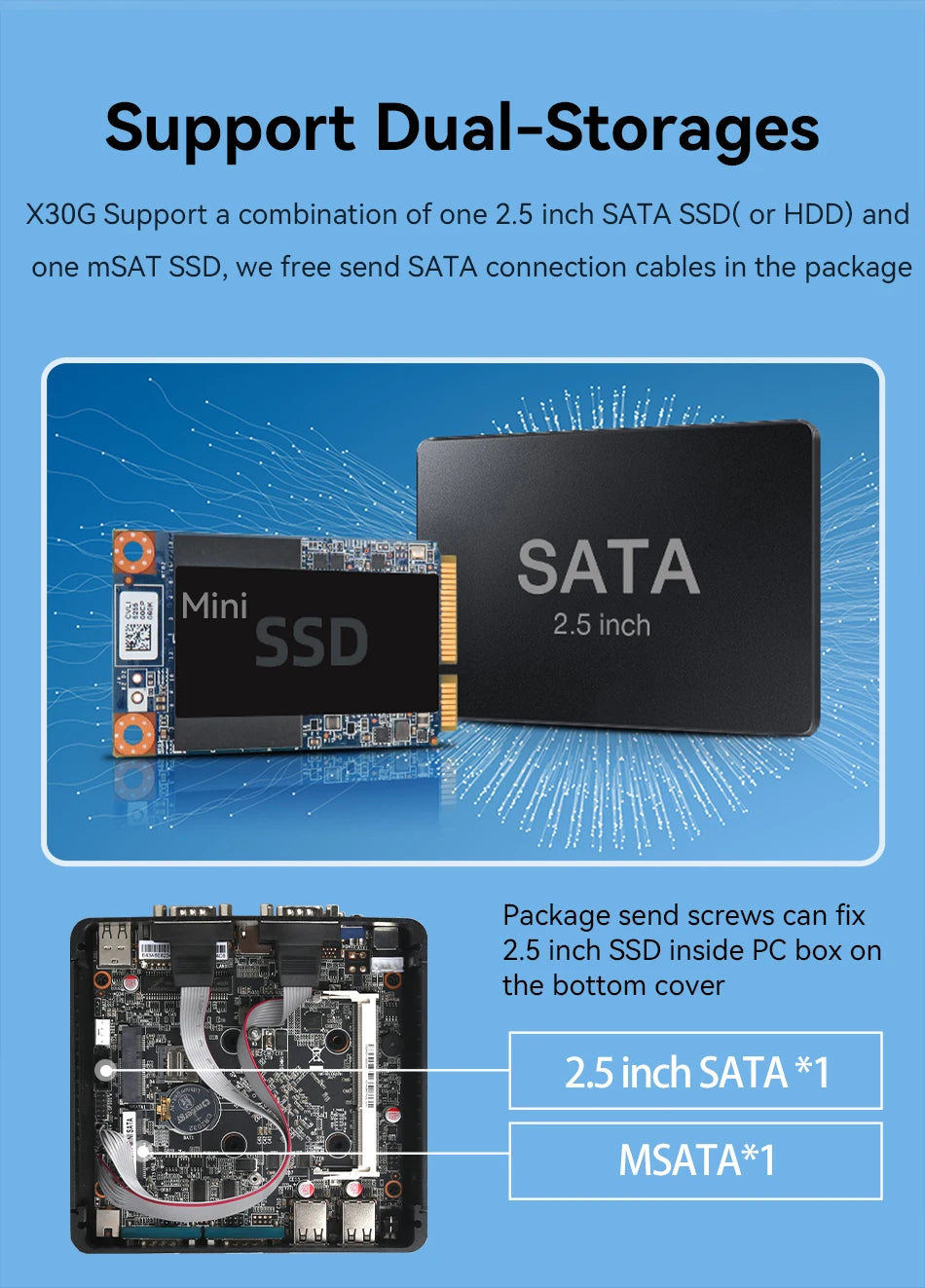

Hard Drive Support: 1x mSATA SSD, 1x 2.5 inch SATA

High-concerned chemical: None

LAN: 2x Realtek 8111H GbE, support WOL, PXE

Memory Capacity: ≥ 4GB

Memory Type: 1x SODIMM DDR3L or DDR4

Model Number: X30G-4COM

OS Support: Windows 7/8/10, Linux/Ubuntu/Debian

Operating Temperature: -20℃ to 60℃

Origin: Mainland China

PC Size: 134x124x40mm

Power Supply: DC12V-3A

Processor Brand: Intel

Processor Model: Intel Pentium J2900, intel Celeron N2840, J6412

Type: Mini Desktop,Mini PC

USB Ports: 1x USB3.0, 5x USB2.0

Use: Commercial

Wireless: 1x Mini PCIE slot for WiFi, 4G LTE

Important : Mini PC without preinstall a 4G LTE module, buyer need add a 4G LTE module, please contact us.

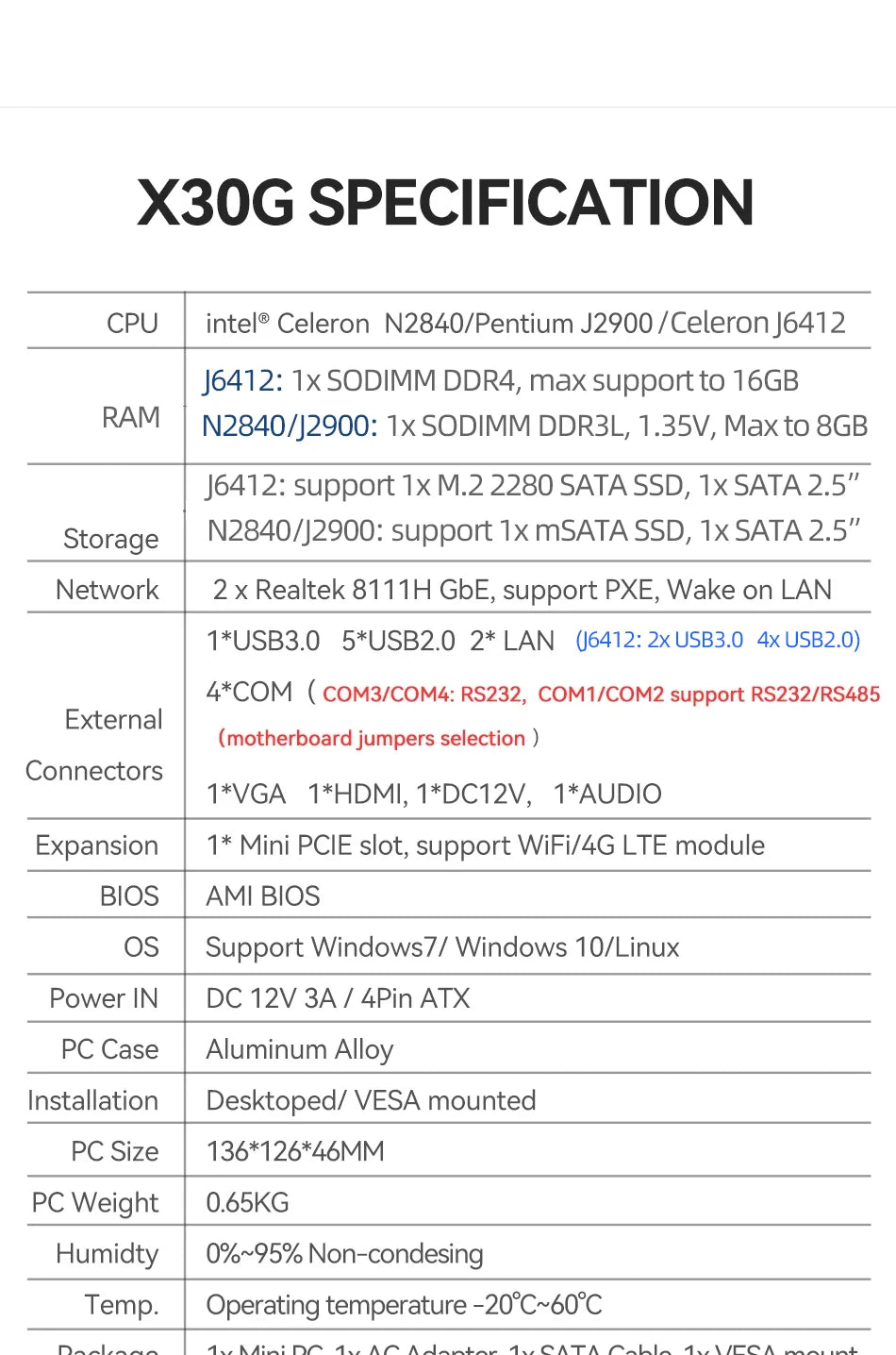

Datasheet:

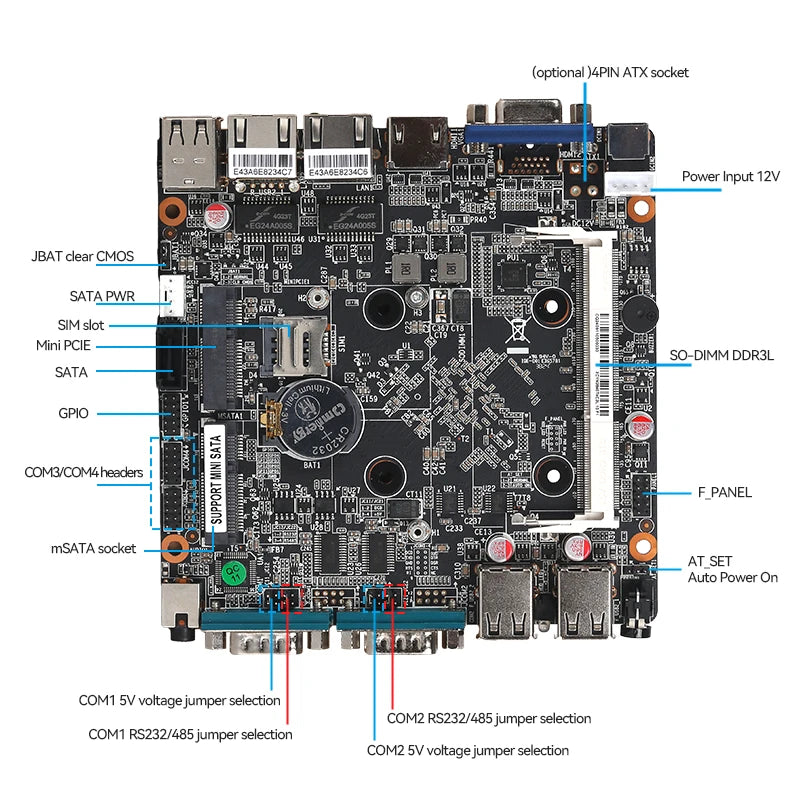

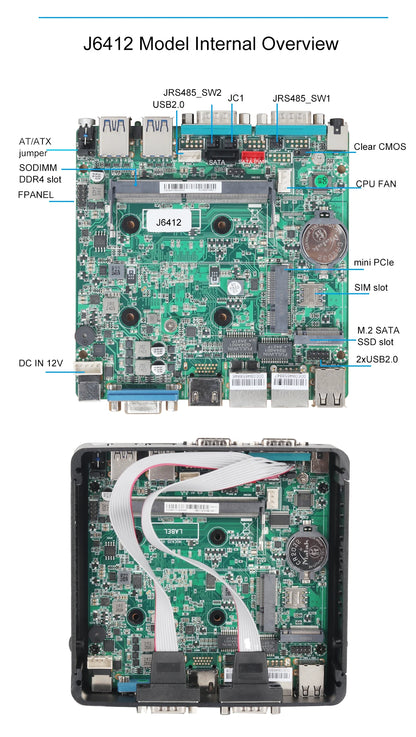

Motherboard Size	121.6mmX121.6mm
Processors	Intel Celeron N2840 Processor, 2 cores 2 threads, base frequency 2.16GHz, up to 2.58GHz Intel Pentium J2900 Processor, 4 cores 4 threads, base frequency 2.41GHz, up to 2.66GHz Intel Celeron J6412 processor, 4 cores 4 threads, base frequecny 2.0Ghz, up to 2.60Ghz Intel Celeron N5100 processor, 4 cores 4 threads,base frequency 1.10GHz, up to 2.8GHZ

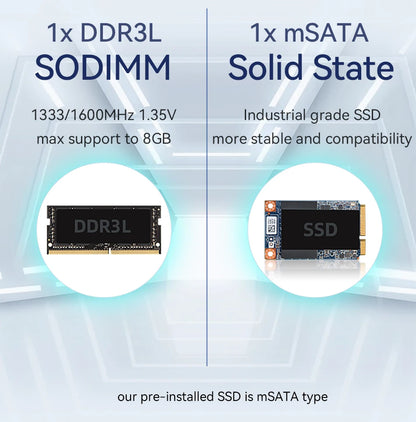

Memory Types	N2840/J2900:1x DDR3L SO-DIMM 1.35V 1333/1600MHz, Max support to 8GB J6412/N5100: 1x SODIMM DDR4, max support 16GB
Expansion	1x mini PCIE slot for WIFI, 4G LTE module, 1x SIM slot on board

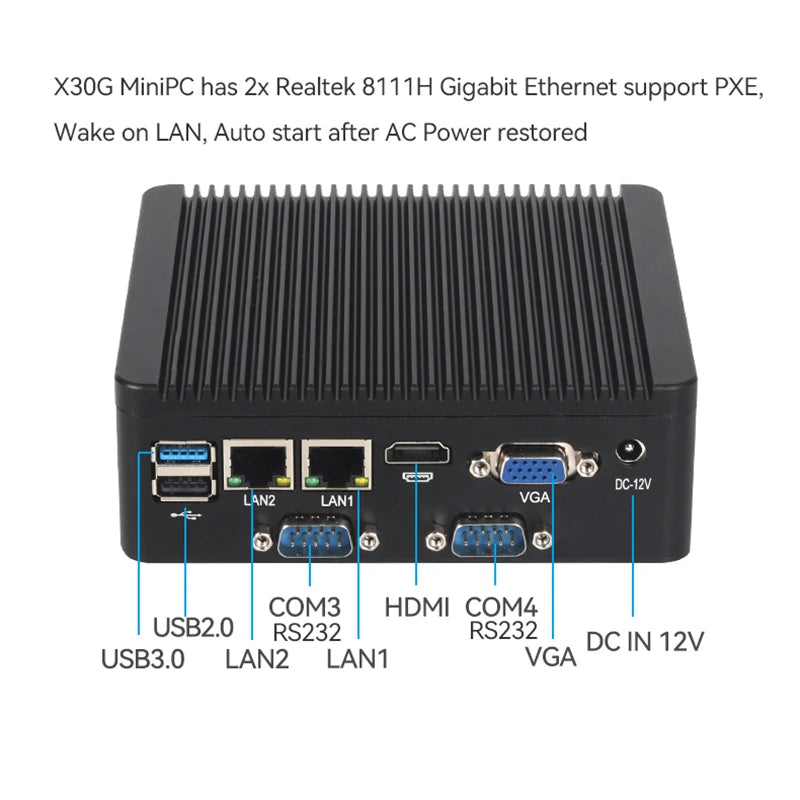

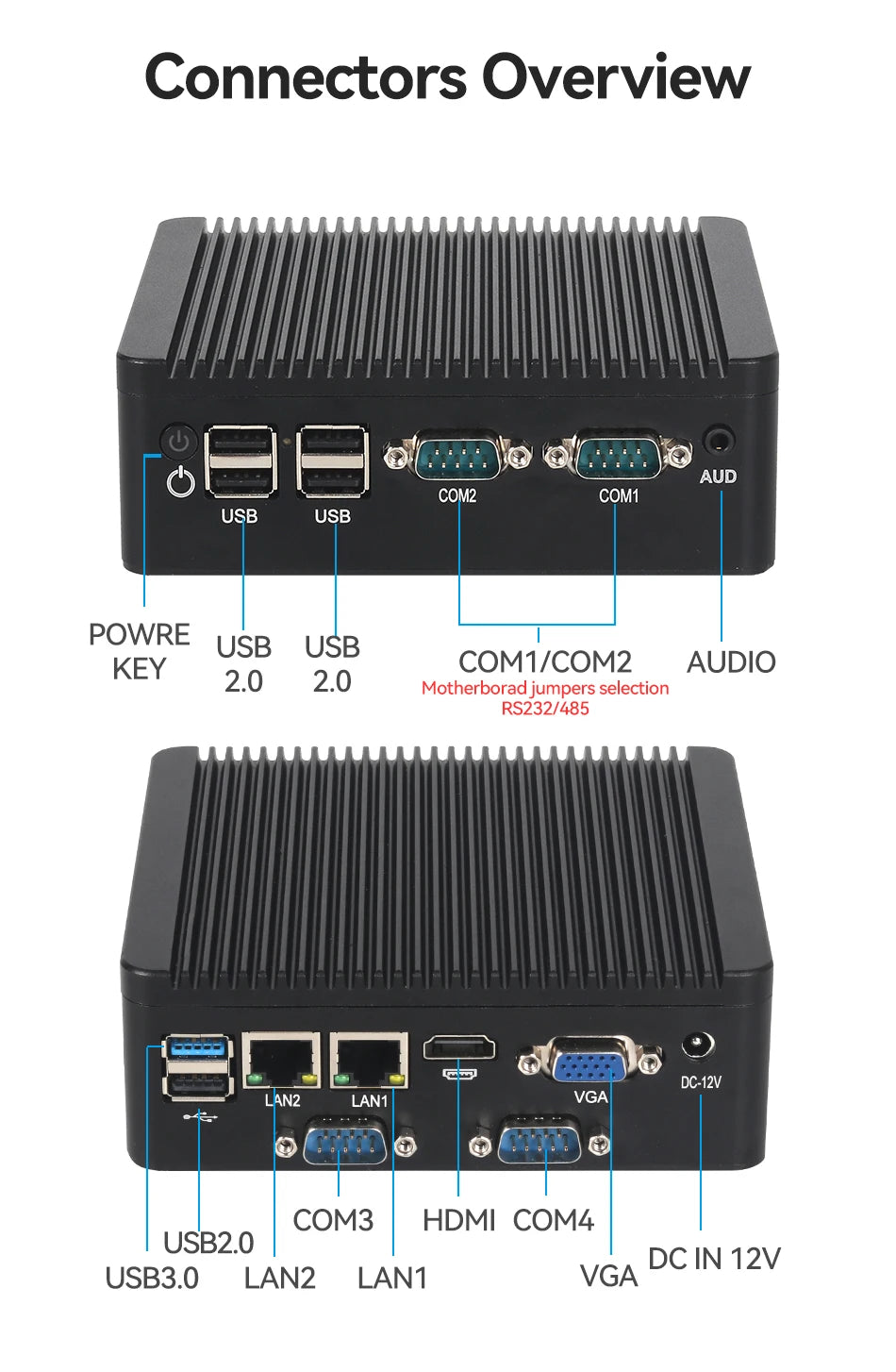

Rear Panel	1x DC_IN 12V
	1x VGA ( HDMI optional )
	1x HDMI
	1x LAN1
	1x LAN2
	1x USB2.0+1x USB3.0

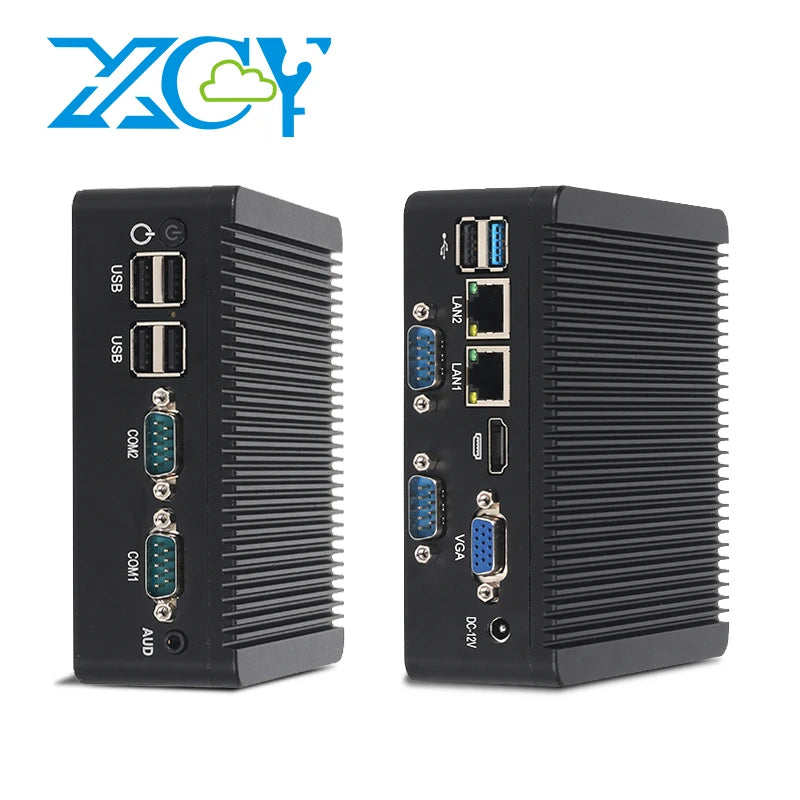

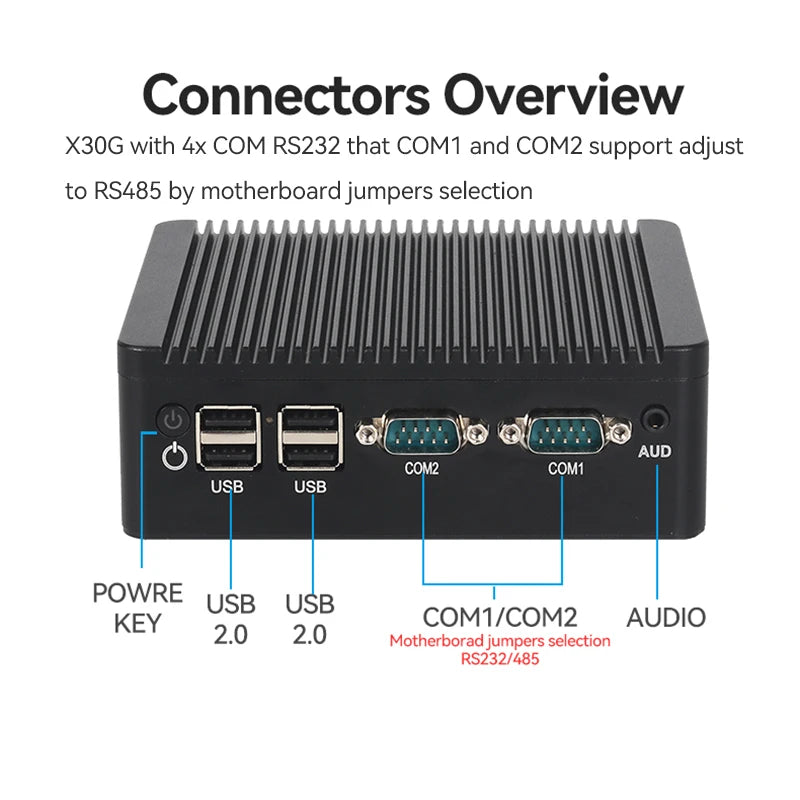

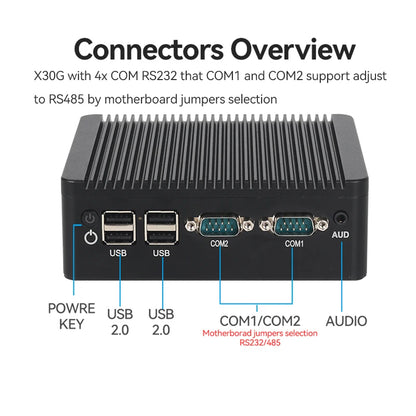

Front Panel	1x AUDIO

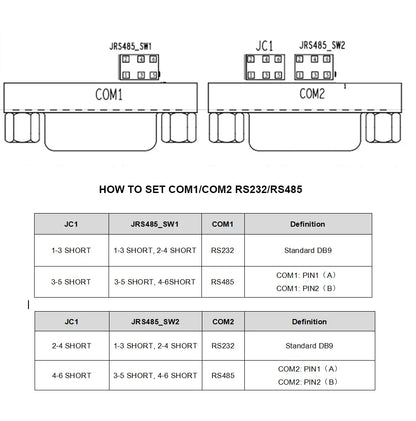

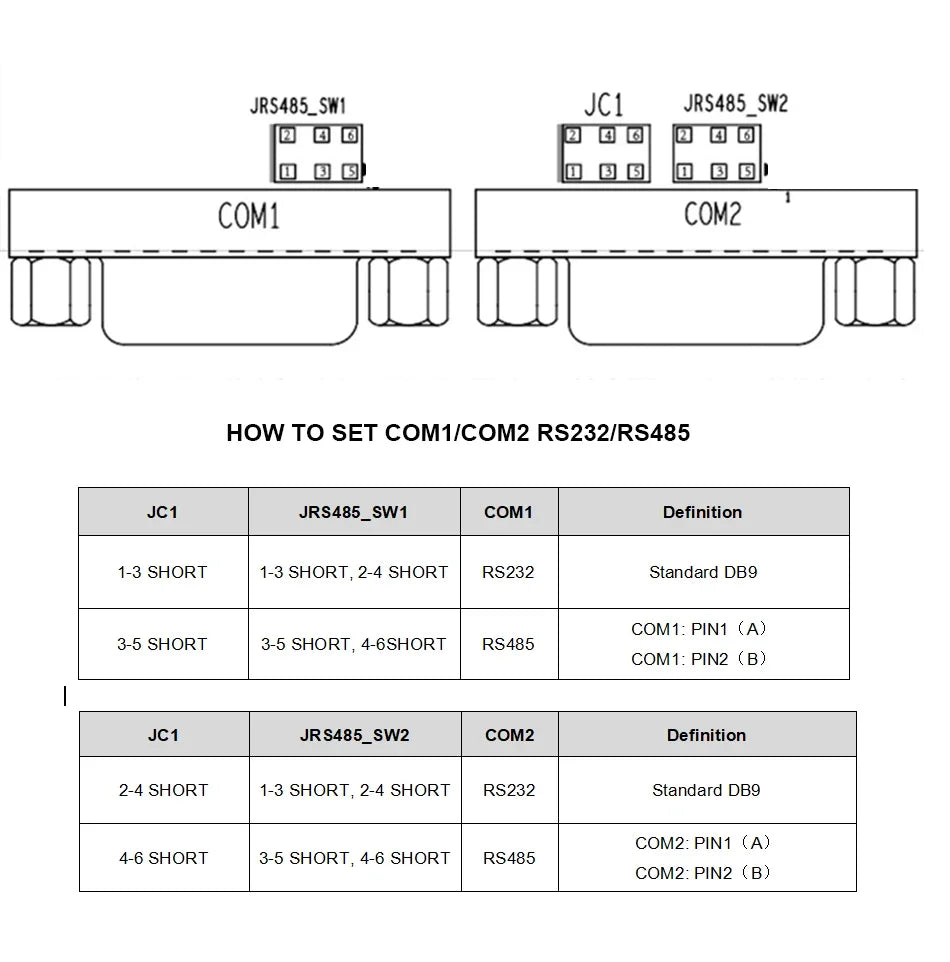

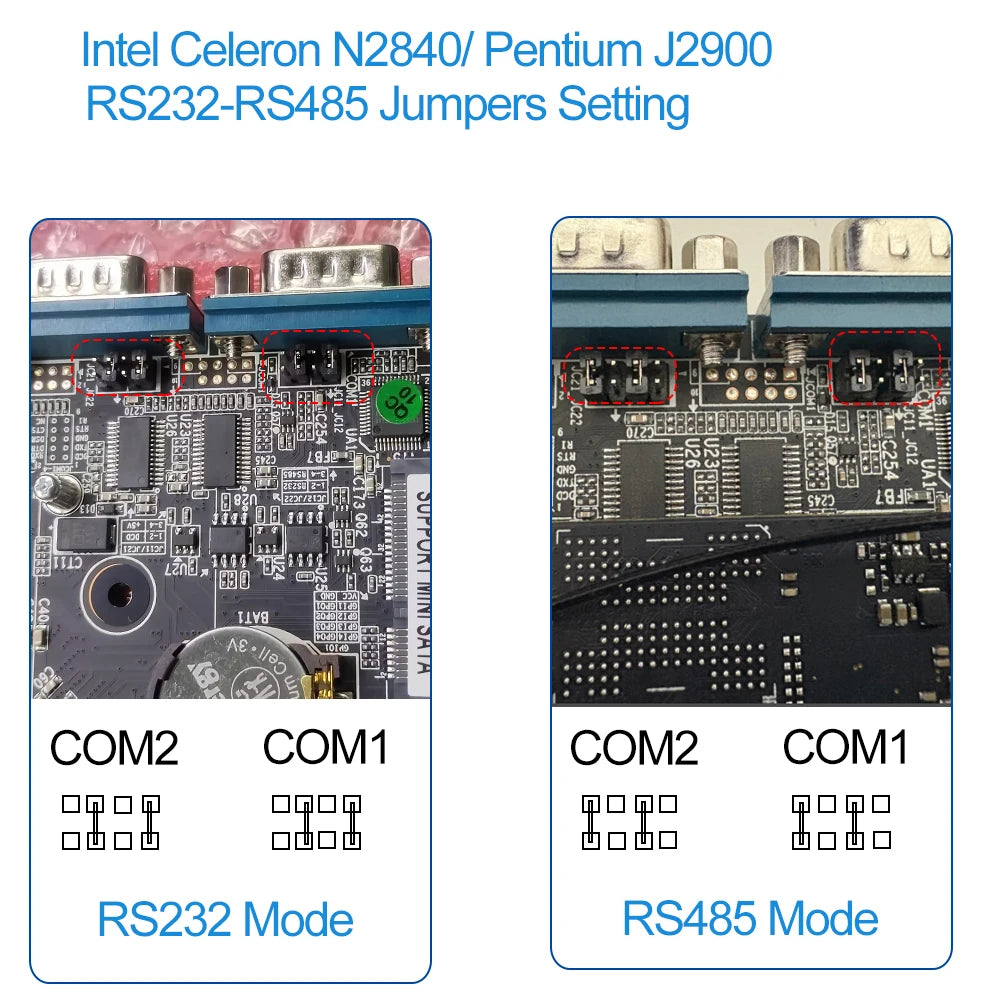

	1x COM1 RS232/RS485 adjustable on motherboard jumper
	1x COM2 RS232/RS485 adjustable on motherboard jumper
	2x USB2.0
	1x HDD_LED
	2x USB2.0
	1x POWER KEY

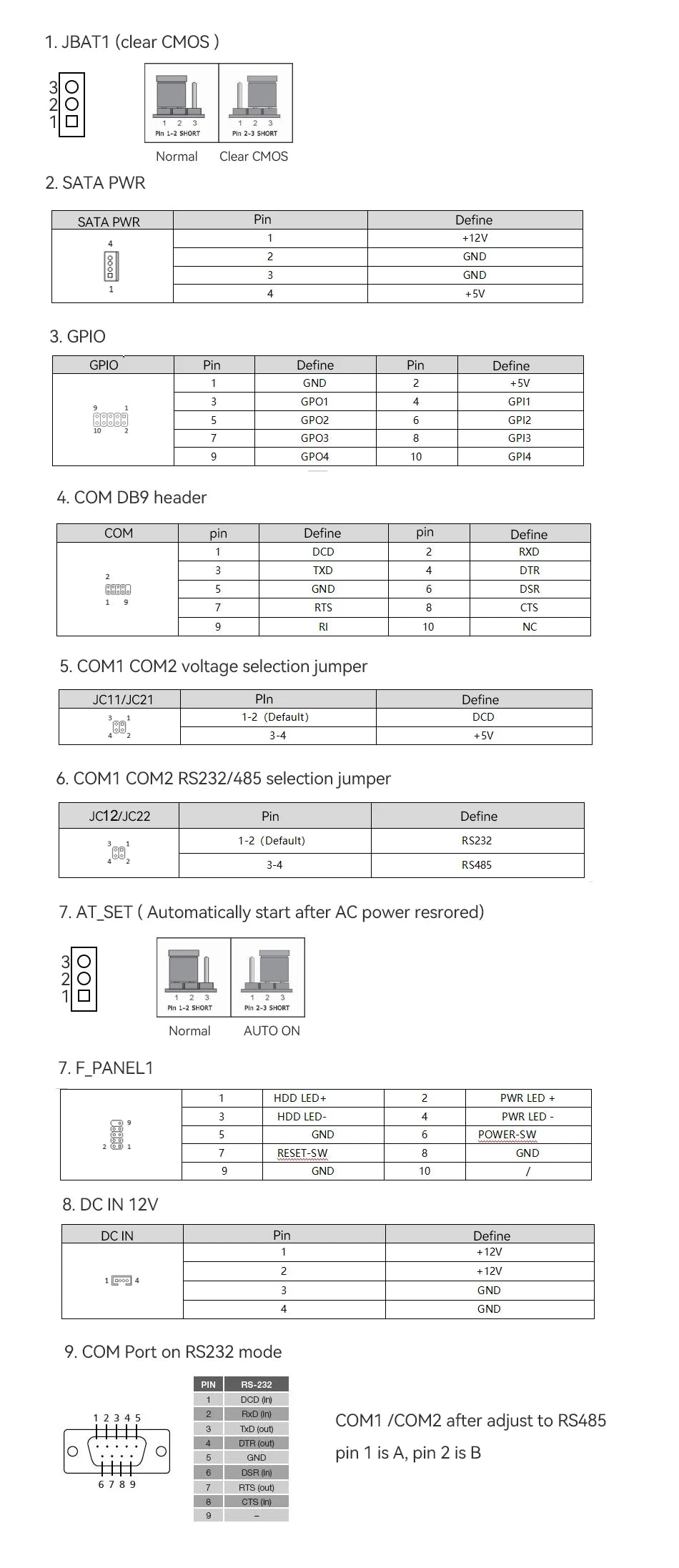

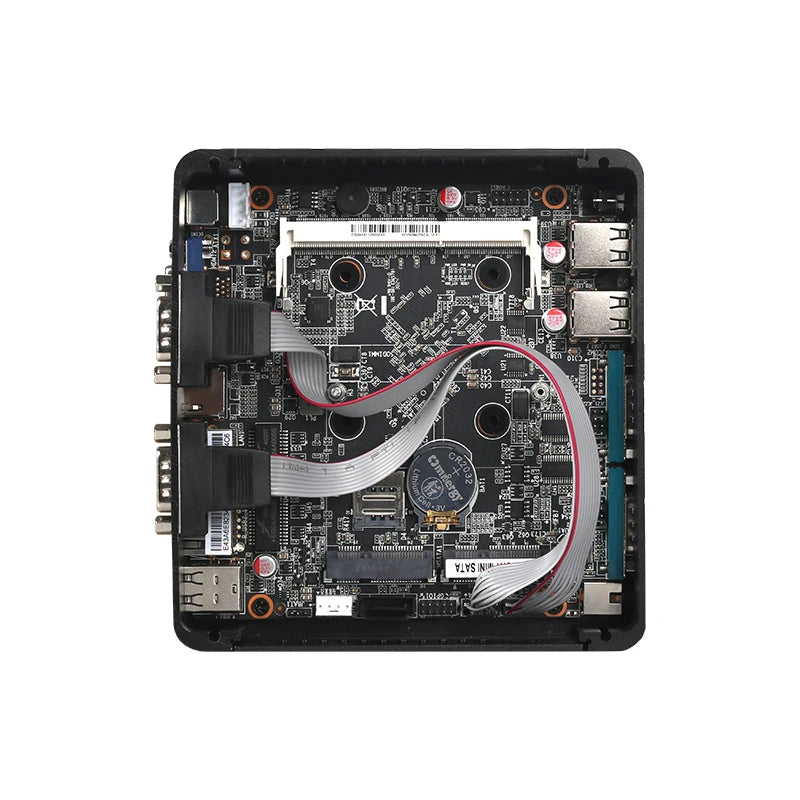

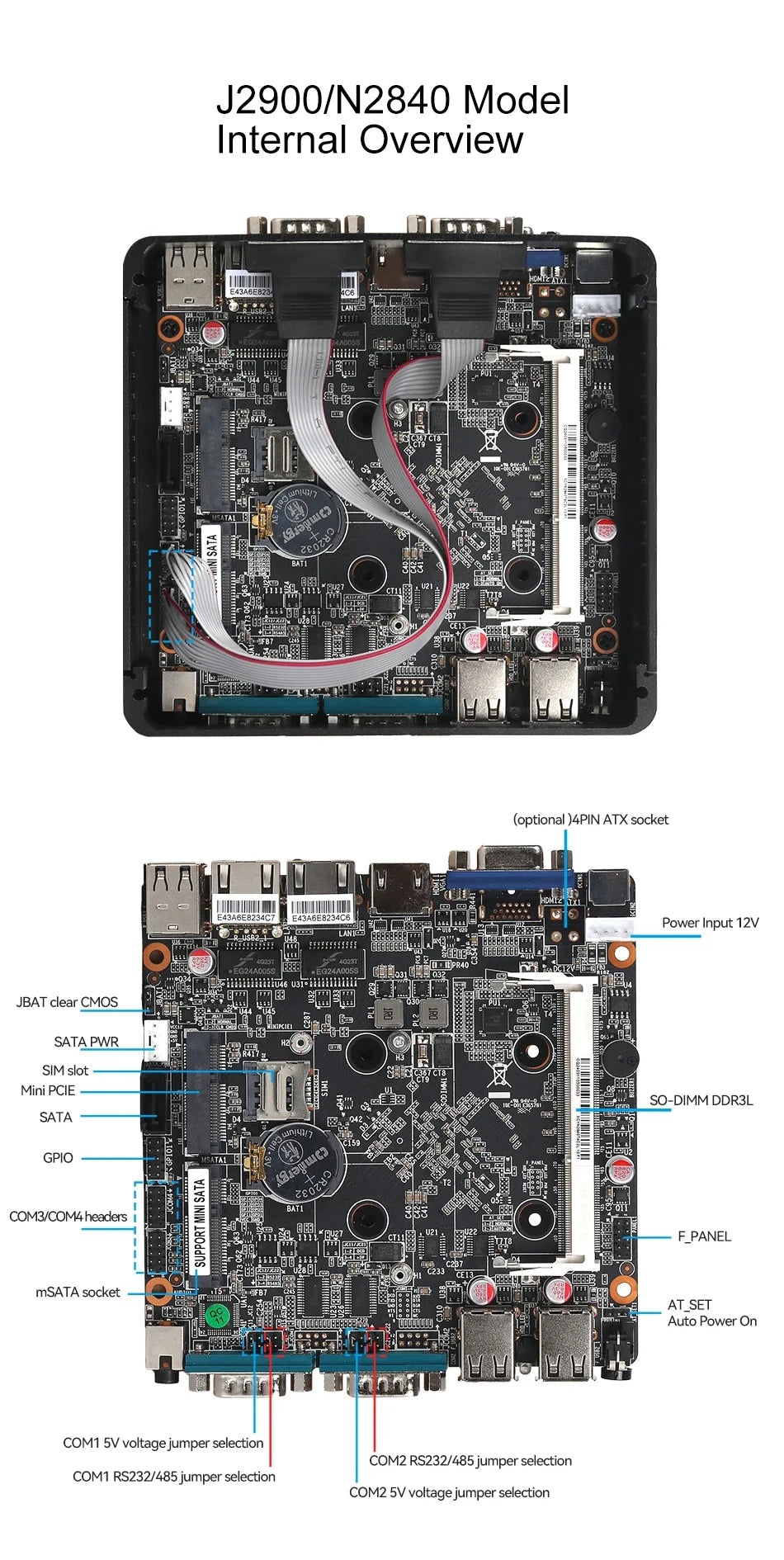

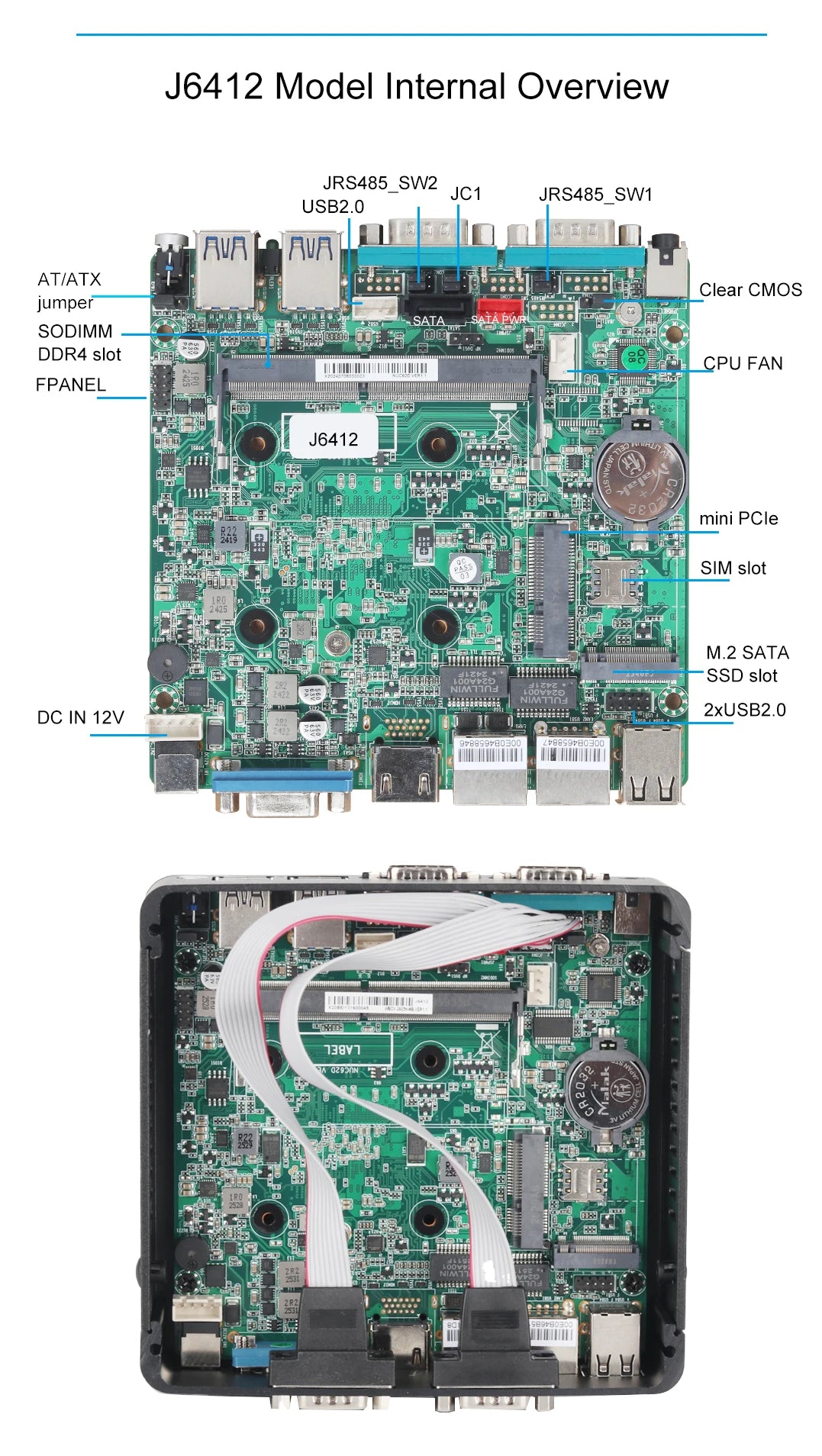

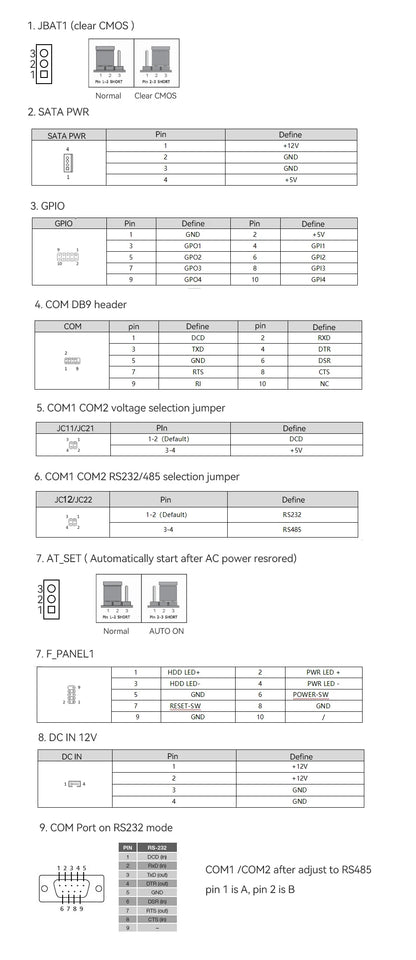

Internal Connectors	1x SATA ( 2.5 inch )
	1x SATA_PWR

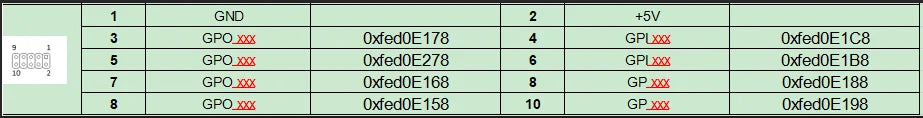

	1x GPIO (4x input, 4x output, 5V)
	1x COM3 1x COM4 DB9 connectors
	1x F_PANEL
	1x DC_IN 12V
BIOS	AMI BIOS
Power Management	Supports advanced power management ACPI
Power Management	Support wake on LAN , S3、S4、S5，Auto restart, PXE

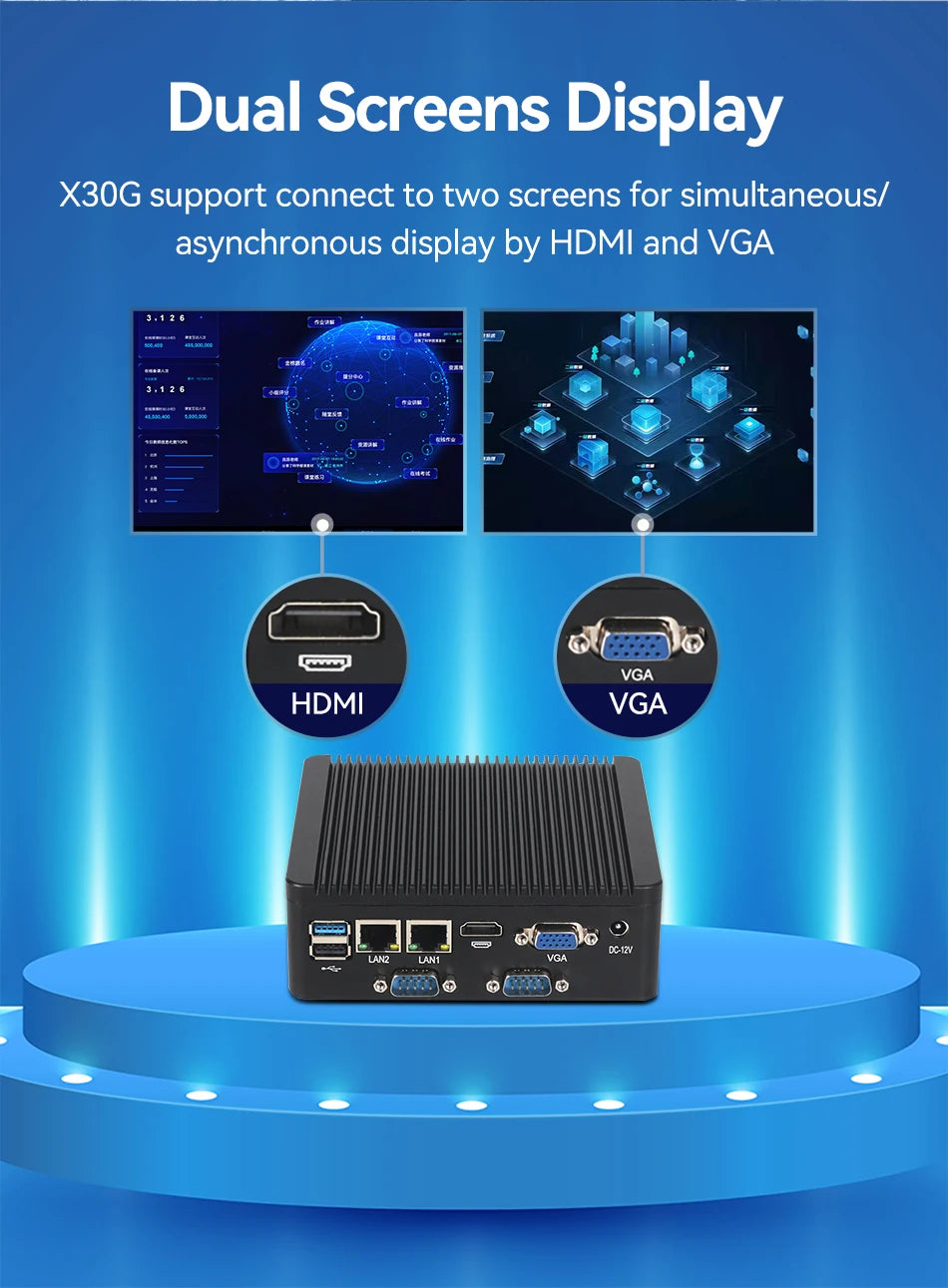

Display	VGA+HDMI
Network	2 x Realtek 8111H Gigabit Ethernet
Audio	ALC897 Audio Decoding Controller; Integrated Amplifier, 2W@4Ω
I/O Chip	IT8786E
Power Supply	100-240V AC to DC12V-3A
Environment	Operating temperature：﹣20℃~60℃
Environment	Humility：0%~95%
OS Support	Window7/ Windows 10/Linux/OpenWrt/Ubuntu/Debian

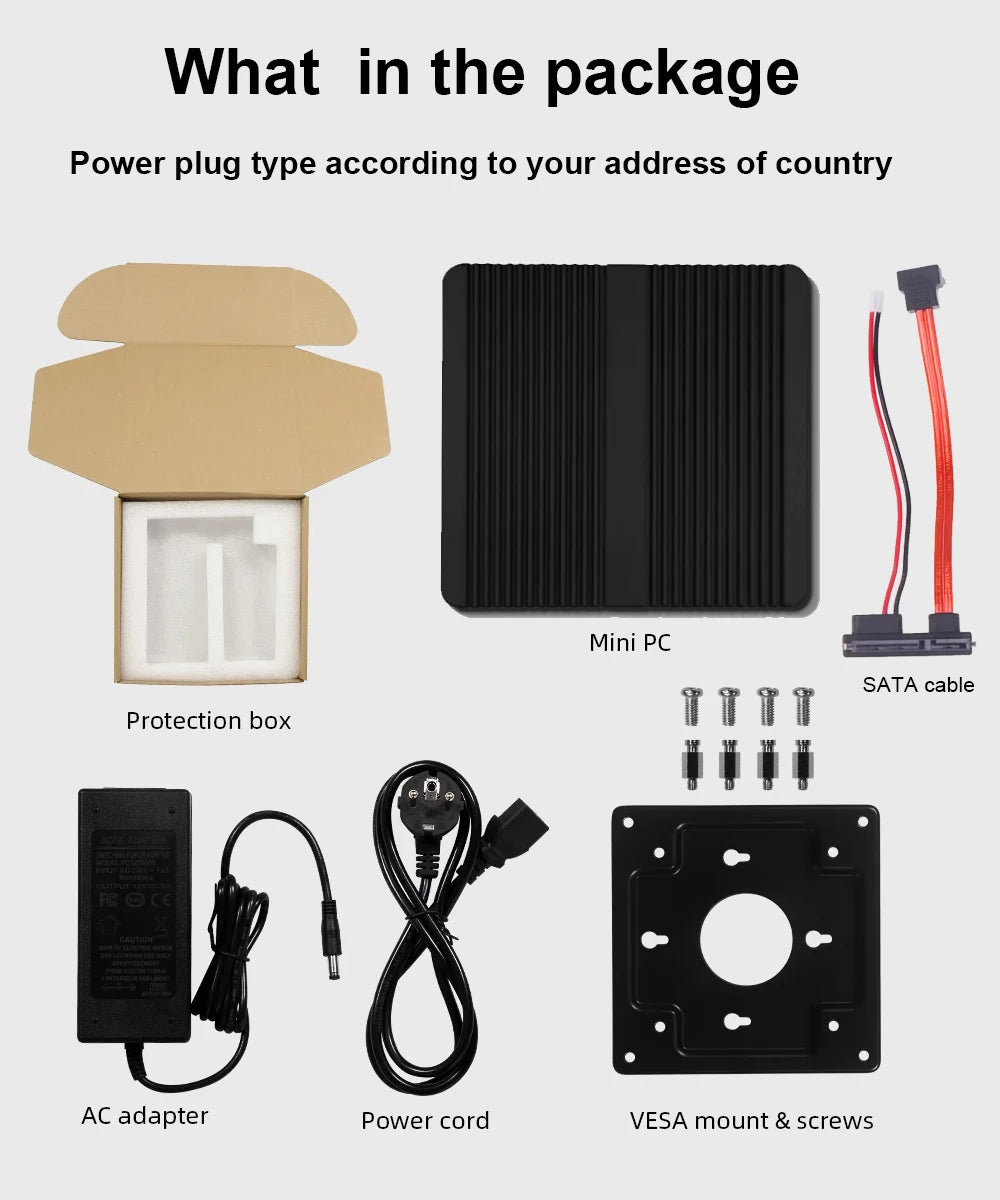

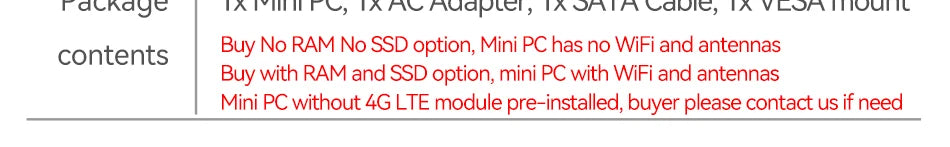

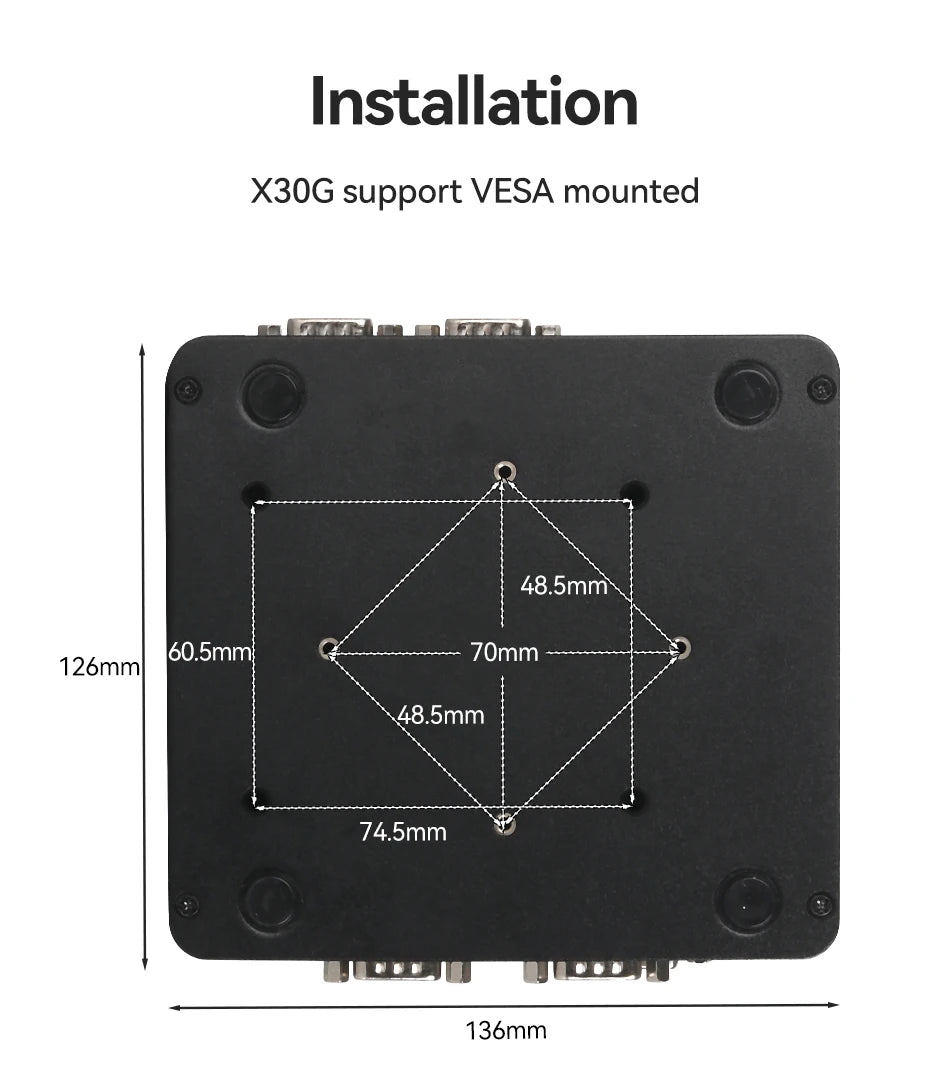

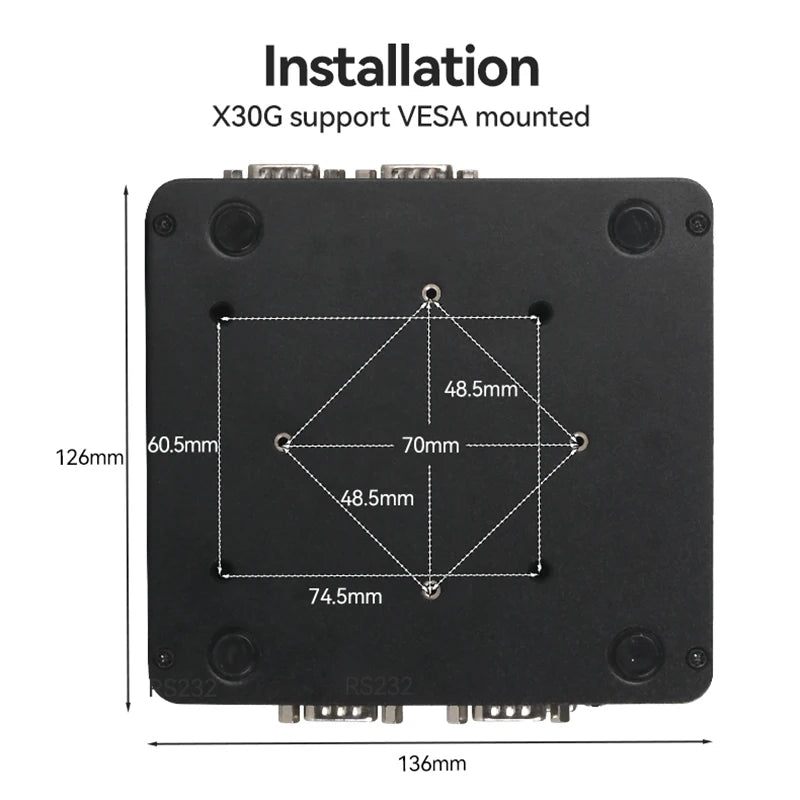

Package List	1x Mini PC, 1x AC Adapter, 1x SATA Cable, 1x VESA mount
PC Case Size	134x124x40mm
