SPECIFICATIONS

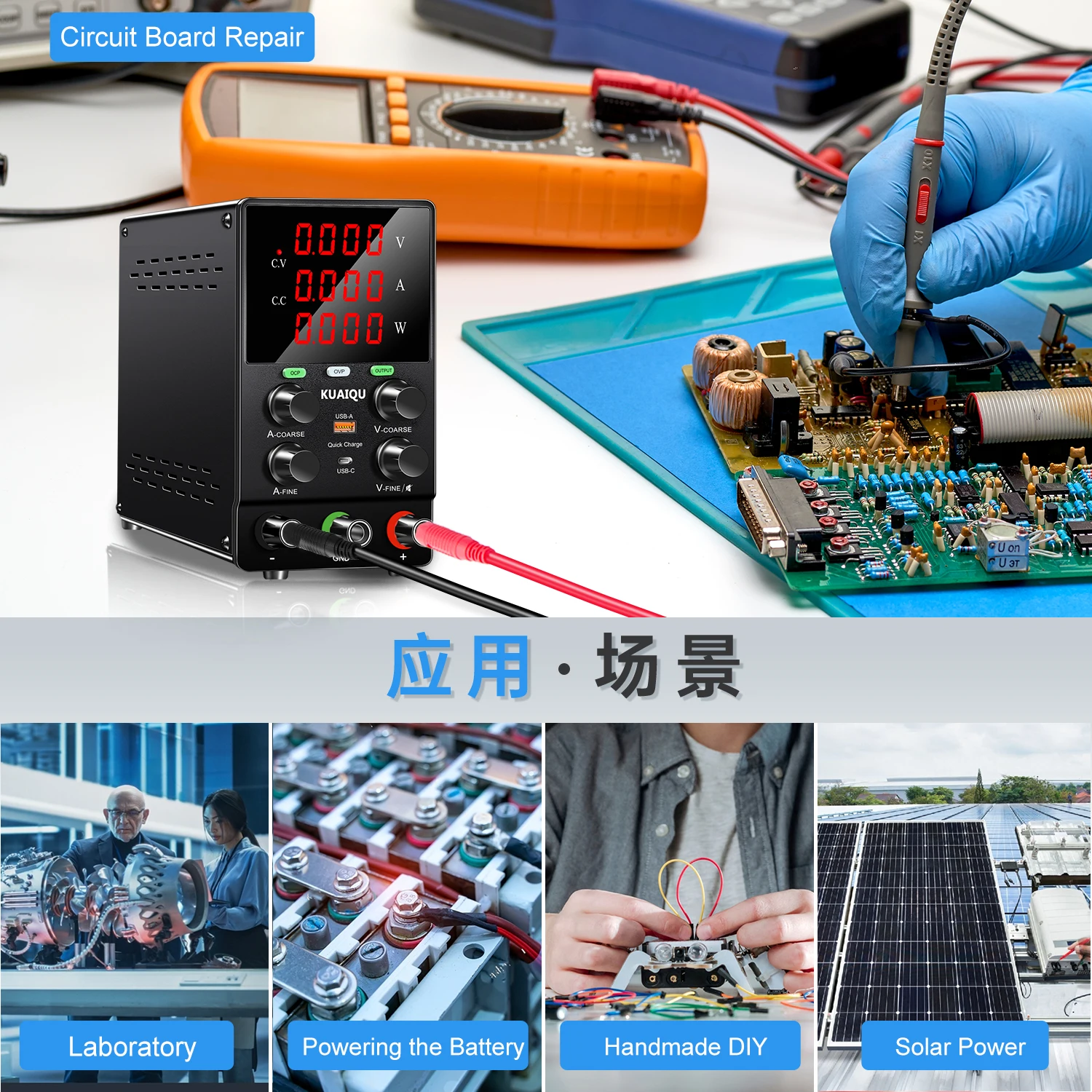

Application: Laboratory/ Phone Repair

Brand Name: KUAIQU,KUAIQU

Certification: CE FCC

Input Voltage: 110V/220V switchable

Keyword: Variable Power

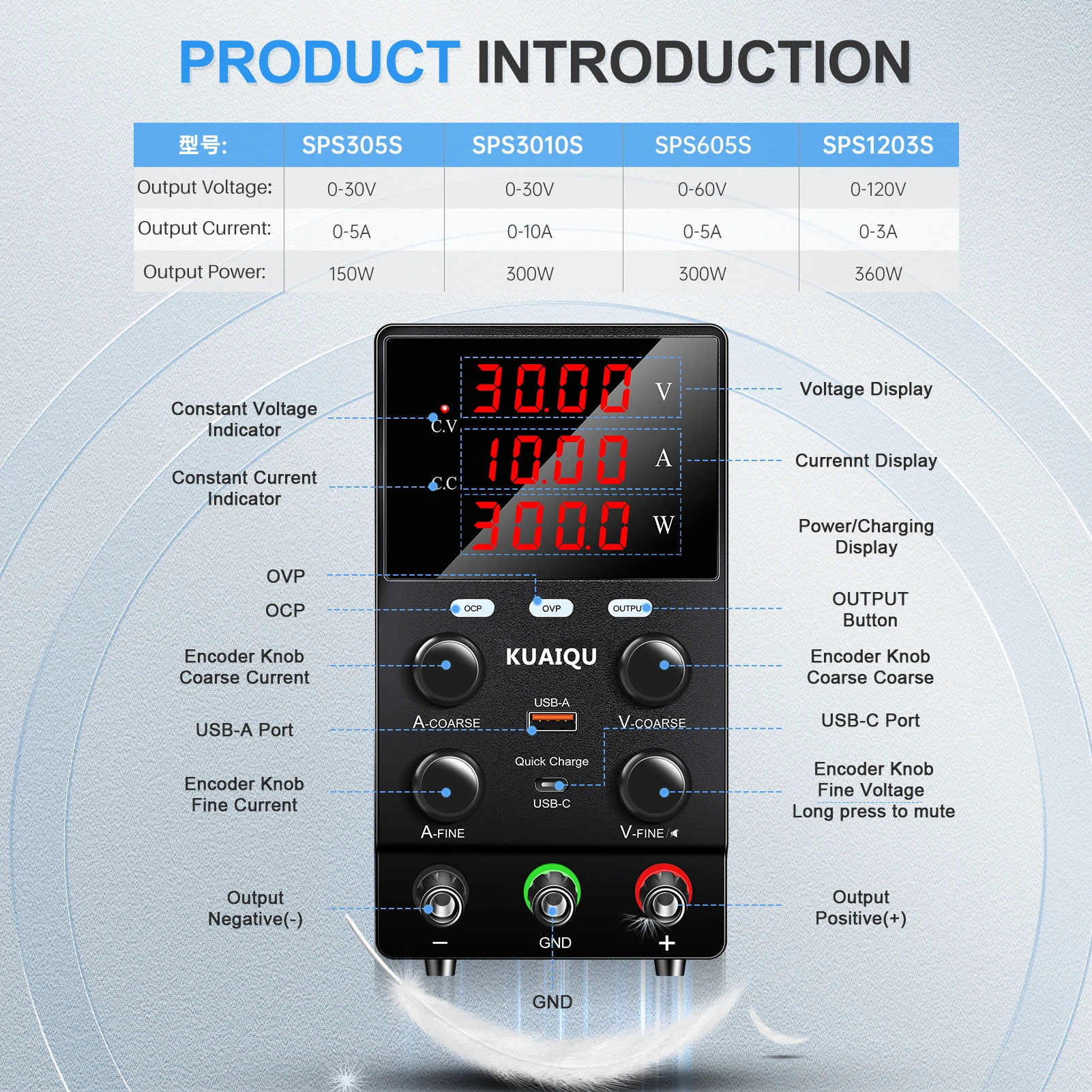

Model Number: SPS305S

Output Current: 5A

Output Frequency: 50/60 Hz

Output Power: 201 - 300w

Output Type: Single

Output Voltage: 0-30V

Place of Origin: Guangdong, China,Guangdong, China

Product Name: Dc Switching Power

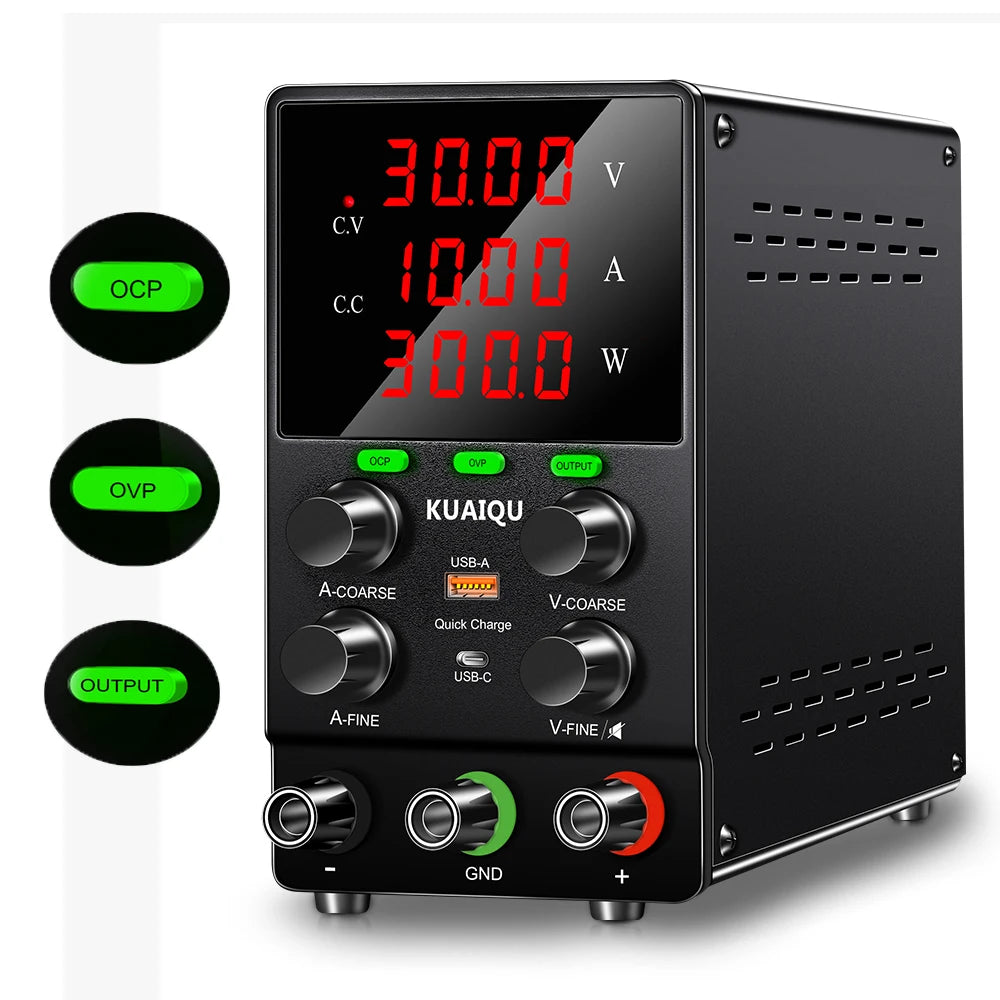

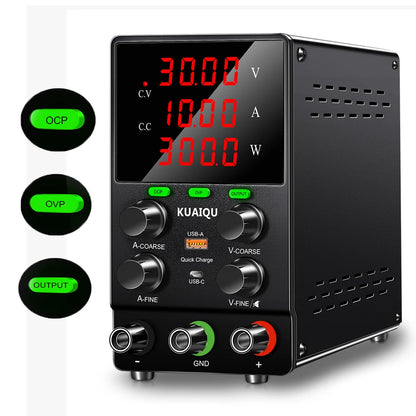

Protections: OPP OVP SCP OCP

Type: AD-DC,Single Output

Voltage Adj. Range: 0-30V

DC Power Supply Advantage

1.Have complete operating protection function

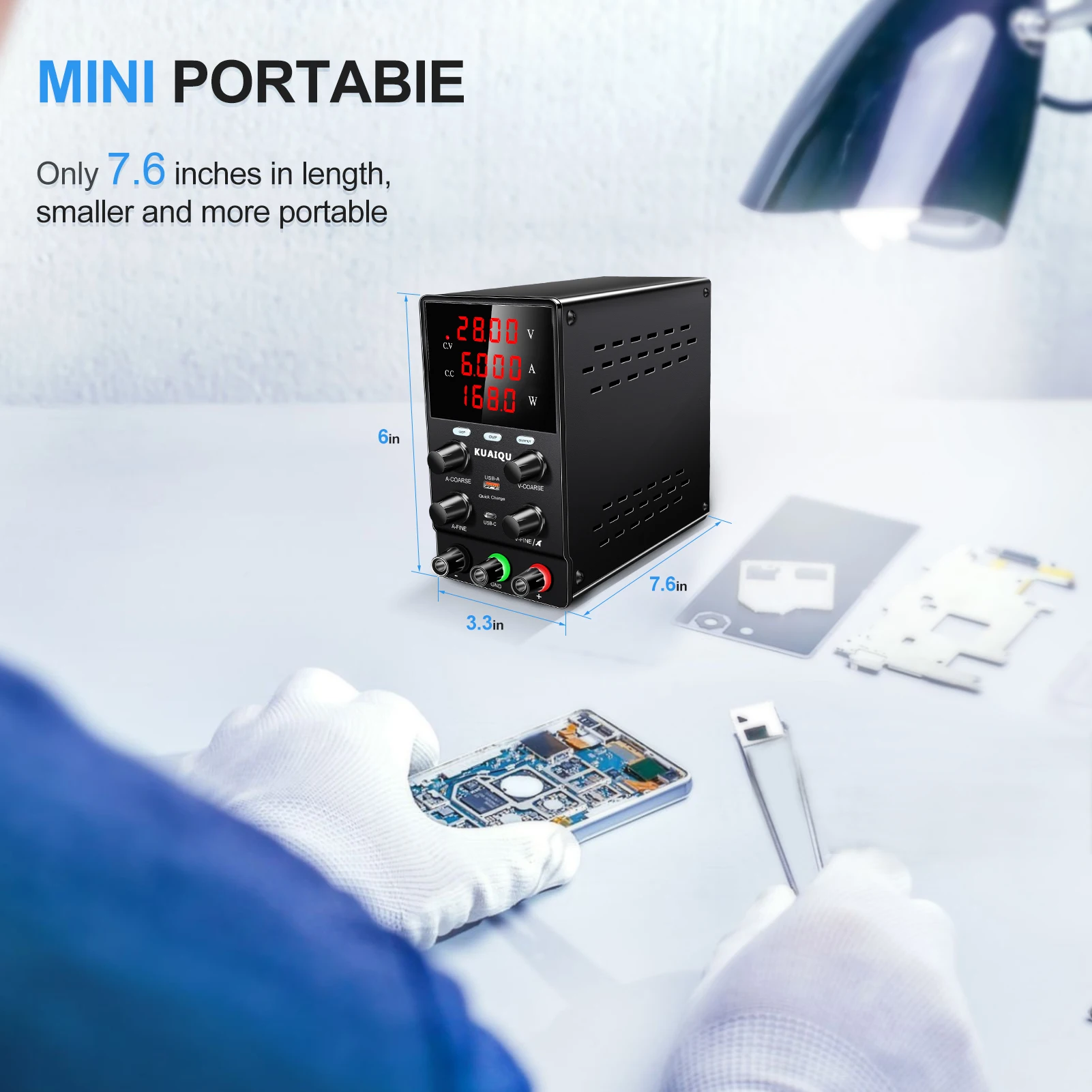

2.Highly efficient, low ripple, small volume, light weight
3.Double display voltage, current, and high precision
4.Voltage stabilization, current limiting, simple operation
5.Dual voltage input and convenient choice

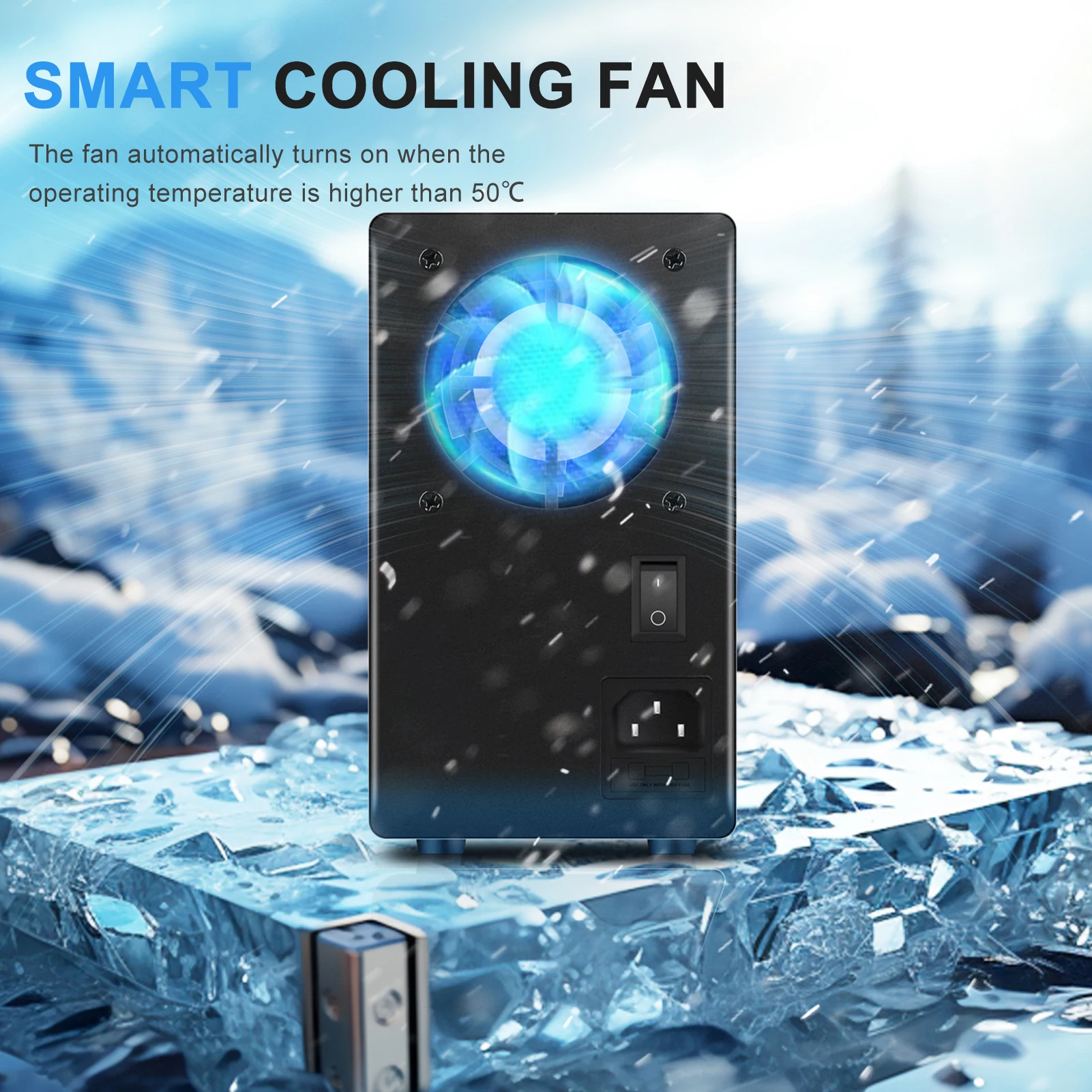

6.Temperature control fan heat dissipation, low noise

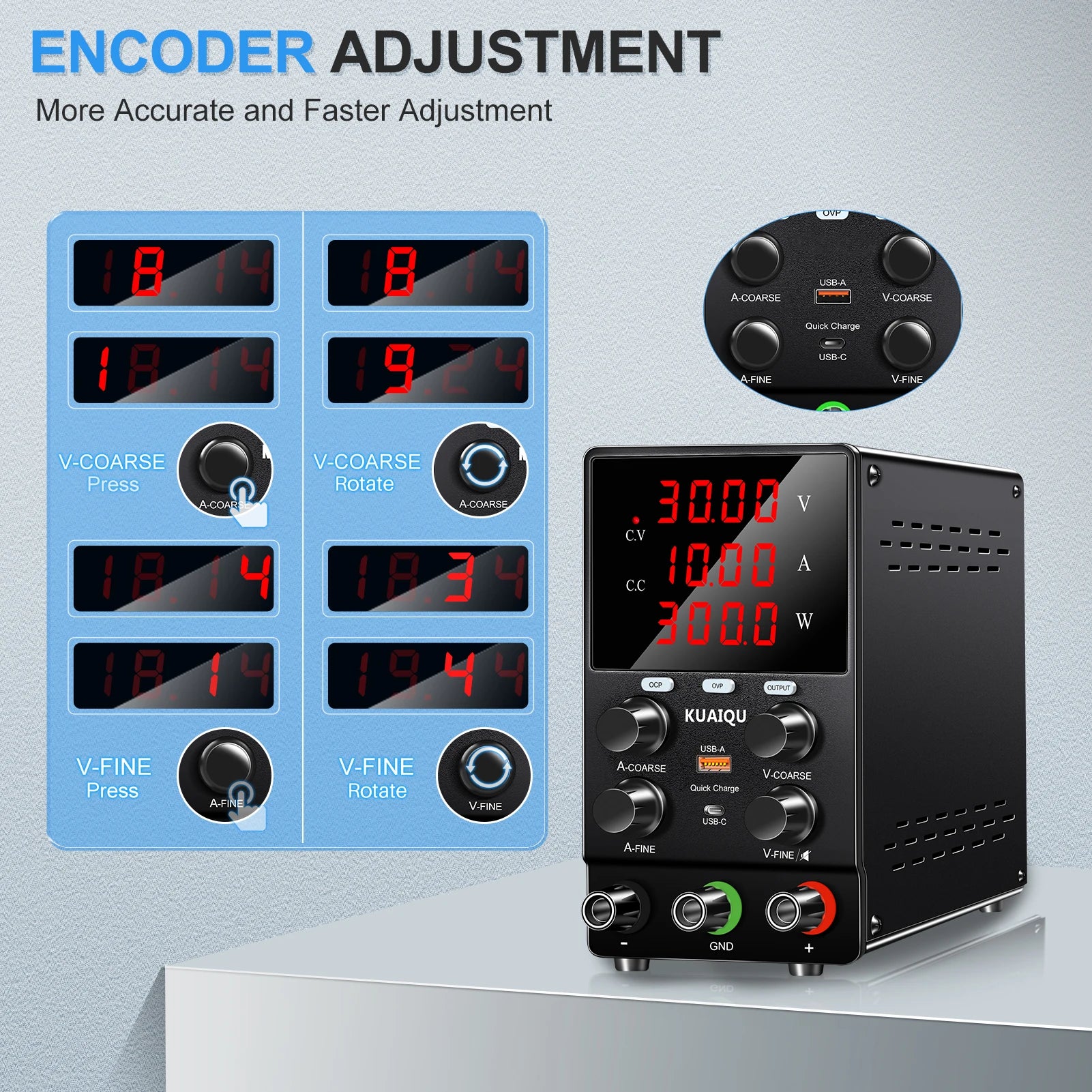

7.Double potentiometer more precise adjustment

More Parameters
Output Voltage ranges from 0 to 30V with continuous adjustment .
Output Current ranges from 0 to 10A with continuous adjustment .
Voltage regulation : Line regulation<5mV. Load regulation<5mV.
Recovery time<500us(50% Load change,minimum load 0.5A)
Ripple & Noise<5m Vrms, 100m Vp-p
Temperature coefficient<100p pm/C.
Output current ranges from 0 to rating current with continuous adjustment
Current regulation line regulation<3mA. load regulation<3mA.
Indicator Meter

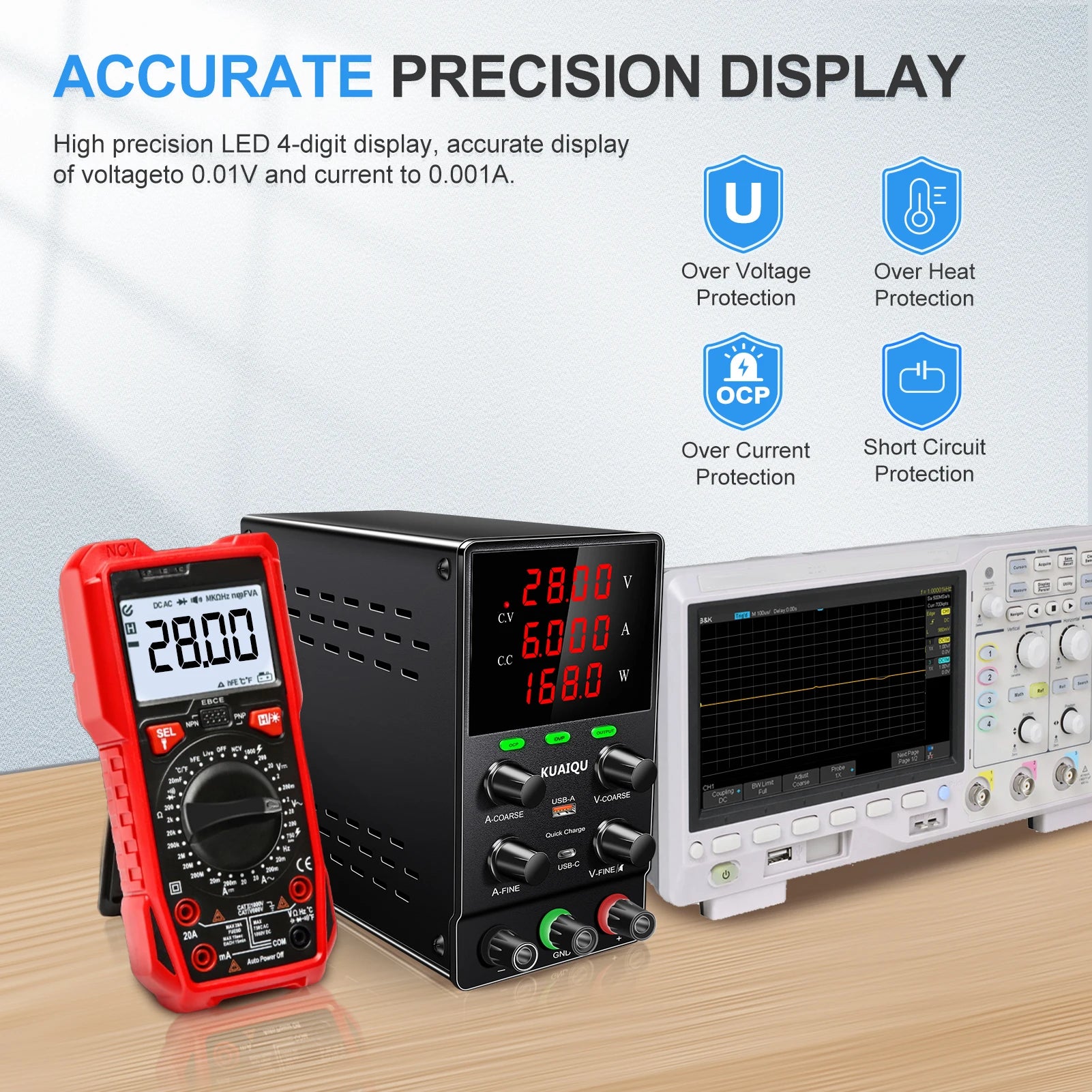

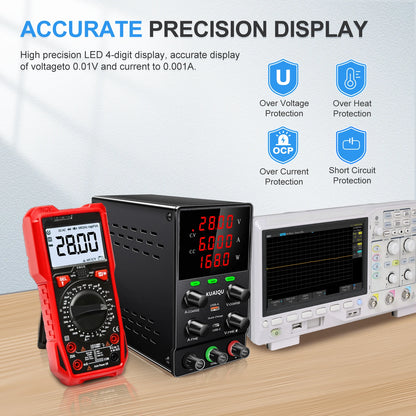

Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity : 0~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.

Specification

Input voltage	AC 220V 50Hz
Output voltage	0 ~ 30V
Output current	0 ~ 5A
Voltage resolution	0.01V
Current resolution	0.001A
