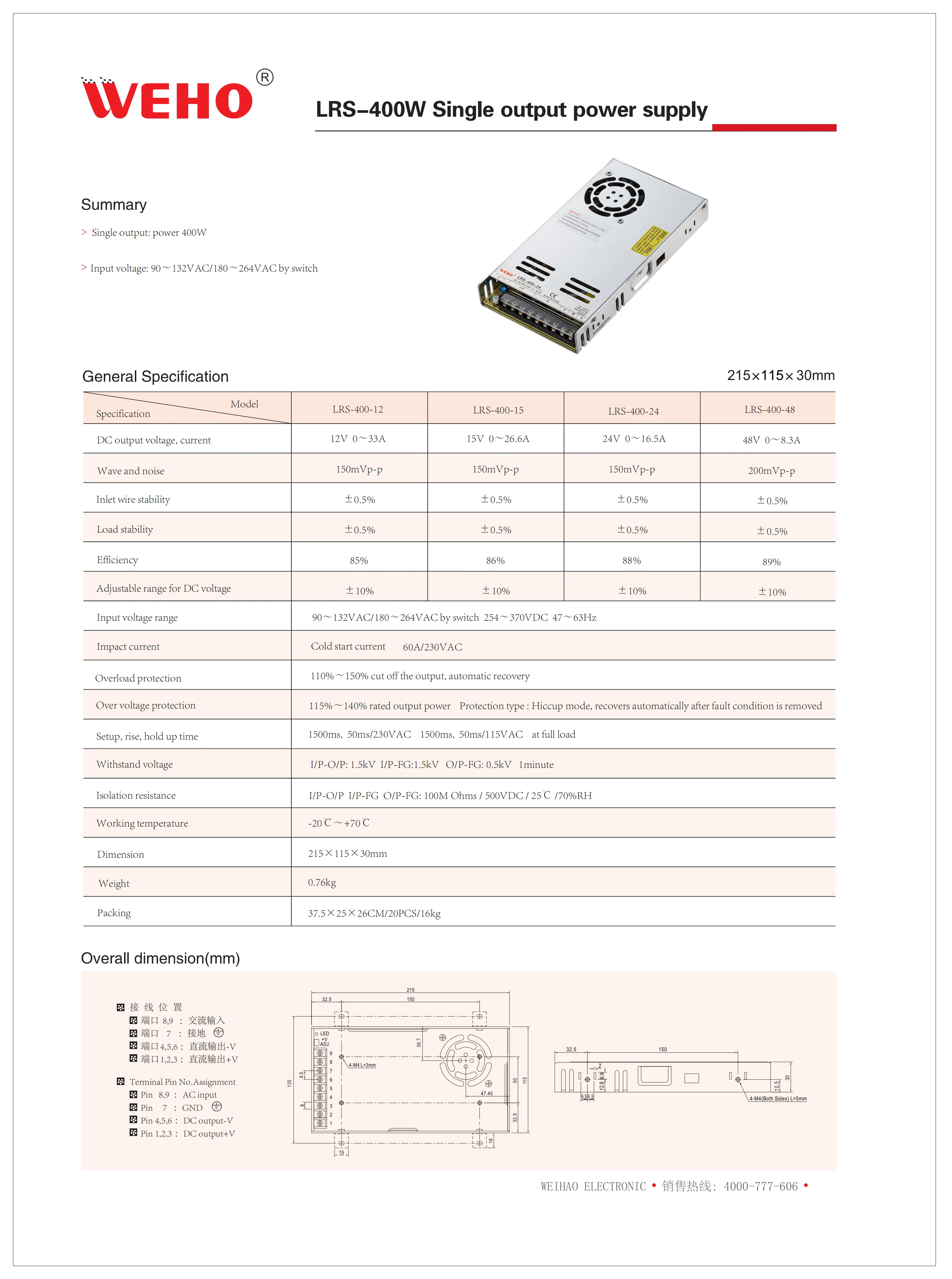

SPECIFICATIONS

AC Current: 6.8A/115VAC 3.4A/230VAC

Application: Industry

Brand Name: WEHO

Certification: CE, RoHS

Efficiency: 88.5%,88.5%

Input Voltage: 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC

Inrush Current: 60A/115VAC 60A/230VAC

Leakage Current: <2mA / 240VAC

Line Regulation: ±0.5%

Load Regulation: ±0.5%

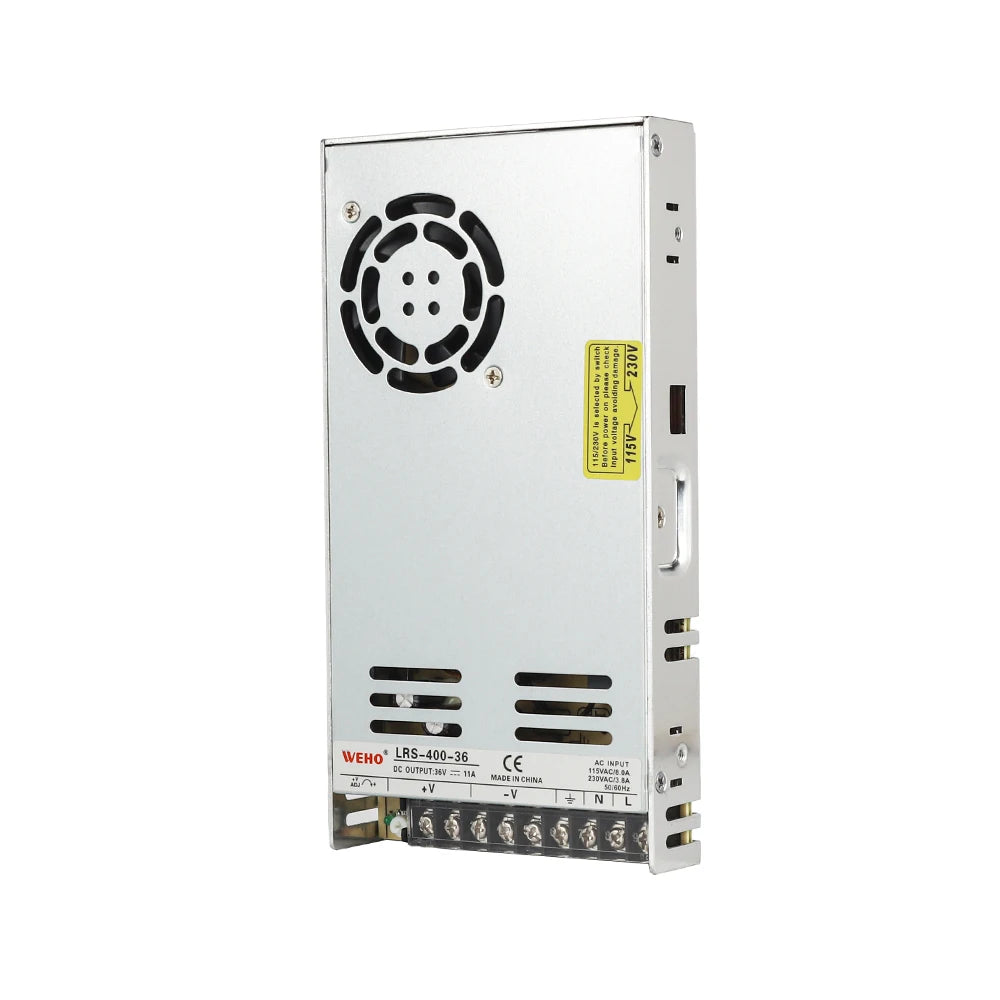

Model Number: LRS-400-36

Output Current: 11A

Output Frequency: 47-63Hz

Output Type: Single

Output Voltage: 36 V

Place of Origin: Zhejiang, China

Production Capacity: 50000/Year

Protection: Short Circuit Protection,Overvoltage Protection

Ripple and Noise: 200mvp-p

Type: AC-DC

test: 100% full load burn-in test

Product Highlights

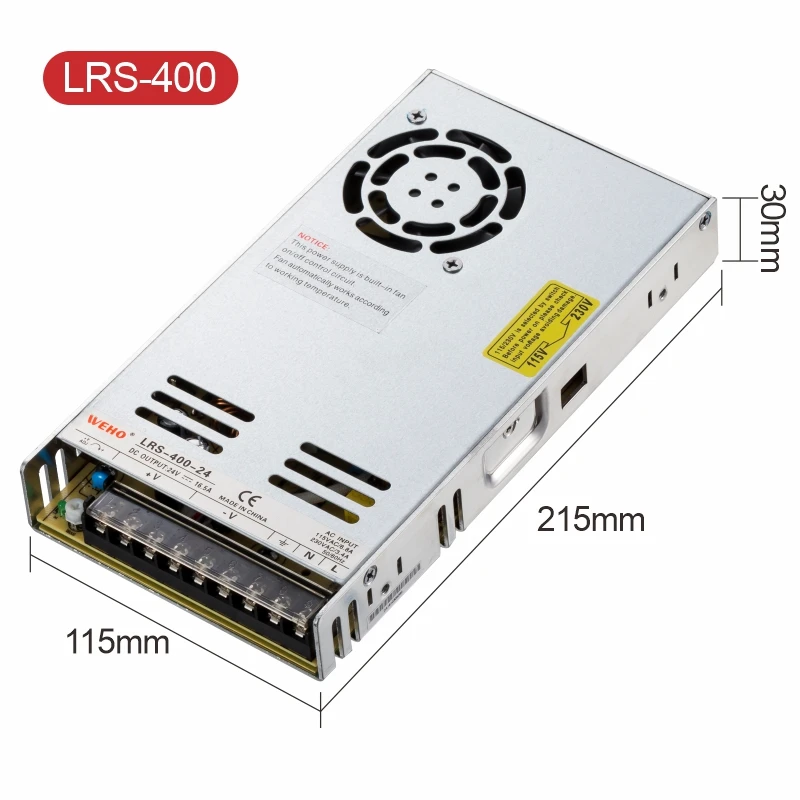

400W reliable single output with flexible DC voltage/current options (12V/33A, 15V/26.6A, 24V/16.5A, 48V/8.3A) to match diverse device requirements.

Wide input compatibility (90~132VAC/180~264VAC switchable + 254~370VDC) and 47~63Hz frequency range for global application.

Exceptional stability: ±0.5% line/load regulation, low ripple noise (150-200mVp-p), and ultra-wide working temperature (-20℃~+70℃) for harsh environments.

Comprehensive protection (overload/overvoltage) with hiccup mode auto-recovery, plus 1.5kV withstand voltage and 100MΩ isolation resistance for safe operation.

FAQs

Q: Are you a factory or trading company?

A: We are factory.

Q: Why choose us

A: We have been engaged in the switching power supply industry for 19 years,We have enough experience to meet your needs.

Q: How can I get the samples?

A: You can pay for the sample this time, and we will refund the sample fee for the next batch order.

Q: How to order?

A: Please contact us online to send you a proforma invoice or send us your purchase order by email.

Q: How many years warranty of your switching power supply?

A: Three years.
