SPECIFICATIONS

Brand Name: DT

Camera Equipped: No

Certification: CE

Chip: ESP32

Communication method: Other

Compatibility: others

Function: relay task, IP Watchdog, OTA Upgrade

High-concerned chemical: None

Inbox adaptor: No

Interface: ethernet,wifi,rs485,CANbus,wiegand

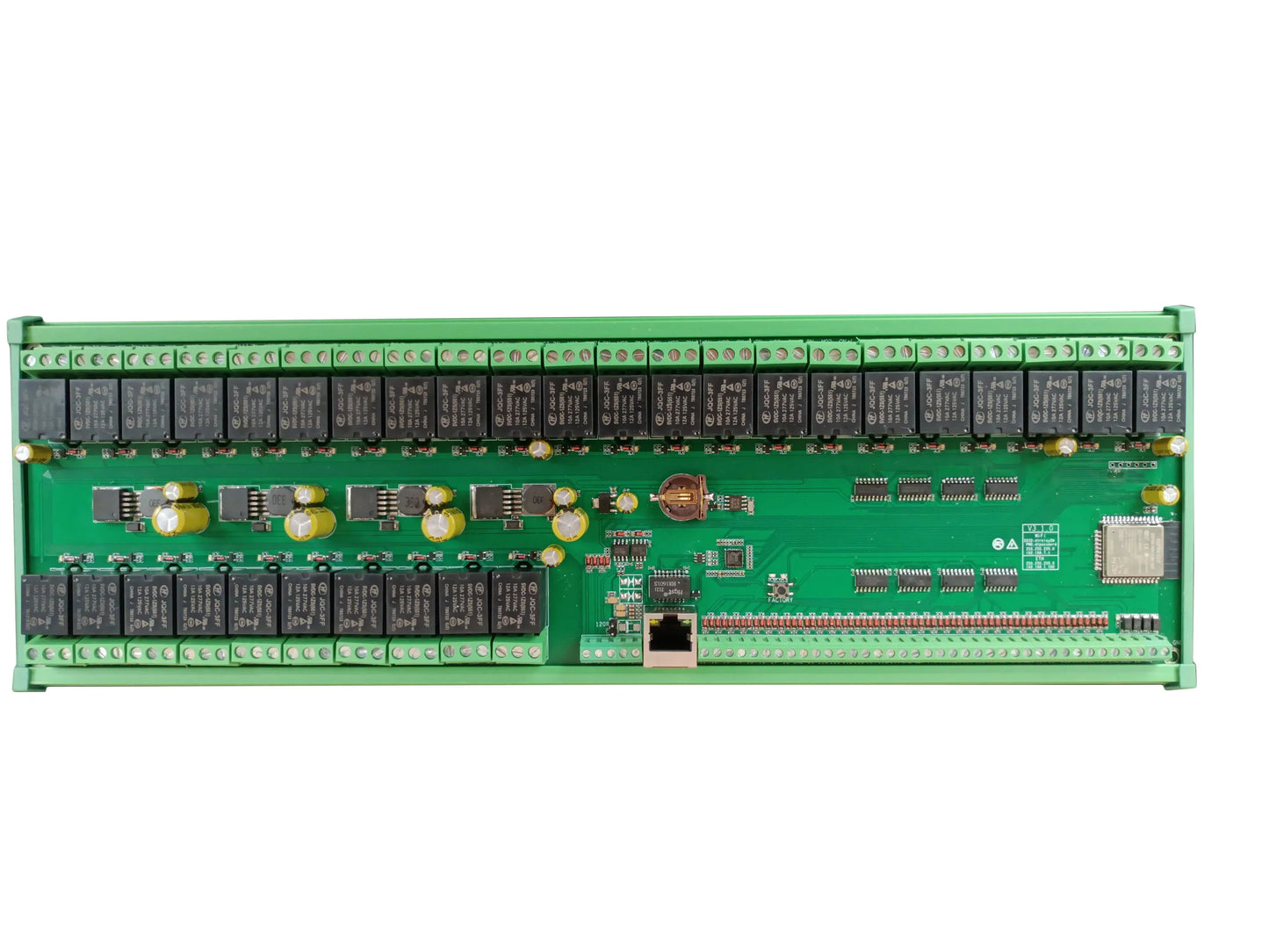

Model Number: DT-R016/DT-R032

Origin: Mainland China

Power Source: AC&DC,AC&DC

Power supply: 12VDC/24VDC, 5VAC/12VAC

State of Assembly: Ready-to-Go,Ready-to-Go

Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

case type: DIN35

home automation system: domoticz,home assistant,openHAB,Red-Node

protocol: MQTT,HTTP GET,CoAP,dingtian string,dingtian binary

Relay board function instruction as below, any questions, please contact us

ETHWiFi means support Ethernet and WIFI

ETHWiFi RS485 means support Ethernet, WIFI and RS485

ETHWiFi CAN means support Ethernet, WIFI and CAN bus

Support Customized and develop by our company

User manual and programming manual SDK:

http://www.dingtian-tech.com/sdk/relay_sdk.zip

Notes: it is finished relay board, don’t support flash your own firmware. If you want to flash firmware, please contact us

Specification
Parameter	DT-R002	DT-R004	DT-R008	DT-R016	DT-R032
Interface	RJ45, WiFi, RS485, CAN, Wiegand(optional)
Size(Relay Board)	87*68mm	91.6*86.4mm	122*87mm	250*107mm	370*107mm
Size(DIN35 Case)	90*90*40mm	115*90*40mm	145*90*40mm	252*123*43mm	373*123*43mm
Power Supply	12V/24VDC, 5V/24VAC
Power Adapter	12VDC/1.5A	12VDC/1.5A	12VDC/1.5A	12VDC/2A	12VDC/3A
Power Consumption	2W	3W	5W	9W	16W
Working Temperature	-20~75℃
Storage Temperature	-40~80℃
Protocol	MQTT, Modbus-RTU/TCP/UDP/ASCII, TCP, UDP, HTTP GET CGI, CoAP
Quantity Relays	2DO	4DO	8DO	16DO	32DO
Quantity Digital Input	2DI	4DI	8DI	16DI	32DI
Quantity Wiegand	1(optional)	1(optional)	0	1	1
RTC	NO	NO	NO	Optional	Optional
Home Automation	Domoticz, Home Assistant, openHAB, Red-Node
Function	IP Watchdog, Task, NTP Client, Input mutual control, OTA Upgrade
Ethernet IP	192.168.1.100
Web User/PWD	admin/admin
WiFi AP IP	192.168.7.1
WiFi AP SSID/PWD	dtrelaySN/dtpassword
WiFi STA IP	192.168.1.97

Support Domoticz/ Home Assistant/ openHAB

Note:

Please keep your computer ip is the same NETWORK SEGMENT as our default ip 192.168.1.100
