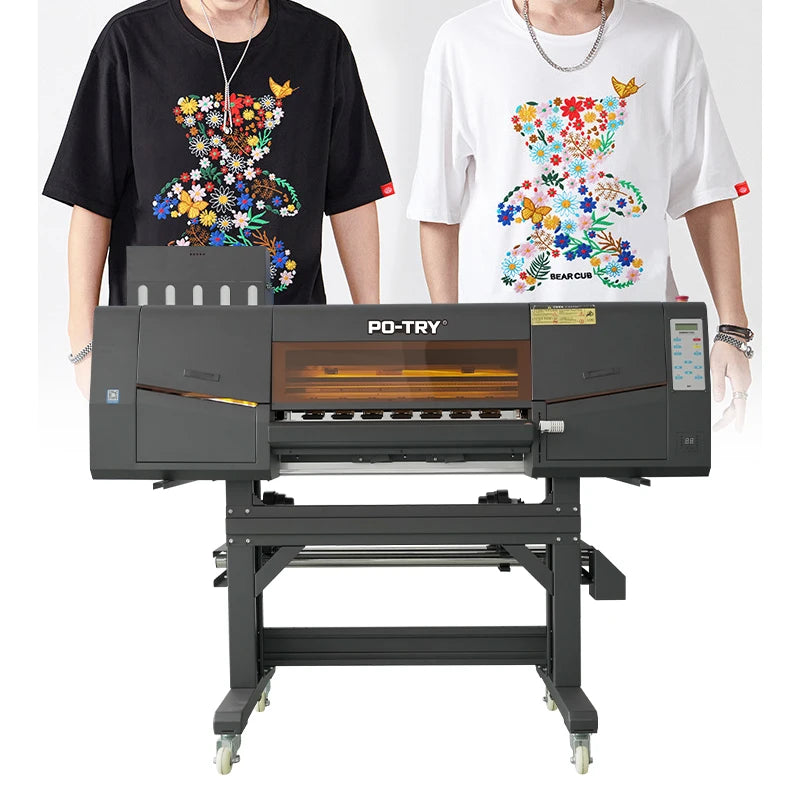

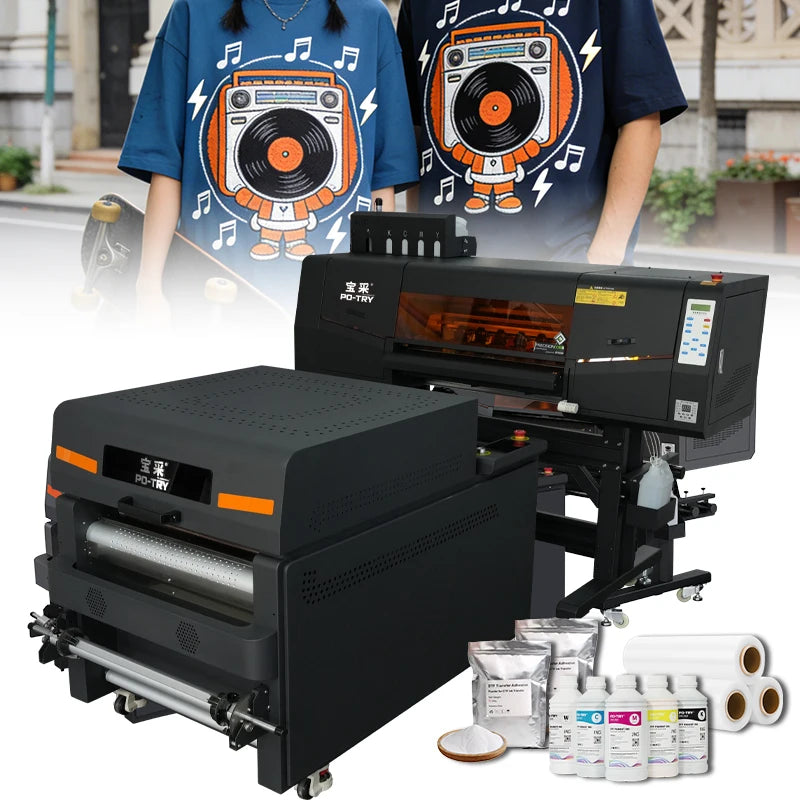

Epson I3200 24-Inch Po-try Inkjet Printer with Shaker Dryer New Condition Pigment Ink A1 Roll to Roll Transfer Machine Dtf
Epson I3200 24-Inch Po-try Inkjet Printer with Shaker Dryer New Condition Pigment Ink A1 Roll to Roll Transfer Machine Dtf
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Color: K C M Y W
Compatible brand of print head: Epson
Ink Capacity: 5*1.5L
Ink Type: Pigment Ink
Input Voltage: Printer: AC220V/110V±%10, 50/60 Hz Powder Shaker: AC 220V
Material: Stainless Steel
Plate Type: Roll-To-Roll Printer,DTF printer
Print Width: 600mm
Printhead: EPSON-I3200-A1

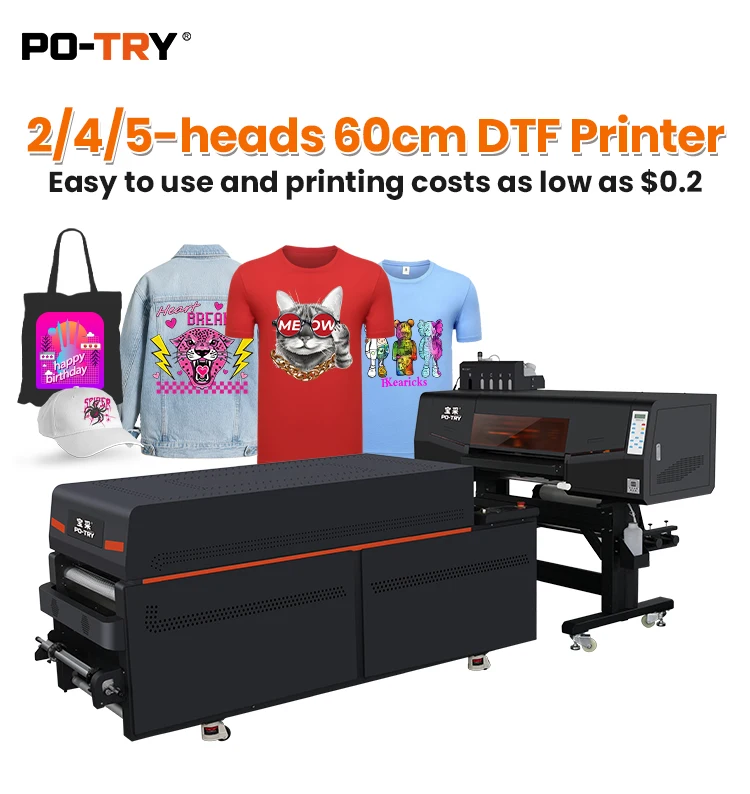

Printheads Number: 2/4/5
Product Name: DTF printer/T-shirt printer
RIP Software: Maintop 6.1 / PO-TRY RIP / Photoprint / CADlink
Take Up System: Constant tension film winding system
Voltage: 220 V,110 V
automatic grade: Full-Automatic
brand name: Po-try
color & page: Multicolor
condition: New
dimensions(l*w*h): L1750mm*W790mm*H1500mm
ink type: Textile Pigment ink
place of origin: Guangdong, China
warranty: 1 Year
weight: 160
PRODUCT PARAMETERS |
PRODUCT PARAMETERS |
|||||
Model |
Printer: HT-0605IA Powder Shaker:
PS-0615-MA-V1.0
|
Printer: HT-0604IA Powder Shaker:
PS-0615-MA-V1.0 |
Printer: HT-0602IA Powder Shaker:
PS-0608-MA-V1.0 |
|||
Printhead Type |
EPSON I3200-A1 |
EPSON I3200-A1 |
||||
Printhead Quantity |
5 |
4 |
2 |
|||
Printing Speed |
6pass: 21m²-32m²/H |
4pass: 21m²/H 6pass: 16m²/H
|
4pass: 12m²/H 6pass: 8m²/H
|
|||
Printing Width |
600mm |
600mm |
||||
Ink Type |
Pigment Ink |
Pigment Ink |
||||
Ink Capacity |
5*1.5L |
5*1.5L |
||||
File Format |
TIF / PNG |
TIF / PNG |
||||
Color Mode |
K C M Y W |
K C M Y W |
||||
Working Condition |
Temperature: 20°C-28°C, Humidity: 40%-60% |
Temperature: 20°C-28°C, Humidity: 40%-60% |
||||
Take Up System |
Constant tension film winding system |
Dual power take up system |
||||
Printing Interface |
Network interface |
|||||
RIP Software |
Maintop 6.1 / PO-TRY RIP / Photoprint / CADlink |
Maintop 6.1 / PO-TRY RIP / Photoprint / CADlink |
||||
PC Requirements |
W7 or above, 64 bit, CPU Processor i5 or above, 8 Storage, C disk with solid state hard drive 120G or above, Attached disk 1TB,Gigabit Ethernet port |
W7 or above, 64 bit, CPU Processor i5 or above, 8 Storage, C disk with solid state hard drive 120G or above, Attached disk 1TB, Gigabit Ethernet port |
||||
Input Voltage |
Printer: AC100V-120V(Customize in advance) Powder Shaker: AC220V-250V, 50/60HZ |
Printer: AC100V-120V(Customize in advance) Powder Shaker: AC220V-250V, 50/60HZ
|
||||
Power Consumption |
Printer: 550W Powder Shaker:
Rated Power 2500-3000W, Peak Power 4000W
|
Printer: 550W Powder Shaker:
Rated Power 2500-3000W, Peak Power 4000W |
Printer: 550W Powder shaker:
Rated Power 1300W,
Peak Power 2200W
|
|||
Printer Size |
Printer (mm) : L1750*W790*H1500 Powder Shaker (mm) : L2255*W848*H1010 |
Printer (mm) : L1750*W790*H1500 Powder Shaker (mm) : L2255*W848*H1010 |
Printer (mm) : L1750*W790*H1500
Powder Shaker (mm) :
L1500*W840*H1020
|
|||
Packing Size |
Printer (mm) : L1860*W850*H720 Powder Shaker (mm) : L2390*W1010*H1180
|
Printer (mm) : L1860*W850*H660
Powder Shaker (mm) : L2390*W1010*H1180
|
Printer (mm) : L1830*W810*H520 |
|||
Net Weight |
Printer: 164KG Powder shaker: 295.5KG
|
Printer: 160KG Powder shaker: 295.5KG
|
Printer: 150KG Powder shaker: 194KG
|
|||
Gross Weight |
Printer: 210KG Powder shaker: 387KG
|
Printer: 196KG Powder shaker: 387KG
|
Printer: 188KG |
|||
