SPECIFICATIONS

Bottom Diaphragm: EPDM+PTFE

Material Contact Parts: SS304/SS316L

Material Non-contact Parts: SS304

Max. Pressure: ≤10bar(145psi)

Size: 1" to 2.5",DN25-DN65

Standard: SMS,DIN11850,DIN11851,3A

Supply Air Pressure: ≤8bar(116psi)

Temperature Range: EPDM+PTFE Bottom Diaphragm for 14 ~ 284°F(-10 ~ 140℃)

Type: CPMI-2,CPMO-2

Upper Diaphragm: EPDM,Buna

application: General

brand name: COMPASS & XUSHENG

customized support: OEM,ODM,OBM,Software Reengineering

media: Gas, water, oil

model number: CP-CPV66001

place of origin: CHINA, MADE IN CHINA

port size: 1" to 2.5",DN25-DN65

power: Pneumatic

structure: Control

temperature of media: Normal Temperature

warranty: 1 year

Product Description

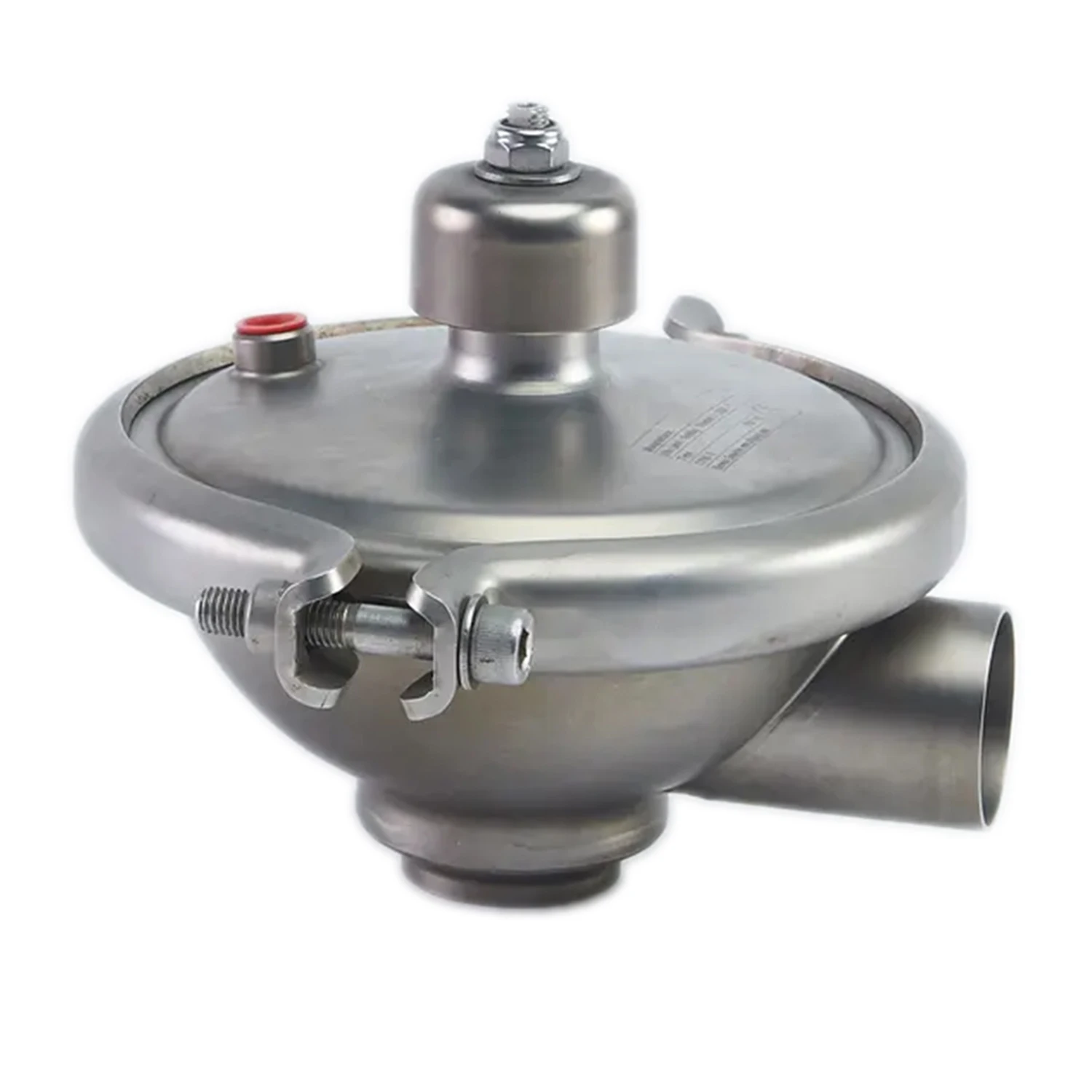

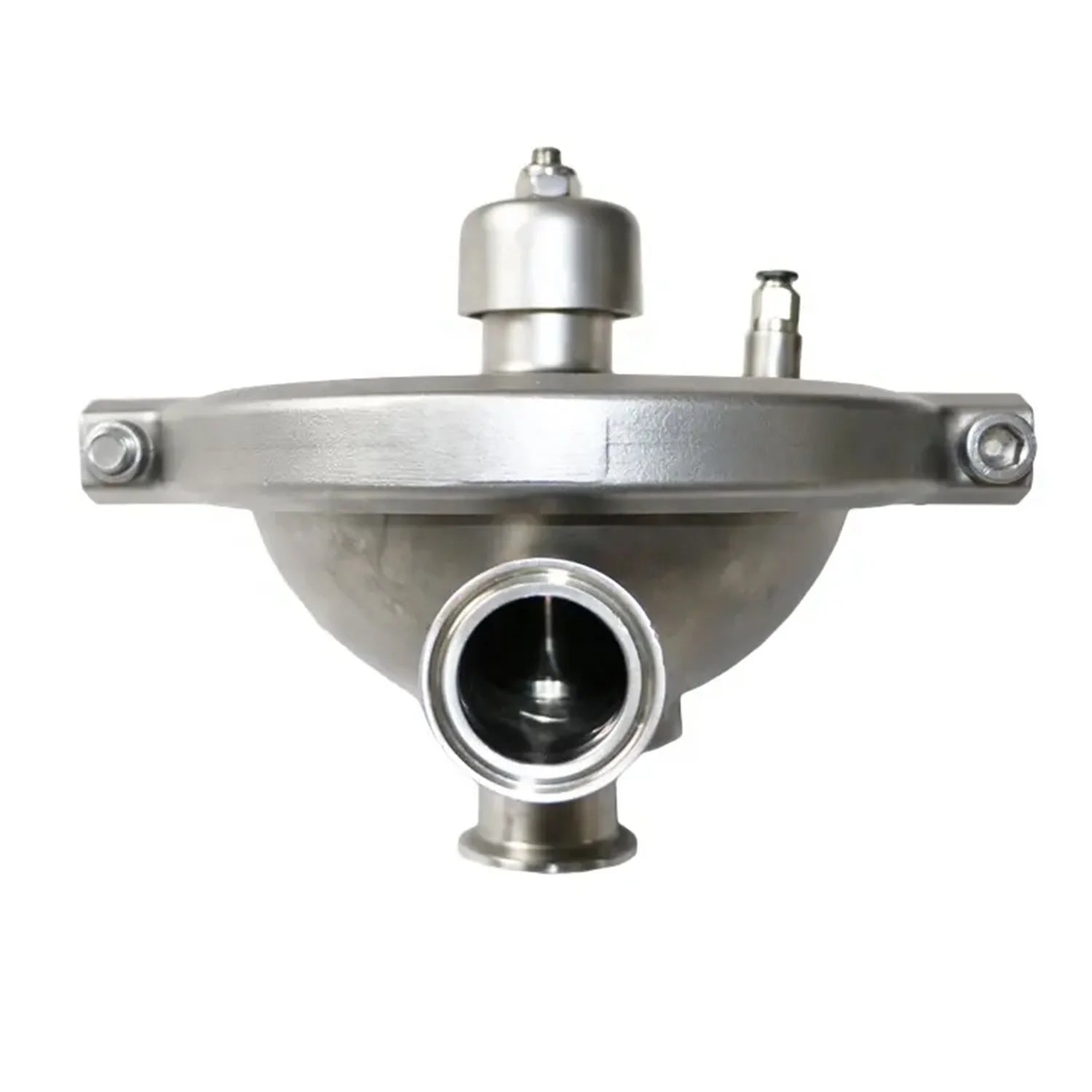

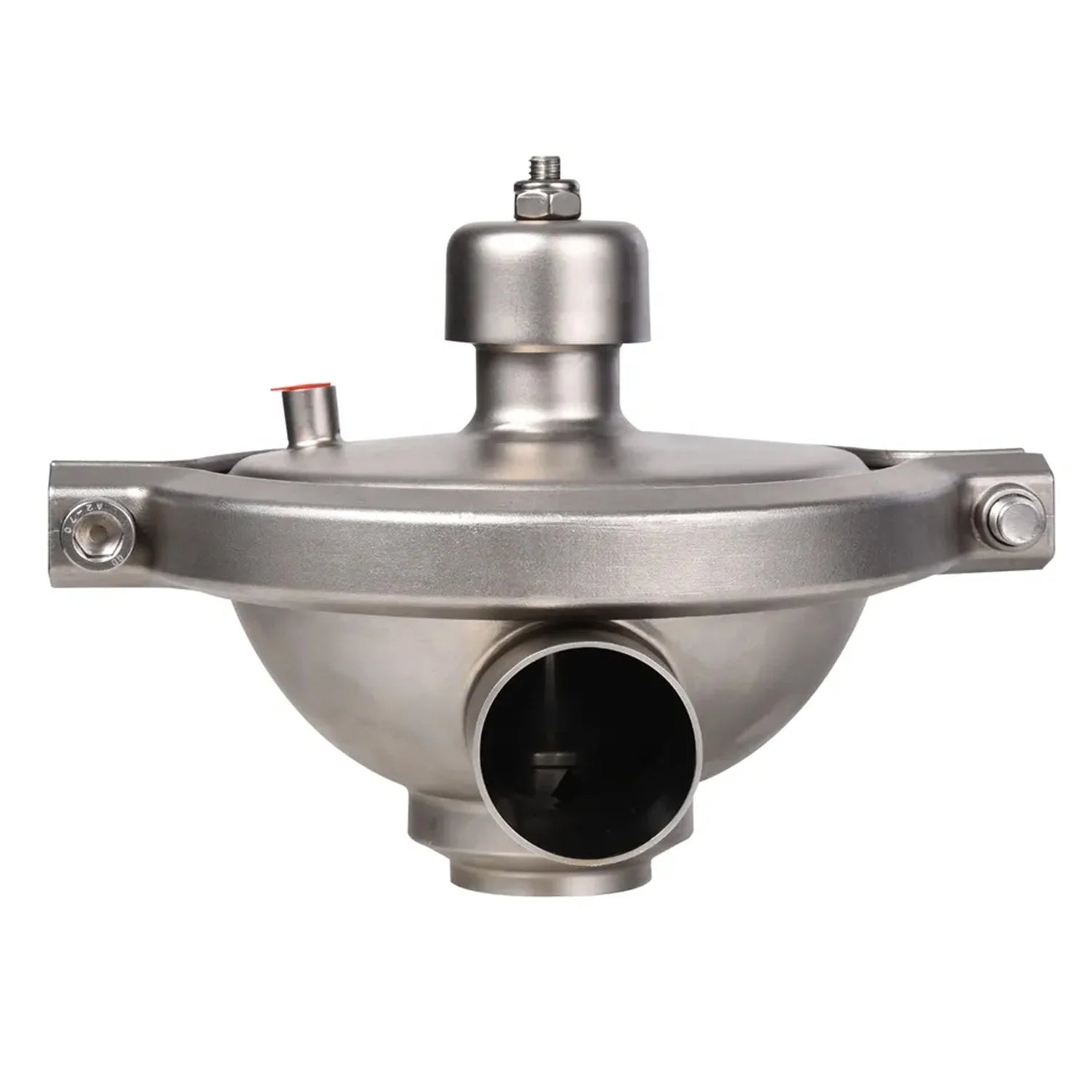

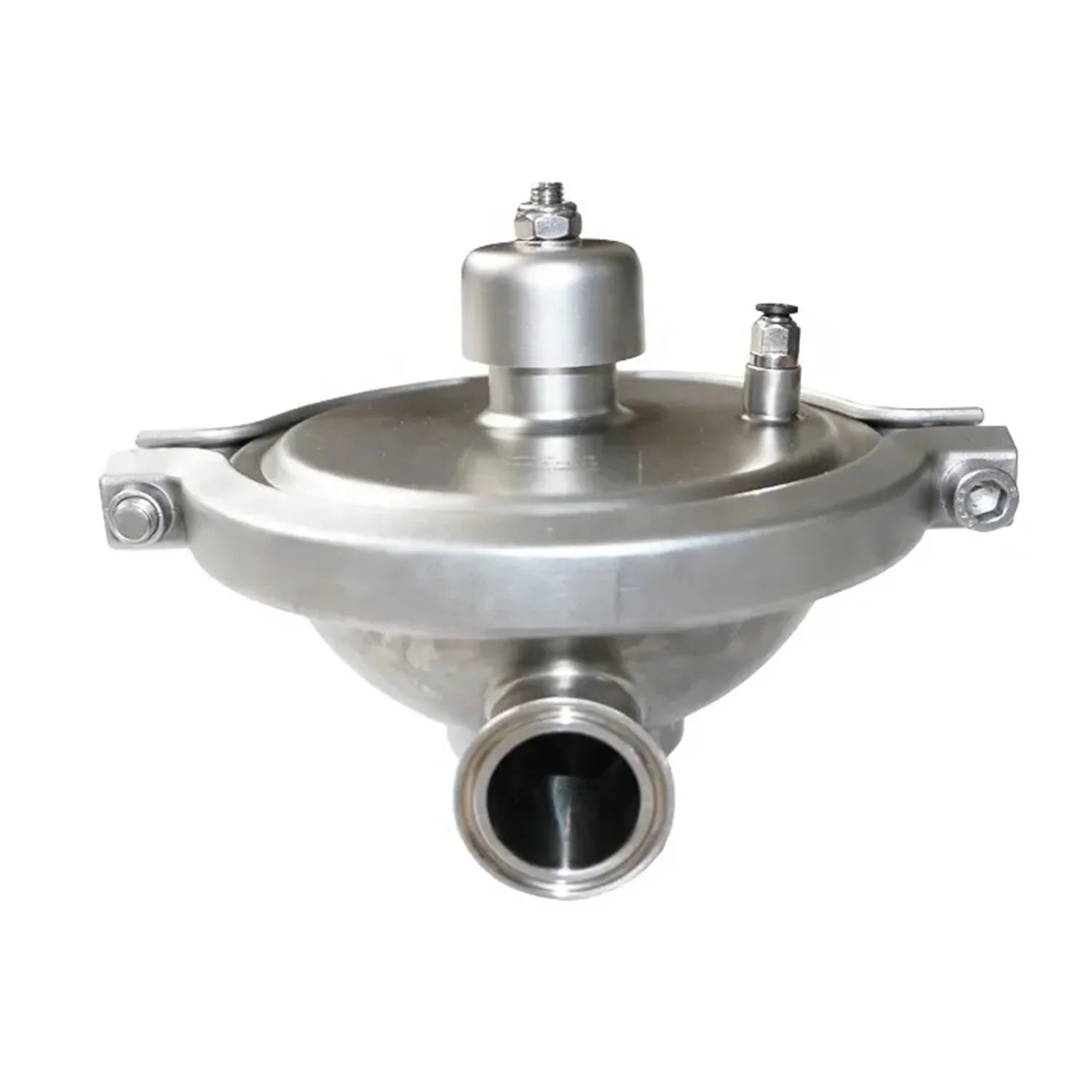

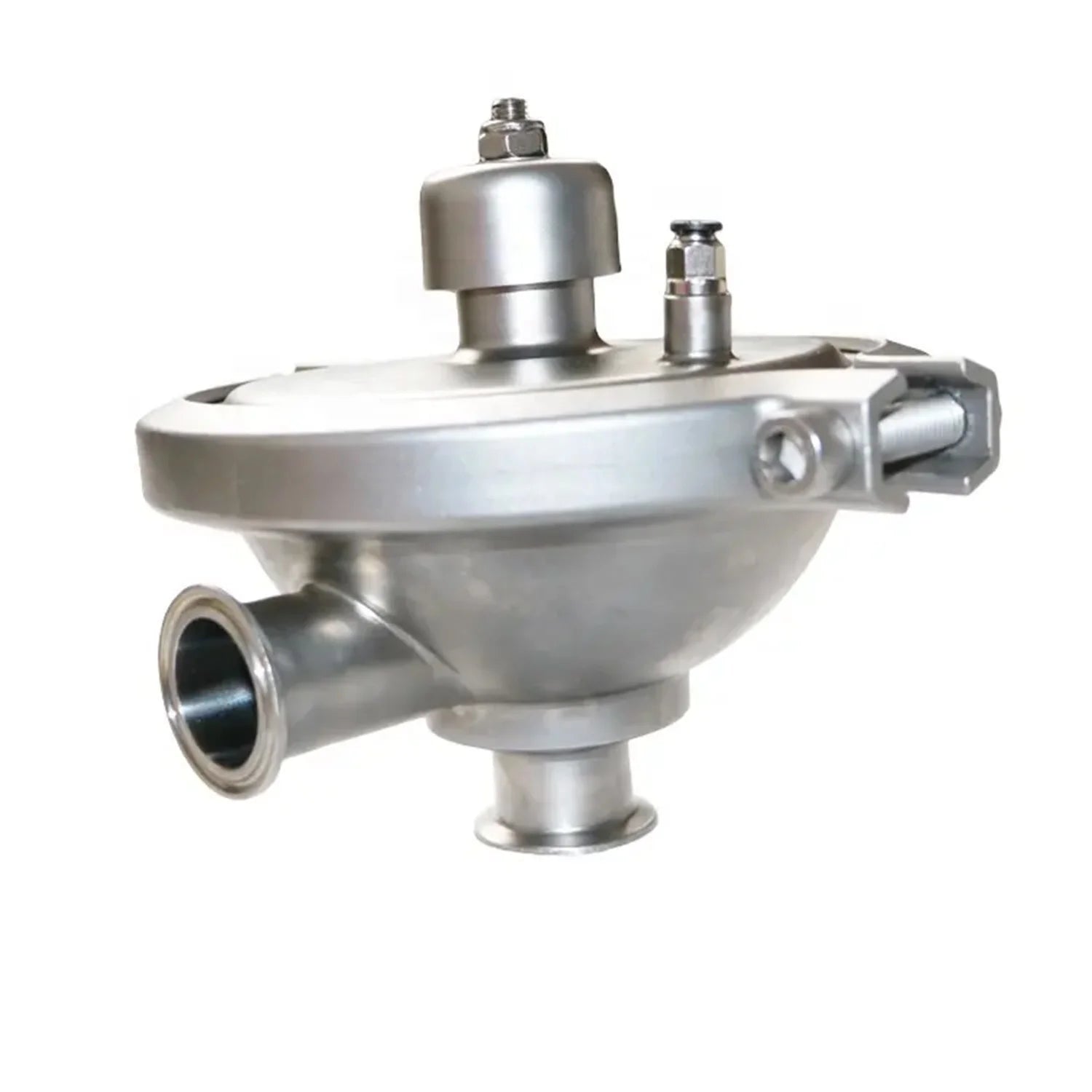

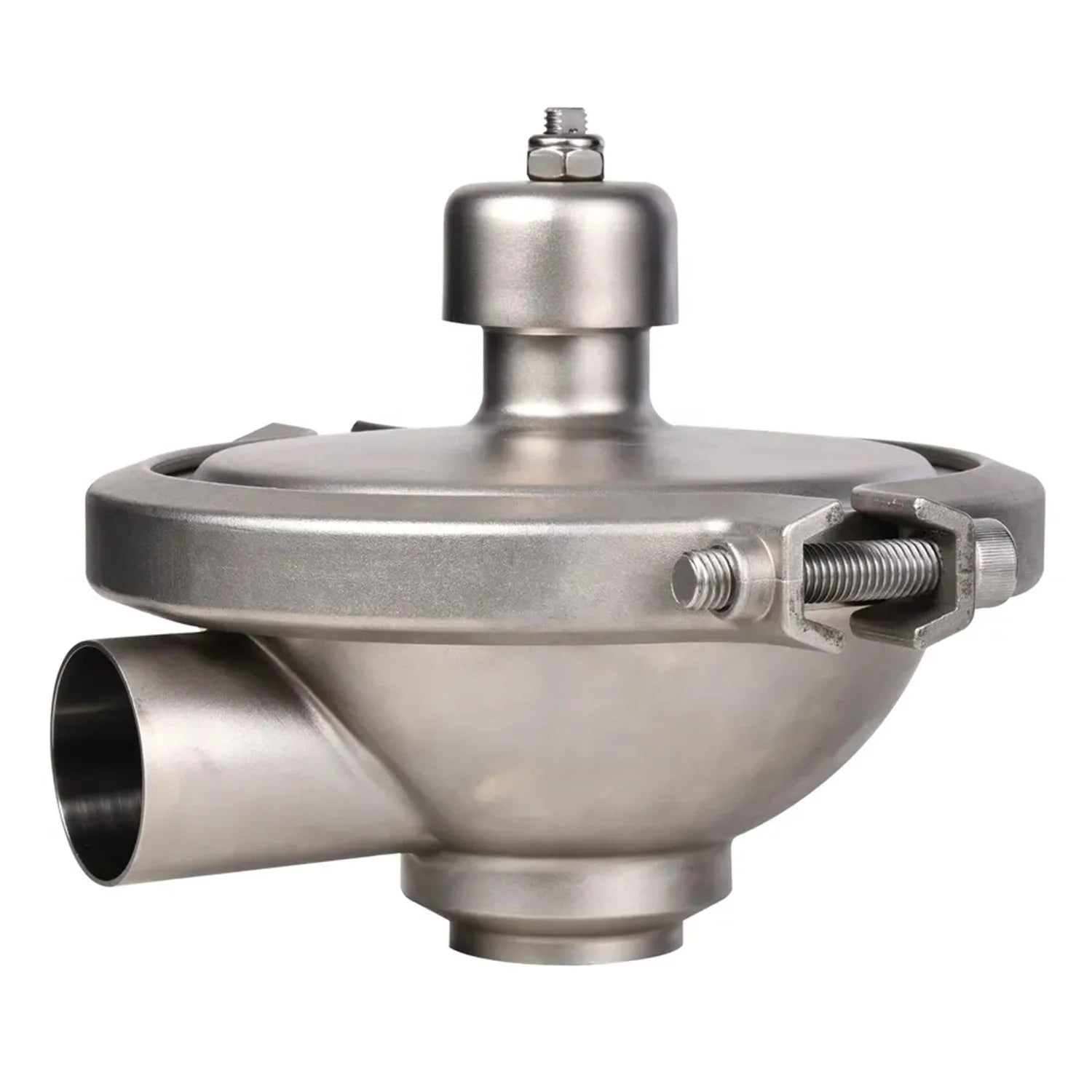

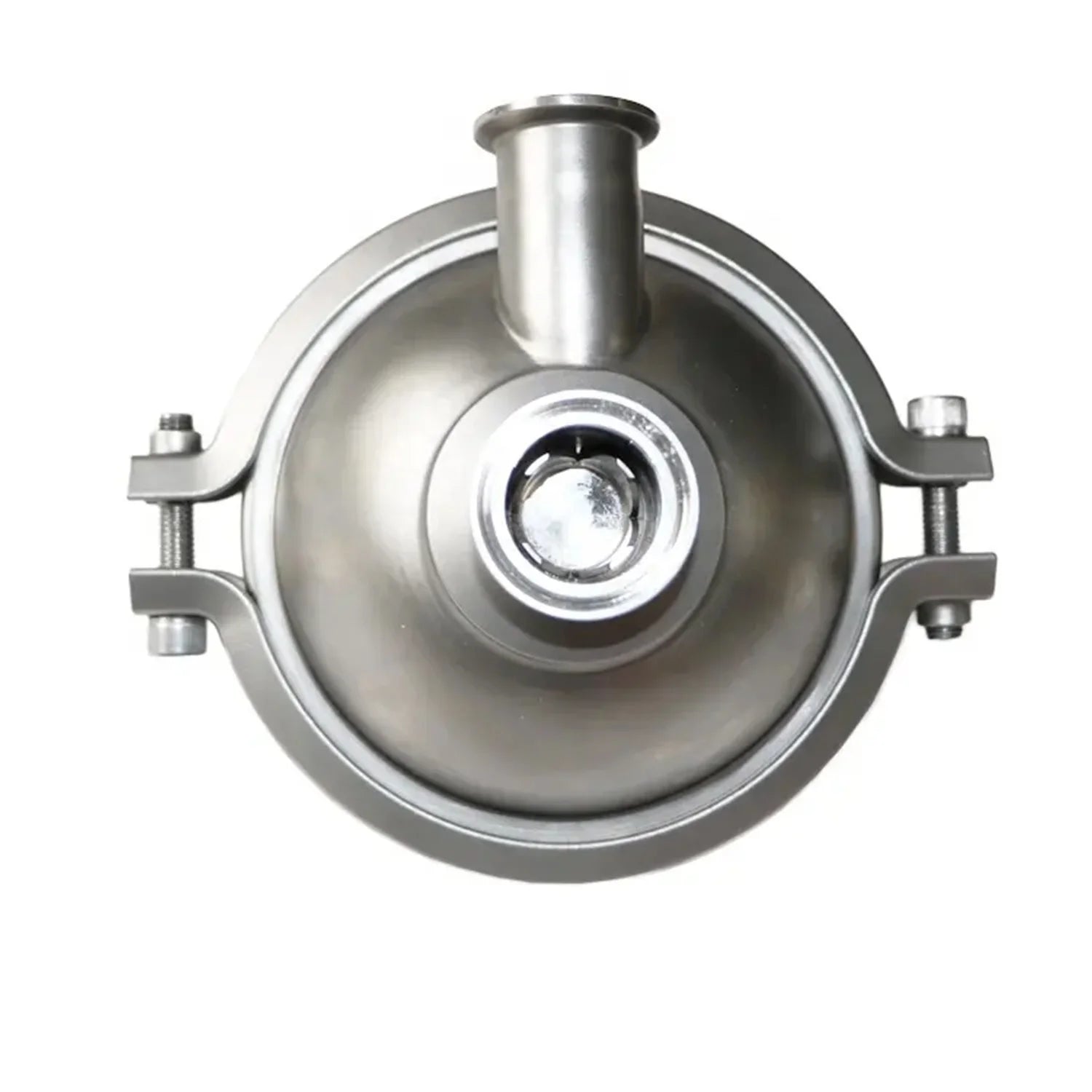

DN65 Tri Clamp Food Grade Sanitary Stainless Steel CPMO Constant Pressure Regulating Valve

Sanitary CPM Constant Pressure Valve is used for maintain a constant pressure of inlet and outlet.CPMI-2 (constant pressure valve adjusts inlet) maintains constant pressure on the production line at the valve inlet. This type CPMI-2 is used for behind seperators, heat exchangers or relief valves. CPMO-2 (contant pressure valve adjusts outlet) can maintain constant pressure in the pipeline of the production process at the outlet of the valve. This type CPMO-2 is used for front of filling or filling machine. It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

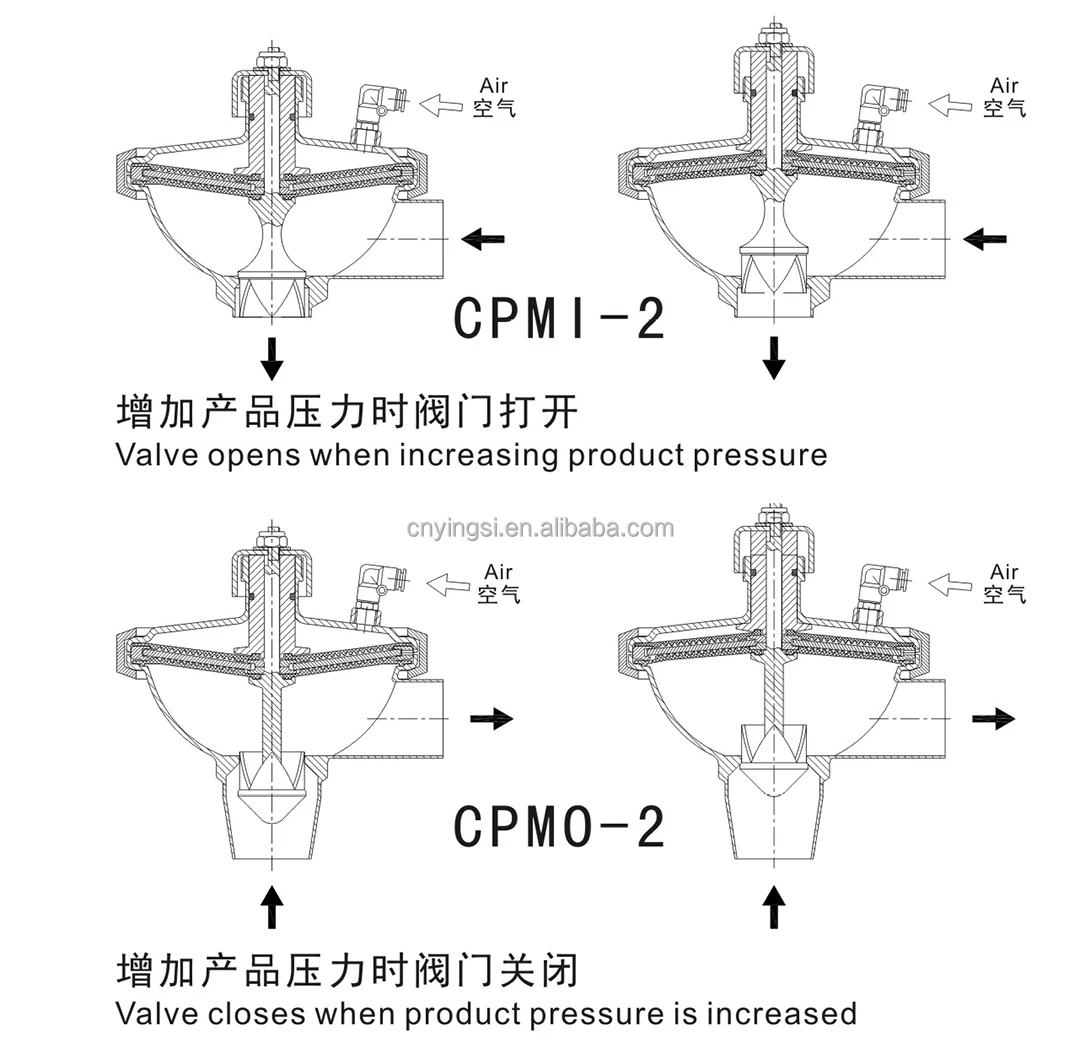

Working Principle Series of constant pressure control valves are operated by compressed air, the operation of the series valve does not need to rely on any sensor in the pipeline only a pressure regulating device and product delivery pipeline for the pressure monitoring system is required A diaphragm valve stem system can quickly respond and change the valve stem position relative to the position of the valve stem so as to maintain the preset pressure value. When the pressure of the delivery product rises, the valve will open, and vice versa, the pressure of the product is reduced the valve will be closed.

Quick Details * Valve body and disc are made of best 316L or 304 stainless steel * Outside surface is treated by sandblasting * The diaphragm material can be EPDM or PTFE, high temperature stand able up to 140 degrees * Butt weld connection end offers simple and fast installation, strong and no leakage * Very popular to regulate medium pressure in the pipeline or tank at a set pressure value * Valve cover and seat are fixed by tri clamp

Specification

Standard	SMS,DIN11850,DIN11851,3A
Material Contact Parts	SS304/SS316L	Provided with material inspection report
Material Non-contact Parts	SS304
Size	1” to 2.5”，DN25-DN65
Connection	Butt-weld,Tri-clamp,Threaded,Union
Type	CPMI-2, CPMO-2
Upper Diaphragm	EPDM,Buna	All seals import material comply with FDA21CFR117.2600
Bottom Diaphragm	EPDM+PTFE
Max. Pressure	≤10bar(145psi)
Supply Air Pressure	≤8bar(116psi)
Temperature Range	EPDM, Buna Upper Diaphragm for 14 ~203°F(-10 ~ 95℃)
		EPDM+PTFE Bottom Diaphragm for 14 ~ 284°F(-10 ~ 140℃)

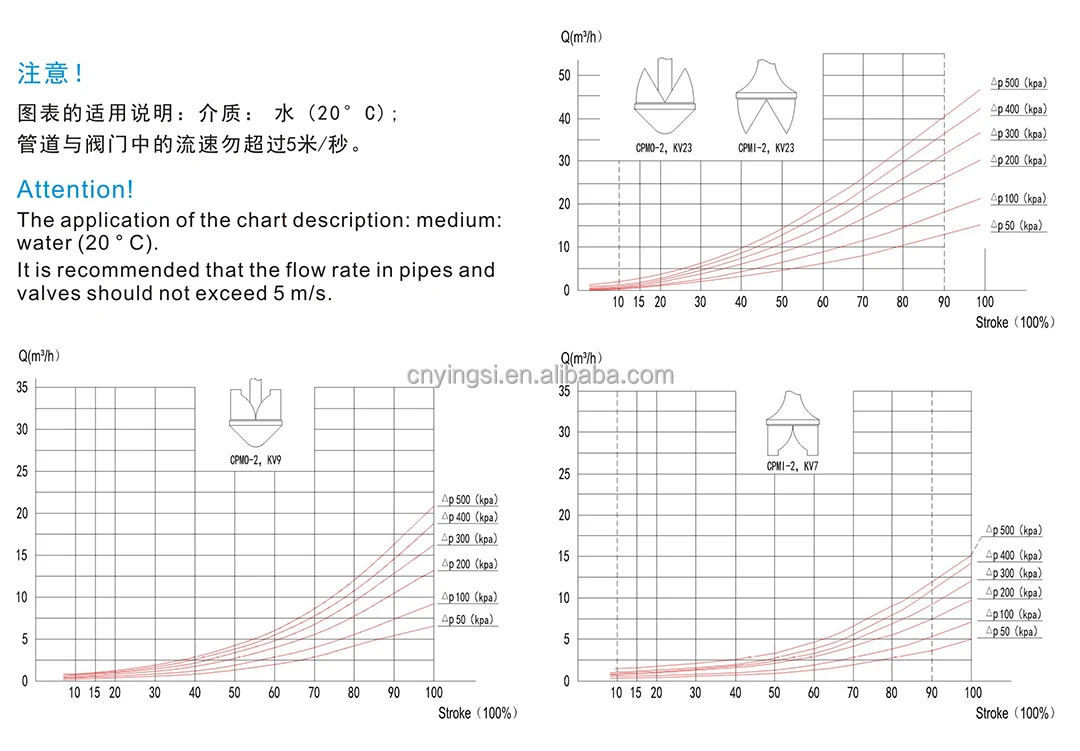

Flow Range KV	Full Open(P=1bar) about 23m3/hr
		Low Flow(P=6bar) about 2m3/hr
External Surface Treatment	Ra32~64uin(o.8~1.6um)
Internal Surface Treatment	Ra16~32uin(0.4~0.8um)

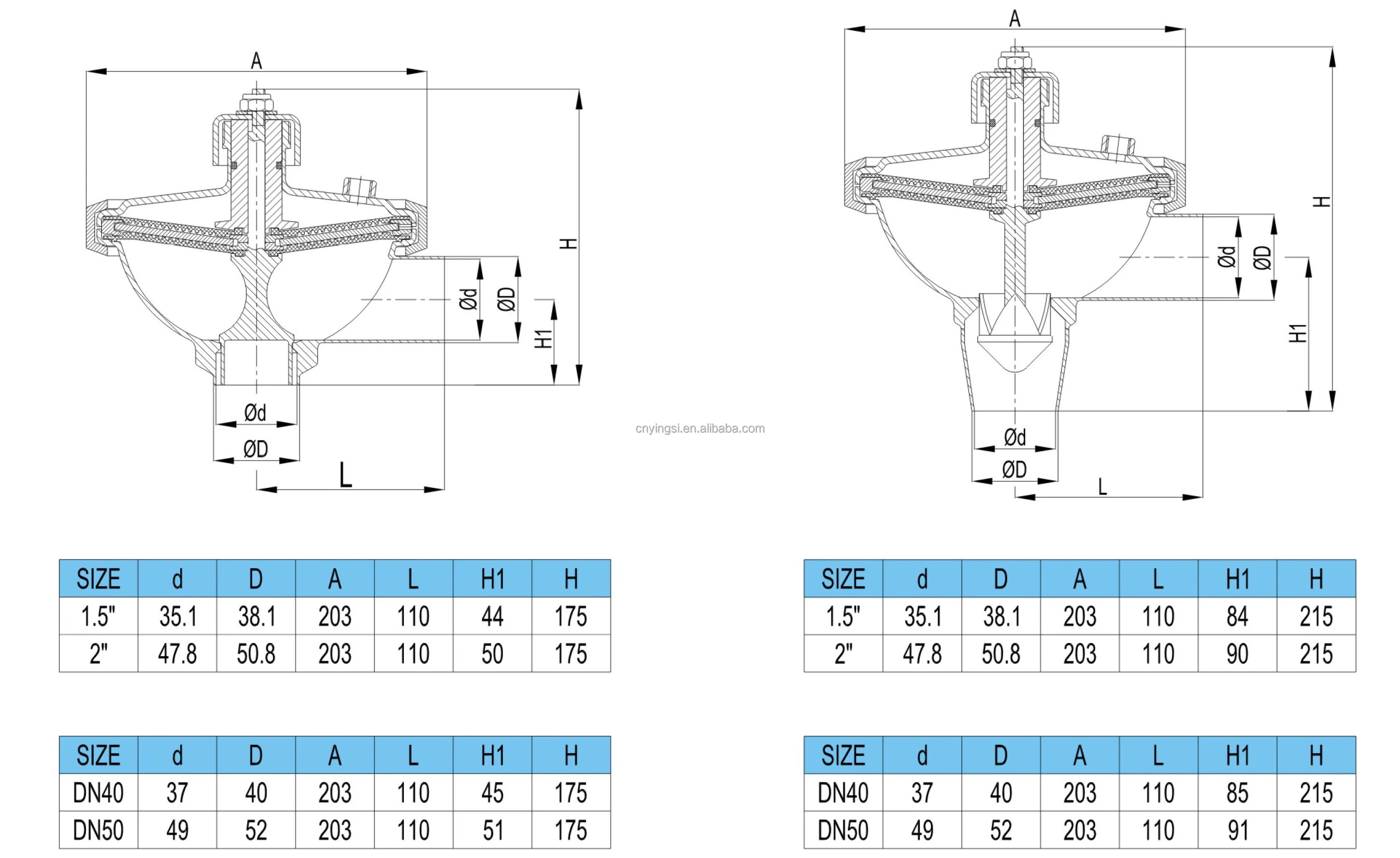

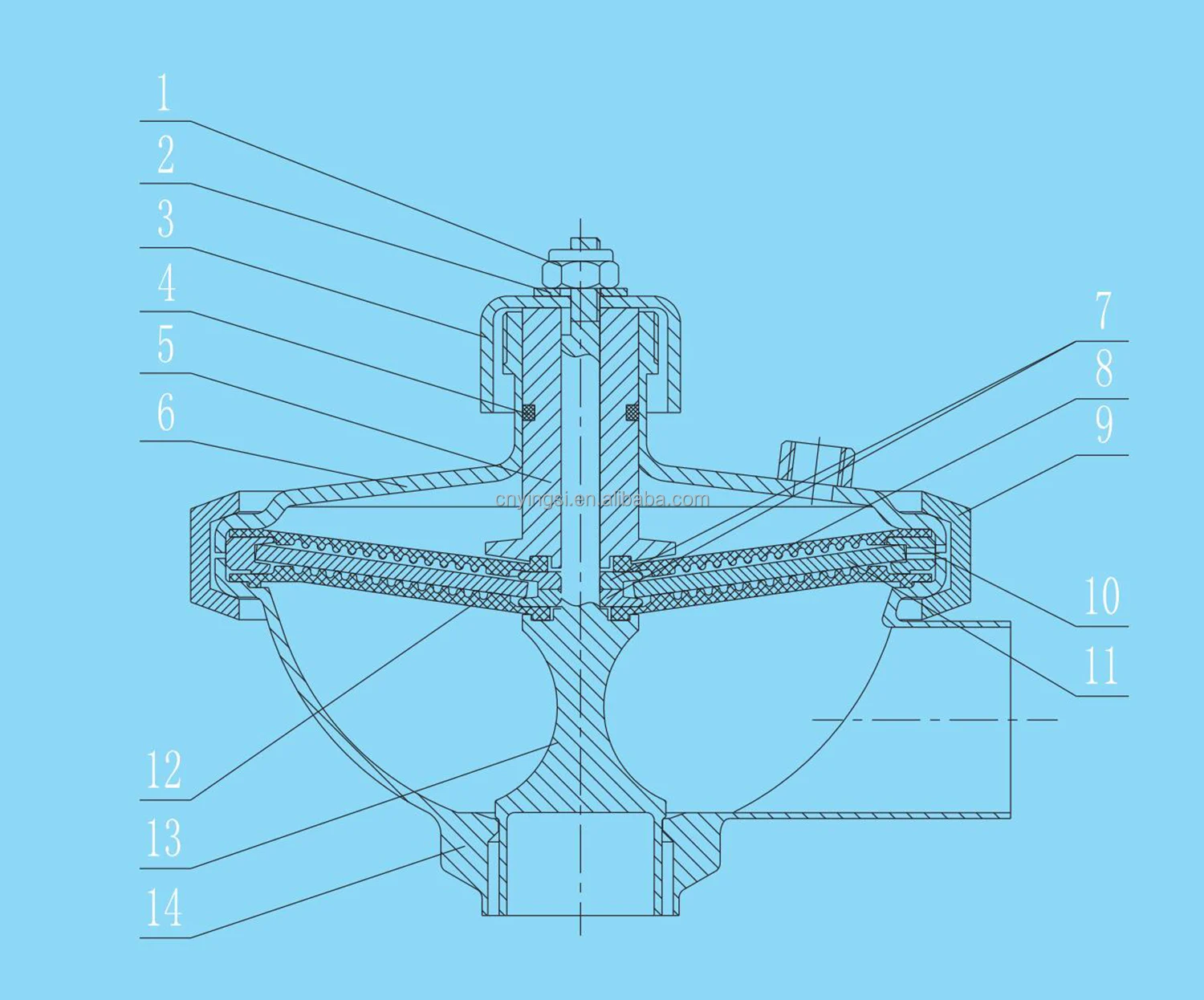

S/N	Name	Qty	Unit	Material
1	Rubber embedded hexagonal nut	1	pc	304
2	Washer	1	pc	304
3	Valve core fixing cover	1	pc	304
4	O Ring	1	pc	ABS
5	Pistion Seat	1	pc	H85
6	Valve Cover	1	pc	304
7	Upper and lower pads	2	pc	304
8	Upper Diaphragm	1	pc	EPDM,Buna
9	Clamp	1	pc	304
10	Diaphragm Seal	1	pc	304
11	Triangular pressure plate	12	pc	304
12	Bottom Diaphragm	1	pc	EPDM+PTFE
13	Valve core	1	pc	304/316L
14	Valve Seat	1	pc	304/316L

Technical Specifications

Max. pressure: ≤10bar(145psi) Min. pressure:0bar(0psi) Supply Air Pressure: ≤8bar(116psi) Temperature range： EPDM, Buna Upper Diaphragm: 14 ~203°F(-10 ~ 95℃) EPDM+PTFE Bottom Diaphragm: 14 ~ 284°F(-10 ~ 140℃)

Actuators used compressed air quality requirements

1.Compressed air connection: Air tube equipped with air connection BSP R1/8” or BSP R1/4”
2.Max. particle size: 0.01mm
3.Max. oil content: 0.08ppm
4.Dew point: atmospheric temperature 10℃(14°F) or lower
5.Max water content: 7.5g/kg

Options

1.Connection can be Butt-weld,Tri-clamp,Threaded,Union  or others upon request. 2.Type can be CPMI-2 and CPMO-2 3.The available size is 1” to 2.5”，DN25-DN65

Advantage

1.No dead corners, no stagnation 2.Supports CIP online cleaning, and can also be disassembled for cleaning 3.Support SIP online sterilization, before temperature drops below 60℃

Standard Design: The current design of constant pressure control valve series are in accordance with DIN standards,3A standards and ISO standards to design and production. The basic components of a series of constant pressure control valves include a valve seat body,a valve cover,a valve stem and a clamp.Constant pressure regulating valve for the inlet and the bottom of the valve body form an angle of 90 DEG,residual liquid can not be accumulated,so clean and the role of the more significant:also special piston design allows less liquid flow rate and a higher CIP flow.

Contact Us

If any inquiries or questions, pls kindly contact us soon.

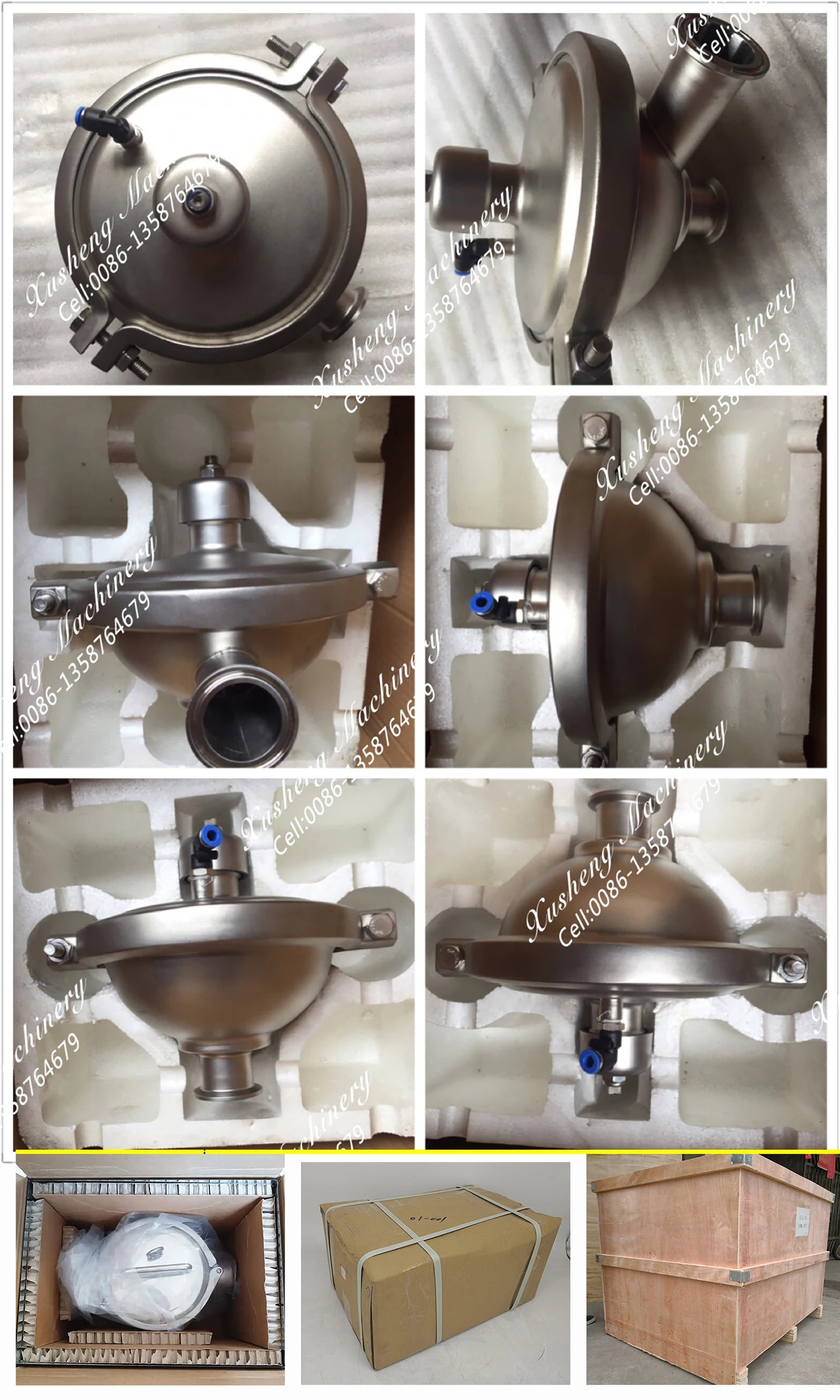

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Application

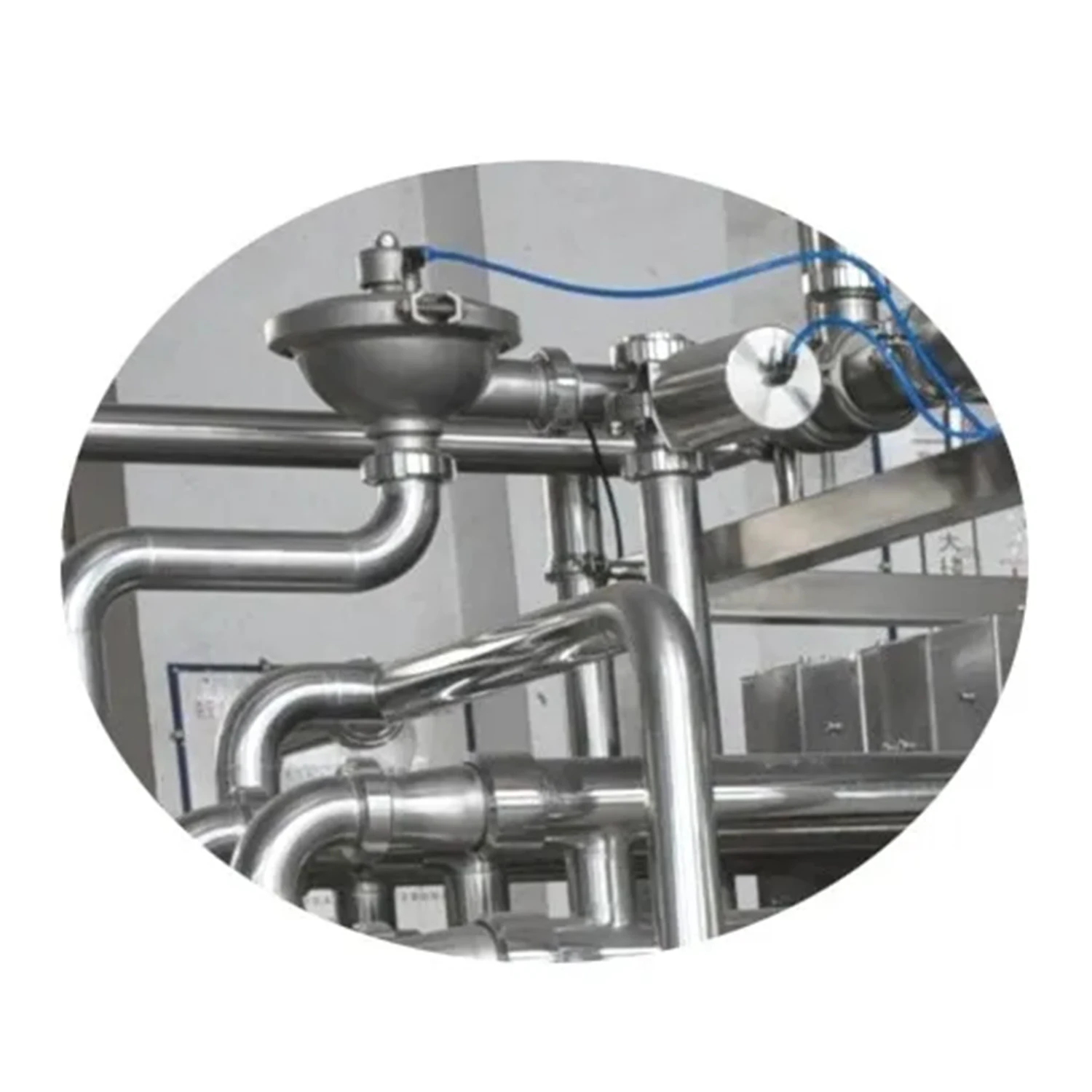

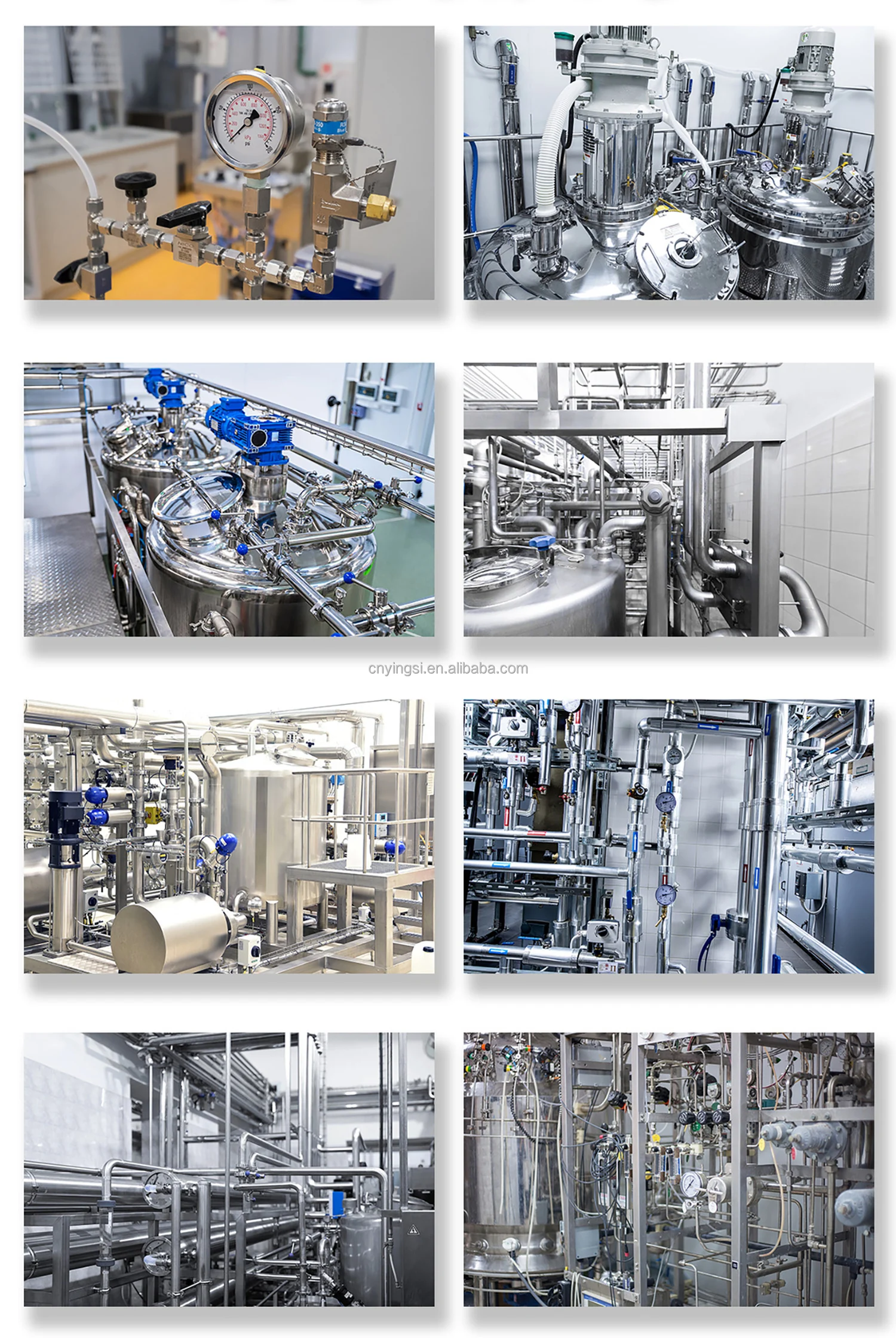

Constant Pressure Valve is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Company Profile

Founded in 2011, Compass Machinery as a global sanitary valves manufacturer,has grown to become one of leading valves manufacturers for high precision stainless steel sanitary valves, pipe fittings,pumps and tanks.

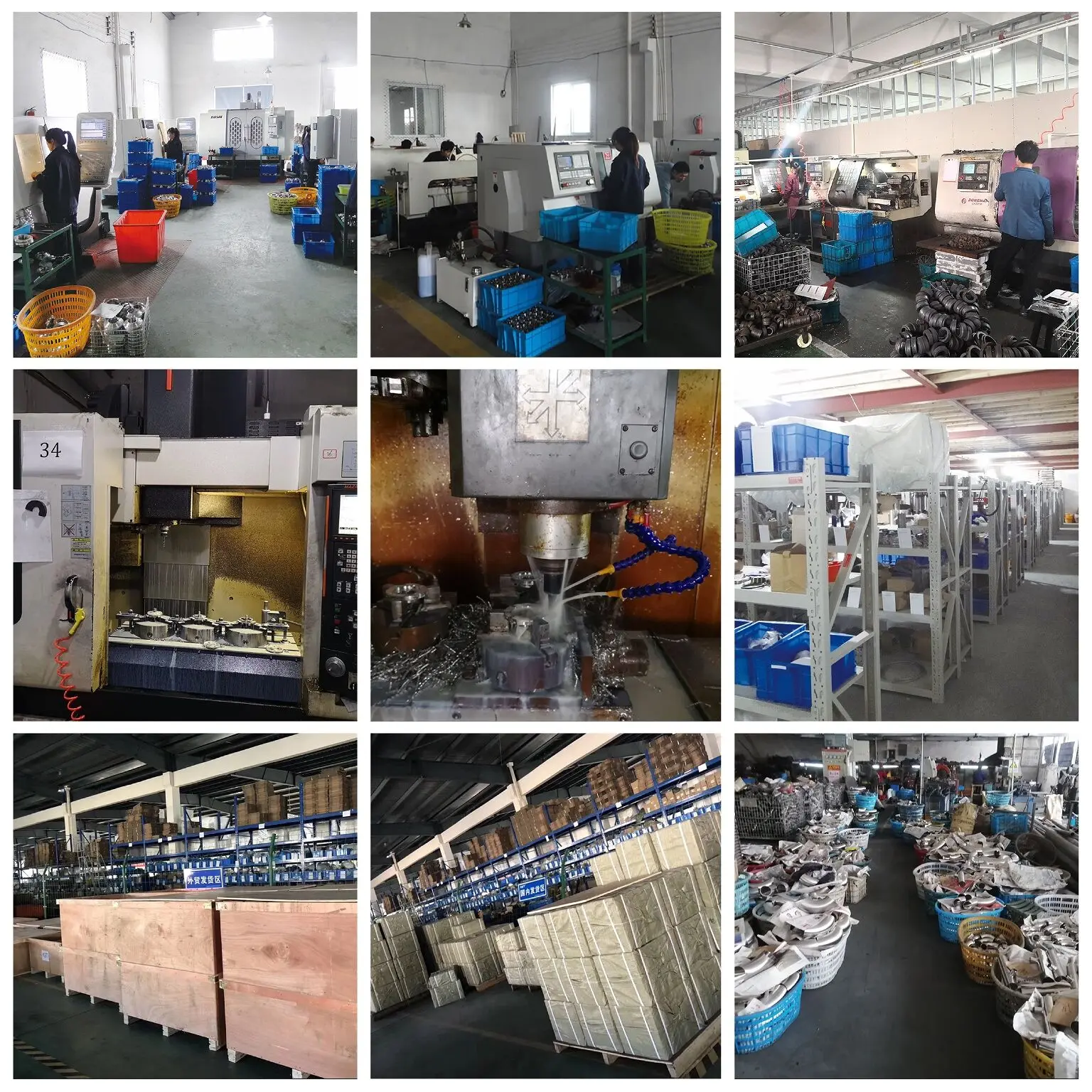

Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit.

To assure better quality, we have the full inspecting quality control
equipment: 1nos Ra roughness instrument, 3nos stainless steel spectrometer, numbers of roundness instrument, numbers of thickness instrument, numbers of radius instrument, 3 nos pressure testing center.

Compass Machinery is still developing and innovating new products to ensure that the products are more energy-efficient, efficient and competitive.

FAQ

Q1. Are you a trading company or factory?
We are a manufacturing factory.

Q2. What’s the payment terms?
For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.

Q3.How do you control the quality?
Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.

Q4.If there is any quality problem,how do you solve it?
We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.

Q5.How long is your delivery time?
For normal production in 7-10days.For bulk order in 15-25days.

Q6.Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for
customers.

Q7.How to order Sanitary CPM Constant Pressure Valve?

1. What size ? 1” to 2.5”，DN25-DN65
2. What's material ? SS304/SS316L
3. What's type? CPMI-2 or CPMO-2 ?
4. What's connection ends ? Butt-weld,Tri-clamp,Threaded,Union ?
5. What's seal material ? Domestic diaphragm or import diaphragm ?
6. Do you need mirror polished or sand blast ?
