SPECIFICATIONS

Engine power: Electric(DC)

Plug Type: European Plug

brand name: decapower

condition: New

dimensions: 63*32*52CM

feature: Multifunction

material / metal processed: Aluminium Alloy

max. load power capacity: 7.3KVA

mig solid wire diameter mm: 0.8mm

place of origin: Zhejiang, China

protection grade: IP21S

rated duty cycle @40°c (mig): 40%

rated input voltage: 230 V

rated output voltage: 220 V

usage: Welding carbon steel

warranty: 1 Year

weight (kg): 15

welding current/voltage range: 220 V

wire feeding speed: 20

wire melting type: Short Circuit Transfer

Product Description

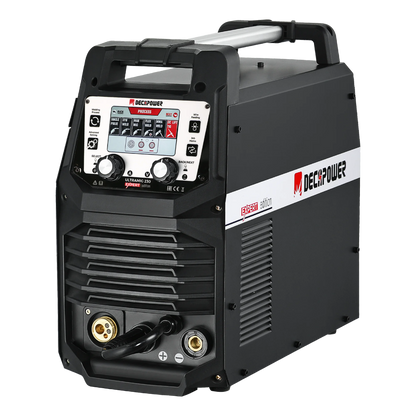

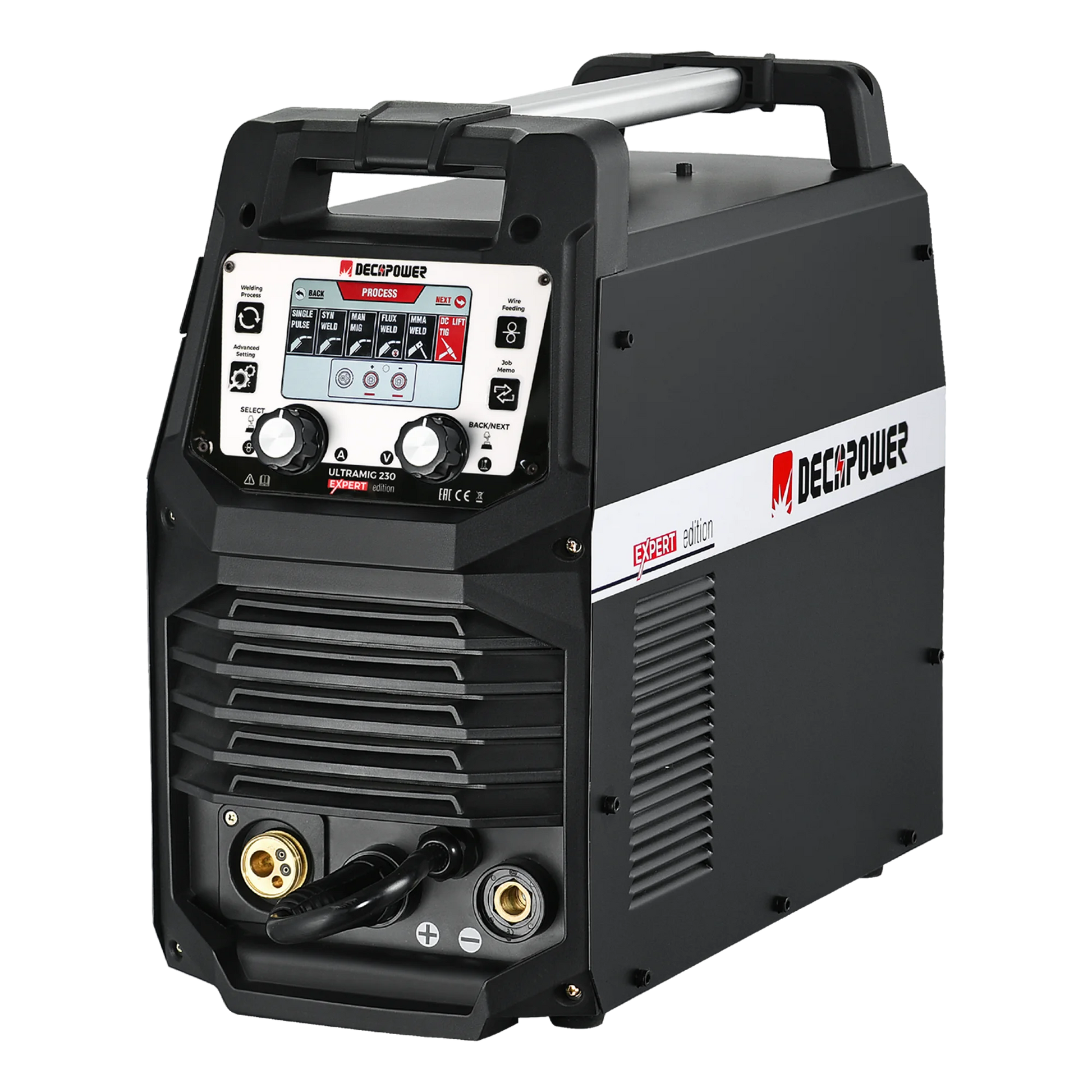

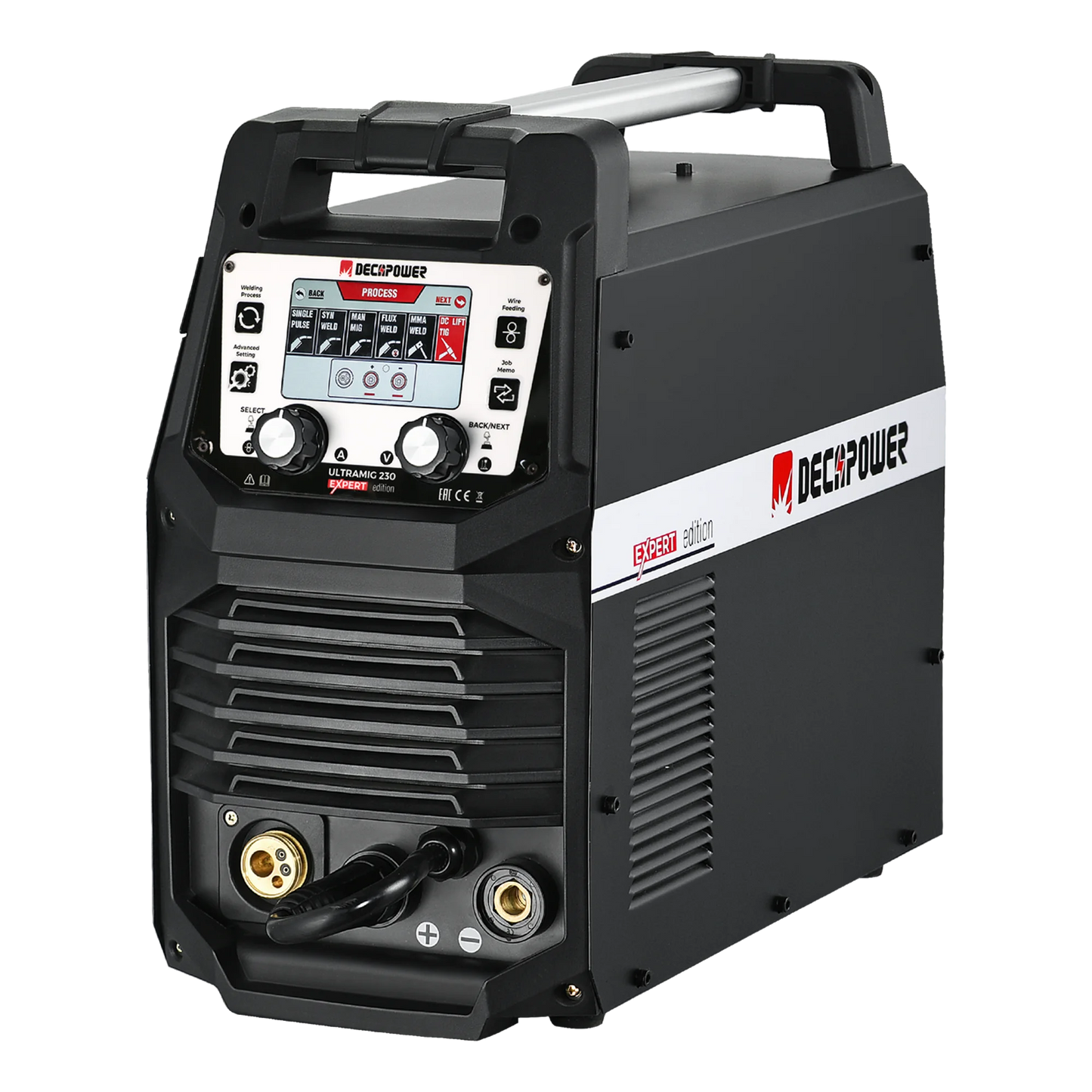

Model	ULTRAMIG-230 EXPERT
Technology	IGBT Inverter Technology + DSP Digital Technology+MCU Control
Input Power	7.3KW
Wire Melting Type	Short Circuit Transfer
Output current MIG/MAG	32A/15.6V ~ 230A/25.5V
Output current MMA	29A/21.5V ~ 200A/28V
Output current TIG LIFT	17A/10.7V ~ 230A/19.2V
Wire Feeding Speed	15m/min
Suitable Welding Wire Size	0.6mm/0.8mm/1.0mm/1.2mm
Quick Connctor size	DKJ30-50 (Dia. = 13mm.)

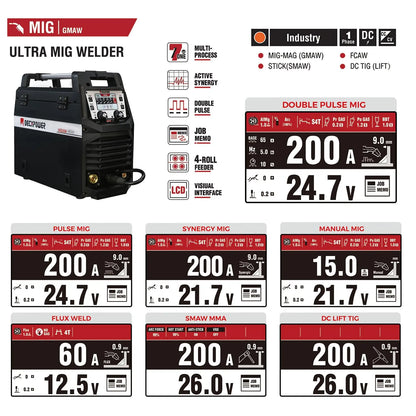

The ULTRAMIG Welder is a kind of multi-process invert weldina machine with high cost performance for pulse welding. meanwhile it is easy to operate.

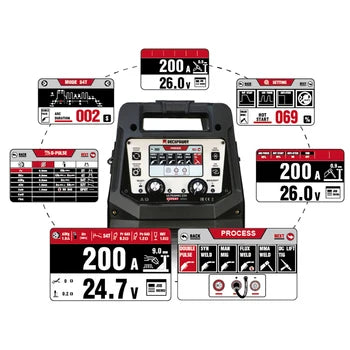

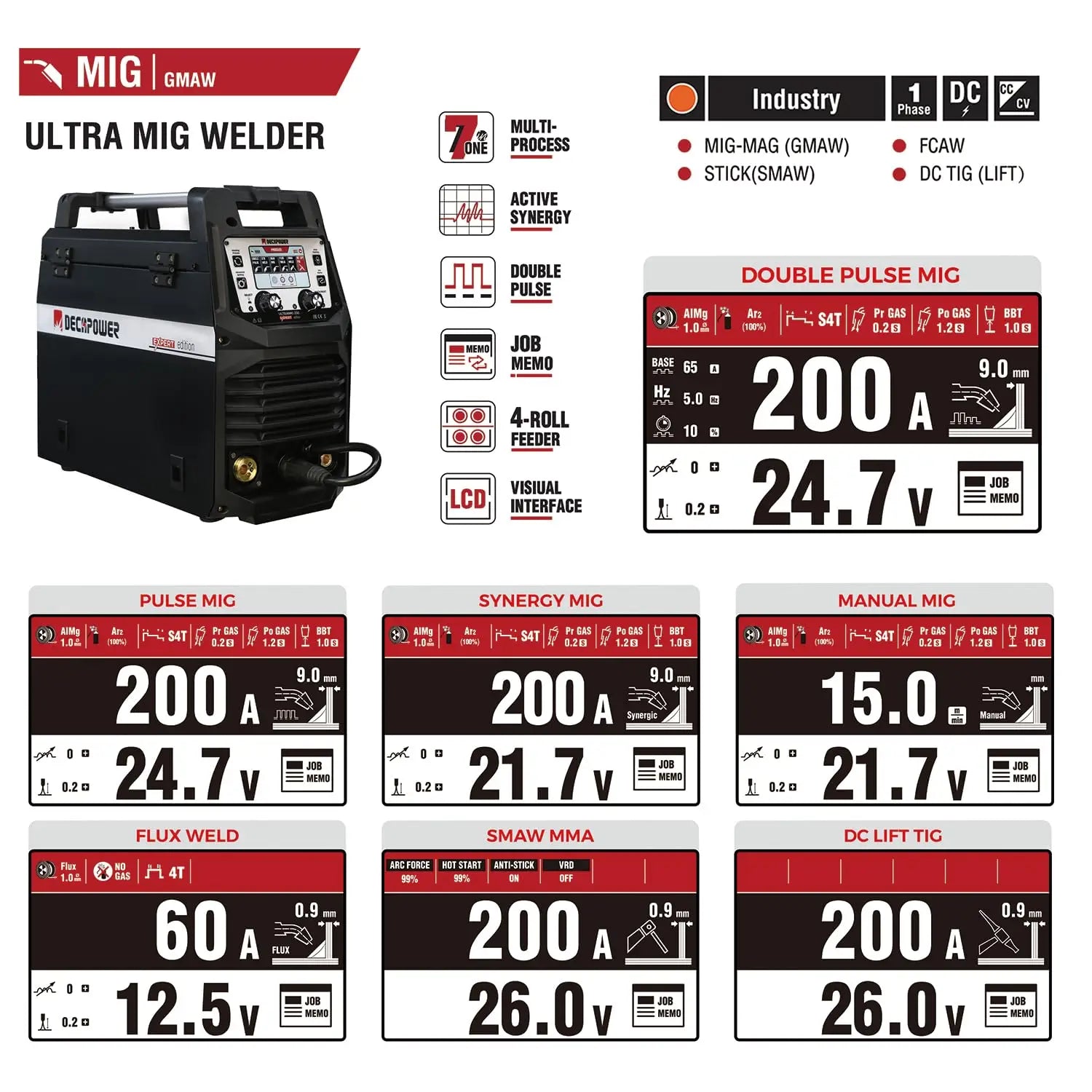

It's simplified the complexity，reproduced various functions with visual icons and lare 4inch LCD Screen，simplified the operation steps，and achieved zero obstacles in human-computer interaction.

Whether a professional welder or a novice welder can operate at any time and anywhere.

The product adopts full bridge circuit design and pure digital control scheme to achieve accurate,stable and efficient welding.

Details Images

Company Profile

FAQ

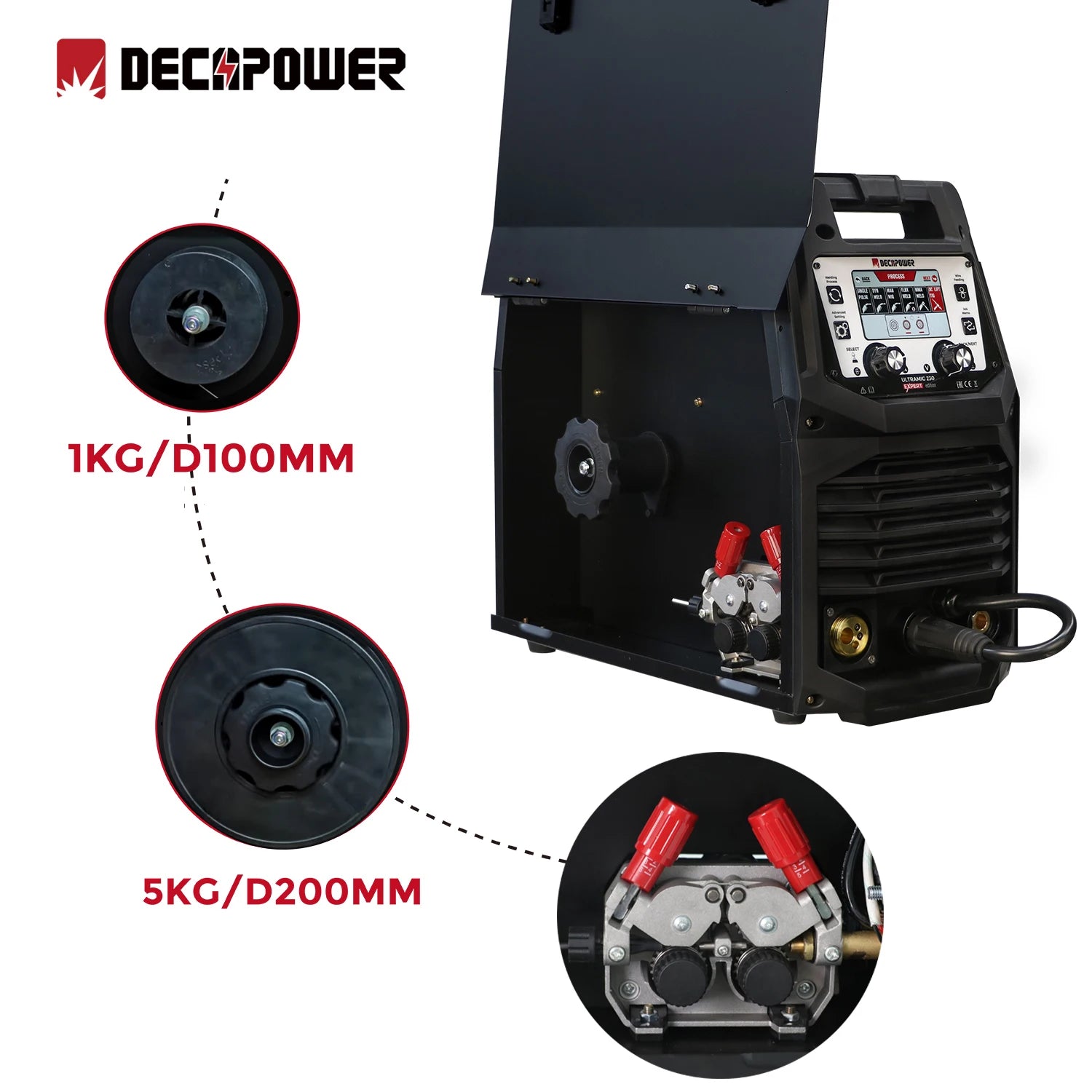

Q: Why 4-roller wire feed? What advantages over 2-roller? A: 4-roller feed provides smoother delivery, especially over long distances or through curved liners. Q: What does inductance adjustment do? When to increase or decrease it? A: Inductance adjusts arc energy release rhythm—softer arcs suit thin sheets, harder arcs offer deeper penetration. Q: What exactly does IP21S protection mean? A: IP21S prevents objects >12.5mm from entering and protects against vertically dripping water—ideal for standard workshop environments. Q: Is air cooling better than water cooling? A: Air cooling requires no coolant and is low-maintenance; however, heat dissipation is slightly less than water-cooled systems under extreme loads. Q: Does it require three-phase power to operate? A: The machine runs on standard 230V single-phase power, compatible with common industrial electrical setups.

Q: Is this welder easy to move between work areas? A: The unit weighs 18kg with built-in handles, allowing manual transport between workspaces. Q: Which wire should I use for optimal stainless steel welding? A: Compatible with 0.6mm and above solid wires; 0.8mm stainless-specific wire is recommended for best results. Q: How should I set Hot Start and Arc Force properly? A: Enable Hot Start to improve arc initiation; use Arc Force to maintain stability—adjust based on material thickness. Q: How do I perform routine maintenance to extend lifespan? A: Clean exterior with dry cloth; regularly inspect wire drive rollers and clear liner dust buildup. Q: Can this be used for AC welding? A: This machine supports DC welding only and cannot perform AC welding.
