SPECIFICATIONS

Application: Toys,Consumer Electronics,Digital Products

Battery Type: Solid state

Battery type: Soft package

Brand Name: Liter energy battery

Cathode Materials: LiCoO2

Cell Dimensions: 8x20x28mm

Certification: CE

Chargeable: Yes

Cycle Life: 800 cycles

Cycle life: 500 Times

Max Load Quantity(cells): 32

Model Number: LITER NV 505060

Operating Temperature(℃): -20℃~60℃

PCM: Seiko or customized

Place of Origin: Guangdong, China

Product name: Lithium Polymer Battery

Type: Li-polymer

Warranty: 3months-1year

Weight: 8g

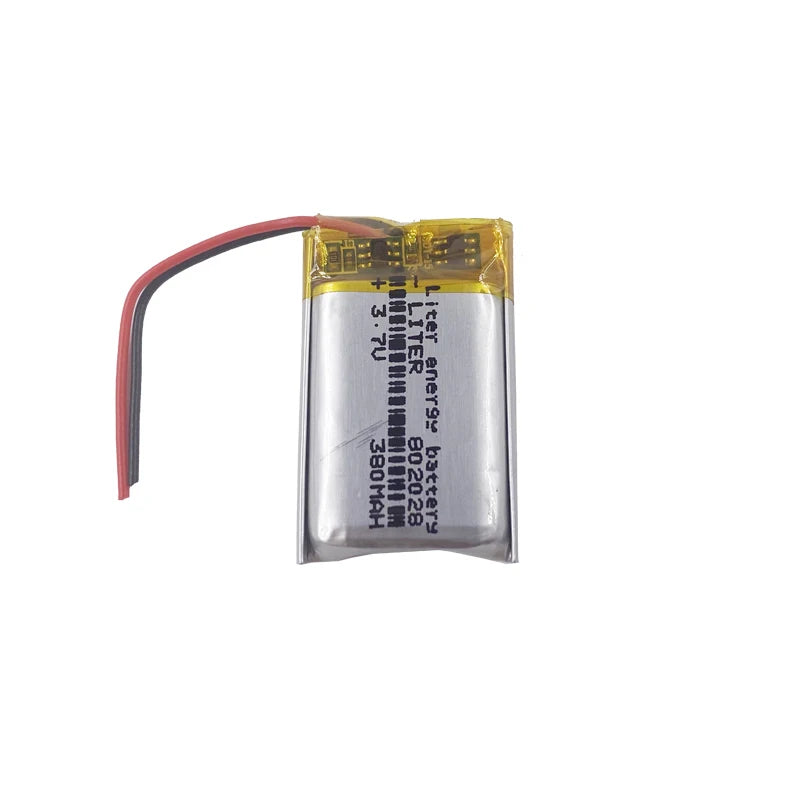

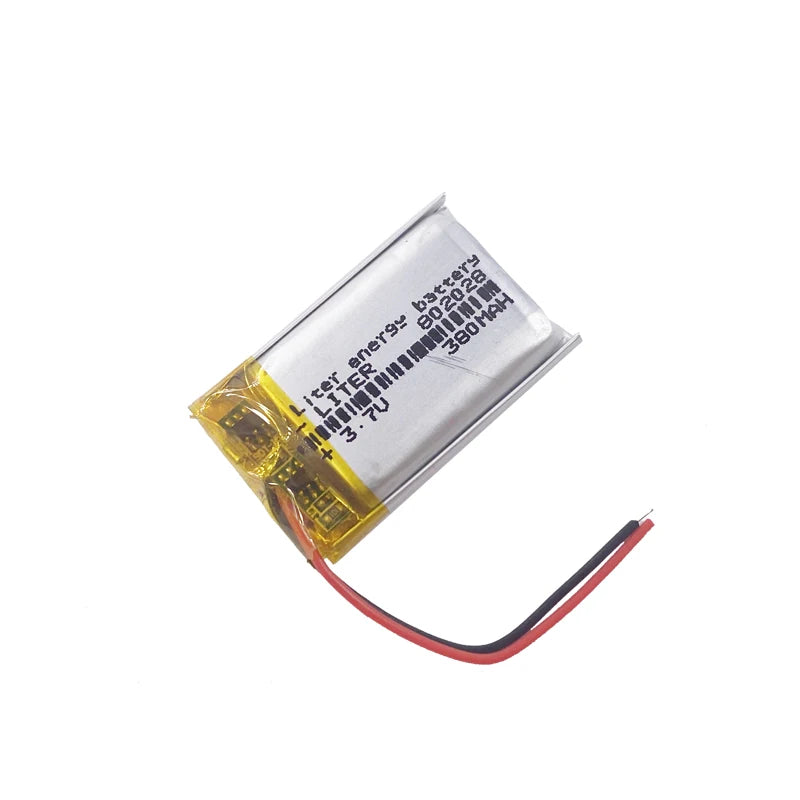

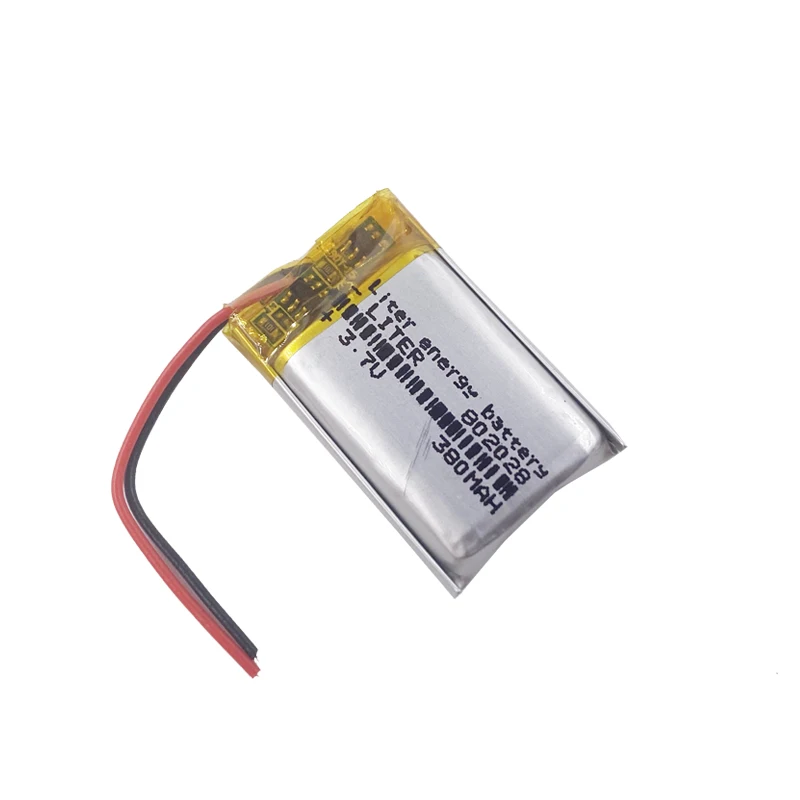

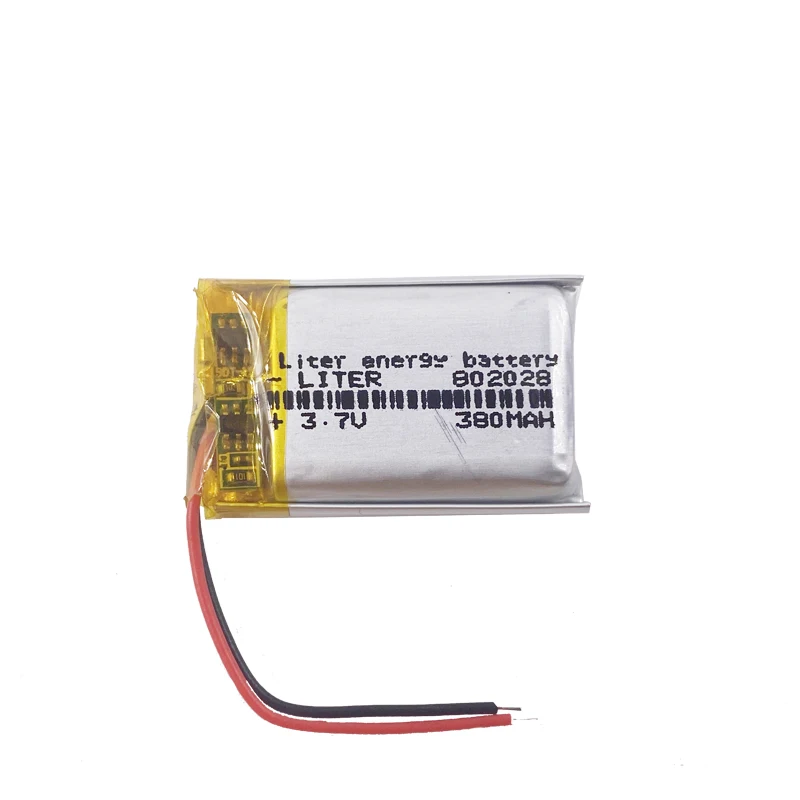

Products Description

Brand:	Liter energy battery	Model:	802028
Type:	Li-Polymer	Charge Current:	0.2C Standard/0.5C
Capacity:	380mAh	Charge Voltage:	3.7-4.2V
Energy:	1.406Wh	Size:	8mm* 20mm* 28mm
Impendence:	80 mΩ	Warranty Time:	12 Months
Cycle life:	Around 500 Times	Working Temperature:	Charge: 0~45 Degree, Discharge: -10~50 Degree
OEM/ODM:	Available	Certificate:	UN38.3/MSDS/CE/ROHS/FCC

Do not submerge the battery in the water. Do not mix fresh batteries with used batteries. Do not mix batteries with metal stuff together. Do not insert batteries with the (+) and (-) reversed. Do not disassemble, dispose in fire, heat or short circuit. Do not put the battery in a charger or equipment with wrong terminals connected.

Details Images

Company Profile

Shenzhen BIHUADE New Energy Technology Co., Ltd. focuses on the R & D, production and trade of polymer lithium-ion batteriesand
other products. In order to ensure that customers use high-quality products, we have a full set of bis / CB / CE / KCcertificates
/ MSDS / un38.3/1.2m drop test report / ICR for air and sea transportation.

Product packaging

 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging serviceswill
be provided.

Shipment & Payment

FAQ

1.If you can answer the following questions before place a order, it will be much helpful for us to make the correct products for you. :1. Will you use the battery on what product? 2. Do you need Protection Board for the battery?3. Do you need cable and connector for the battery? We will make the batteries like this: Normal protection board + 28AWG,30-35mm cable without connector,if customers without any special requirements.
2.Q.Can I have a sample order? Q: How to solve the quality problems after sales?
A: Yes, samples orders are welcome.We can offer free samples if the quantity not above 3 pcs, you only need to pay the shipping cost. after sales:(1) Take photos & videos of the problems and send to us.(2) Send back the physical problem battery by express to us.(3) Engineer will analyze the defective battery within 2 working day.(4) 1 Year Warranty after leaving our factory, our defect rate is under 1%,we'll repaired or replaced the battery for free if non-human factor quality problems be confirmed.
3.Q: How's your lead time? A: 2-5 days for sample, 15-25 days for large quantity.Q: What kind of certificates could you provide for these batteries? A: We have CE,CB,KC,MSDS,UN38.3 for most our current model, if It's custom-making design, usually no current certificates, we could apply for you if you need, but the related fees should be paid by your side, and if your order is big enough, certificate fees can be refunded.
4.Q: Can your factory print our logo/brand on the product?A: Yes, and we will do this free of charge if the order quantity is big enough, please contact us for more details.

5.Q :Can you make customized battery?A: Of course. We have professional engineers that can give you the most suitable solution according to your special requirements.
