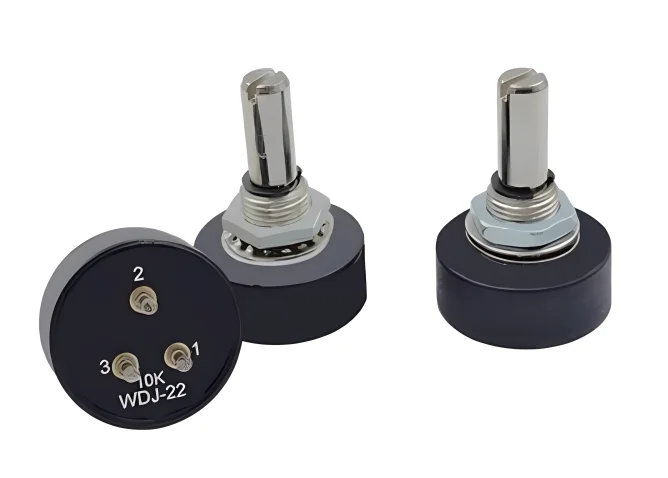

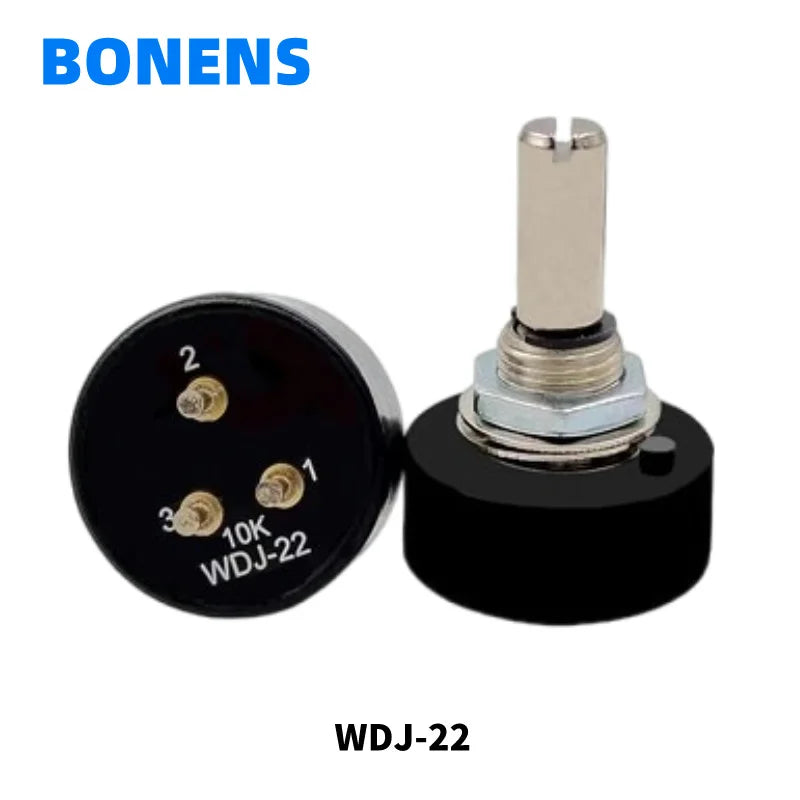

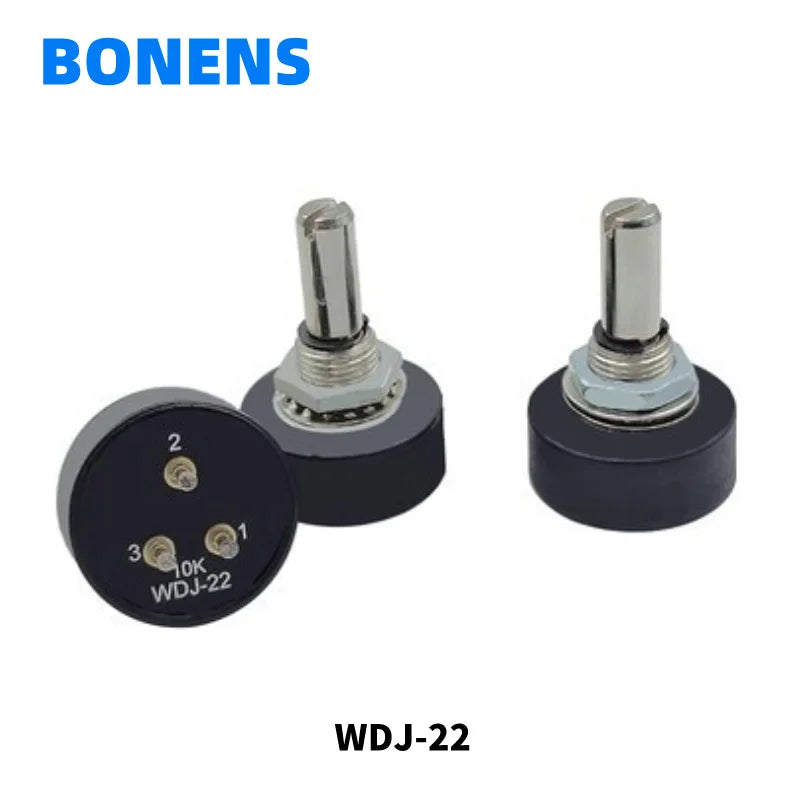

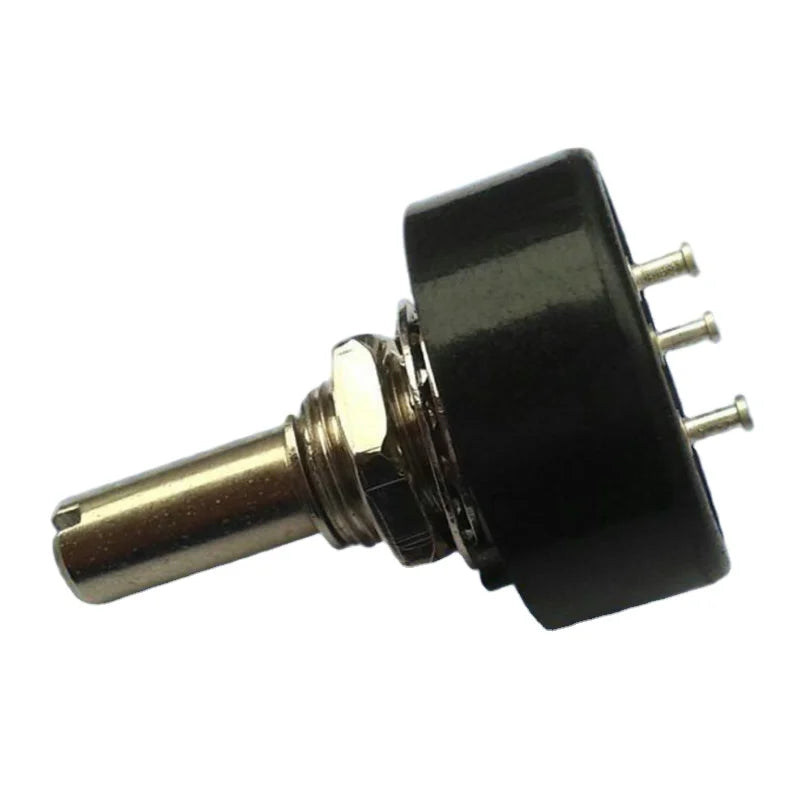

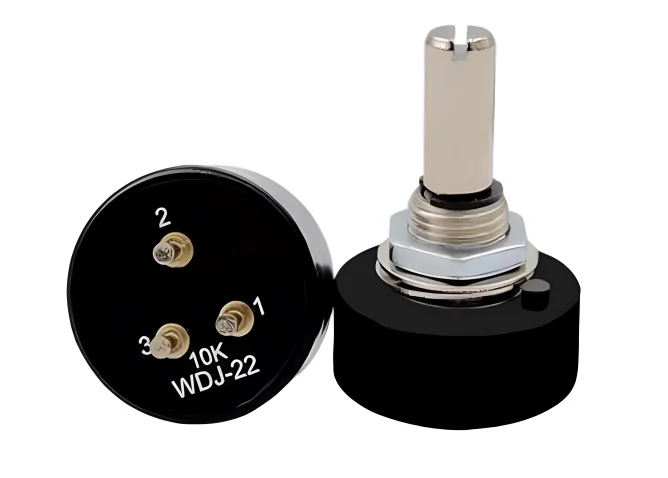

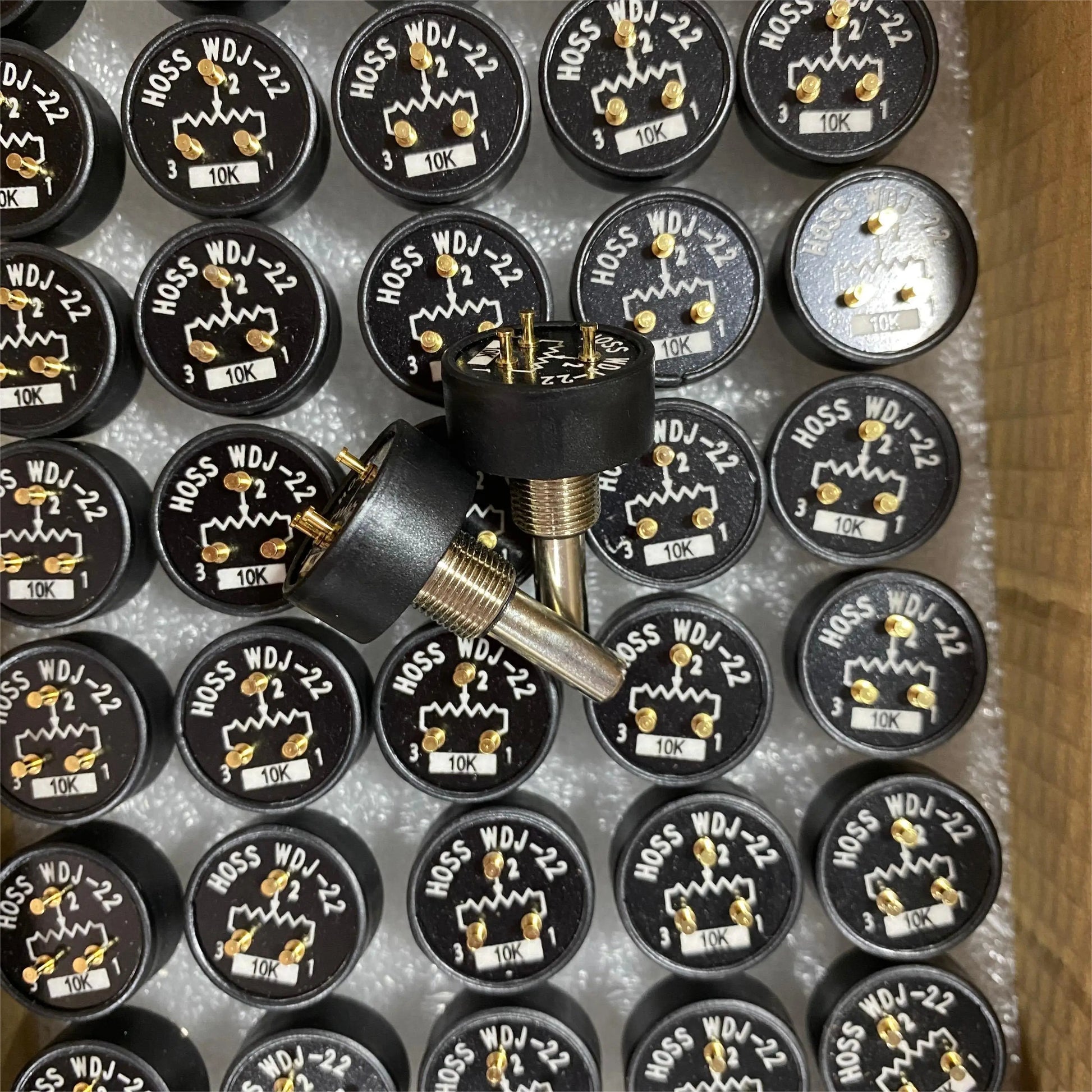

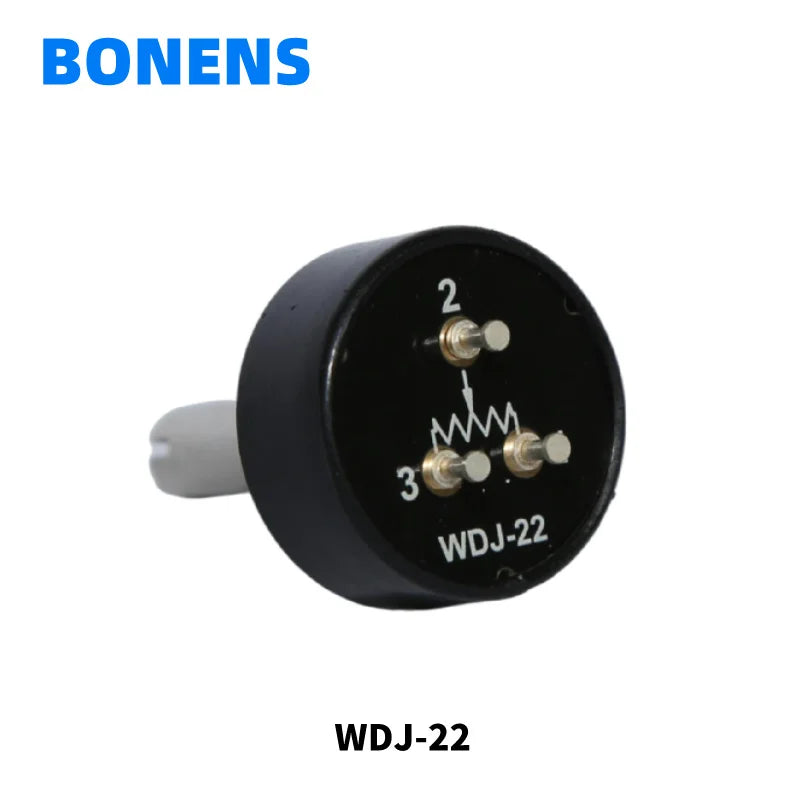

WDJ22 angle displacement sensor WDD22 precision conductive plastic potentiometer
product description
WDJ22 potentiometer is an electronic component used for measuring angles or linear displacement, typically used in applications that require precise control and feedback. This type of potentiometer is mainly made of conductive plastic materials, which have the characteristics of high precision, long service life, and good stability.
Product Features
1. High protection level
2. Long service life

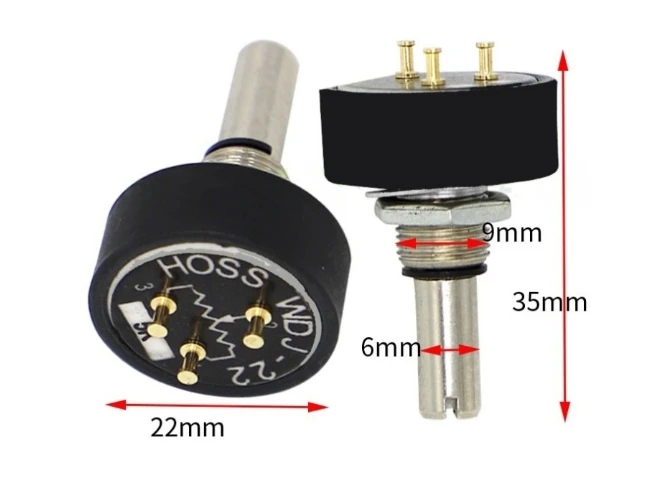

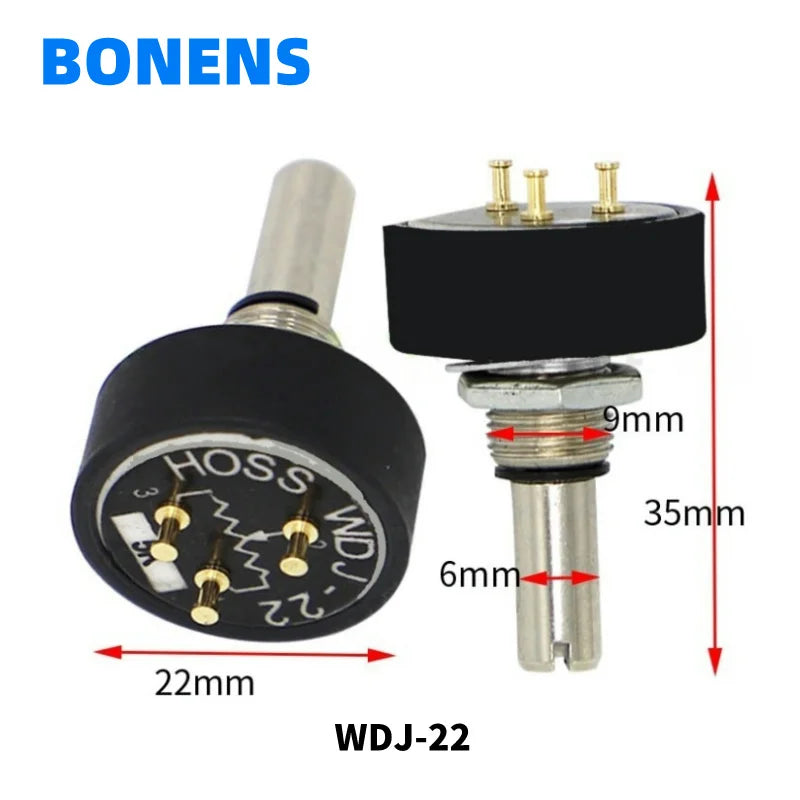

Product size:
Specification parameters:
Shaft diameter: 6mm
Potentiometer diameter: 22MM
Resistance allowable error: 15%
Linear accuracy: soil 0.1% -0.5%
Dynamic smoothness:<1.5%
Rated power: 1W (70C)
Maximum working voltage: 250V
Insulation voltage: 750V
Environmental temperature: -40C-125C
Temperature coefficient of resistance:<500ppmm/C
Rotating torque:<0.098MNN
Rotation angle: 360 °
Electrical durability: soil 10%
Mechanical durability: 30 million cycles
Welding heat resistance: 350 ℃
|
Electrical:
|
|||
|
Resistance Range
|
1KΩ-1MΩ
|
||
|
Resistance Tolerance
|
±10% Standard
|
||
|
End Resistance
|
<3Ω
|
||
|
Resistance Taper
|
B
|
||
| Independent Linearity |
±0.5%
|
||
|
Power Rating
|
0.5W(70℃)0W(120℃)
|
||
|
Peak Noise (C.R.V.)
|
<2%Rn
|
||
|
Dielectric Strength
|
1000V 1minute
|
||
|
Adjustment Travel
|
90°120°200° 240° 300° 340°
|
||
|
Insulation Resistance
|
Insulation Resistance
|
||
|
Resolution
|
Essentially infinite
|
||
|
Maximum Input Voltage
|
200VDC
|
||
|
Environmental:
|
|||
|
Storage Temperature Range
|
-60℃~+125℃
|
||
|
Operating Temperature Range
|
-60℃~+125℃
|
||
|
Temperature coefficient
|
500ppm/℃
|
||
|
Load Life
|
70℃ 1,000h ΔR/R≤±10%
|
||
|
Rotational Life
|
1,000,000 times, ΔR/R≤±7%
|
||
|
IP Range
|
IP25
|
||
|
Soldering Heat Resistance
|
(350℃ 3S)ΔR/R≤±2%
|
||
|
Temperature Cycle
|
(-25℃,+85℃ 30min/each,5 cycles) ΔR/R≤±10%
|
||
|
Vibration
|
10-55Hz, 1.5mm amplitude, 3.directions ΔR/R≤±5%
|
||
|
Mechanical:
|
|||
|
SIZE
|
SEE DRAWING
|
||
|
Mechanical Travel
|
220° 320° 360°
|
||
|
Shaft Torque
|
25~35gf·cm
|
||
|
Mounting Nut Torque
|
15Kgf·cm
|
||
|
Shaft Runout
|
0.15mm
|
||
|
Shaft End Play
|
(shaft length 30 mm)0.15mm
|
||
|
Shaft Radial Play
|
0.15mm
|
||
|
Shaft Strength (push)
|
125 N (12.75 kgf ) min.
|
||
|
Shaft Strength (tensile)
|
125 N (12.75 kgf ) min.
|
||
|
Hardware.
|
Washer,Lockwasher, Nut
|
||
application area:
WDJ22 potentiometer is a high-precision electronic component mainly used for measuring angles or linear displacement. Due to its high precision and stability, this type of potentiometer has been widely used in many fields. The following are some common application areas: industrial automation, instrumentation, automotive industry, etc
