SPECIFICATIONS

Adjustable tilt Angle: 15°-45°

Application: Snack food factory

Battery Included: No

Coating pot diameter: 300,400,600,800,1000,1250mm

Function: Polish and coat the different shape of snack food products

Heating method: Electric heating or gas heating

Key Selling Points: Long Service Life

Machine name: Chocolate peanut almond candy coating machine

Material: Stianless Steel

Plug Type: Us Plug,European Plug,British Plug,Australian Plug,Swiss Plug,Japanese Plug

Power Supply: 220v

Suiatble for: Tablets, pills, pellets, seeds product surface coating

Voltage: 220v or customized other voltage

application fields: Seasoning Plant

brand name: RESO

condition: New

dimension(l*w*h): 50*40*39cm

key selling points: Long Service Life

machinery function: Coating the product

output product name: Coating products

place of origin: Henan, China

raw material: Flour

voltage: 220v

warranty: 1 Year

weight: 16

Product Description

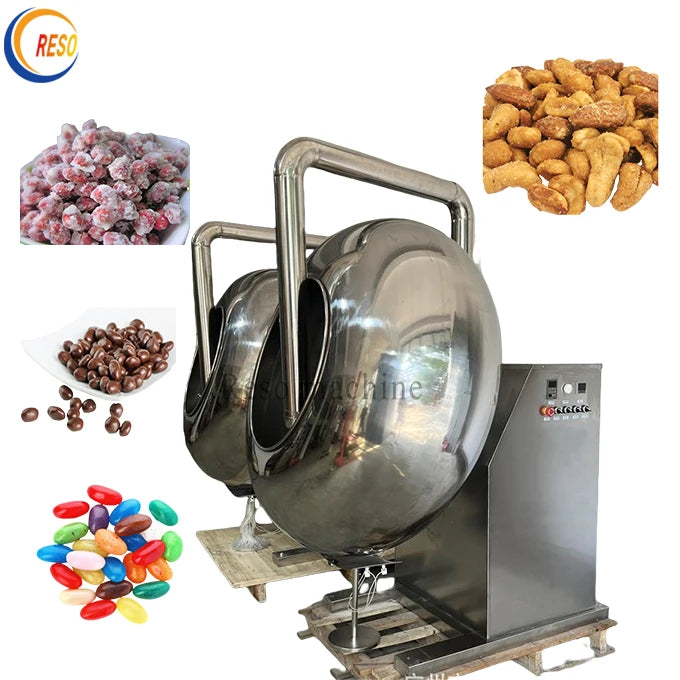

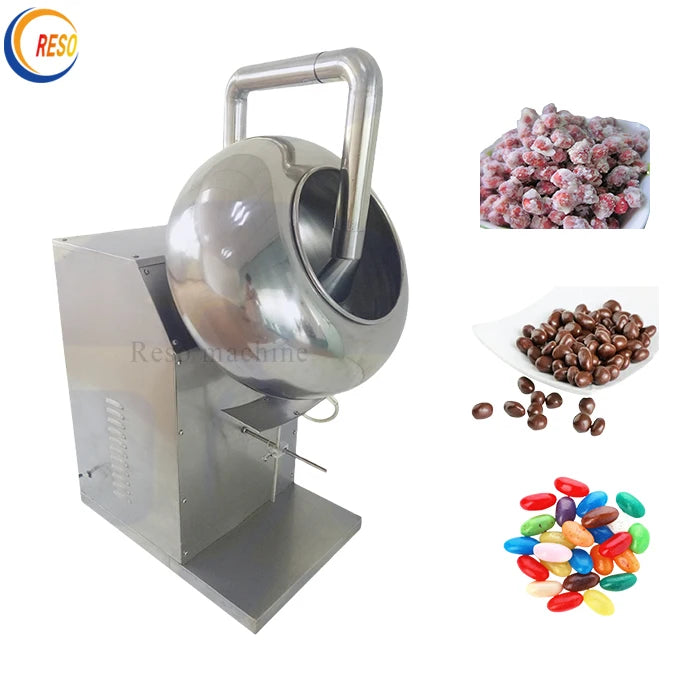

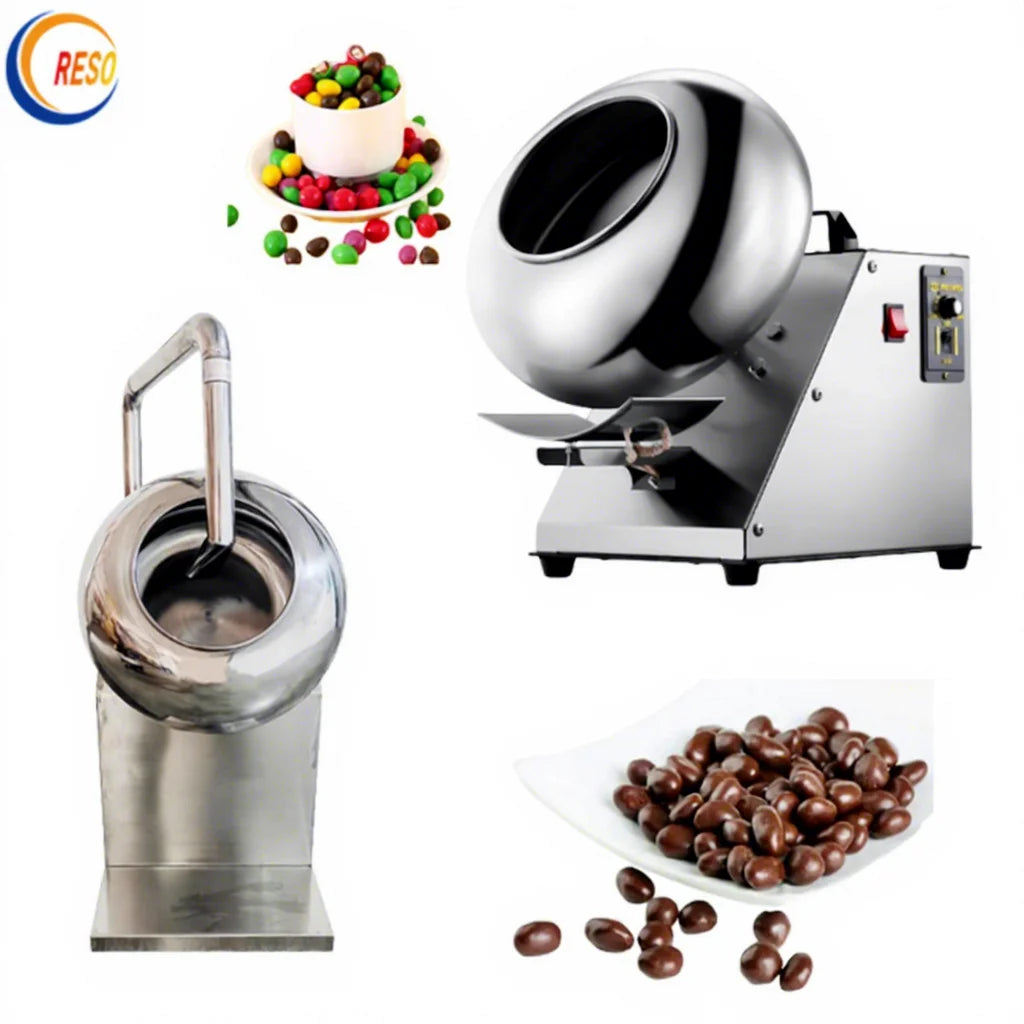

chocolate sugarcoating glazing machine for almond nut film coater peanut sugar coating machine

The machine is used for sugar coating of different shape of snack food products in the food industries.

It can also be used for rolling and heating beans and edible seeds.

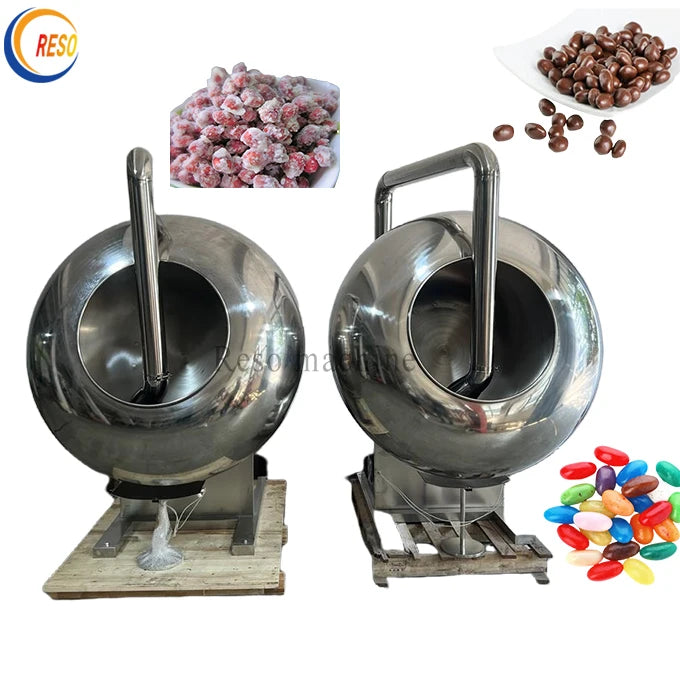

Smaller model

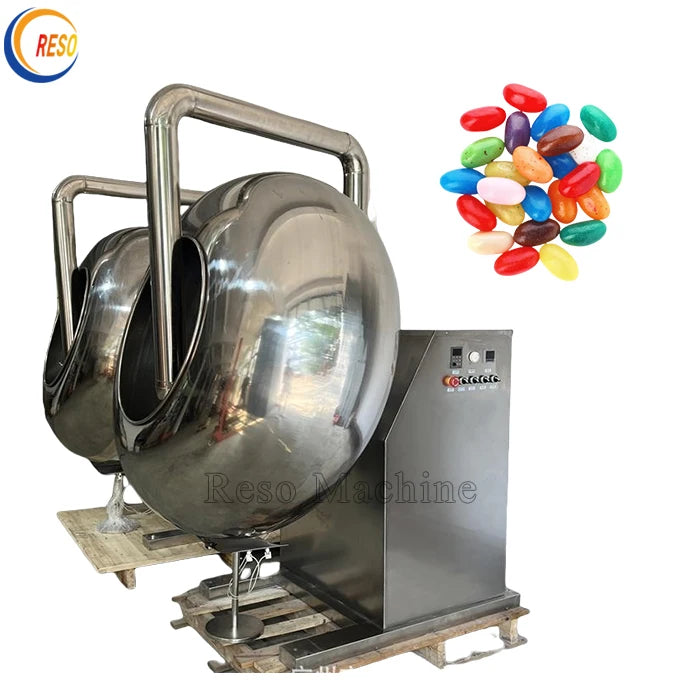

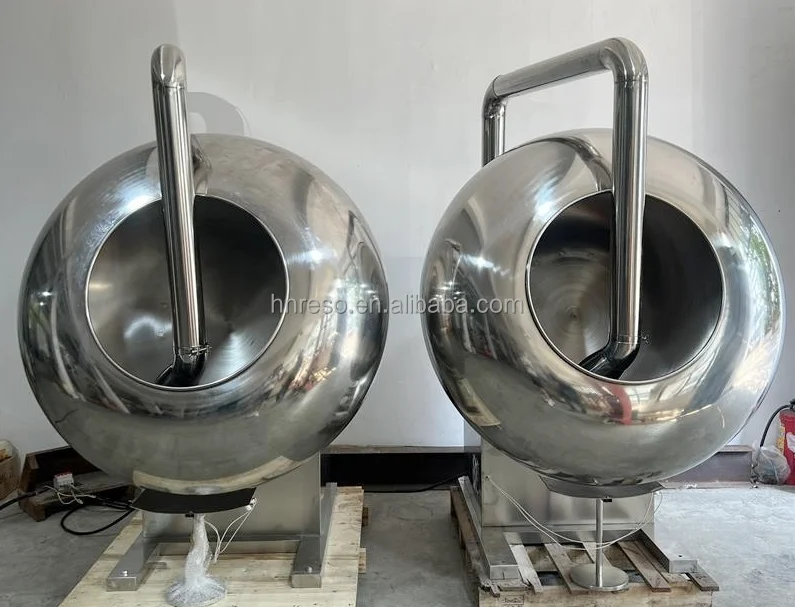

Bigger Model

Features：

The tilting angle of the suagr coating pot is adjustable, and the electric furnace or gas heater can be placed under the pot. An indidividual electric heating type blower is attached to this machine.

The air outlet pipe can be stretched into the pot to carry out heating or cold blowing and the heat is adjustable.

Details Images

Parameters of Small Sugar Coating Machine

Model	TYJ-300H	TYJ-400H
Diameter	300mm	400mm
Capacity(kg/time)	1-4kg/time	3-8kg/time
Rotate speed	0-46r/min	0-46r/min
Motor	300w	280w
Heating plate power	1000w	Air pipe power 100w
Dimension(mm)	320*260*310mm	520*410*860mm
Weight	15kg	33kg

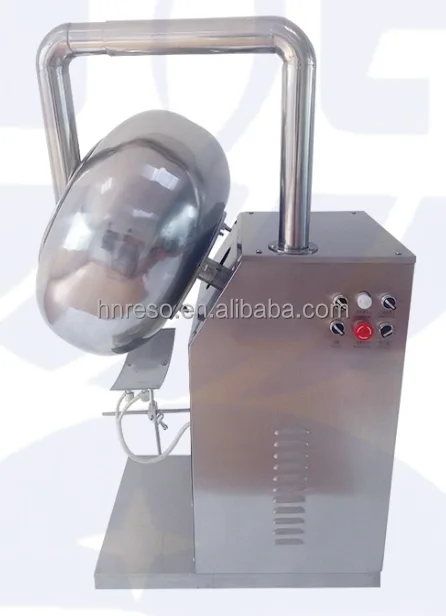

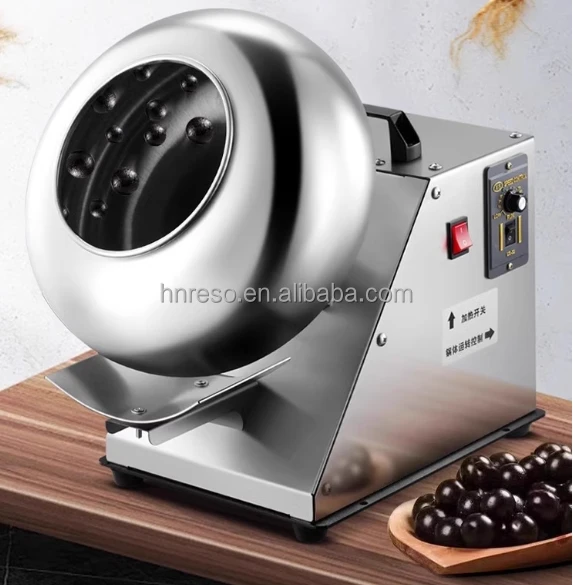

small model TYJ-300H

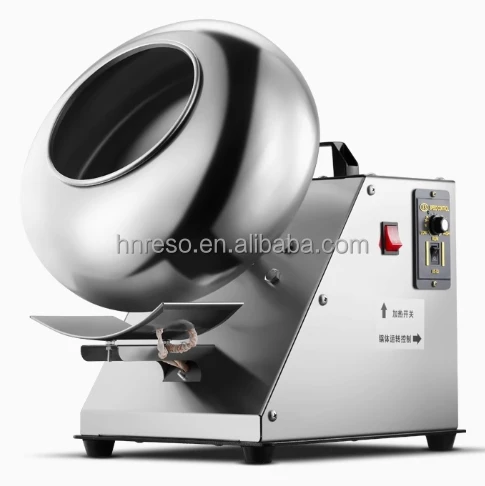

Small model TYJ-400H

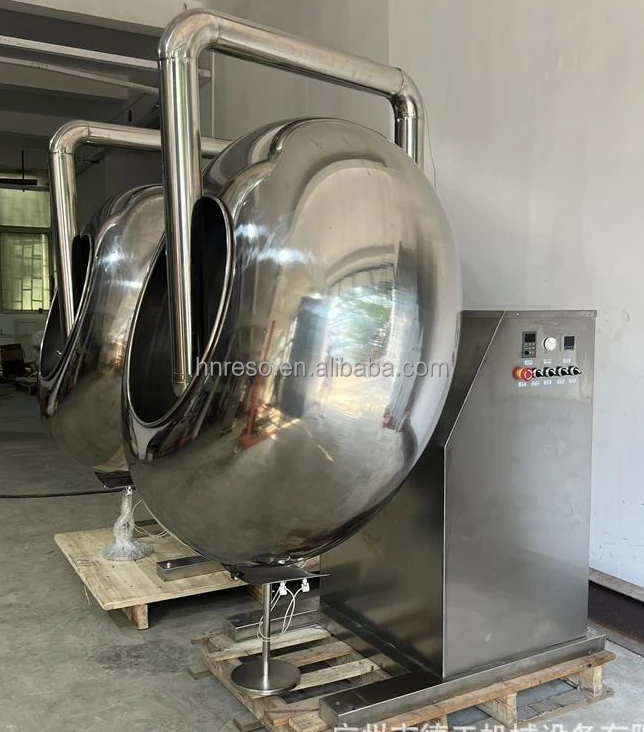

Parameters of Bigger Sugar Coating Machine

Model	TYJ-300	TYJ-400	TYJ-600	TYJ-800	TYJ-1000	TYJ-1250
Diameter	300mm	400mm	600mm	800mm	1000mm	1250mm
Capacity (kg/time)	1-3	2-5	5-15	30-50	50-70	90-150
Rotate speed	46r/min	46r/min	40r/min	32r/min	32r/min	30r/min
Adjustable angle	15-45°	15-45°	15-45°	15-45°	15-45°	15-45°
Motor	0.37kw	0.37kw	1.1kw	1.1kw	1.5kw	2.2kw
Fan power	40w	40w	120w	200w	200w	2.2kw
Dimension(mm)	485*585*766	485*585*810	805*600*1210	1150*800*1550	1150*1000*1600	1340*1250*1680
Weight(kg)	65	70	115	240	250	400

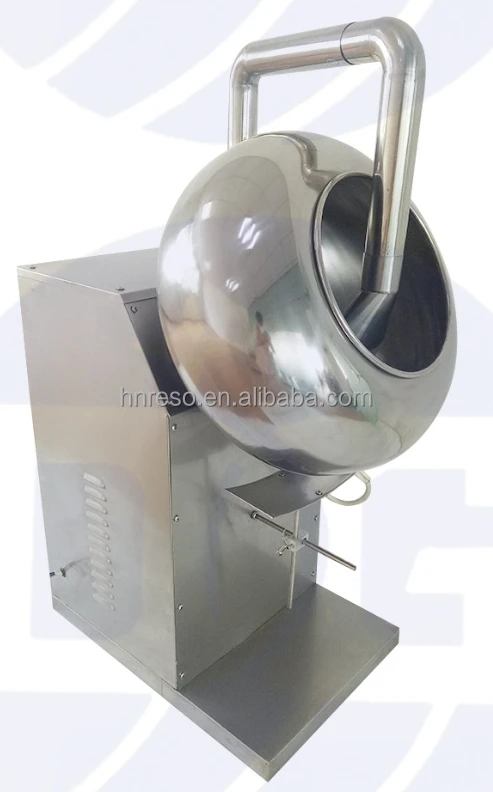

Sugar coating pot

High quality 304 stainless steel thickened integrated pot. No welding, bright inside and outside wall without dead angle.

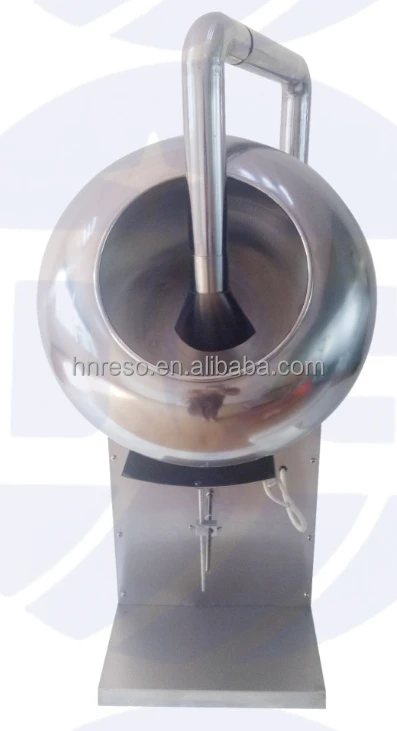

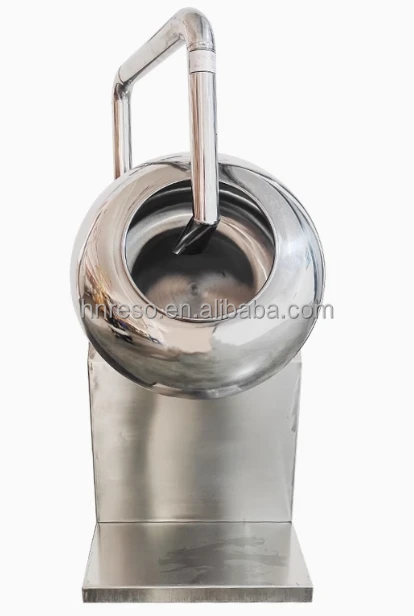

Air supply pipe

The blower passes hot air into the pot to remove the surface moisture of the product, so as to obtain qualified sugar-coated products. (Air pipe can be removed when not in use)

External heater

Used to heat the outside of the pot body, the heating plate can be adjusted high and low, front and rear.

Electrical control panel

Chinese and English control switch, simple and convenient.

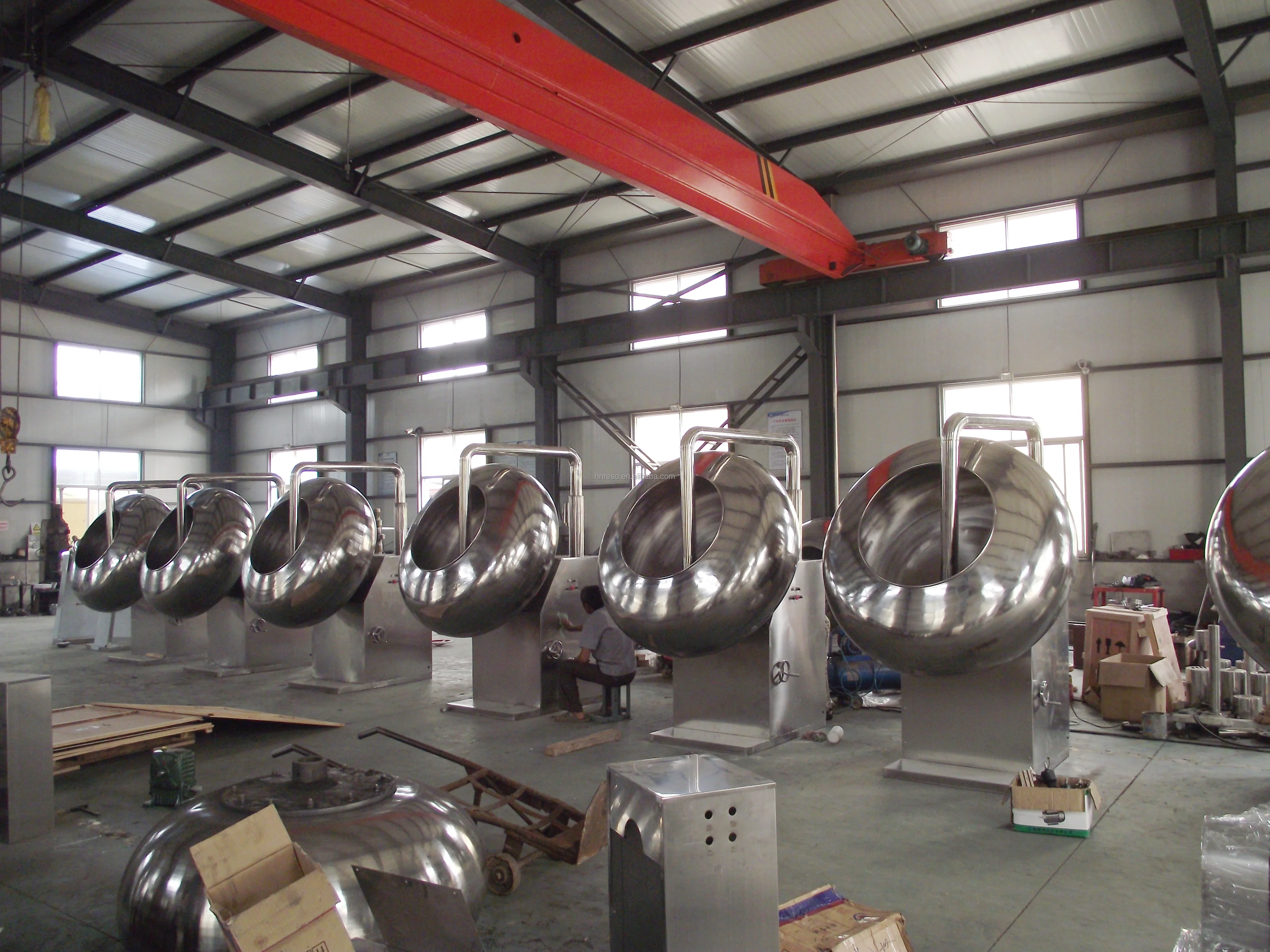

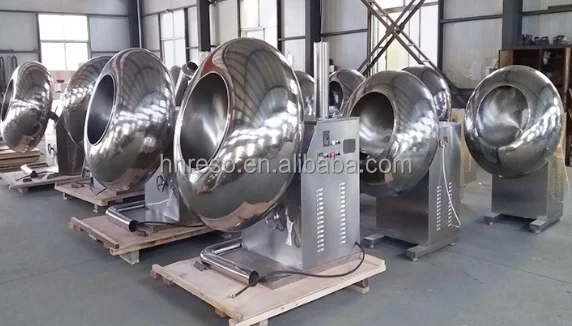

Our workshop and inventory

Final product effect display

MOQ	Minimum order quantity is 1 set, More quantity more discount.
Machine Voltage	We can customize the voltage as your actual request. Such as 110v/220v/380v/415v, single phase or three phases.
Payment methods	Alibaba online transfer, T/T, Credit card, Western Union, RMB , Alipay, Wechat, Cash, E-checking, MoneyGram, L/C, etc.
Warranty time	Our warranty time is 1 year. During guarantee period, free technical support and free spare parts supply.
Machine quality	All machines are brand new, and the quality of the machines is our top priority. Before leaving the factory, we will test the machines to ensure that they can work normally.
Documents offer	By express: express waybill.By air: airway bill. By sea: B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request.
Assignment of engineers and training	we can supply manual book, work video, install video, pictures first, we can also assign our engineers to go abroad for installing or training machines for our users.
