Boat Accessories Marine Satellite Compass Vessel Compass with Gyro Precision 0.4RMS GPS+BDS

Boat Accessories Marine Satellite Compass Vessel Compass with Gyro Precision 0.4RMS GPS+BDS

CFA1,350,150 XOF
CFA0 XOF CFA1,350,150 XOF
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Model Number
Product Description

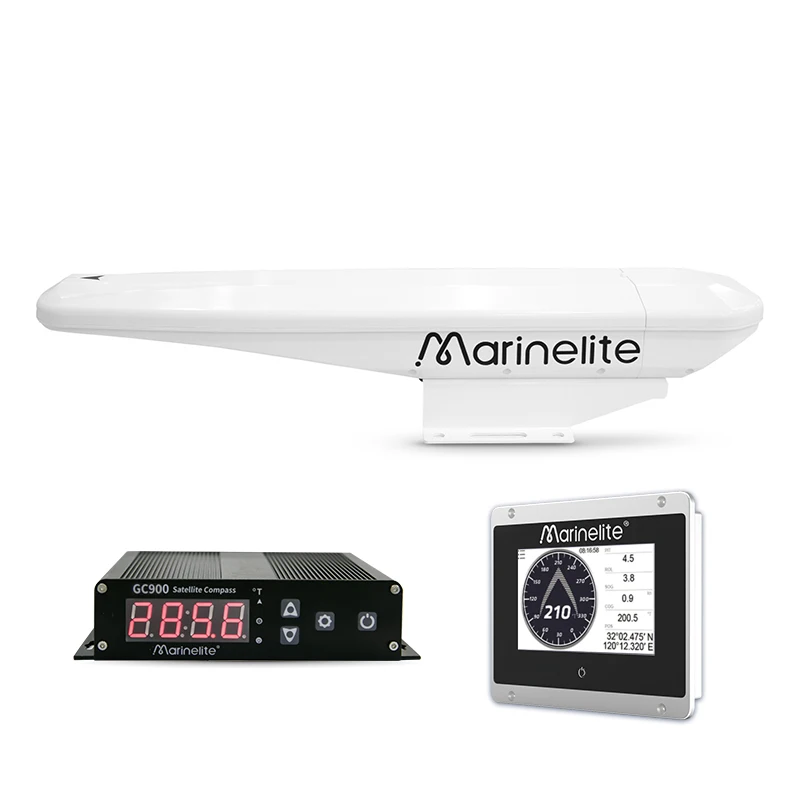

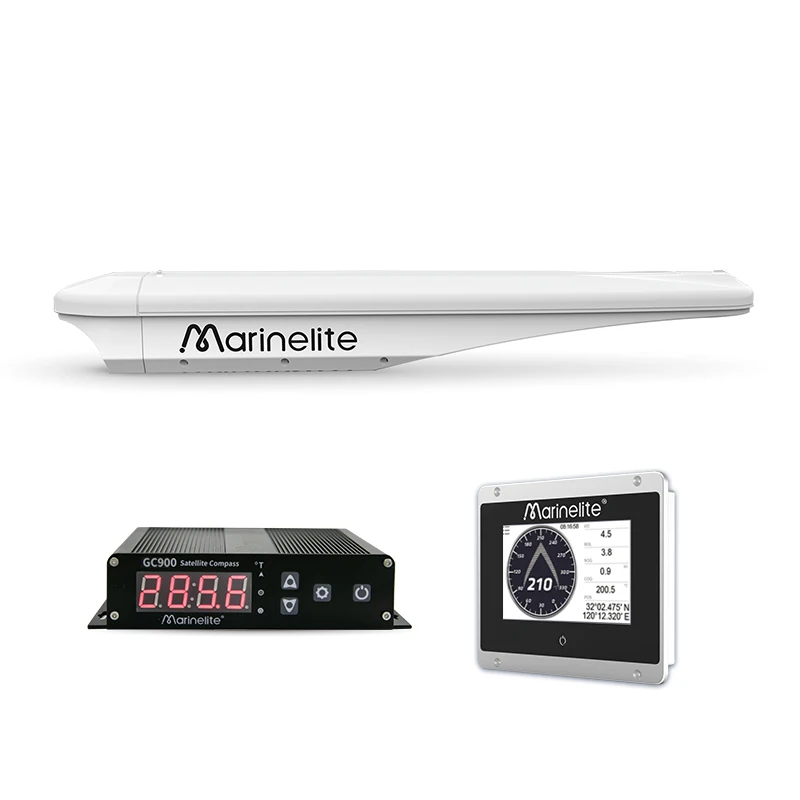

Boat accessories marine satellite compass vessel compass with Gyro precision

GNSS-powered high accuracy compass
High precision and accurate heading of 0.4° (GC901)
Perfect for Radar, ECDIS, AIS, Doppler Sonar and Autopilots

Features:
GC901 provides a high system accuracy for the heading of the ship, 0.4°
Provides highly accurate heading data for Autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilot.

Pre-type carrier phase decoding technology, more precise orientation; Beidou/GPS dual-star system with faster directional speed; Advanced speed and course filtering technology to make the data more stable; Built-in gyro compensation system has better performance; Built-in high-precision inertial navigation module, when the satellite navigation signal is weak or temporarily lost, the heading can keep 1min of compensation output without interruption; It has the characteristics of fast start, signal recapture, heading update up to 20 times per second, and can operate at a continuous turning rate of up to 90° per second; The display instrument is light-weight design, partial to installation, and multiple display modes are available; Compared with gyro compass, basically no maintenance; Multi-channel standard NMEA0183 output, which can be connected to multiple different navigation systems such as radar and AIS.

Specification
General
GC901
Frequency
B1, L1, G1
Baseline length
60cm
Heading Accuracy
0.4°RMS
Attitude accuracy
Pitch/ Roll: 0.4° RMS
Cold start
Less than 2 min
Position Accuracy
2.5m
First Positioning time
Cold start: ≤32s Hot start: ≤1s Recapture: ≤1s
Speed measurement accuracy
GPS+BDS : 0.1m/s
Interface
Number of ports
NMEA data interface GNSS output ×2, baud rate 9600bps；
HDT output ×2, the baud rate can be selected by yourself, the default is
4800bps；
HDT and GNSS output × 2, the baud rate can be selected by yourself, the default is 38400bps；
AD-10 ×1
Display unit ×1 CAN
preset ×1
Data sentences
RMC, VTG, GGA, GSA, GSV, GLL, ZDA, GST, TXT, GBS, GNS, GRS, HDT, ROT
Display unit (Optional)
Screen
5"
Resolution
854*480
Display mode
Compass + data, heading mode, positioning data mode, ROT mode
Power Supply
11～35V
Temperature
-30℃～+70℃ Antenna unit IP56
Degree of protection
Junction box IP20
Vibration
IEC60945
