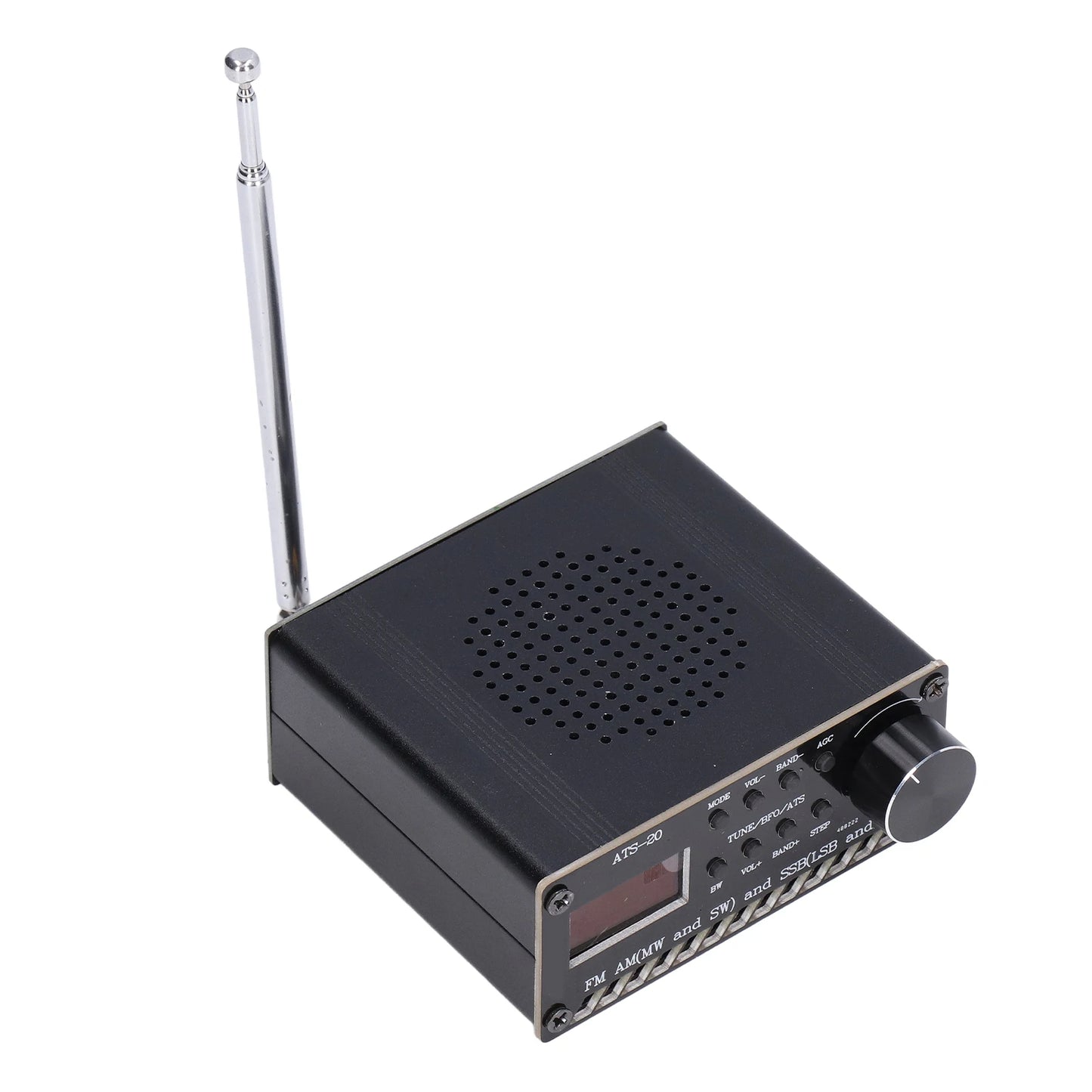

ATS-20 Radio Full Band Receiver DSP FM AM SSB Si4732 Portable Rechargeable with Antenna

CFA16,025 XOF

~~CFA0 XOF~~ CFA16,025 XOF

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Color A

Radio Full Band Receiver DSP FM AM SSB Si4732 Portable Rechargeable with Antenna

Feature:

1. Full Band Radio: Supports FM and AM (MW and SW), and SSB (LSB and USB) as well, this radio is very reliable.
2. Practical Using: Comes with 0.5, 1, 1.2, 2.2, 3 and 4khz audio bandwidth filters, works with good stability.
3. Good Presetting: The full band radio also has 22 pre configured commercial radio and ham frequency bands.
4. Better Control: With bfo control and frequency step switch at 1.5 and 10kHz, the operation is very simple.
5. Other Function: Power down storage function simplifies the working, while the USB port enables quick charging.

Specification:

Item Type: Radio
Battery: Use 3.6v lithium battery 600mAH (shipped with built in battery).
Charging: Type C USB charging.
Audio Output: Supports audio output, supports 3.5mm earphone.
Speaker: Support 8 ohm speaker 1w.
Antenna Interface: Use SMA antenna interface.
Function: Upgrade power down storage function.

How to Use:

1. {FM_BAND_TYPE, 8400, 10800,9050, 10},

2. {LW_BAND_TYPE, 100, 510, 300, 1},

3. {MW_BAND_TYPE, 520, 1720, 810, 10},

4. {SW_BAND_TYPE, 1800, 3500, 1900, 1}, // 160 meters

5. {SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters

6. {SW_BAND_TYPE, 4500, 5500, 4850, 5},

7. {SW_BAND_TYPE, 5600, 6300, 6000, 5},

8. {SW_BAND_TYPE, 6800, 7800, 7200, 5}, // 40 meters

9. {SW_BAND_TYPE, 9200, 10000, 9600, 5},

10. {SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters

11. {SW_BAND_TYPE, 11200, 12500, 11940, 5},
