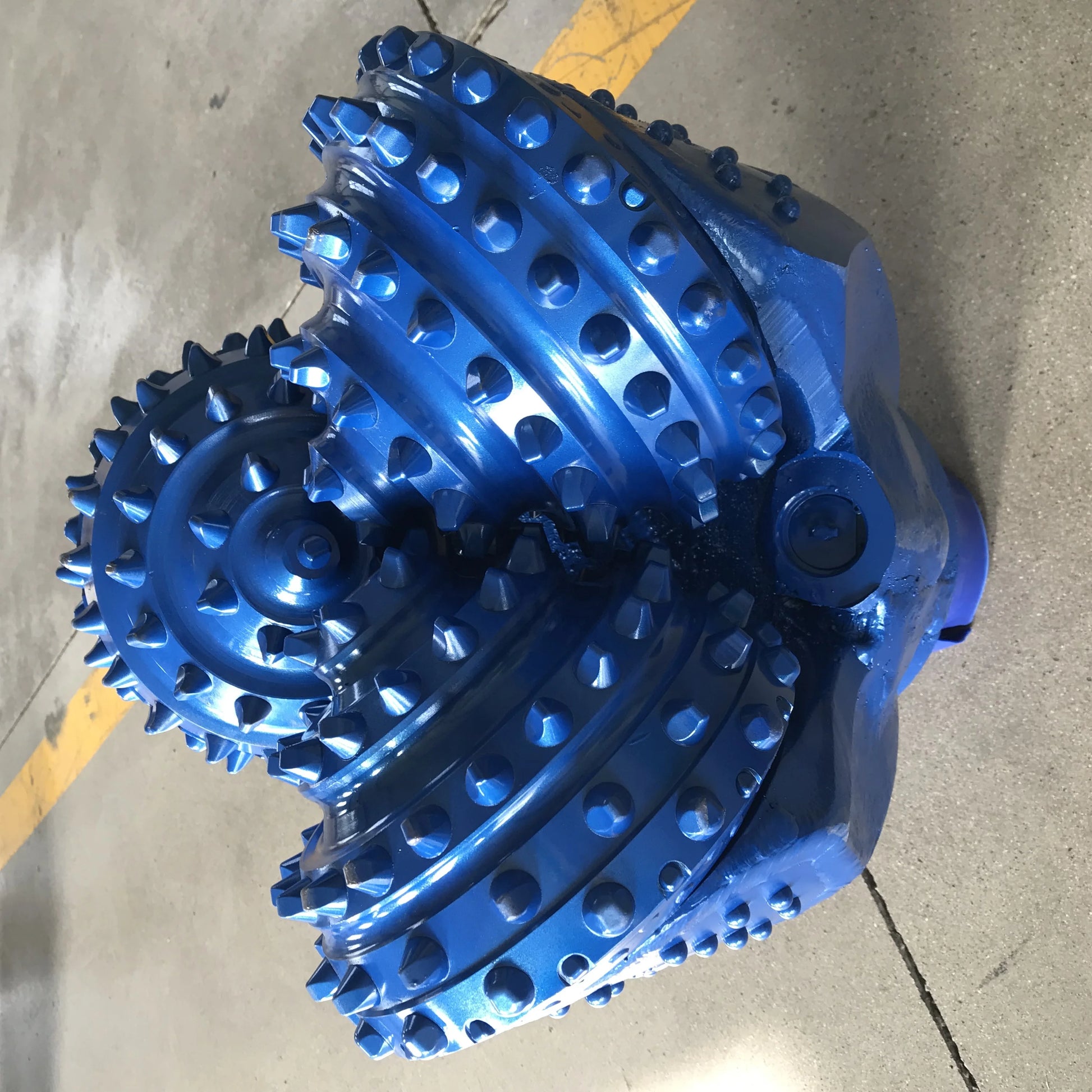

API 17 1/2" IADC537 TCI Tricone Bit Rock Drill Head for Well Drilling

CFA3,098,902 XOF

~~CFA0 XOF~~ CFA3,098,902 XOF

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Model Number 17 1/2" HA537G

SPECIFICATIONS

Applicable Industries: Energy & Mining

Application: Water ,Oil and Gas Well Drilling

Bearing type: O-Ring Sealed Journal

Bit Diameter: 17 1/2"=444.5 mm

Brand Name: EAST

Condition: New

IADC Code: 537

MOQ: 1 Piece

Machine Type: Drilling Tool

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Material: Carbon Steel

Packing: Plywood Box

Place of Origin: Hebei, China

Processing Type: Casting

Product name: API 17 1/2" IADC537 TCI Tricone Bit Rock Drill Head for Well Drilling

Showroom Location: None

Standard: API Reg. 7-1

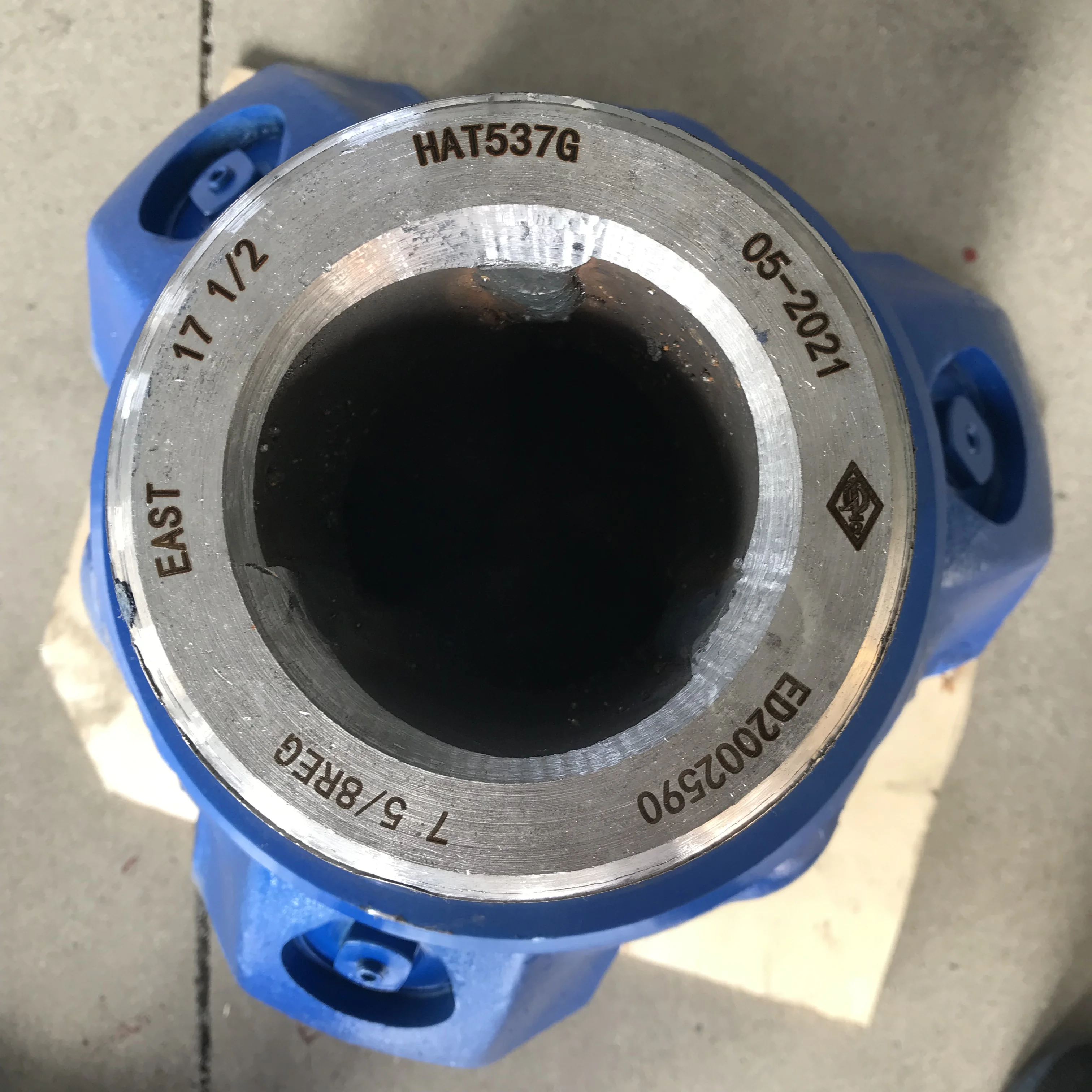

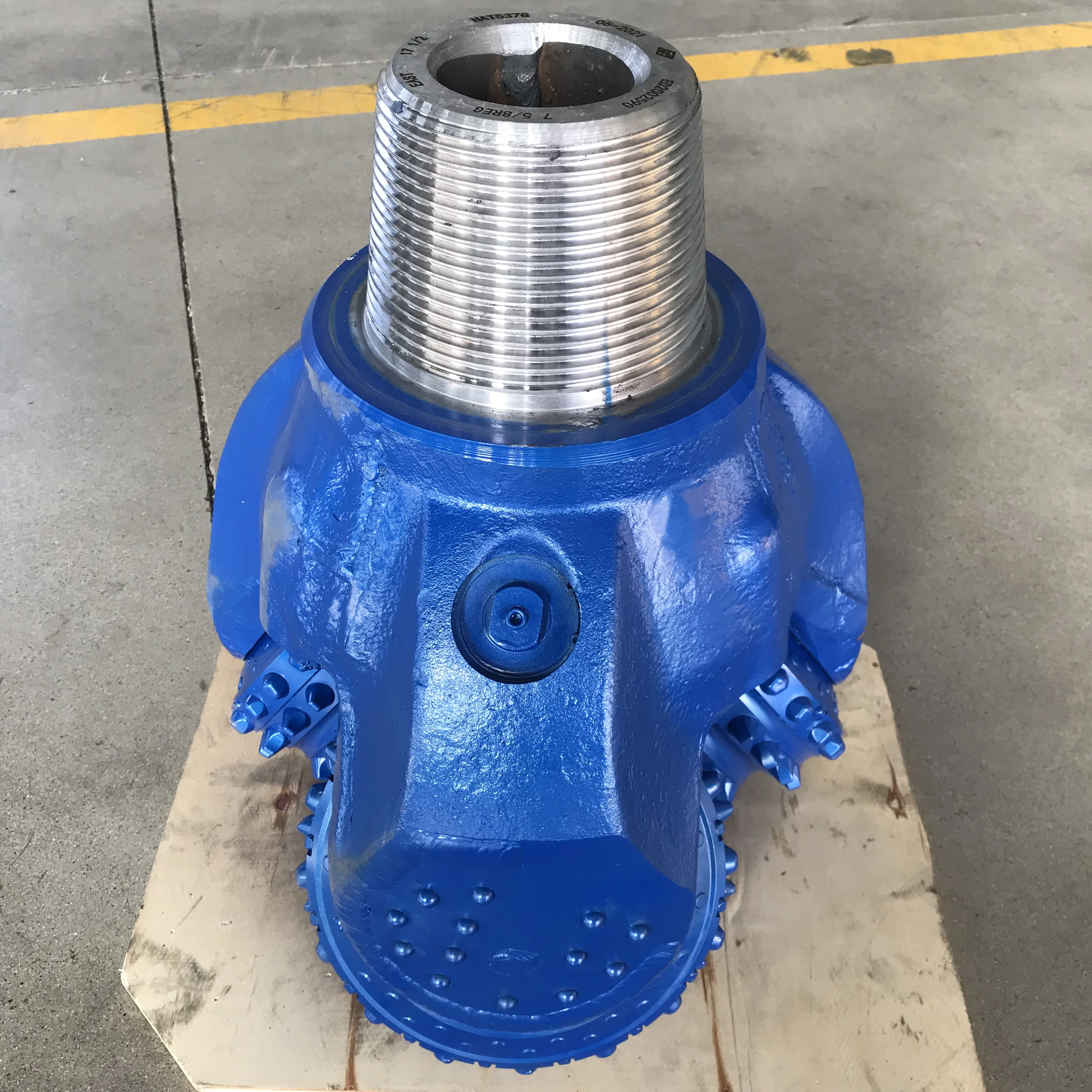

Thread: API Reg. 7 5/8

Type: DRILL BIT

Use: Well Drilling

Video outgoing-inspection: Provided

Warranty: 2 Years

Weight: 280 Kgs

Weight (KG): 255

Recommend Products

TCI Tricone Bit

Steel Tooth Bit

PDC Bit

Step Drag Bit

Core Barrel

Single Roller Cone

Hole Opener / Reamer Bit

Wellhead Tools

Casing&Drill Pipe

Product Description

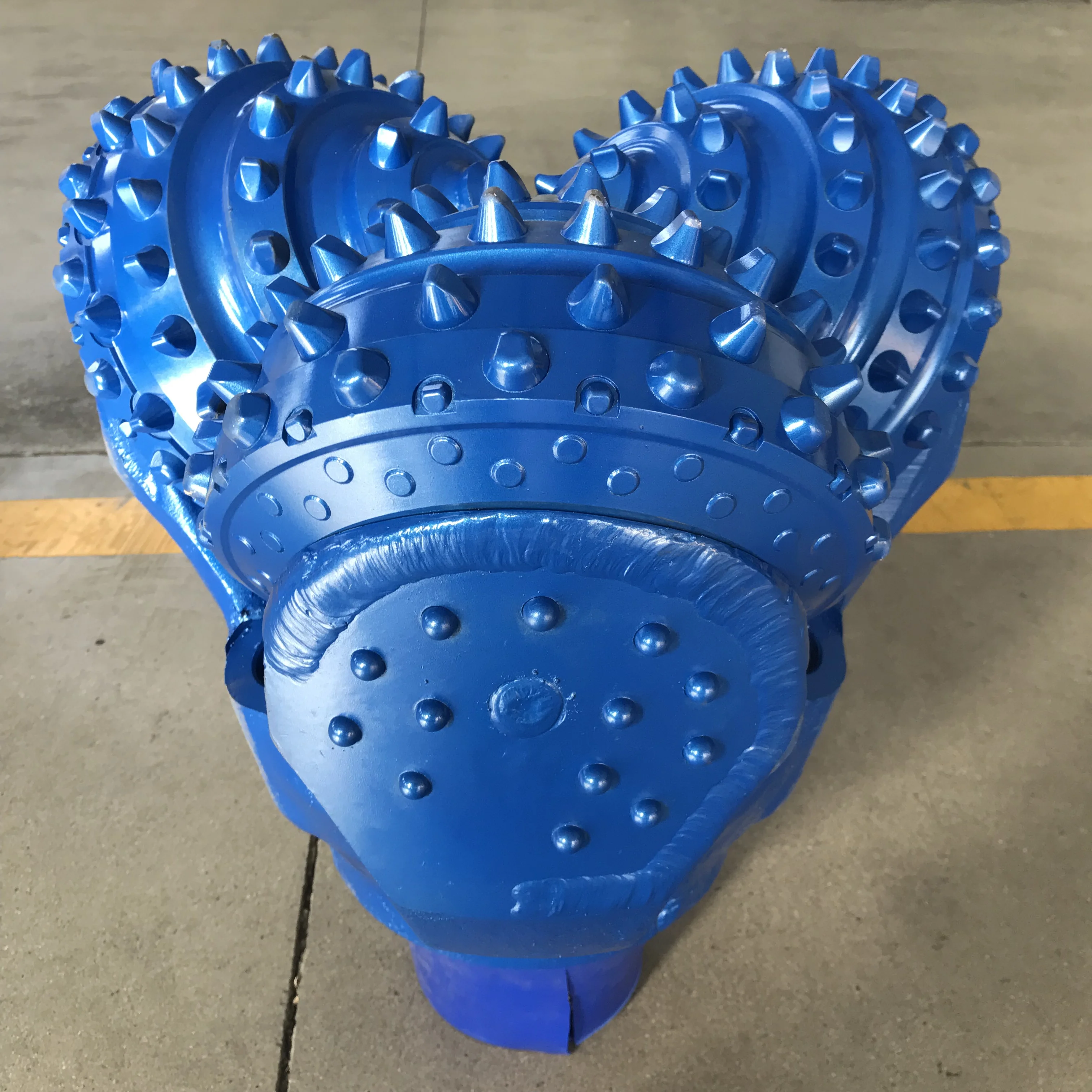

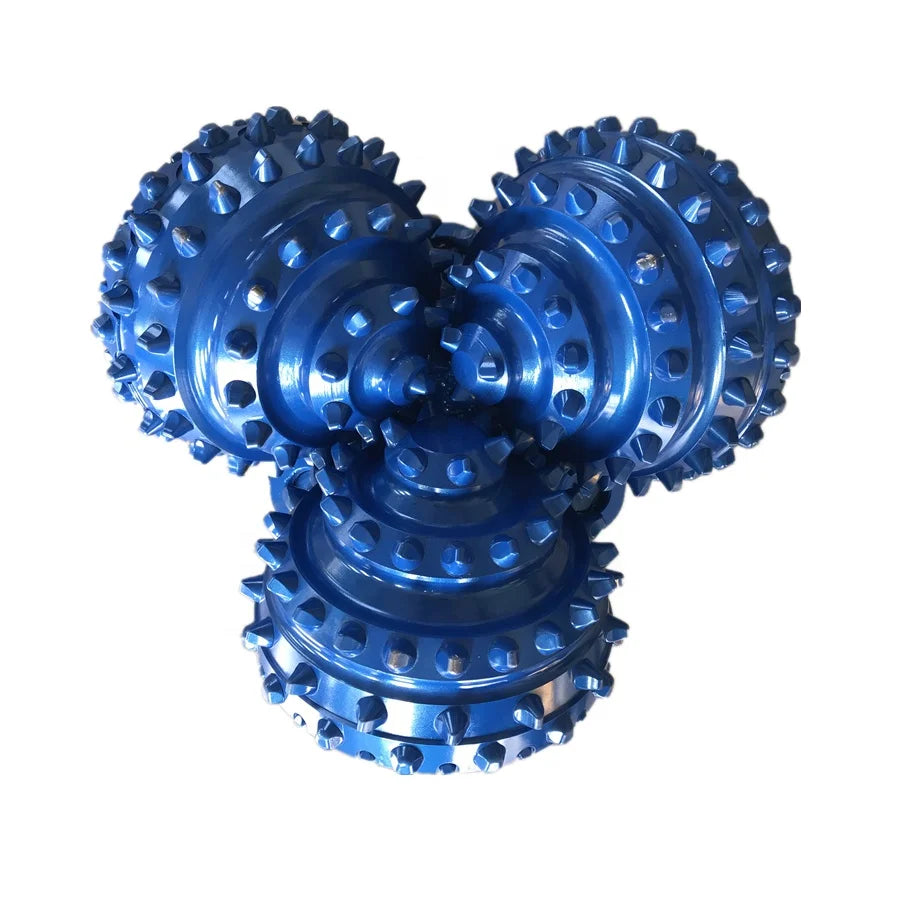

API 17 1/2" IADC537 TCI Tricone Bit Oil Gas Bit Rock Drill Head

Tricone bit is mainly used in oil well,water well, and geothermal well drilling engineering.

Our well drilling bit is designed and manufactured according to the standard of API 7-1.

Its features as long life, high drilling efficiency and low operation cost.

At present, more than 20 types drilling bit with sizes ranging from 3" to 26" have been developed by our team, which can be applied to different formations from soft to very hard.

API 17 1/2" IADC537 TCI Tricone Bit Oil Gas Bit Rock Drill Head
Bit Diameter	17 1/2"=444.5 mm
IADC	537

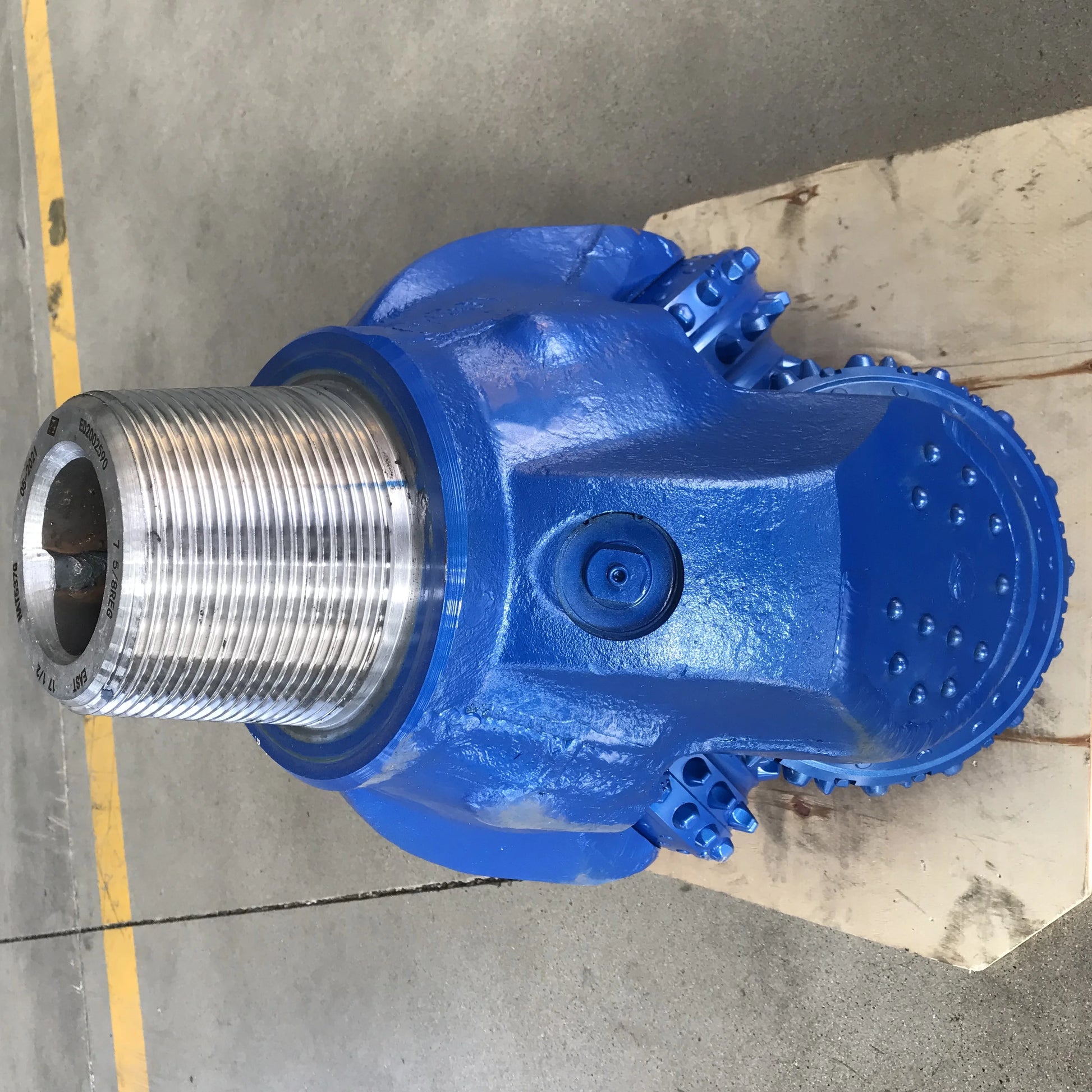

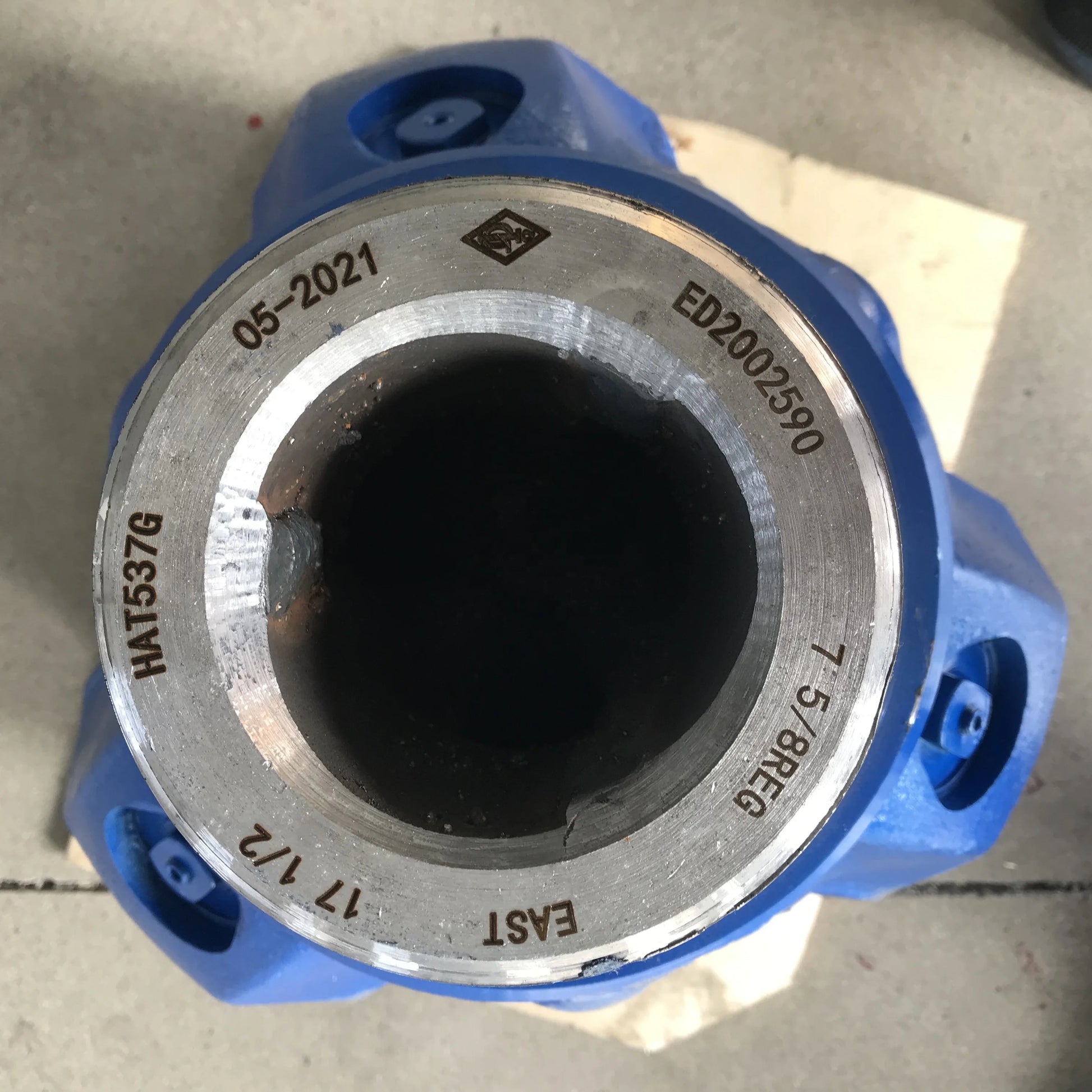

Pin Thread	API Reg. 7 5/8"
Bearing	O-Ring Sealed Bearing
Net/Gross Weight	280 Kgs
Packing Size	500500650 mm
Rotary Speed	120~50RPM
Normal WOB	0.35~1.05 KN/MM

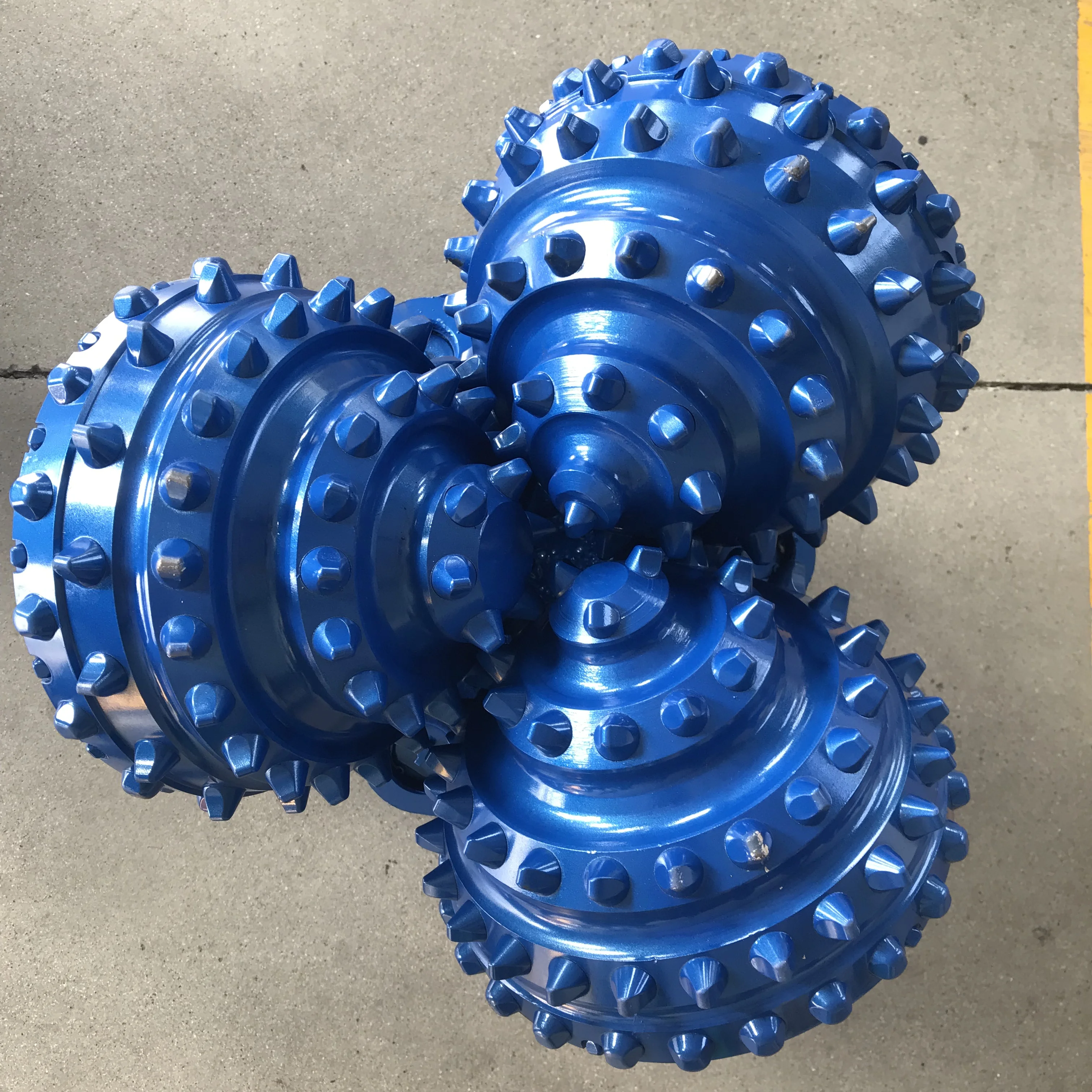

Cutting Structure	Large dia offset crested scoop compacts in inner row,with added number of compact rows,and a row of trimmers is added between gauge row and heel row.
Drilling Formation	Medium with low compressive strength and high drill ability,such as shale,clay,sandstone and soft limestone,etc

Optional Features of Tricone Bit

G - Guage Protection

Special carbide inserts are strategically fixed on the back

of cones to effectively reduce wear in abrasive formation and directional and horizontal wells and extend the bit life.

L - Bit Stabilization

The function of bit stabilization is for improving working situation of bit,which can effectively protect head abd compensator recess in well drilling.

C - Center Jet

Center jet can avoid bit balling,eliminate resorting area of fluid at bottom hole,expedition upward flow of cutting and improve ROP.Its suitable for drilling in soft to medium soft formations with low compressive strength and high drill ability.

T - Enhanced Carbide Inserts

The enhanced carbide inserts in heel ,gage rows and head OD can make the bit to work long time and better performance when drilling in more abrasive ,hard and extreme hard formations.

Tungsten Carbide Insert Shapes

K - Hard Formation Cutting Structure

The bit adopts unique design parameters and extended cutting tooth-top to imporve the bottom hole crushing wolume and bottom hole coverage of the teeth and improve the penetration rate of the bit in the hard formation drilling.

X - Wedge Tooth

The main cutting teeth of the bit are wedge-shaped teeth, which have the characteristics of high cutting efficiency and strong crushing resistance for a specific medium soft to medium hard formation, effectively improving the penetration rate of the bit and making the bit working long time.

Y - Conical Insert Shape

The main cutting teeth of the bit are conical teeth,which are suitable for drilling in hard and brittle formation.usually IADC 637 tricone bit use this shape carbide insert on cones.

About us

Cangzhou East Drilling Tools Co.,Ltd is a China professional manufacturer of tricone bit,PDC bit,hole opener ,drag bit in Oil&Gas,Mining and Water Well Drilling fields.

Our company has worked on production and exporting business more than 15 years and have exported to America,UK,Canada,Italy,Dubai,Singapore,Brazil,South Africa and so on.

We have professional team to offer good quality drilling bits and also can provide creative solutions for you. So welcome to send inquiry to us !

Why Choose us ?

Cangzhou East Drilling Tools Co.,ltd

As one of the professional suppliers of tricone bit and PDC drill bit in China

* we have more than 500+ clients around the world

* 14+ years export experience can offer good service for you

So if you have any inquiry,pls feel free to contact us !

EAST Drilling Tricone Bit Stock for Normal Types
Bit Diameters	IADC Code	Pin Size	Net/Gross Weight	Stock Quantity
7 7/8"=200 mm	116,117,127,537,637	API Reg. 4 1/2"	32/35 Kgs	20 Pieces
8 1/2"=215.9 mm	117,127,437,517,537,637	API Reg. 4 1/2"	40/45 Kgs	50 Pieces
9 1/2"=214.3 mm	117,127,437,517,537,637	API Reg. 6 5/8"	50/58 Kgs	30 Pieces
9 7/8"=250 mm	117,127,437,517,537,637	API Reg. 6 5/8"	55/68 Kgs	20 Pieces
12 1/4"=311 mm	117,127,437,517,537	API Reg. 6 5/8"	80/95 Kgs	32 Pieces
13 5/8"=346 mm	117,127,437,517,537	API Reg. 6 5/8"	110/125 Kgs	12 Pieces
14 3/4"=375 mm	117,127,437,517,537	API Reg. 7 5/8"	130 /145 Kgs	12 Pieces
17 1/2"=444.5 mm	117,127,437,517,537,637	API Reg. 7 5/8"	270/290 Kgs	15 Pieces
Notice: the stock was changed every week,if you need ready stock,pls confirm with us in advance

Packing & Delivery

Packing

Plywood box is the most popular packing for tricone bit,we also accpet special packing reqirement before shipment or production.For example ,Carton Box Design with your company name.

Delivery

Usually we have enough stock for the normal size of tricone bits ,so the delivery time will be 2-3 work days,we need this time to paint and packing.If we dont have stock or stock is not enough,we will need 7-30 work days to produce as your requirement.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and has exported many years.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. We need produce time 7-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for testing with very good price but is not free,we can reduce some money for further coopertation .

Q: What is your terms of payment ?

A: If the goods on stock, 100% in advance. If the lead time more than 10 work days,Payment 30% T/T in advance ,rest balance before shippment,or 100% payment in advance through Alibaba.com.
If you have another question, pls feel free to contact us as below:
